H2 Mounting Bracket for TPU Feed Assist Module
Print Profile(1)
Bill of Materials
Description

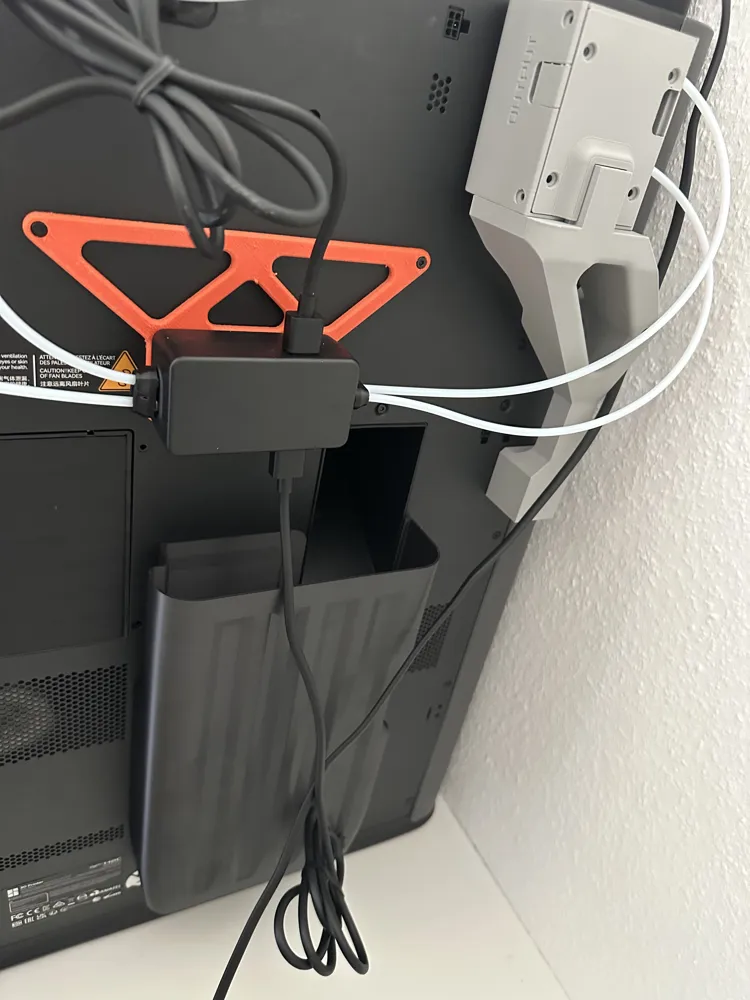

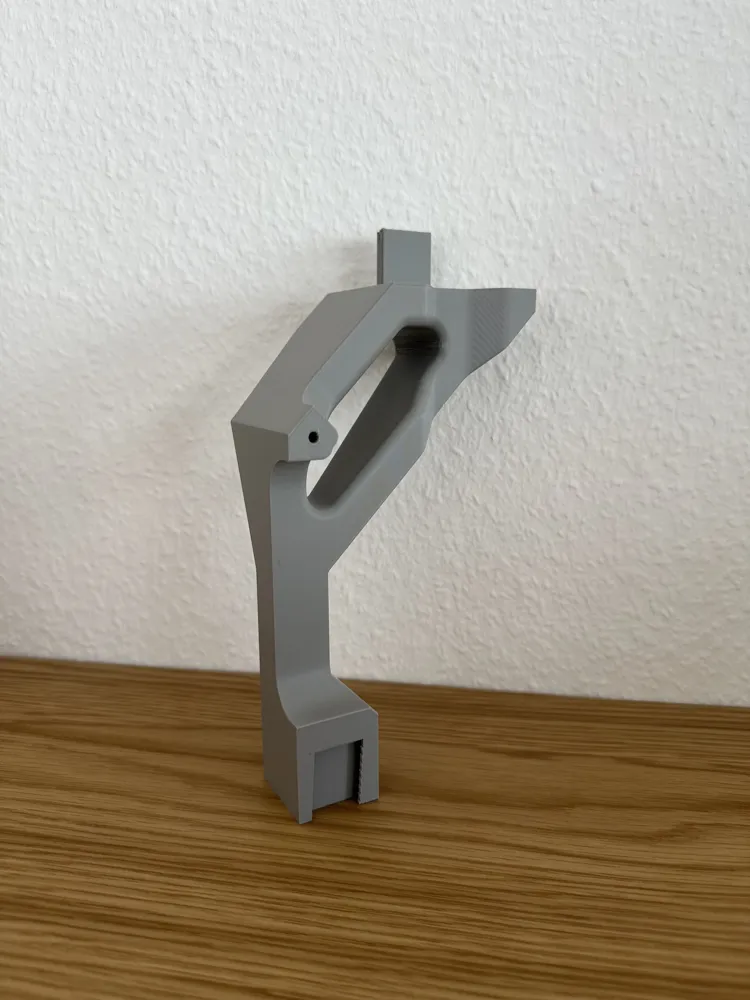

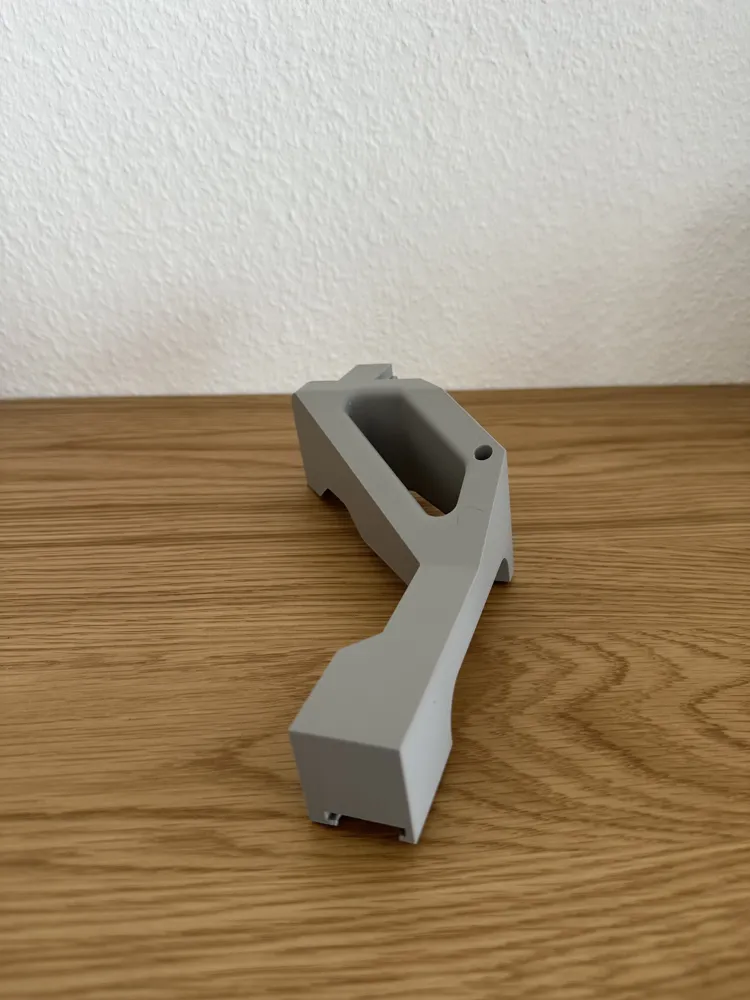

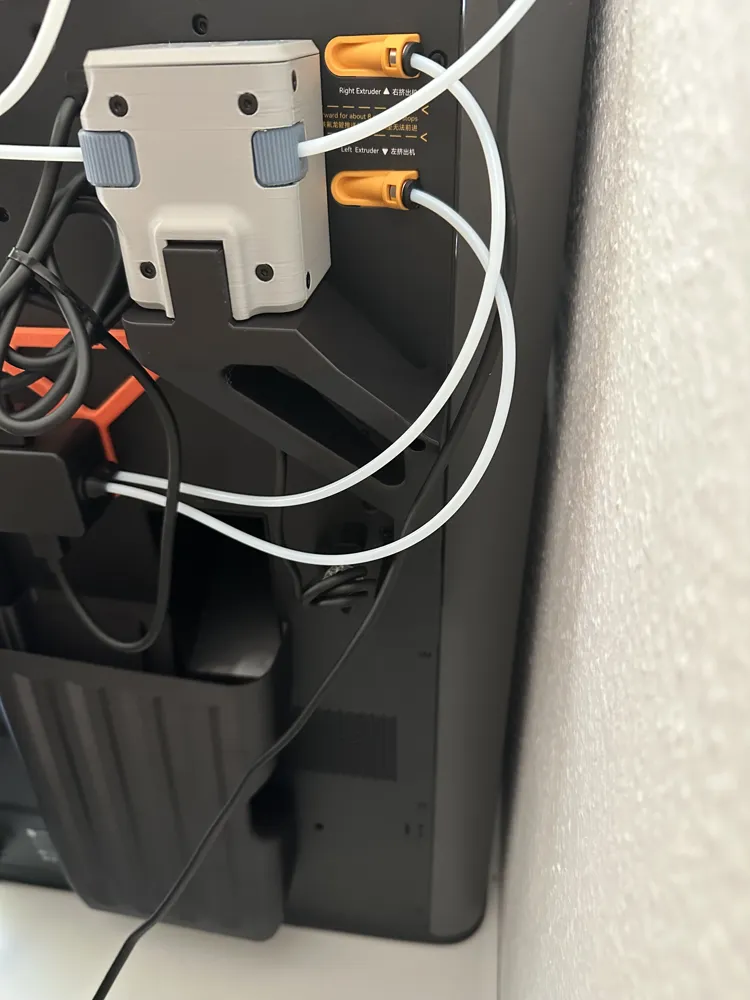

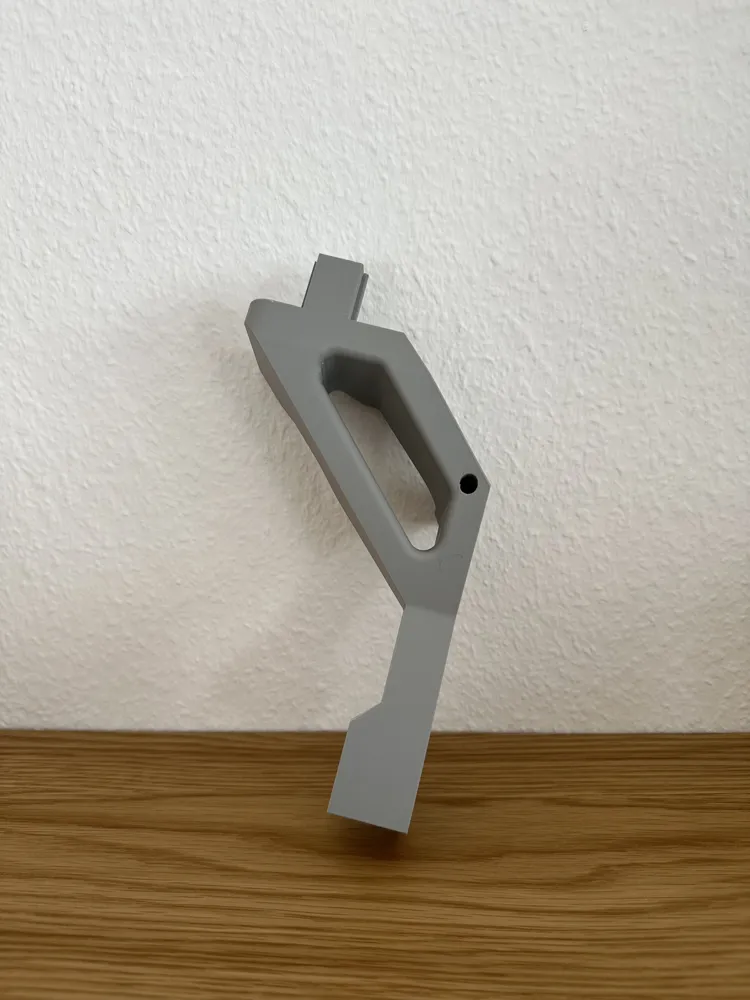

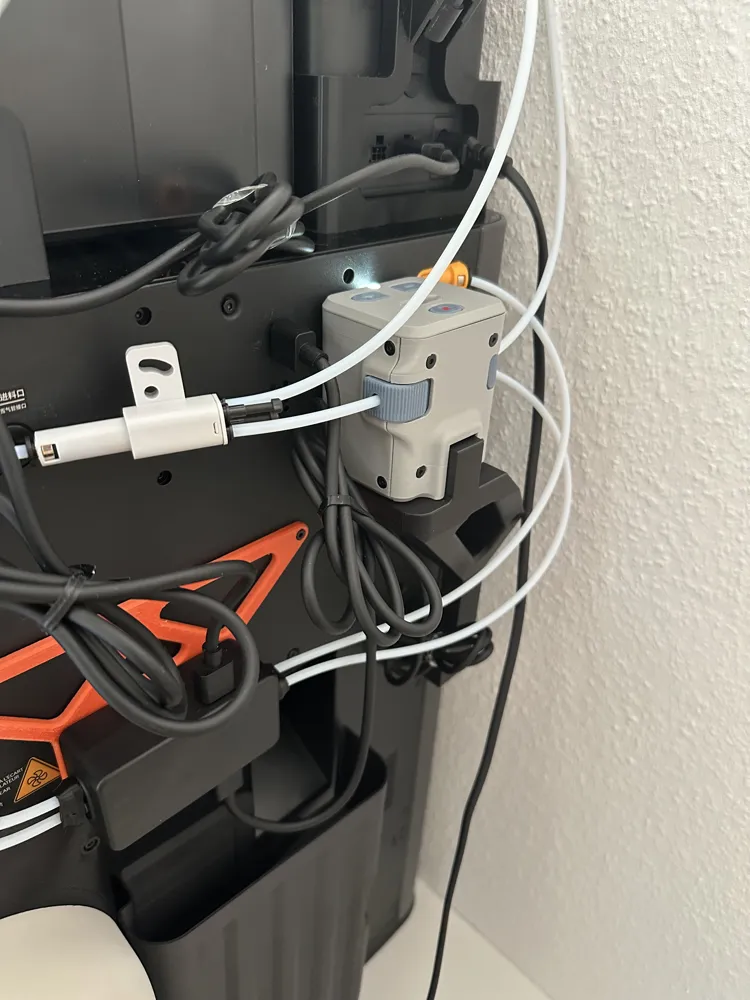

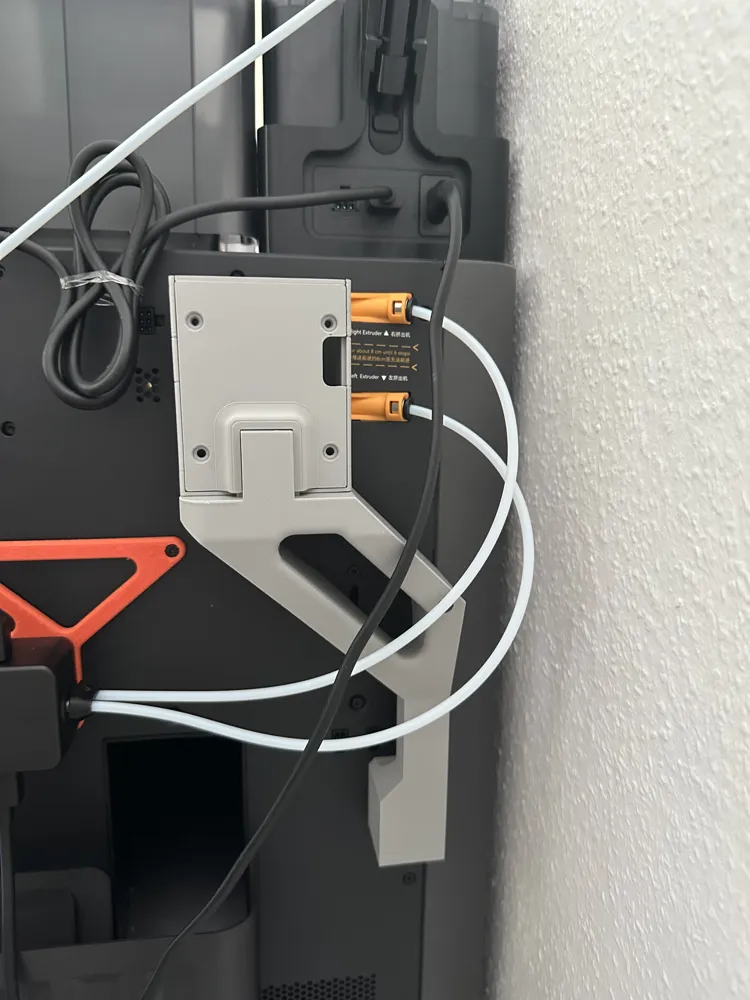

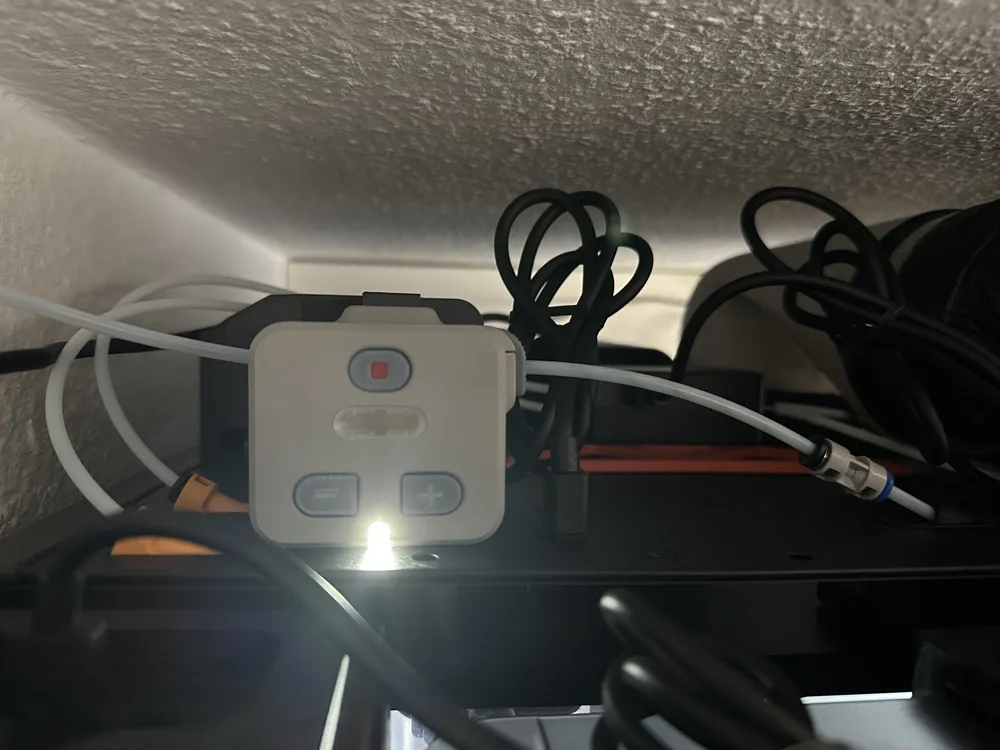

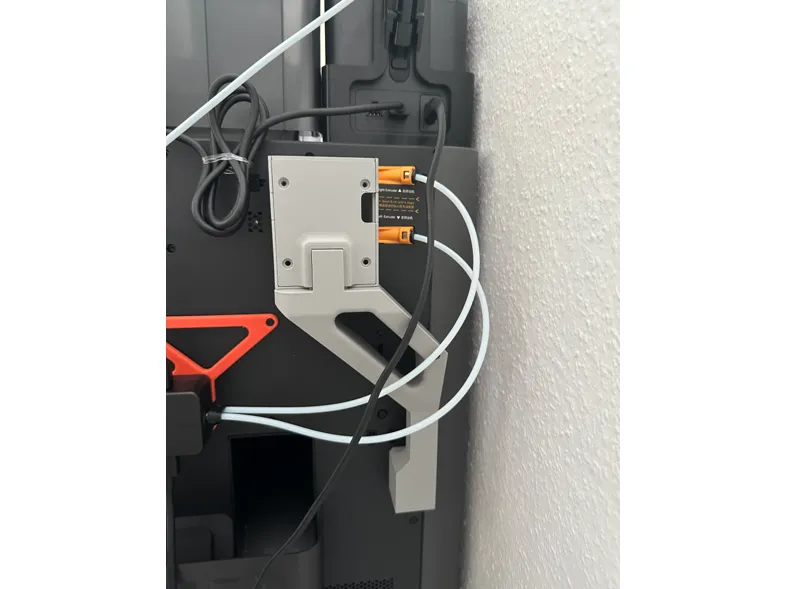

Mounting Bracket for H2 Series - Close to external filament inlet
I designed this mounting bracket for people who have no space for the original Bambulab TPU feed Assist Module on the left side of their printer
Why this model
- doesn't need additional space for the TPU Feed Assist module

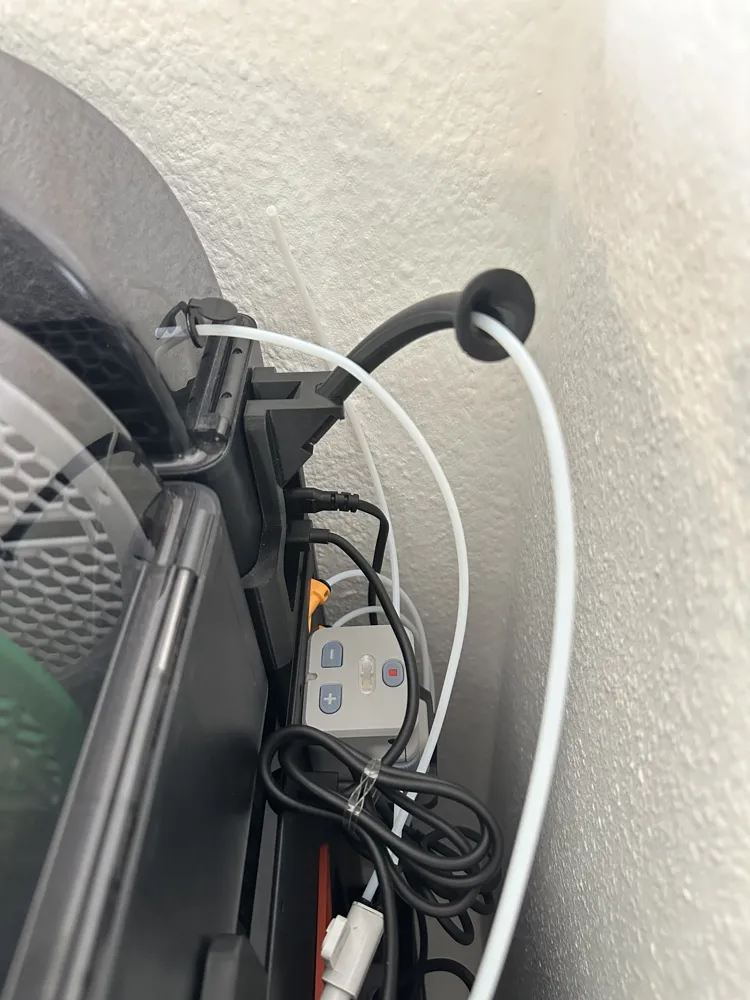

- less filament-friction due to a shorter PTFE tube filament path
- same mounting points as the original design by Bambulab → same easy installation as original one
- has cutouts for all cable connections as well as for the filament track switch
- no additional hardware needed
- works with all H2-series printers

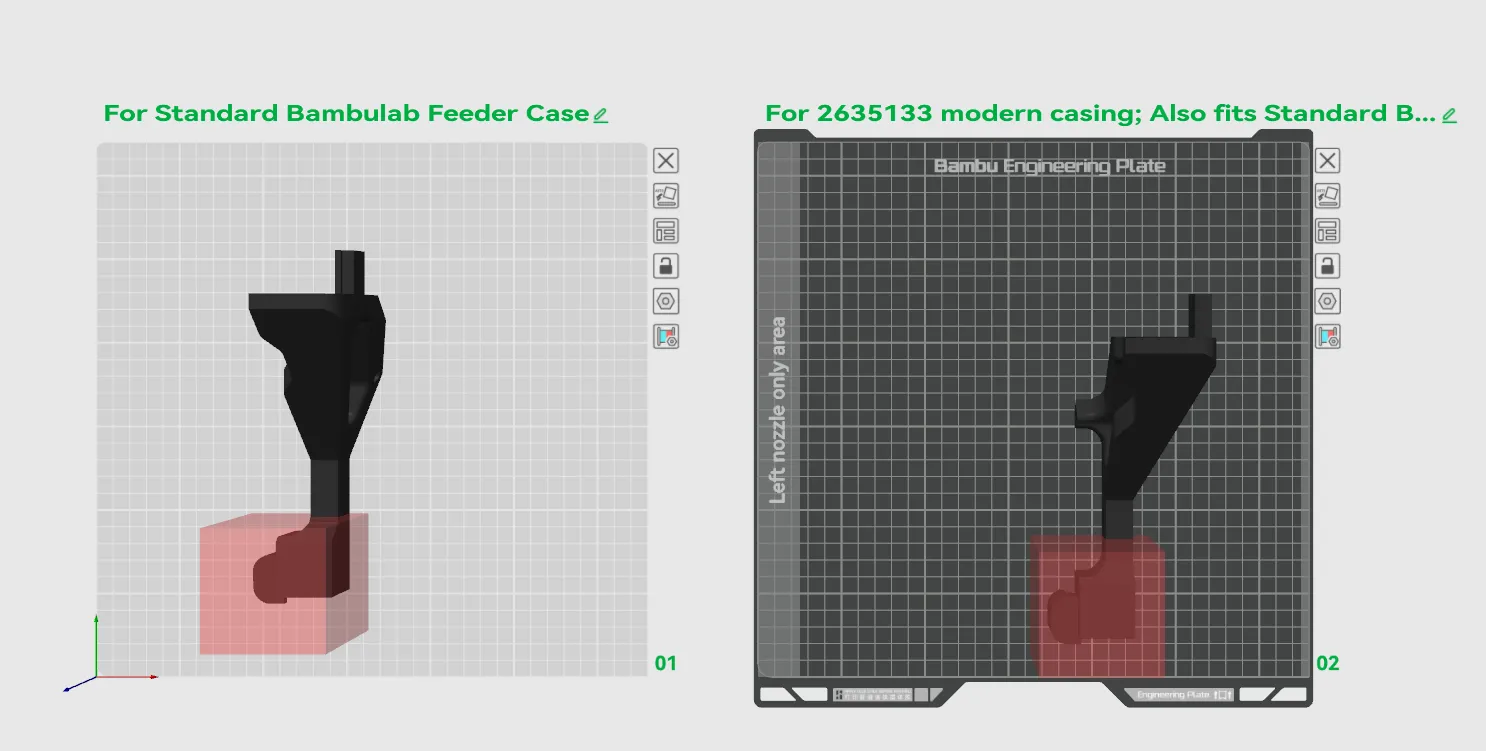

- choose from 2 Models:

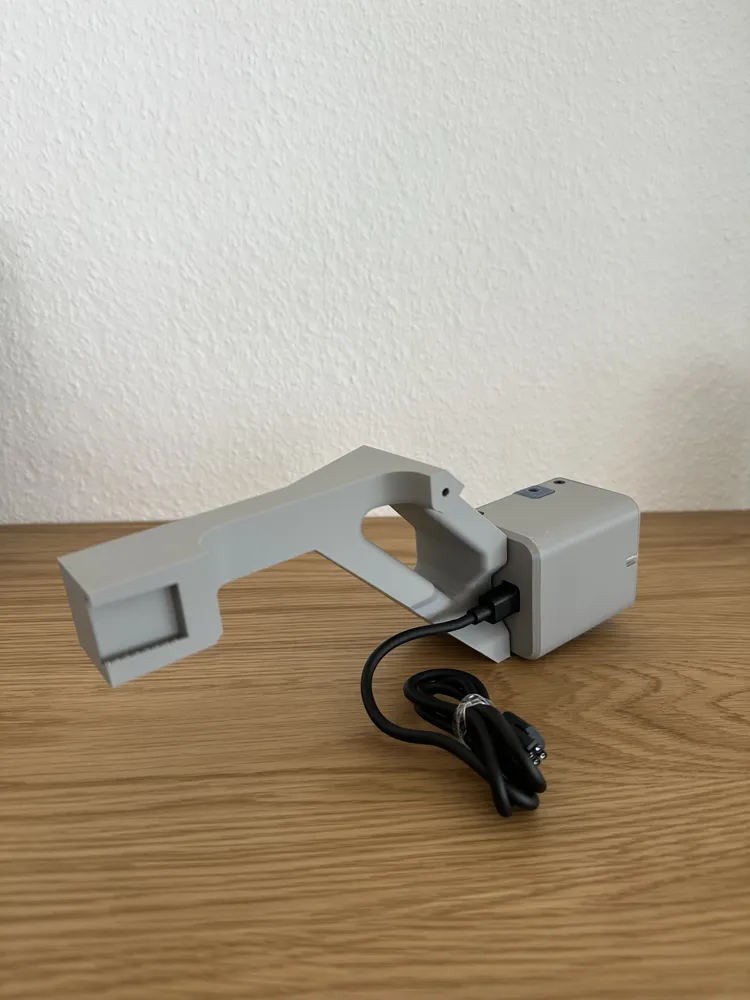

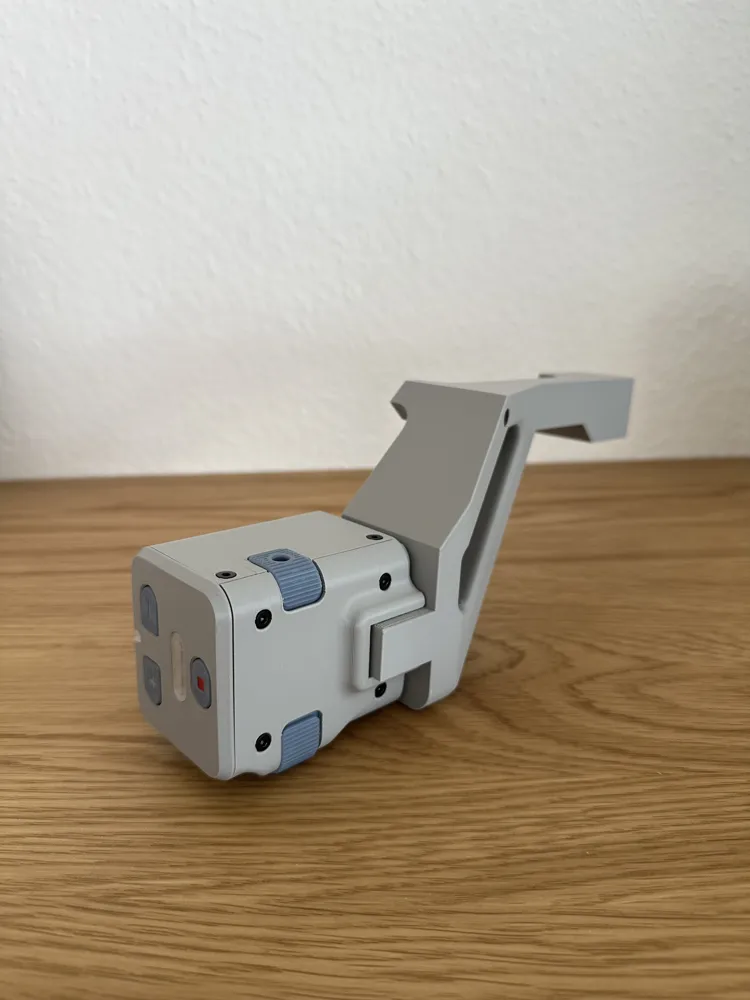

- left one works with the original TPU feed assist module from Bambulab
right one is universal:

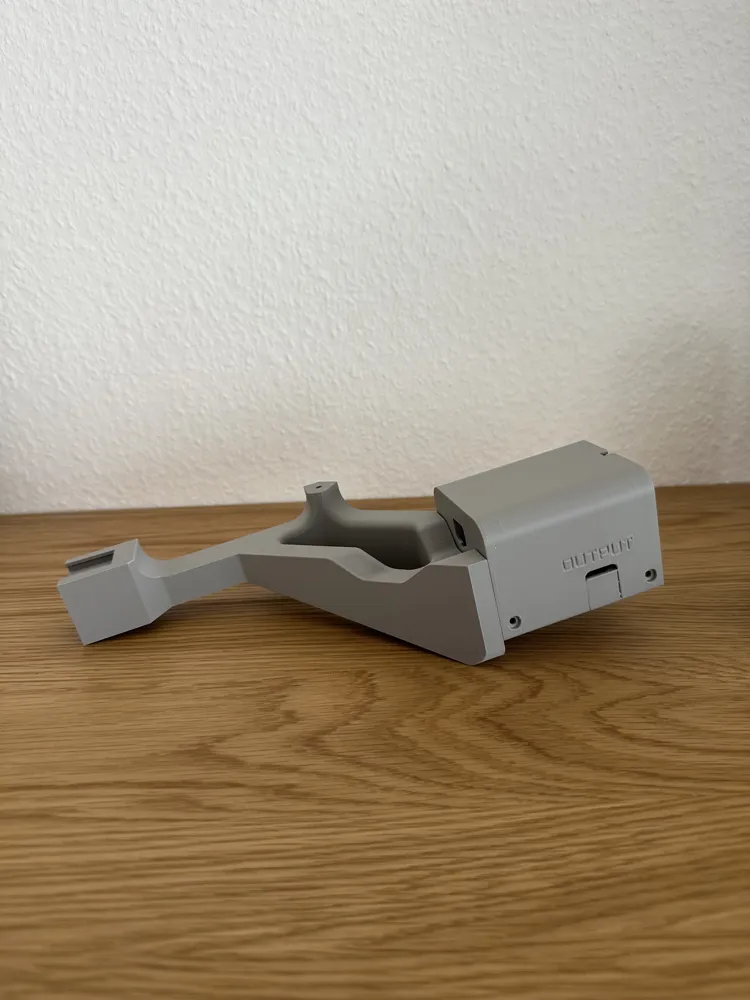

- works with the modern casing from @dedge → https://makerworld.com/en/models/2635133-tpu-feed-assist-modern-casing#profileId-2910508
- also works with the original TPU feed assist module from Bambulab but will then be a few milimeters apart from the Printers housing
Boost Me (for free)
If you like this model and find it helpful, I would greatly appreciate your support. This not only supports this project but also enables the creation of more models and helps fund the many filament spools needed for prototypes and tests. 🚀
Notes
- I recommend using my print profile, as this is properly tested a few times
- I recommend using ASA or similar heat-resistant materials to ensure the mounting bracket isn't damaged if the printer runs a bit hot
