Axisflying C25 Antenna Mount

Description

Hi, if you are using the Walksnail system along with an ExpressLRS 2.4Ghz receiver and happen to own an Axisflying Cineon C25 (V1 version, unfortunately, these are hardly available for purchase anymore 😒), then I have designed the perfect solution for you. Not only functional and durable, but also a real eye-catcher

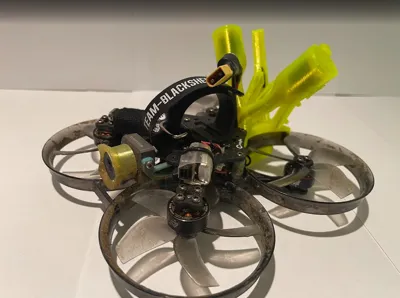

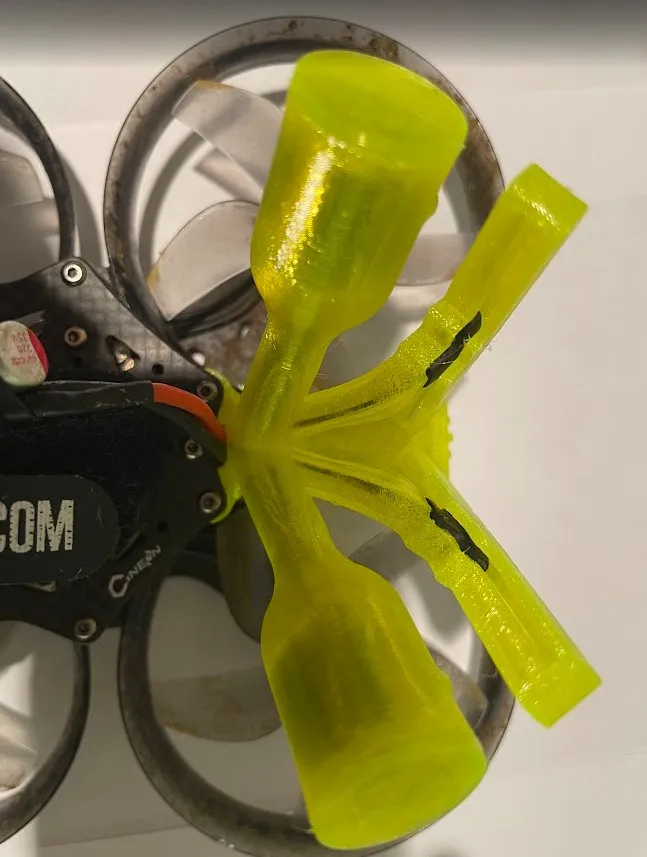

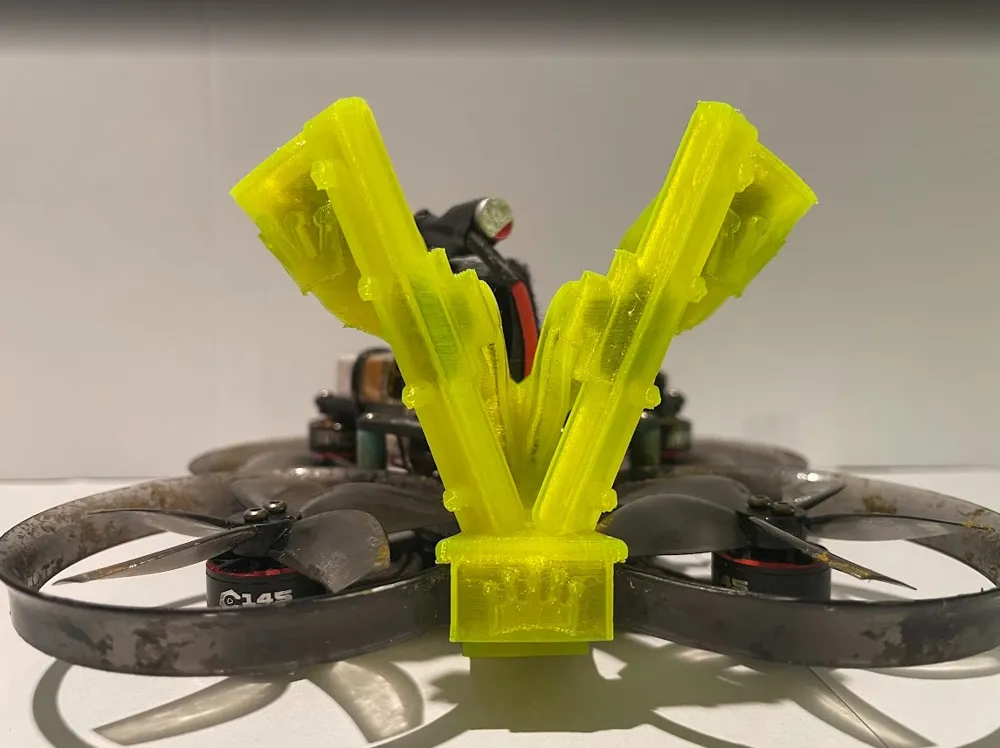

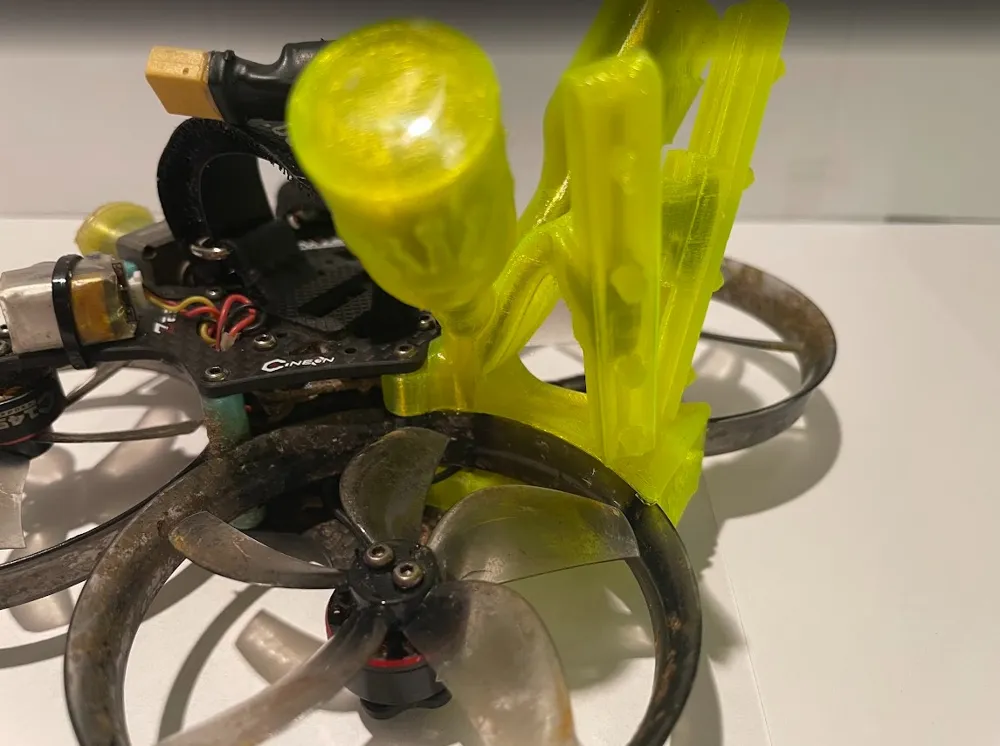

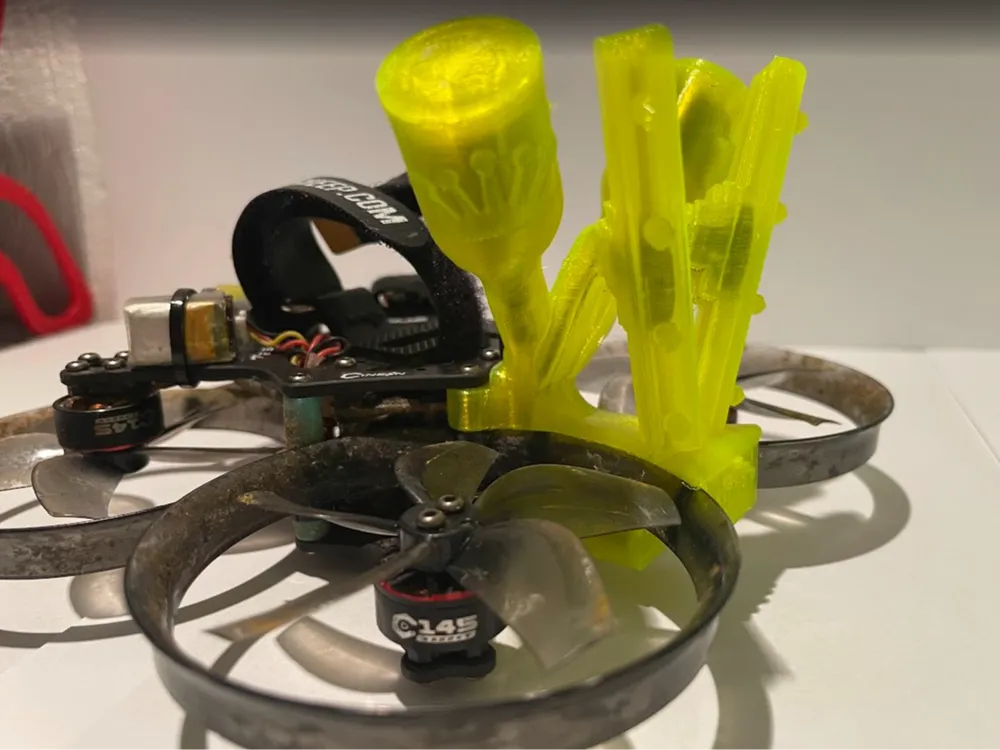

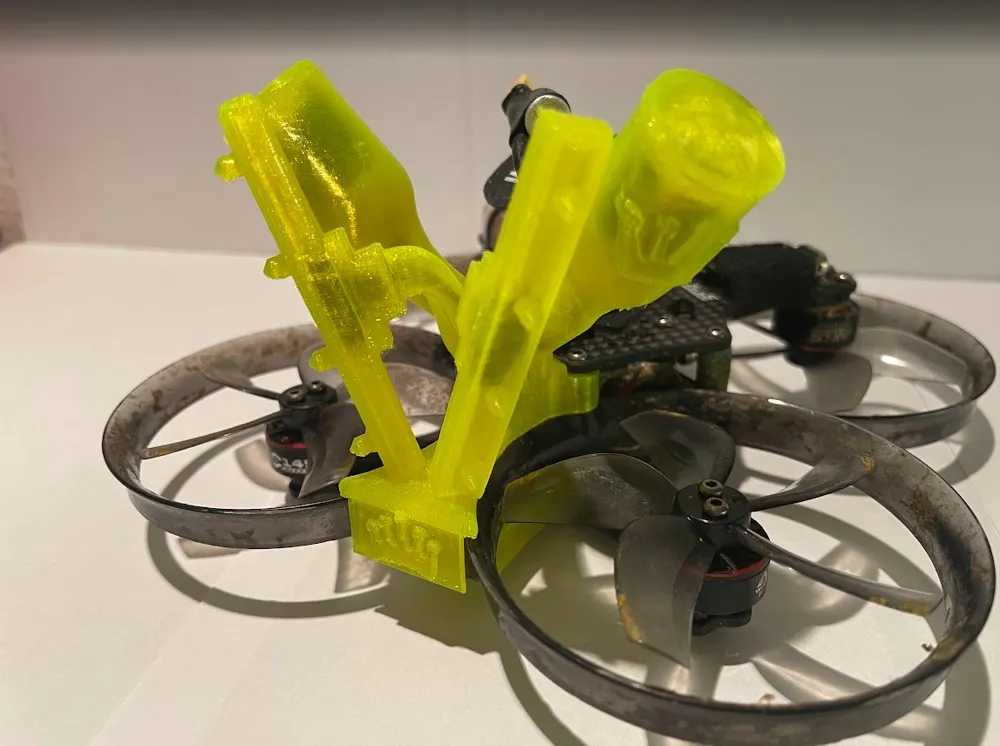

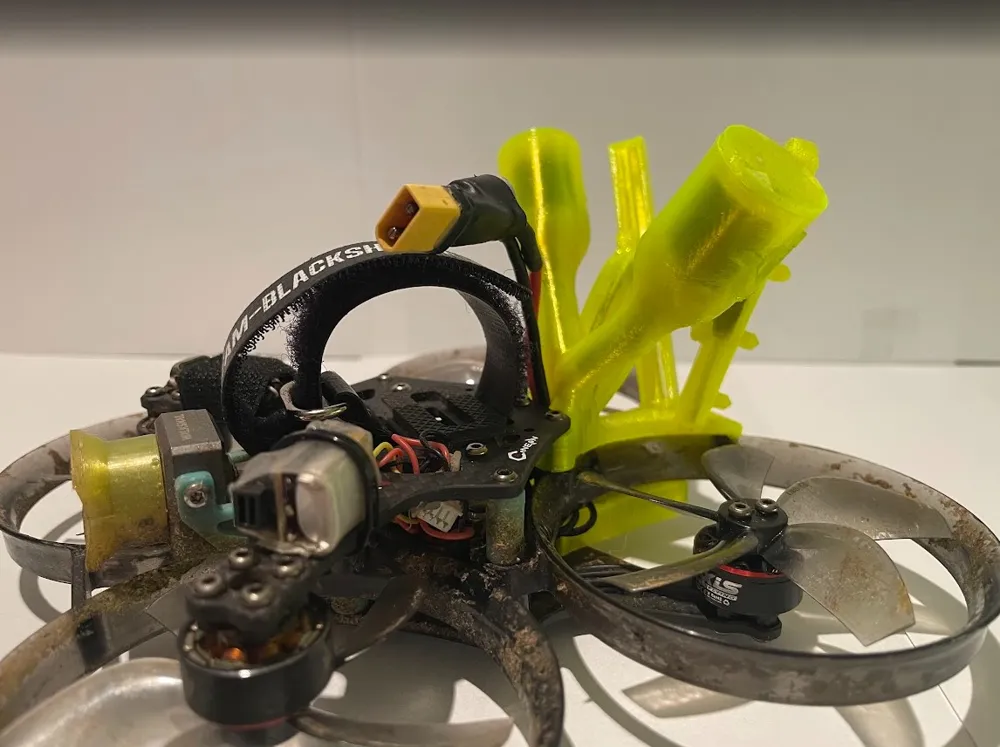

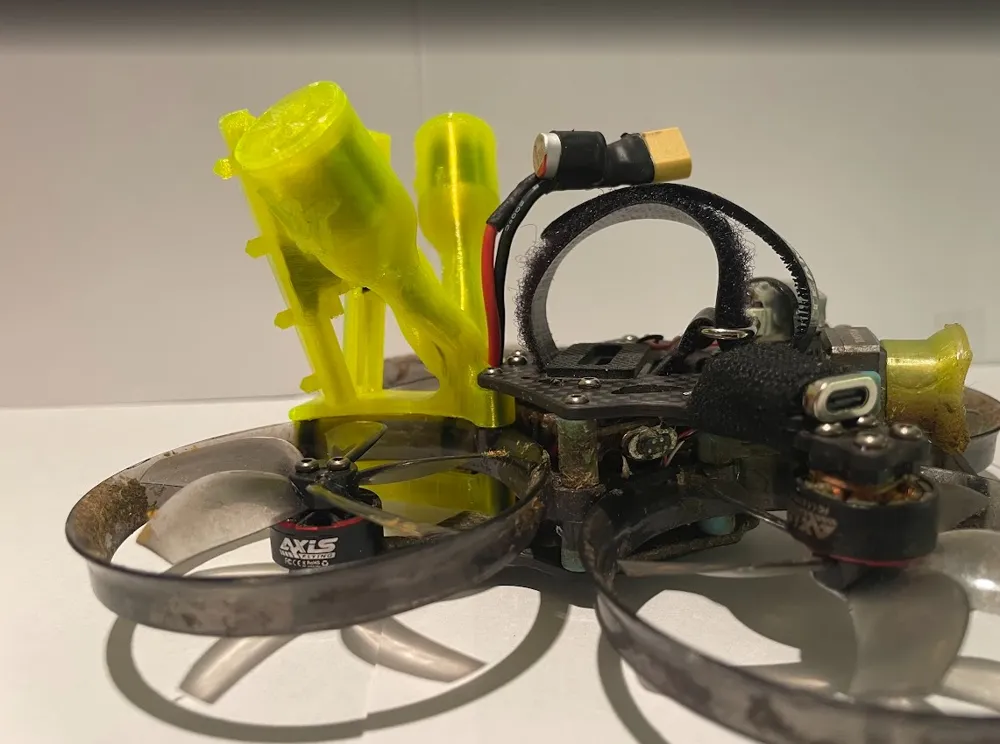

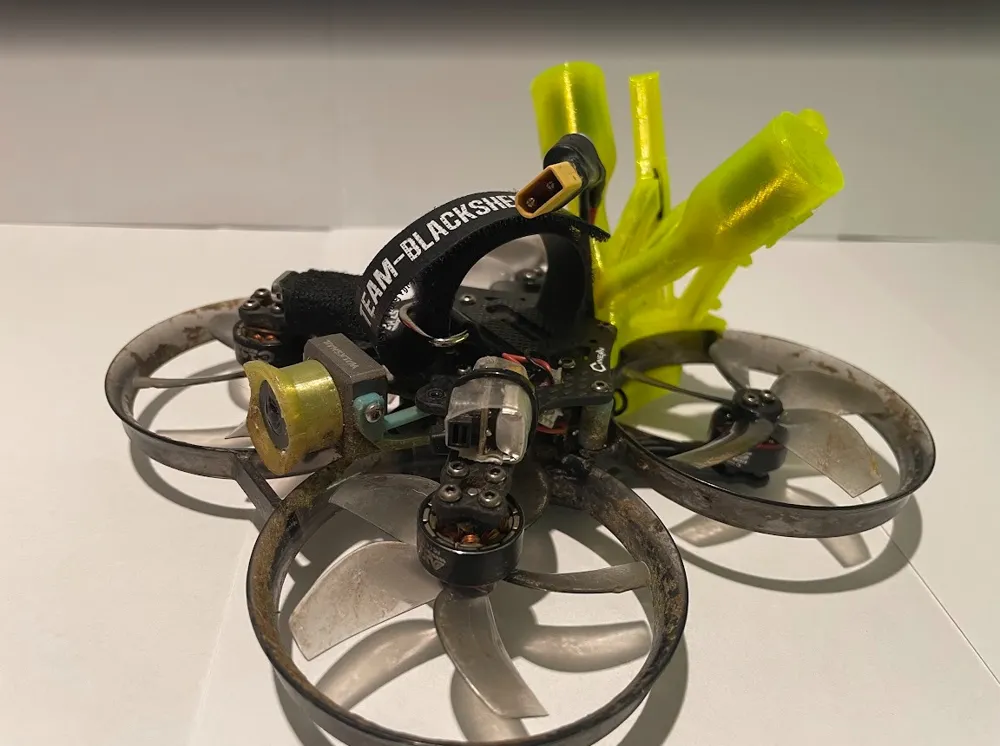

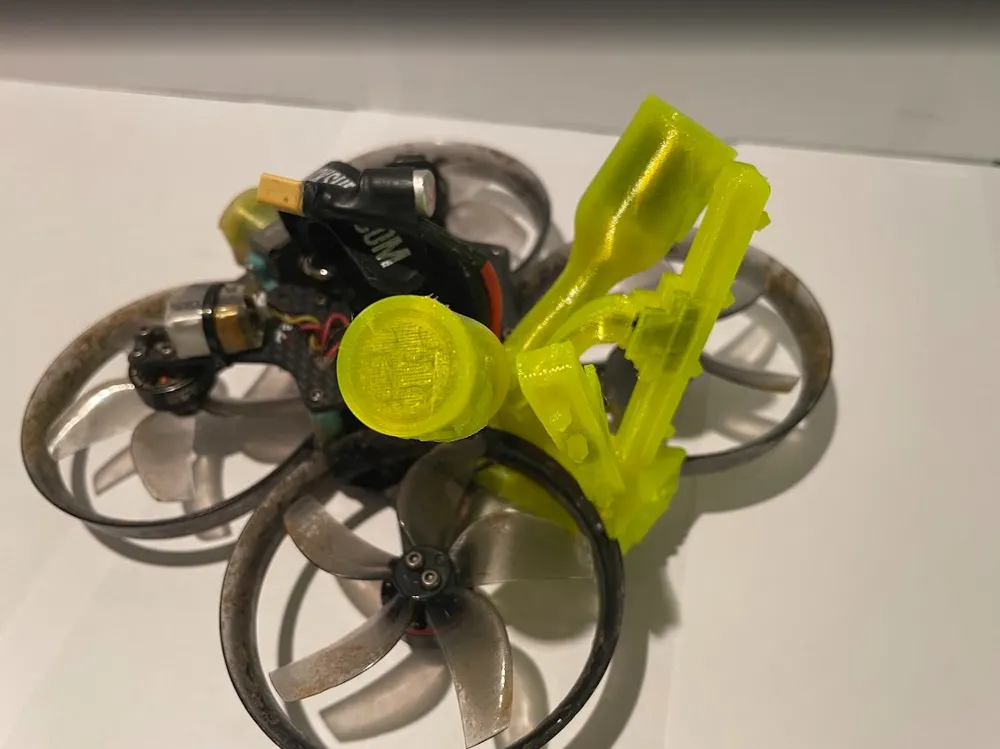

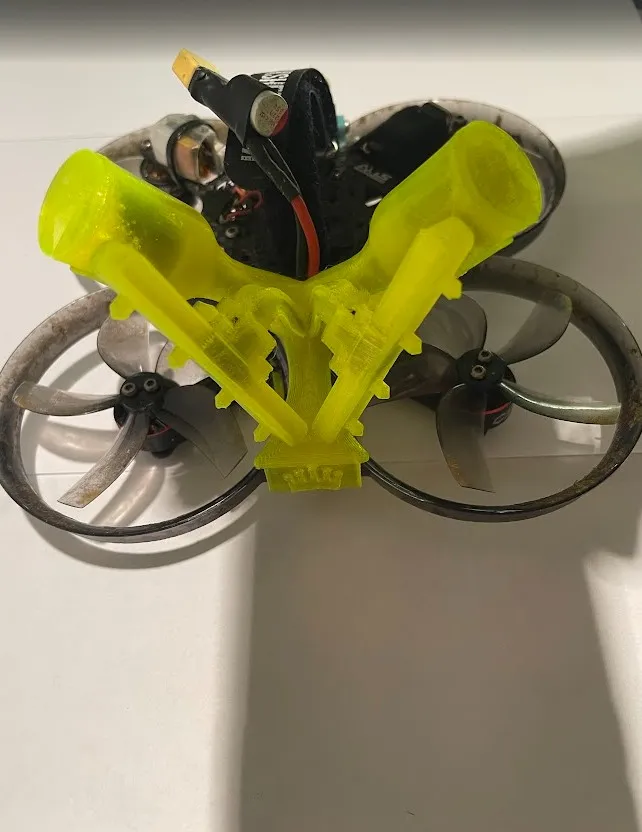

This 3D-printed bracket made of TPU was specially developed for the Walksnail Avatar Kit + ELRS nano receiver (DUAL) and integrates:

✅ Secure mounting for the Walksnail VTX antennas (dual)
✅ Integrated mount for the ExpressLRS 2.4 GHz (dual) receiver antennas
✅ Robust and flexible TPU material for maximum crash resistance
✅ Perfect fit (only) for the Axisflying Cineon C25 V1
✅ Maximum range possible with this antenna arrangement
✅ Tidy cable management and clean look
✅ Lightweight and robust design

The mount has been tested by me in practical use and designed so that both the video and RC antennas are optimally positioned. This protects the antennas and at the same time achieves a clean, professional look for the copter

Assembly Note

Assembly is a bit fiddly – but that's inherent in a 2.5" copter where available space is very limited. 😅

Threading the four antennas through the designated channels is possible without problems but requires some patience

Tip:
First, pull a thin thread through the respective channel. Then, attach the antenna end to the thread and carefully pull and push the antenna simultaneously. This makes it much easier to guide through the channel

The design was specifically tailored to the positioning of the four antennas to enable the most space-saving and clean installation possible in the copter

The 2x “Walksnail covers” are simply glued with any adhesive

Print Note

→no support structures in the antenna or cable channels

→Material: TPU

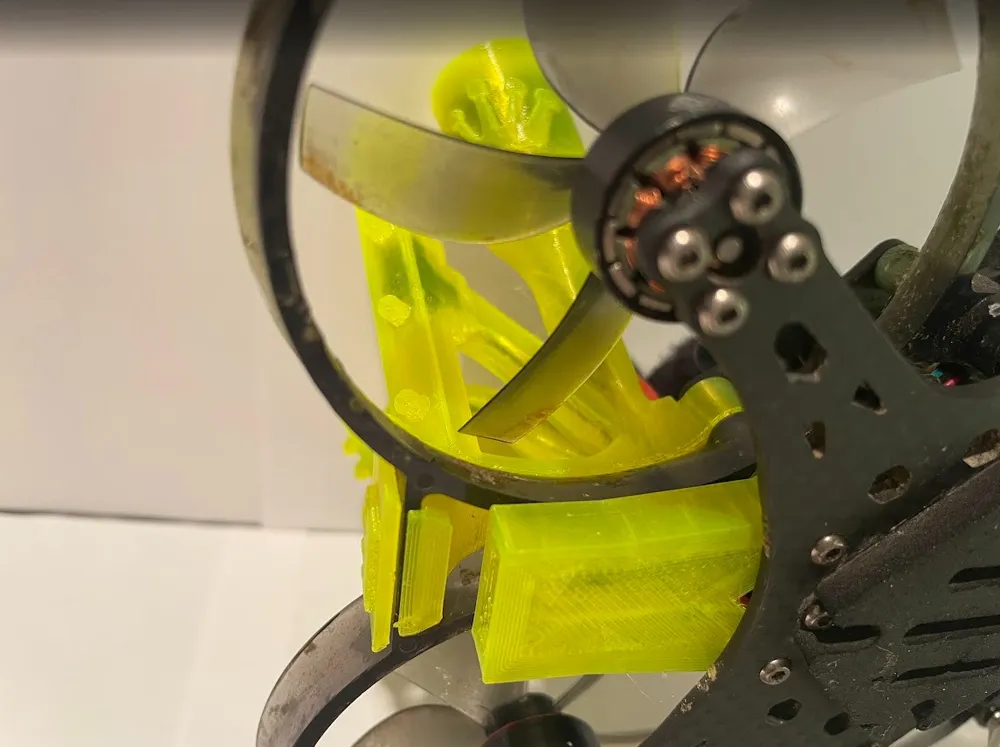

Print the (Z25_4 Antenna Holder) and the add-on parts (2x Cover + Bottom_ELRS 2.4GHz DUAL) separately!

Automatically generated supports in these areas are not recommended, as they can hardly or not at all be fully removed later

and thus the antenna can no longer be pushed through

Compatibility Note:
The bracket was developed and tested with the Walksnail Avatar V1 Dual Antennas Kit + ELRS 2.4GHz NANO RC receiver

In my assessment, it should also be compatible with the Walksnail Avatar V2 Dual Antennas version as well as

---variants with only one antenna, --for those who wish to install this...---
The outer diameter of the antennas should be approximately 15.1 mm – this corresponds to the original Walksnail antennas supplied

Important Note on the Walksnail Moonlight Kit:
I would rather advise against installing the Moonlight Kit in the Axisflying Cineon C25 V1

The VTX is significantly thicker than standard Avatar VTXs and does not fit into this copter without additional adjustments or modifications

Feedback Welcome!

If someone uses my 3D print, I would be very happy to receive a photo of the finished setup. 😊

This way, other FPV enthusiasts can also see how the mount looks in use and which builds have been realized with it

Have fun printing, tinkering, and of course, flying
