Large Purge Catcher – Tool-Free Easy Clean
Description:
This is an improved version of a large-capacity purge catcher based on the following two existing models:
https://makerworld.com/models/2507899-h2c-purge-catcher-compact-no-tool-mount#profileId-2757635
https://makerworld.com/models/2562617-h2c-large-purge-catcher-high-capacity#profileId-2823740
This model is designed as an improved version of both designs, focusing on better usability and easier cleaning.

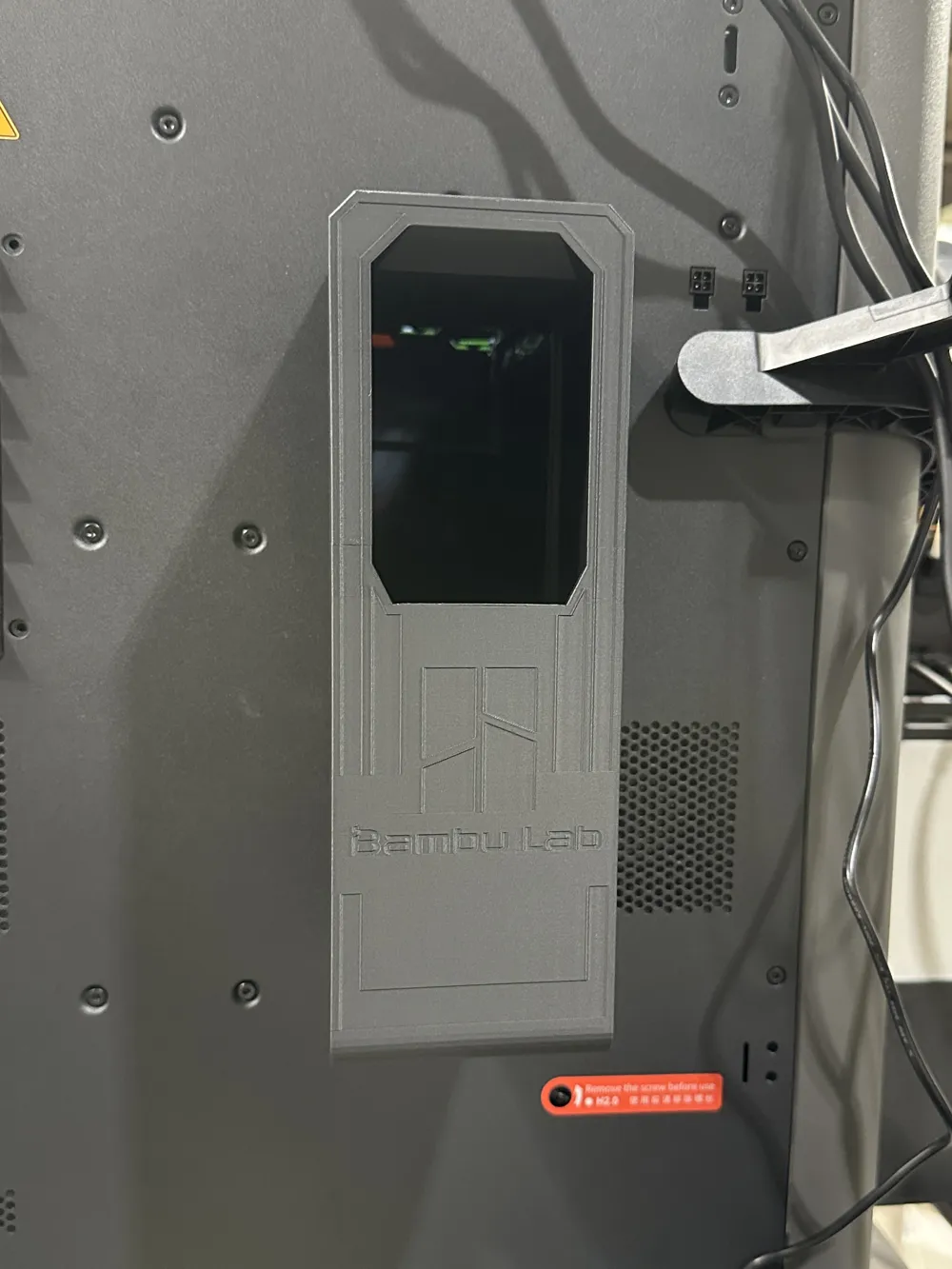

This is a large-capacity purge catcher designed for the H2C.
I only own the H2C, so compatibility with other H2-series printers has not been verified.
However, if the mounting mechanism is identical, it may also fit other H2-series models.
While maintaining the existing large-capacity design, a finger-access opening has been added, making it easier to grab and remove accumulated purge material.

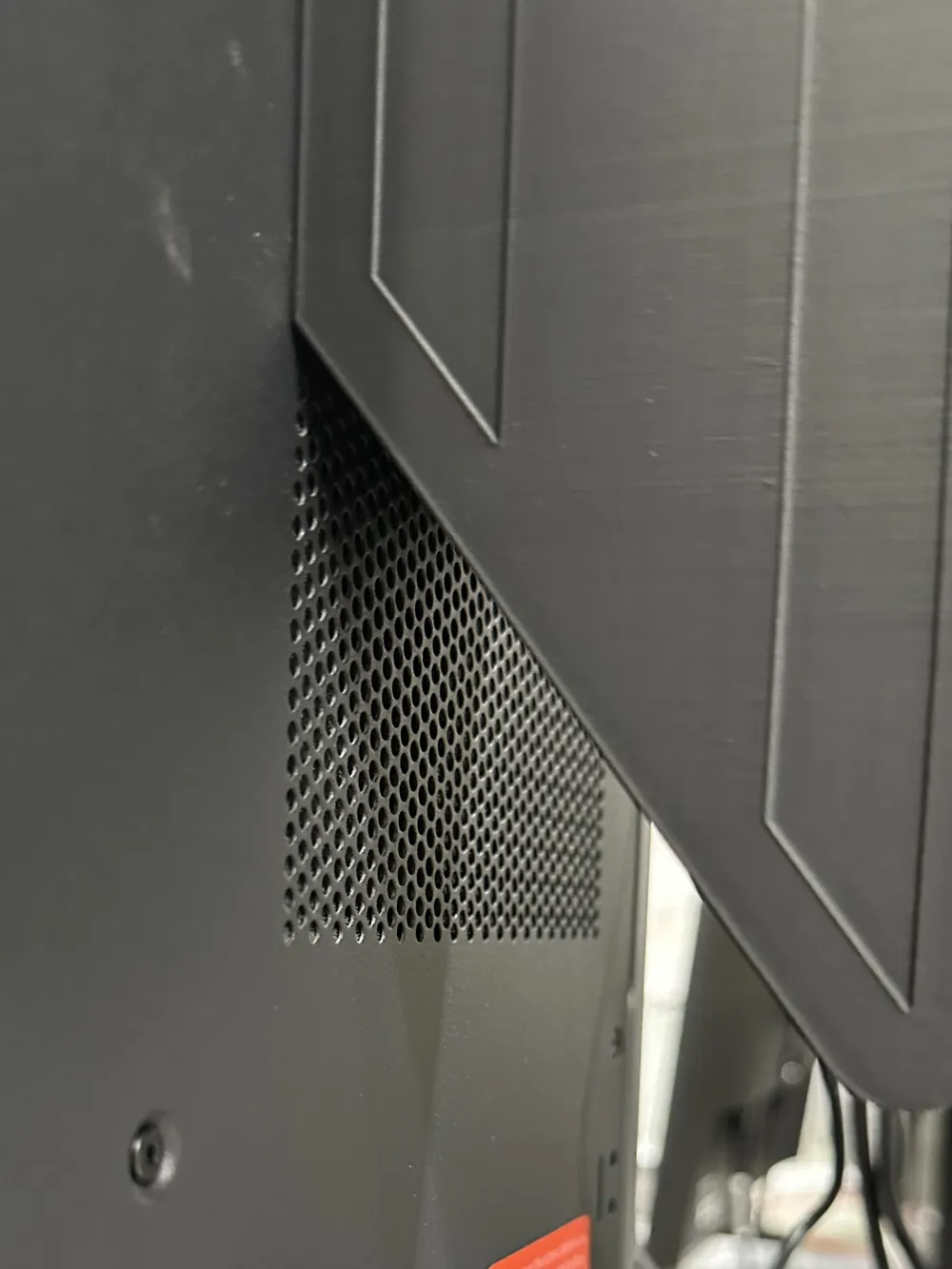

In addition, the design does not block the printer’s exhaust outlet, helping to preserve airflow performance.
Features:
- Large-capacity design
- Finger-access opening (Easy Clean design)
- Easier removal of accumulated purge material
- Does not block exhaust outlet (airflow-conscious design)
- Tool-free installation and removal
- Easy maintenance

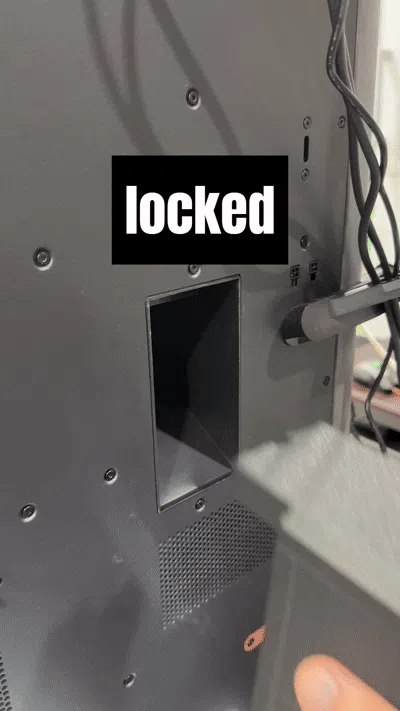

Installation:
- Align the purge catcher with the top edge of the purge outlet.
- Slide it straight in until it reaches the back.
- Once fully inserted, lower it slightly to lock it in place.

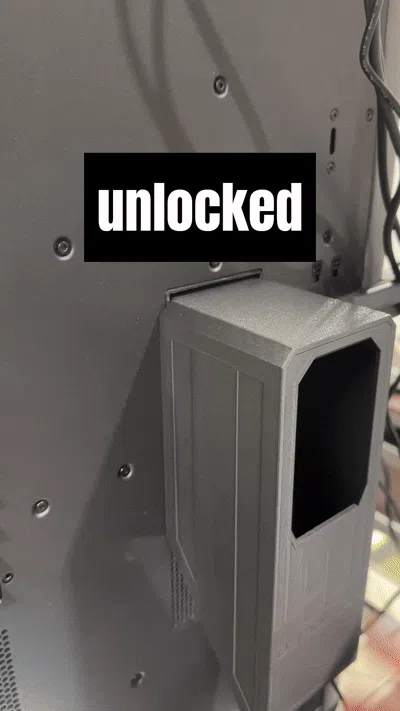

Removal:
- Lift the purge catcher straight upward.
- Adjust it to close the gap with the purge outlet.
- Pull it straight toward you to remove it.
Notes:
- Designed for easy installation and removal with light force.
- Do not apply excessive force.
- Ensure proper straight alignment during installation and removal.
- The locking tab is small but reinforced for strength.
