Parametric Under-Desk Drawer System NO Supports!

Transform your workspace with this fully customizable, heavy-duty under-desk storage solution. Designed with a smooth telescopic sliding mechanism, these drawers are fully extendable, allowing you complete access to the very back of the drawer without it falling out.

Whether you need a single small tray for SD cards or a massive 5-drawer stack for tools and stationery, this system adapts to your exact needs using the built-in customizer.

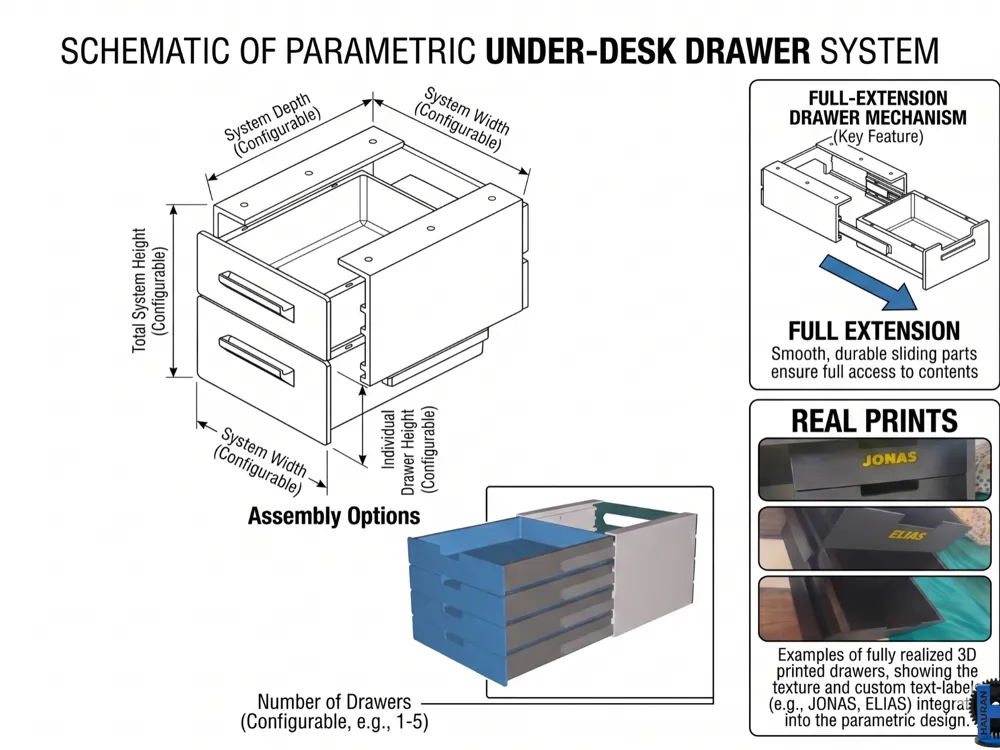

Key Features & Customization

This model is highly parametric and designed to be easily tweaked right in the portal configurator. You do not need any coding knowledge to get your perfect setup:

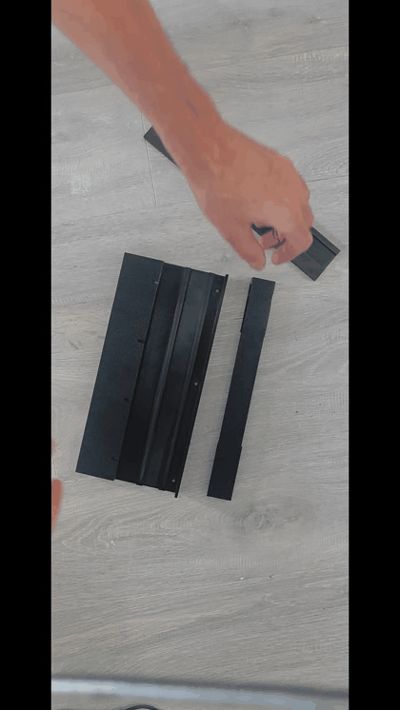

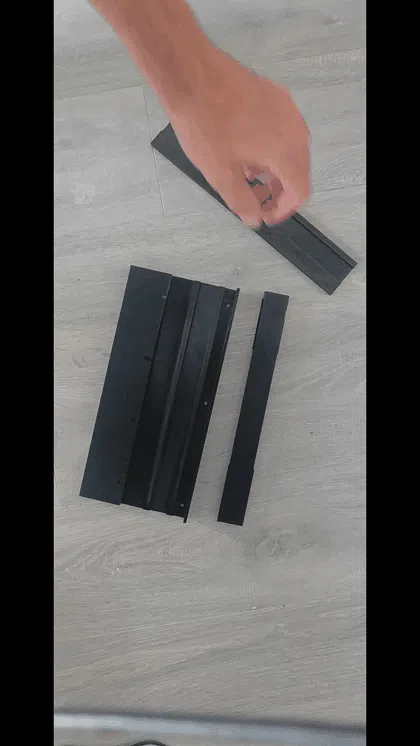

• Fully Extendable Design: The 3-part telescopic rail system ensures the drawer pulls out 100% of its length smoothly.
• Modular Drawer Stacks: Generate a single drawer or stack up to 5 drawers in a single mounting frame. You can even set independent heights for each drawer in the stack.
• Complete Dimensional Control: Adjust the exact width, length, and height to fit your specific desk space.
• Customized Handles & Text: Choose between cutout, protruding, or recessed handles. Personalize each drawer with custom embossed/engraved text and choose from dozens of available fonts. If you want to make quick preview on all fonts, just use preview function on my name tag project HERE
• Versatile Mounting: Secure it under your desk (ceiling mount) or use the optional side-screw toggles.

Multi-Color & Material Printing

The system is broken down into separate components (outer rails, middle slides, inner rails, rear connectors, and drawer bodies), making it incredibly easy to print in multiple colors or materials without an AMS/MMU. NO SUPPORTS NEEDED!

• Mechanical Rails: Print the sliding rails (inner, middle, outer) in PETG or ABS for enhanced durability and low friction.
• Drawer Bodies: Print the main tubs in your favorite PLA colors.
• Accents: Swap filaments at specific layers on the front faceplate to make your custom text and names pop in a contrasting color!

Starting tips

• Entry-level configurator: Choose simple configurator which hides alot of unnecessary small details and lets you just set up main dimensions of drawer set and ratio between drawers.
• Use assembly view: Use assembly view to check what you configured. Once you are done, swap rendering mode to print layout so you will get all parts prepared for print
• Adjust to your printer/material: If the sliding mechanism does not slide smoothly enough, increase the clearance parameter
