Unifi G6 180 45 Degree Angled Flush Mount
Print Profile(1)
Description
Boost Me (for free)
If you enjoy my creations, my humor or just like printing what I put out there - Show me your support by sending me a free boost. Your support encourages my future designs, my creativity and helps fuel my filament addition. Thank you
A clean 45-degree angled wall mount designed for the UniFi Protect G6 180-degree camera. This mount allows the camera to be installed at an angled viewing position while keeping the factory camera mount seated neatly inside the front recess.
The design includes a removable snap-in top plug, allowing the mount to be used either with or without electrical conduit for the network cable.
I designed this to solve a practical (and attractive) mounting issue where the camera needed to be aimed outward/downward from a wall while still keeping a clean, finished appearance. The camera and its factory mount fit directly into the front recessed area, so the camera sits properly outside the printed adapter with no visual obstruction or clipping of the 180-degree field of view.

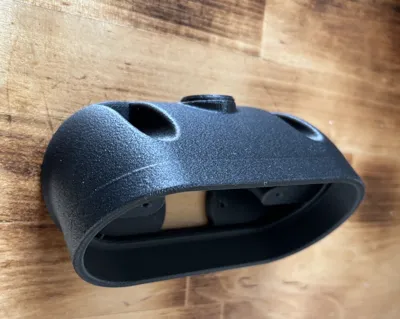

The mount includes a top conduit (sized for standard 1/2" metal conduit) opening with a removable snap-in plug. If you are using conduit, remove the plug and route the network cable through the top. If you are not using conduit, leave the plug installed for a cleaner look.

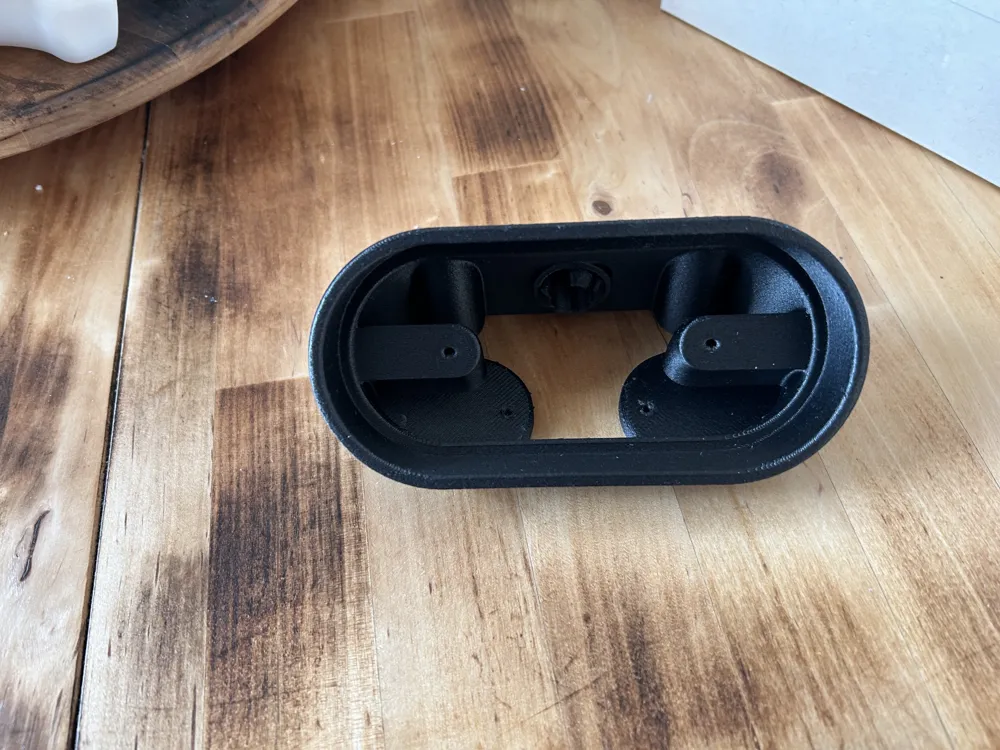

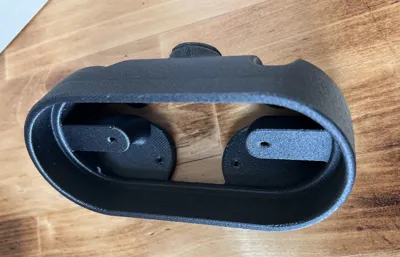

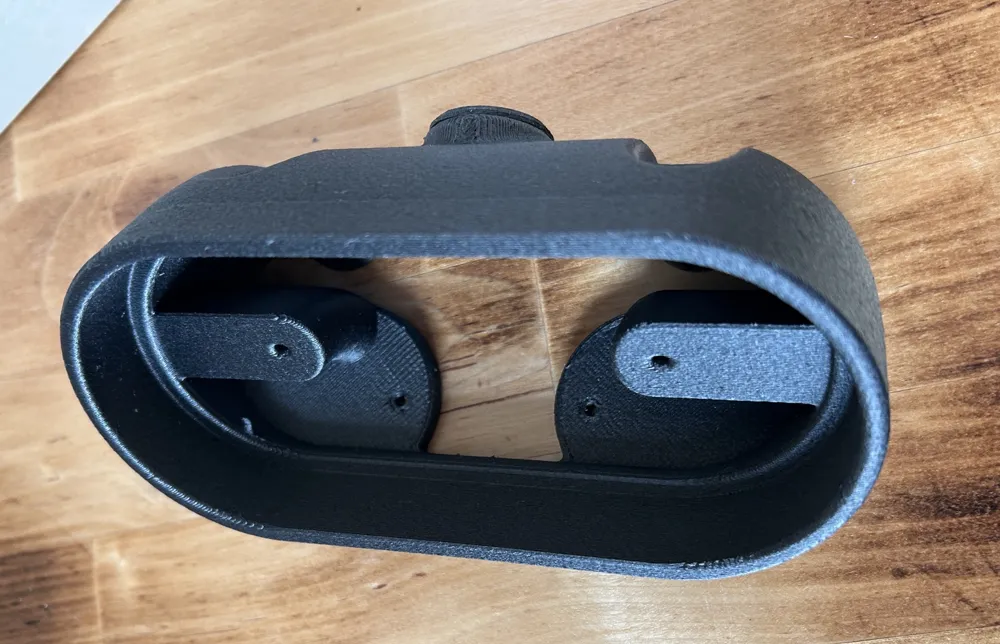

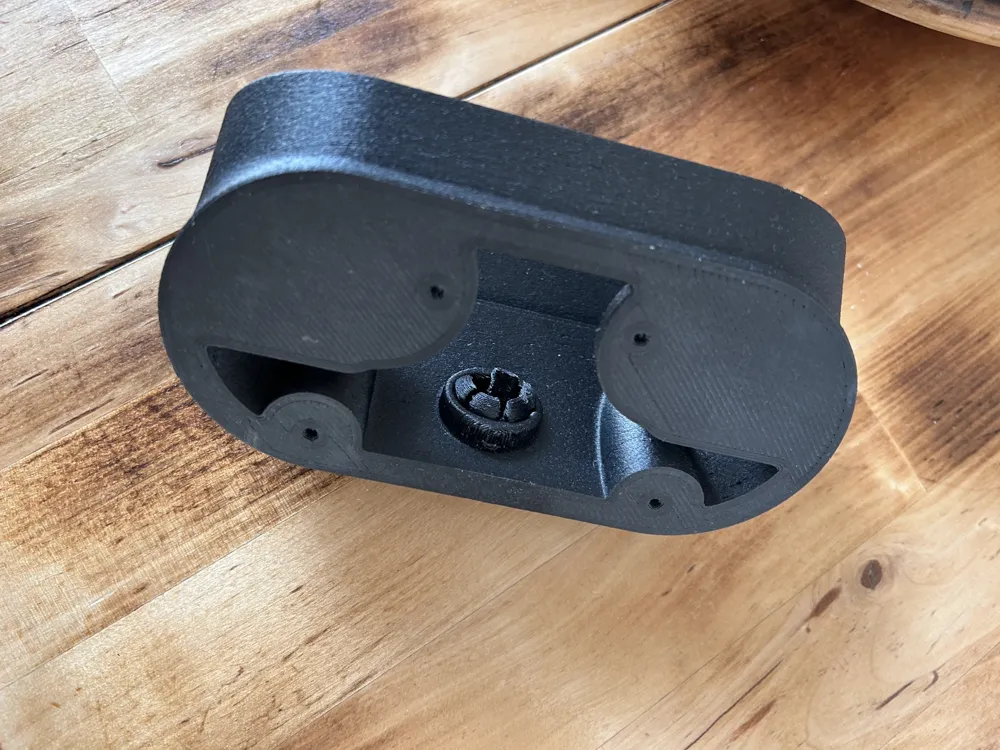

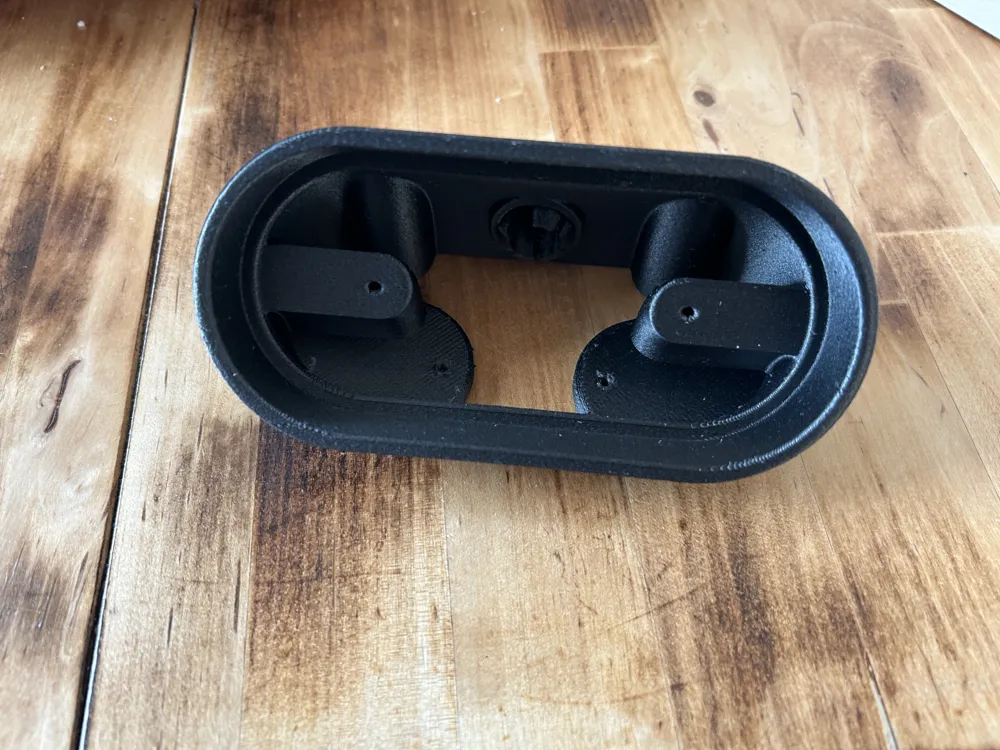

The body has rounded exterior edges, a recessed front camera/mount area, internal support features, and a large rear cavity for cable routing.
Features
- Designed for the UniFi Protect G6 180-degree camera
- 45-degree angled mounting position
- Camera and factory mount seat into the front recess
- Camera sits outside the adapter, avoiding field-of-view obstruction
- Removable snap-in plug for optional conduit use
- Large internal cavity for Ethernet cable routing
- Clean rounded exterior profile
- Suitable for wall-mounted camera installations
- Designed to look more like a purpose-built accessory than a generic wedge block
Recommended Use
This mount is useful for installations where the G6 180 needs to be aimed from a wall at an angle, such as:
- Corners
- Side walls
- Driveways
- Entrances
- Garages
- Walkways
- Exterior wall monitoring
Interior wide-angle coverage where a flat mount does not provide the desired view
I also included a drilling template for your anchors!
Printing Recommendations
Recommended materials:
- ASA — best choice for outdoor/UV exposure
- PETG — good general-purpose option
Suggested settings:
- Layer height: 0.20 mm
- Walls/perimeters: 4
- Infill: 25–40%
- Top/bottom layers: 5+
- Supports: likely required depending on orientation
- Print orientation: mount with the back/wall side on the bed, or use the orientation that gives the cleanest front recess depending on your printer/support preference
For outdoor use, ASA is strongly recommended due to better UV and temperature resistance.
As always I encourage you to share pictures of your printed items… Additionally helpful feedback is always welcomed!
Check out my other models and feel free to like and follow me for future projects! If you have any requests I can see what else I can create for you.
