Mecha Dinosaur Series Eight - 08 Mecha Velociraptor

Produced by Gu Yu Mecha

Mecha Dinosaur Series Eight - 08 Mecha Velociraptor

Works by Gu Yu Mecha:

Bagua Mecha (modeled after famous mountains and rivers in various provinces, such as Chaohu Lake, Mount Li, Badaling Great Wall, Namtso Lake, etc.);

Mythical Mecha (modeled after mythical figures, such as Sun Wukong, Erlang Shen, Bull Demon King, etc.);

Classic of Mountains and Seas Series (Biological Form Series, Mechanical Form Series, Fighter Jet Series, Aircraft Series, Warship Series, Armored Vehicle Series, Main Battle Tank Series, Multi-functional Engineering Armored Vehicle Series, Rotating Engineering Armored Vehicle Series, Engineering Armored Truck Series, Military Armored Train Series, etc.);

Chinese Weaponry Series (Siege Weapons, Defensive Weapons, Field Weapons);

Mechanical Insect Armor Series (Dynastes hercules (rhinoceros beetle) mechanical form and insect armor form, Dynastes neptunus mechanical form and insect armor form...);

Mecha Classic of Mountains and Seas Series (Xuan Gui Mecha...)

Mecha Dinosaur Series (Mecha Stegosaurus, Mecha triceratops, Mecha Spinosaurus, Mecha Tyrannosaurus Rex, Mecha Titanosaurus, Mecha Mosasaurus...)

Telescopic Sword Series (Taotie Han Sword, Taotie Dagger, Patterned Retractable Mace, Bagua Retractable Mace...)

Festival Transforming Robots (“Zongzi” type disguised surveillance transforming robot, “Mooncake” type fire support transforming robot, “Pumpkin” type – heavy-duty guardian transforming robot...)

Chubby Weapon Series (Eight-faced Han Sword, Four-edged Concave Mace, Sword of King Goujian, Thor's Hammer, Tang Hengdao...)

Motorcycle Series (Off-road motorcycles, Harley motorcycles...)

This is the third model in the remastered Mecha Dinosaur series

The first one is: 04 Mecha Tyrannosaurus Rex Remastered, https://makerworld.com.cn/zh/models/2618869-ji-jia-kong-long-xi-lie-si-04ji-jia-ba-wang-long-z#profileId-3020330

The second one is: 03 Mecha Spinosaurus Remastered, https://makerworld.com.cn/zh/models/2638370-ji-jia-kong-long-xi-lie-san-03ji-jia-ji-long-zhong#profileId-3046142

The remastered version features redesigned joint structures for stronger connections and easier assembly (no more hand strain, haha)

The proportions have been re-adjusted, and the appearance has also changed

Frame recommendation: ASA>＞ABS>PLA=PETG;It is strongly recommended to print the frame with ASA; the joints will not loosen even after multiple movements!

Outer armor: Any material is fine.

Note: The main reason for spaghetti is that the build plate is too smooth! It is best to apply glue or spray adhesive on the build plate to prevent printing failures

Simple, easy to print, material-saving, exquisite, easy to assemble, not prone to failure, not easy to break, no supports needed for printing, no glue needed for assembly!

No supports needed for printing (you can add a brim if the base plate is not sticky), no glue or hardware needed for assembly (if it's a bit tight, press firmly or tap gently with a small hammer), a very convenient Chinese-style assembly model!

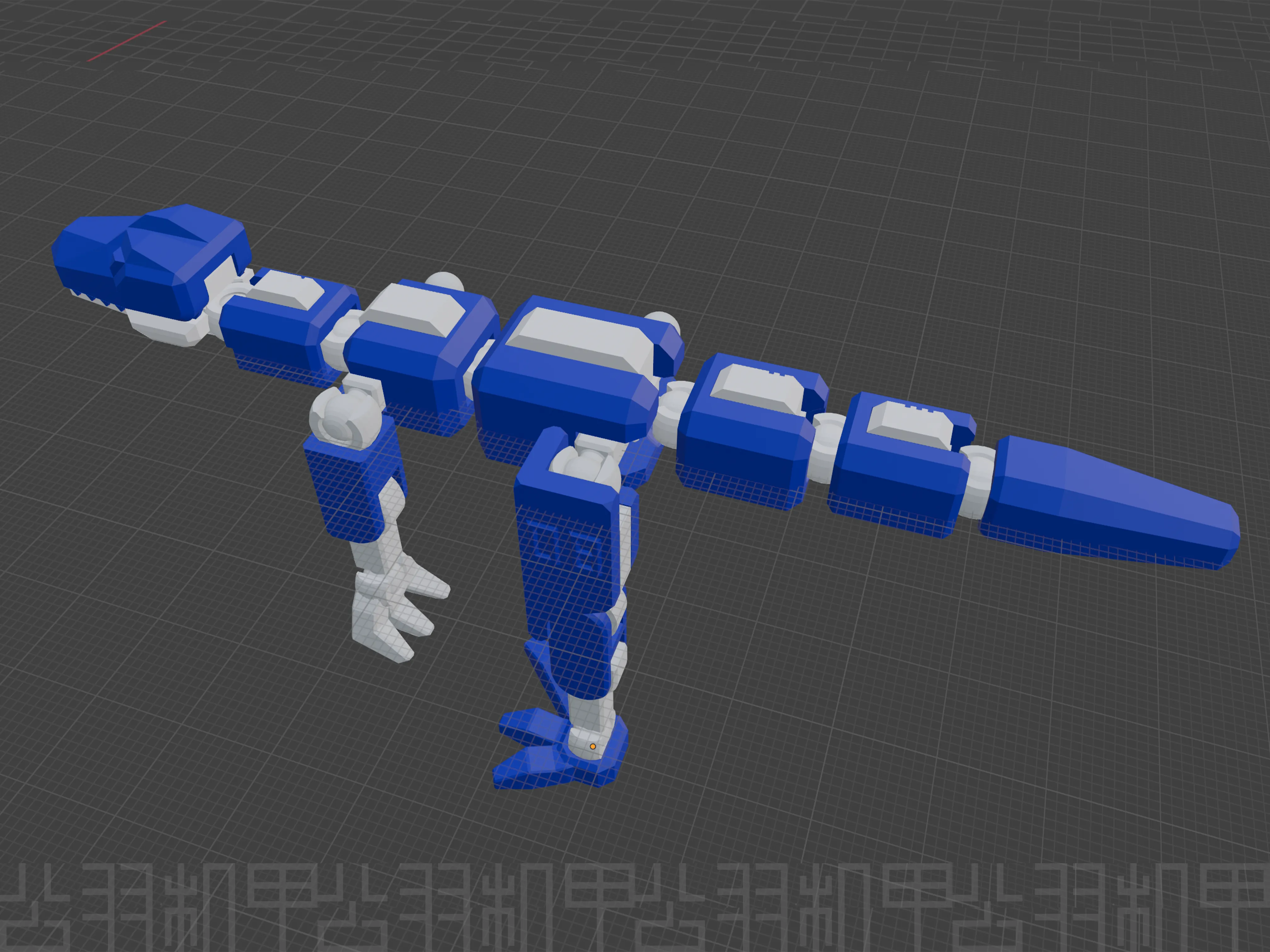

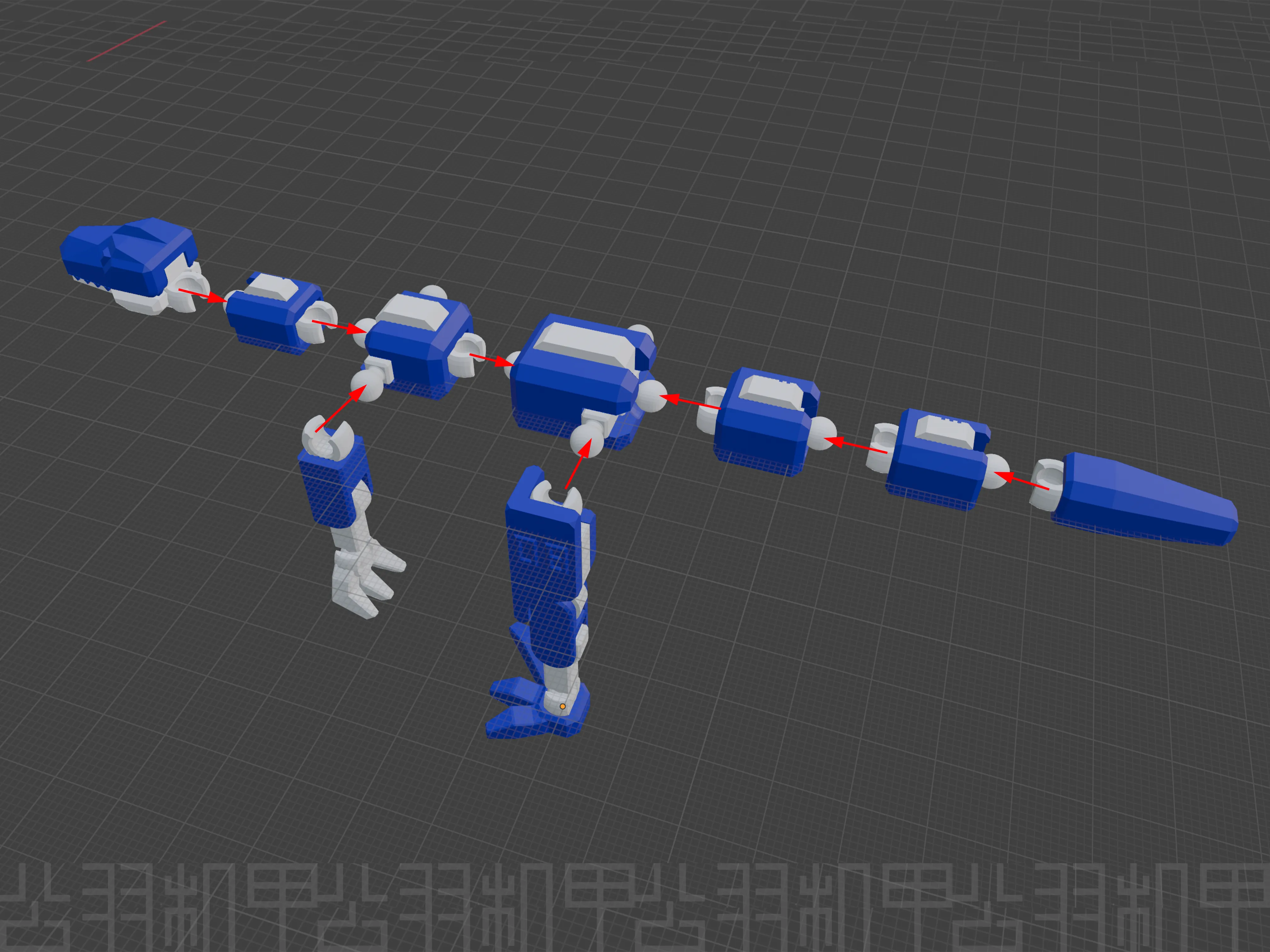

Assembly Diagram:

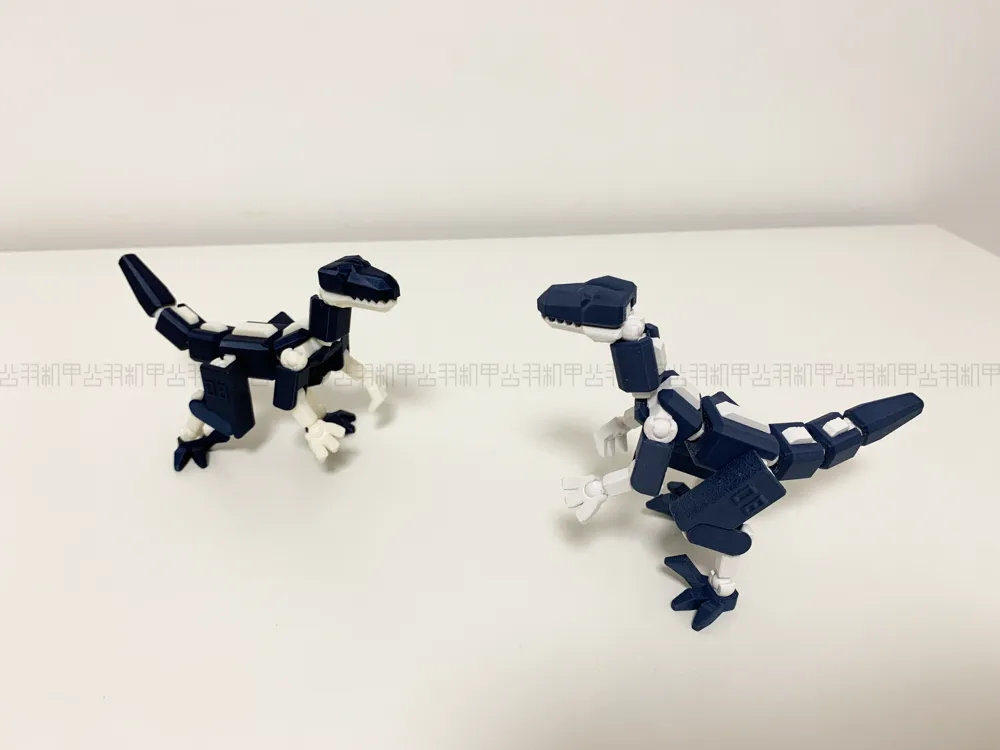

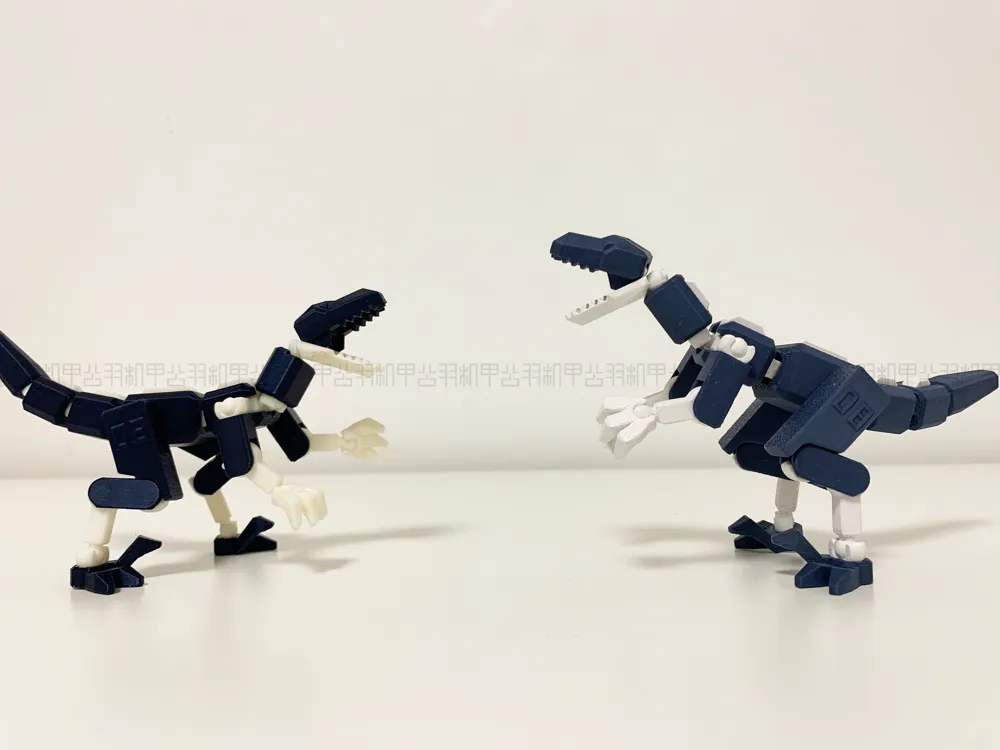

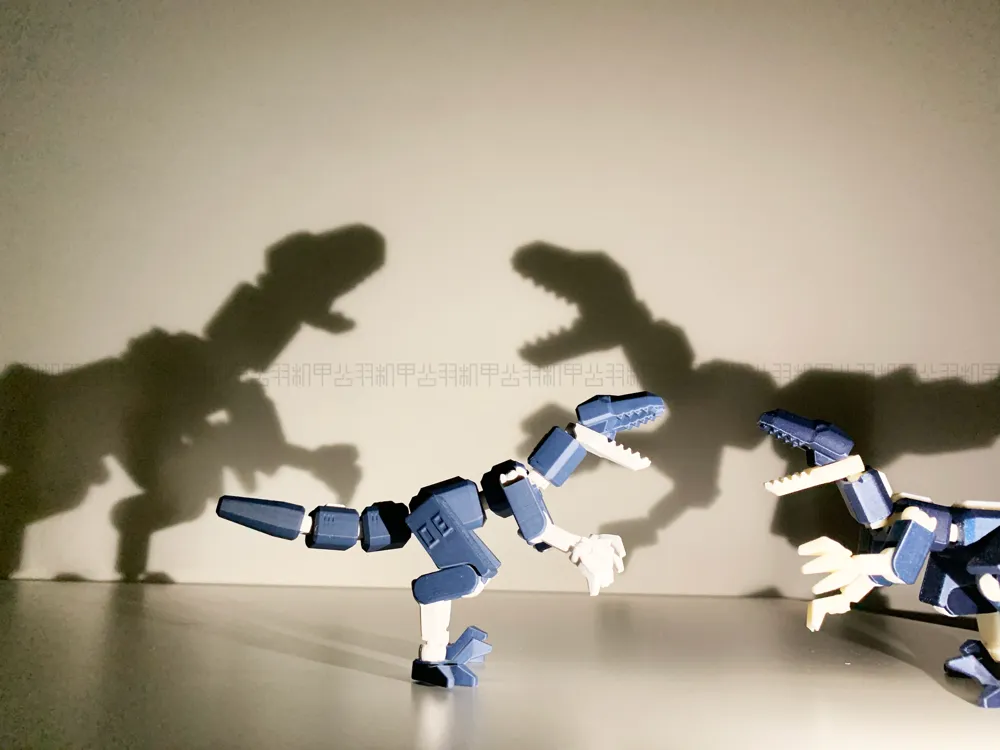

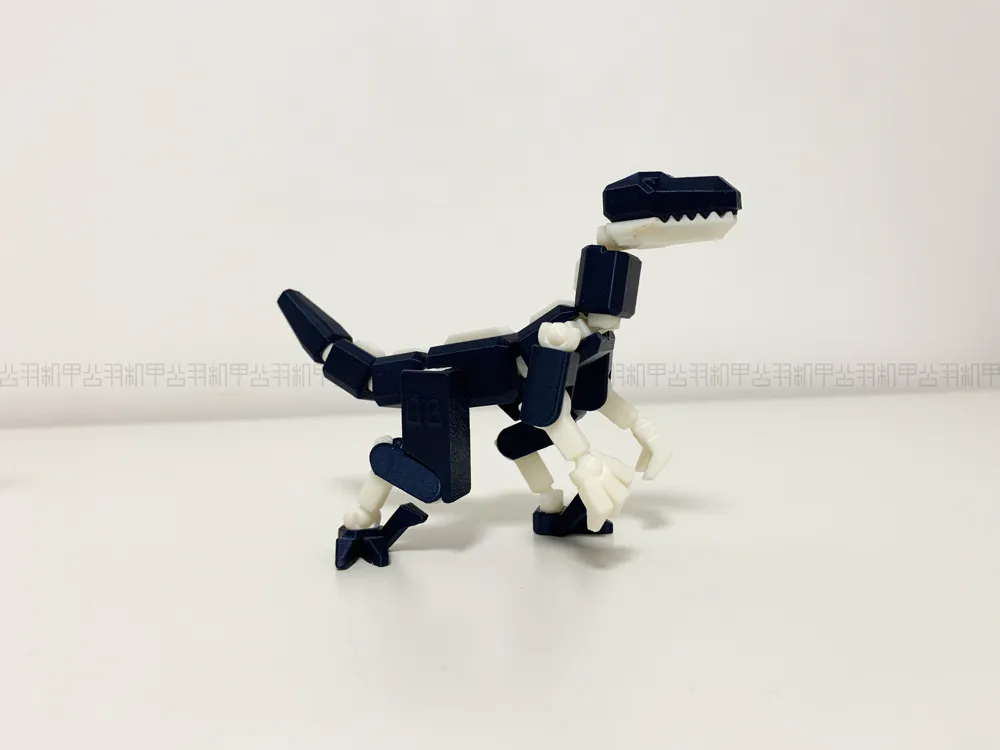

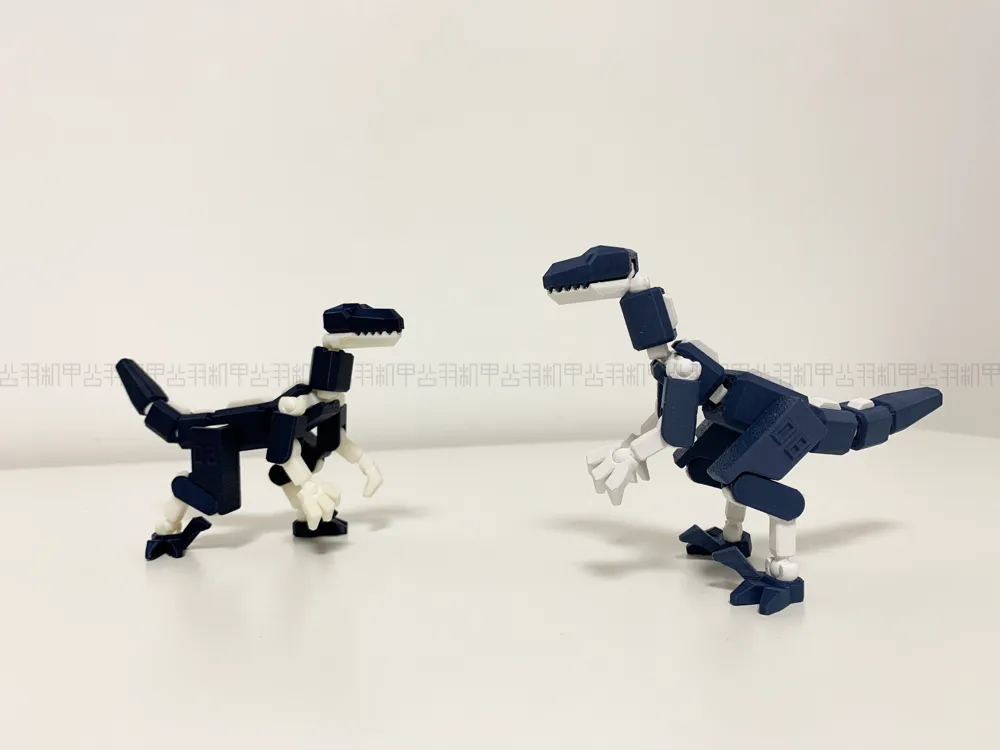

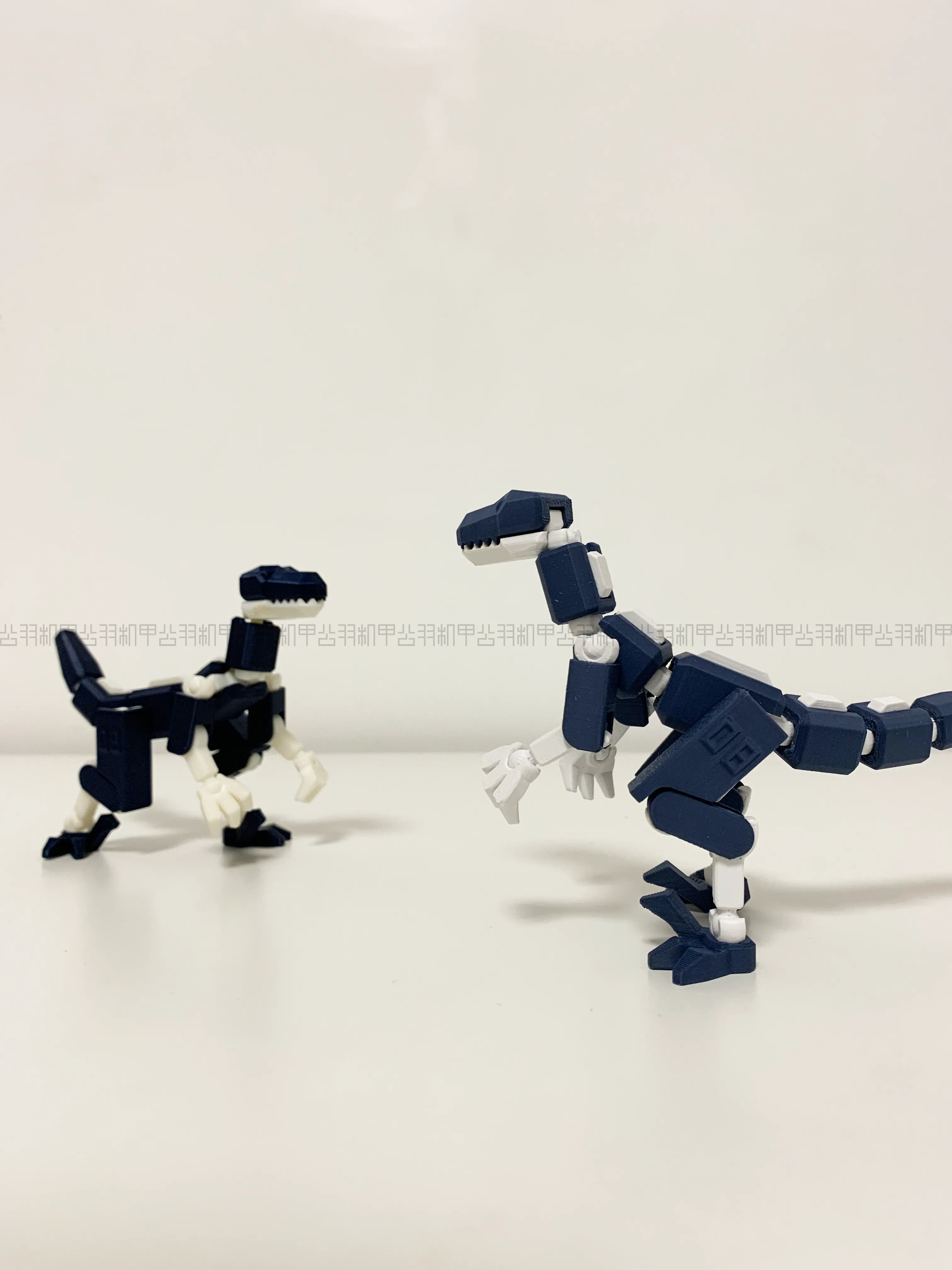

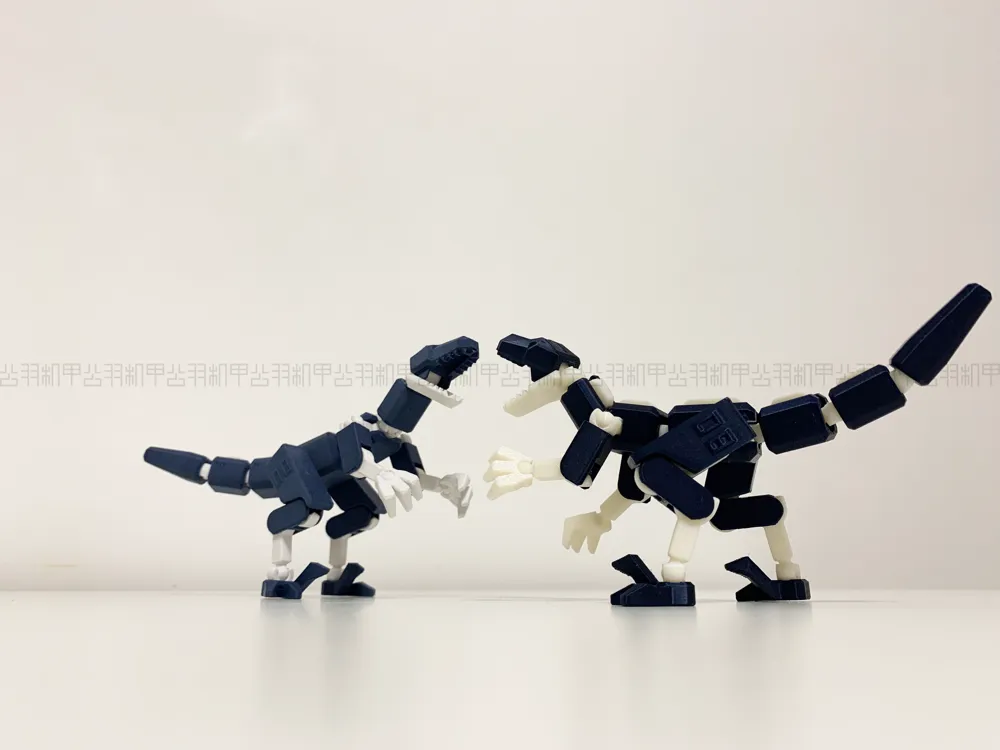

The model is super articulated and can be posed in any imaginable position

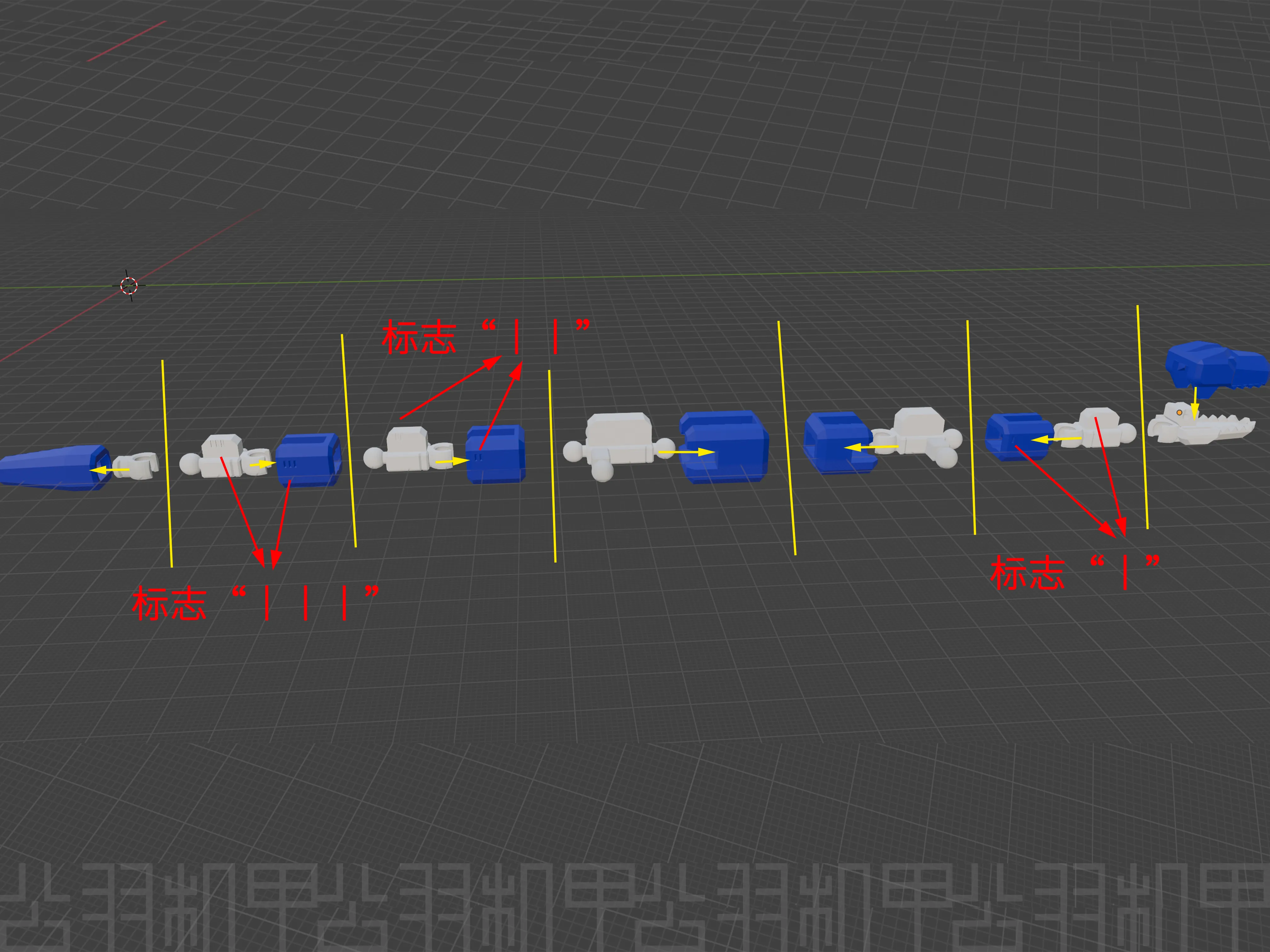

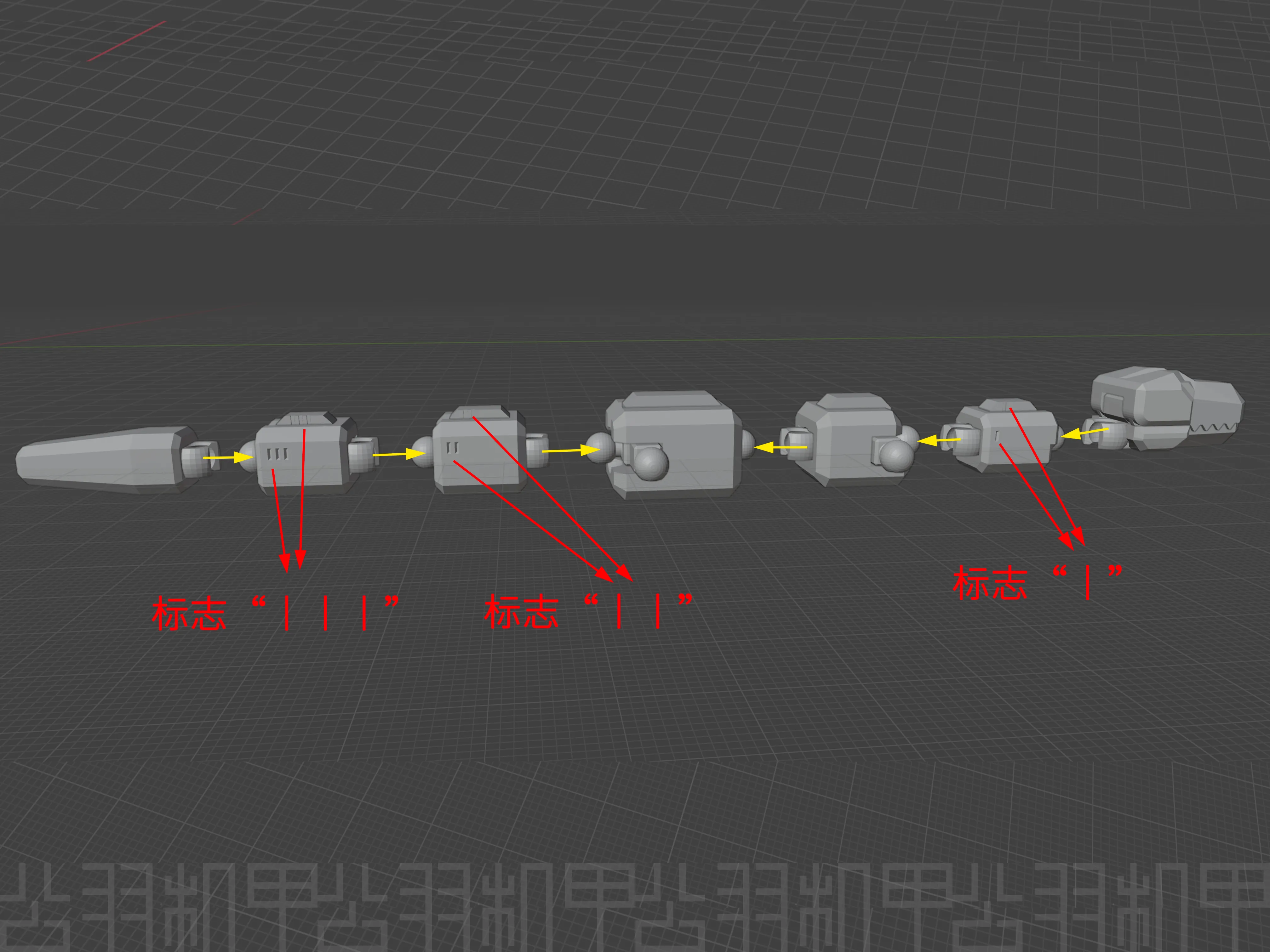

Note that each section of the torso should be installed according to the yellow arrow direction in the image above. 丨, 丨丨, 丨丨丨 are corresponding distinguishing marks. 丨 is the neck, 丨丨 and 丨丨丨 are the tail. The two middle body sections have no marks, just refer to their size.

When the torso is installed correctly, there will be a “click” sound.

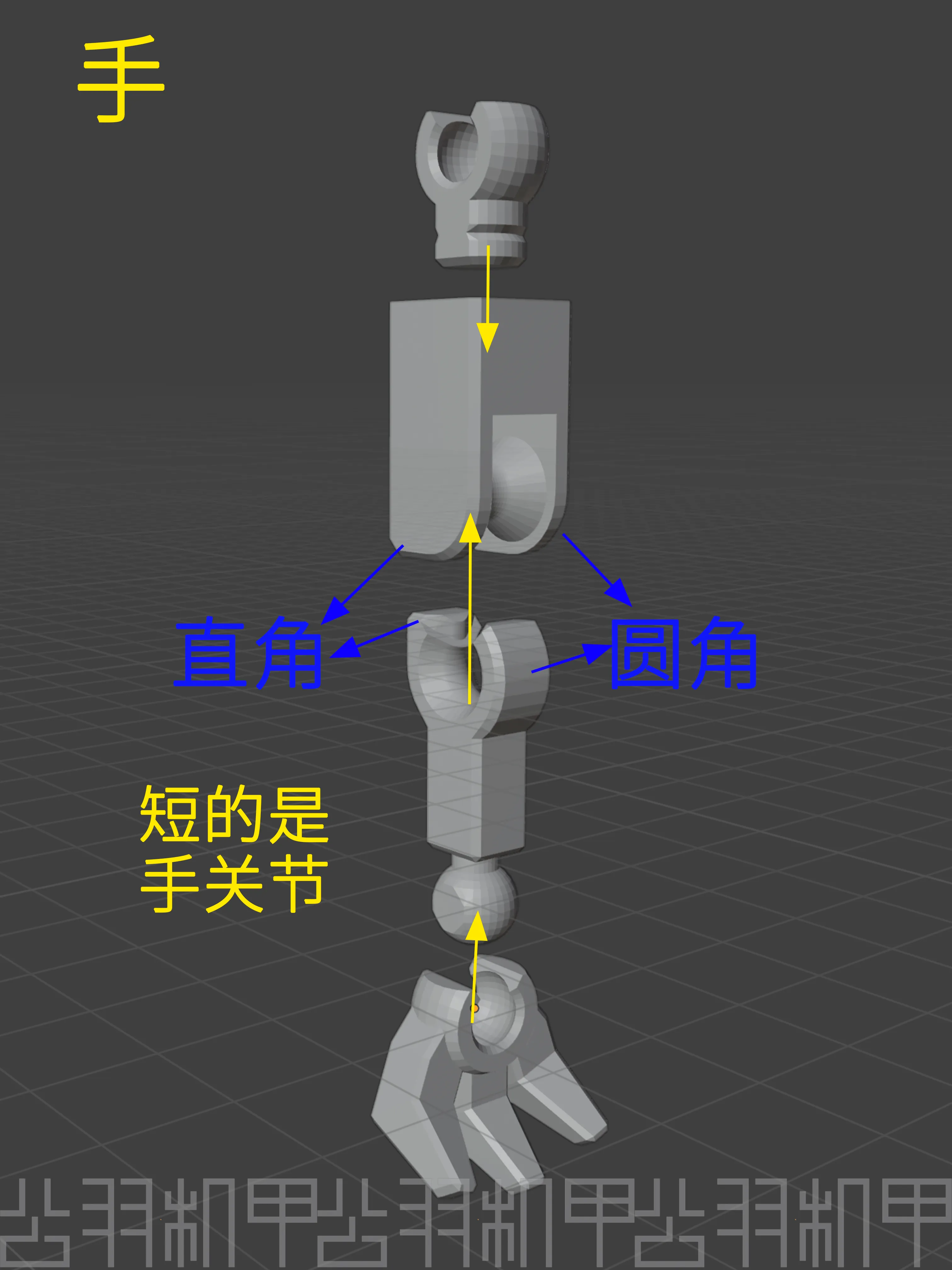

Arms/Hands

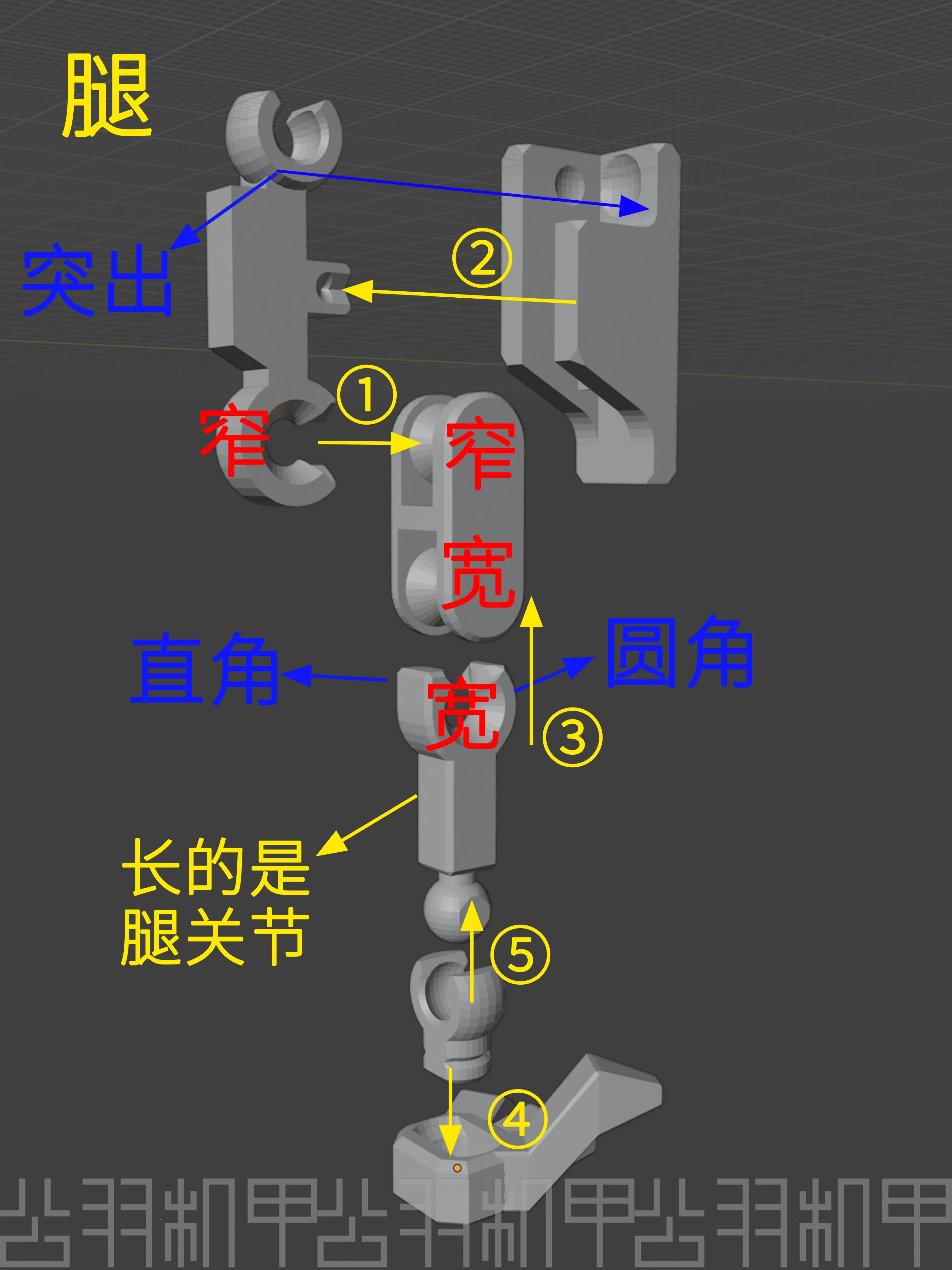

Legs: Special attention, install step ① first, then step ②. Note that the red part has different widths at both ends.

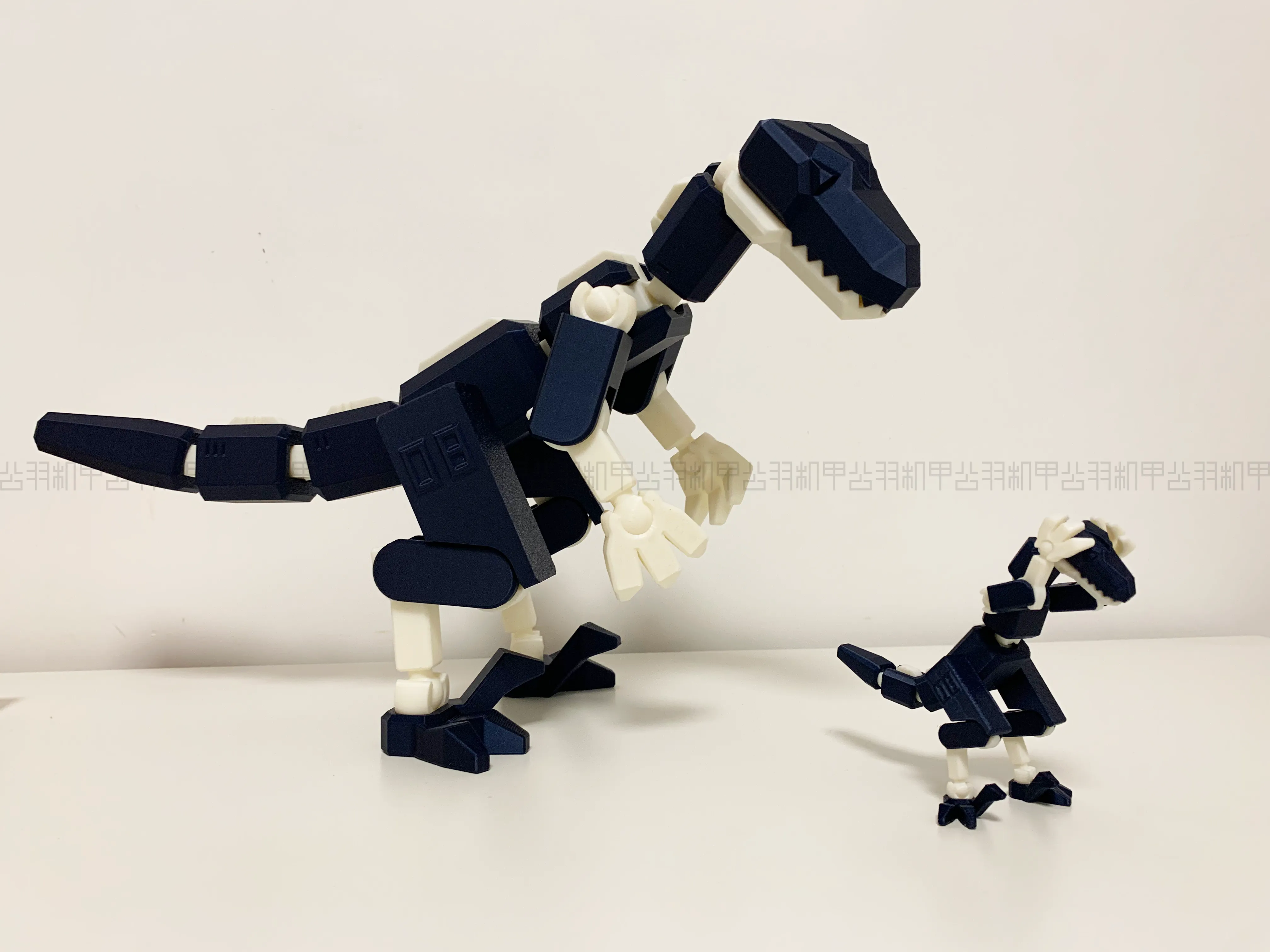

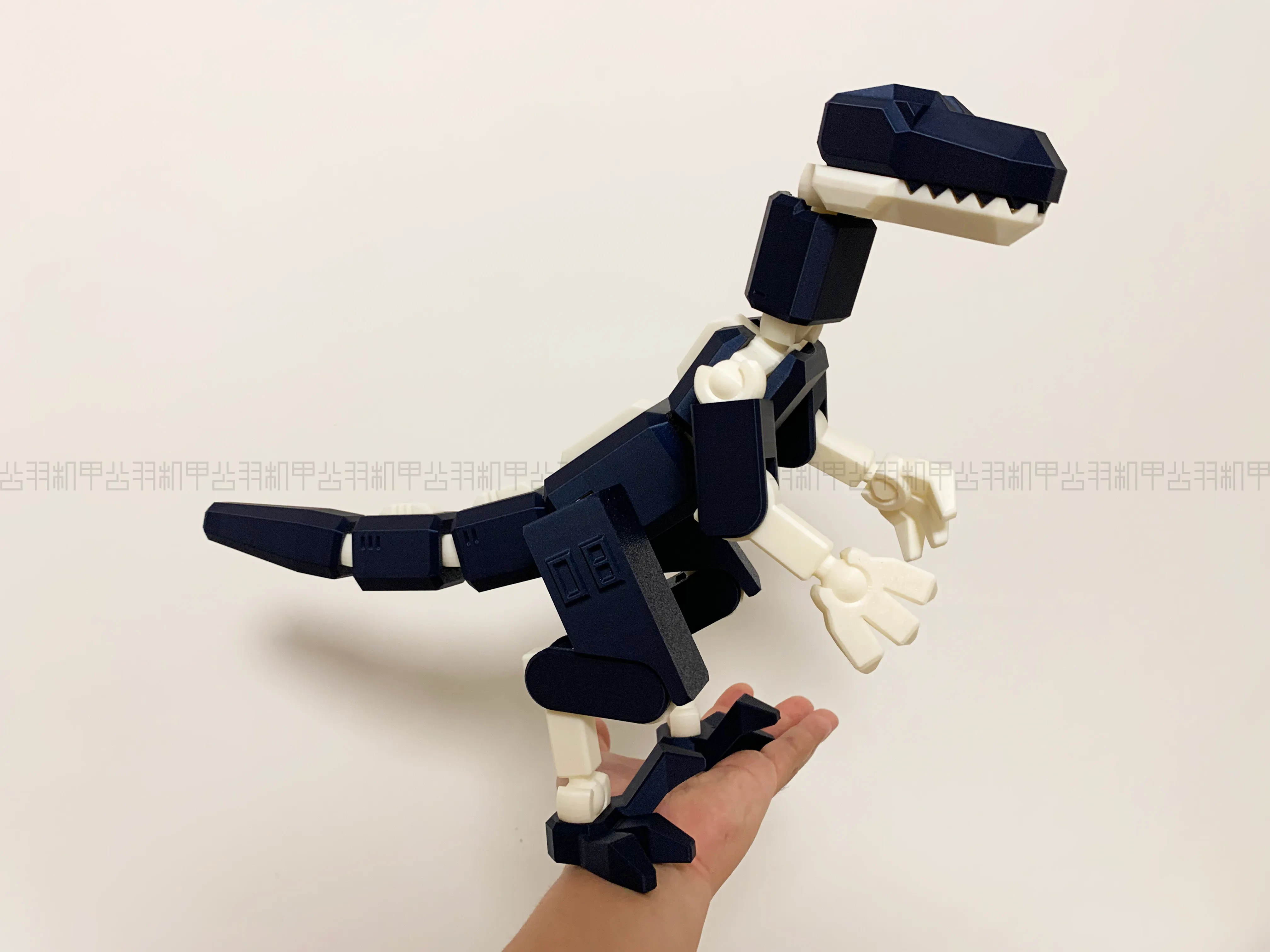

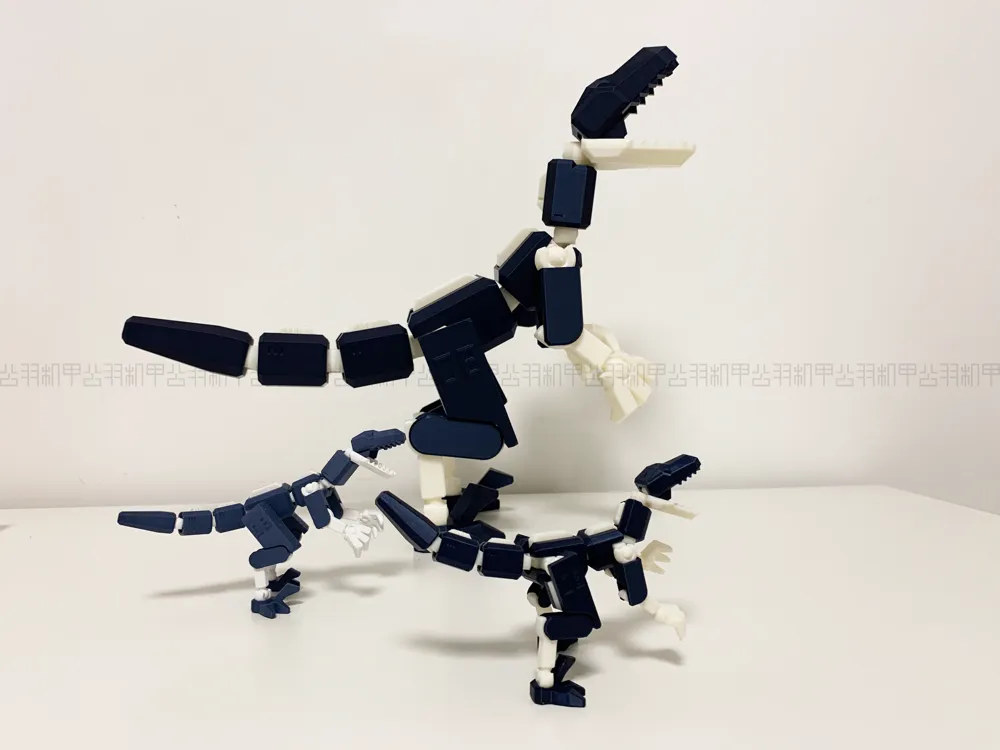

The large size is scaled up to 300% of the original proportion. Other than being a bit cumbersome to handle, there are no issues.

Next issue's preview: It's a secret because it's not ready yet, no photos available
