Modular Top-Turn Pet Feeder

Meet the Modular Top-Turn Pet Feeder, a premium, mechanically optimized pet feeder designed for precision, reliability, and everyday convenience.

Whether you are controlling your pet's diet or just need a reliable daily dispenser, this feeder moves away from clunky, jam-prone mechanisms. Instead, it utilizes a self-centering rotary dosing system and a highly optimized V-funnel silo to ensure kibble flows smoothly into your pet’s bowl every single time.

Designed with a modular architecture, the feeder is broken down into easy-to-assemble parts with snap-fit geometry, making it an incredibly satisfying build.

Key Features

• Precision Rotary Dosing: The core of the feeder is a smooth-turning rotor seated on a self-centering pivot hub. This eliminates wobble and reduces wear. The dispensing cavities use a specialized "stadium" (elongated oval) shape to maximize kibble flow and completely prevent jamming.

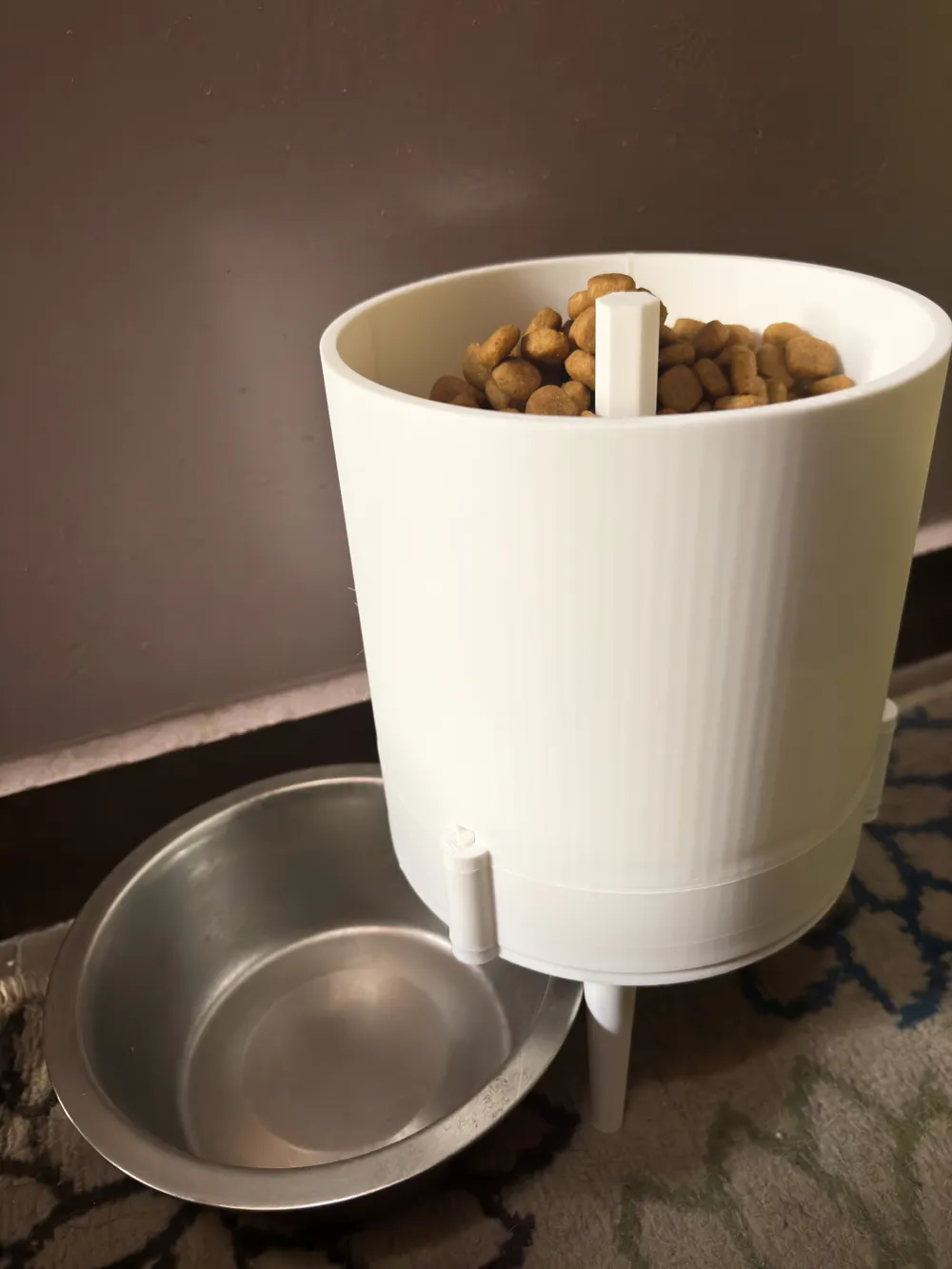

• High-Capacity V-Funnel Silo: To maximize food storage without increasing the footprint, the hopper features a straight-walled upper cylinder that seamlessly transitions into a V-funnel. This ensures all food slides down to the rotor, leaving no stale kibble behind.

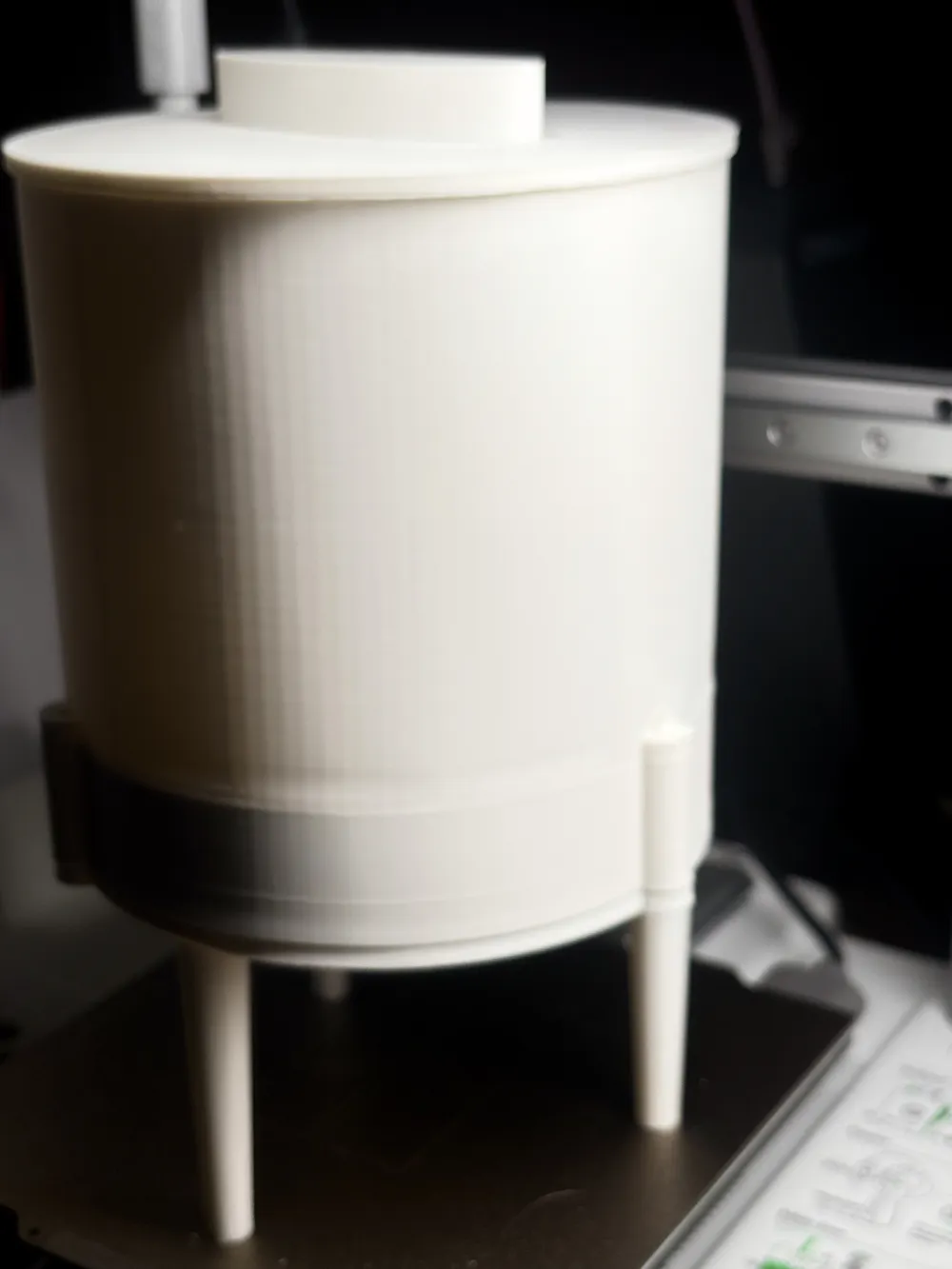

• Perfect-Clearance Modular Legs: The base sits on three sturdy, tapered legs. The geometry of the base plate has been mathematically offset to ensure the front drop-zone is completely free of obstructions, allowing you to slide any standard pet bowl directly underneath the chute.
• Snap-Fit Assembly: The Base, Rotor Housing (Skirt), and Silo all connect using tightly toleranced snap-fit pegs and interlocking flanges. No glue or extra hardware is required!

Assembly Guide

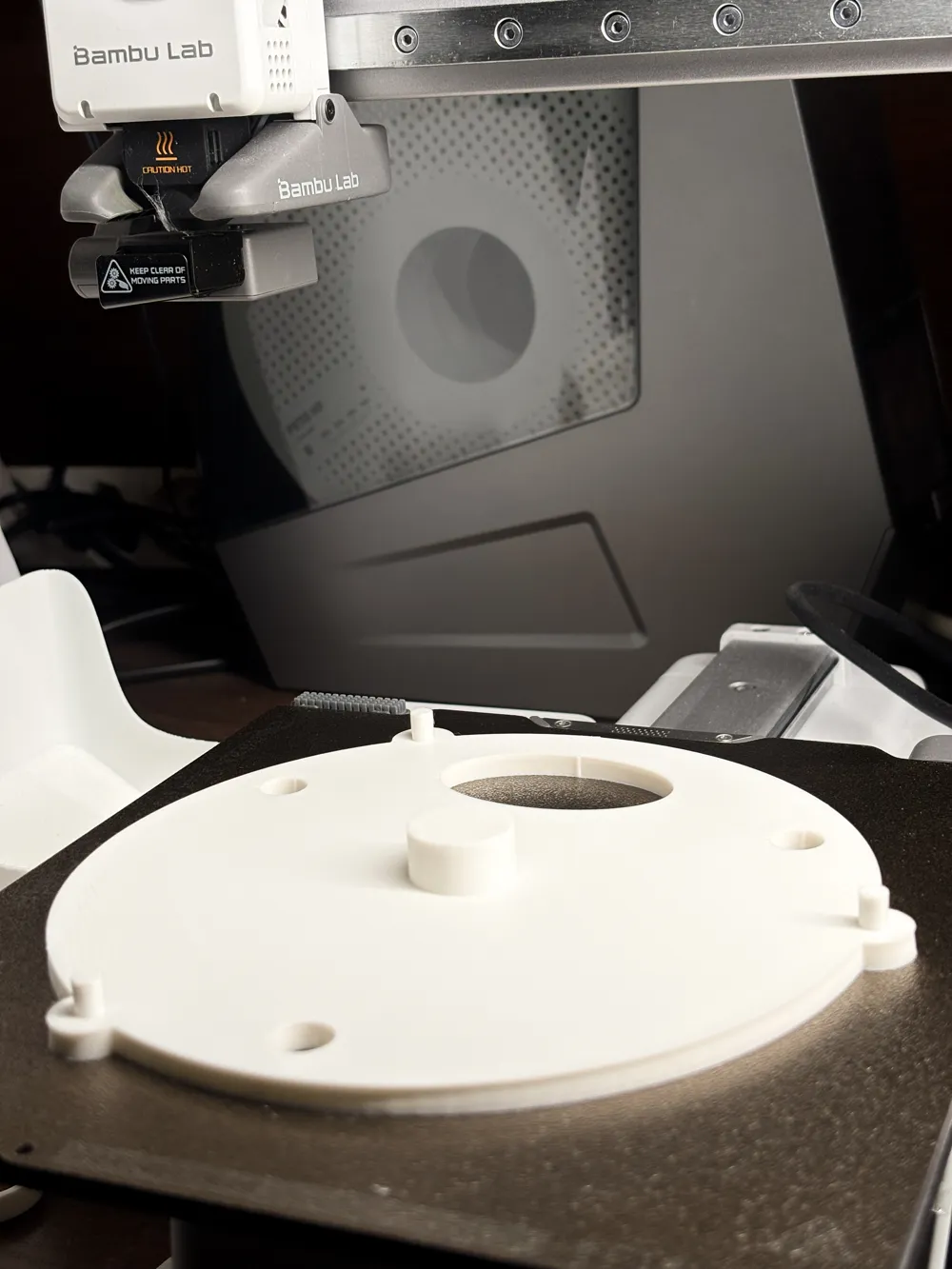

1. Press the 3 Legs firmly into the bottom sockets of the Base Stand.

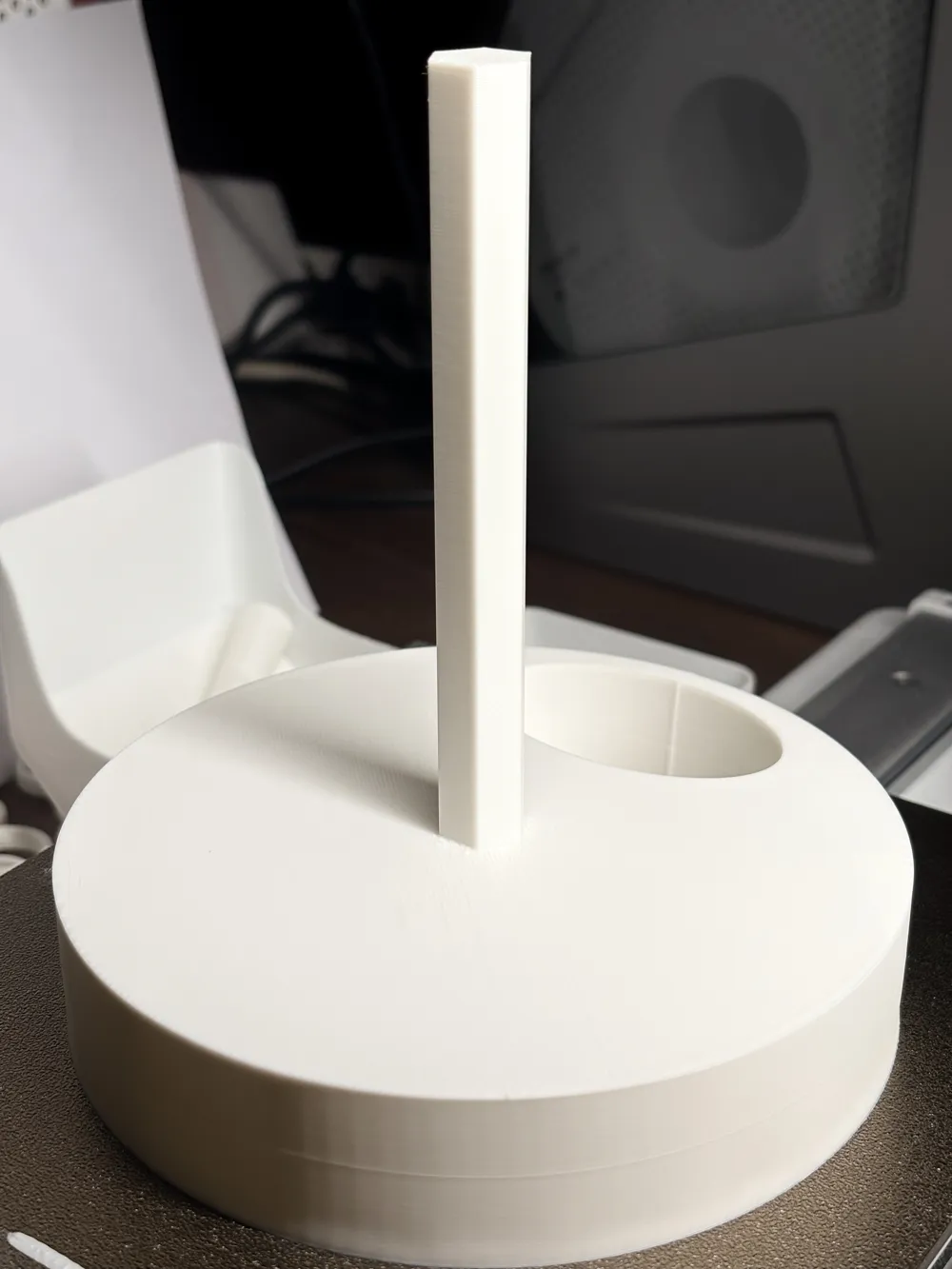

2. Slide the Rotor over the central pivot hub on the Base Stand.

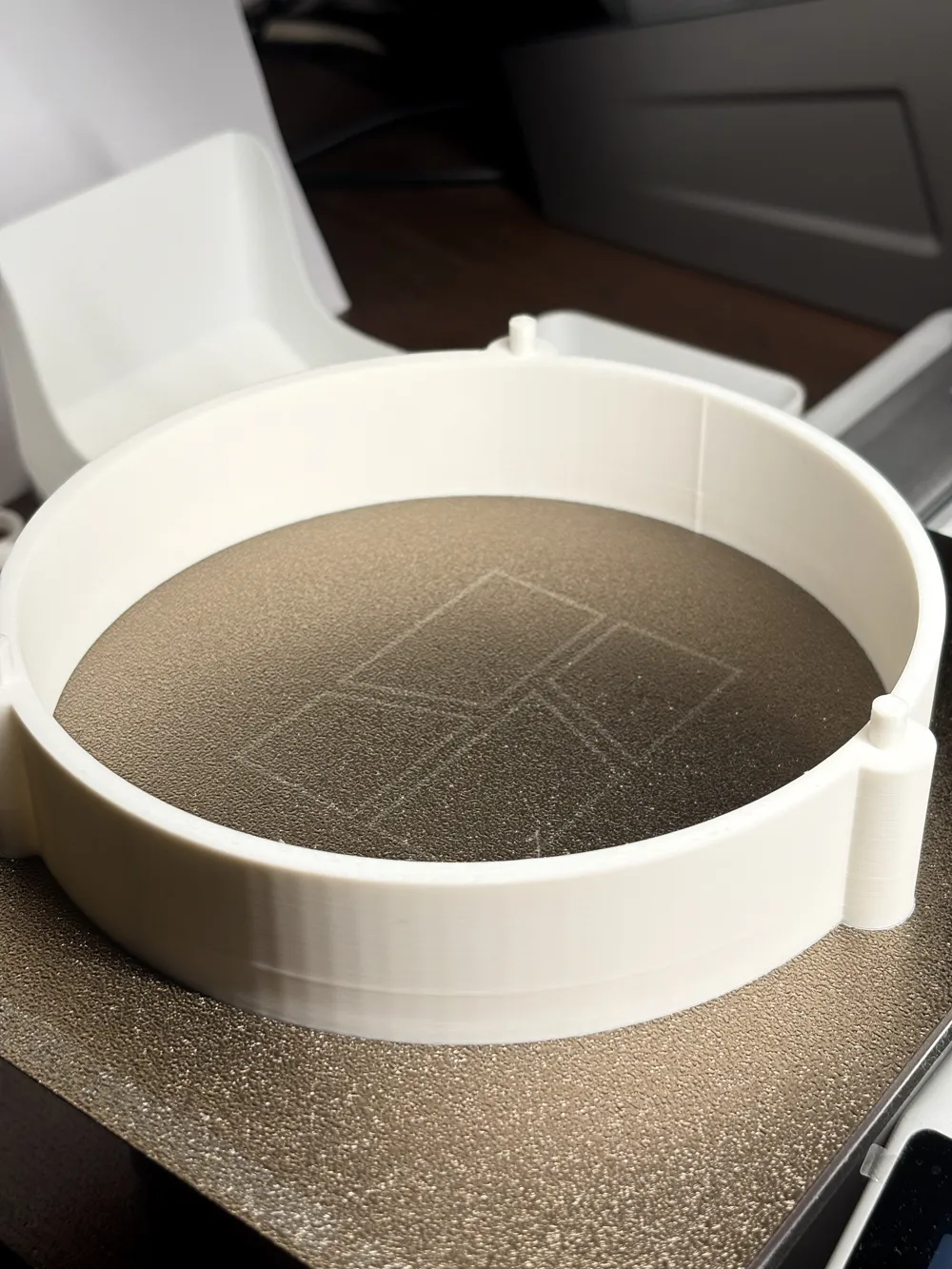

3. Align the pegs of the Hopper Skirt with the holes on the base and press down to snap it into place over the rotor.
4. Align the Hopper Silo flanges with the skirt pegs and snap them together.

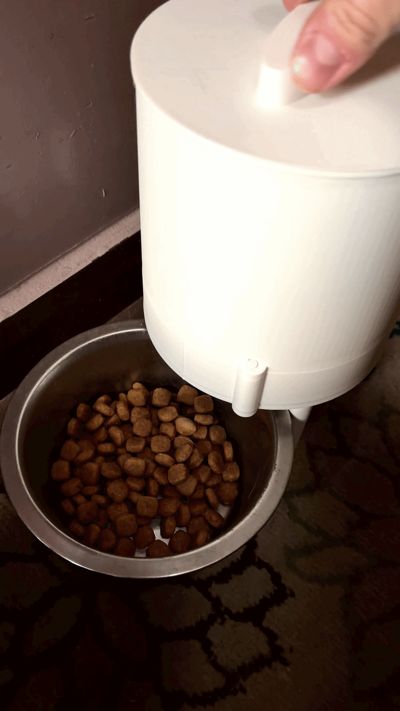

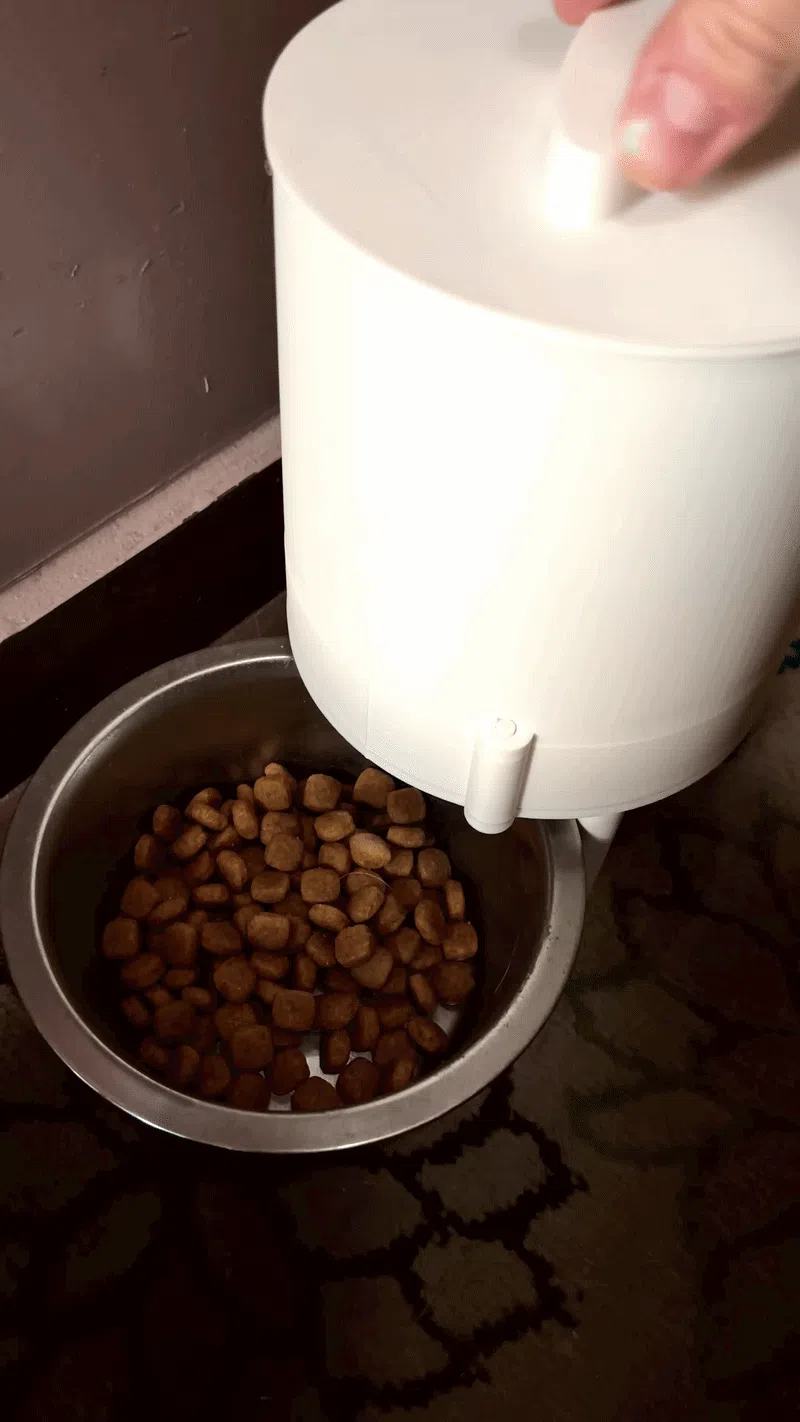

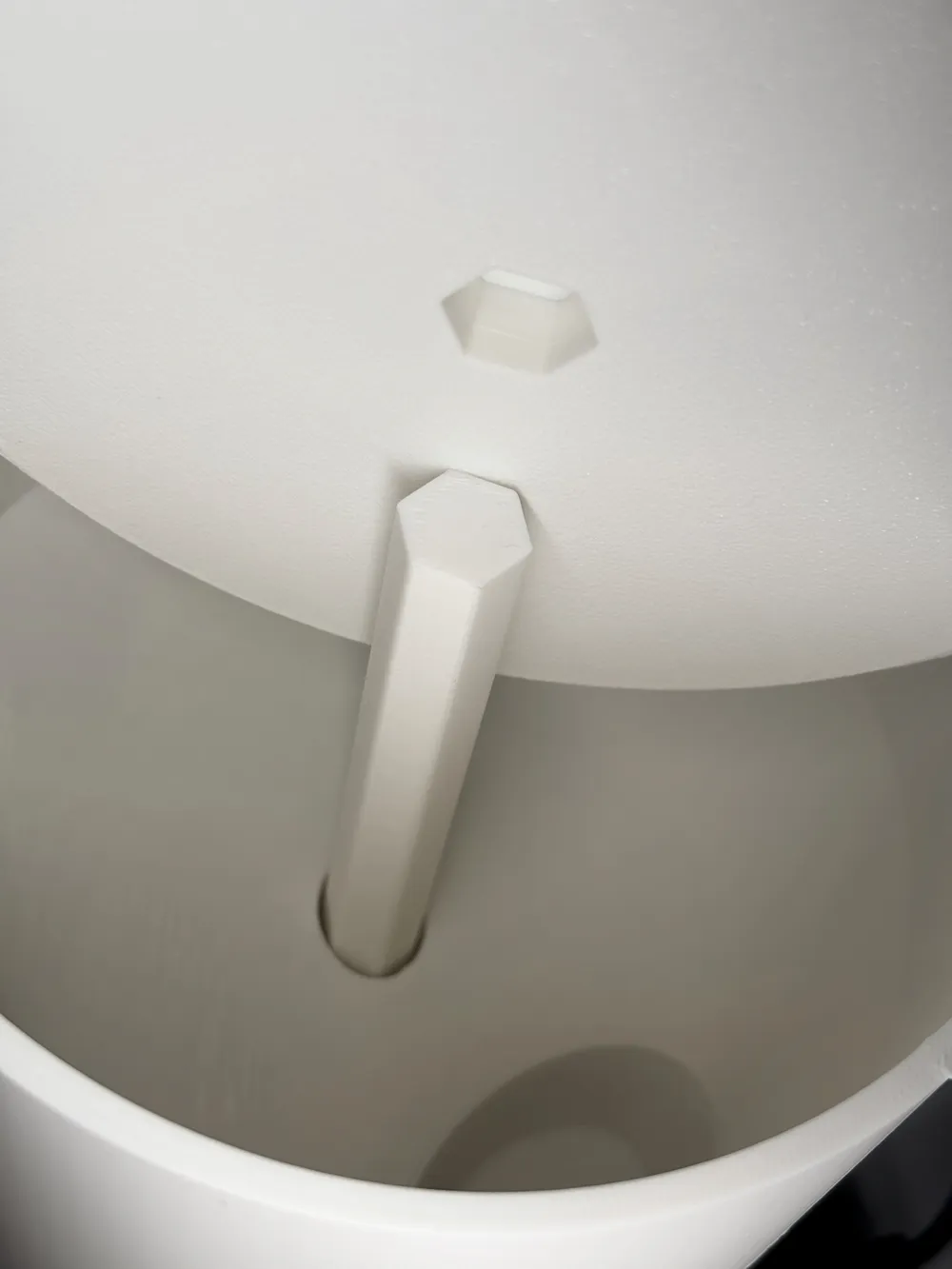

5. Drop the hex shaft of the Actuator Lid straight down through the silo and into the rotor. Fill with your pet's favorite kibble, and give it a turn!
