G2" suction strainer for pump/valve
Print Profile(1)
Description

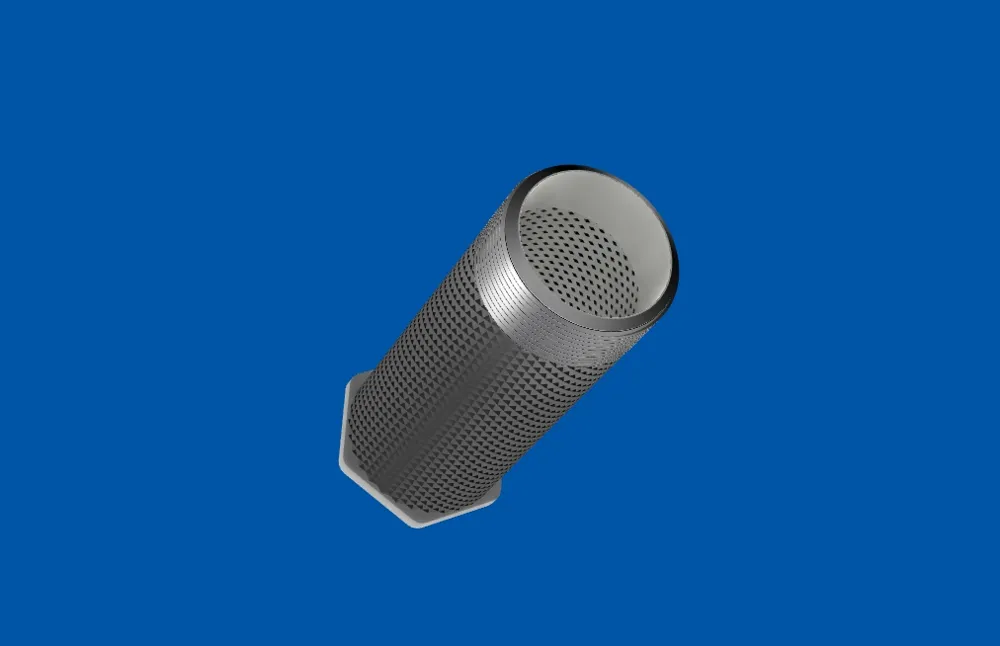

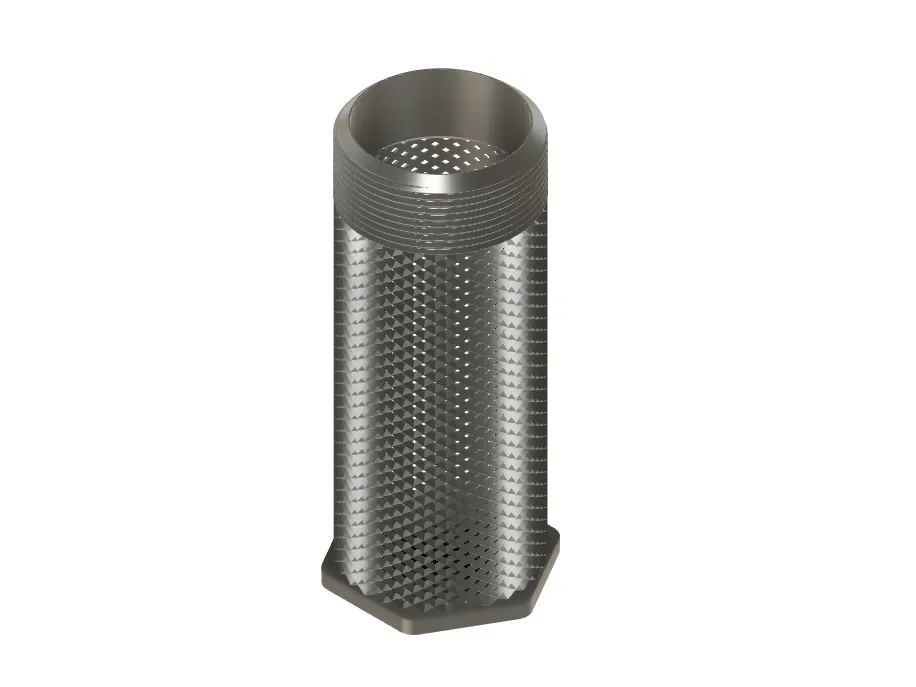

G3/4" Suction Strainer for Pump / Check Valve

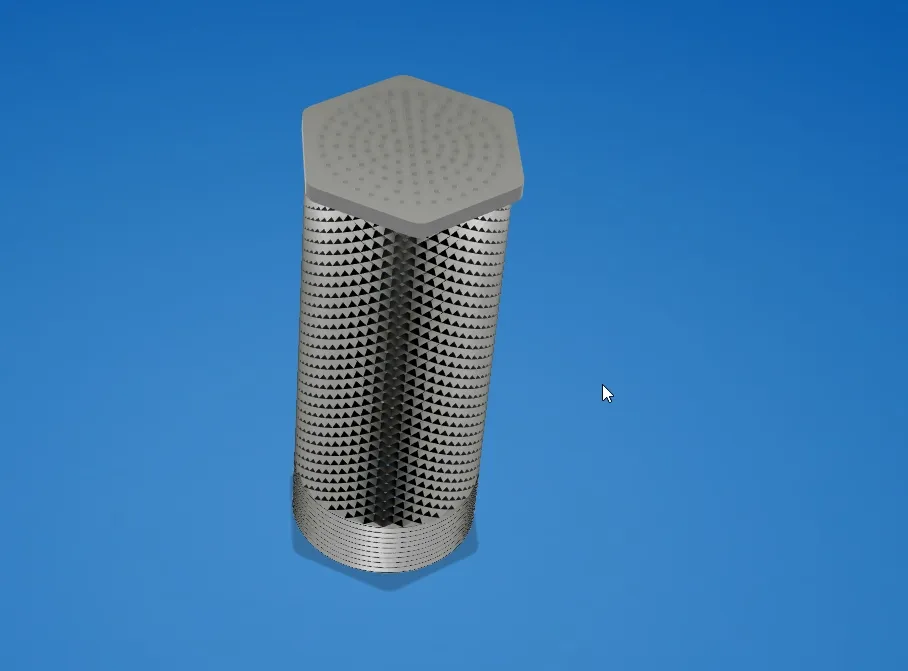

This strainer (suction basket) was designed to be mounted on a 1-inch threaded fitting, upstream of a check valve or directly on a pump suction line.
It effectively filters particles (sand, leaves, debris) to protect your installation while maintaining good flow.

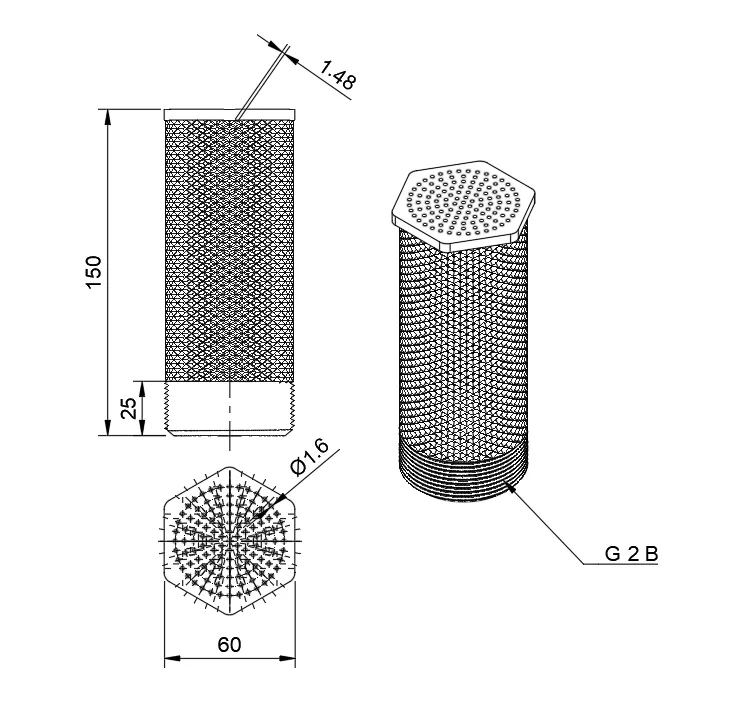

🔧 Features

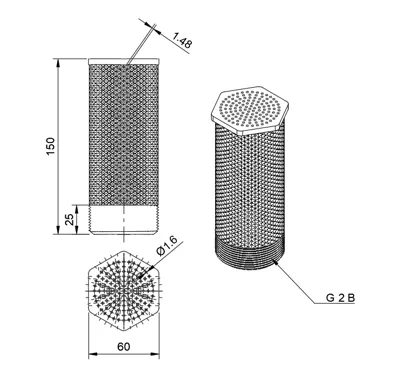

- Thread: G2" (plumbing standard)
- Total length: 120 mm
- Material tested: PLA
- Cylindrical mesh: ~1.5 mm
- End holes: Ø 1.6 mm
- Design optimized for 3D printing (no supports depending on orientation)
⚙️ Usage
Ideal for:
- Irrigation pumps
- Water suction (tank, well, pond)
- Installation with check valve

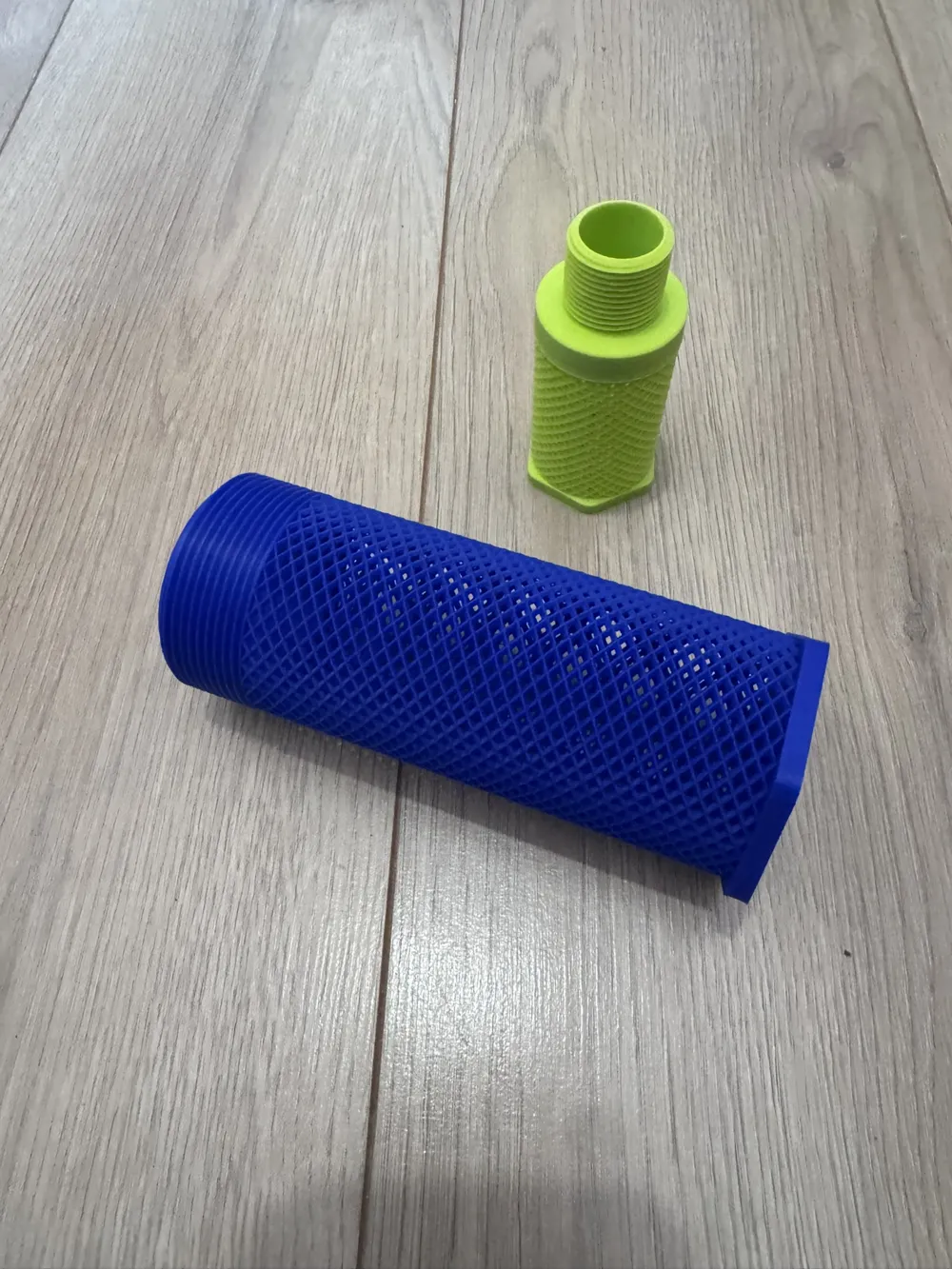

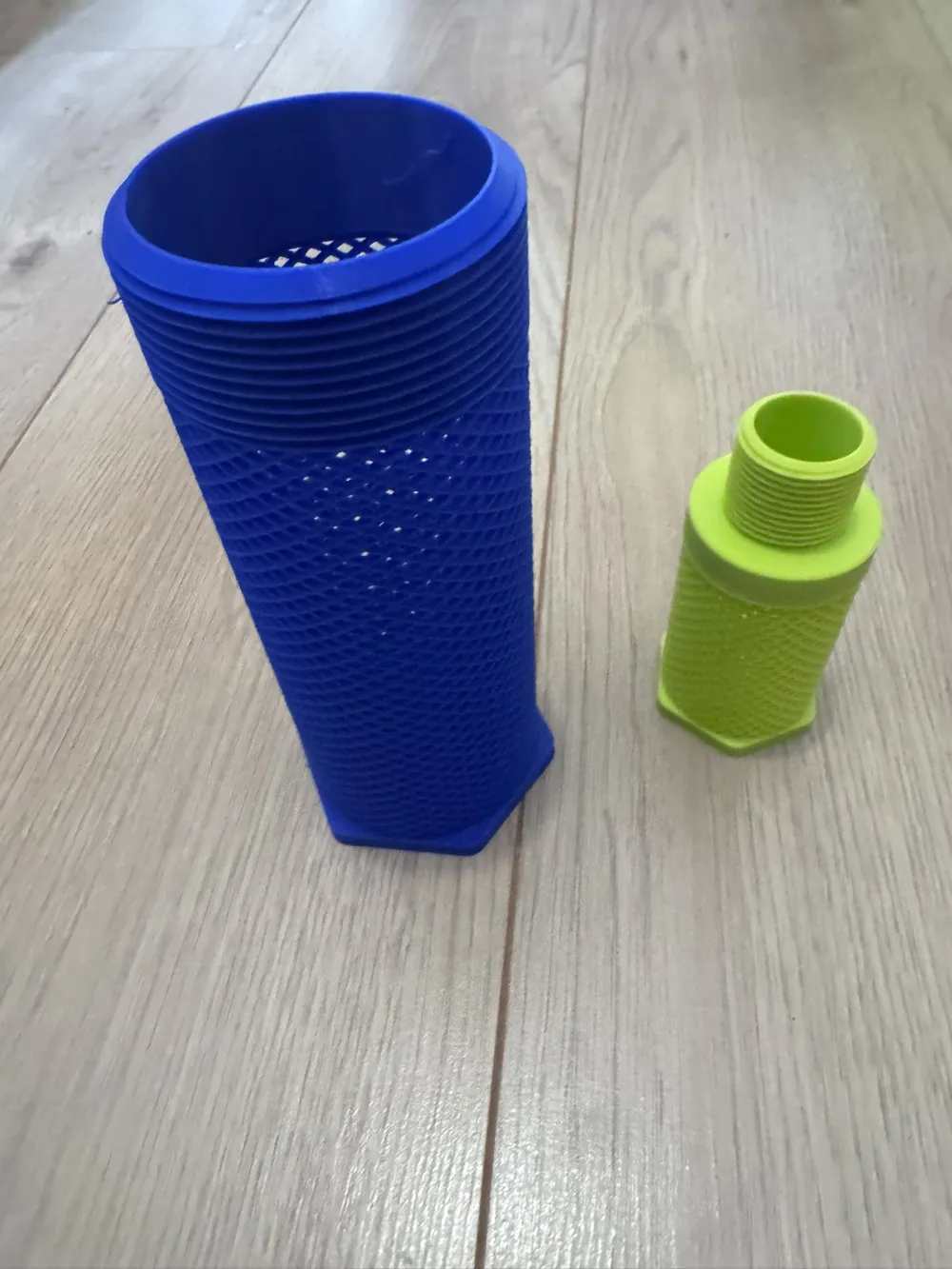

Here is the link for the G1" model
https://makerworld.com/en/models/2626081-1-suction-strainer-for-pump-check-valve#profileId-2899218

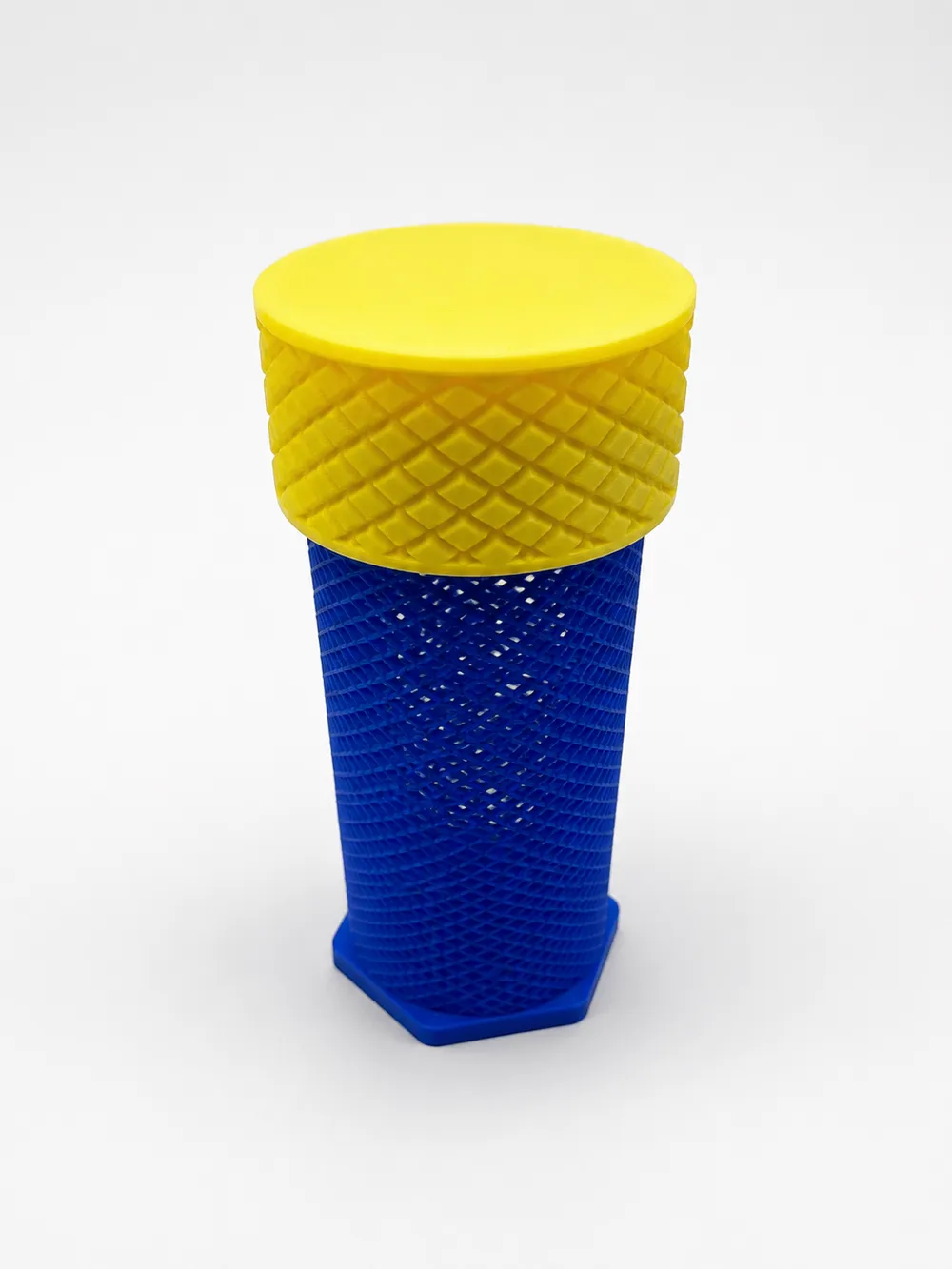

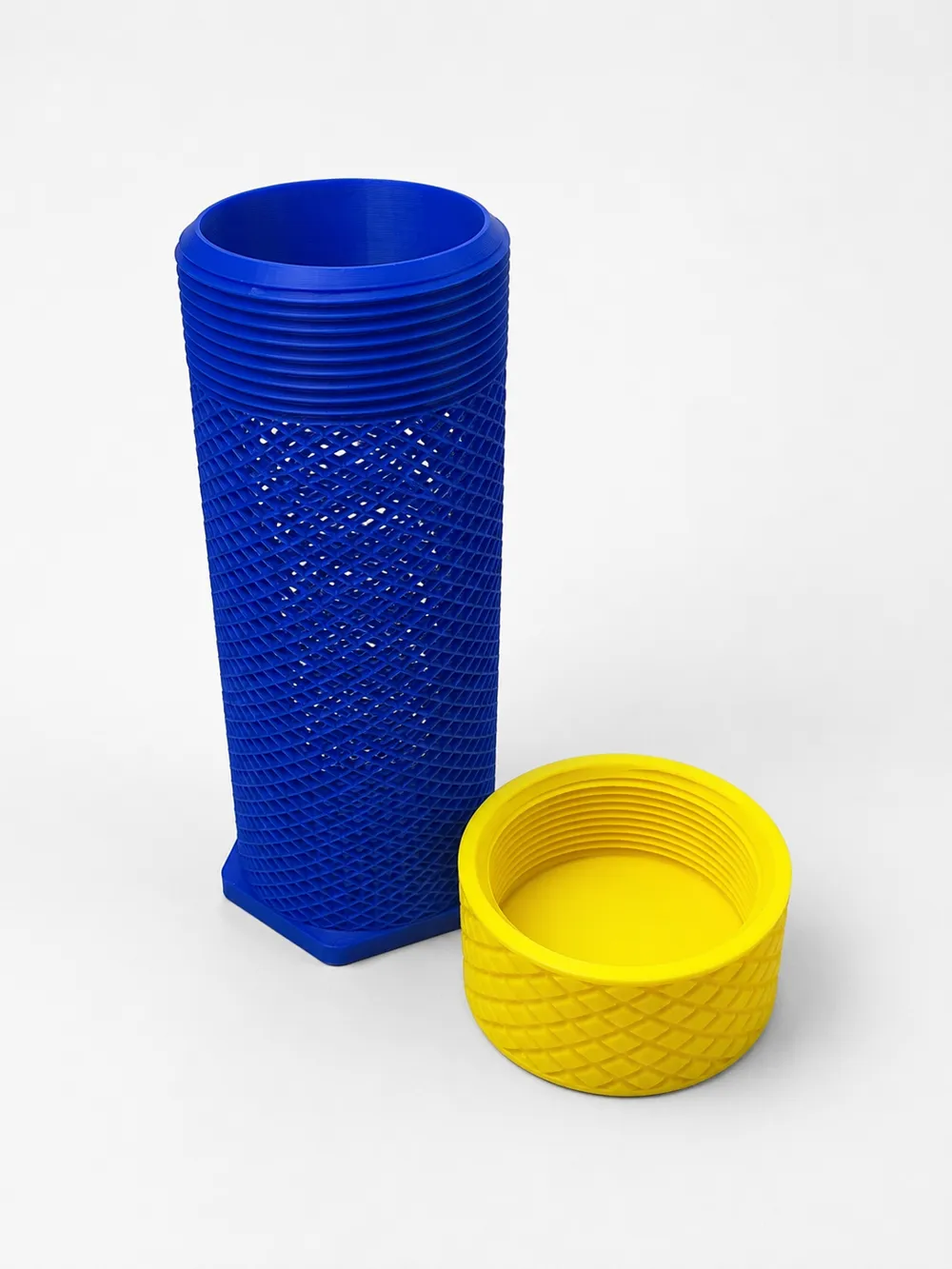

Compatible with my 2" cap model: once screwed onto the strainer, this cap allows the assembly to be transformed into a practical small container for storing or protecting small items.
https://makerworld.com/en/models/2968668-bouchon-filete-2-texture-grip-diamant-molete#profileId-3329035
⚠️ Recommendations
PLA offers good rigidity, but for prolonged use in humid or outdoor environments, prefer PETG, ASA, or Nylon.
Please upload your 3D models if you have tried other materials.
💡 Printing Tips

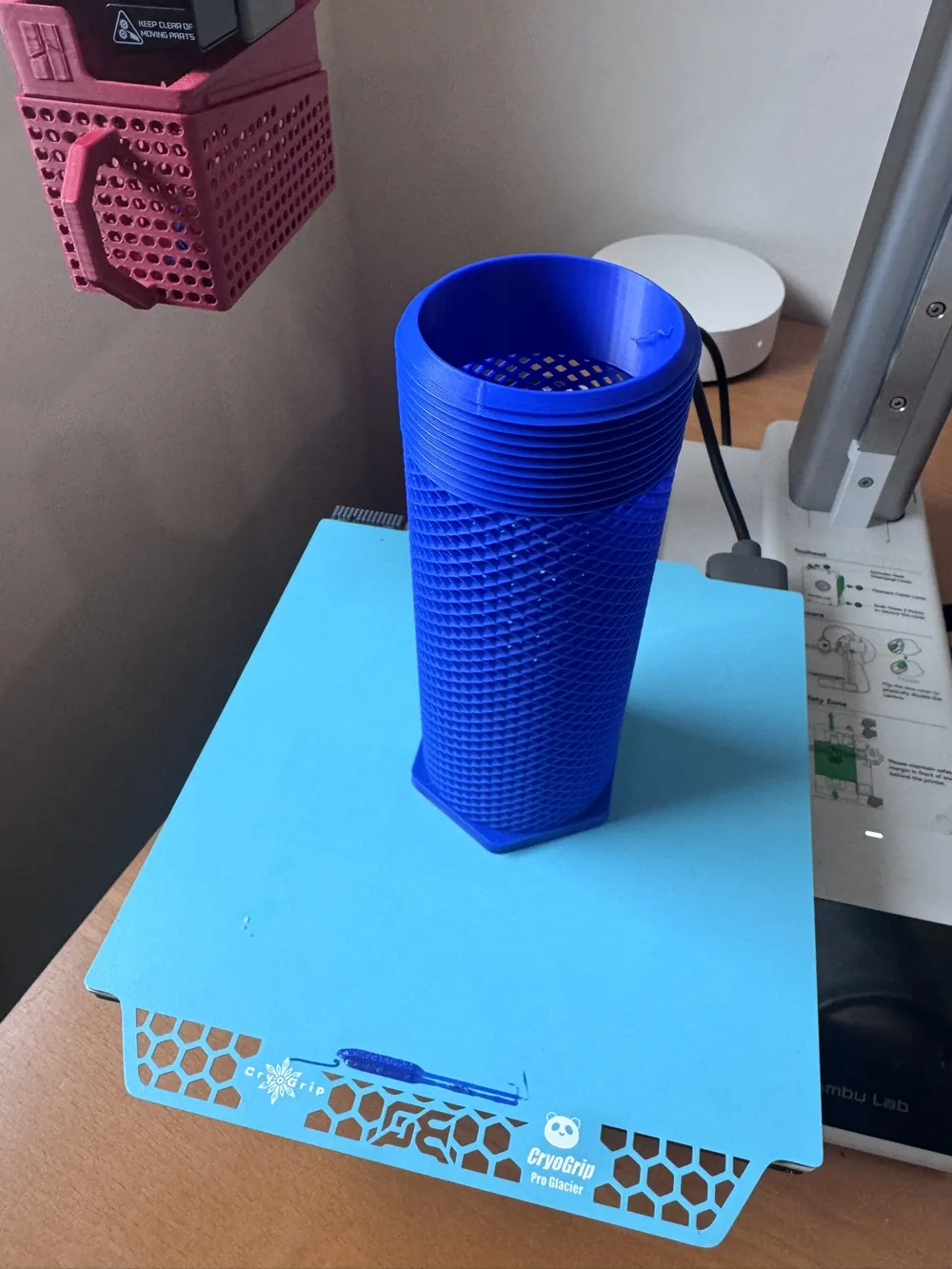

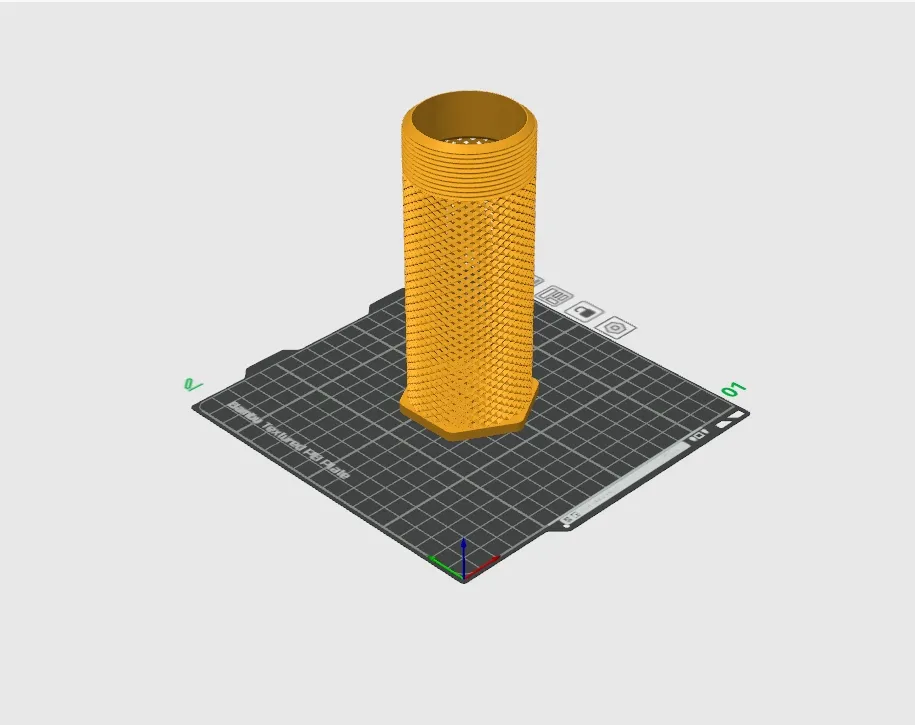

- Recommended orientation: thread upwards
