Aerothrow RC Control Surface Throw Meter WitMotion

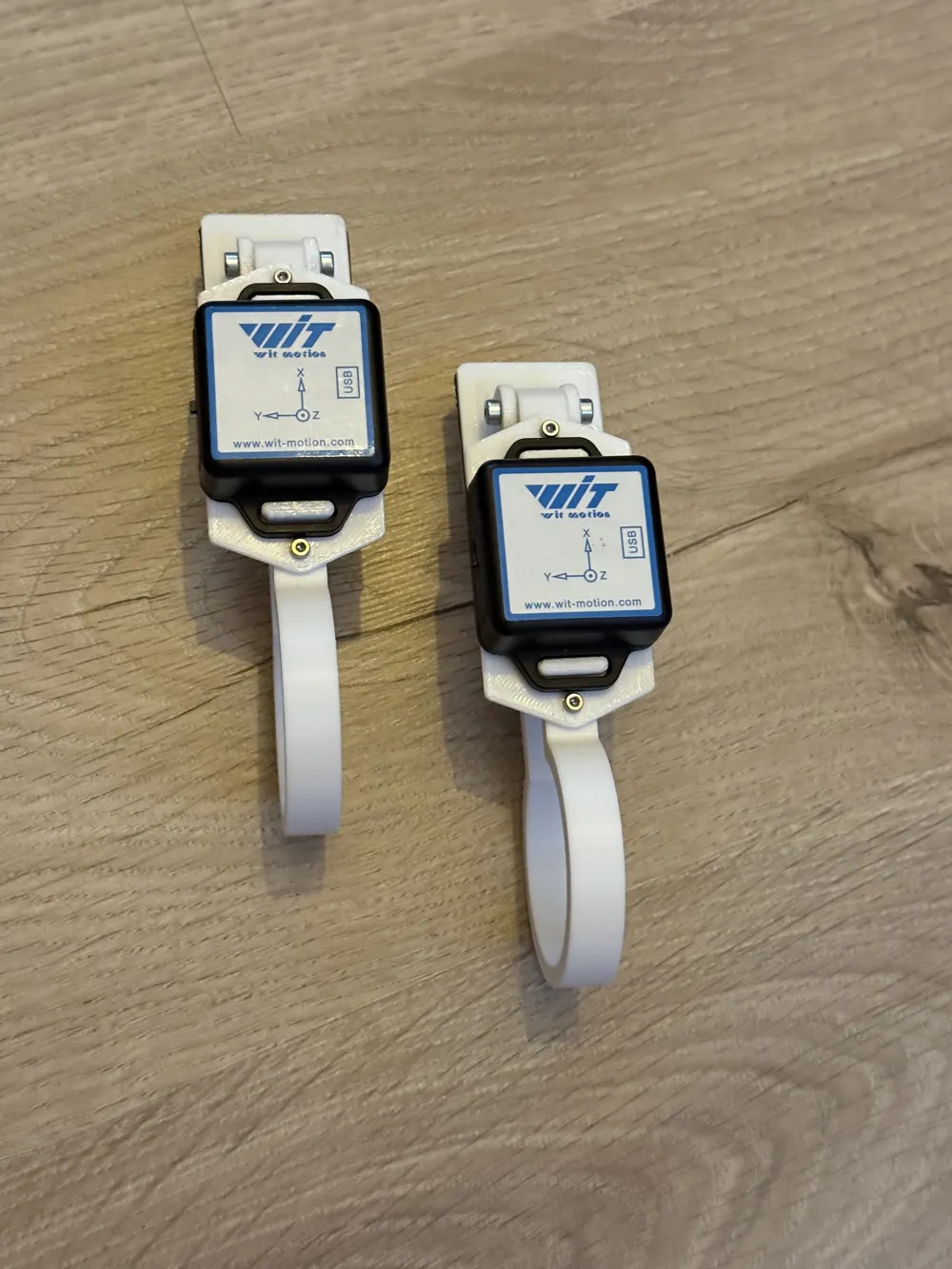

This mount was specifically developed for measuring control surface travel and angles when used with the iOS Aerothrow application. The clamp allows quick installation and removal of the sensor without tools while maintaining a stable and repeatable position during measurements.

Features

• Secure mounting for WITMOTION sensors
• Quick installation and removal
• Lightweight design
• Strong grip without damaging the surface
• Optimized for control surface travel measurements
• Compatible with Aerothrow measurement workflows

Recommended Print Settings

• Material: PETG or PLA
• Layer height: 0.20 mm
• Infill: 15–45%
• Supports: Not required
• Brim: Optional

Assembly

• For one holder, you will need 2 M2x5 and 4 M3x6 screws.
• A piece of rubber inner tube stuck under the feet will help keep the clamp in place.

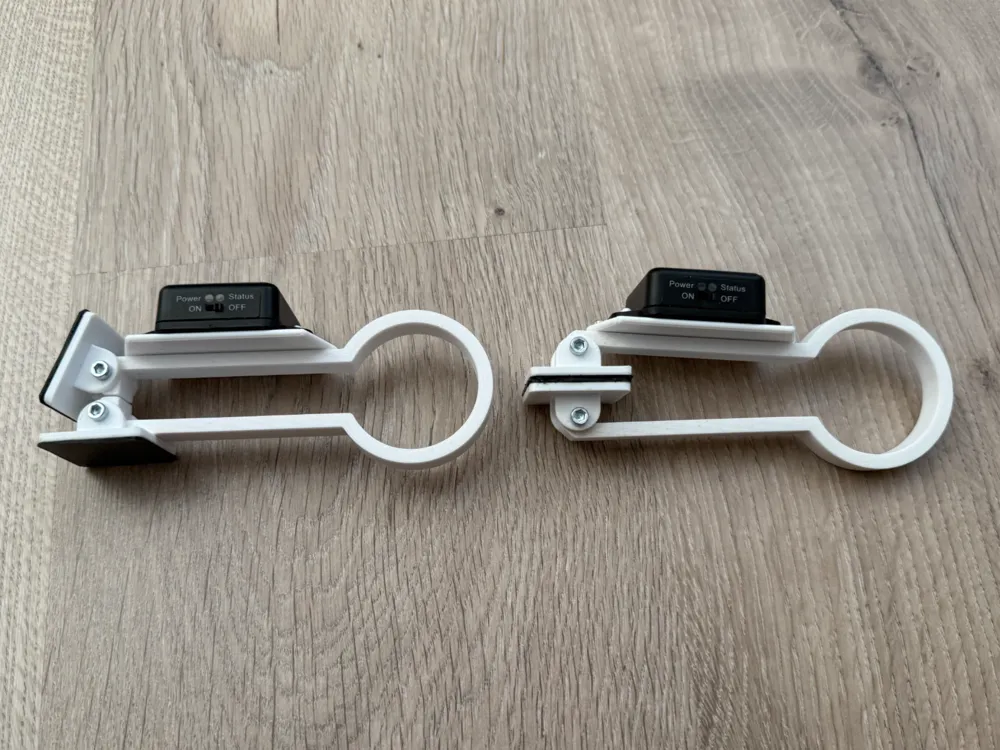

• Simply insert the WITMOTION sensor into the dedicated holder and attach the clamp to the control surface or test object. Ensure the sensor is firmly seated before setting the zero point and measurement.

Applications

• RC airplanes
• Gliders
• Mechanical angle measurements
• Control surface setup and calibration

Notes

This design was created to simplify and improve the accuracy of control surface travel measurements when used with the iOS Aerothrow application.

Feedback and improvements are always welcome. Happy printing!
