Parkside PKHAP 2058 A1 Rotary Hammer Wall Mount

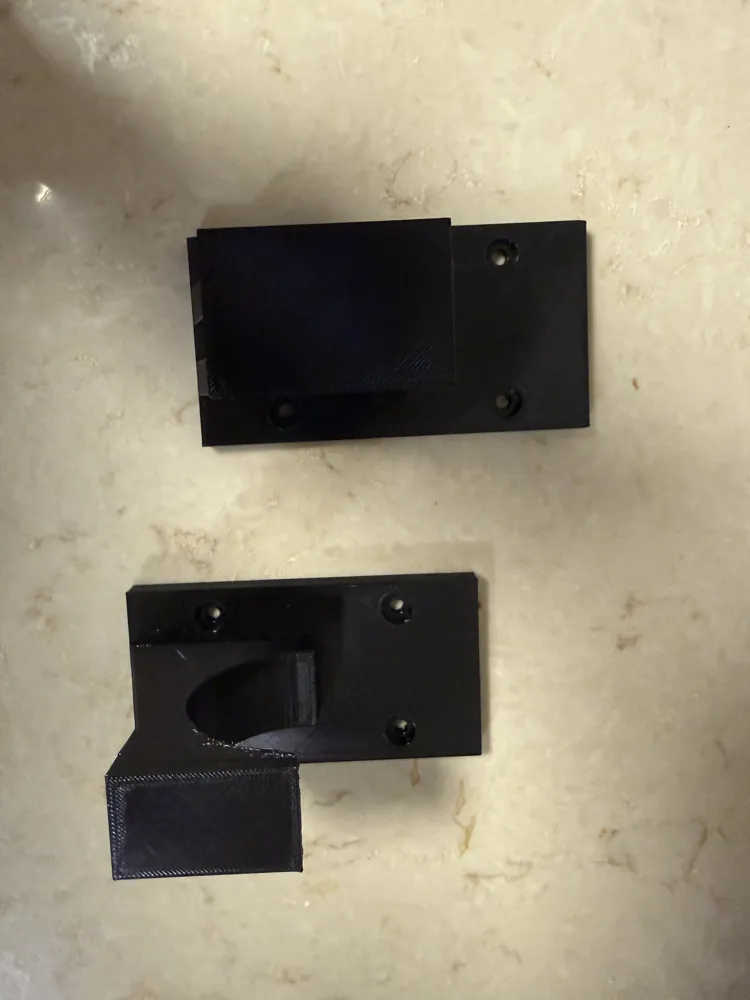

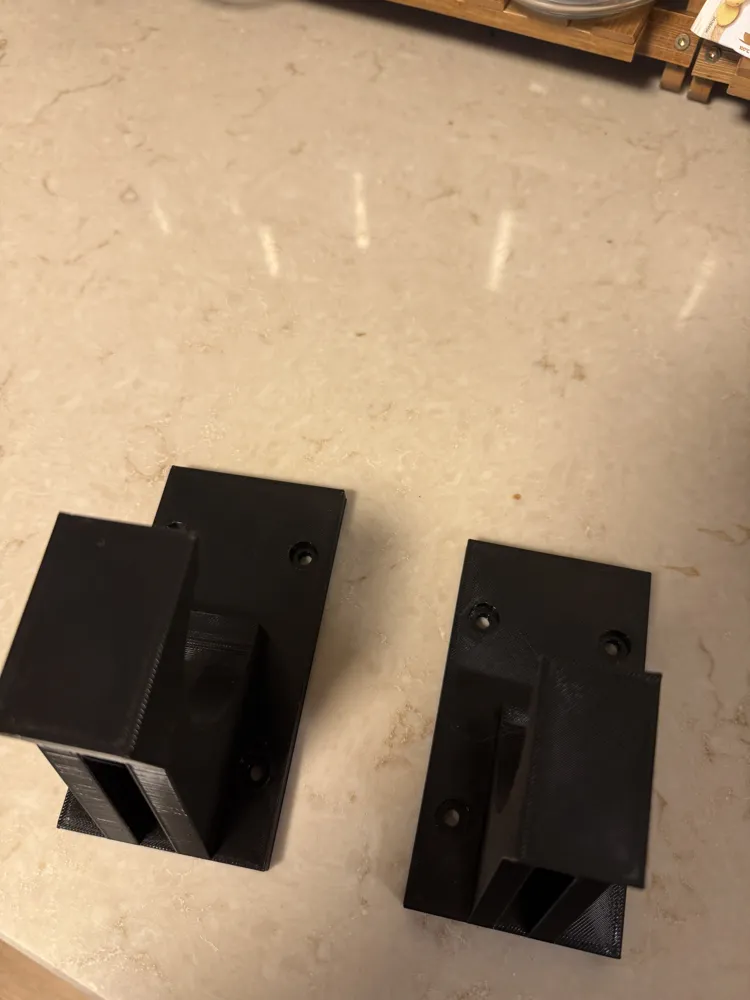

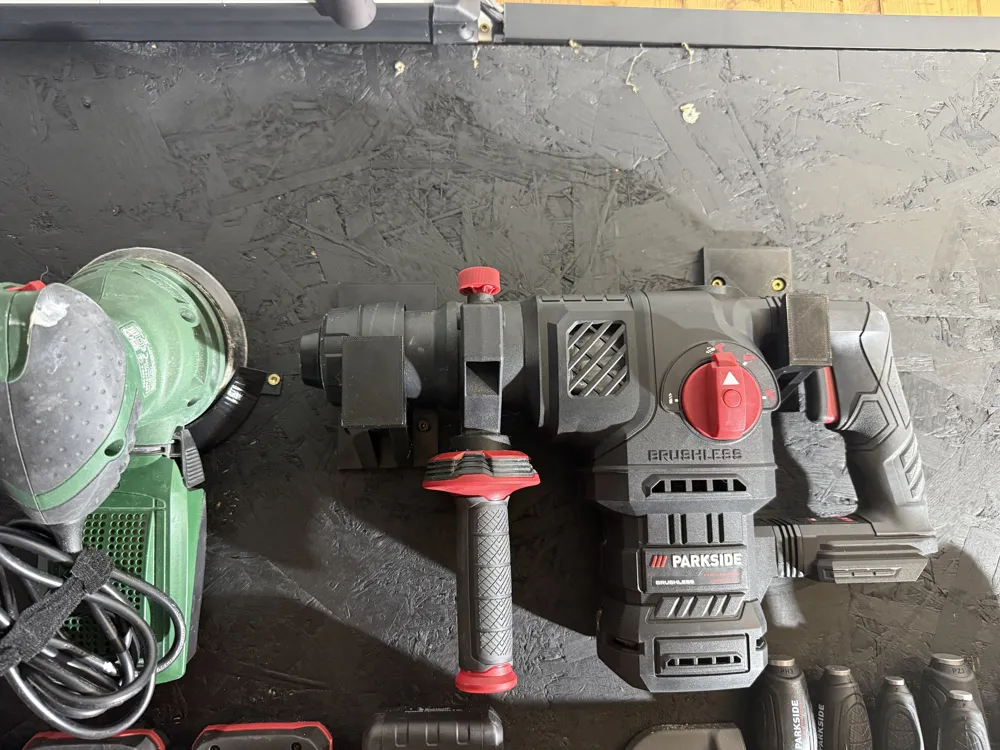

Wall mount designed specifically for the Parkside Performance PKHAP 2058 A1 cordless rotary hammer. It uses two separate heavy-duty cradles: one supports the drill chuck and the other supports the rear handle close to the trigger. The separate parts make positioning easy: hold the machine against the wall panel, mark each cradle position and mount them independently.

PRINT SETTINGS
• Material: PETG recommended
• Layer height: 0.20–0.24 mm
• Walls: at least 5
• Top/bottom layers: 6
• Infill: 45–60% gyroid
• Orientation: place the flat mounting plate on the build plate
• Supports: not required

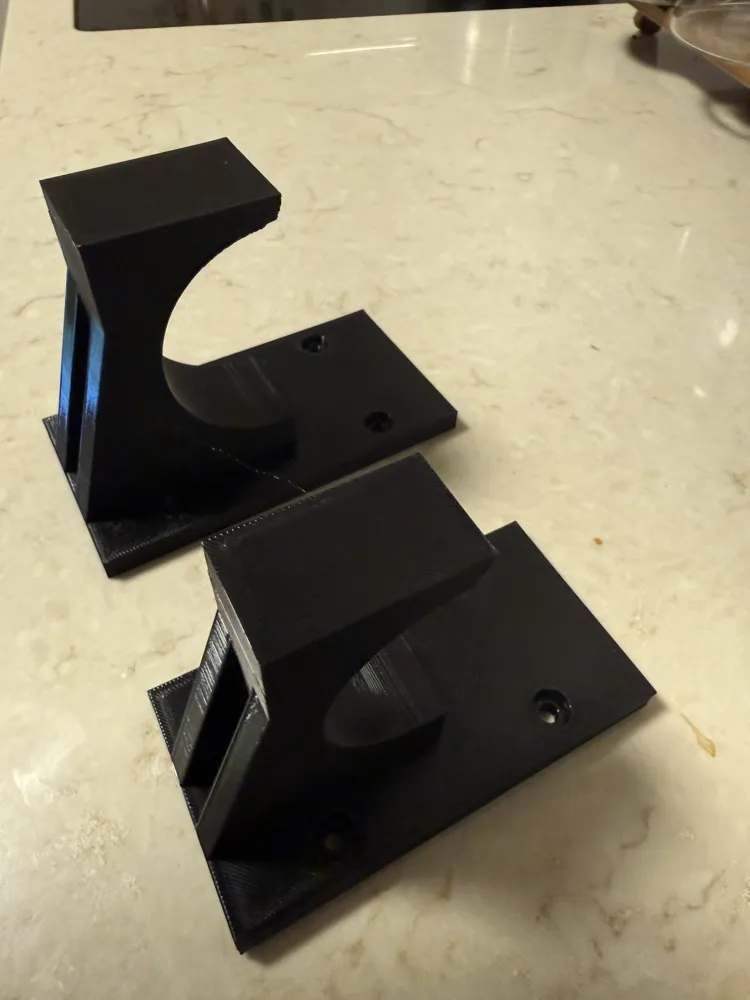

The curved overhang may show a little sagging when printed without supports. This is cosmetic and does not affect the function. If you want a cleaner inner curve, use support only under that area.

INSTALLATION

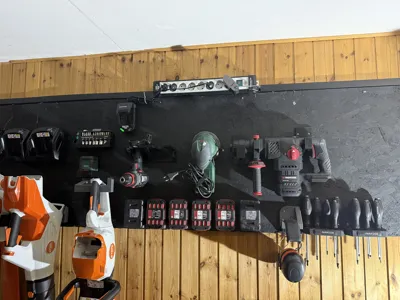

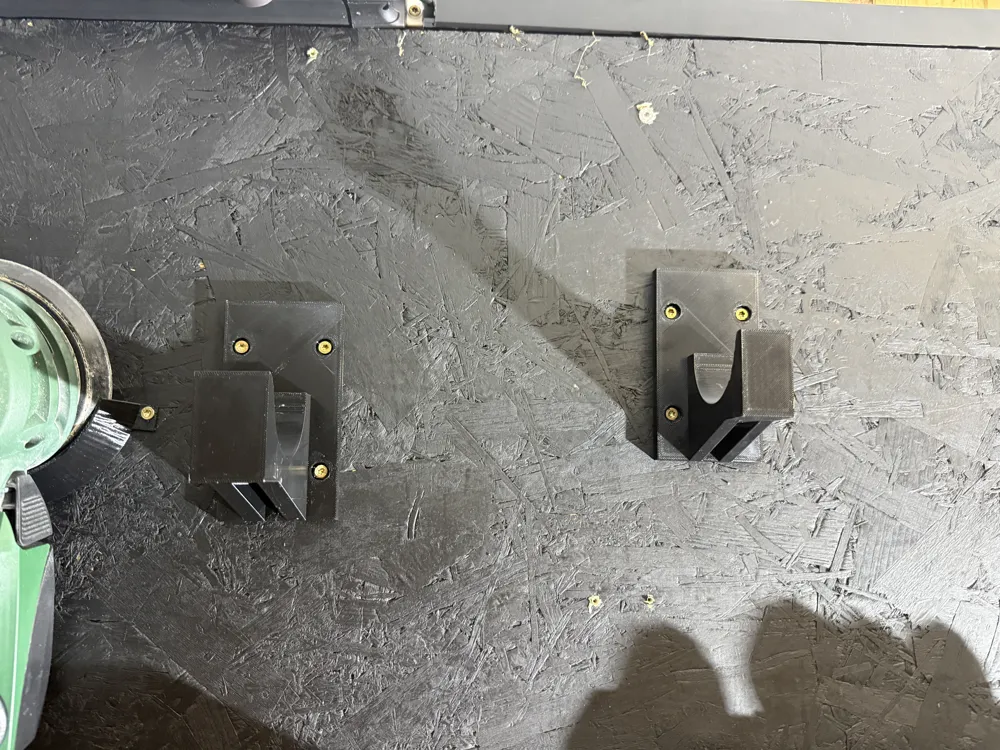

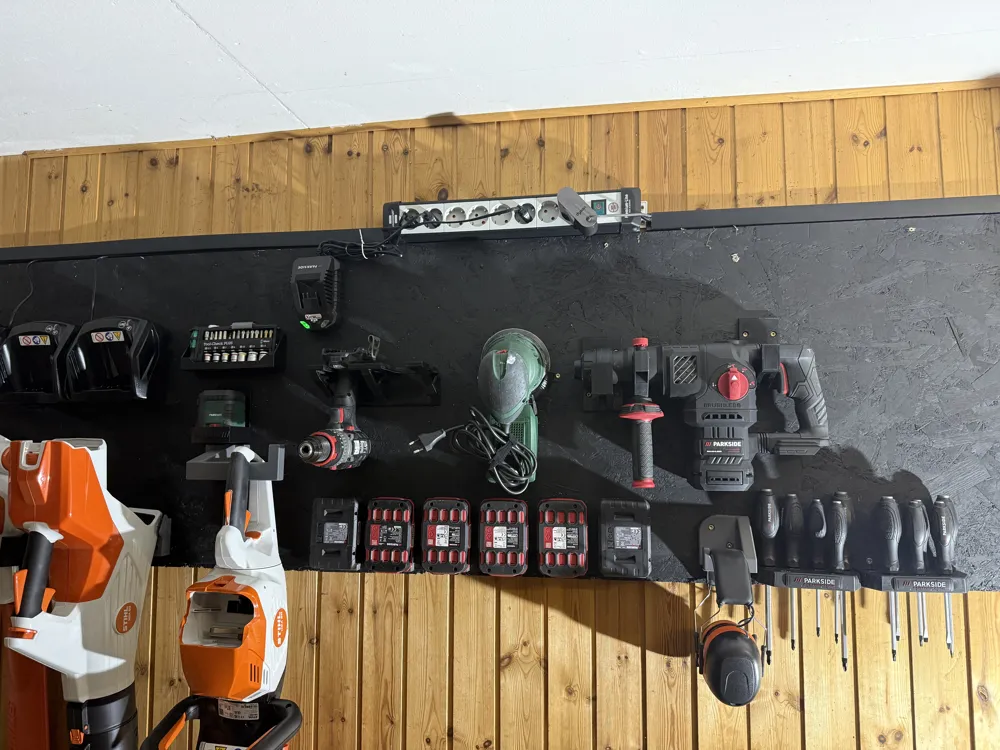

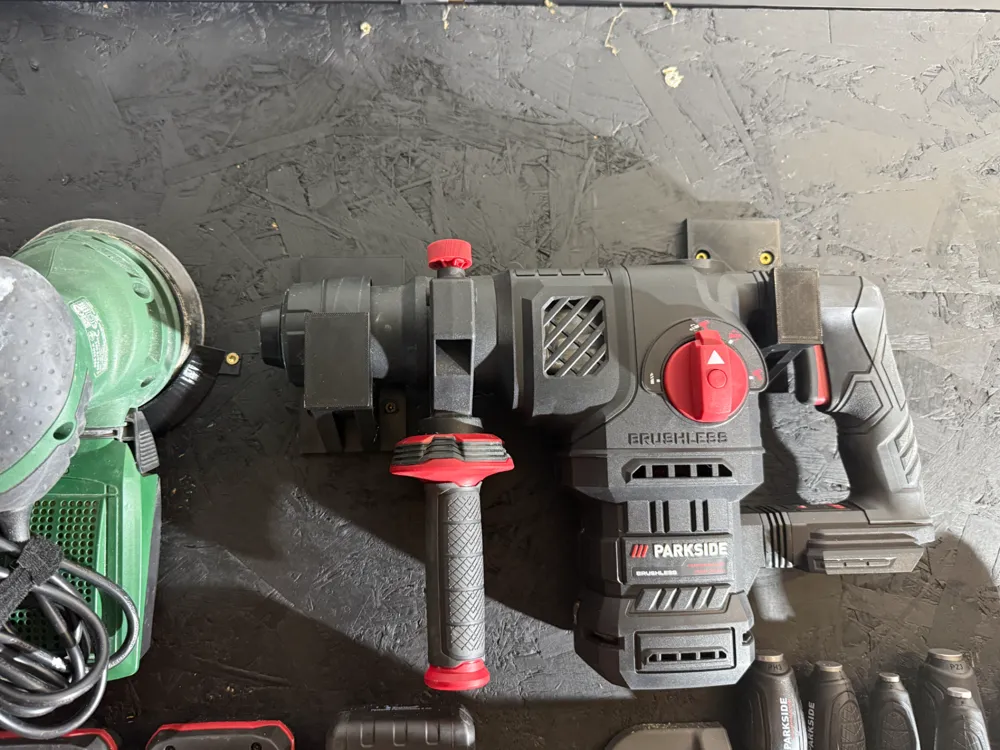

Each cradle has four recessed mounting holes for 4.5 or 5 mm screws. The pictured installation uses a 15 mm OSB tool wall. Make sure the wall panel itself is securely fixed and select a suitable screw length for your installation. Position both holders with the machine before tightening everything.

The rotary hammer weighs approximately 4.5 kg. Test the installation gradually, preferably with the battery removed first, and periodically check the screws and printed parts.

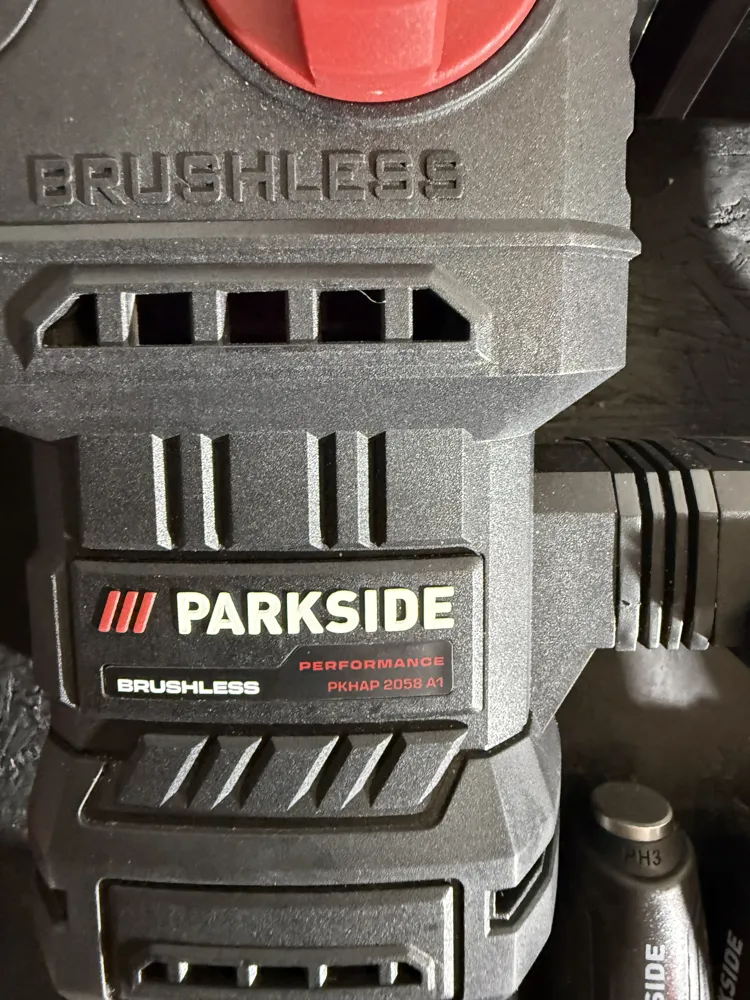

Compatibility was tested with model PKHAP 2058 A1. Other Parkside rotary hammers may have different dimensions.
