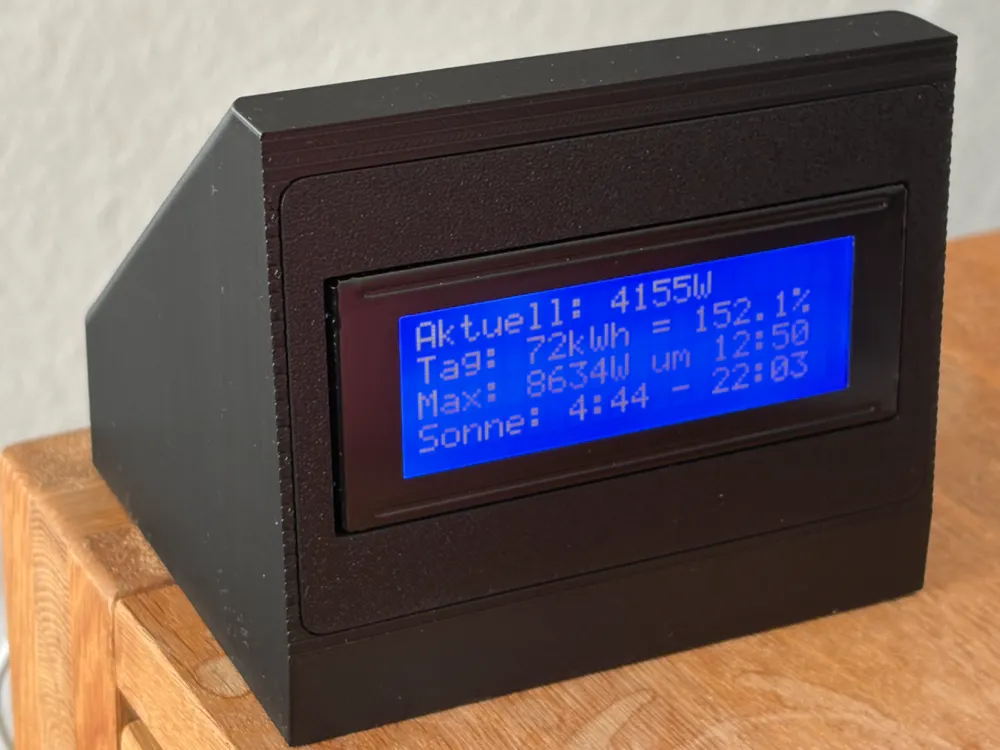

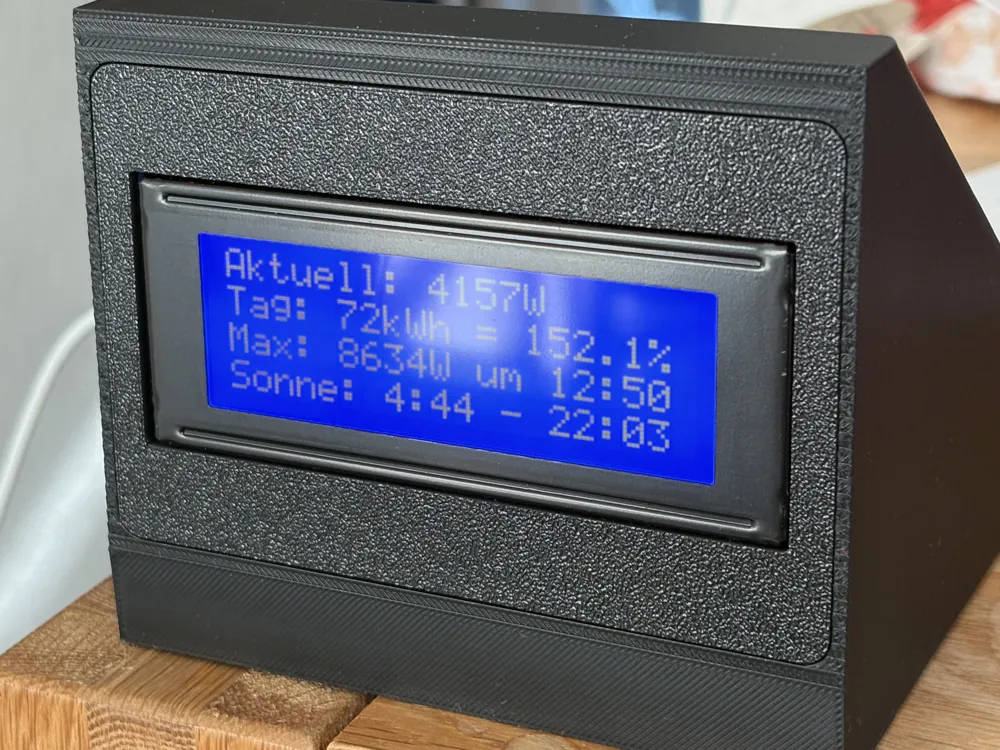

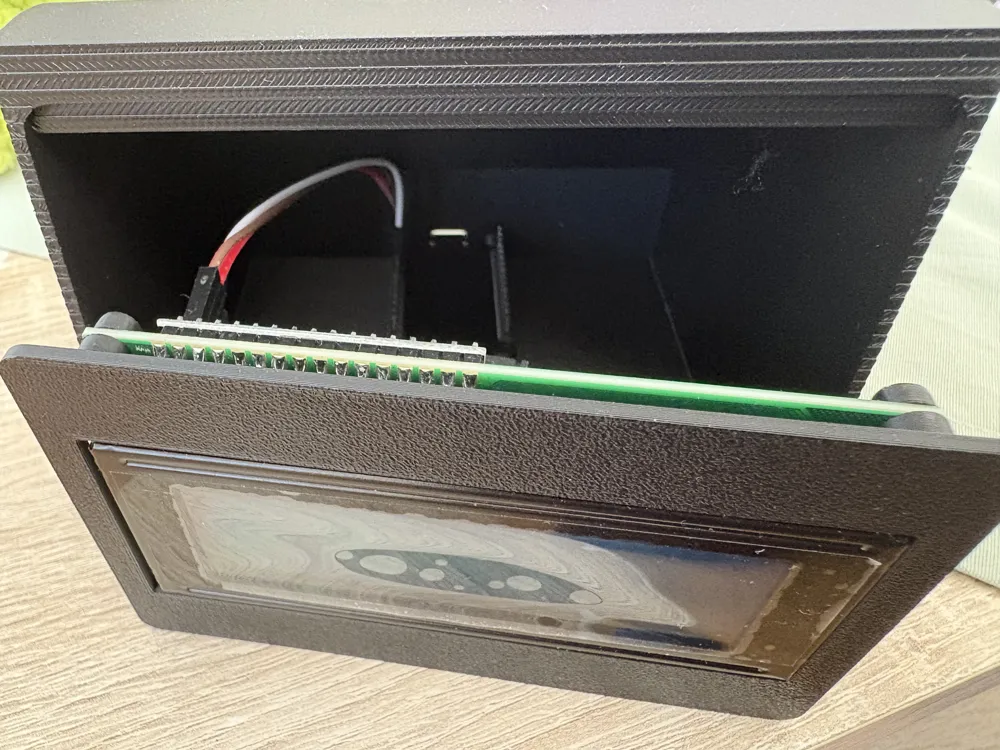

Arduino ESP32 & 20x4 LCD Enclosure – Tool-Free Snap-Fit Assembly without Screws and Glue
Practical and modern enclosure for an Arduino "full-fat" ESP32 in combination with an LCD2004 (20x4 LCD display). The design was specifically developed for easy and quick assembly. All components are securely fixed by precisely integrated holders – completely without screws, glue, or tools

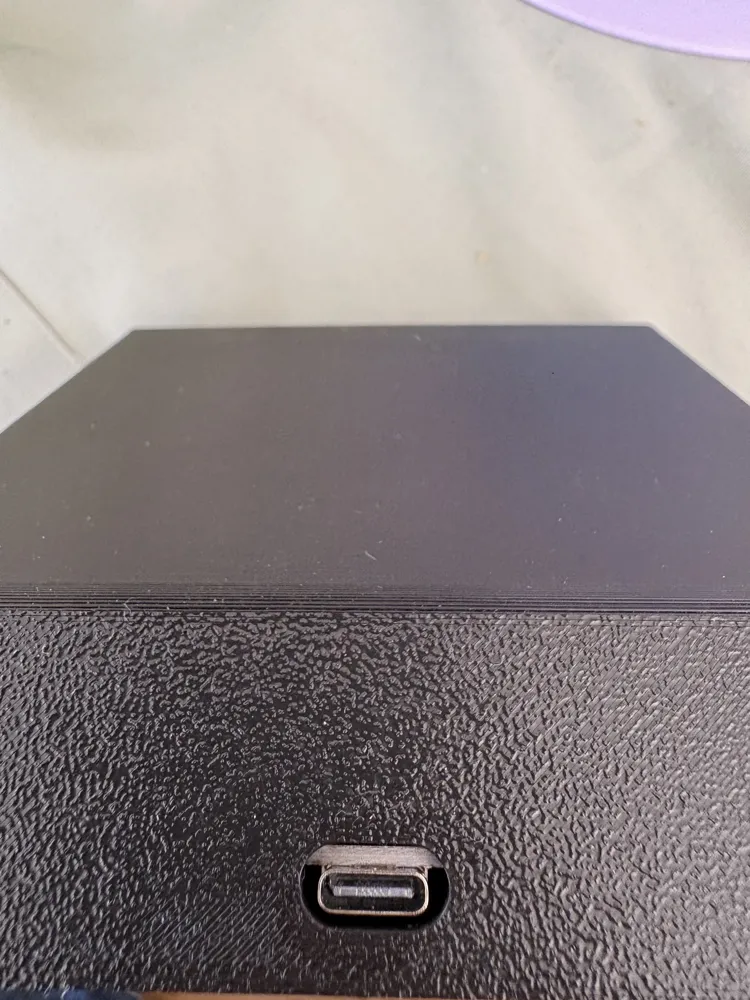

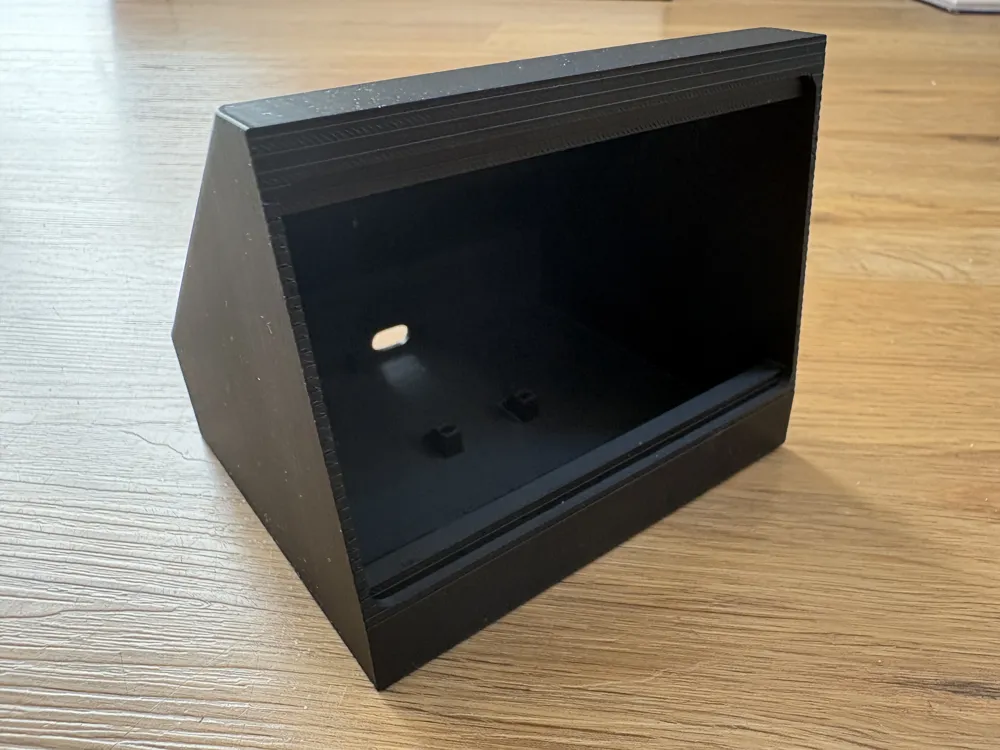

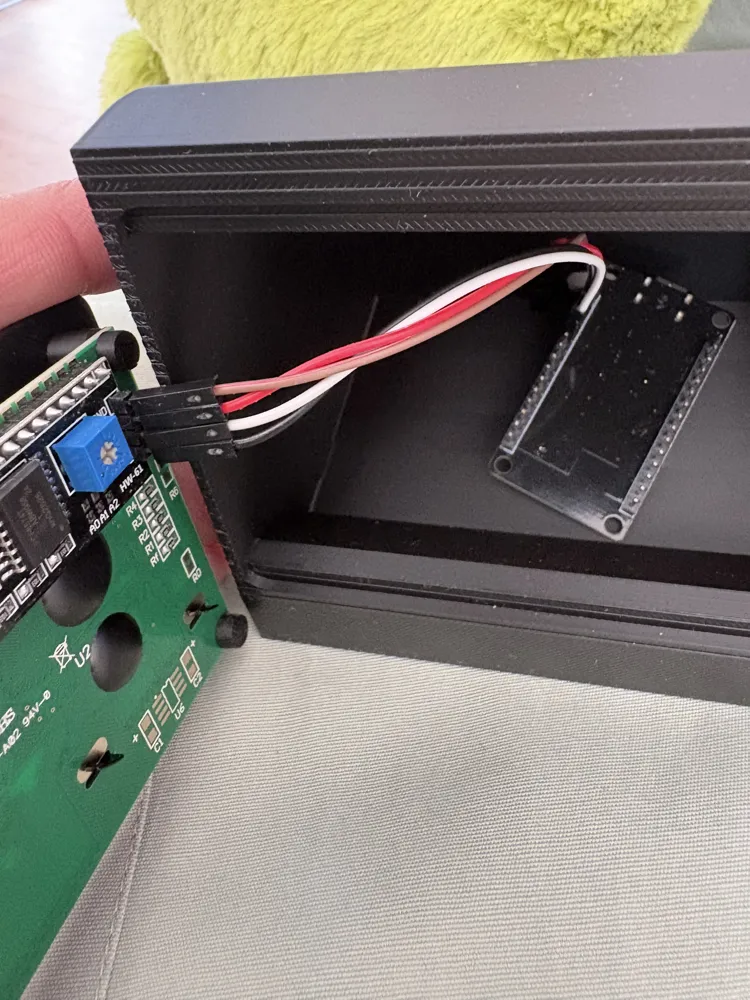

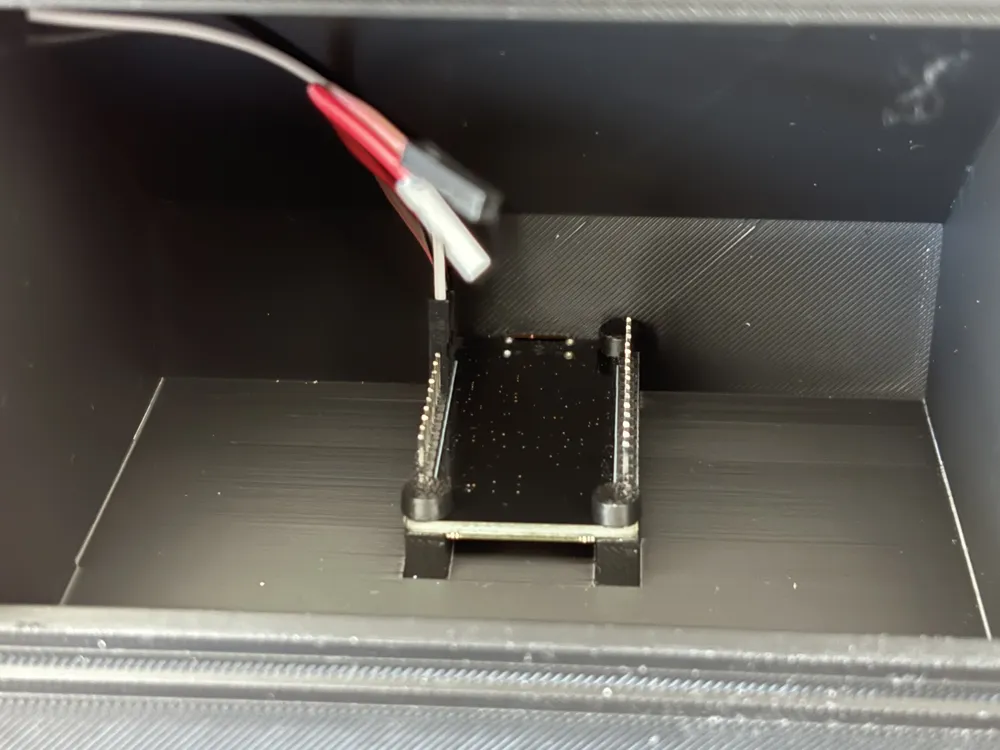

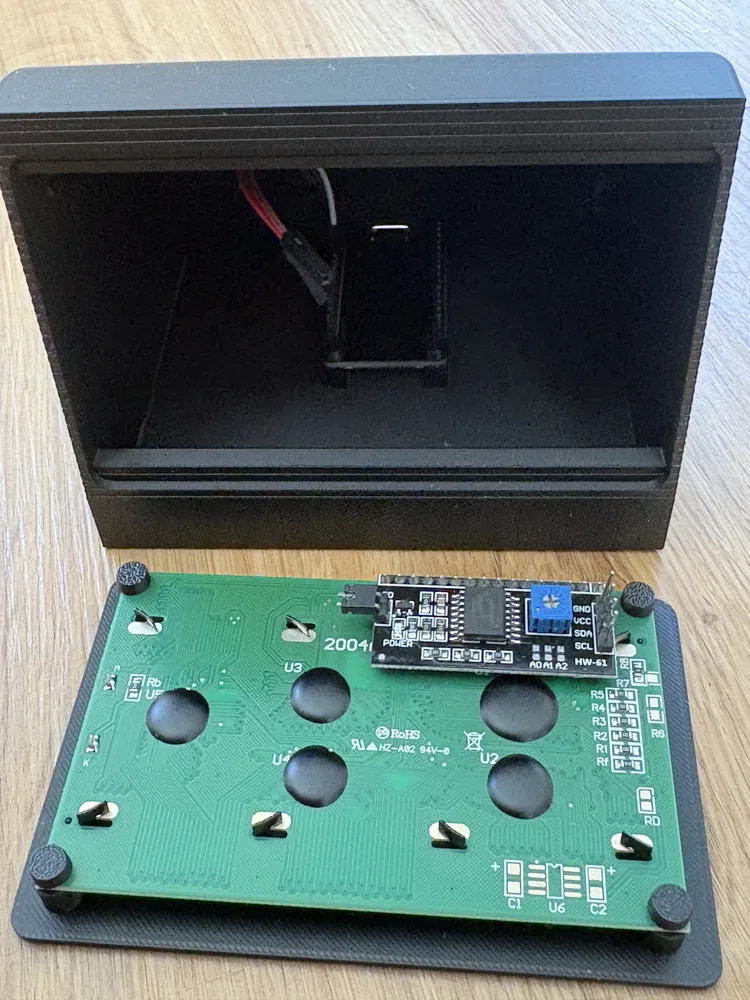

The enclosure offers precise mounts for the ESP32 board and the 20x4 character LCD. Cutouts allow access to the USB C port. The two-part construction can be easily assembled and reopened if necessary
Ideal for smart home projects, measuring stations, automation solutions, IoT applications, or individual DIY electronics projects
The print requires no support structures
Features:
- Suitable for Arduino ESP32 development boards

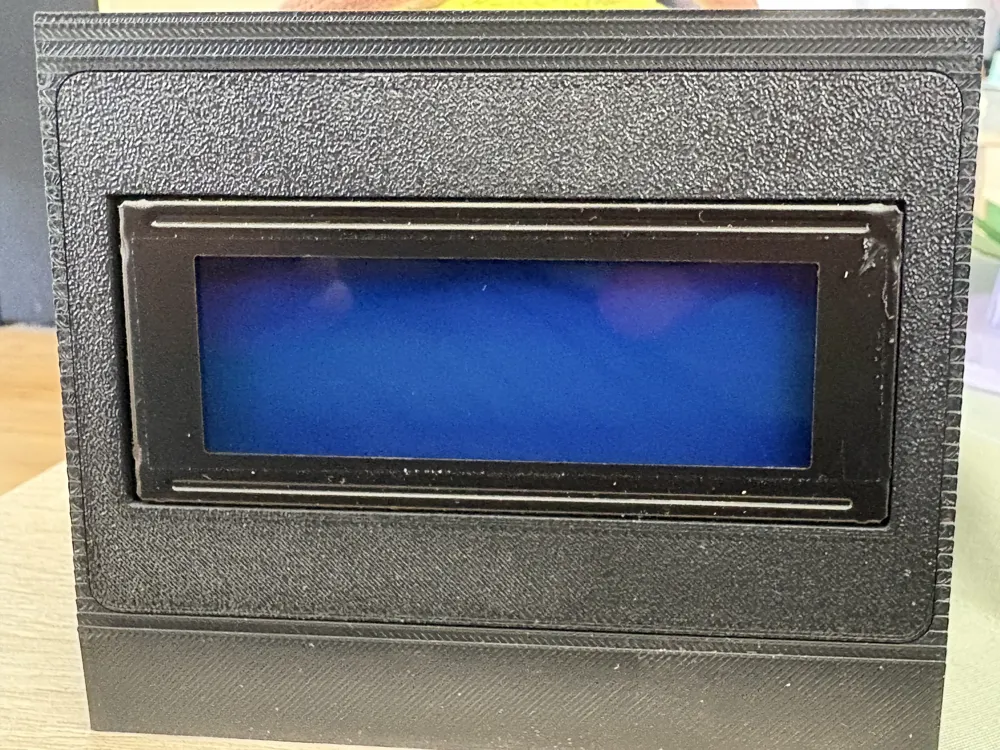

- Mount for 20x4 LCD display
- Tool-free assembly
- No screws required
- No glue needed
- Plug-in design
- Optimized for 3D printing
- Easy to assemble and disassemble
Print Recommendation:
- Material: PLA, PETG or ABS
- Layer height: 0.2 mm
- No support structures needed
- Infill: 15–25%
