Description

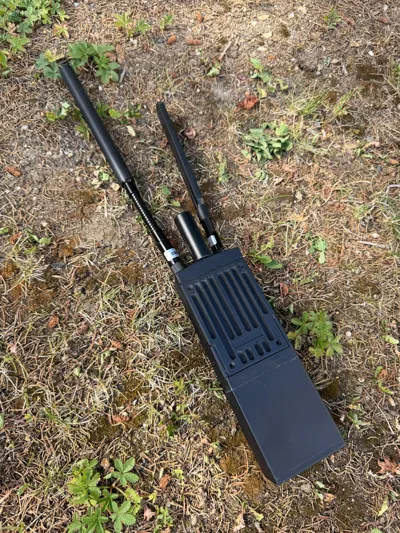

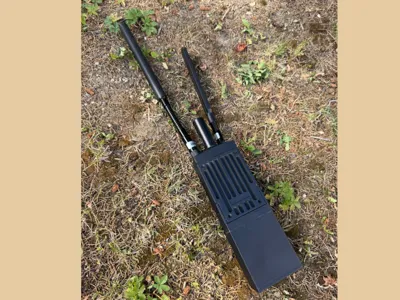

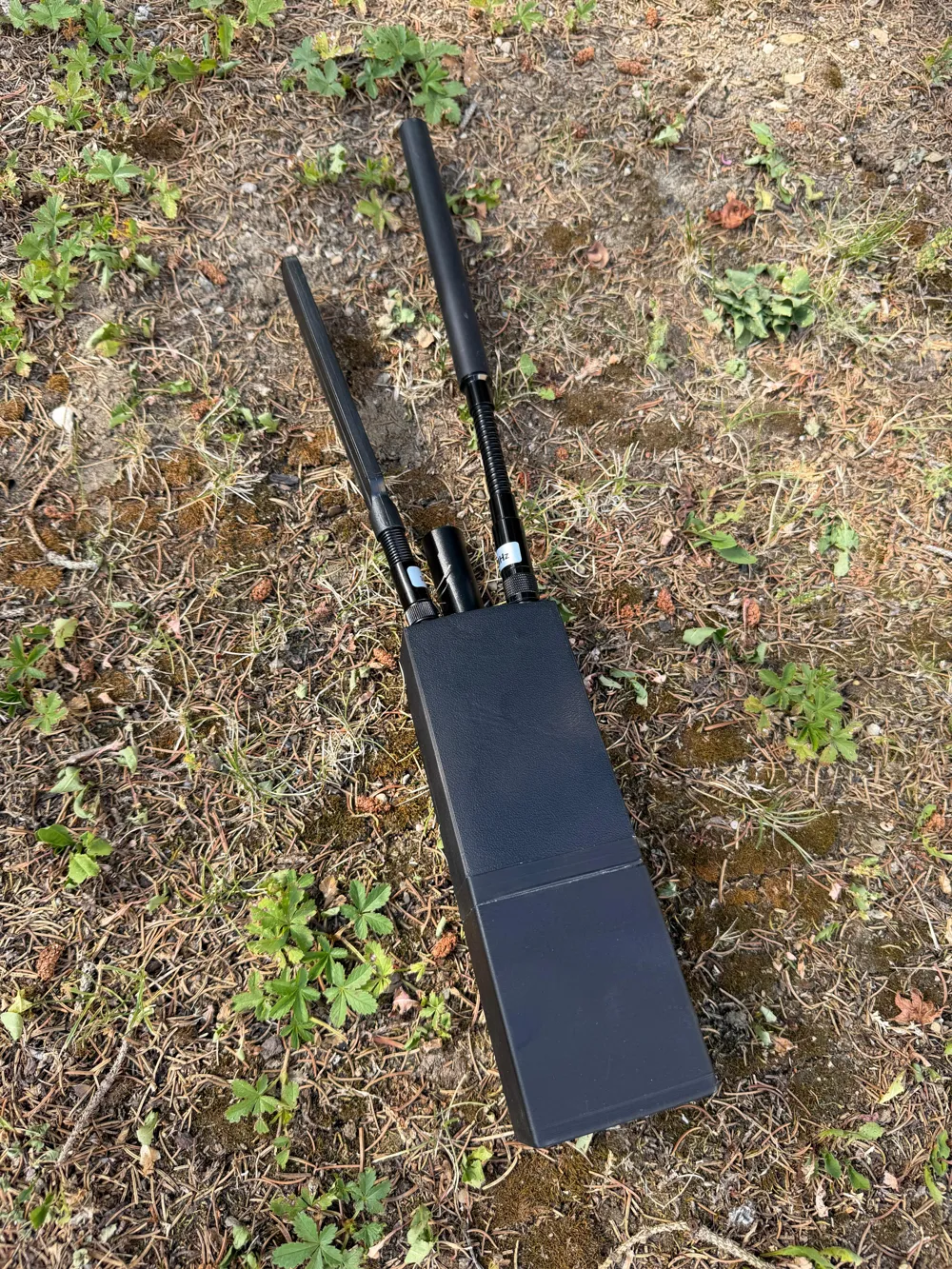

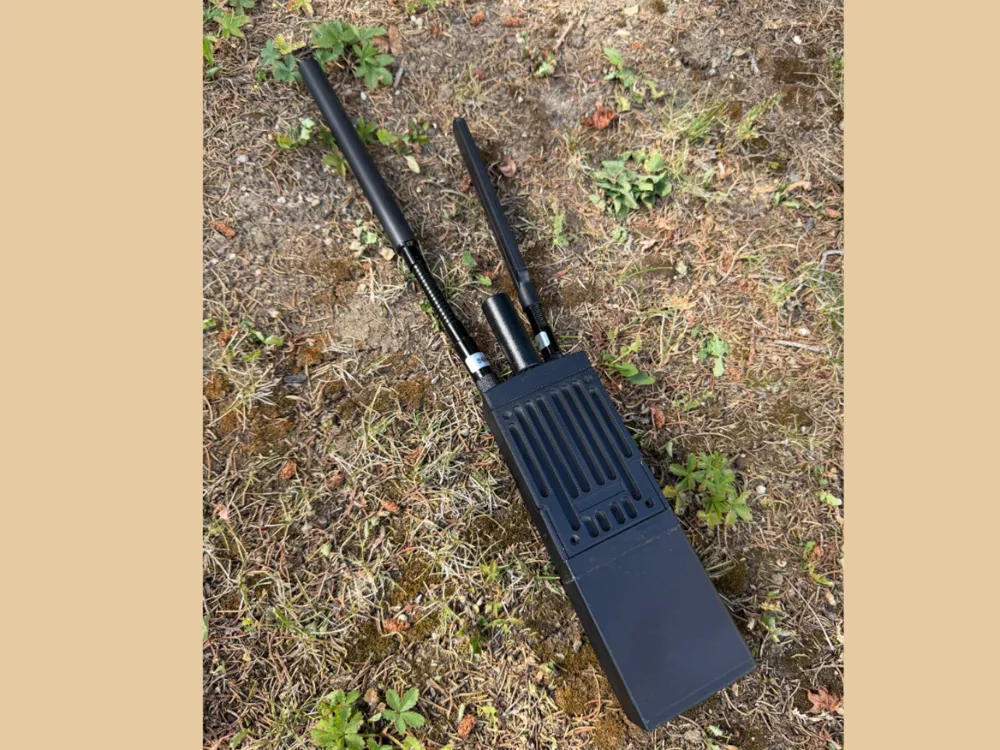

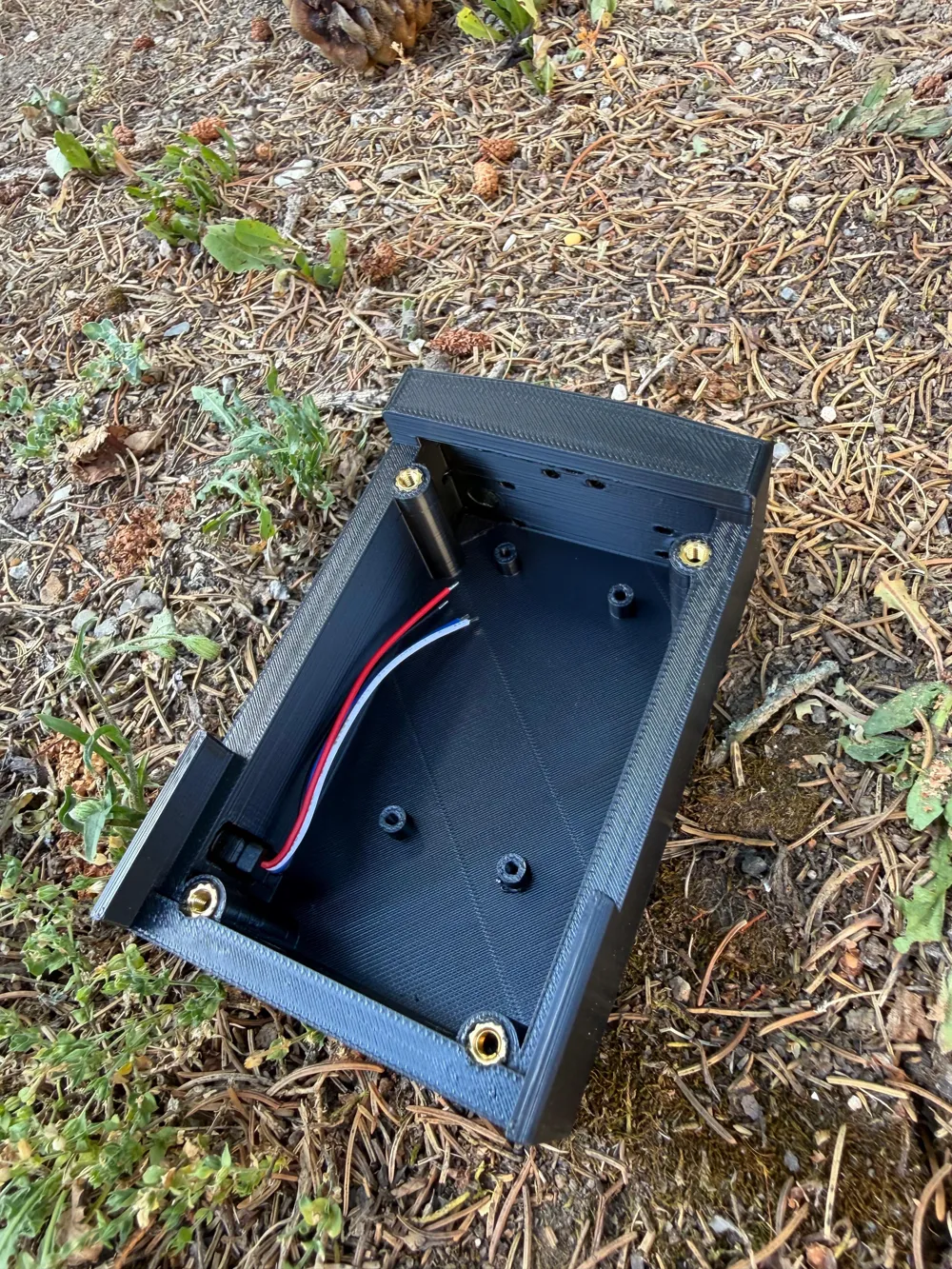

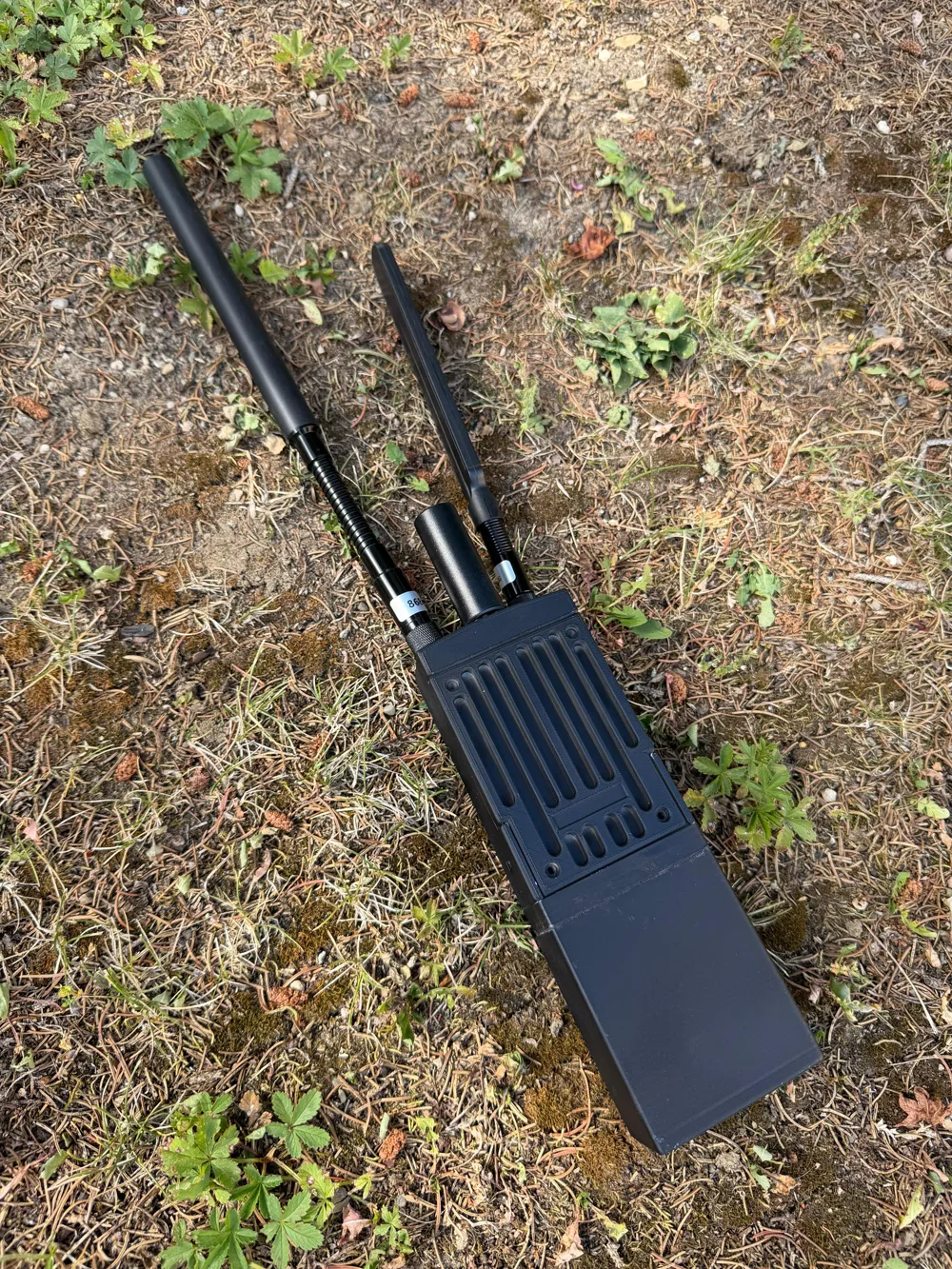

ASA Housing V1.1 for a RAK19007 in TAK function with LoRa antenna (TNC), Bluetooth antenna (SMA), and GPS antenna (SMA), USB-C port, and external battery pack
USB-C slot for direct charging/file transfer connection

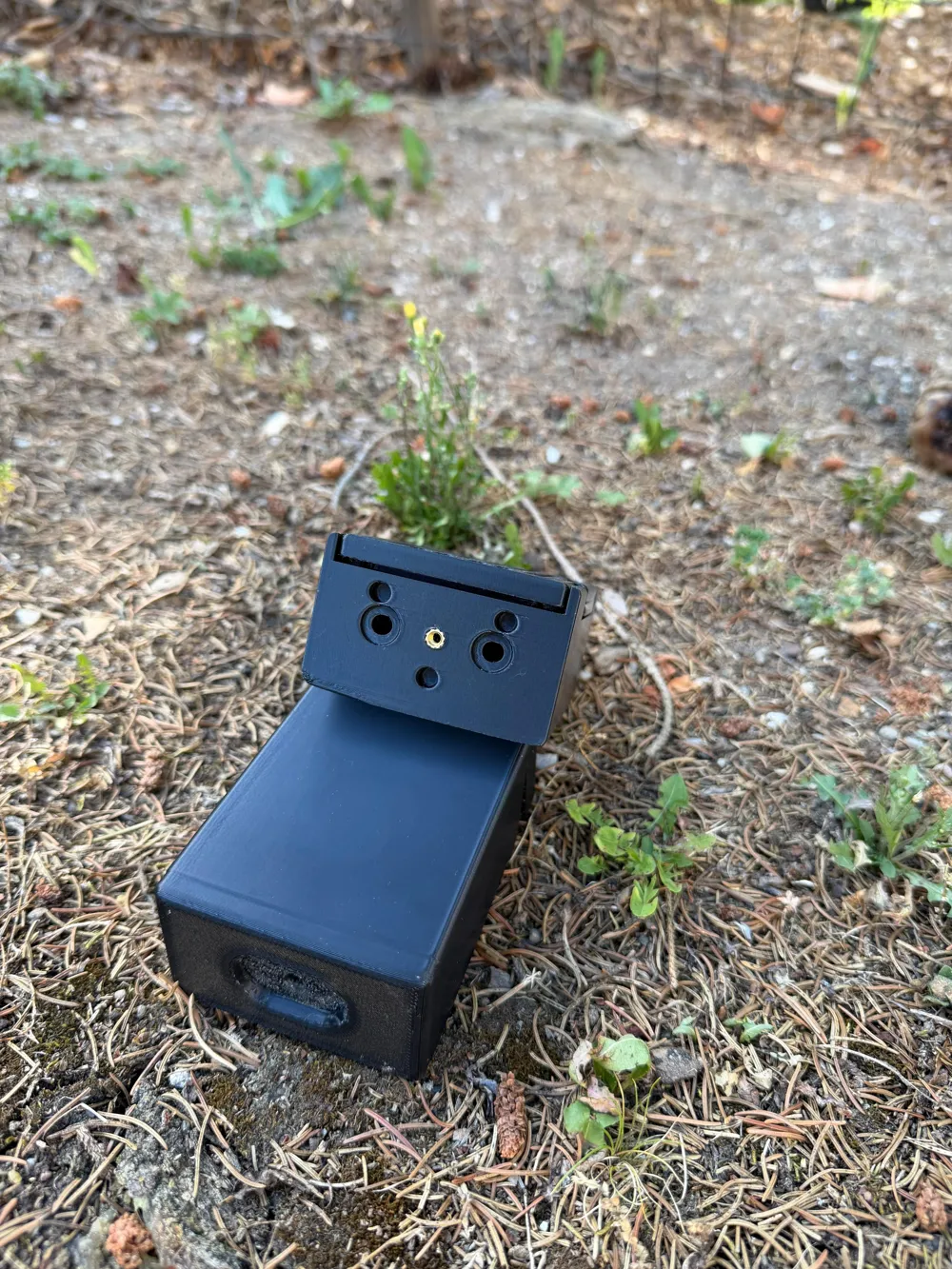

Antenna bases (TNC/SMA) have cutouts in the housing and holes for direct screwing into the plastic

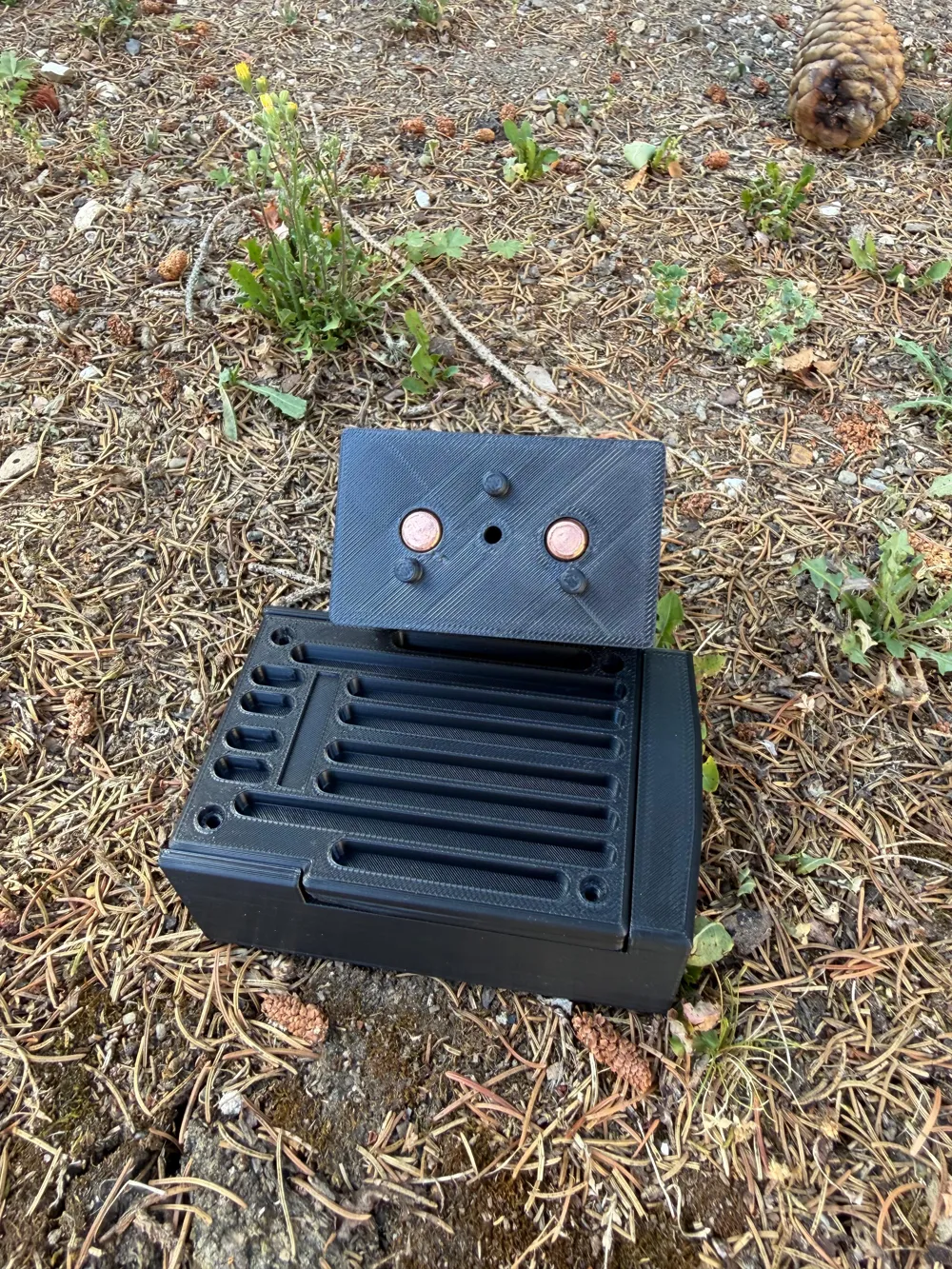

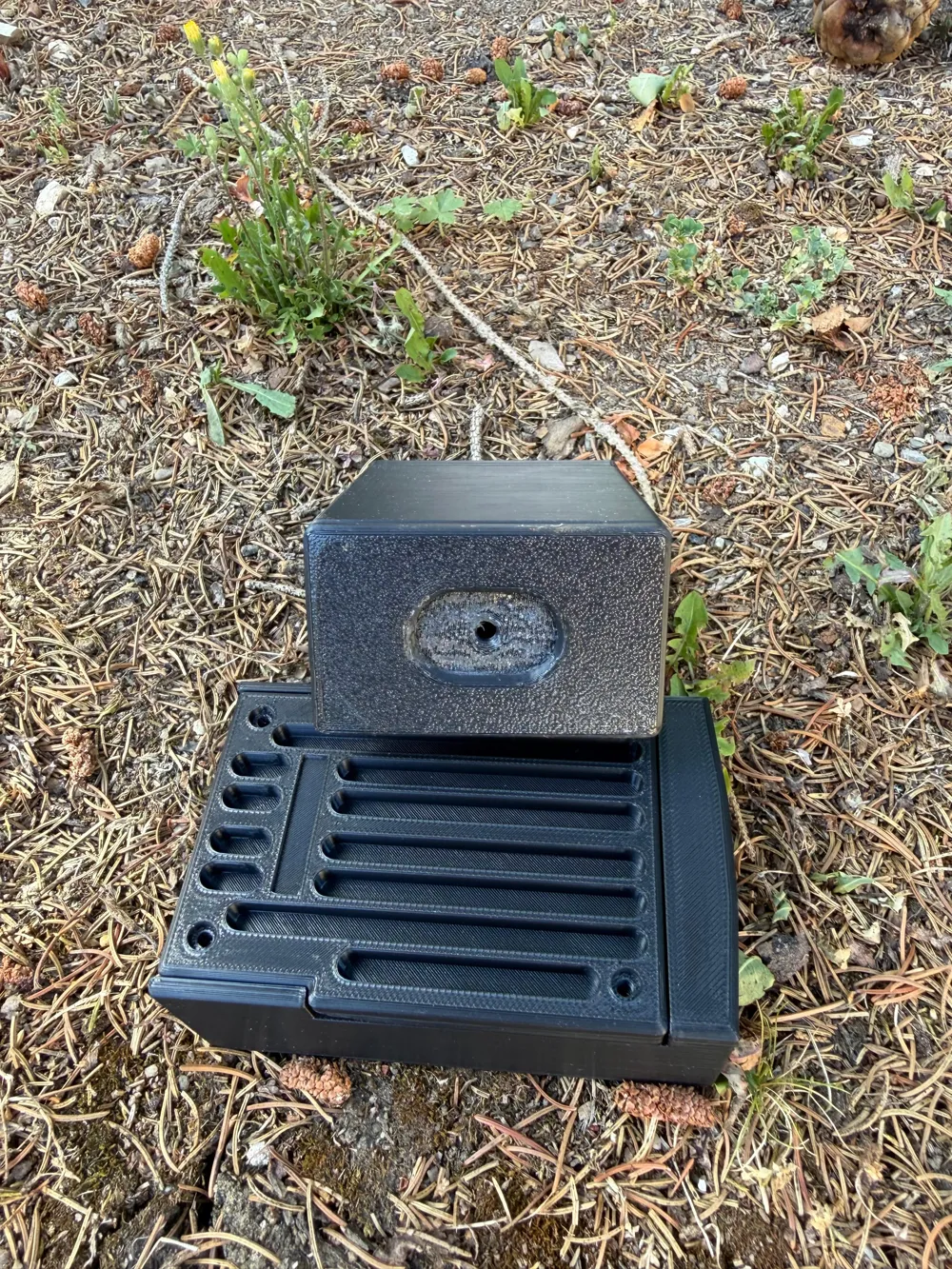

Battery connection via copper rivets and secured with a central M3 screw Pins for reverse polarity protection and locking on the battery pack and housing

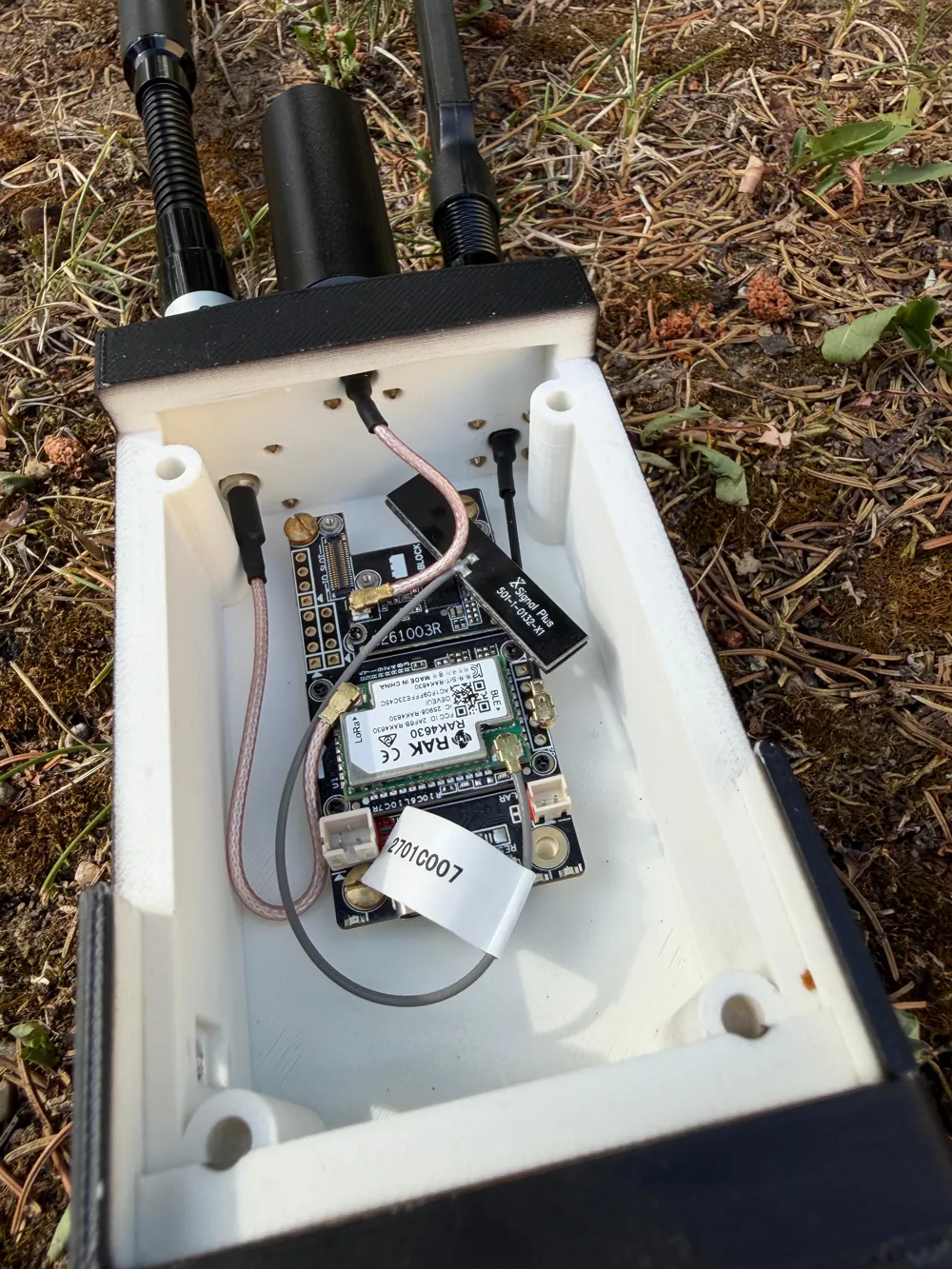

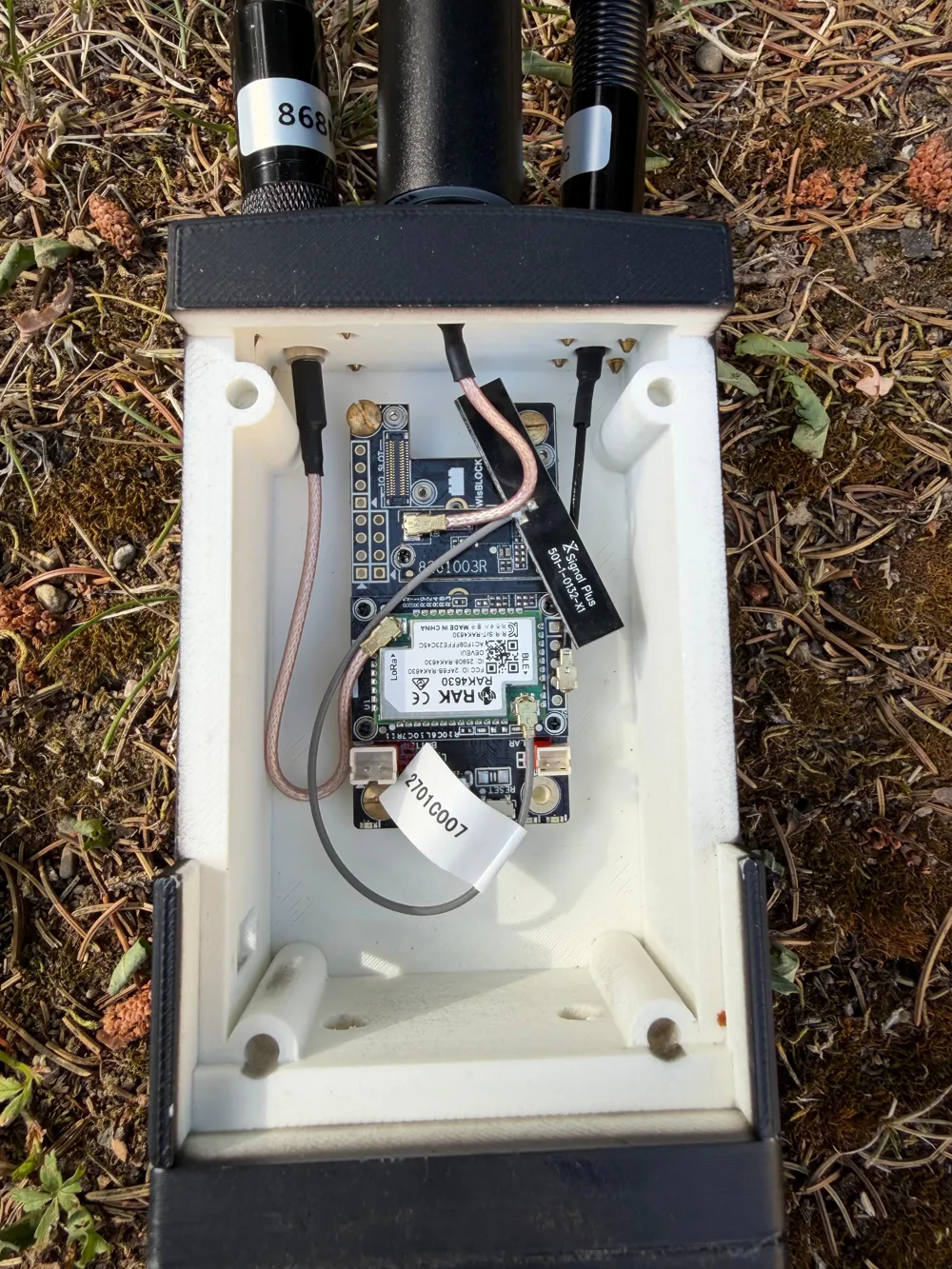

RAK19007: RAK19007: WisBlock Base Board 2nd Gen With USB type C connector & GNSS modules
LoRA 868MHz Antenna: 868 MHz 915 MHz tactical gooseneck antenna Individual soldier handheld terminal with anti-collision antenna for Meshtastic - AliExpress 509
Bluetooth Antenna: 2.4G 5.8G 600-6000MHz spring antenna detector recognition antenna unmanned aerial vehicle handheld interference device antenna SMA - AliExpress 509
GPS- Antenna: High-precision RTK GNSS GPS antenna L1 L2 L5 GLONASS BDS Galileo signal amplifier for helix positioning UAV Unmanned Vehicle Ship - AliExpress 509
TNC-AntennaSocket: 1PCS RP-TNC / TNC Male Female to u.FL RF Jack RF1.13 Pigtail Antenna Extension Jumper RF Coaxial Cable - AliExpress 13
SMA-AntennaSocket: 1 Piece 4-Hole Panel Mount SMA Jack Flange to IPX RF-1 Connector RF1.13/RF1.37/RG178 WIFI Antenna Pigtail Extension Jumper Cable - AliExpress 13
USB-C connector: USB Type-C Waterproof Connector Male Female 2-Pin Fast Charging Port USB-C 4-Pin Charging Cable Data Transfer Cable 3A 5V - AliExpress 44
Copper rivet M5x20: M1.5 M2 M2.5 M3 M4 M5 M6 M8 GB109 Copper Rivets with Flat, Thin, Round Head, Solid Rivets for Bagging, Self-Clogging Fixing Rivets - AliExpress 13
M3 thread insert: Heat-Embedding Insert Nuts M3 M4 M5 Threaded Knurled Brass Hot Melt Screw Nut for 3D Printers Voron 2.4 and others - AliExpress 13
LiPo 103450: 103450 3.7 V 2000 mAh Polymer Lithium Battery JST PH 2.0 mm 2-Pin Connector for Camera GPS Navigator MP5 Bluetooth Headset - AliExpress
I welcome suggestions, improvement requests, and criticism in the comments Should enough Boosts come together there will be a Version V2.0 with PMR radio and Voice to Text function
