Candle Wick Centering Tool for 10oz Tumbler Jars
Print Profile(1)
Description

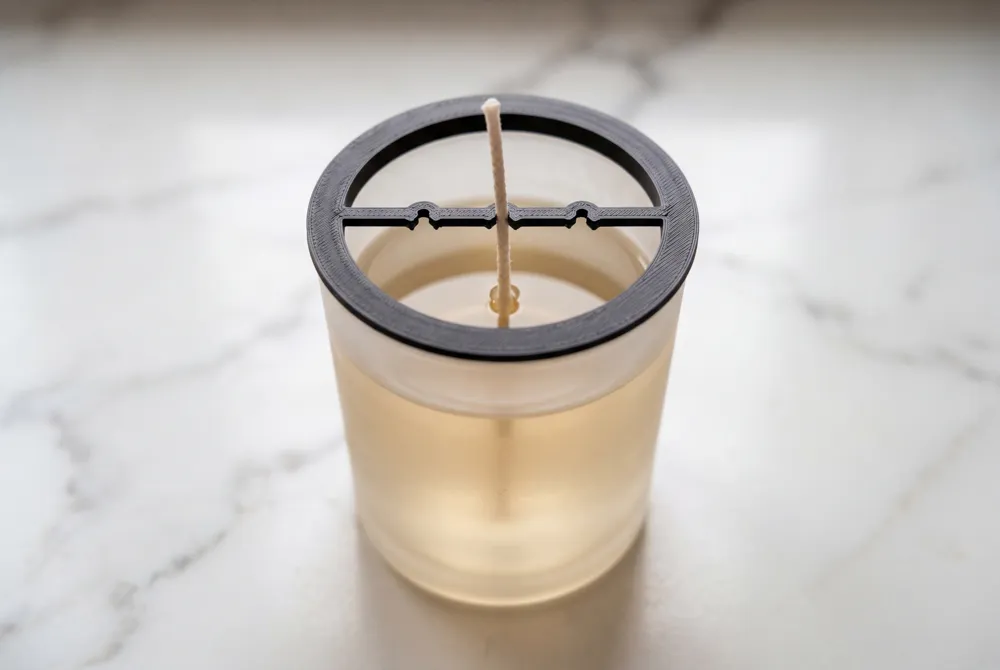

A wick centering tool that actually holds the wick. It sits on the jar mouth and
the wick clips into a sized slot, so it stays centered and upright when you pour
hot wax and the cotton goes limp. Five slot sizes cover the common cotton wicks.
What's in the file:
* 5 STL files, one per slot size: 1.5, 1.75, 2.0, 2.5, 2.75 mm
* Matching Bambu .3mf for each size

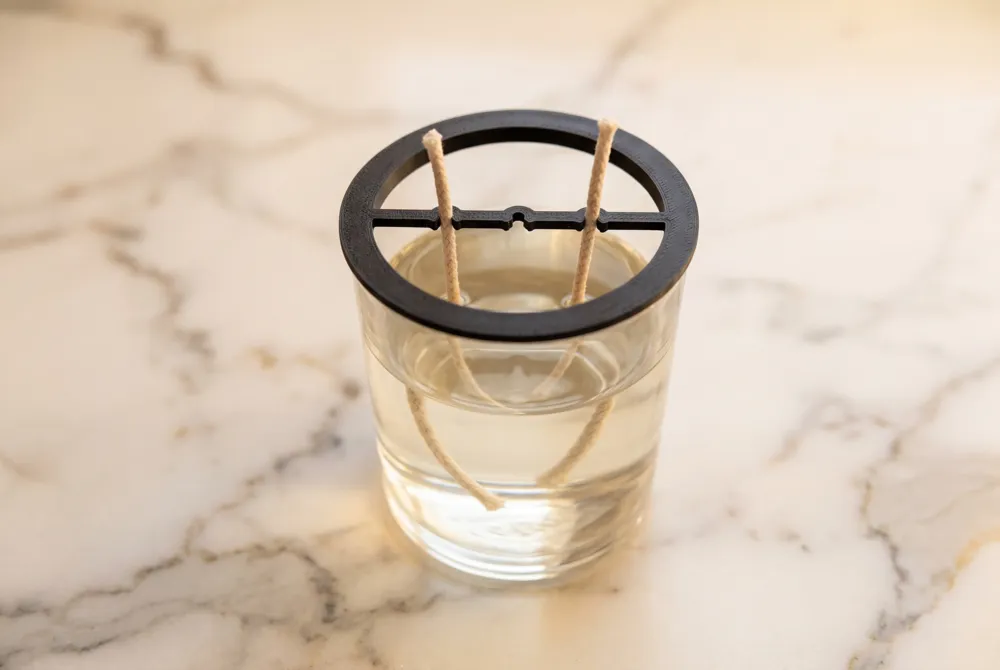

* Each tool has a center position plus two outer positions for double-wick candles
Print settings (recommended):
* Material: PETG (a little flex helps the clip and handles pour warmth) or PLA
* Layer height: 0.2 to 0.24 mm
* Walls: 2; top 4 layers, bottom 3 layers
* Infill: 15 percent gyroid
* Supports: none
* Brim: none, the base is flat
Fits / compatible with:
* Tumbler jars with a ~73 mm (about 2.87 in) inner mouth (standard 10 oz tumbler)
* Cotton wicks in the common CD and LX range; pick the slot that grips your wick
* Single-wick or double-wick candles
Notes:
* Need a different jar size or slot size? Comment and I can post a variant.
* The size is engraved on each tool.
