PortableAC Exhaust Adapter for Roller Blind w wood
Print Profile(1)
Bill of Materials
- parafuso para madeira 4.5x25mm x 4:
- painel de madeira 1200x250x18mm x 1: dimencionar no tamanho do vão.
Description
Classic problem: portable AC hose keeps the blind from closing, and sleeping with light coming in is rough. 🌙

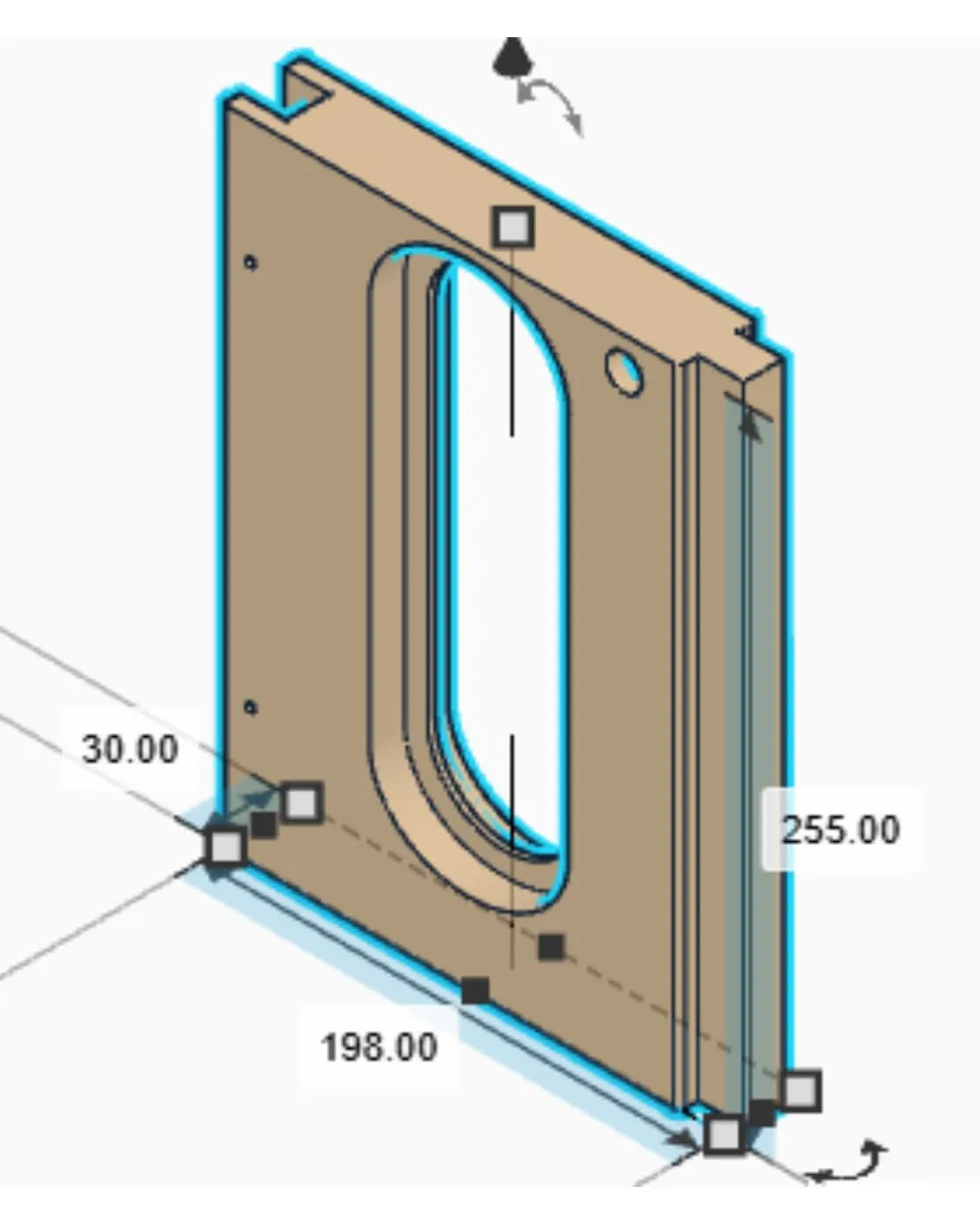

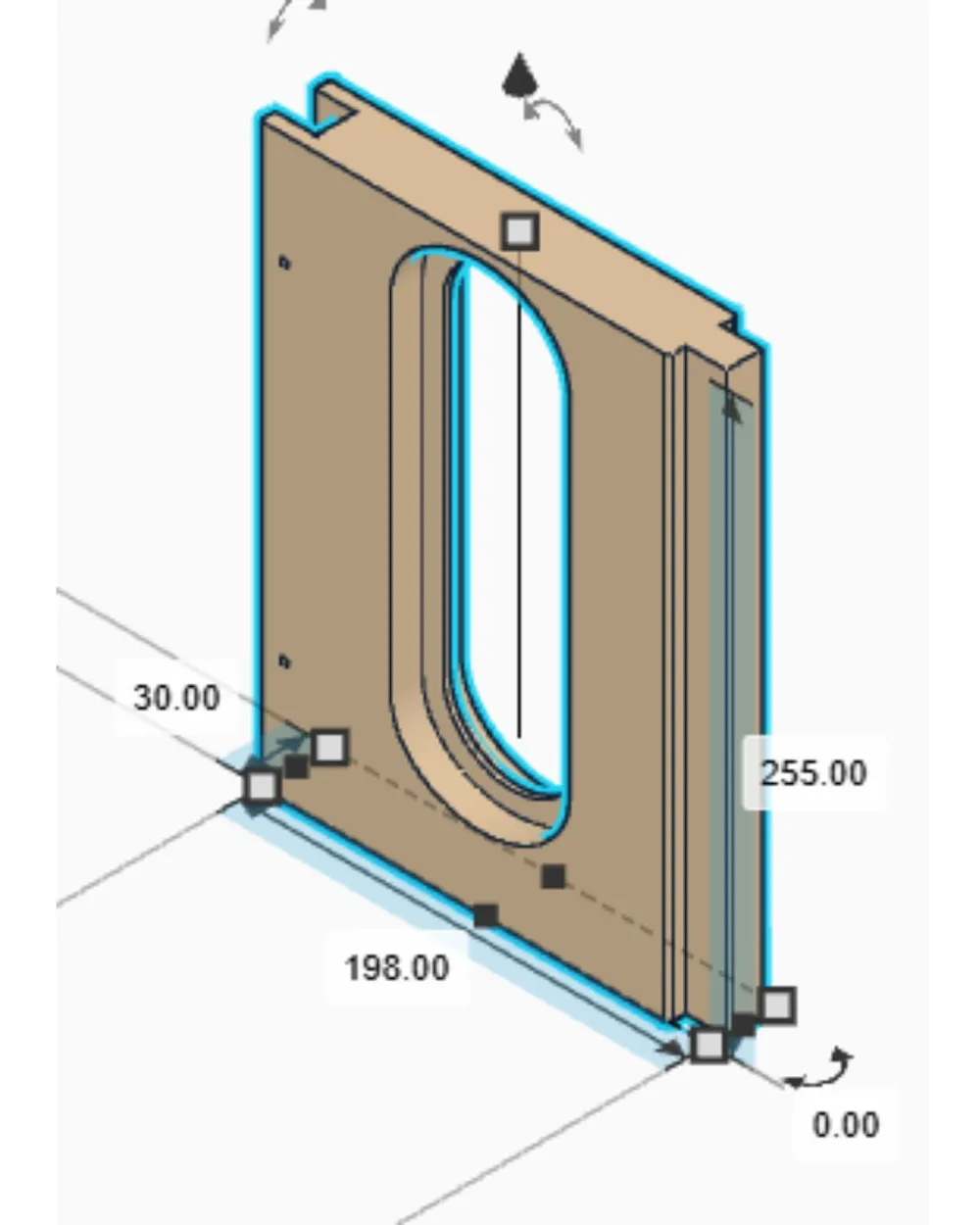

I designed this two-part adapter that fits at the bottom of a roller blind. My window opening is wide, so the design uses a wood panel in the middle to fill the gap — no need to print a massive single piece.
How it works:

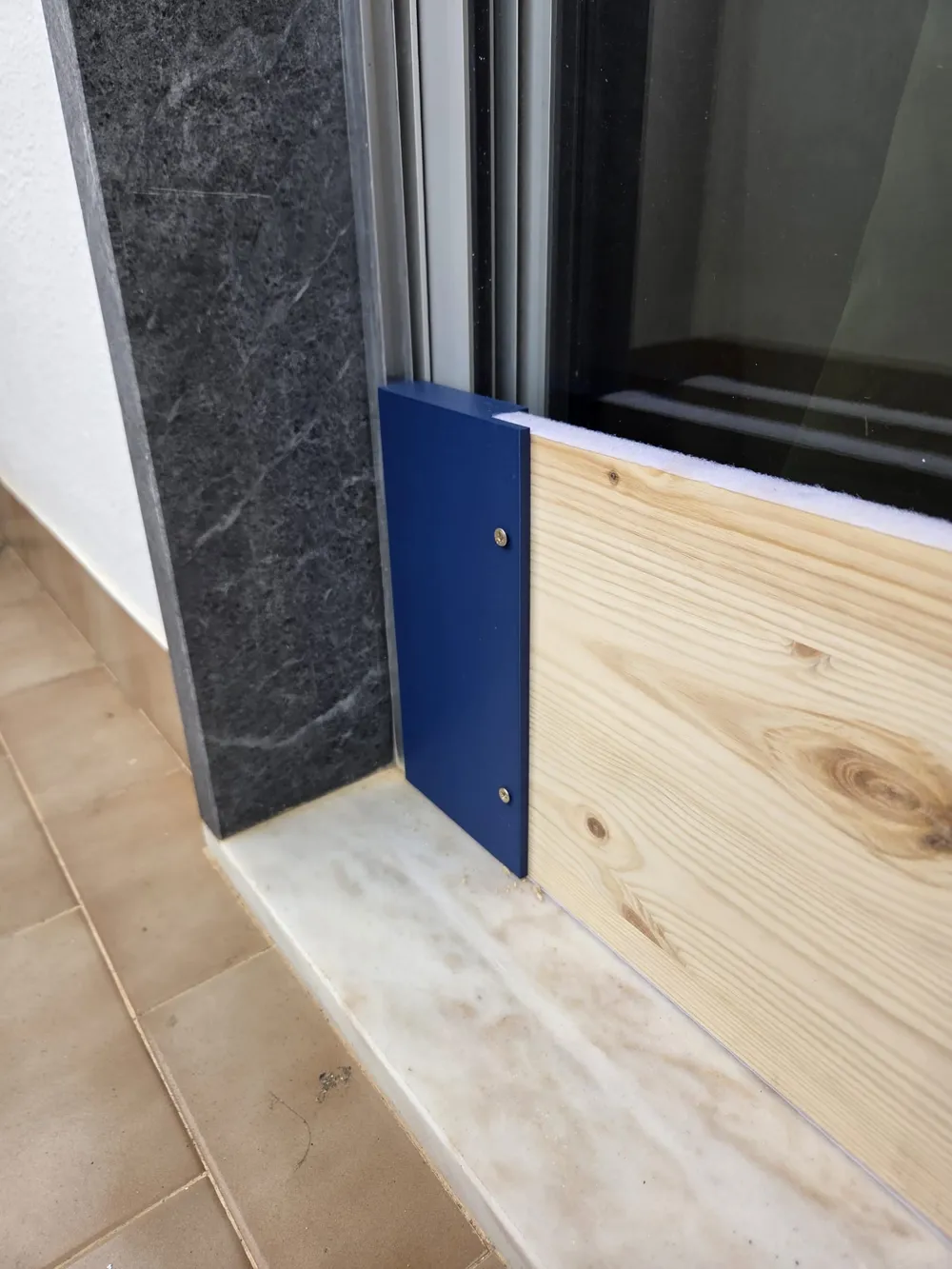

- Two printed parts clip onto the window sides

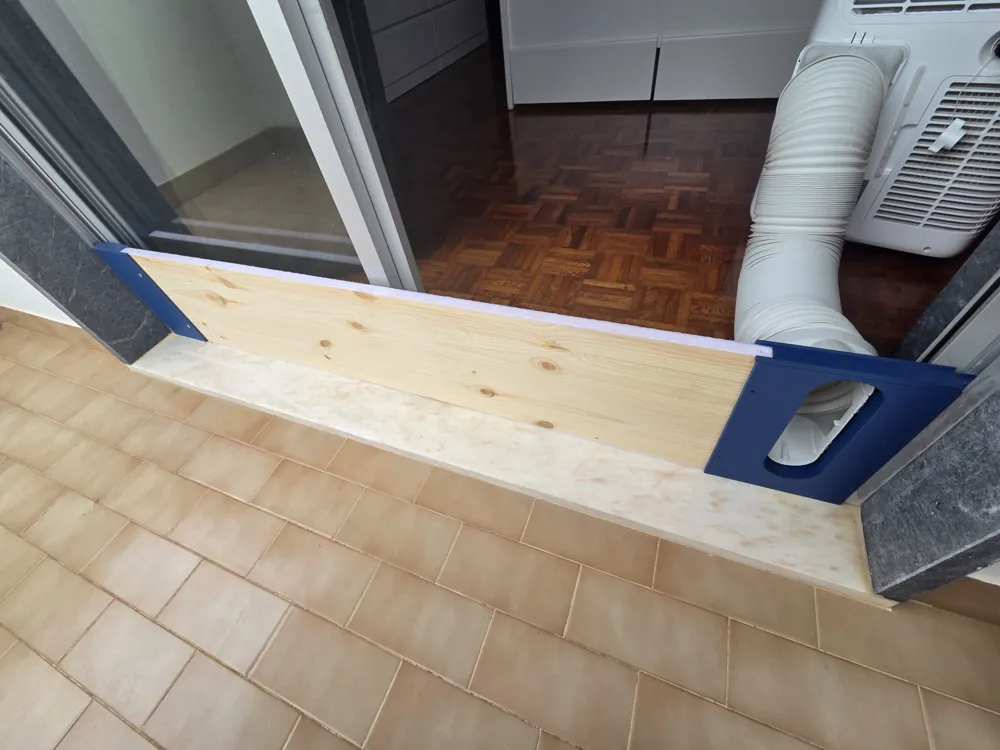

- A custom-cut wood panel slides into the middle slots

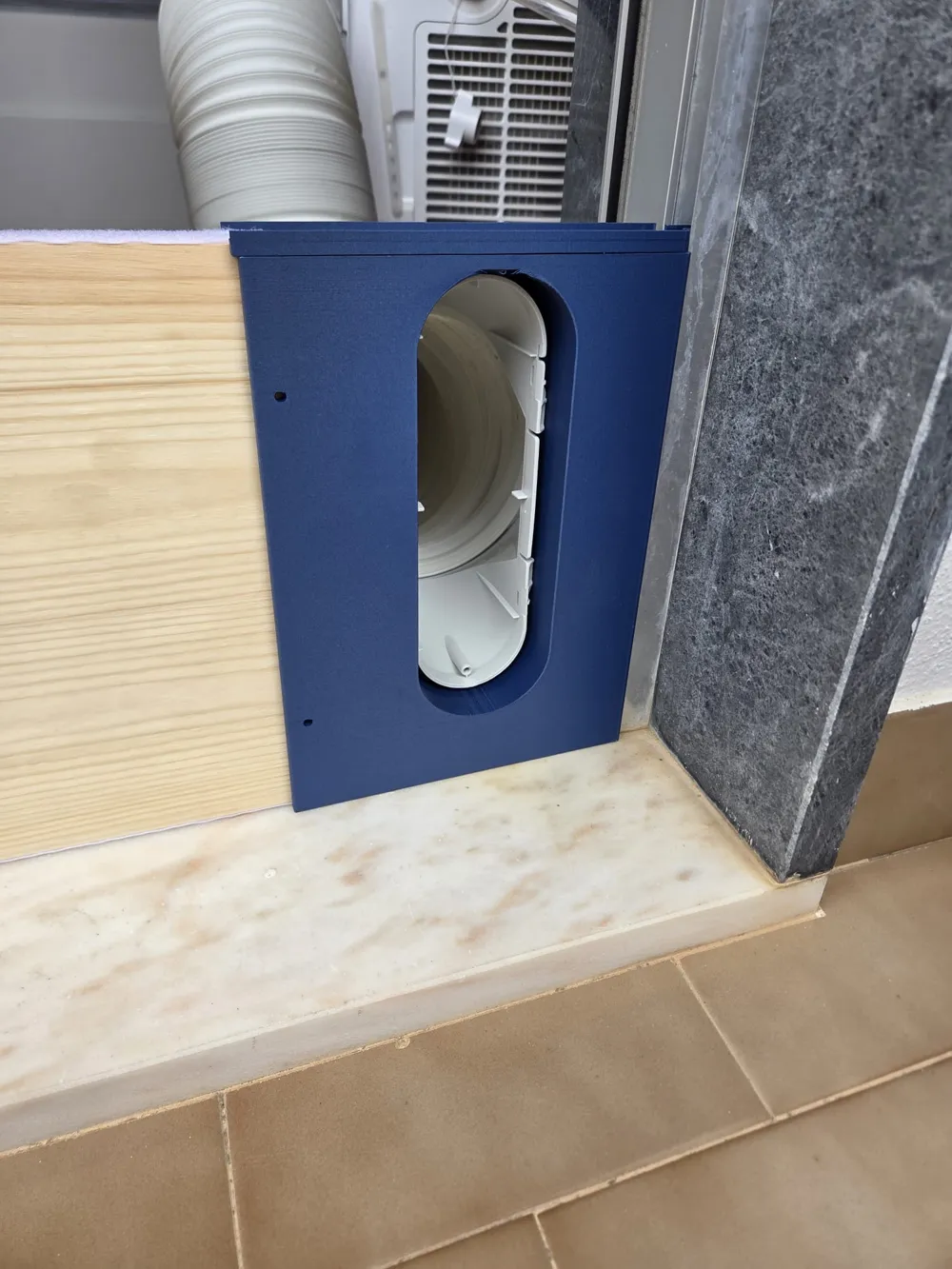

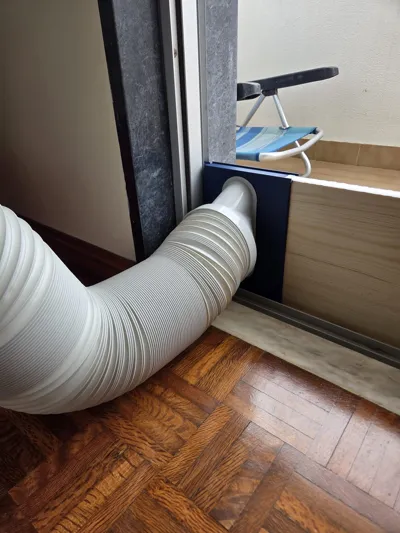

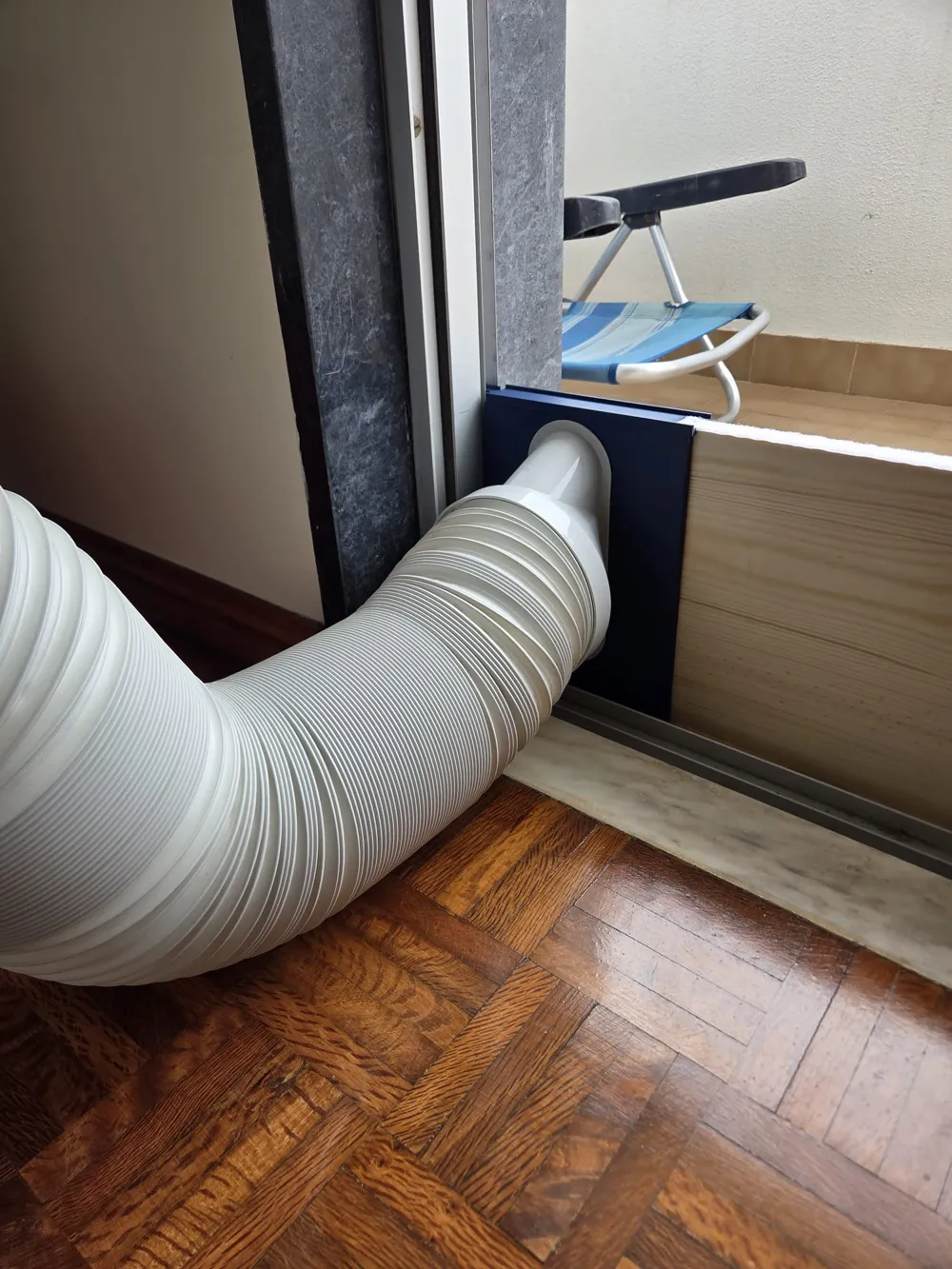

- AC hose connects directly to the oval opening
- Blind closes over the top normally ✅
Assembly:

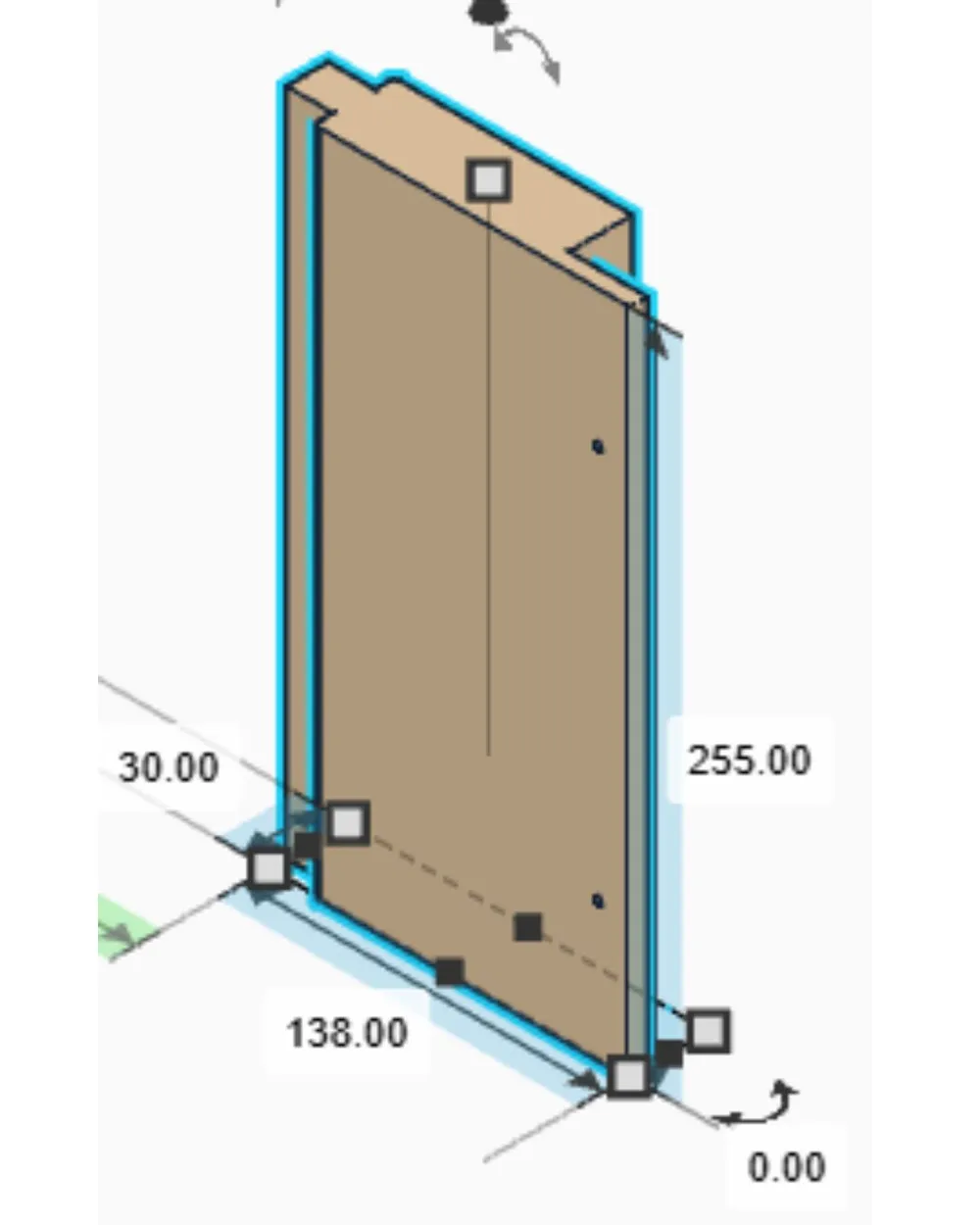

The part that slides into the window track are 15mm and 12mm wide — check your track width before printing.
Recommended material: PETG or PETG-CF. AC exhaust air can get pretty warm, and PLA may warp over time. PETG handles the heat just fine for this use case. PETG-CF is a great option if you want extra stiffness on the thinner walls. 🌡️
