PLA bike front wheel support

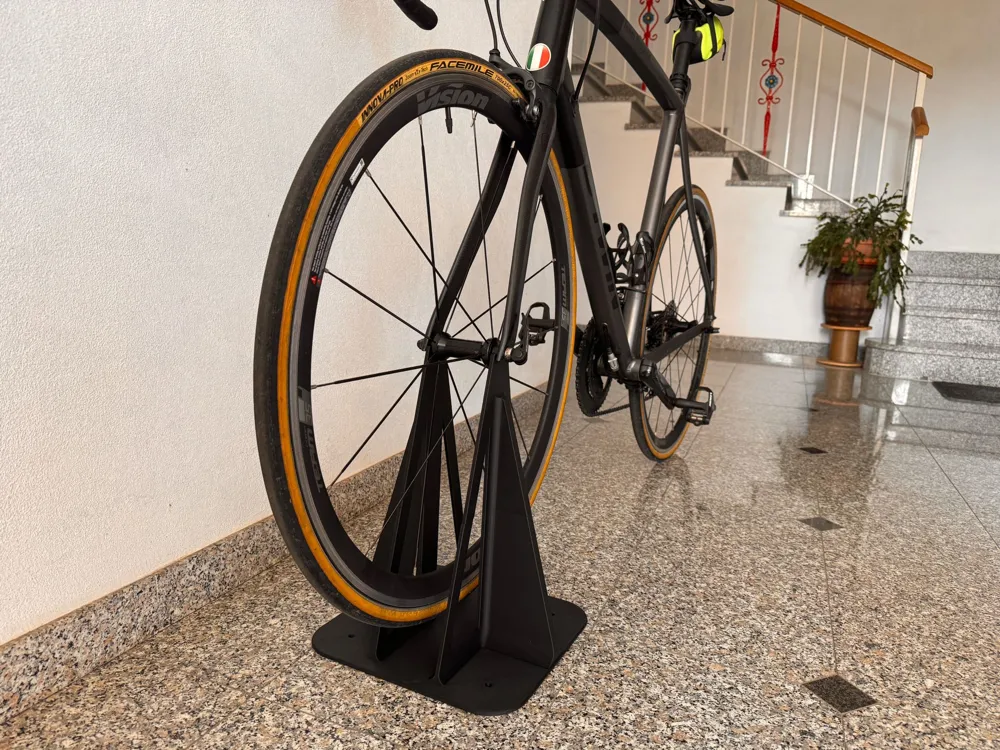

🚴 Front Bicycle Wheel Stand – Up to 90 mm (internal measurement)

Keep your road, gravel, or MTB bike upright with this minimalist and modern front stand. Designed to offer maximum stability and practicality, it locks the front wheel without the need for additional fasteners, making it ideal for storage, maintenance, or displaying your bicycle.

✅ Maximum internal width: 90 mm
✅ Compatible with road, gravel, and MTB tires up to 90 mm wide
✅ Compact and lightweight design
✅ Keeps the bike stable and upright
✅ Perfect for garage, home, workshop, and maintenance
✅ Quick assembly and immediate use

The stand was designed to ensure an excellent balance between robustness and simplicity, taking up little space and enhancing the bicycle's aesthetics. It is ideal for those who want to park their bike neatly and securely without resorting to bulky stands.

Transform your bike parking into an elegant, stable, and space-saving solution! 🚲

THE MEASUREMENT I MEAN FOR THE WHEEL IS SHOWN IN THE FOLLOWING IMAGE

To connect the top and bottom parts, there are inserts. The large ones fit without issues, and if the small ones don't fit, cut them off and add a drop of glue, which I also applied to the center.

On the base, there are 4 holes to screw it to an even more stable base, although for an XL size bike, the original base is more than sufficient without attaching anything else.

The print profile is made for wheels with an outer spoke diameter of 85mm, but to change it, just follow a few steps:

-download and open the print profile

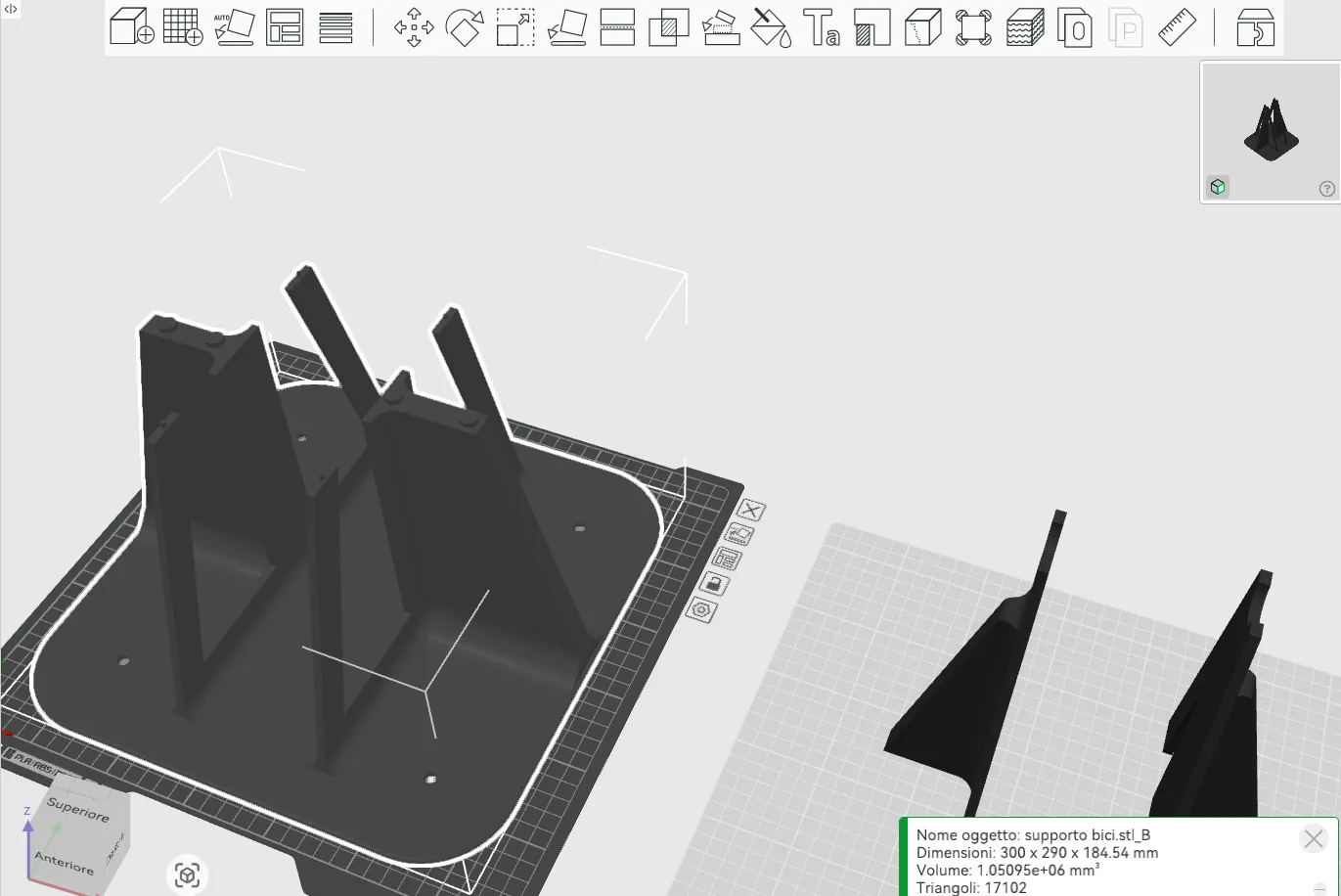

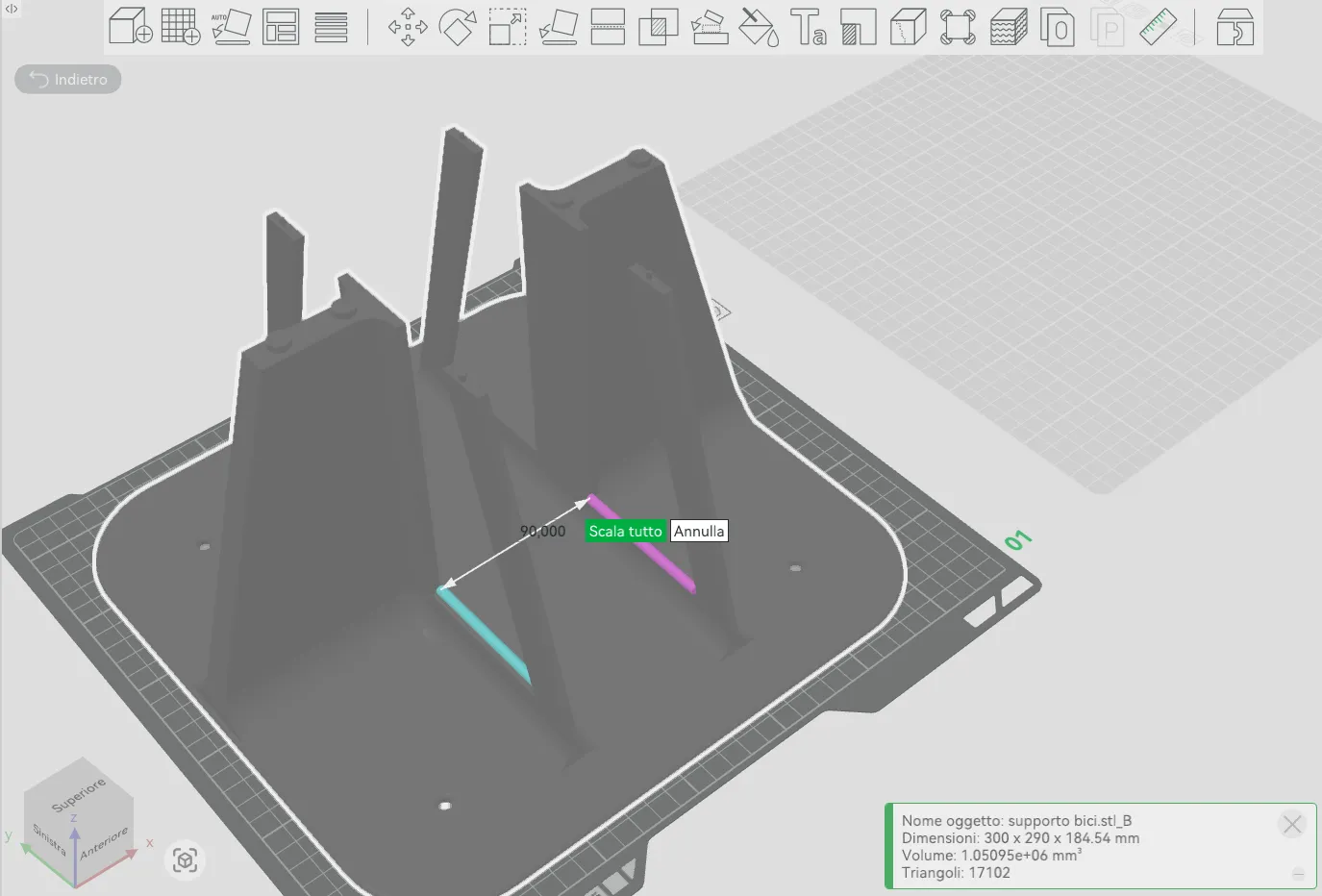

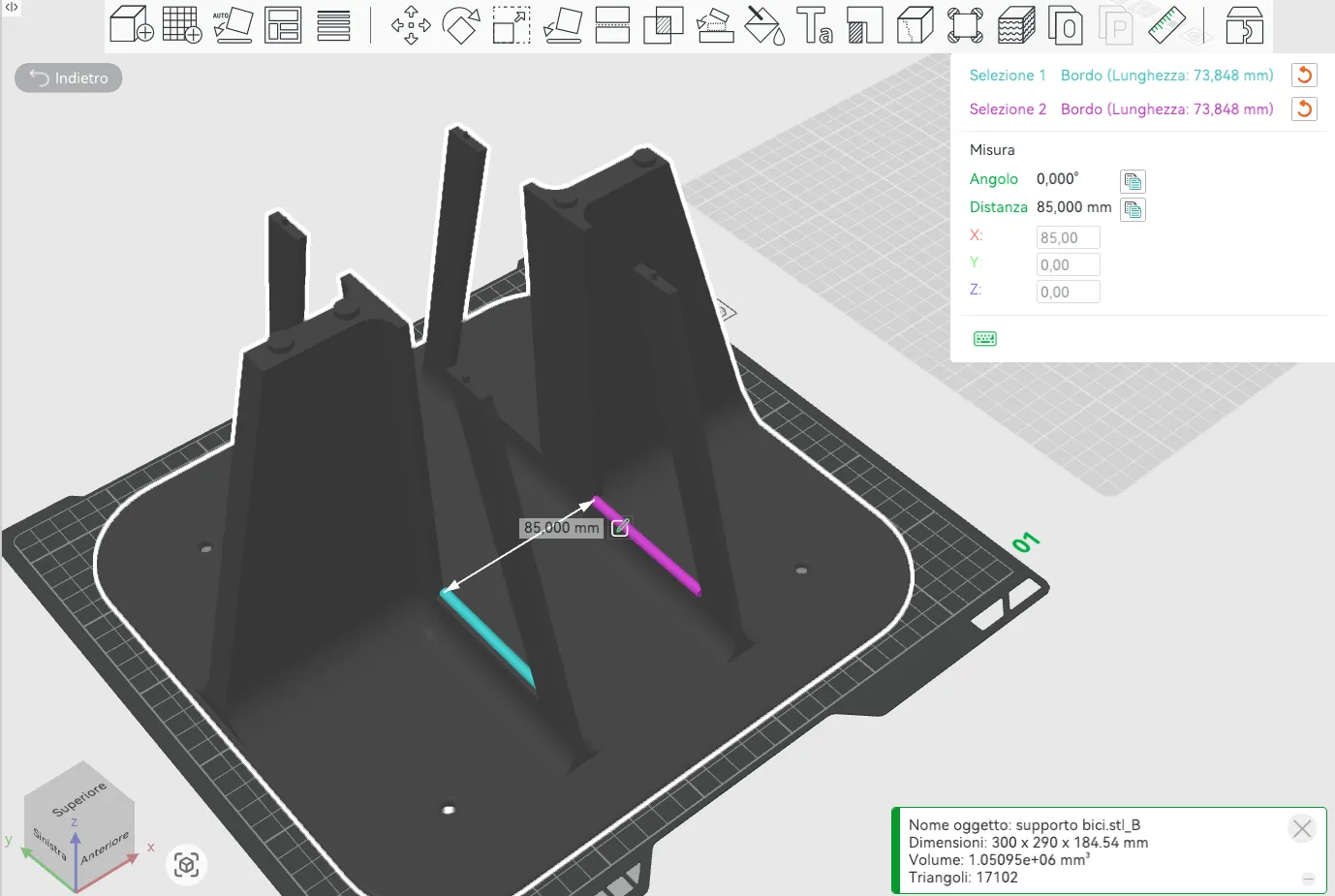

-select the base of the model and click on the ruler's icon, then select the two inner sides of the stand and scale it by typing the desired measurement (max 90 mm, otherwise the stand will no longer fit on the H2 and A2 build plates)

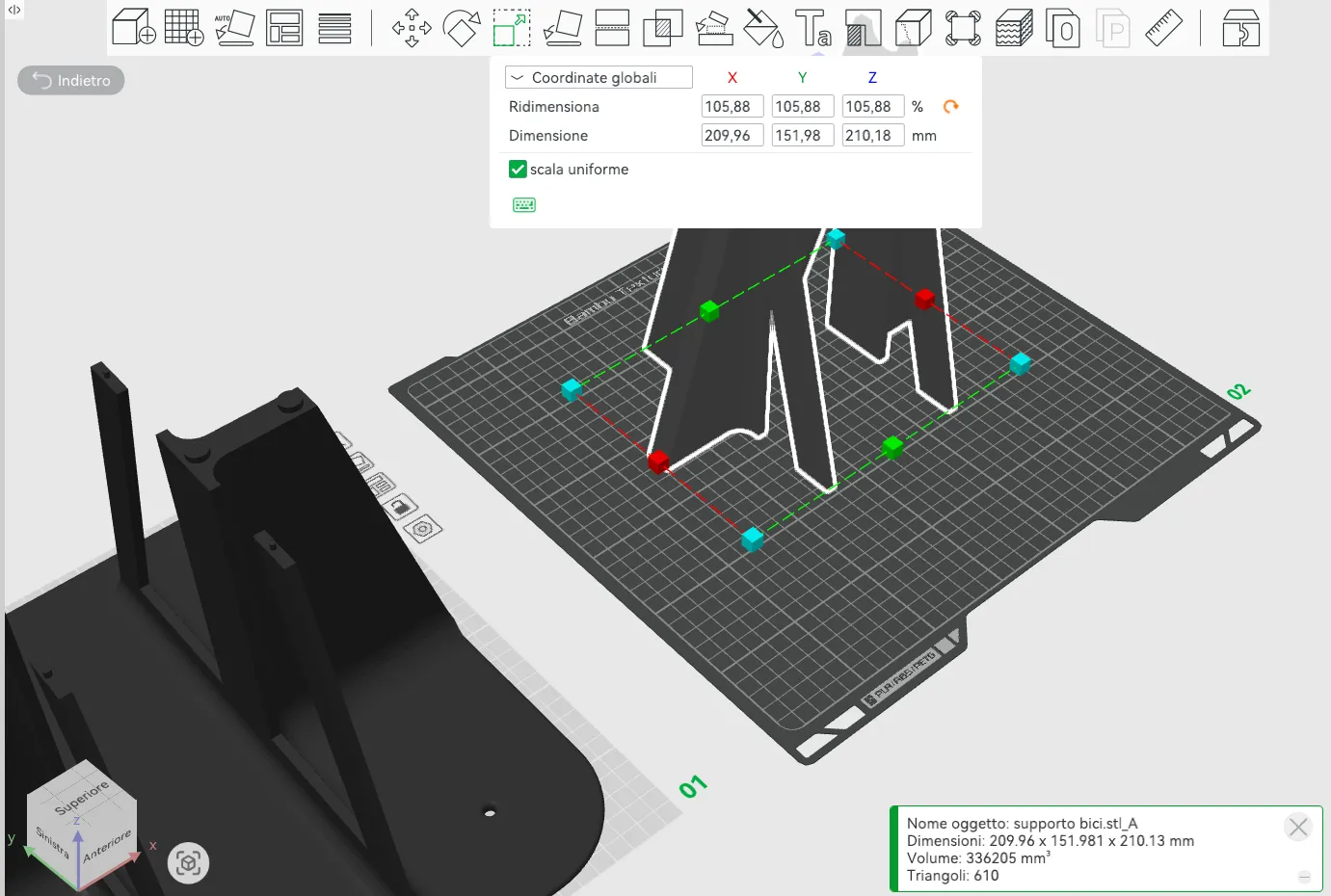

-resize the top part in the same way and then print it.

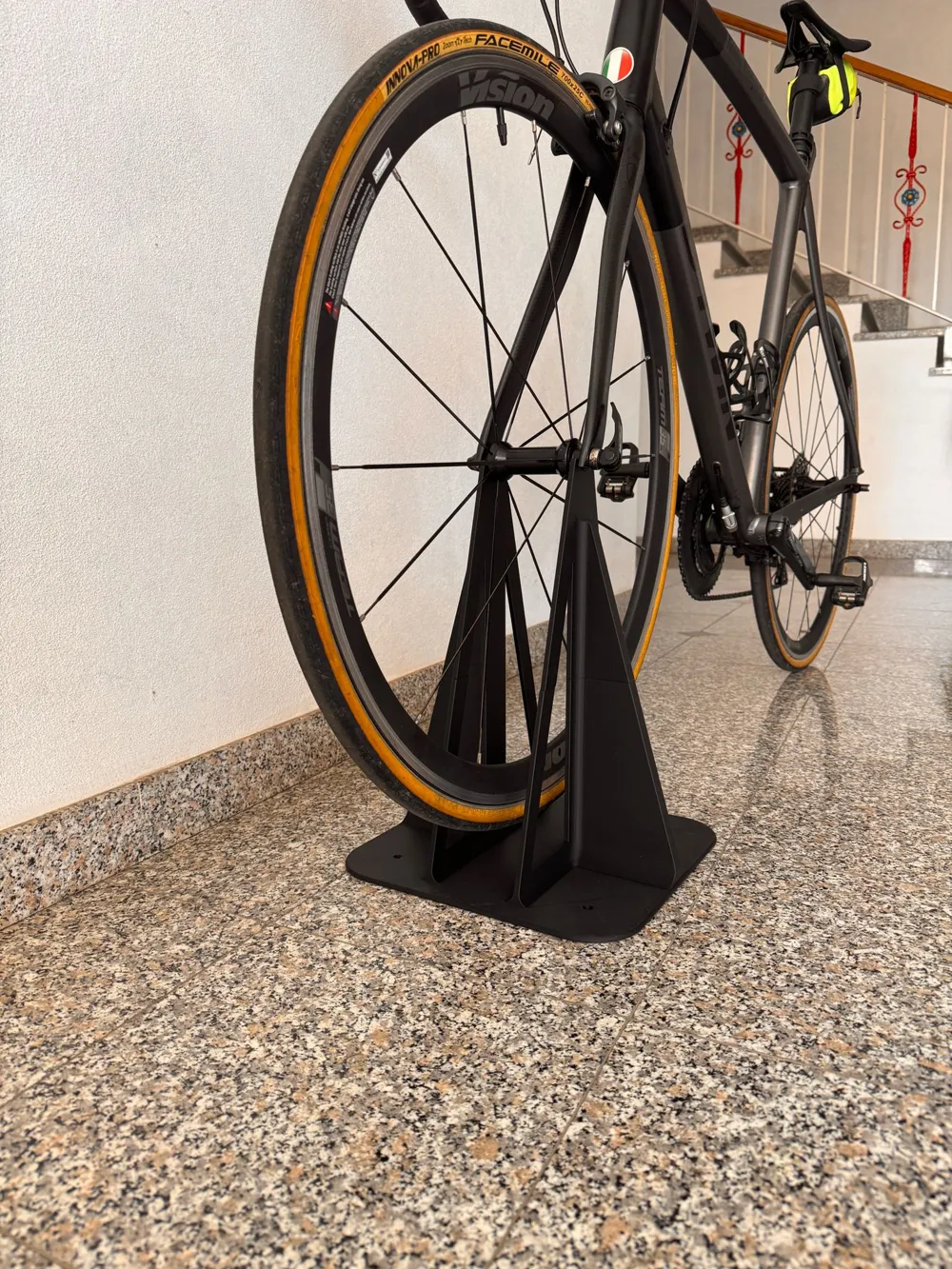

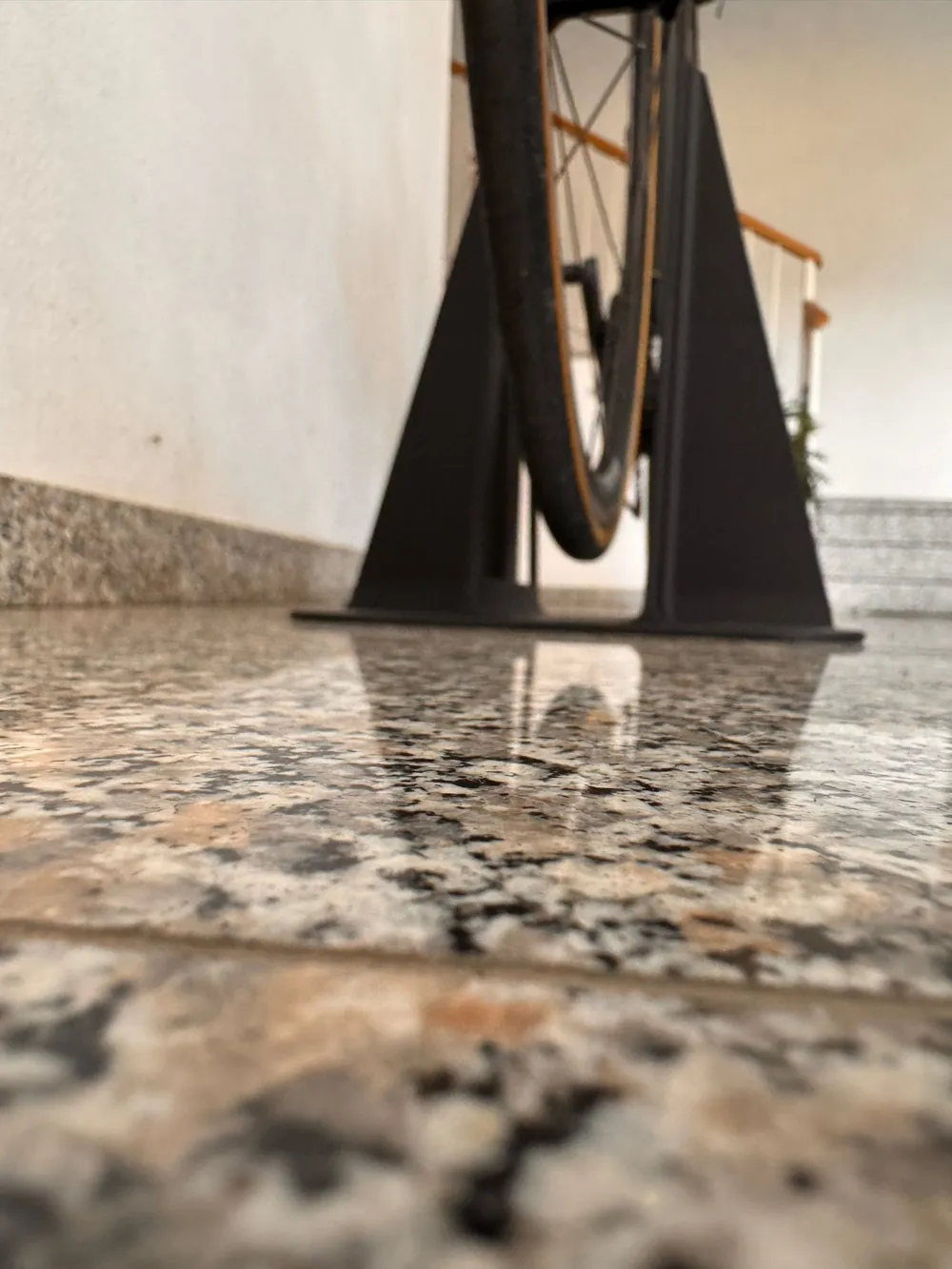

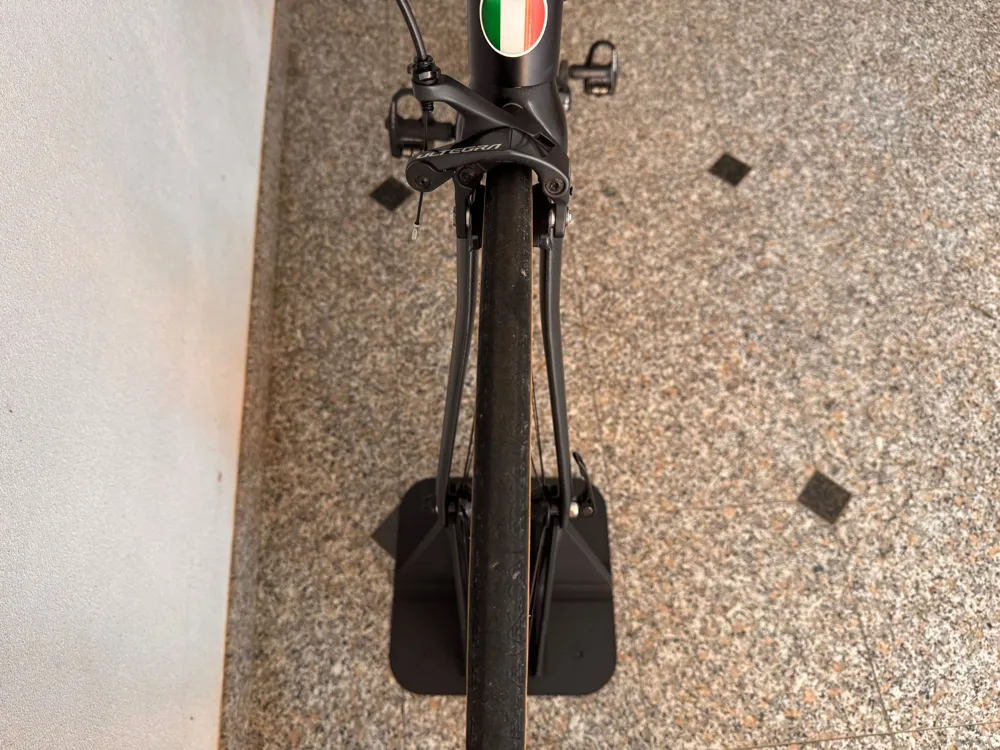

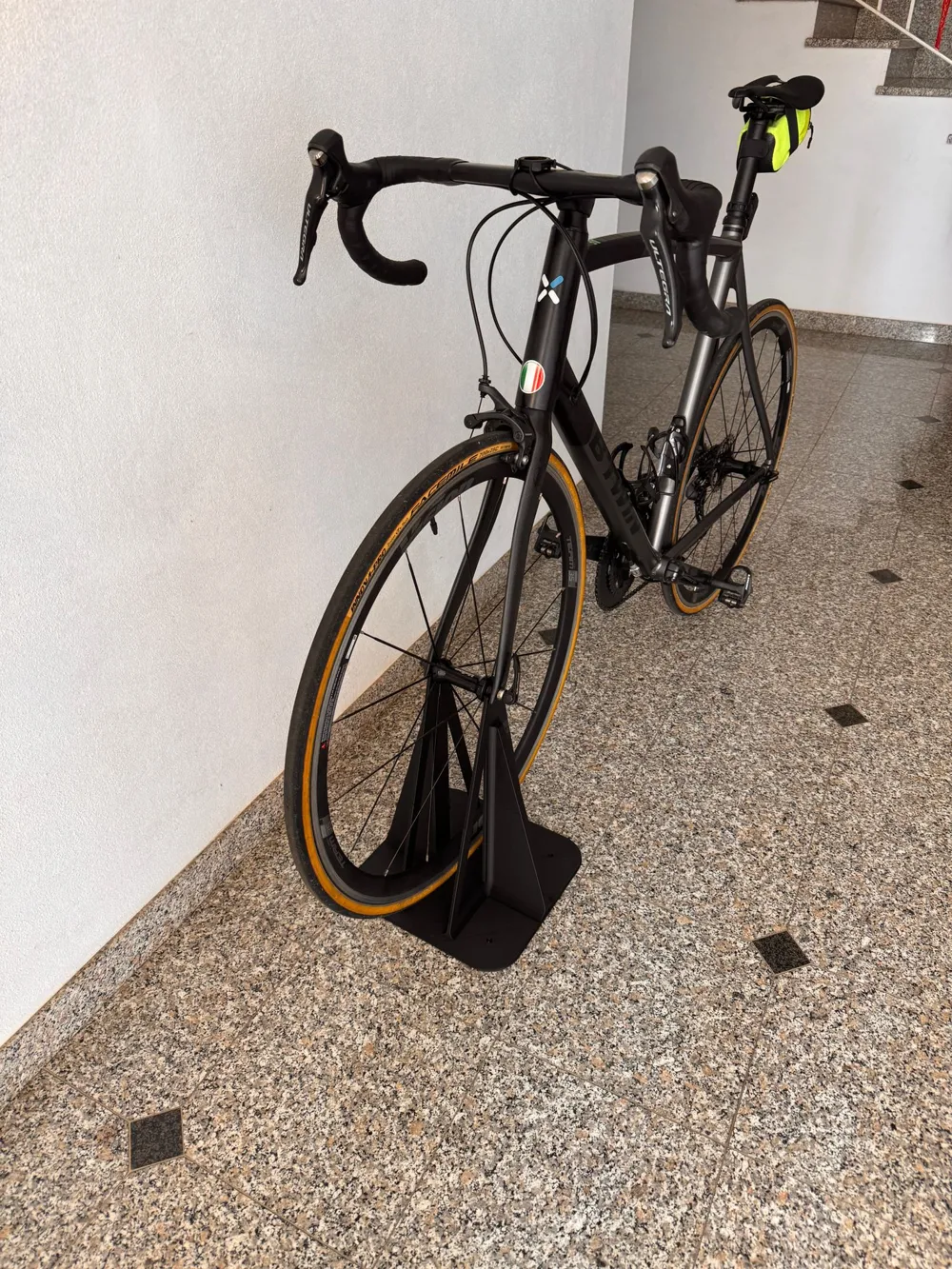

HERE ARE ALL THE PHOTOS OF THE PROCESS
