Zero-Leak Mosquito Trap (Custom Bottle Liner)

Zero-Leak Mosquito Trap (Bottle Liner, Fully Customizable)

Tired of 3d printed mosquito traps that turn into a sticky mess the second you try to refill them? Same. So I designed this one to solve that problem at the source.

The trick: it doesn't hold liquid — your bottle does.

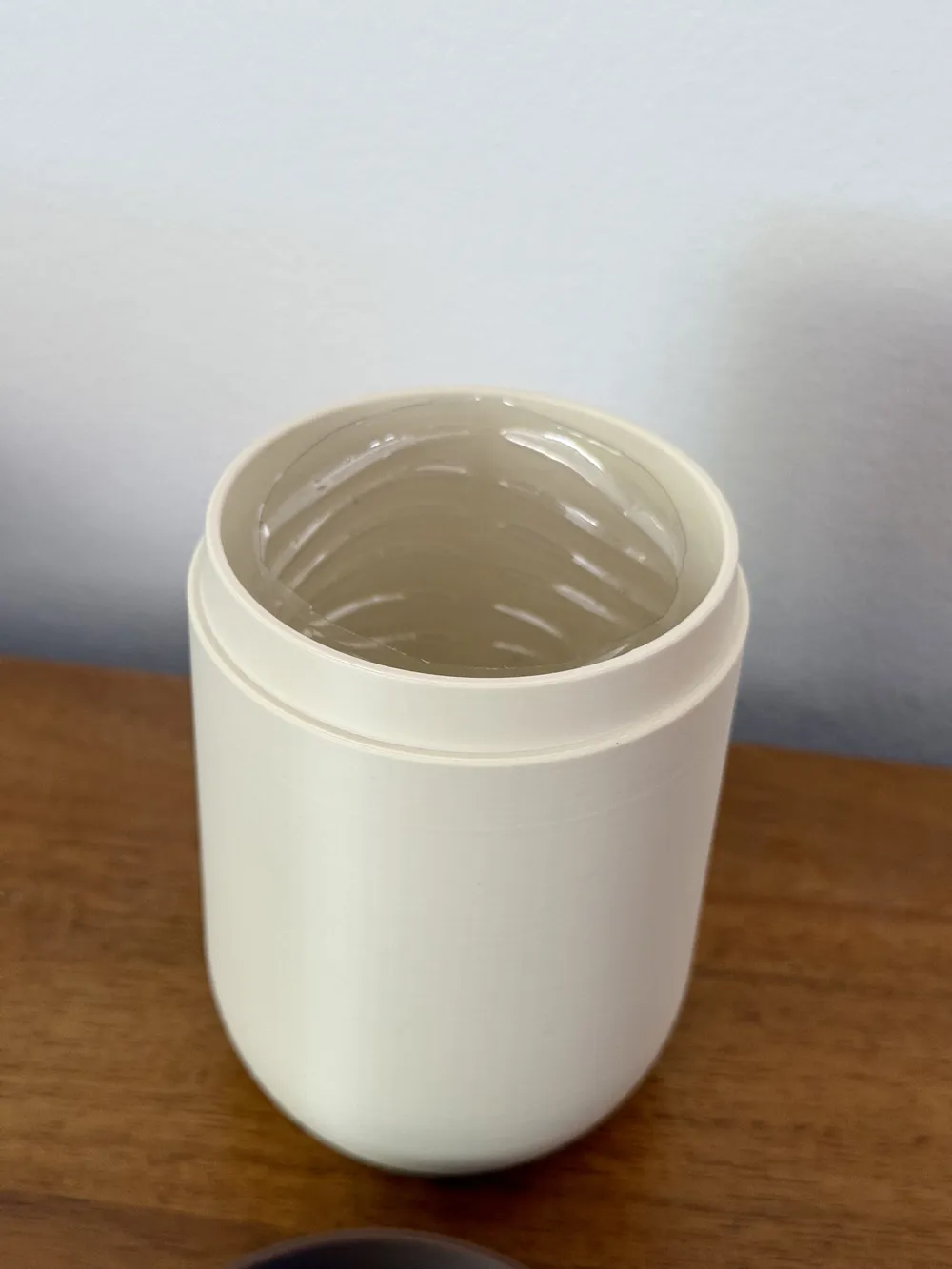

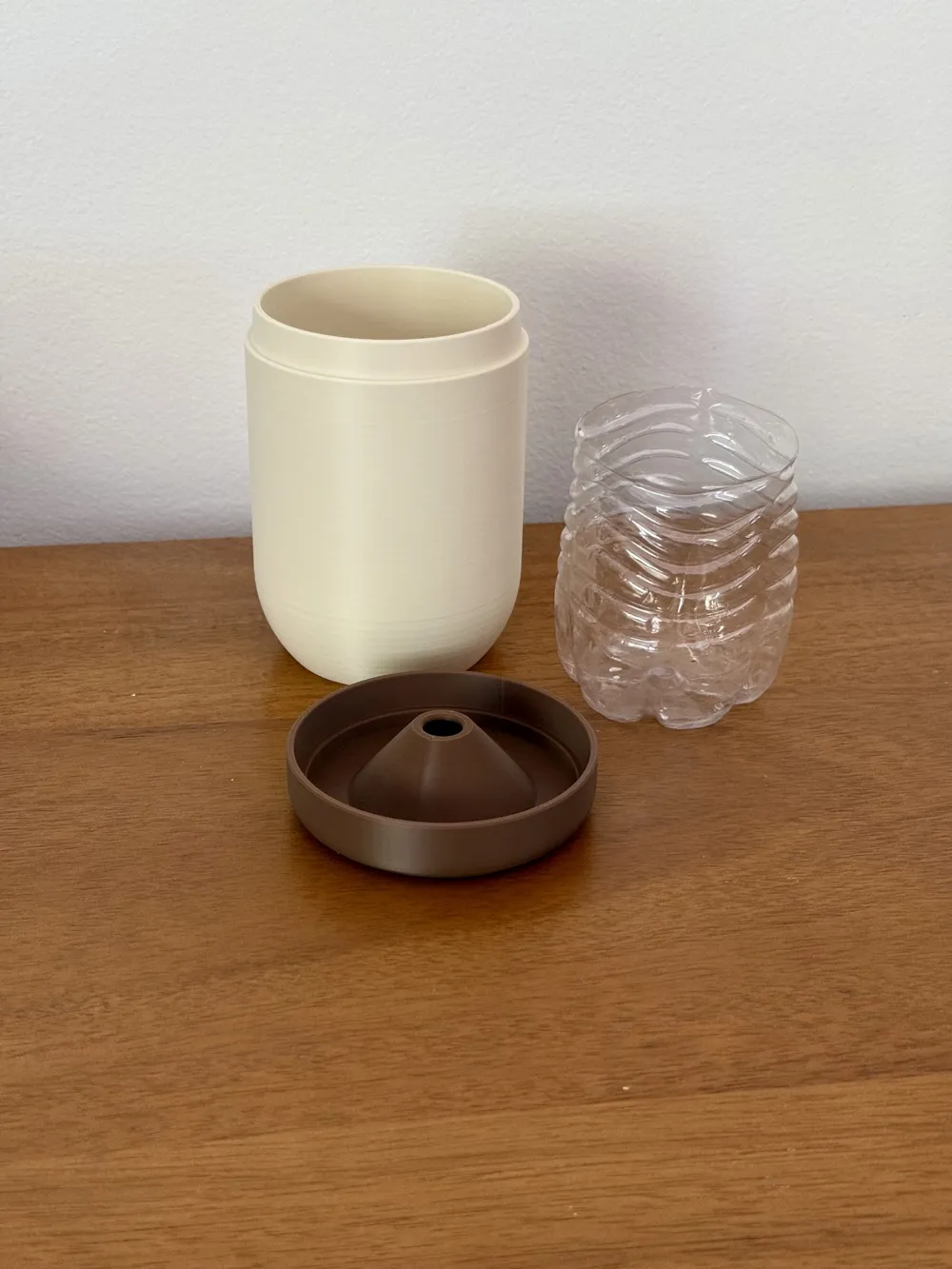

Instead of printing a vessel and hoping it's watertight (it never really is), this trap uses a standard plastic bottle that has been cut in half as the liner. The bottle sits inside the printed shell, and the cone lid slips on top with a hole sized for mosquitoes to fly in and get stuck. No coating the print with resin, no waterproofing hacks, no sticky residue all over your hands and counter. When it's time to refill, just pull the bottle out, dump it, rinse, and drop it back in.

• Zero leaks — the bottle does the liquid-holding, the print just holds the bottle
• Easy cleanup — no sticky print to scrub, just rinse the bottle
• Fully customizable — the model is parametric, so you can adjust it to fit your bottle's height and diameter (soda bottles, water bottles, whatever you've got lying around)
• Adjustable bug hole — tune the entry hole size to your local mosquito situation

How it works:

Mosquitoes are drawn to the CO2 given off by the fermenting bait (recipe below), fly in through the cone opening, and have a much harder time finding their way back out than they did finding their way in. Set it near where you sit outside, refresh the bait every week or two for best results.

DIY Mosquito Bait Recipe (Sugar + Yeast)

This is the classic CO2-attractant bait — cheap, easy, and it works by mimicking the carbon dioxide mosquitoes use to find their next blood meal.

You'll need:

• 200 ml warm water
• 50 g brown sugar
• 1 g active dry yeast

Instructions:

1. Dissolve the brown sugar into the warm water.
2. Let it cool to room temp (hot water kills the yeast).
3. Sprinkle in the yeast — don't stir it in.
4. Pour into your bottle liner and pop it into the trap.

The yeast feeds on the sugar and produces CO2 as a byproduct, which slowly releases through the bug hole and draws mosquitoes in. Fermentation typically keeps going for about a week before it needs a refresh — toss the old batch, rinse the bottle, and mix a new one.
