Blink Outdoor Camera 45 Degree Mount
Print Profile(1)
Description
45° Adapter/Mount for Blink Outdoor 2K+ Camera, probably also works for other Blink cameras but untested (The mounting hole spacing is 36mm, overall mount disc diameter is 55mm)

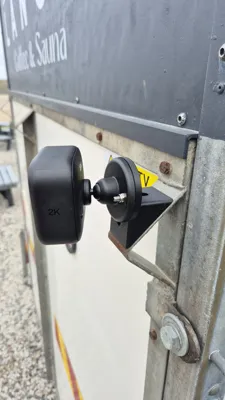

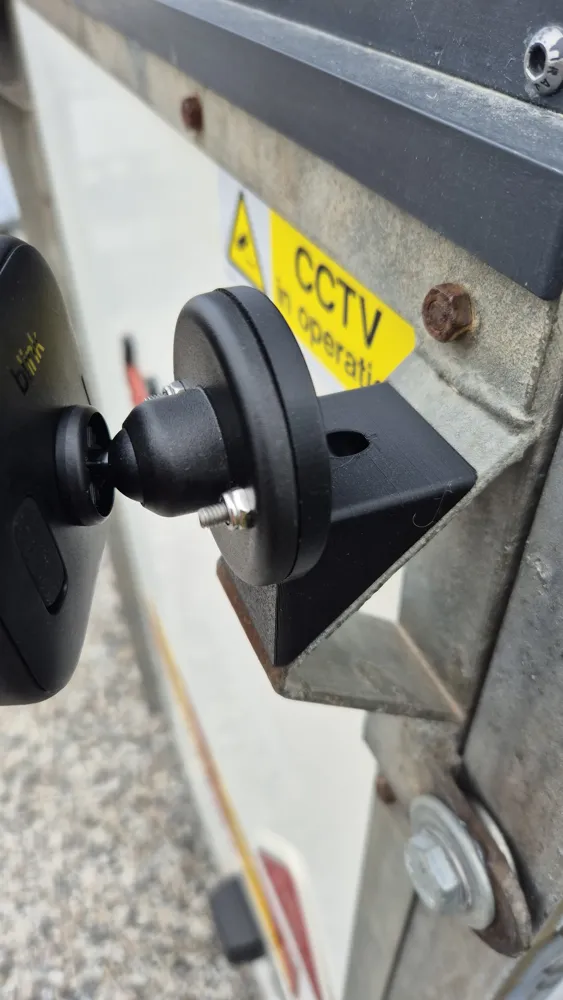

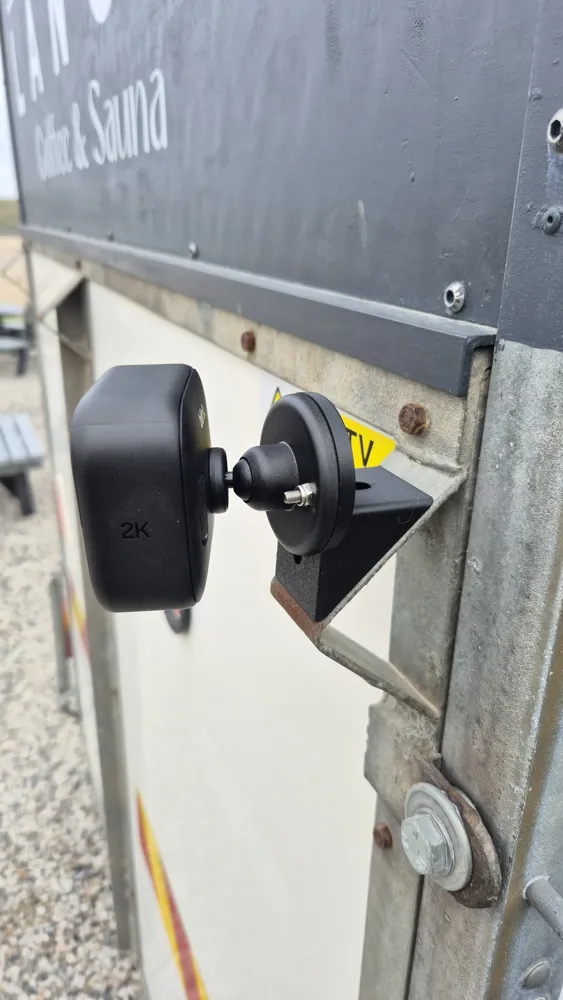

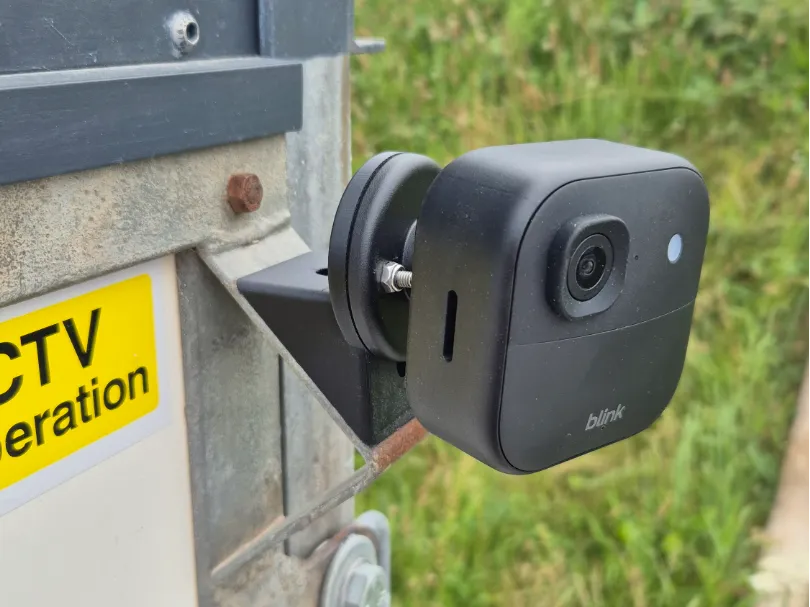

Requires a couple of M3 or M4 nuts and bolts to mount the camera to the adapter, I used M4 which requires enlarging the holes on the back of the standard camera bracket very slightly with an 4mm drill bit. I used 20mm long countersunk bolts which work well but are a bit longer than necessary. All holes are countersunk so standard woodscrews can be used to attach this adapter to your house or wherever you want to put it. This can be mounted in any orientation (facing up/down/left or right), I had the slightly unusual requirement of the back of a horse trailer so used the same nuts and bolts through the back too.
Recommend printing in PETG if used outside. I used Bambu PETG-HF which seemed to work well.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
