Felt glides for cantilever chairs with 25mm tubular frame
Print Profile(1)
Description
My first upload
This is a protector for a cantilever chair with a tubular frame. It only fits cantilever chairs that have a 25mm tubular frame.
Felt glides and a cantilever chair protect tiles, hardwood, and laminate from scratches

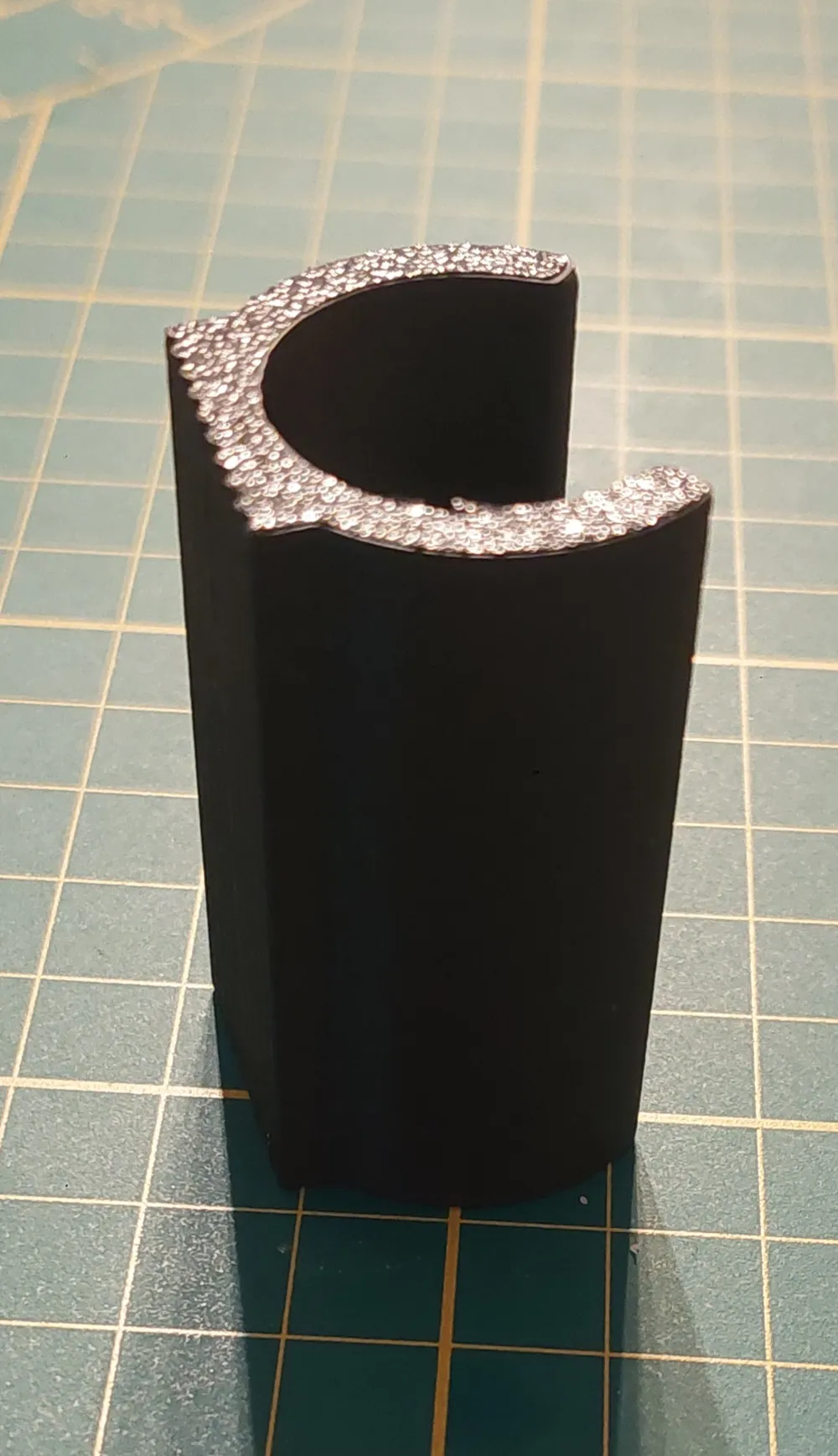

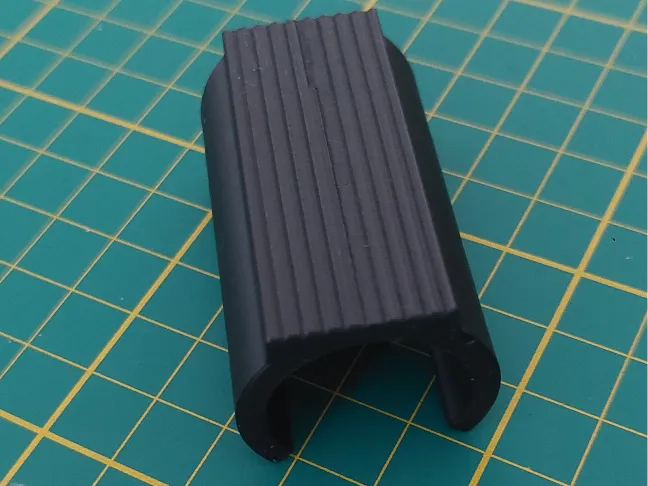

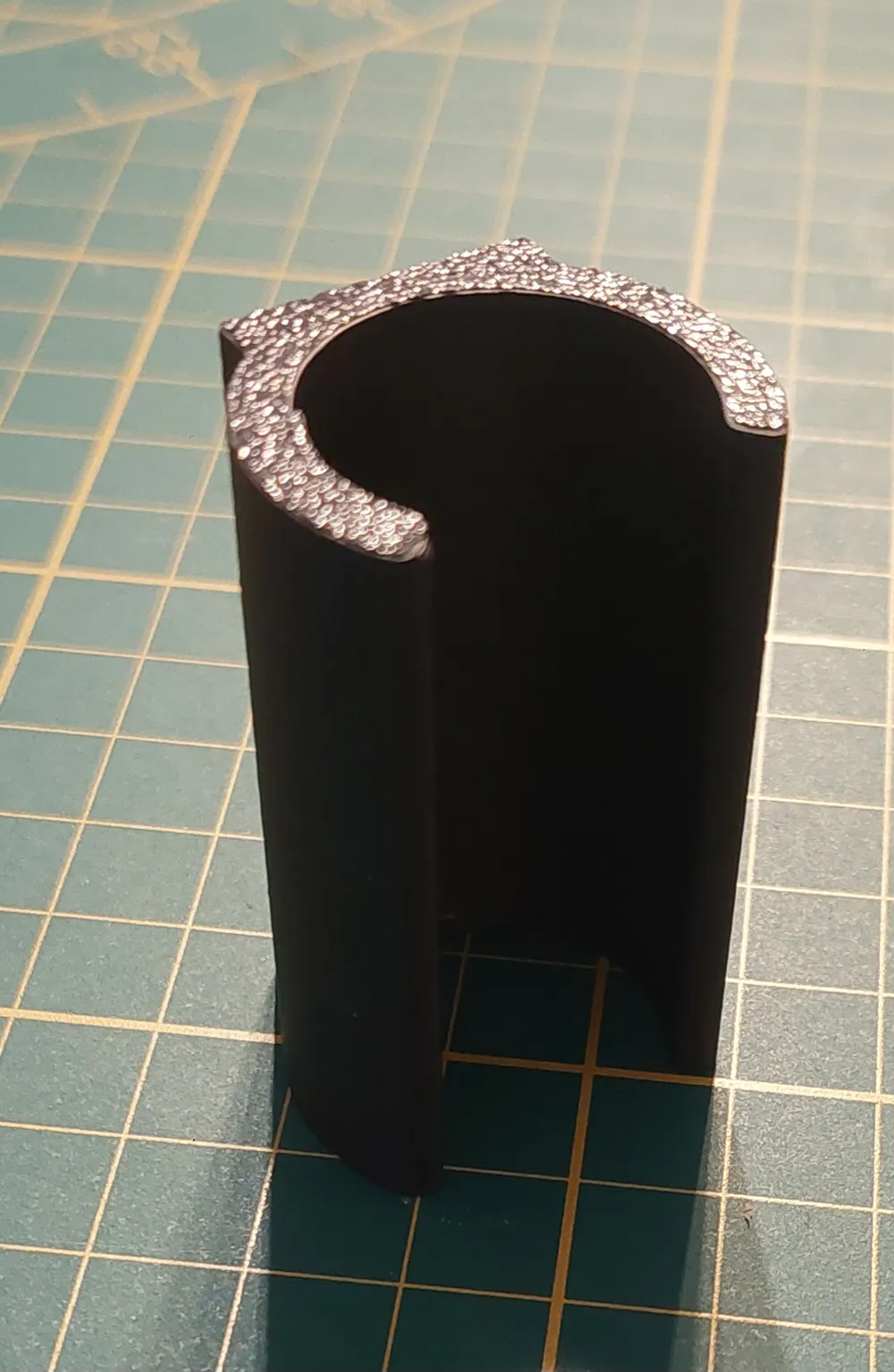

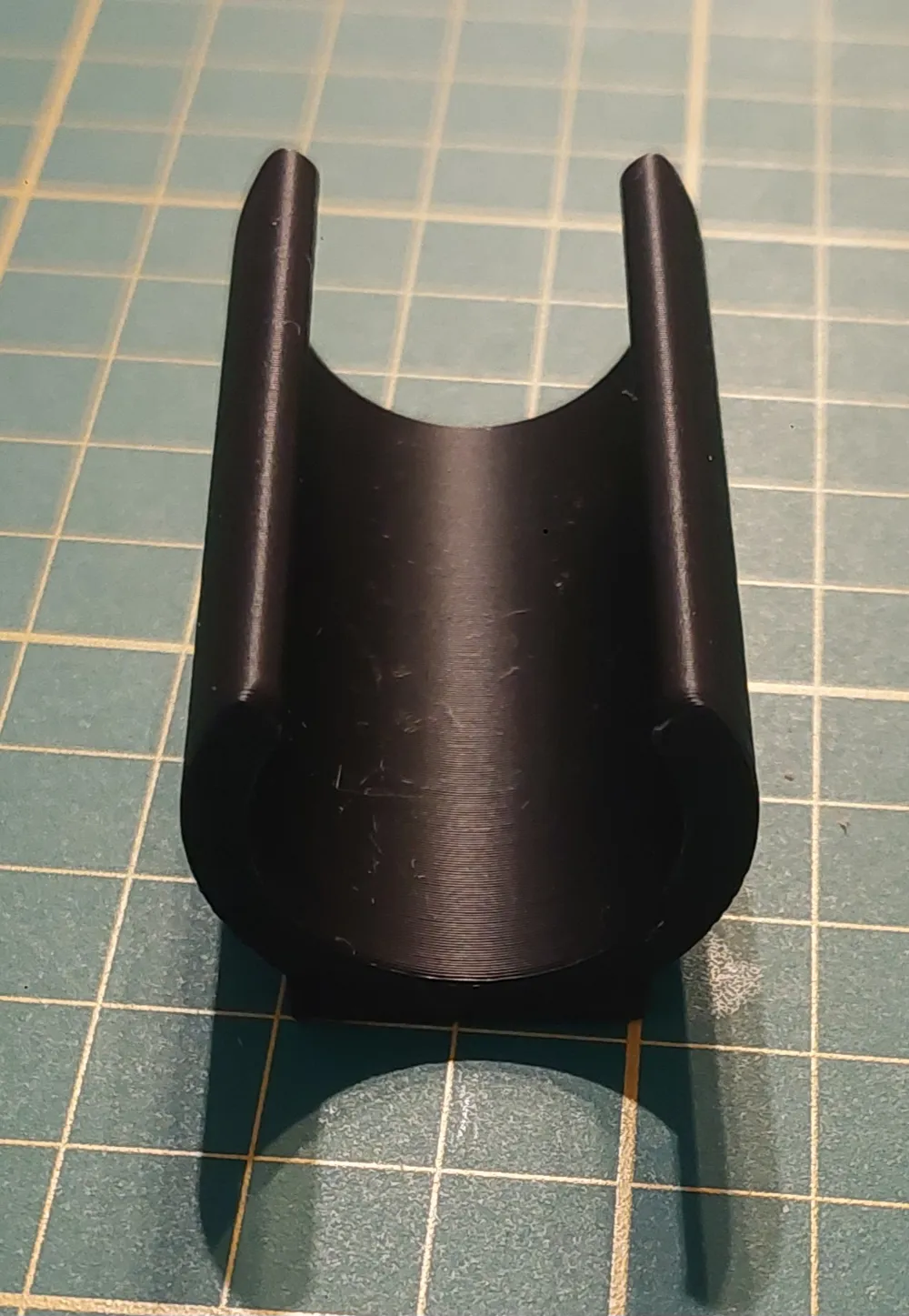

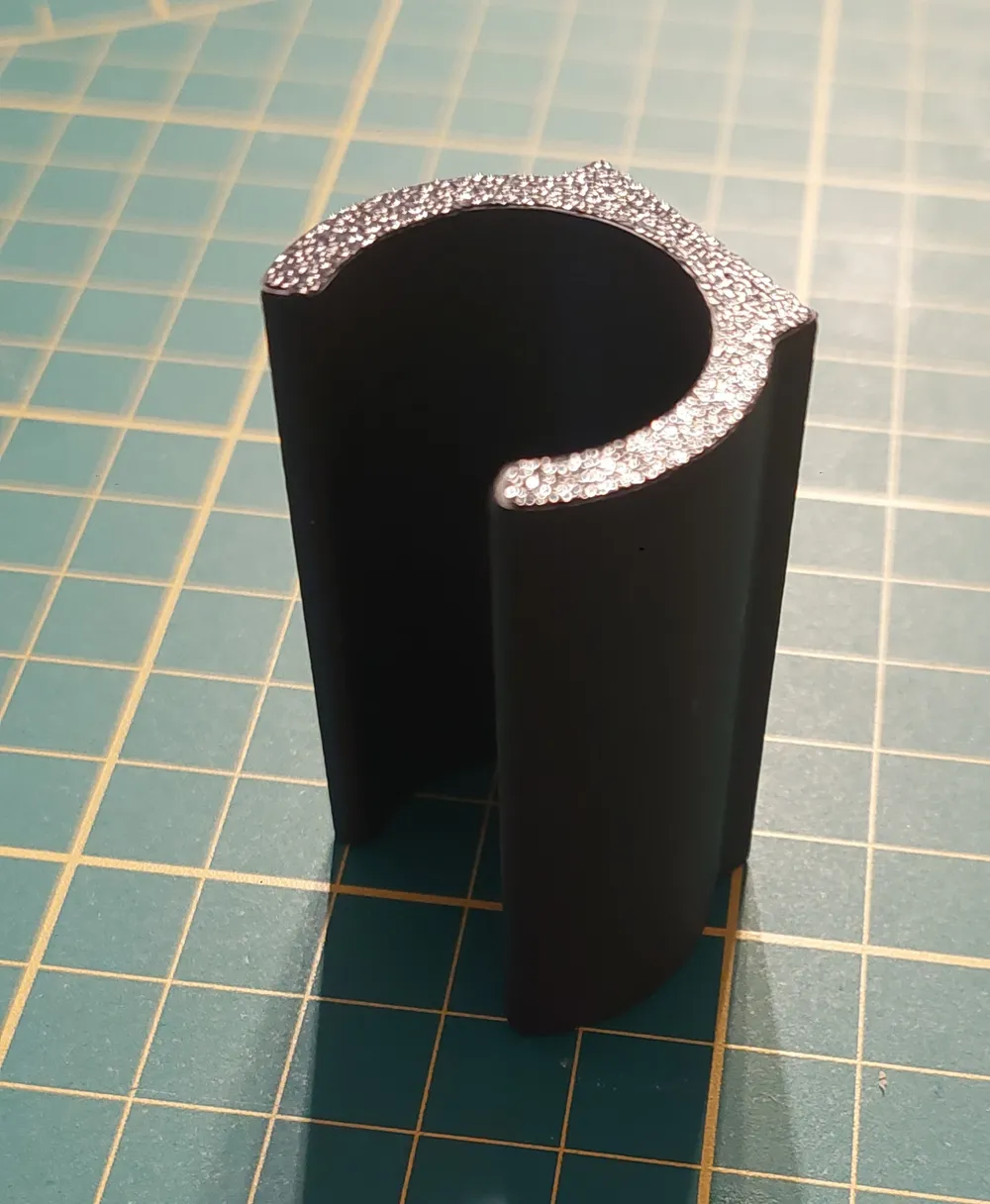

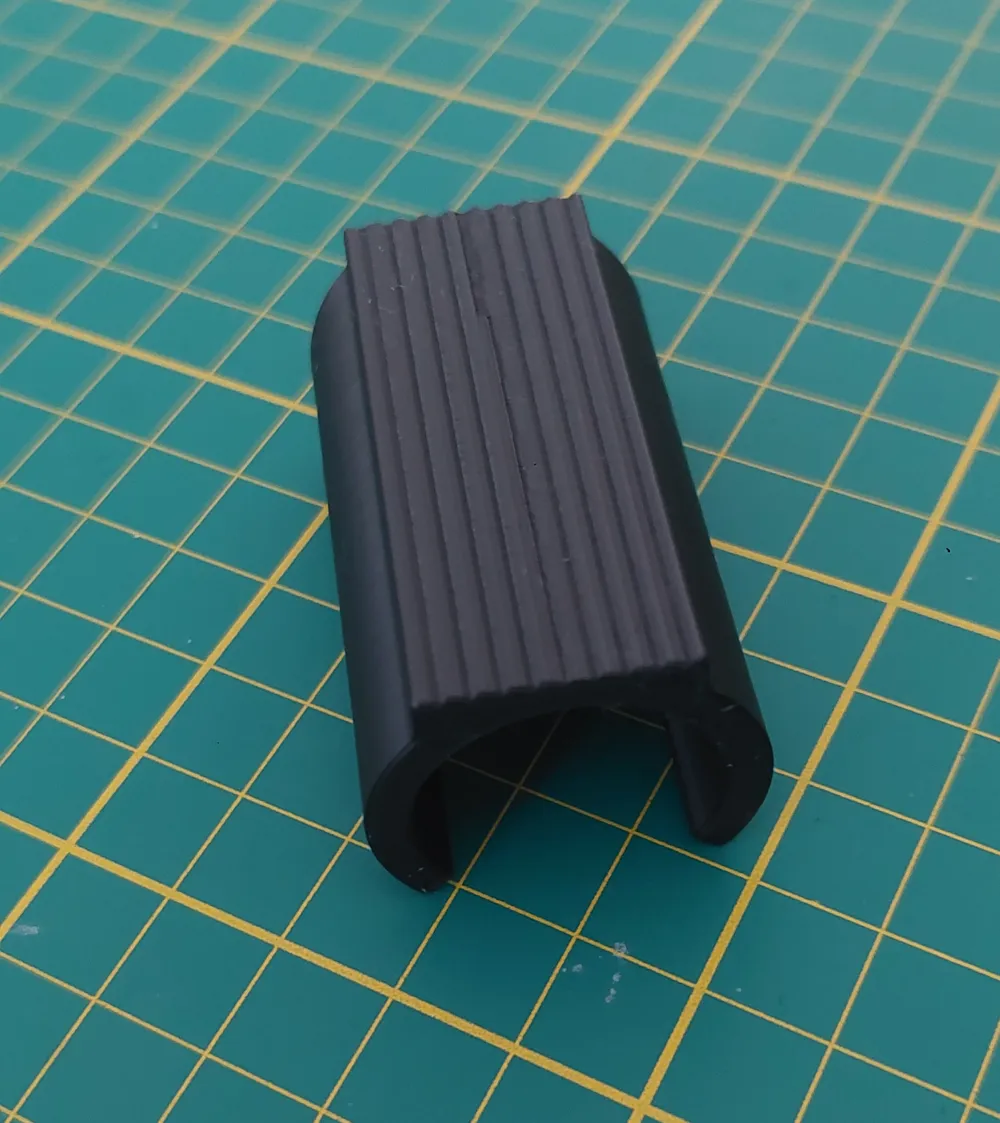

The felt glide is 50mm long and has a contact surface that is 20mm wide. The inner diameter is 23.3mm and fits very well on the
tubular frame of cantilever chairs that are 25mm.
Easy installation by simply sliding it onto the tubular frame.
It was printed from PLA with 3 wall thicknesses to make it a bit more stable.

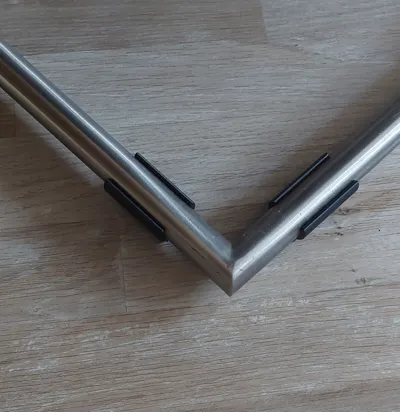

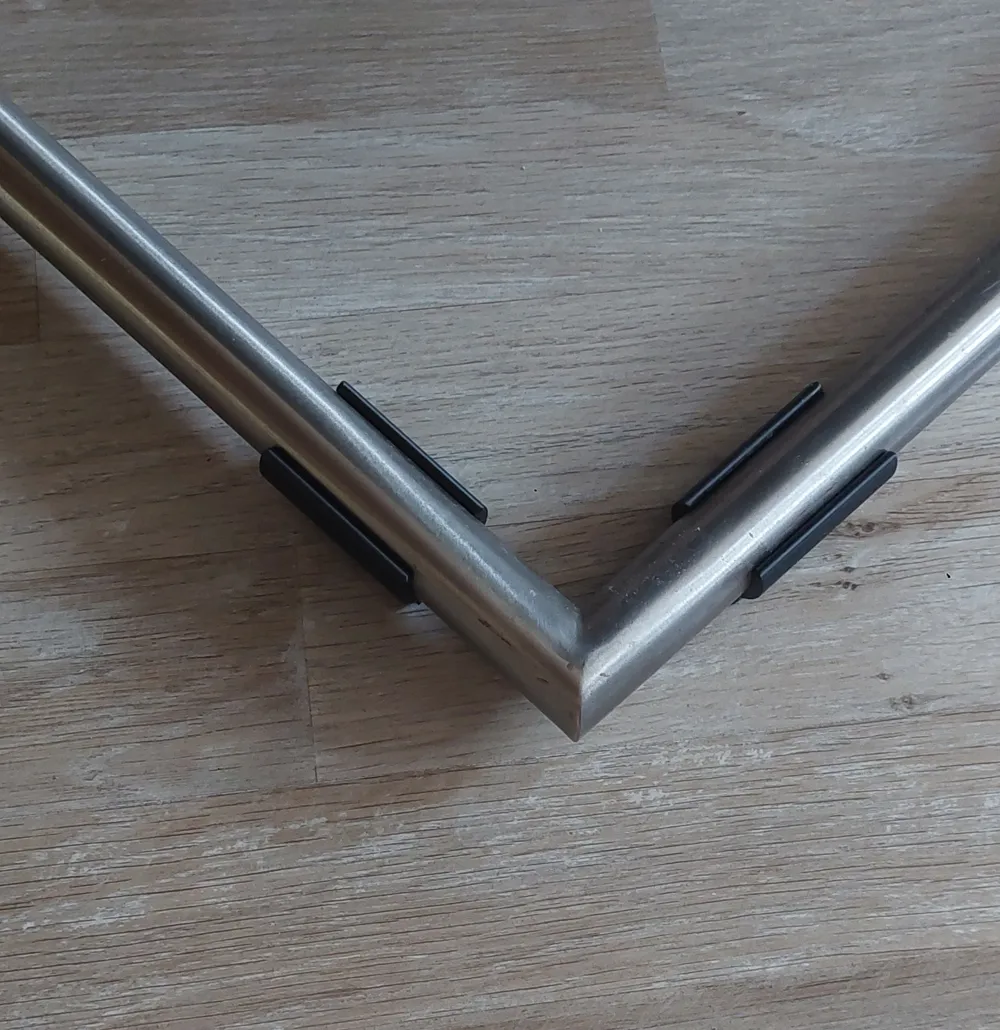

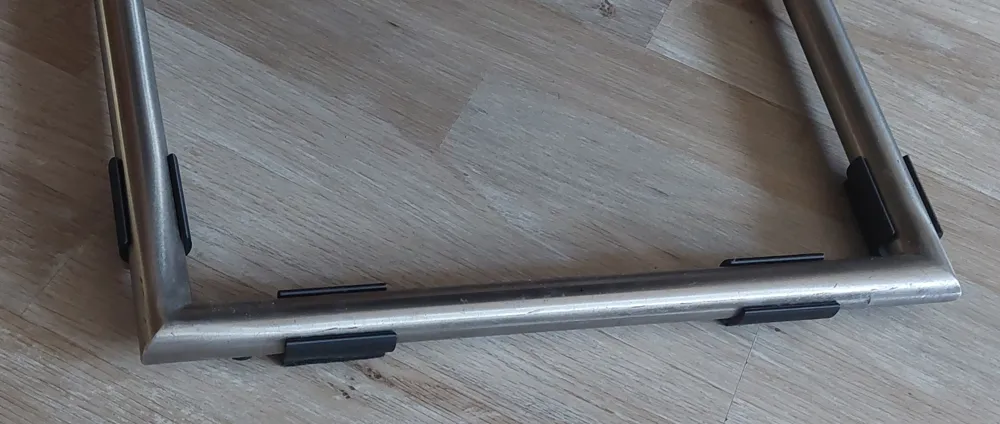

We attached 6 pieces under each of our cantilever chairs.
The print plate only contains one felt glide; you can simply duplicate it to adjust your required quantity. It can be printed without supports, but a small brim is recommended to ensure it adheres to the plate (it's included in the print profile).

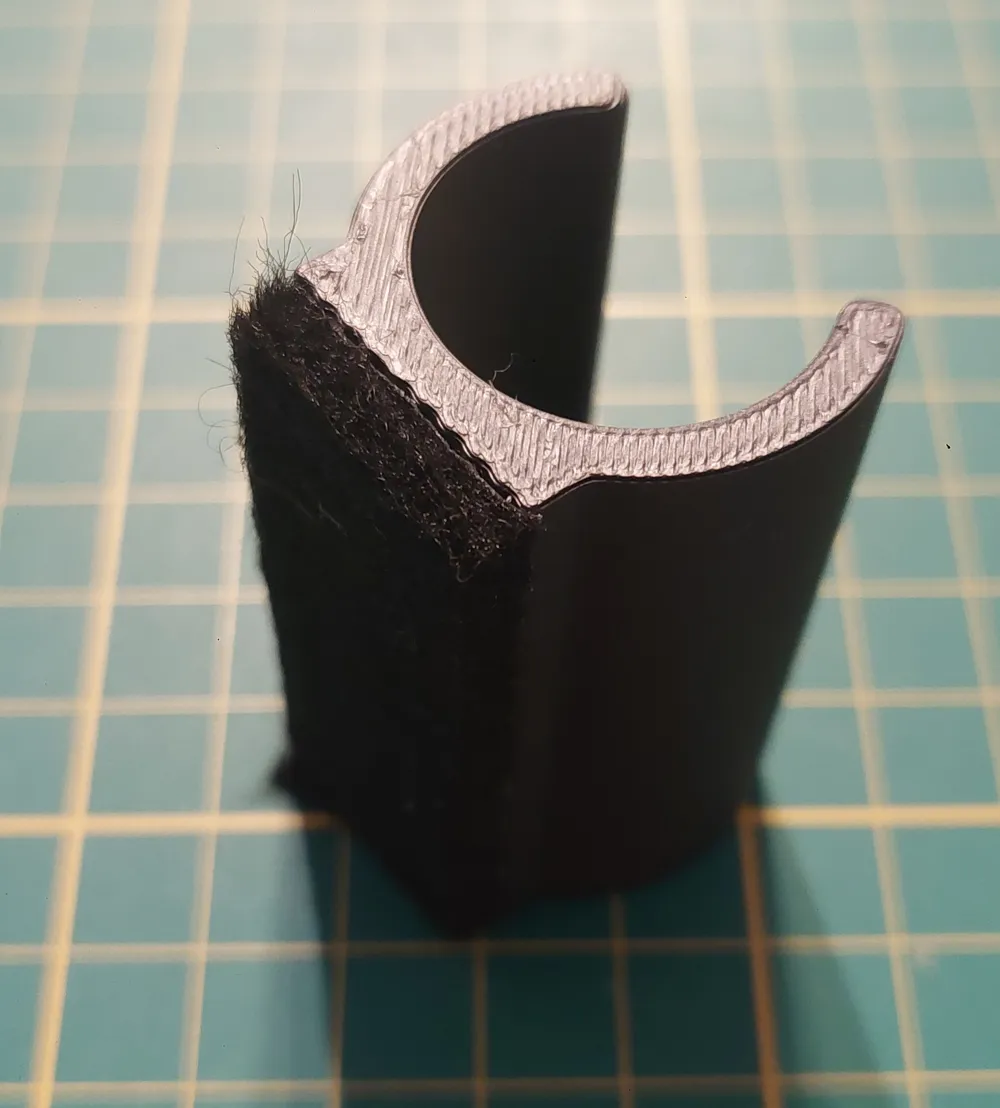

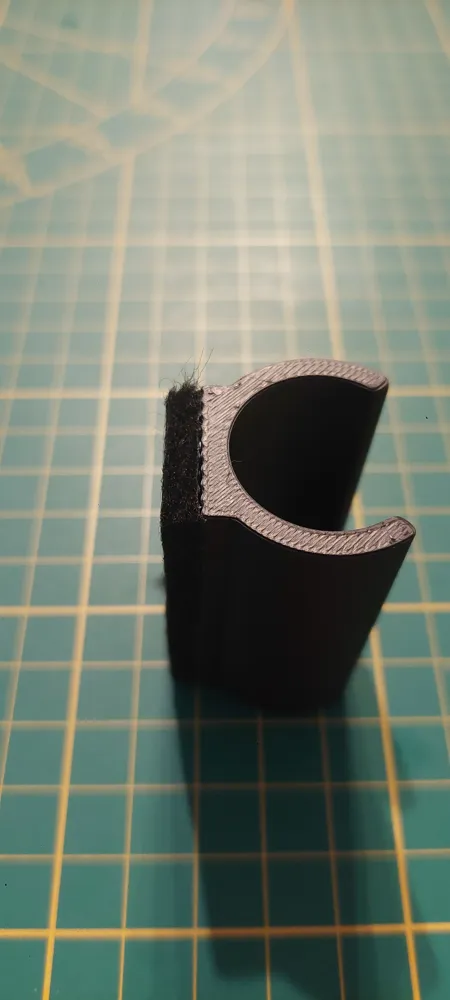

We bought the felt by the meter. Simply cut the felt to the appropriate length, glue it on, and attach it to the chair. Done.
This is my upload; if anything doesn't fit, just let me know.
