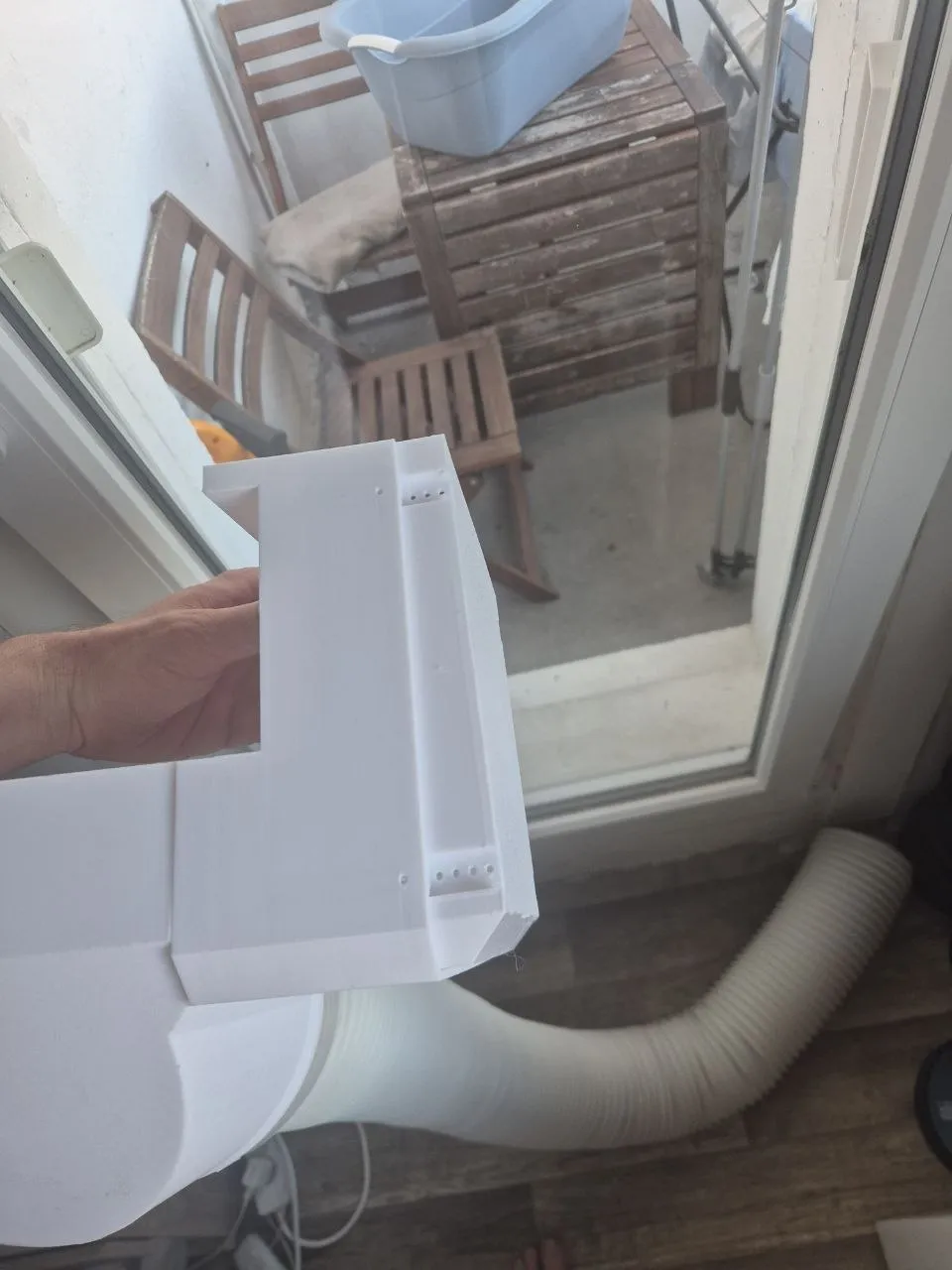

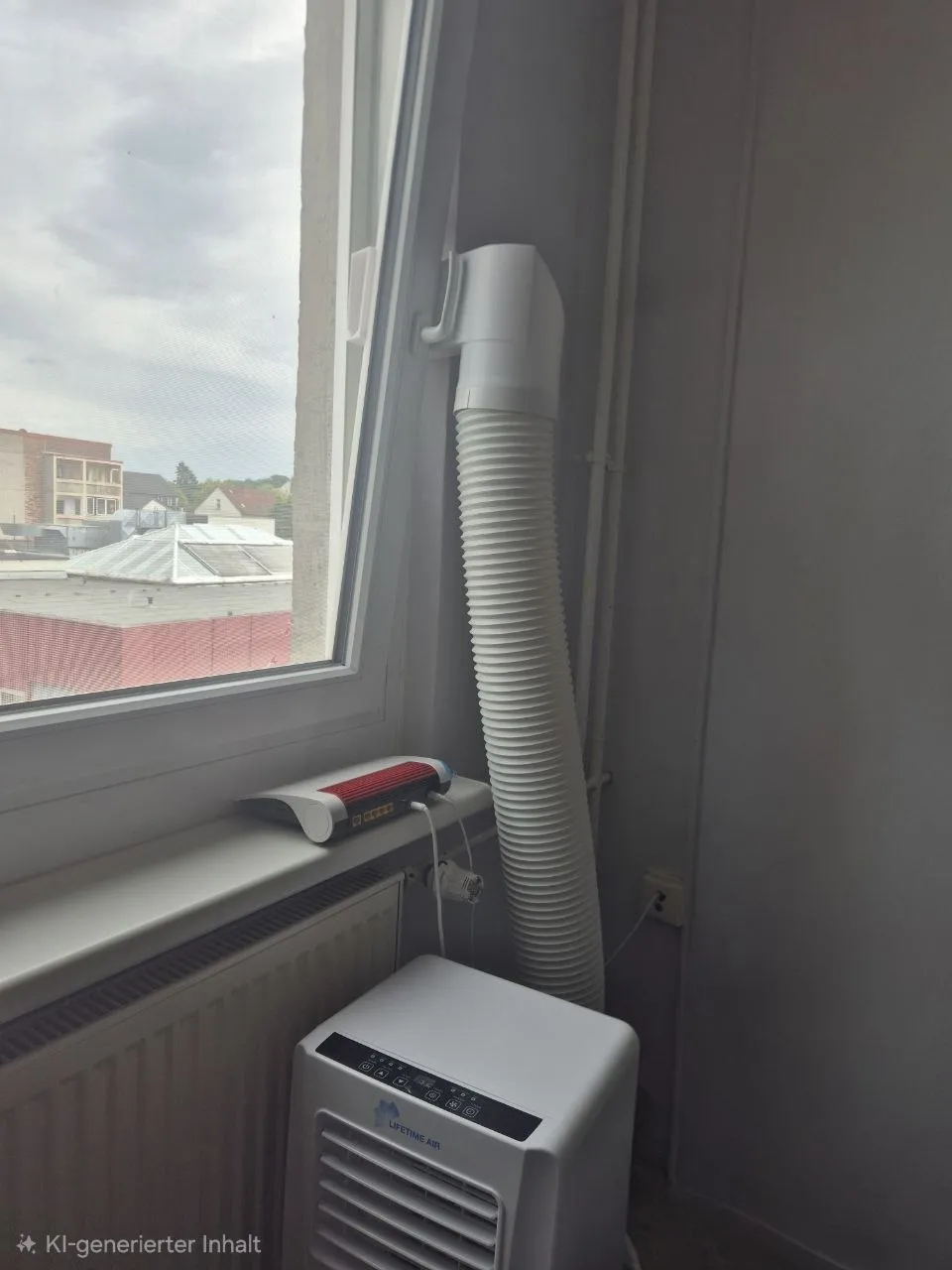

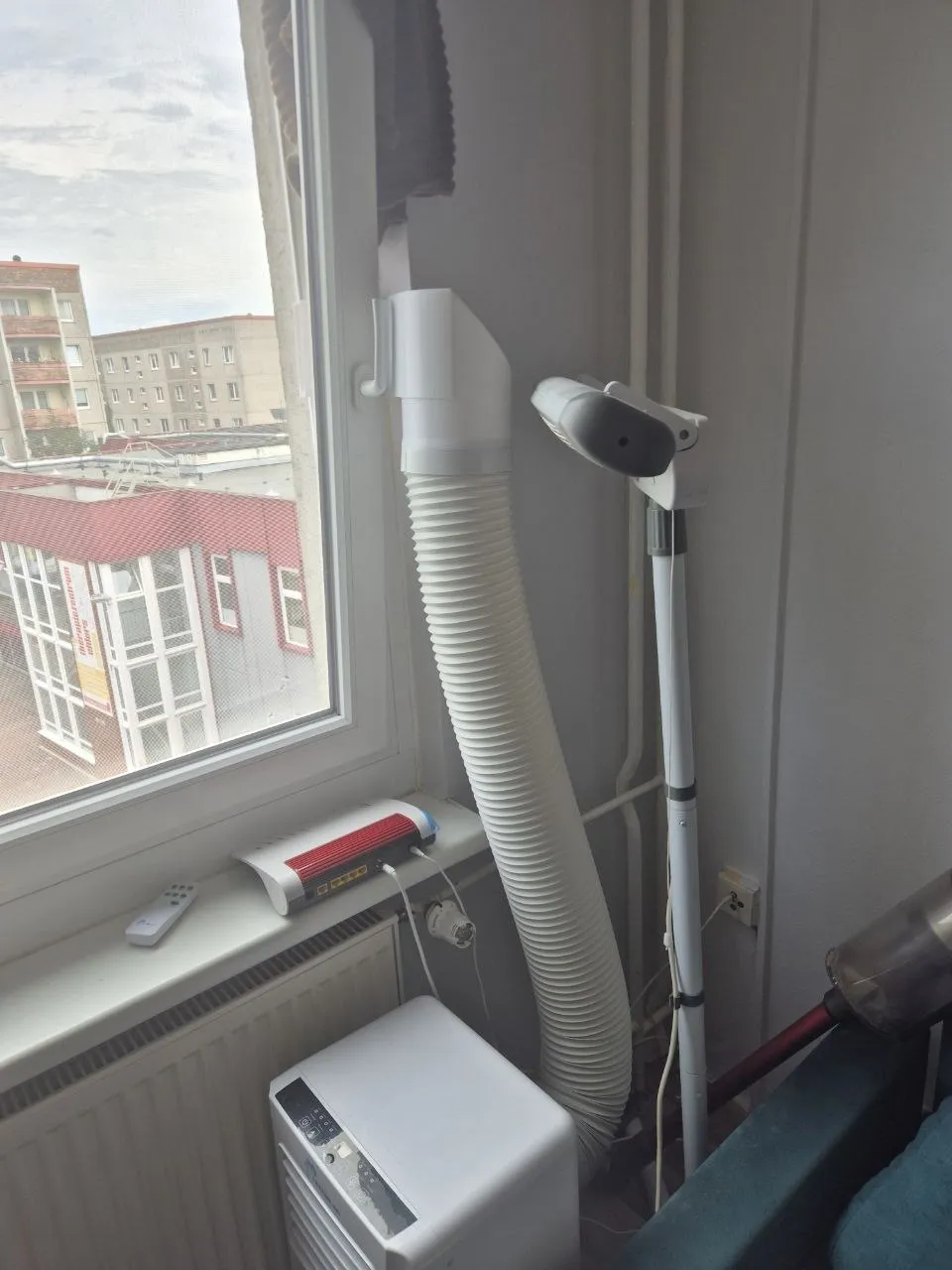

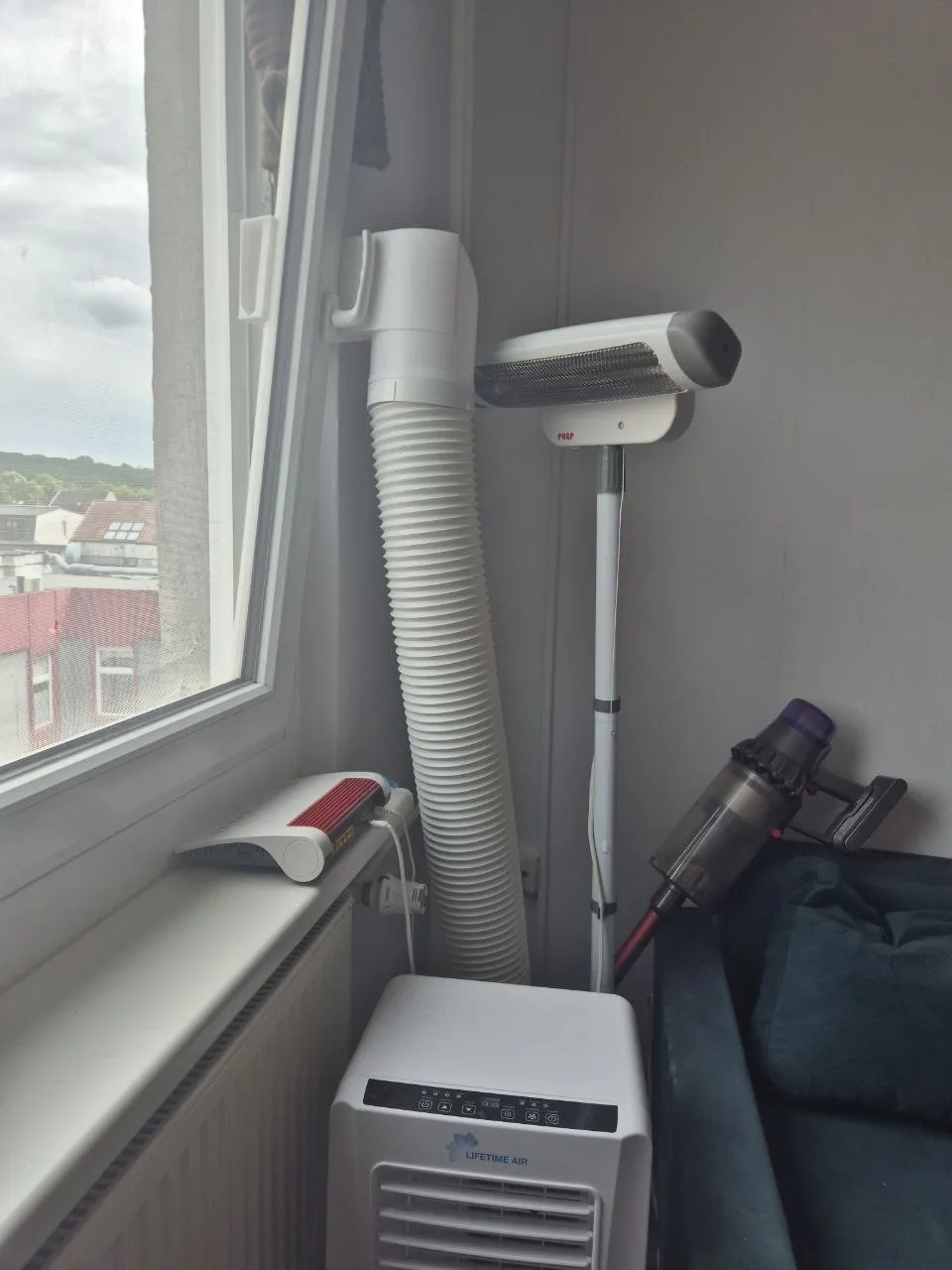

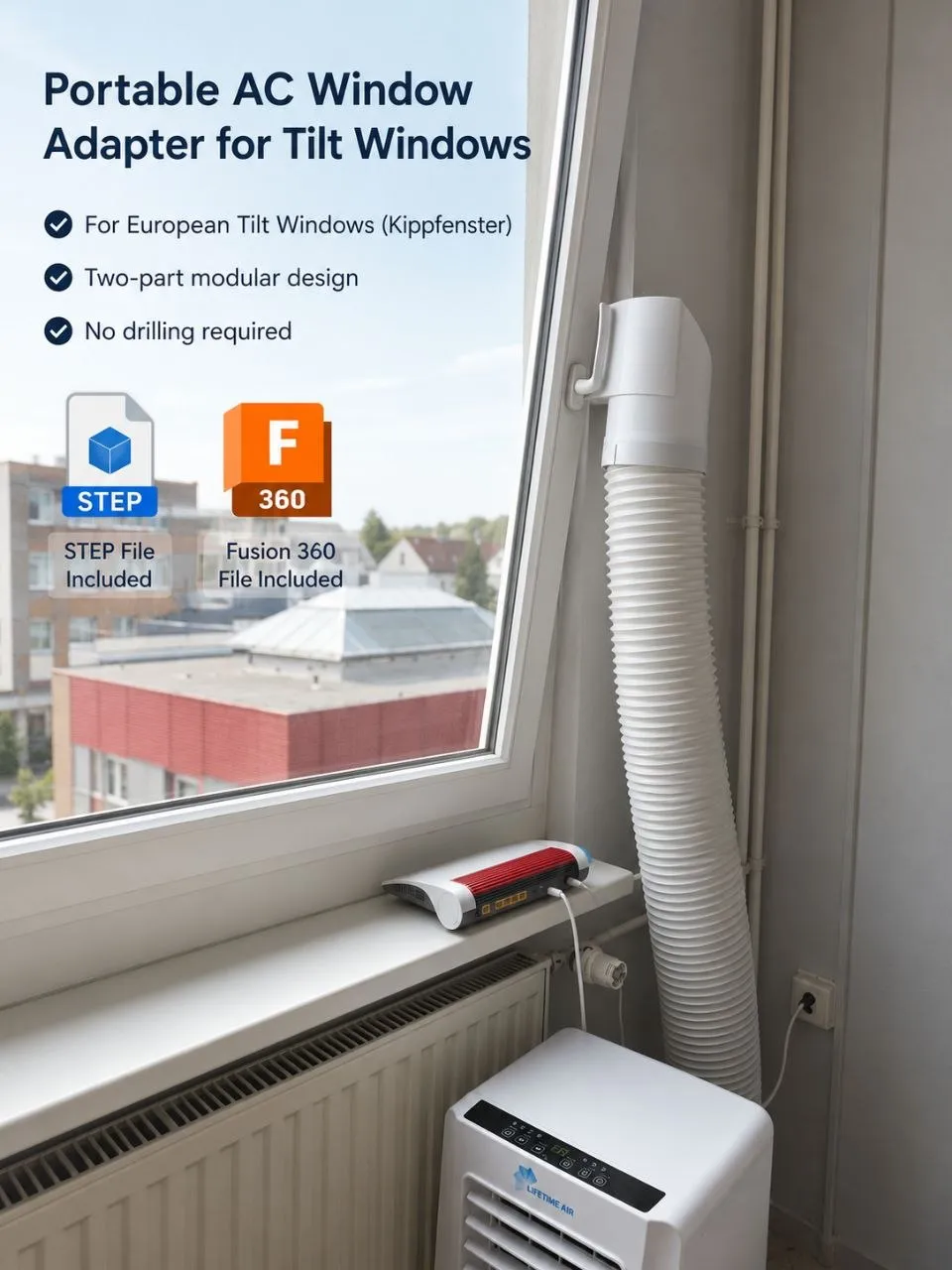

❄️ Adapter for mobile air conditioner for tilt windows (Kippfenster) V3.0

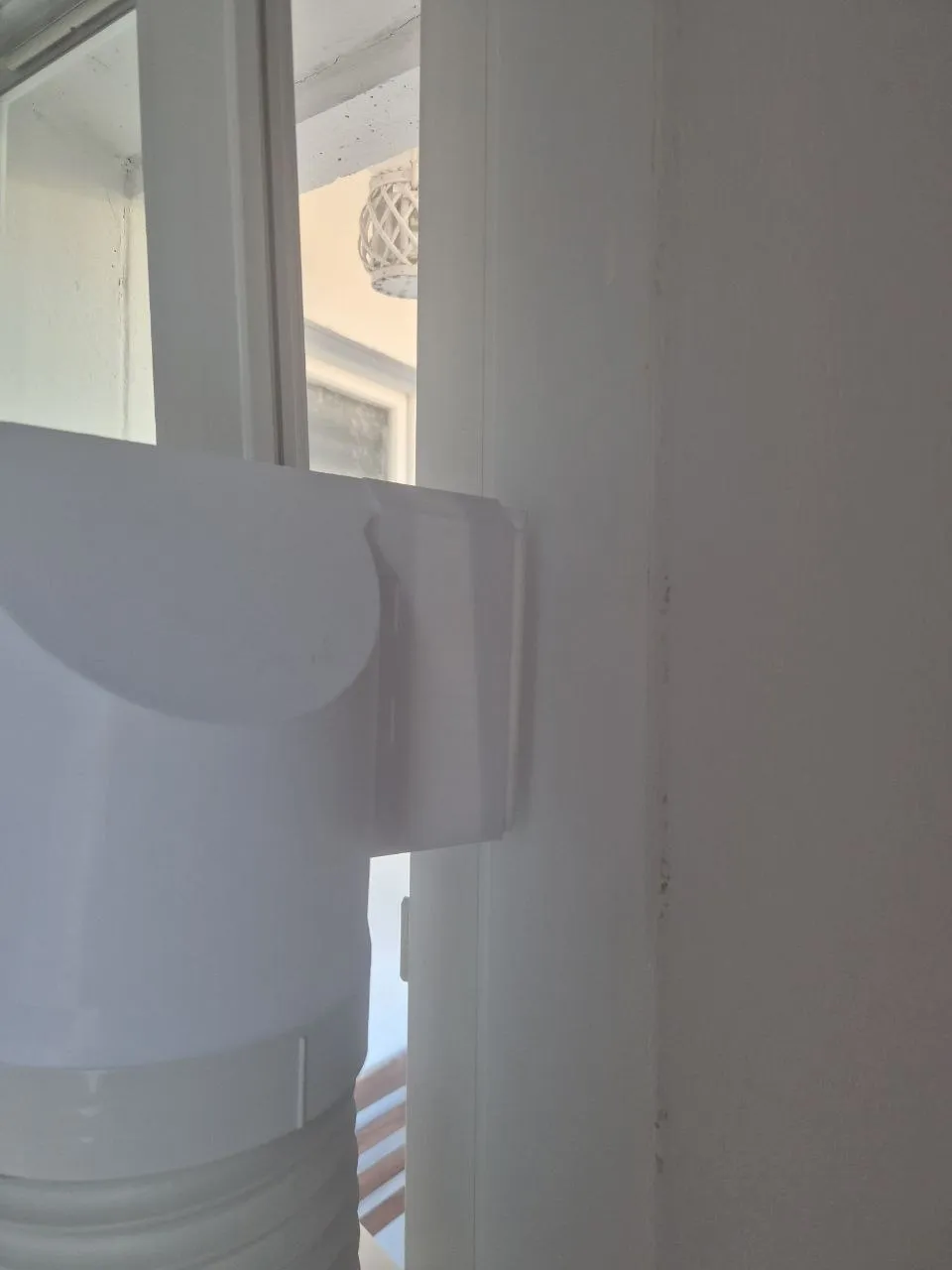

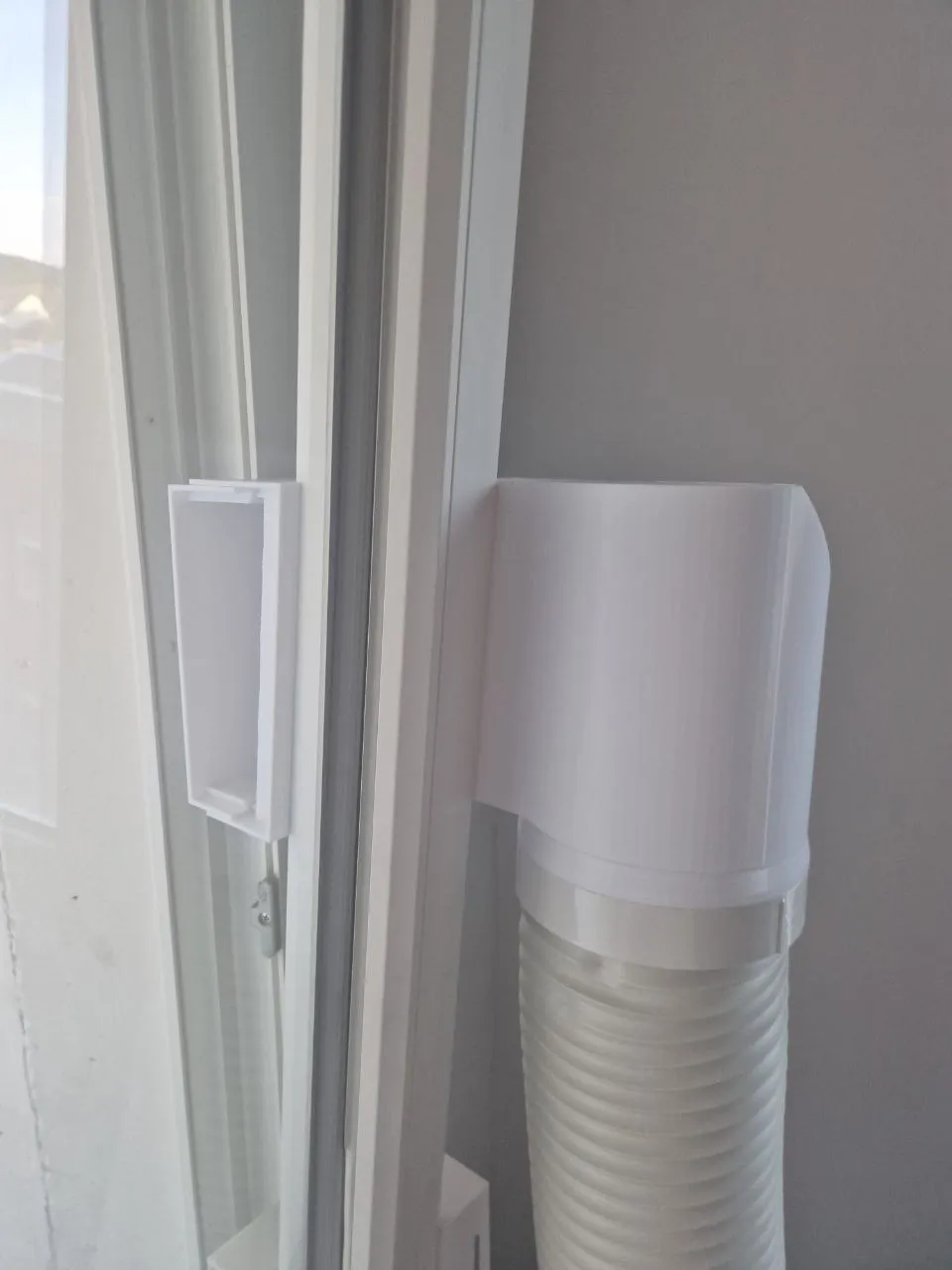

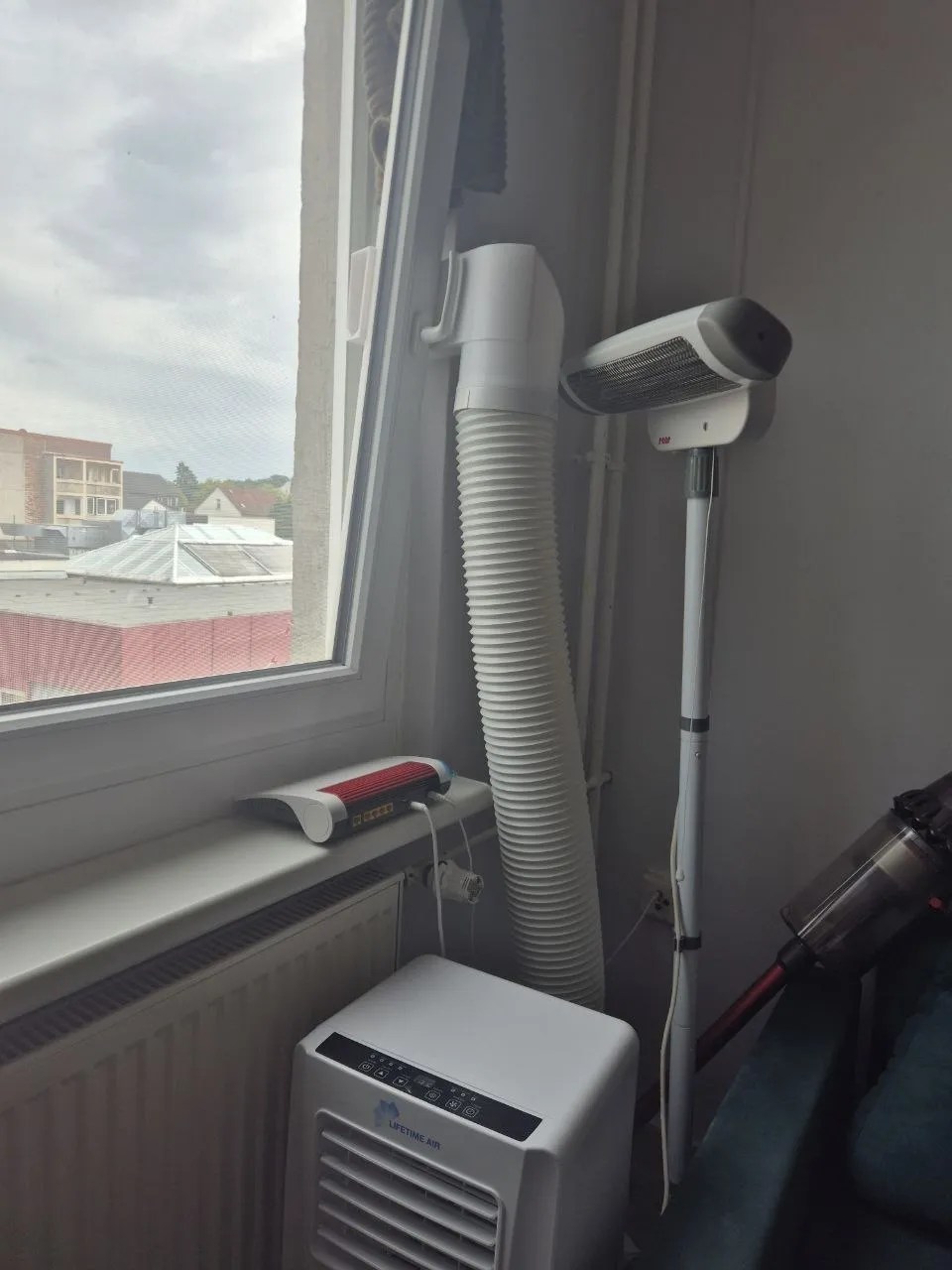

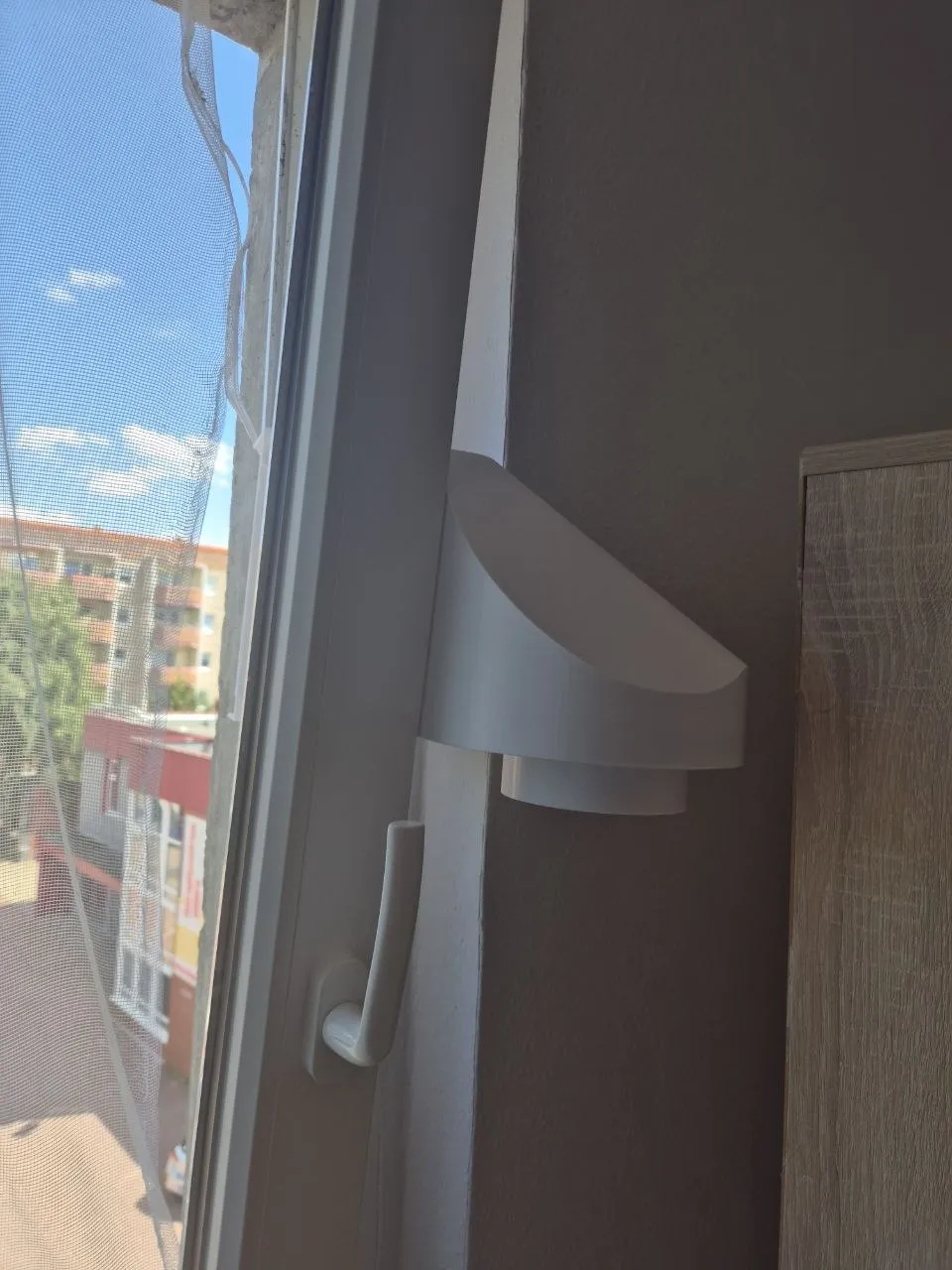

Connect your mobile air conditioner to tilt windows without drilling walls
🧩 Modular design easily adapts to different windows and air conditioners
⚠️ Important
- Minimum distance between frame and wall — 50 mm
🚀 Version 3.0
✅ Left and right options
✅ Depth and stop adjustments
✅ Shaft 70 or 145 mm
✅ Adapters 100 / 110 / 120 / 130 / 140 / 150 / 160 / 180 / 190 / 200 mm
✅ Assembly with clips without glue (optionally, you can additionally secure with self-tapping screws)
✅ Optimized for Bambu Lab A1 Mini

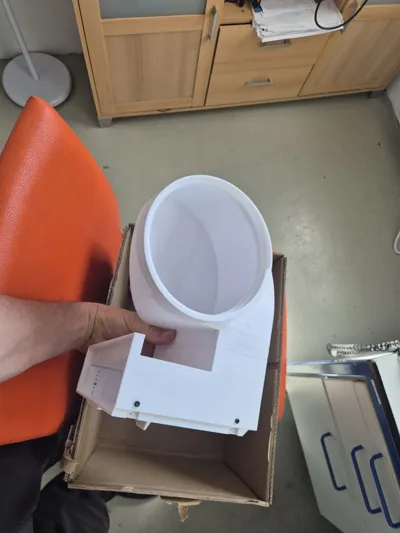

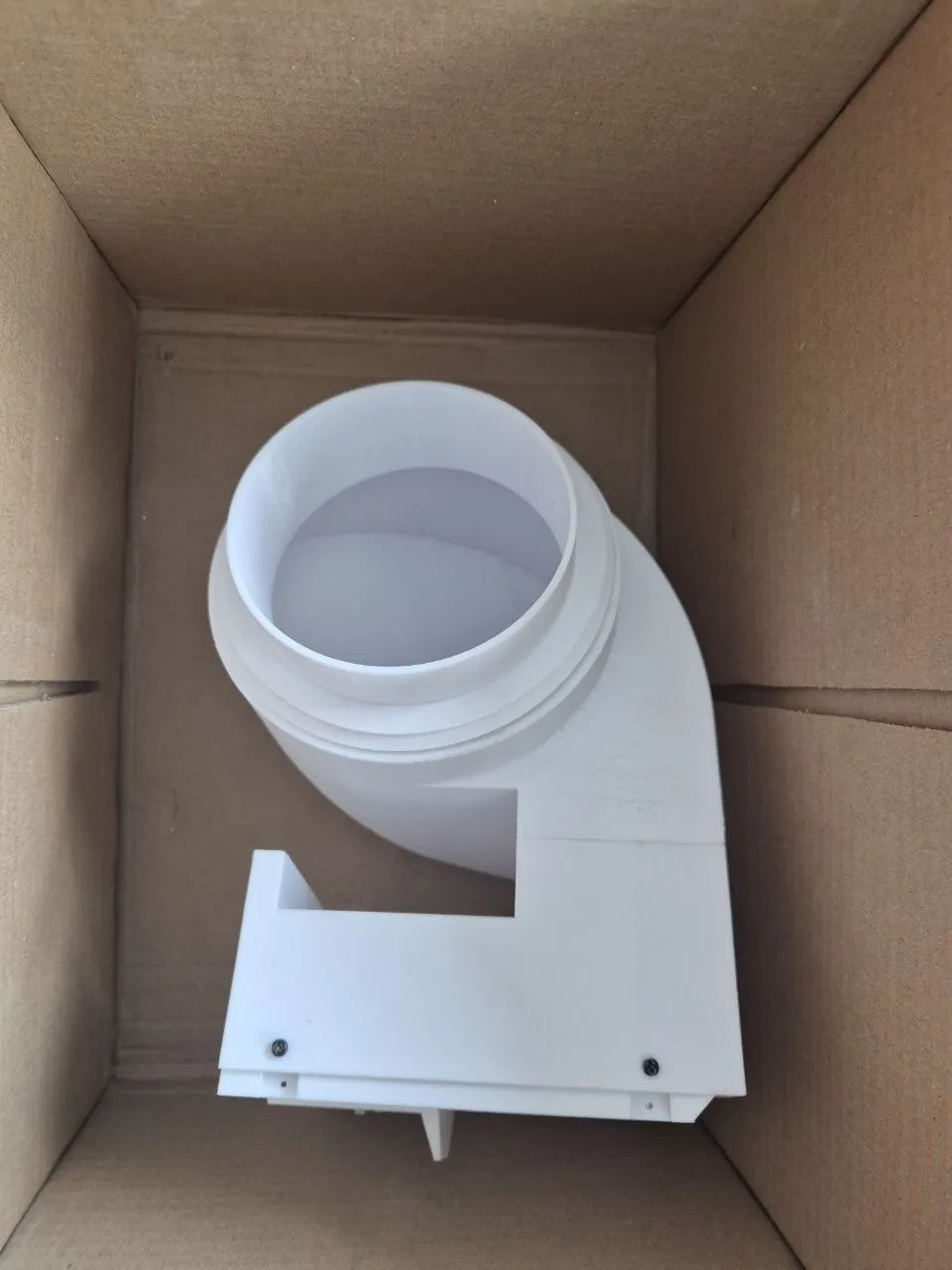

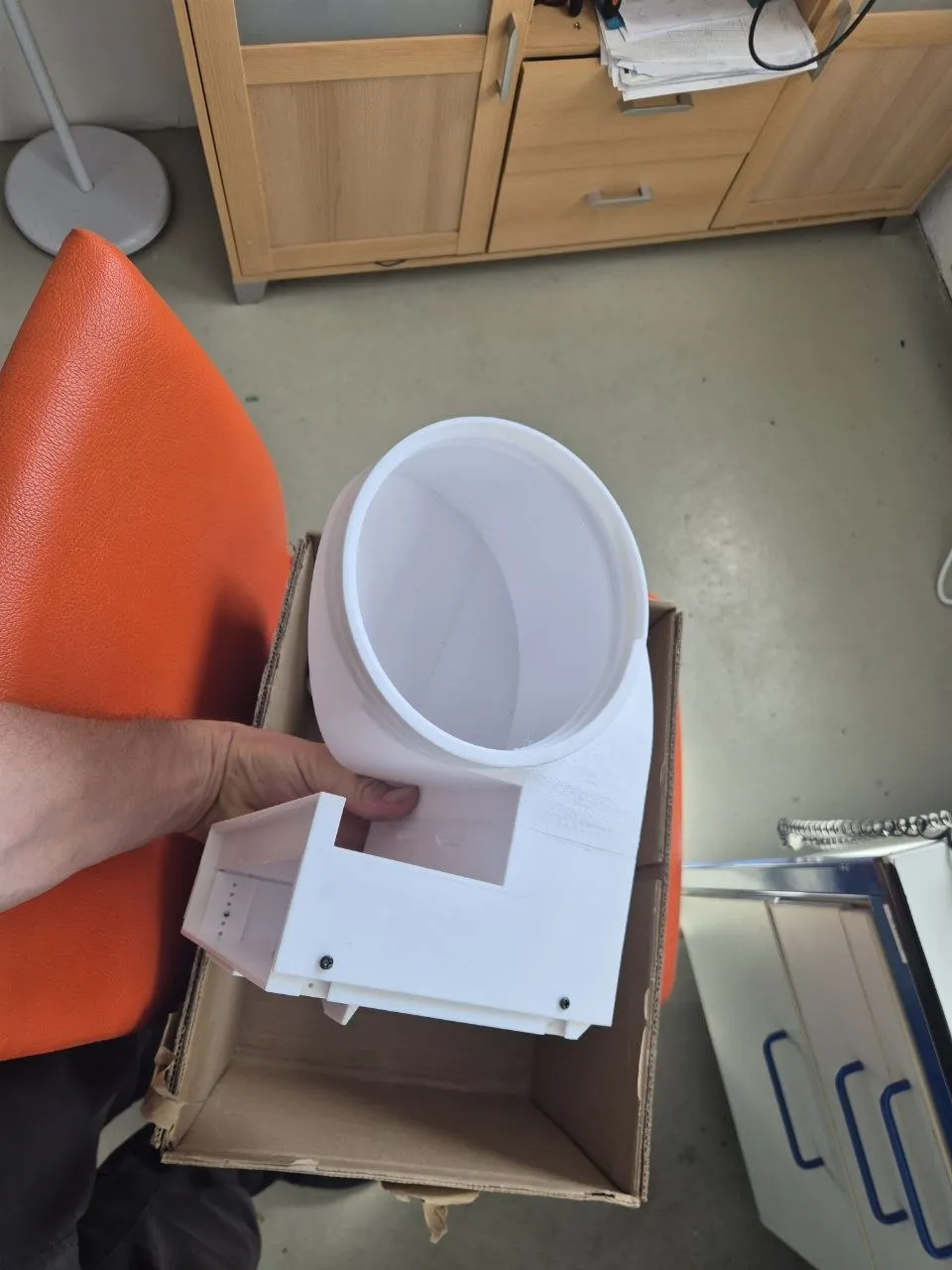

🔹 The main body is suitable for a 150 mm corrugated hose without an adapter
🔹 There is a separate adapter for a 150 mm smooth hose
🛠️ Files
Included:
- STEP files
- Fusion 360
You can easily create your own adapter if your diameter or hose type is not among the ready-made ones
❤️ Feedback
⭐ If the model was useful — please rate it, add a photo of the printed model, and leave a review
💬 Constructive criticism and suggestions for improvement are very welcome. It is thanks to your feedback that this model gets better.
