12x 2.5HDD to 5.25 CDROM Bay Adapter
Print Profile(1)
Description
Adapter to fit up to 12 SSDs/HDDs 2.5 for a 5.25 Bay

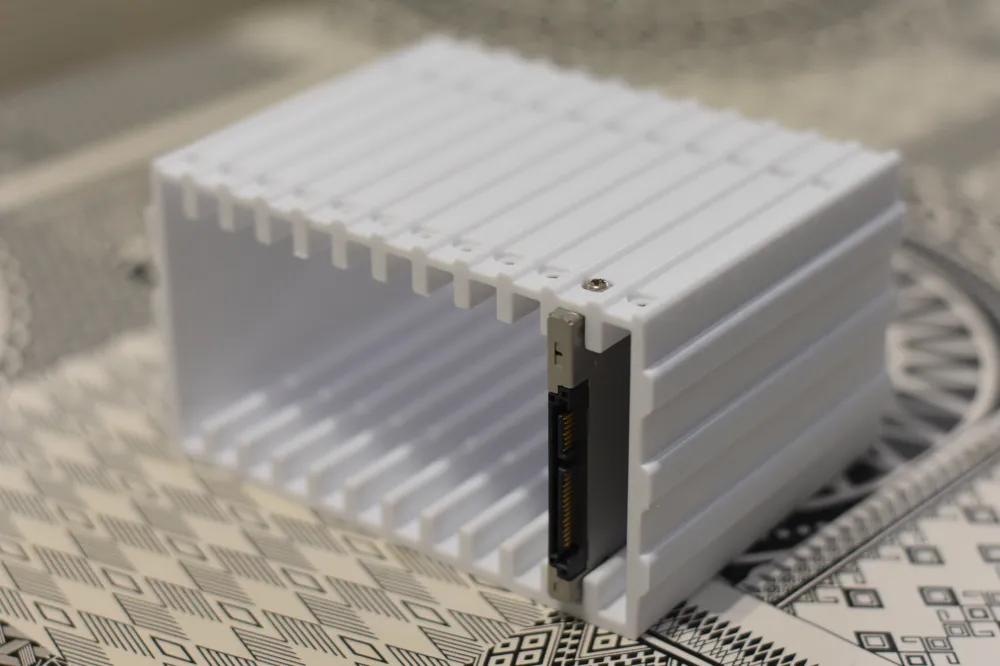

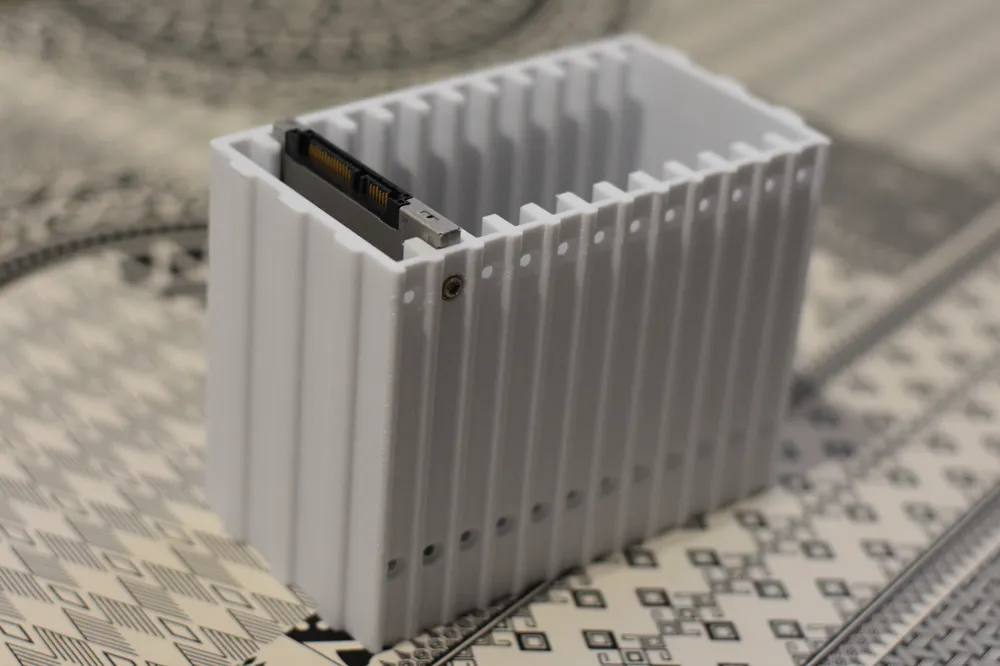

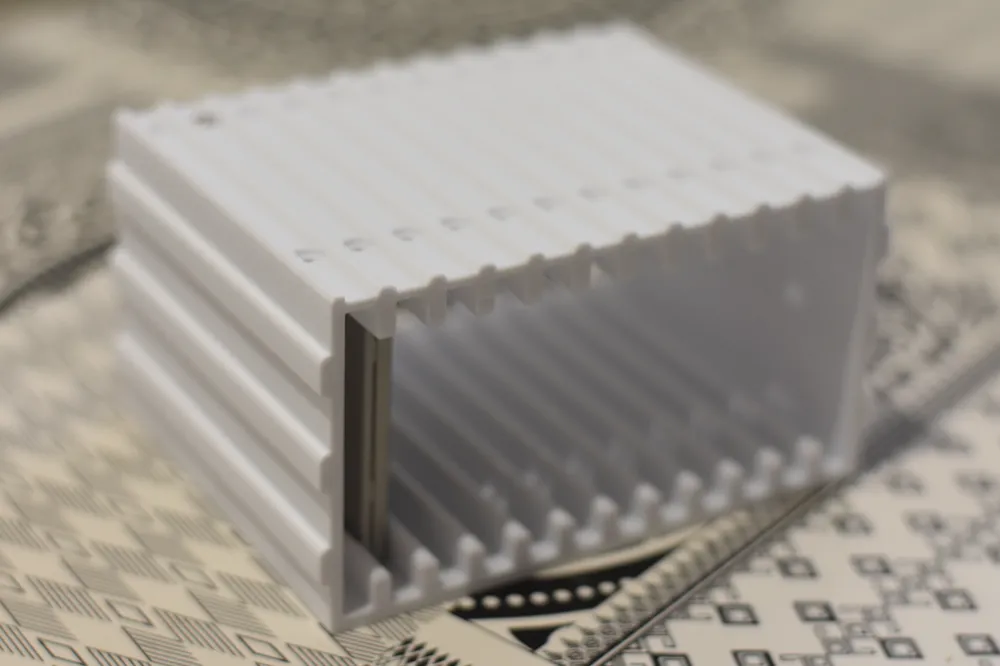

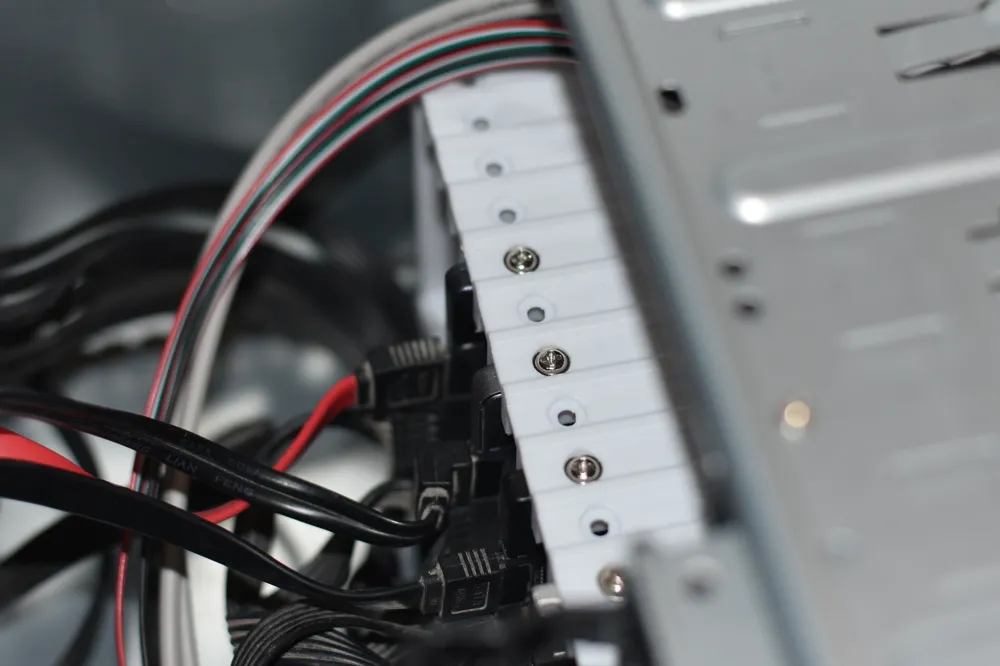

I've designed an adapter that fits 12 2.5 inch drives in a 5.25 inch bay. I designed it to be able to fit bulky enterprise drives, that swhy you are going to find that consumer drives are a bit loose. The screw holes are present only by one side that should be on the top for easy screw fitting. Below you can find the measurements.

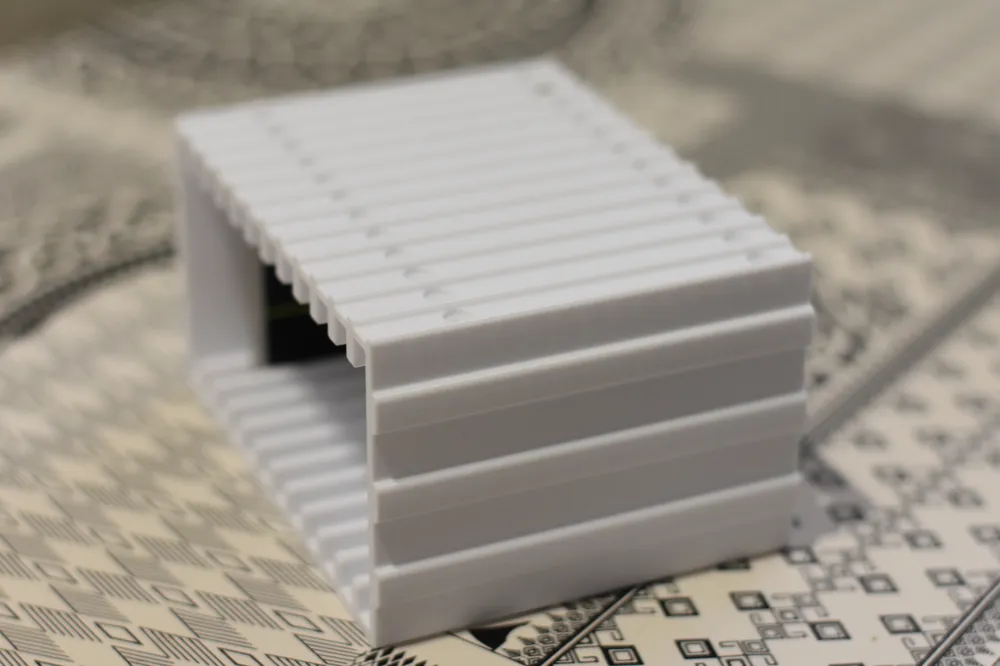

The print file has 2 plates, one of them is a test print to confirm that your drives fit and there are no issues fitting your bay. I personaly advise to print the test before printing the full version.

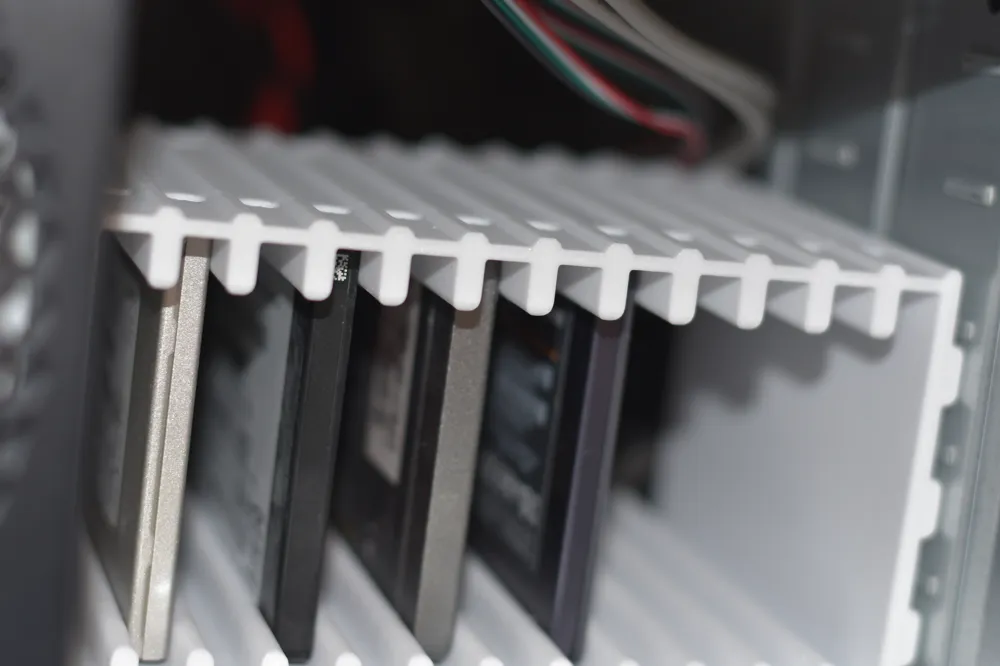

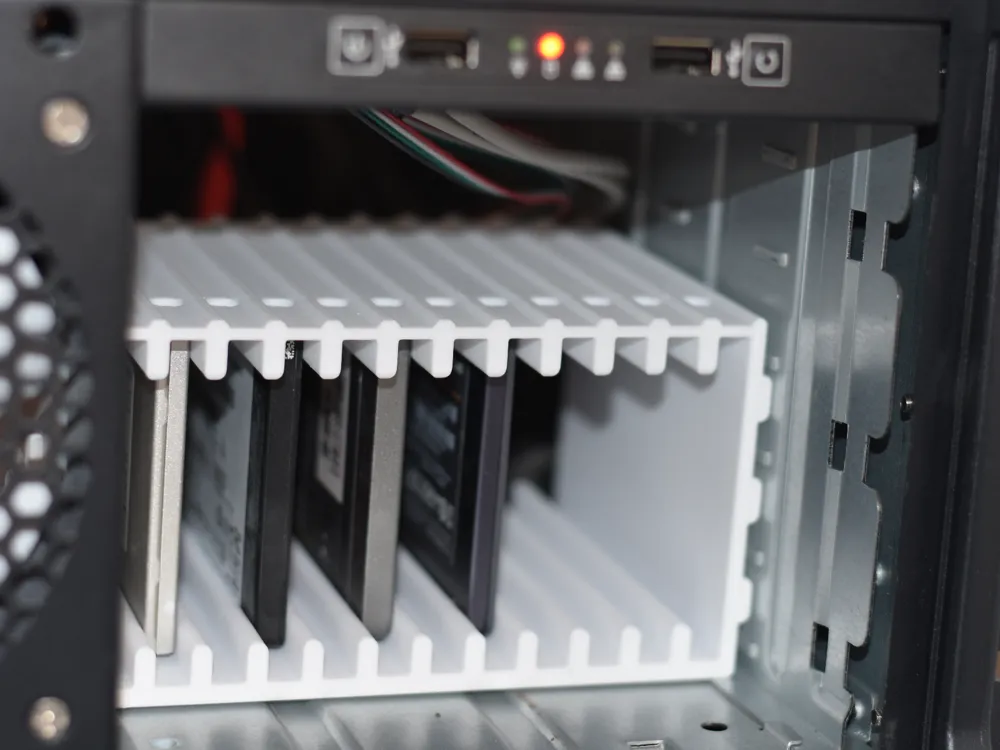

**Designed for Unykach Rack Case 4129 but fits any 5.25 Bay from PC Cases.

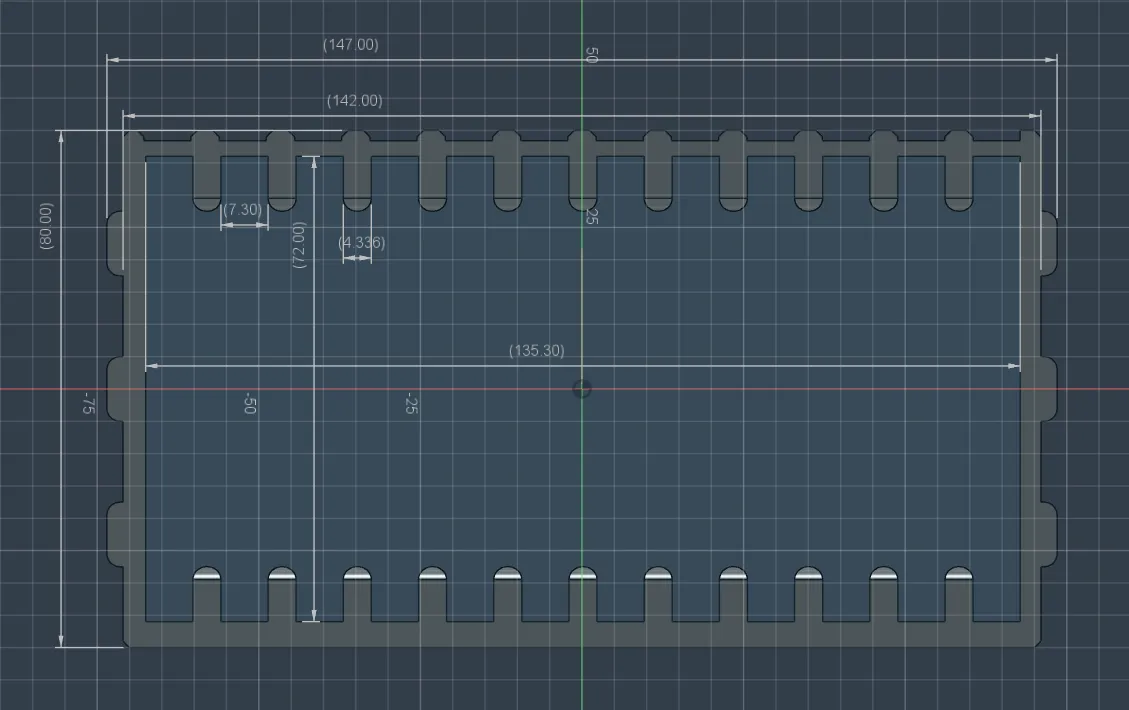

Main Measurements:
- Outer Perimeter: 80mm x 147mm
- HDD Max size: 7,3mm x 72mm
- HDD Spacing: 4,336mm

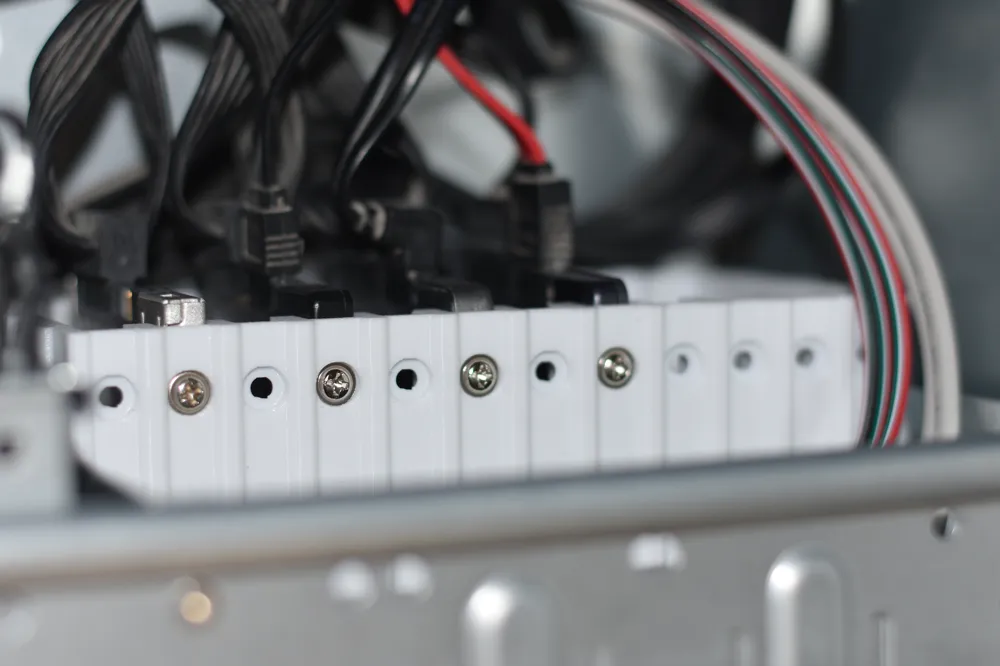

Screw Holes: 3.4mm (Diameter) x 0,8mm
- Screw Space to get in screw head: 7mm (Diameter) x 1.6mm
Front Screenshot:
