Description

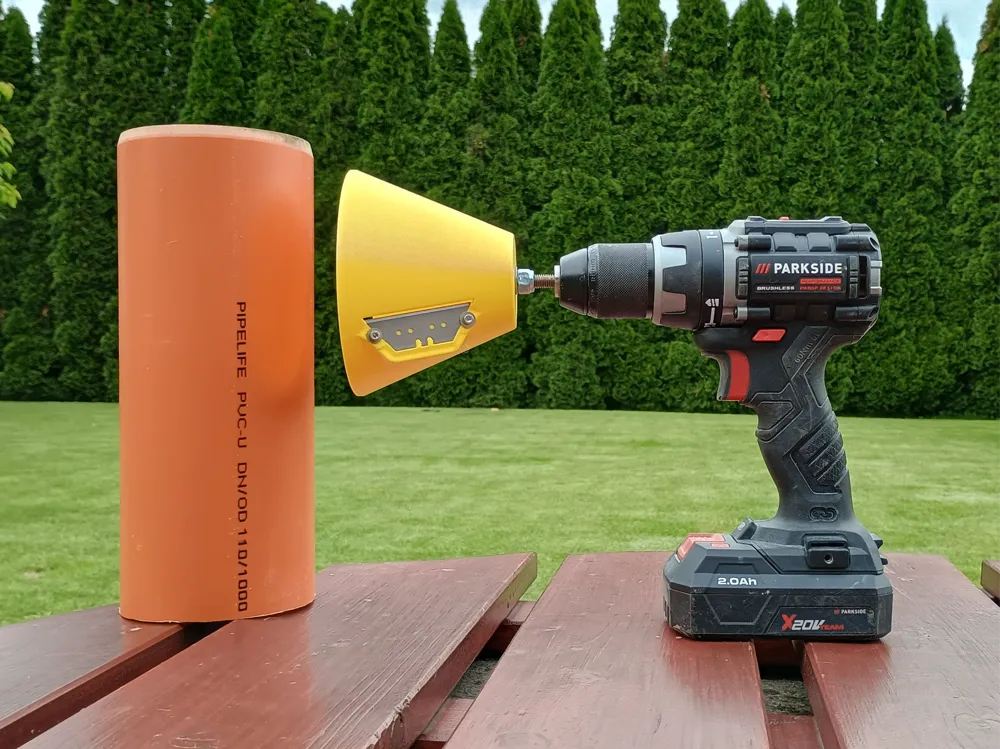

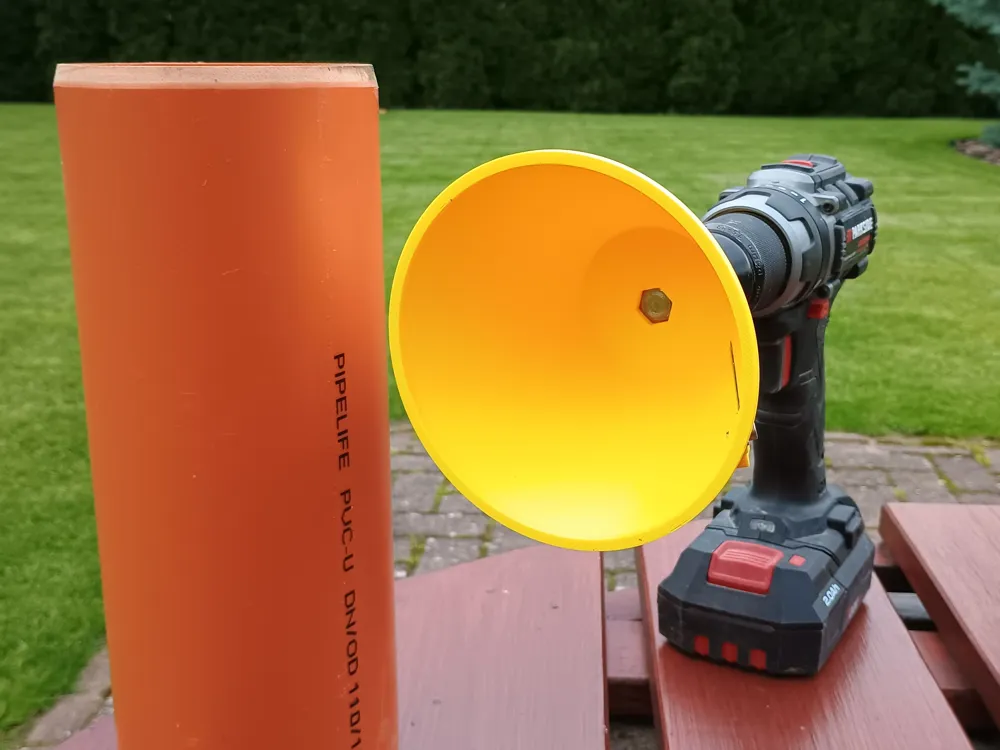

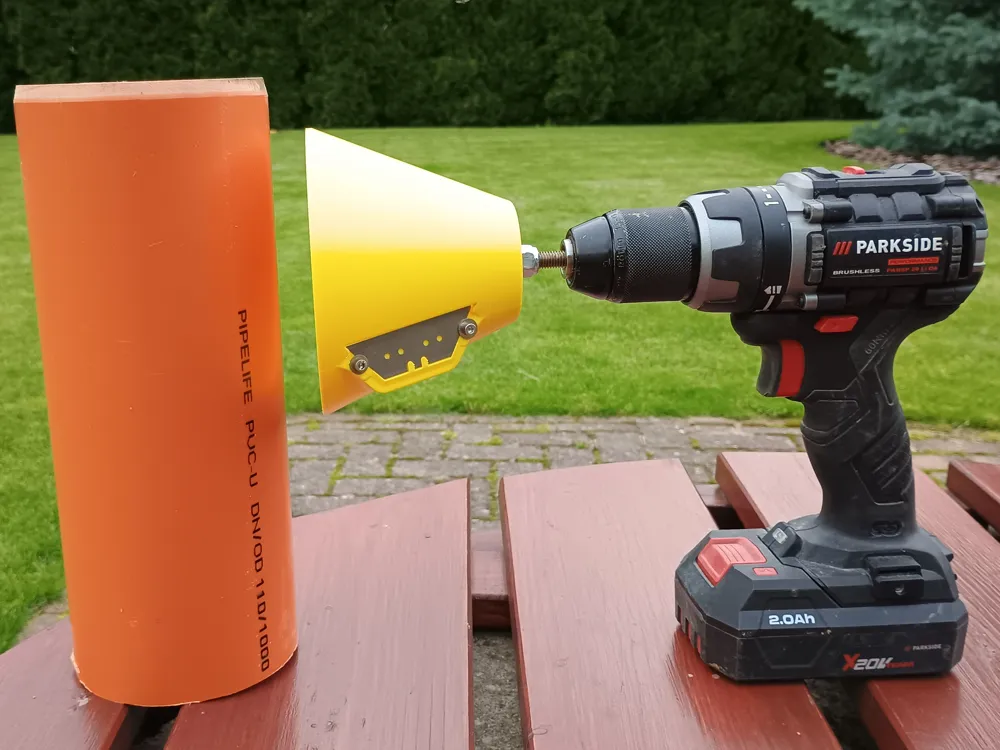

Chamfer cutter made for accu drill. Used standard blade for hand cutter and here are 3 variants of pipe diameter to chamfer.

chamfer cutter_KG_80-110 is from 80 mm up to 110mm. (3,2 - 4,3 inch)
chamfer cutter_KG_100-130 is from 100 mm up to 130mm. (4,0 - 5,1 inch)
chamfer cutter_KG_130-160 is from 130 mm up to 160mm. (5,1 - 6,3 inch)

Shaft is the HEX screw M8x45 (40-60mm lenght), washer and nut M8.

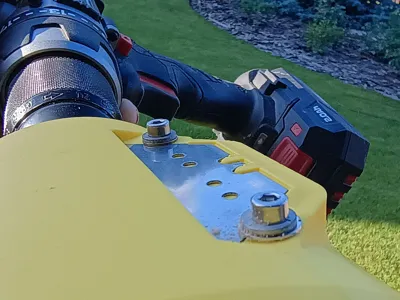

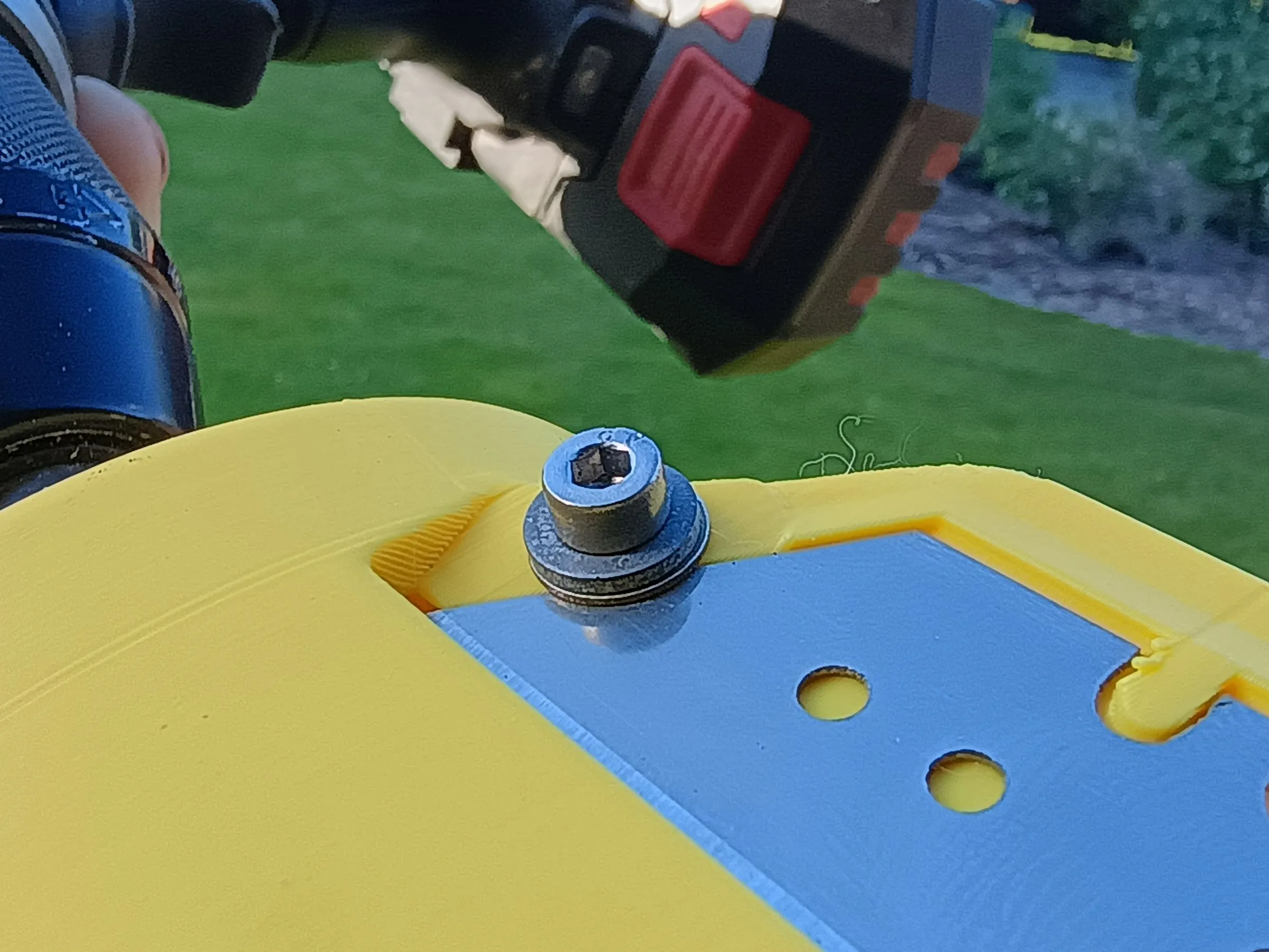

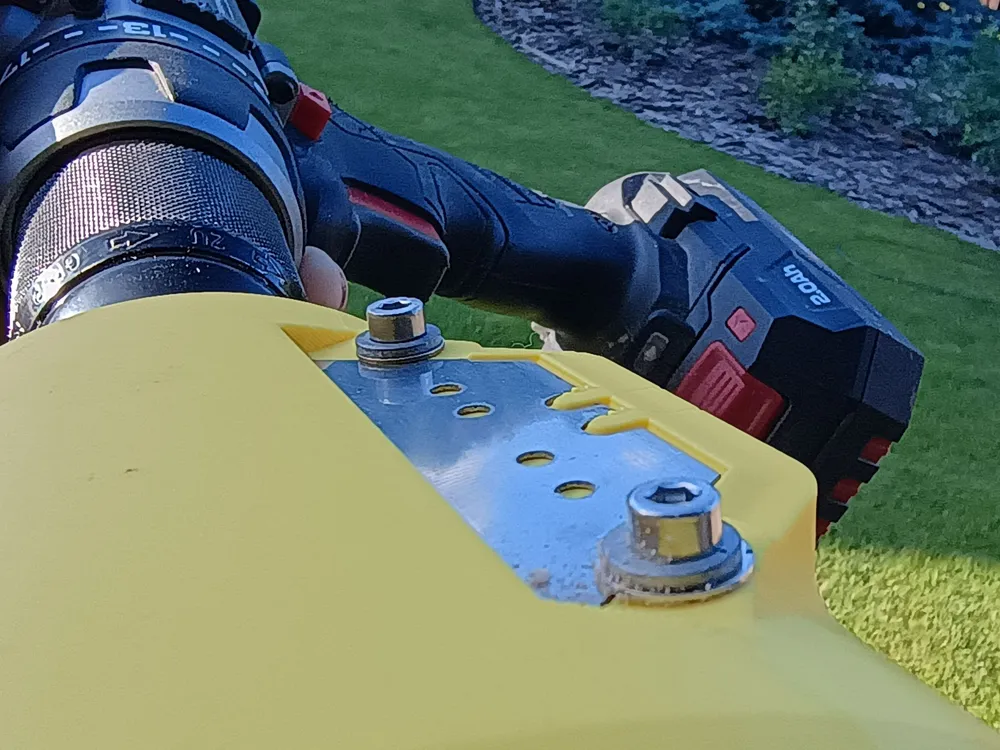

Blade is fixed by two M3x6 screws and d3 washers (2pcs for each screw).

For smaller pipe diameter here you can find my model https://makerworld.com/en/models/947702-chamfer-cutter-for-pipes-pp-pvc#profileId-942448
