PowerDot – Housing for the Victron Energy Monitor

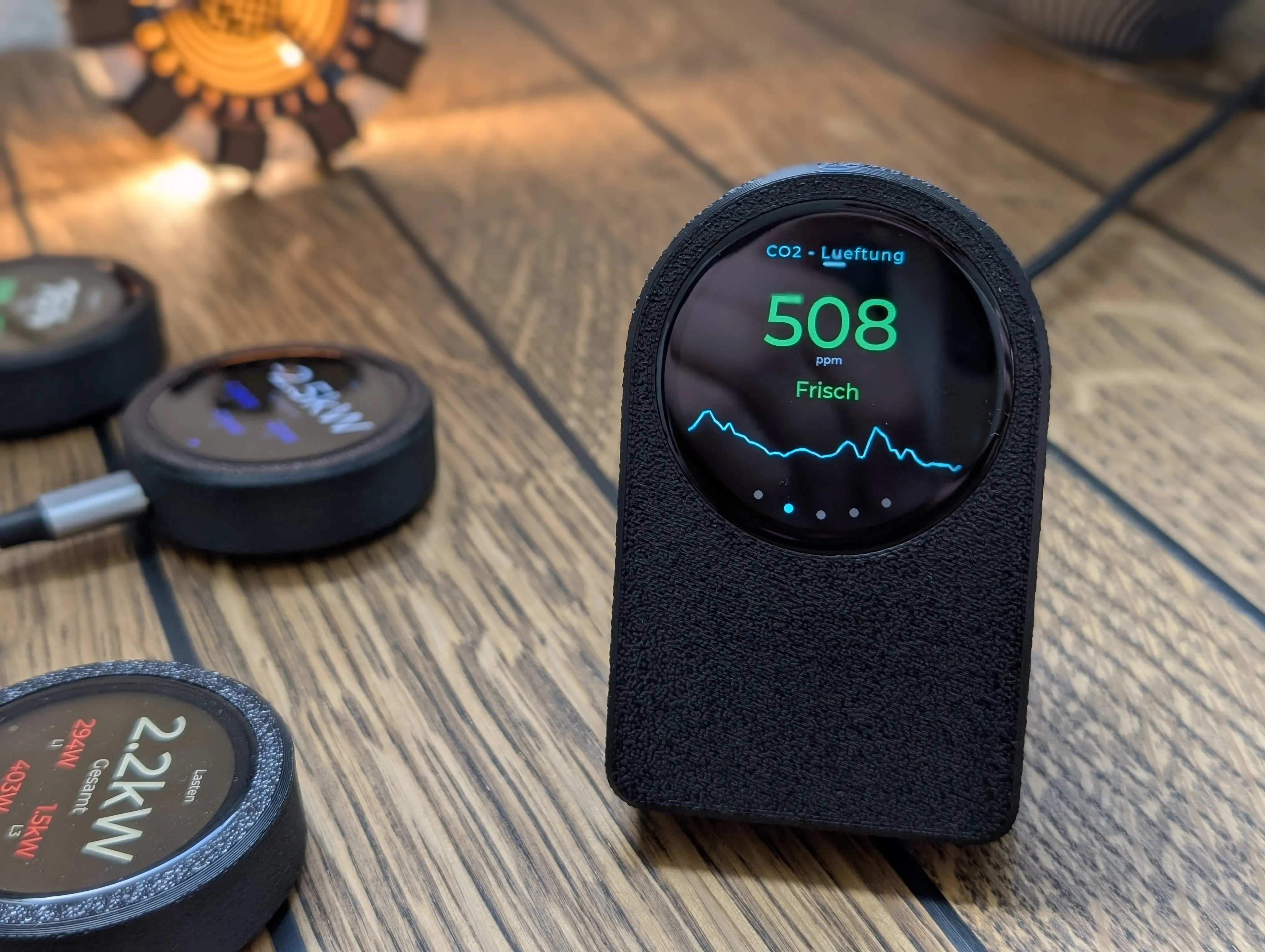

3D-printable housing for the PowerDot, a real-time energy monitor for Victron systems. The PowerDot runs on the round Waveshare ESP32-S3-Touch-LCD-1.46" and displays live solar, grid consumption/feed-in, load, battery SOC, ESS, and EVCS data directly from the Cerbo GX – locally on the WLAN, without cloud.

This model is exclusively the 3D-printable housing (top and bottom part).

Also compatible with the housing of the PowerDot Air.

What you need

  • 1× Waveshare ESP32-S3-Touch-LCD-1.46
  • 1× USB-C cable

Print

Material: ABS – the housing is designed for ABS shrinkage. Please make sure to print with ABS, otherwise the parts will not fit together properly!



Assembly

  1. Insert the display into the front part until it sits flush.
  2. Attach the back part – clips on without screws.
  3. Route the USB-C cable through the side cutout.

Further Documentation & Flash Tool

All information for setup and the flash tool can be found on our page: https://www.servicepoint.st/powerdot
