Home Extreme MATX Case (329*190*317.5mm)

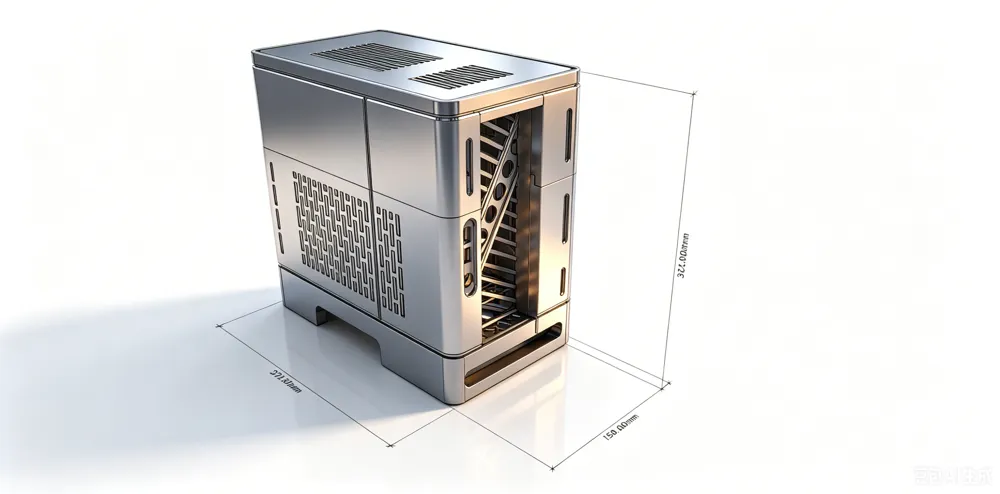

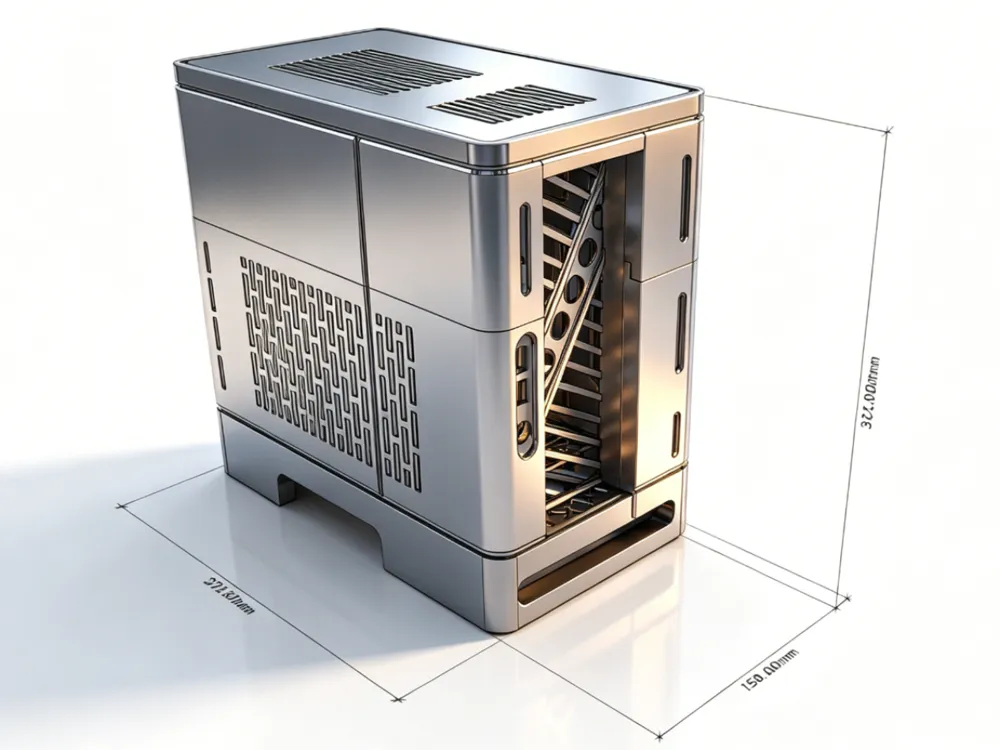

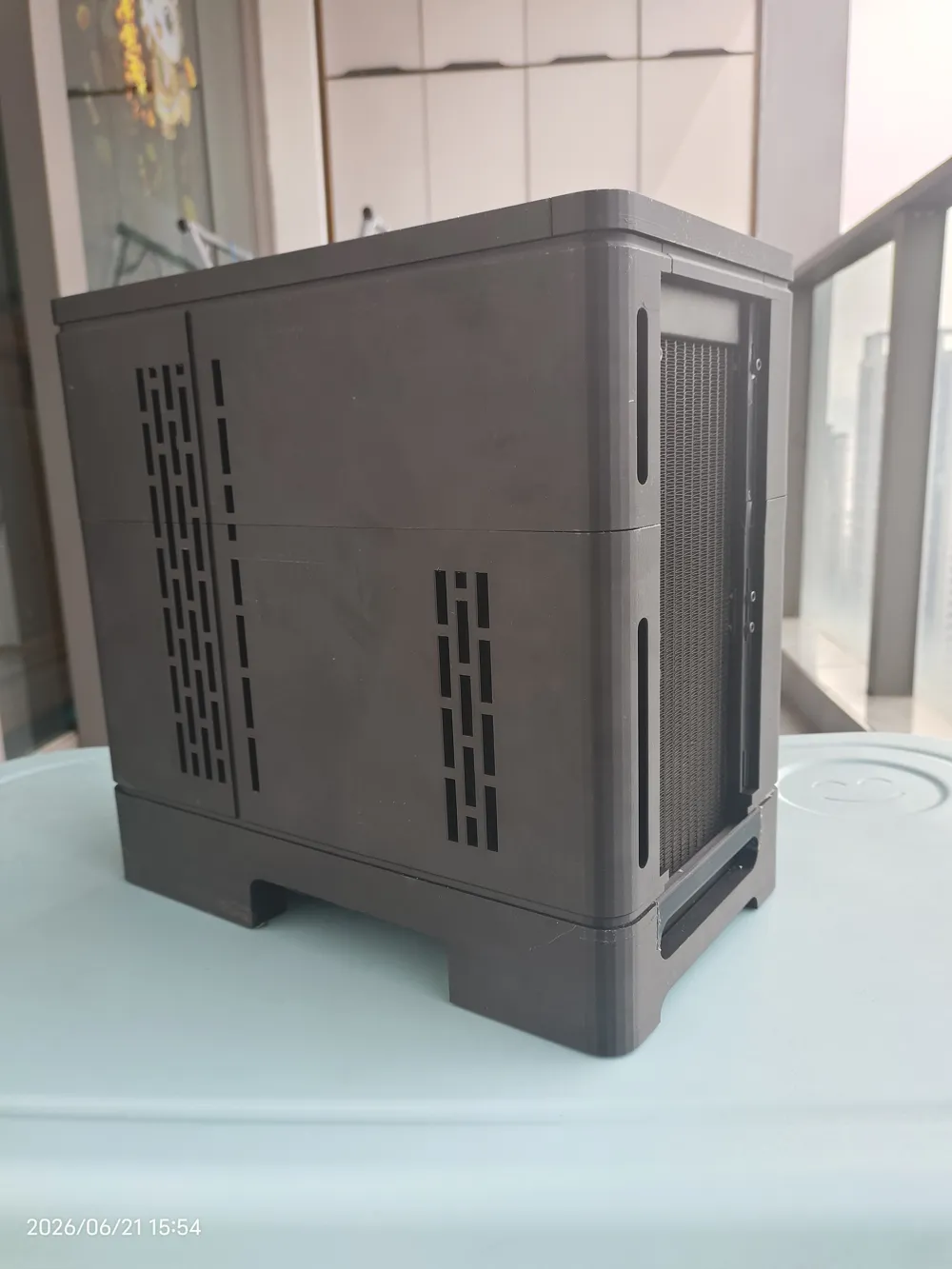

A computer case designed to be compatible with MATX motherboards, ATX power supplies, directly plugged-in graphics cards (no graphics card extension cable needed, no need to disassemble the graphics card panel), and 240 water cooling The overall size is 19L (including the base), basically at the extreme dimensions329*190*317.5mm The overall installation is difficult

I printed using PLA Matte the appearance basically shows no layer lines all screws are M3-8, M3-12 hex socket screws all hot melt nuts used are M3-4-5 The above accessories cost about 20 yuan on Taobao or Pinduoduo Additionally, a super long H2.5 hex screwdriver, 20cm (4.38 yuan on Pinduoduo), is needed

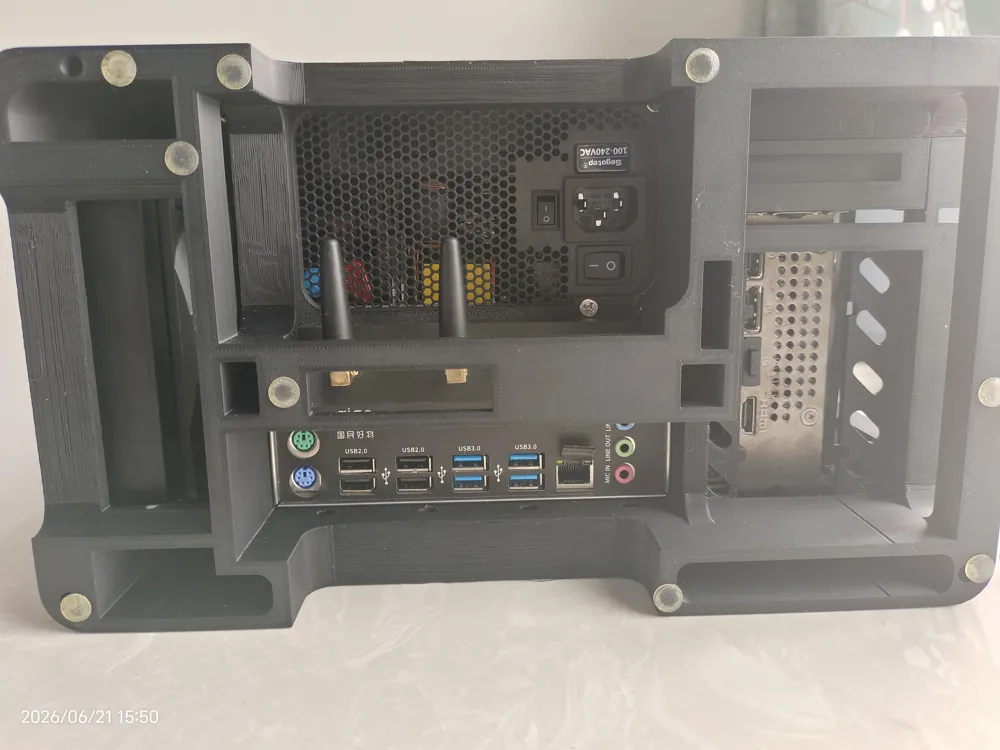

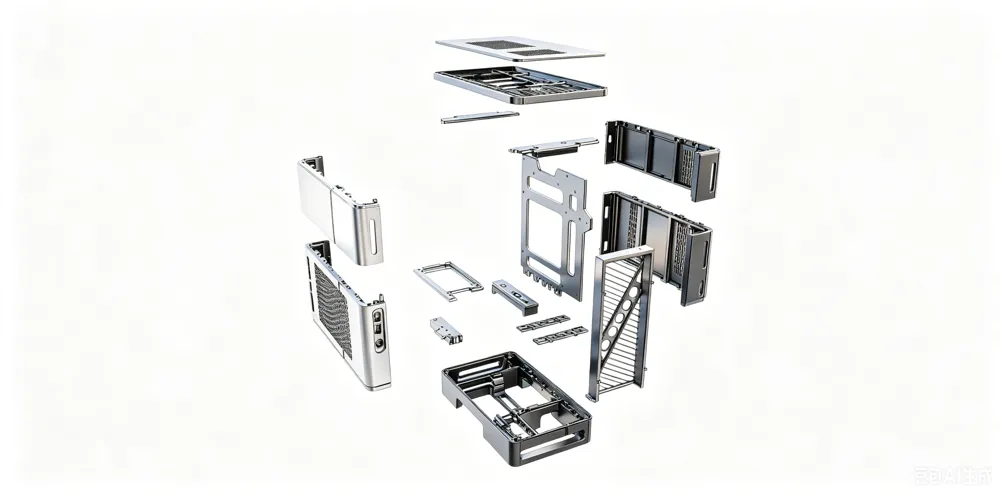

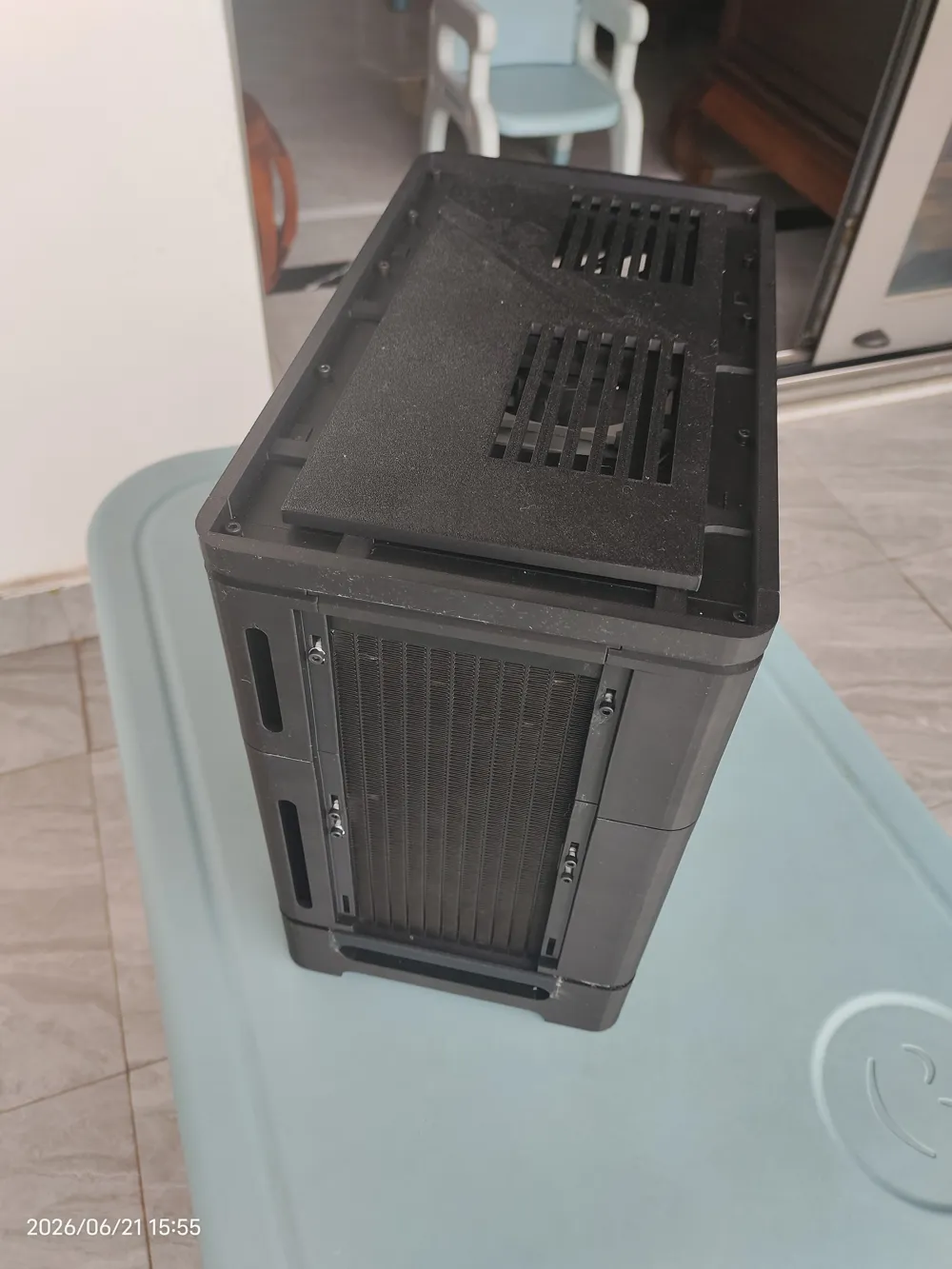

Installation: base - motherboard side - motherboard - water cooling (head) - motherboard tray - graphics card (install graphics card bracket) - install into base - power supply - other casings The top cover is also fixed with magnets, 4 M15-2 magnets

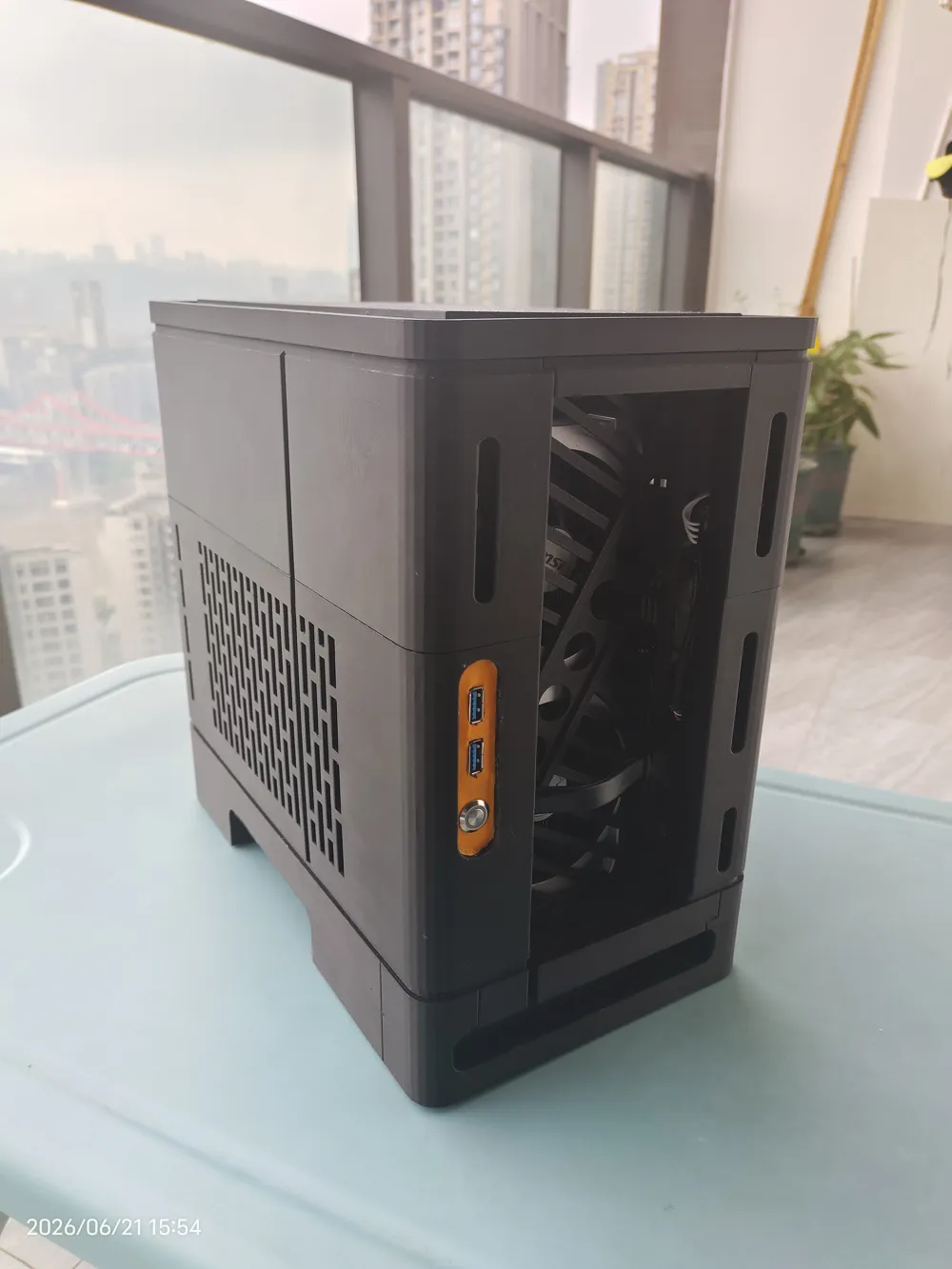

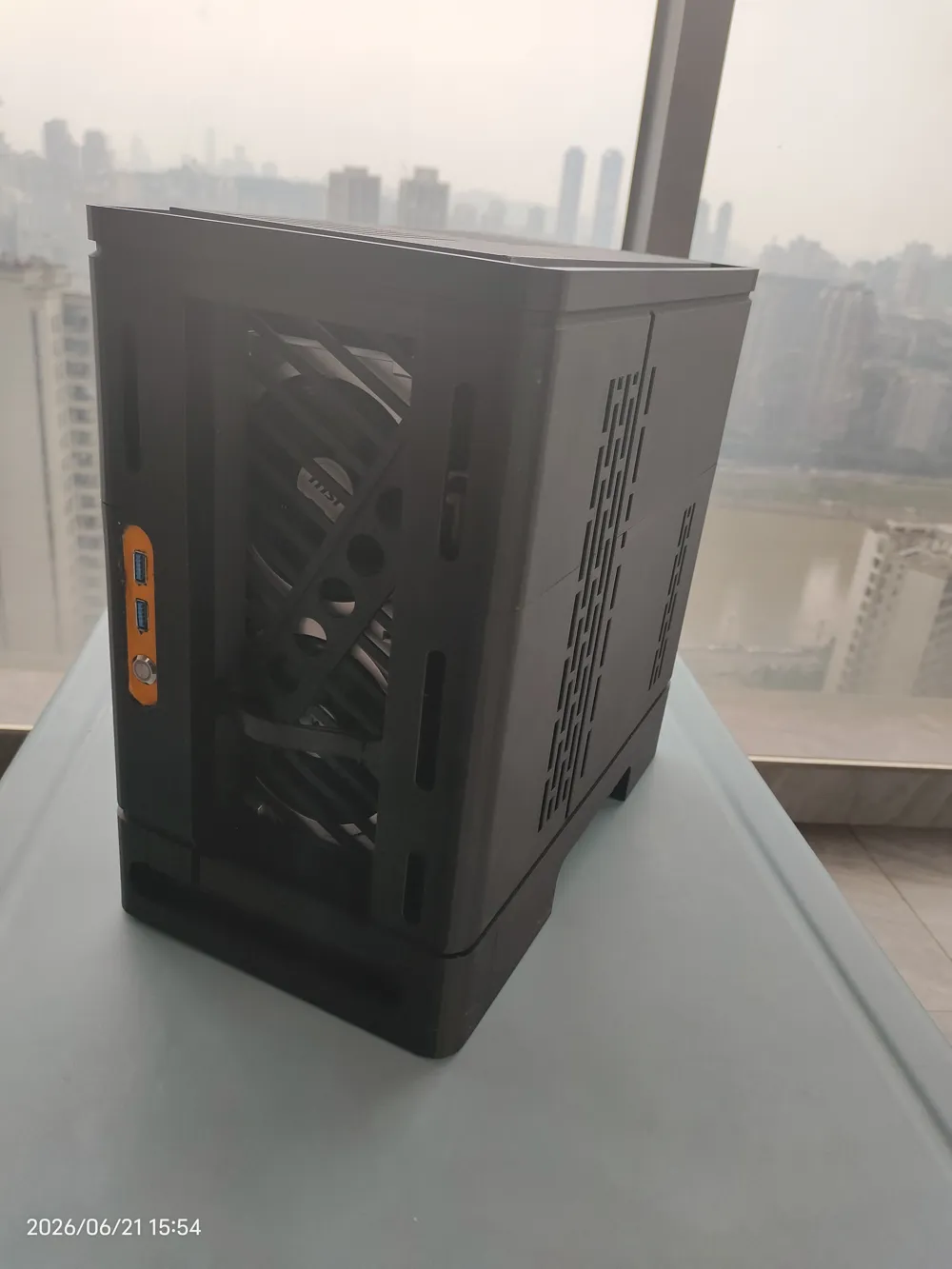

Case front USB3.0 (https://mobile.yangkeduo.com/goods.html?ps=o4xCONPcMT), power button (https://e.tb.cn/h.6BRy862CoEbfaRd?tk=QB5xVL4yMGJ HU287 「12MM illuminated button reset switch reset button blue light 6X6 illuminated button 6*6 tactile button」)[A 9cm or 12cm cooling fan, 25mm thick, can be installed on the top plate] The power supply can be installed with its own adapter bracket, with no height limit

My configuration

CPU: E5 2698V3, RAM: DDR4 32G, Motherboard: Patriot X99M D4 (motherboard tray supports all MATX motherboard models), Power Supply: Segotep GP850w (14*15*8.5, power supply supports 8.6 thickness), Graphics Card: MSI 5060ti 16g (dual fan), Cooler: Thermalright AQUA ELITE 240 water cooling

Special note: Front USB3.0 requires purchasing an extension cable, the power button is best bought longer (I wired it myself) A super long H2.5 hex screwdriver must be purchased The installation has a certain level of difficulty
