Parametric 6-Lobe Star Knob with Integrated Spacer for Metric Nuts M3–M20
Description

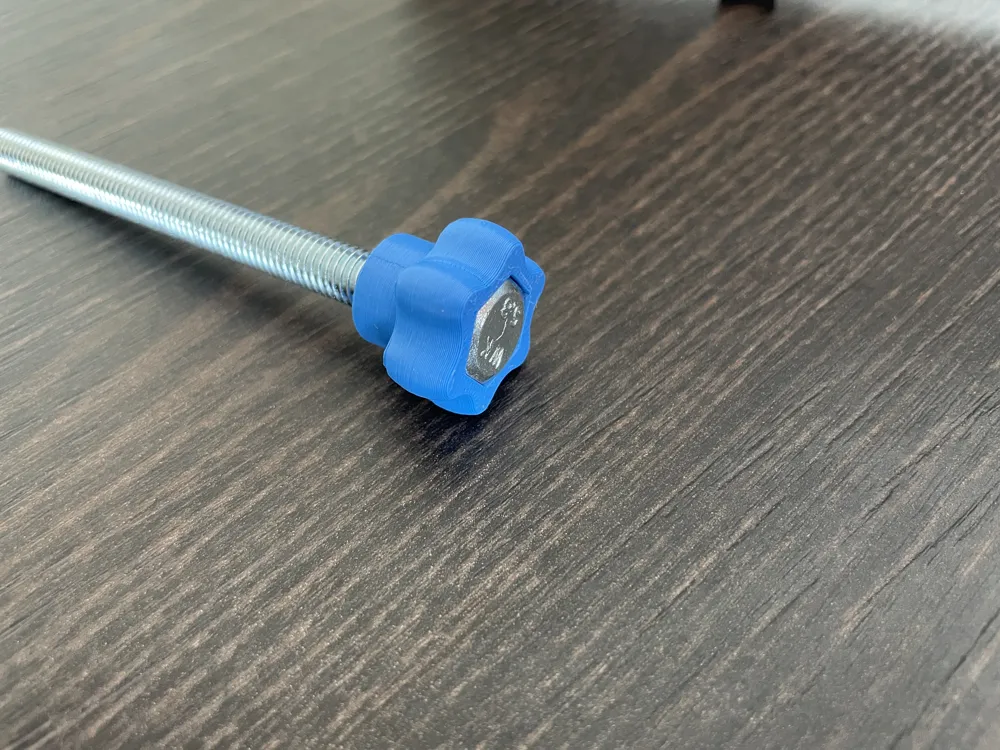

A parametric 6-lobe star knob with rounded edges designed to accommodate standard DIN 934 hex nuts. The model features an integrated spacer that provides additional clearance between the knob and the mounted surface, improving usability and preventing rubbing during operation.

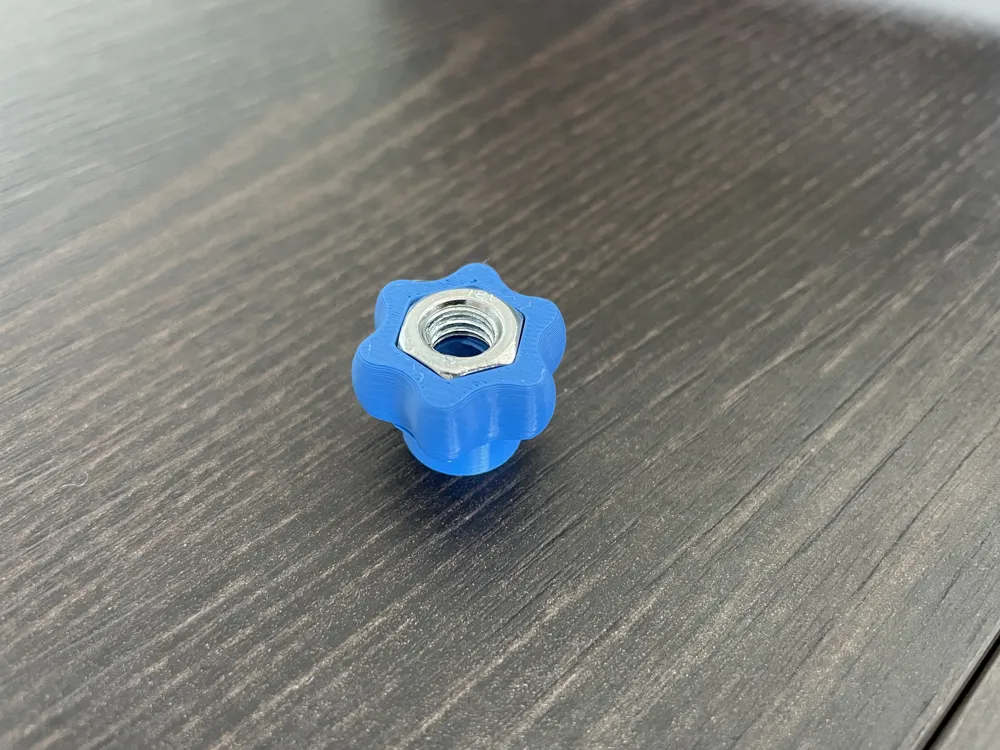

Simply press a metal hex nut into the dedicated pocket to create a durable and comfortable hand knob for tightening metric bolts and screws.
The integrated spacer eliminates the need for separate washers or spacers in many applications, making assembly cleaner and more convenient.
Thanks to its parametric design, the model can be generated for the most common thread sizes from M3 to M20.
Applications
- Workshop fixtures and jigs
- 3D-printed vises and clamps
- Electronic enclosures
- Adjustable mounts and brackets
- DIY projects
- Automation and robotics
- Components requiring frequent assembly and disassembly
Features
- Ergonomic 6-lobe design with rounded edges
- Integrated spacer for additional clearance
- Uses standard DIN 934 metal hex nuts
- High durability thanks to the embedded metal nut
- No supports required for printing
- Fully parametric design
- Compatible with metric thread sizes from M3 to M20
Note: The nut pocket includes a small clearance allowance to compensate for printer tolerances and material shrinkage. If a tighter or looser fit is required, adjust the clearance by approximately 0.1–0.2 mm.
Recommended Print Settings
- Material: PLA, PETG, ASA, or ABS
- Layer Height: 0.20 mm
- Infill: 25–40%
- Walls/Perimeters: Minimum 4
- Supports: Not required
- Print Orientation: Flat on the build plate
Customization
The model is fully parametric and can be easily customized to suit specific applications. Parameters such as knob diameter, spacer dimensions, height, nut clearance, and thread size can be adjusted to create the perfect fit for your project.
If you find this model useful, please consider leaving a rating and sharing a photo of your print. Happy printing!
