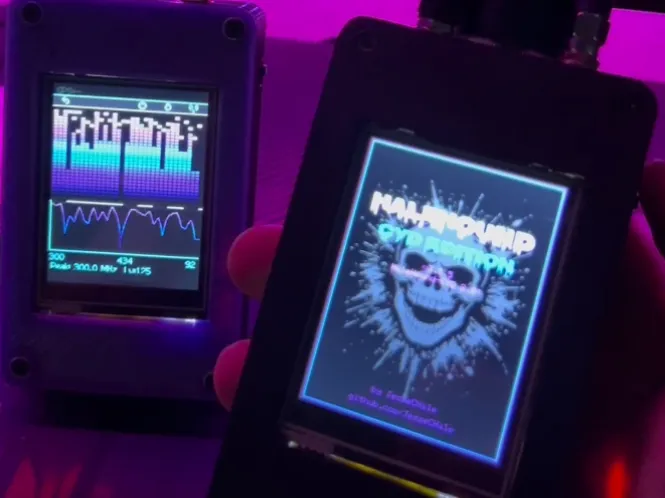

HaleHound at Home

Designed around the simple CYD, like any other case….

This one featuring exclusive components for firmware like HaleHound, ESP32-DIV, Bruce, and any other cyd firmware that fits your needs. This one specifically is for non-spi. I will update a new project for an spi cyd as the sd card is allocated else where. I also hope to make this a bit skinnier but for now it is thiccc… M3 riv inserts and M3x35mm-45mm screws.

Currently working on a revision to have better antenna access and overall slimmer design (keep in mind space for applicable 1000mah batteries)

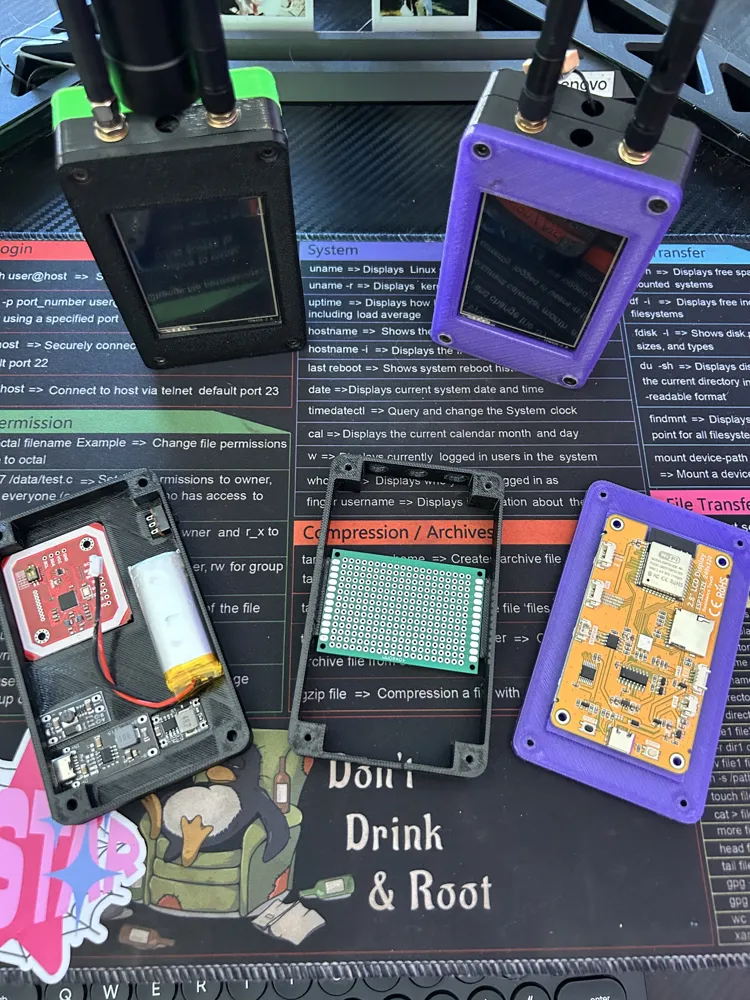

Front:

v1: cyd holes, meant for 2.8in, M3 Allen-Head screws flush fitment

Mid:

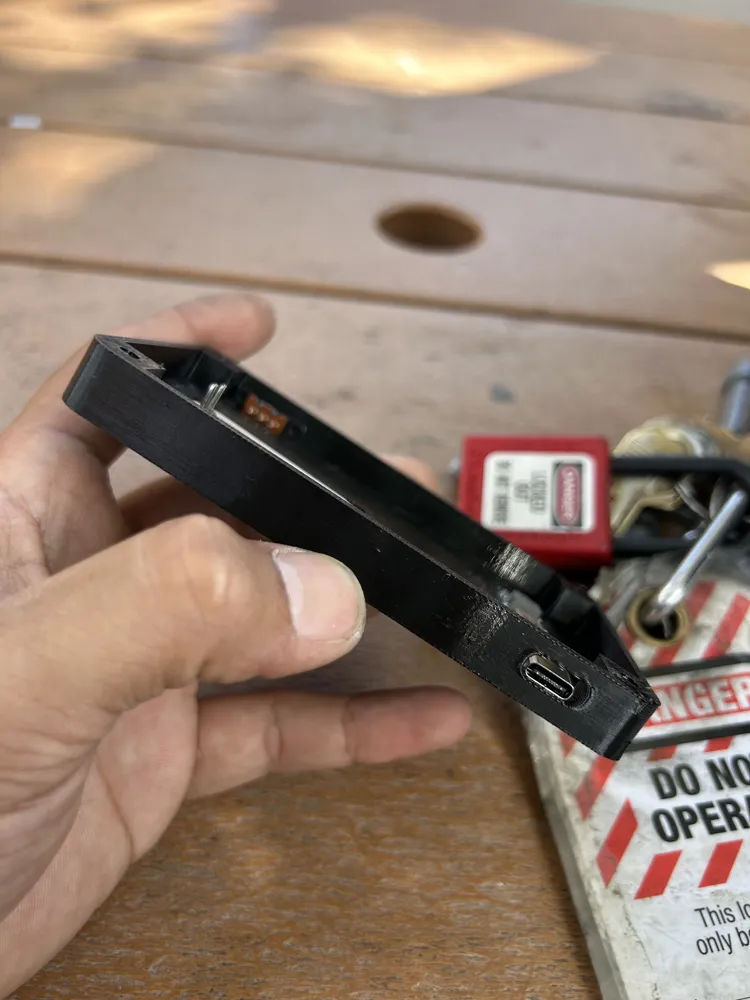

v3: 3 antennas, pcb in middle for battery room, sd card, usb port access, gps led

Rear:

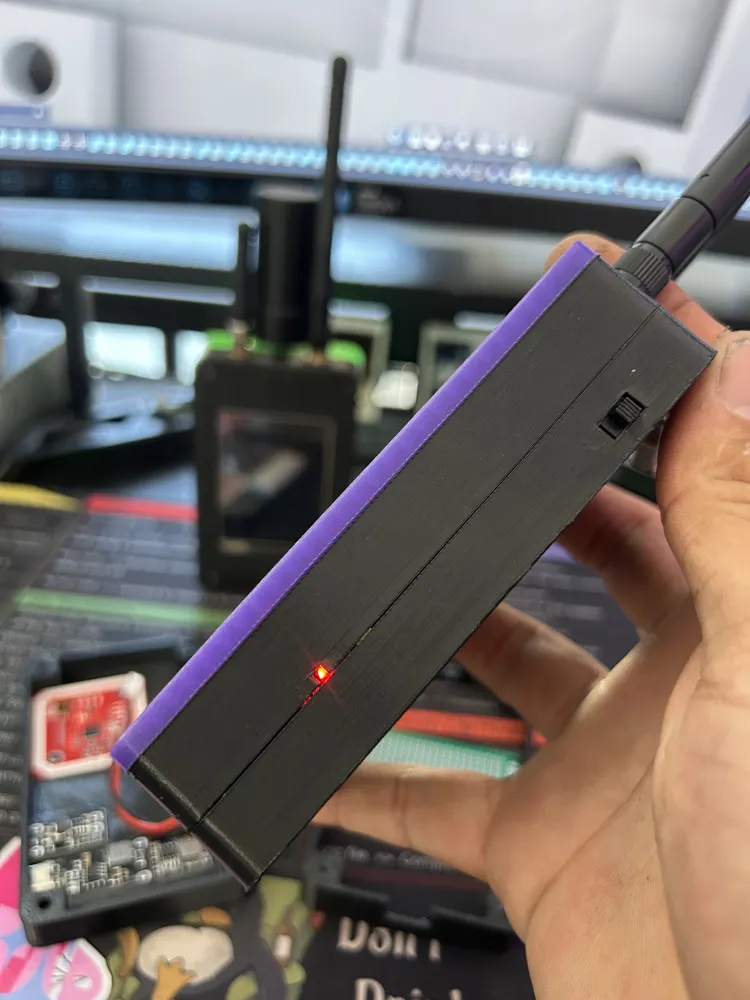

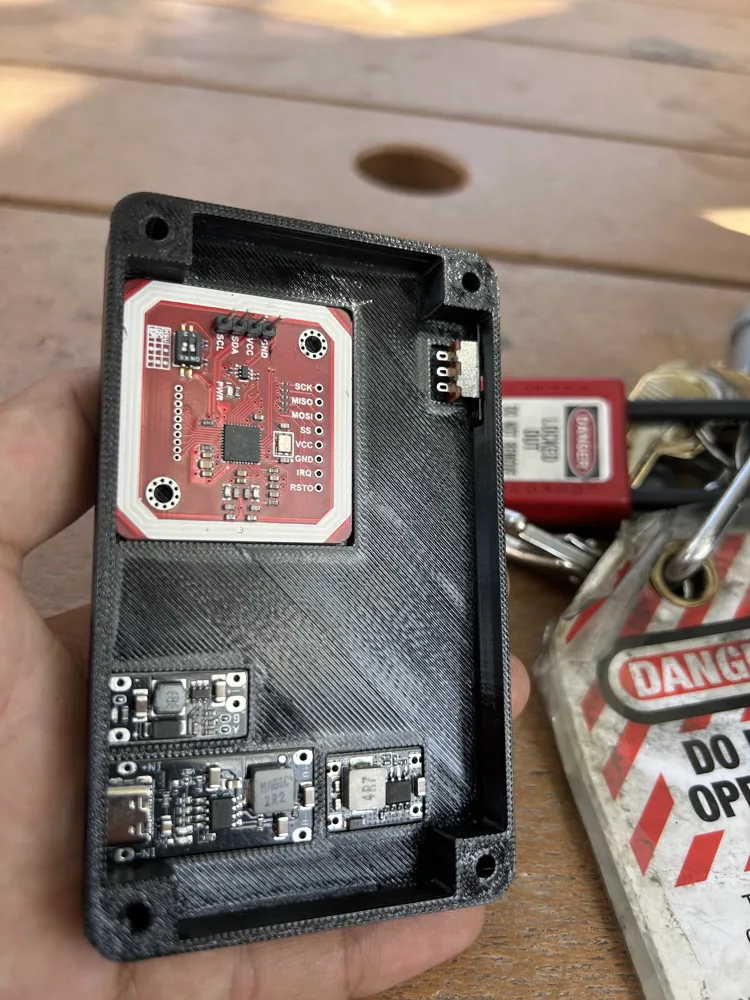

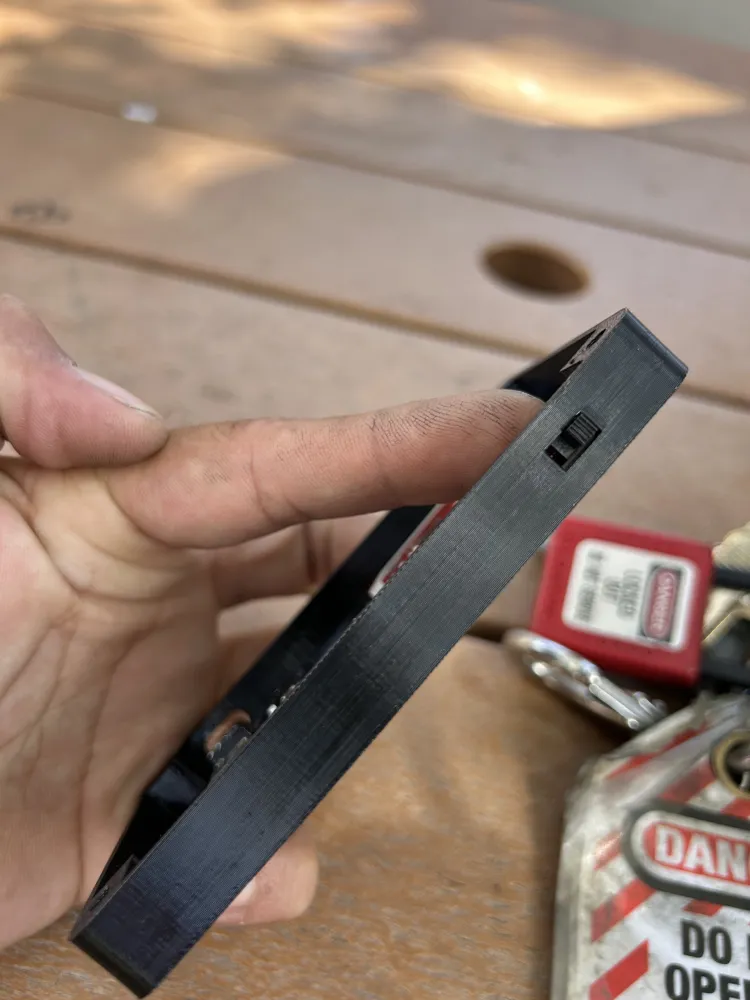

v2: m3 rivet inserts, og placements for power supply setup, power switch with tabs secured, gps insert for led and antenna security, thiccc...
