Molex connector cap
Print Profile(1)
Description

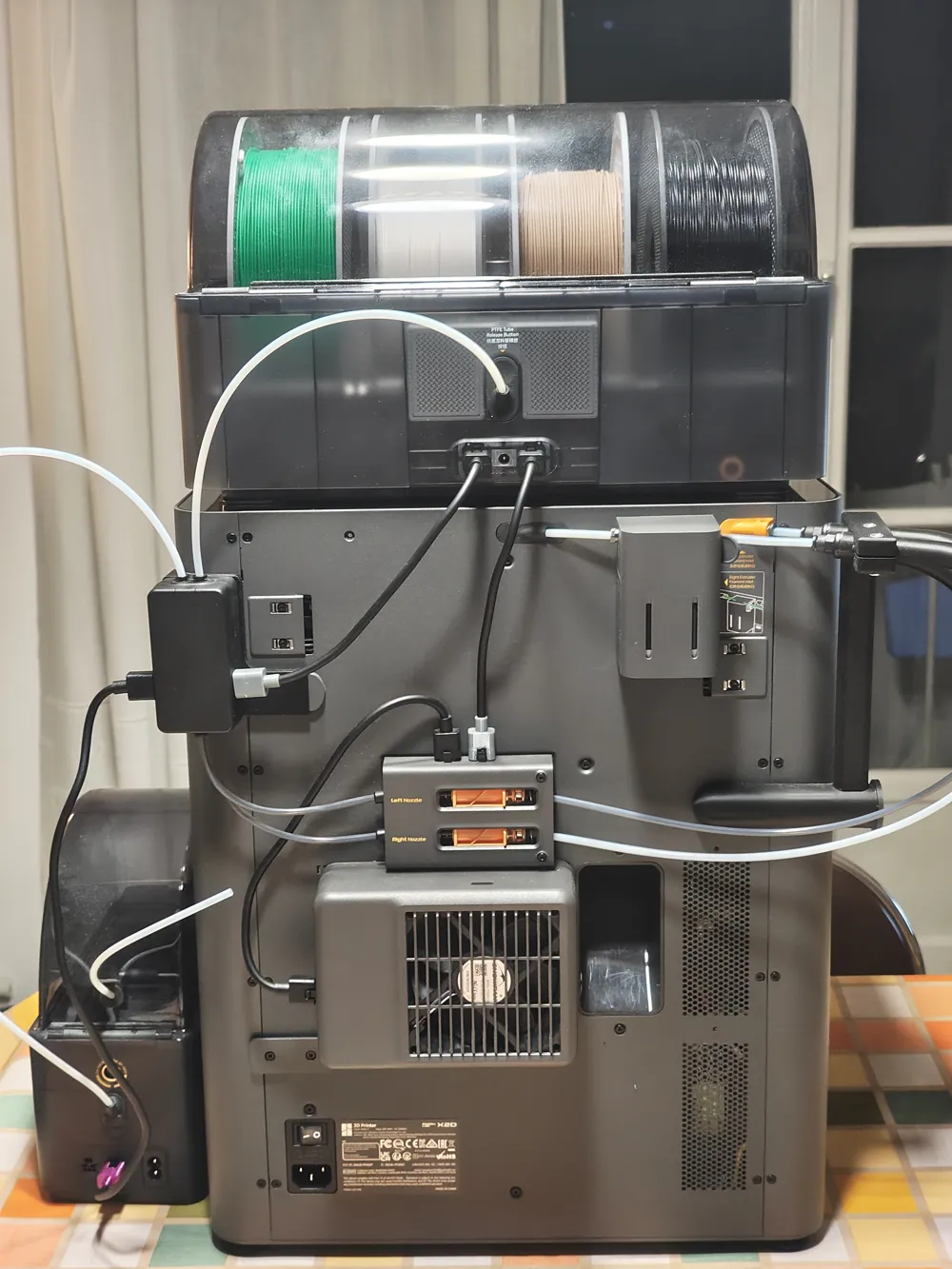

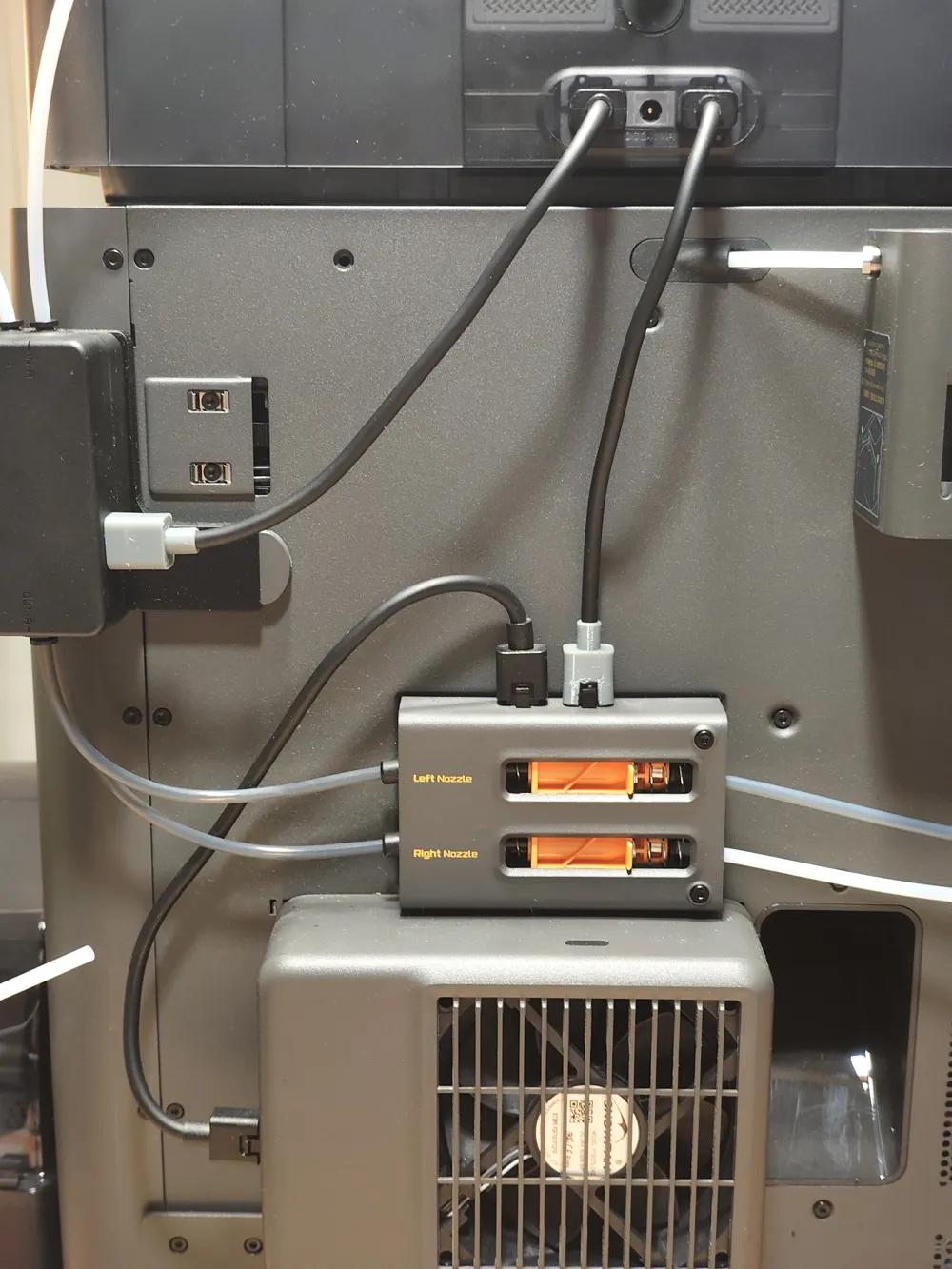

After looking at various models for organizing printer cables, I thought about purchasing shorter cables, but the shortest is 50 cm.
So I decided to buy the connectors and shorten the cables.

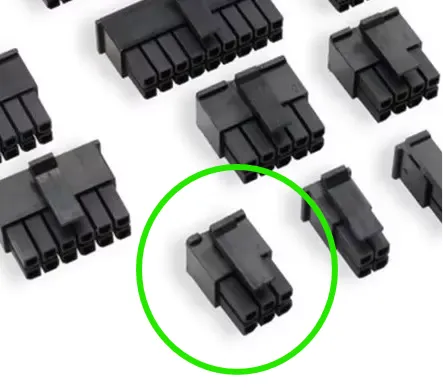

I had no problem finding the 6-pin connectors, but I couldn't find the caps from any vendor.
I decided to draw it and share it, but not for commercial use because I believe there are restrictions.

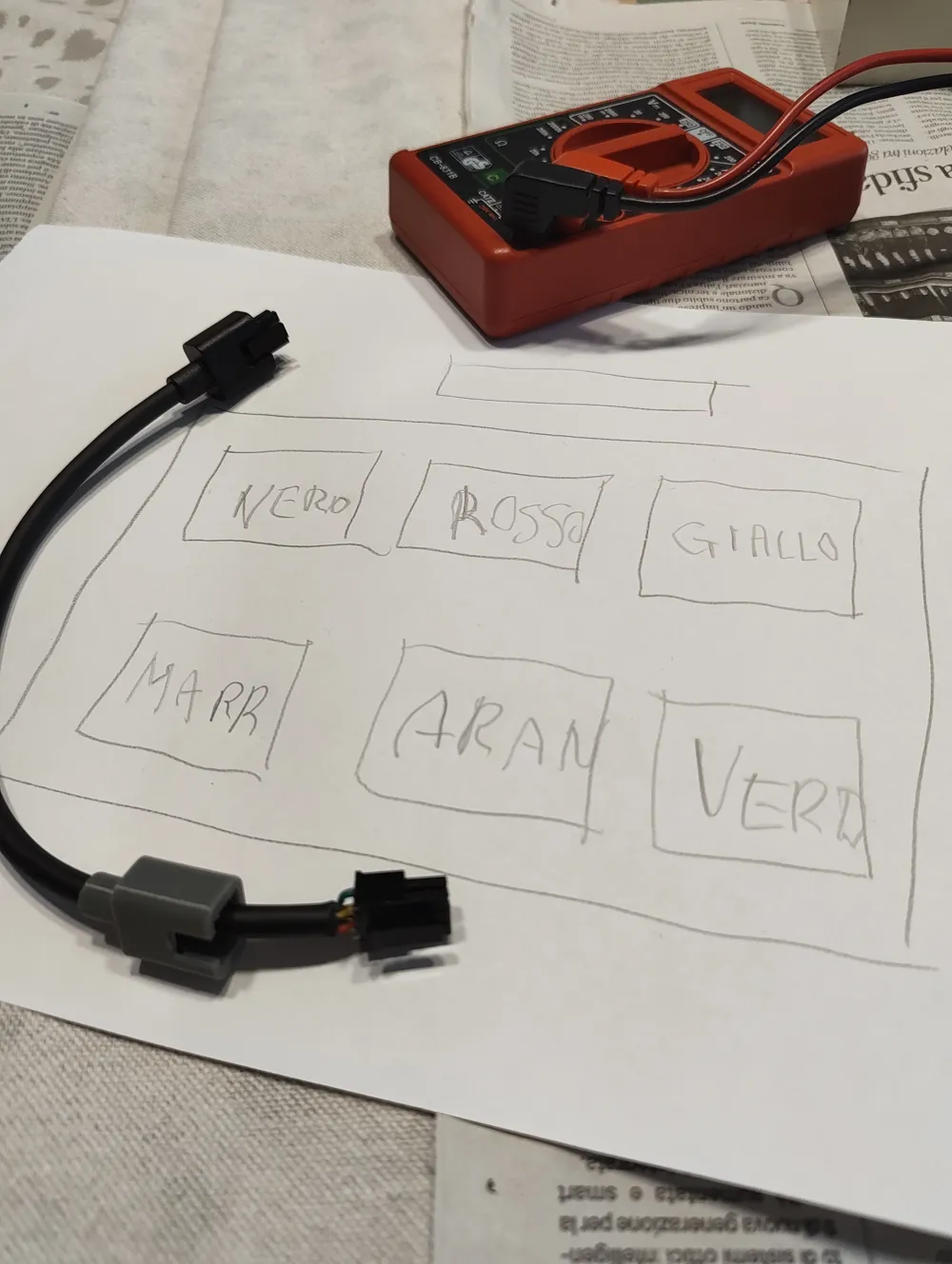

I recommend carefully marking the position of the wires, respecting their color and position.
Use a tester to check before assembly.

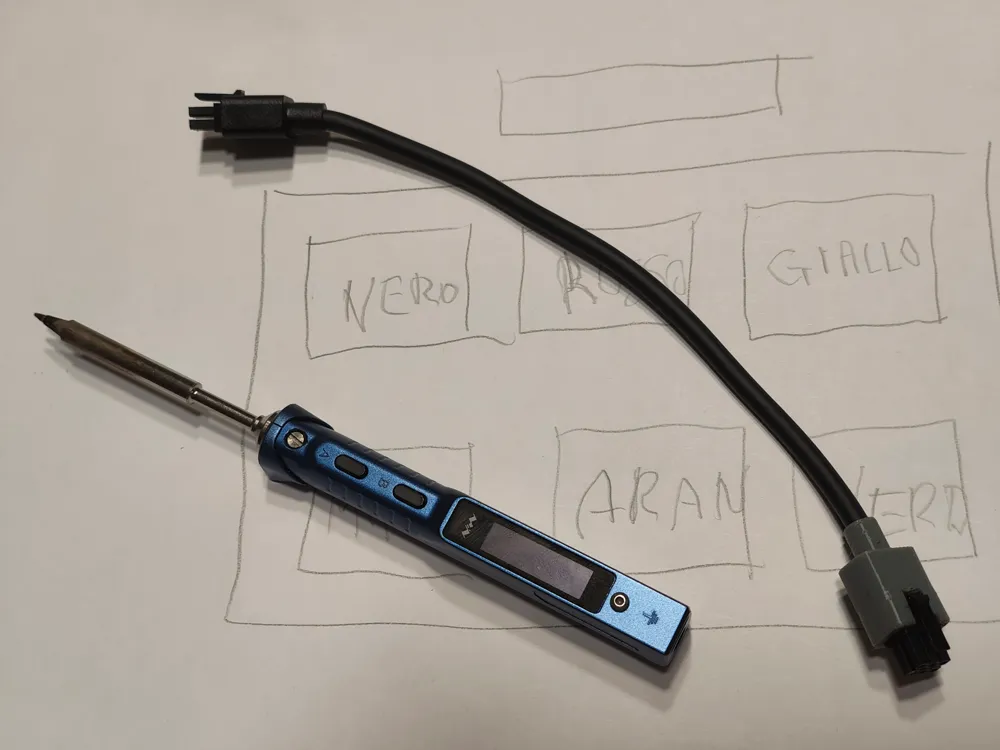

I soldered the wires, but those with suitable pliers are definitely better.
This, however, isn't a problem.

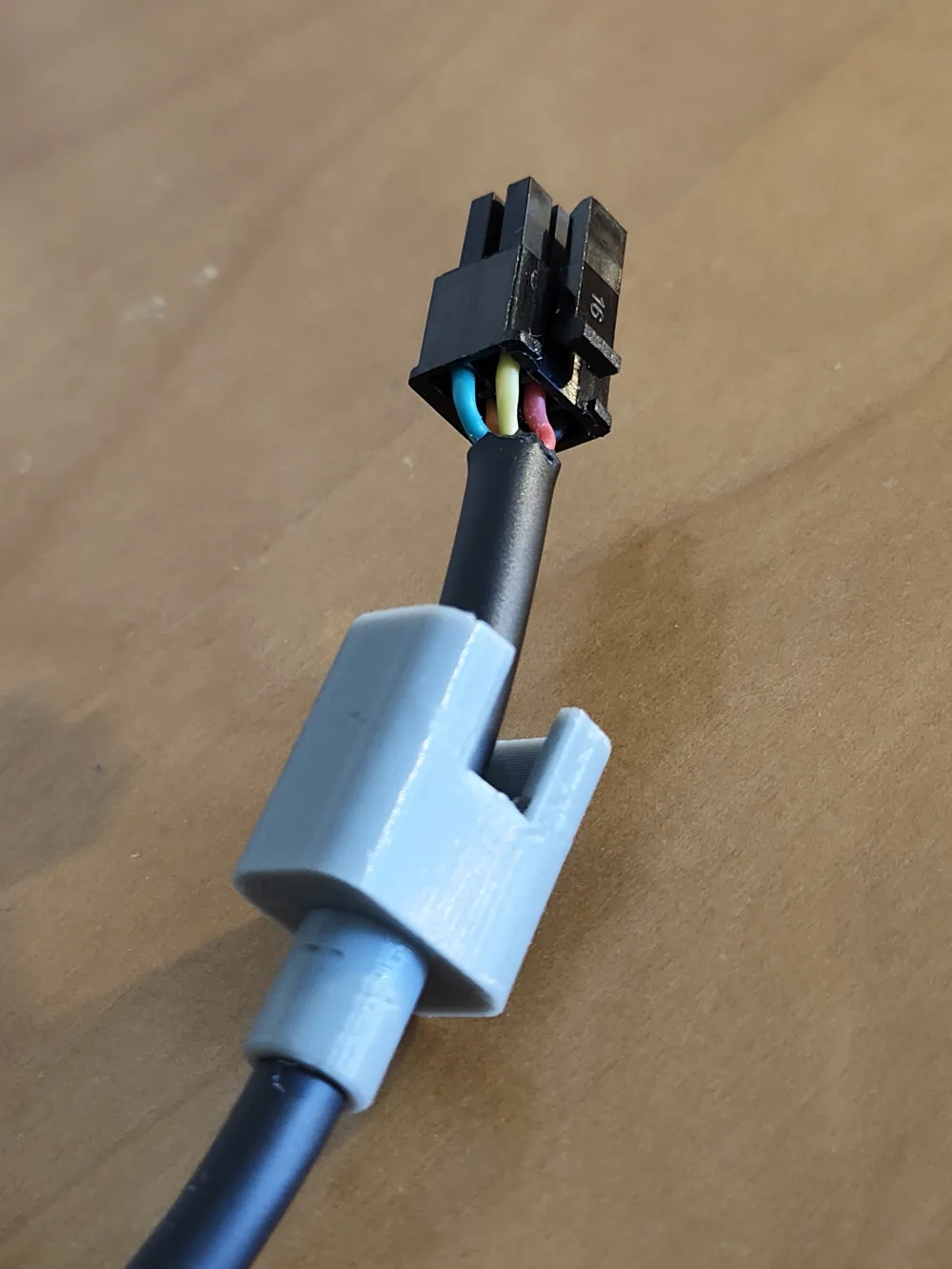

Inserting the wired connector inside the cap requires a bit of force to get it into place.
There's a recess inside where the connector is positioned, and it can no longer come loose.
I decline all responsibility for any consequences caused by assembly errors.
Good luck!
