Bigfish Laser Engraver T10 ~~X Y axis limit switch mount
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
23 min
1 plate
Open in Bambu Studio
Boost
0
1
0
0
3
0
Released
Description
Content has been automatically translated.

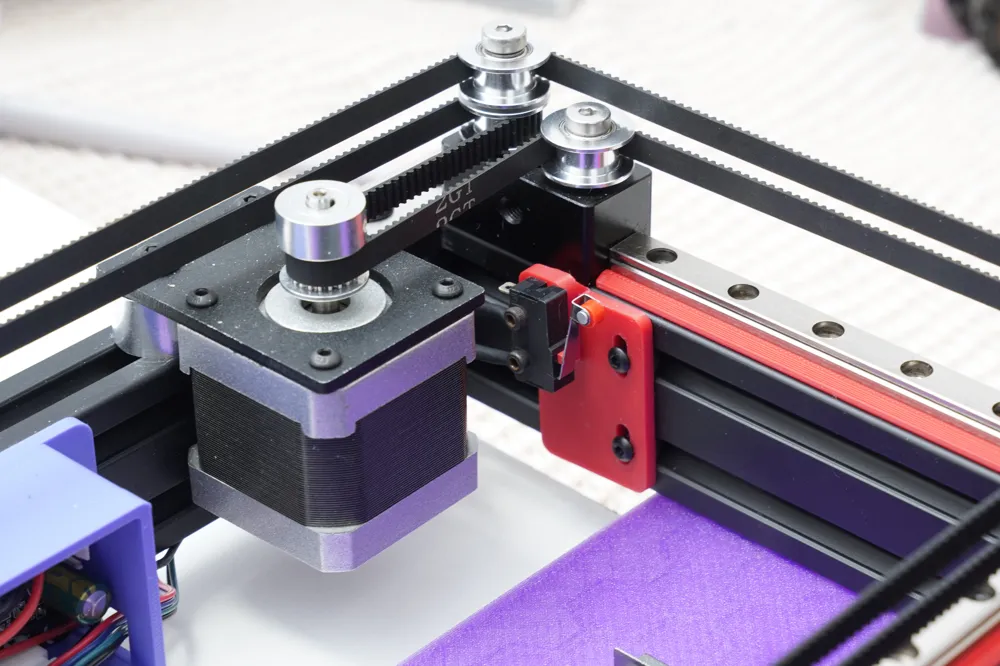

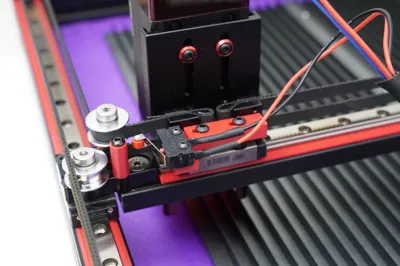

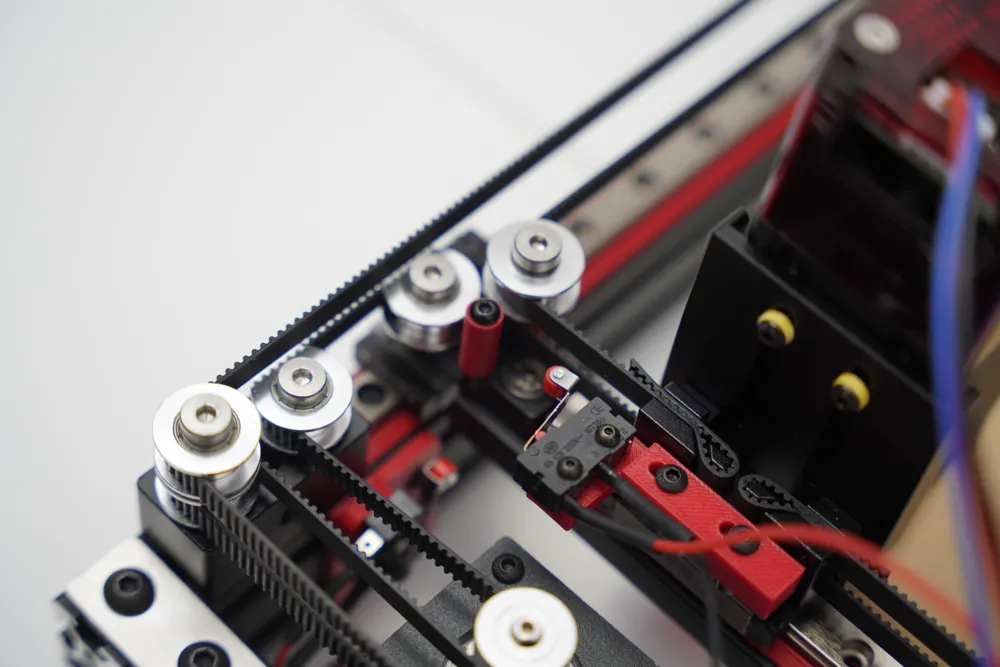

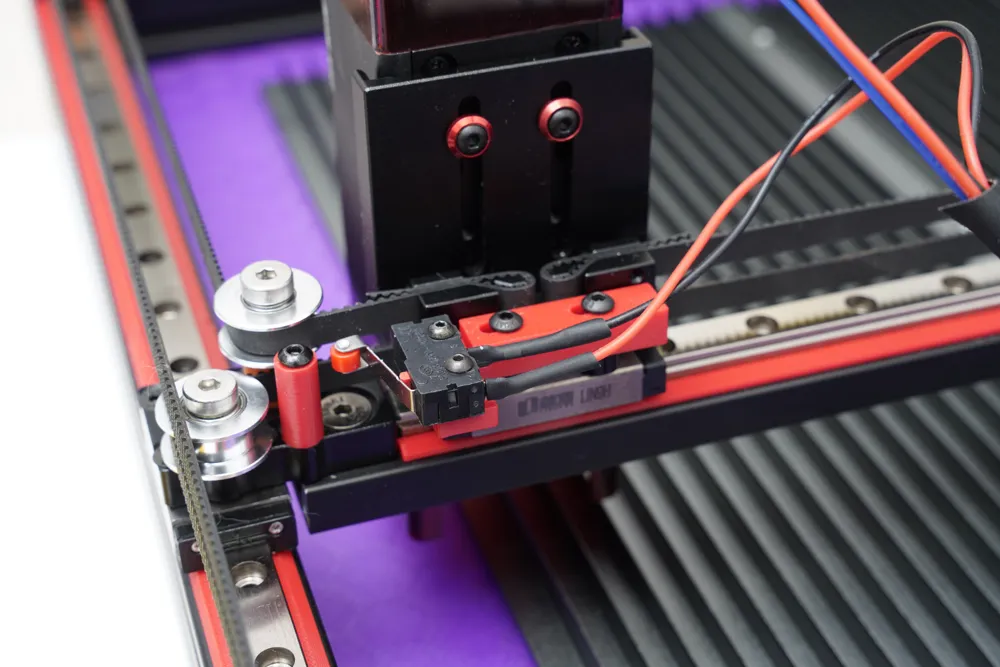

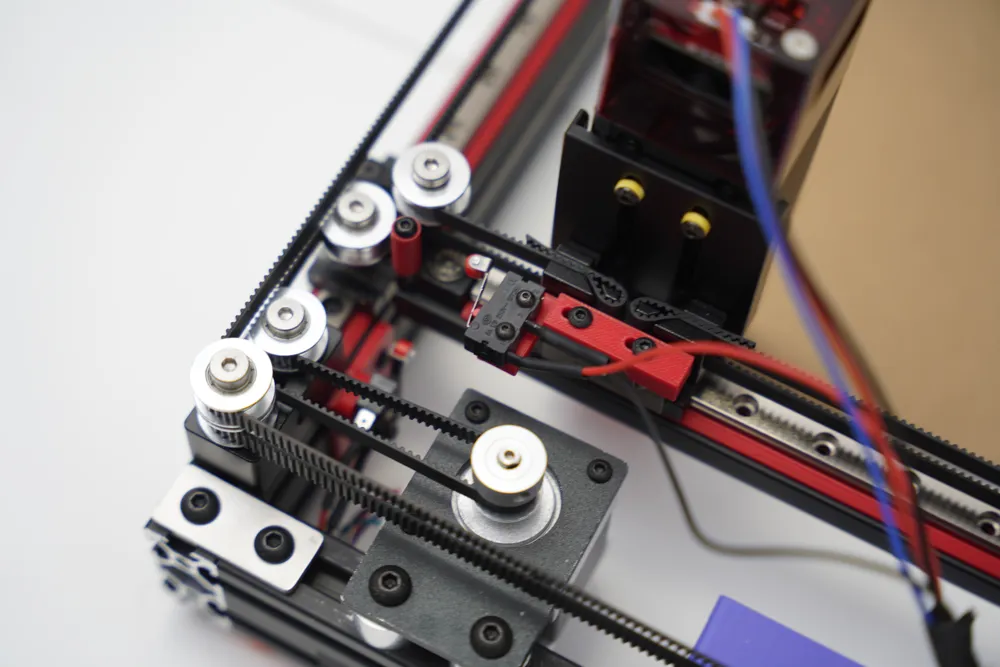

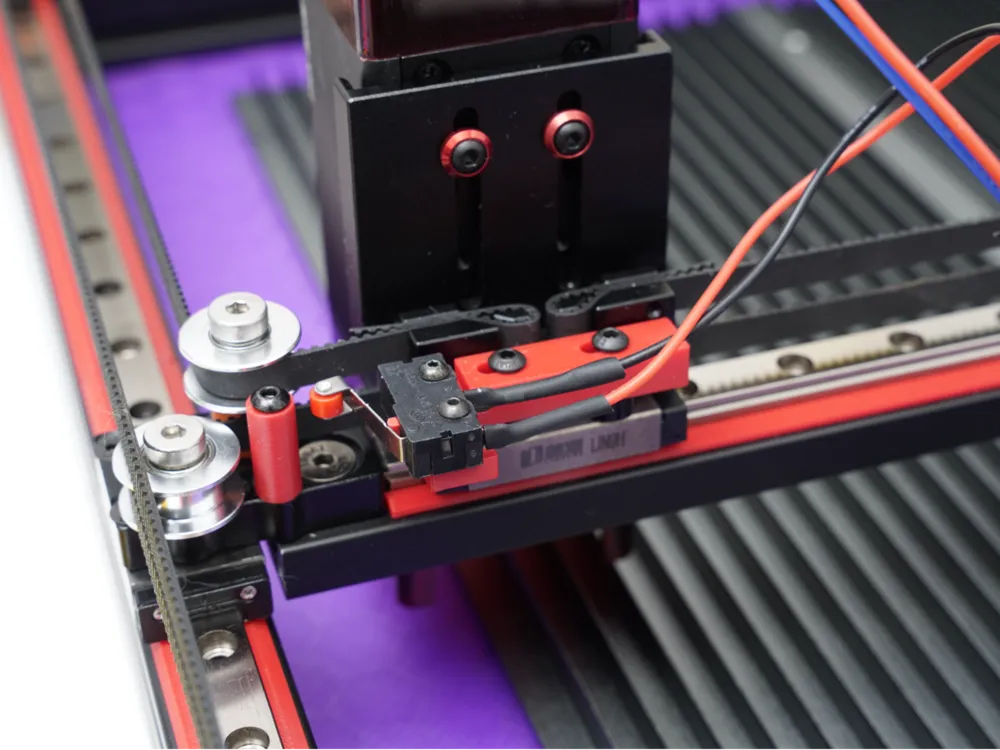

The original open-source solution for the Big Fish laser engraver did not include X and Y axis limit switches, so I designed and DIYed a limit switch holder and am sharing it with the Bambu Lab community. The limit switches are ordinary micro switches
The screw specification for fixing the limit switch is: M2.5 *10 screw directly in (you can quickly twist it back and forth, about one turn each time, and the friction generates heat, slightly melting the plastic for a more secure fix)
The screws for fixing the screw posts are: M3*20~22
