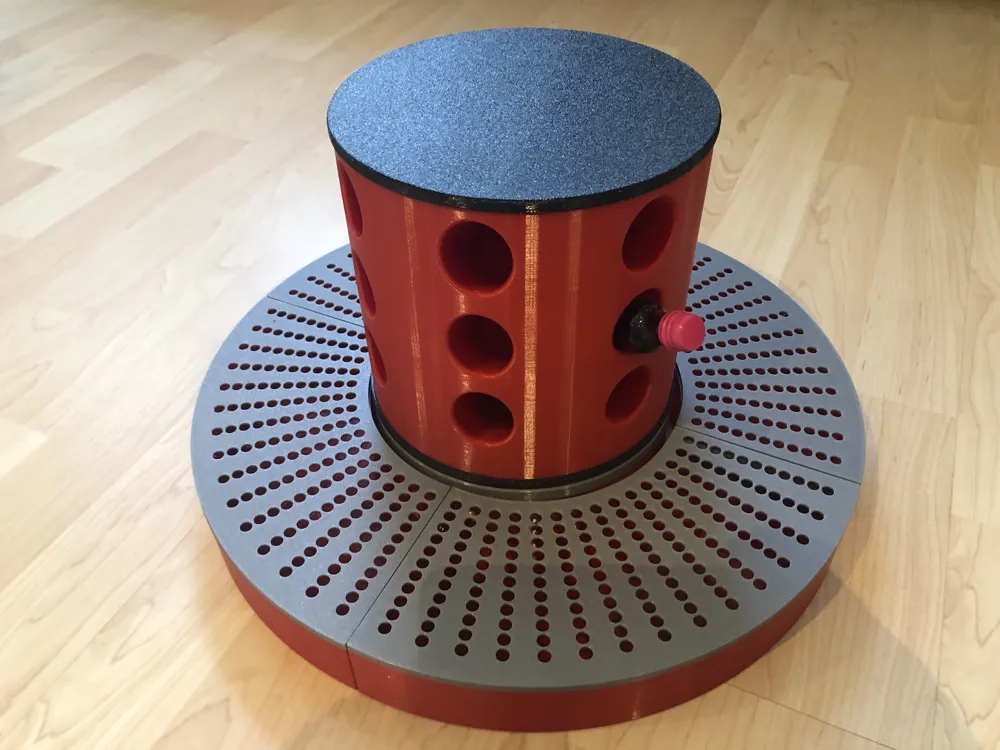

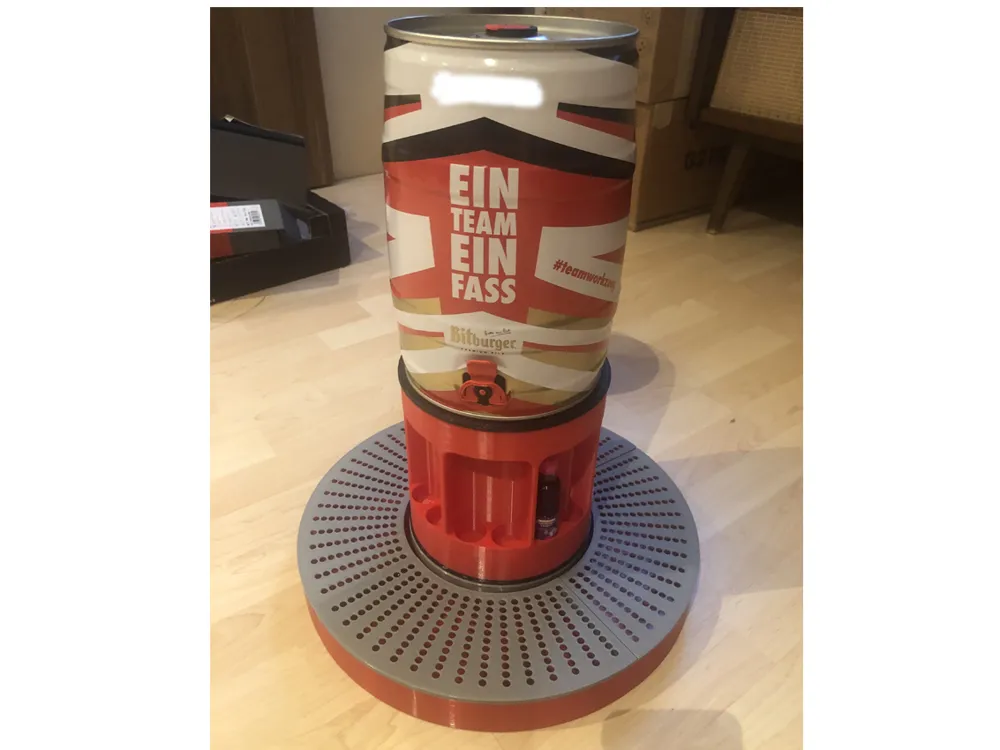

Party keg with turntable and drip tray

This is the remix or extension of a drip tray I found on the web.

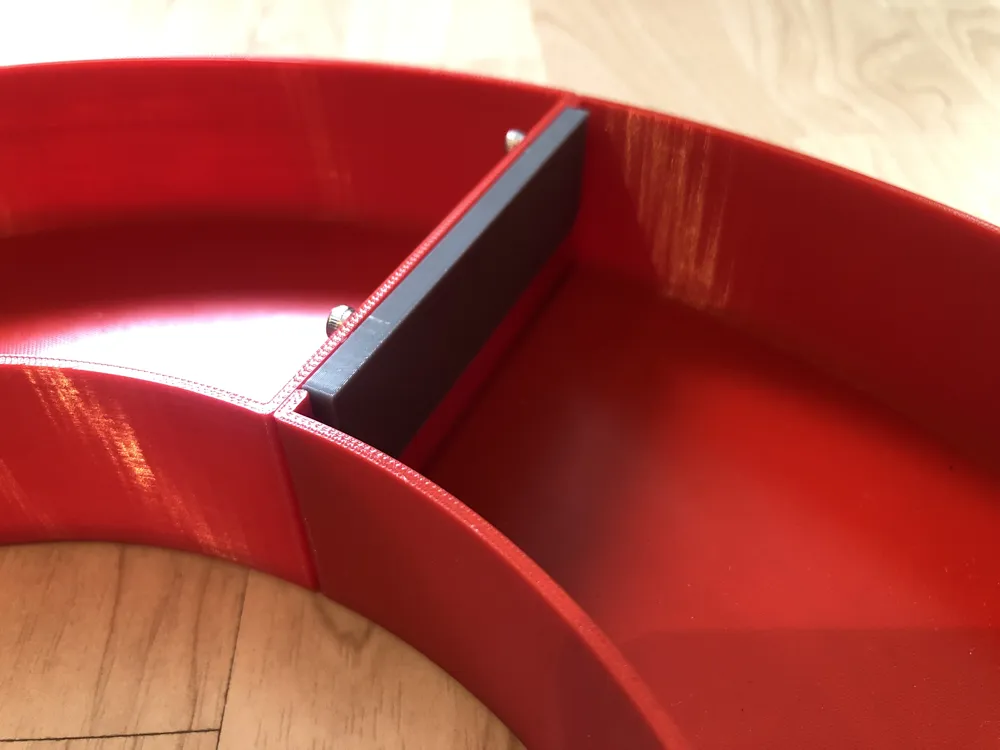

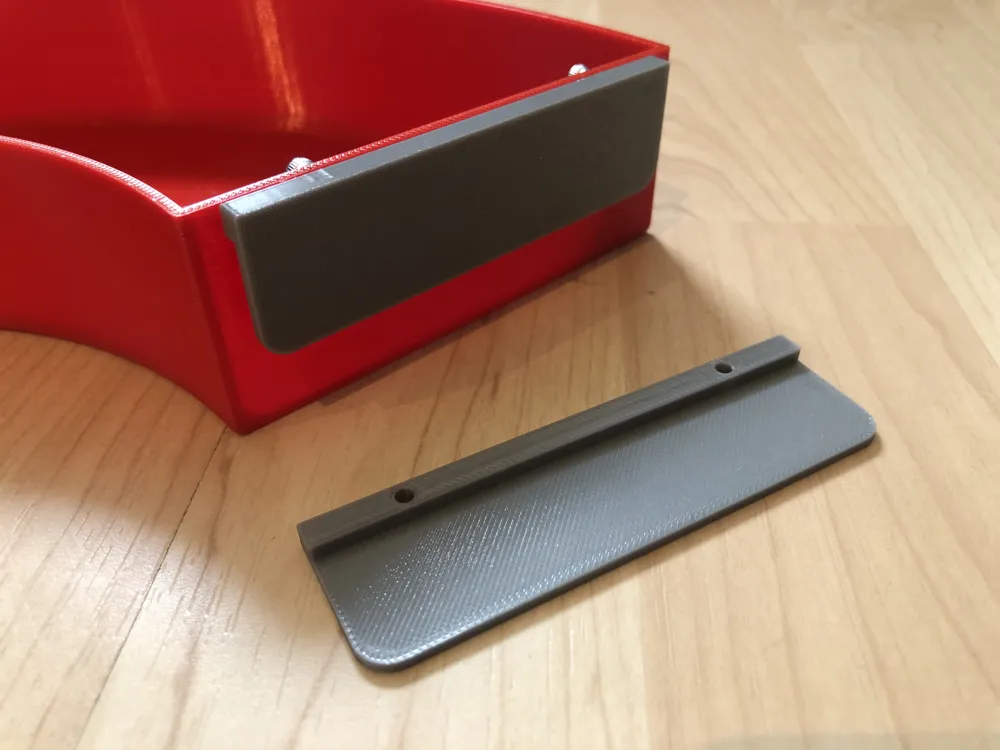

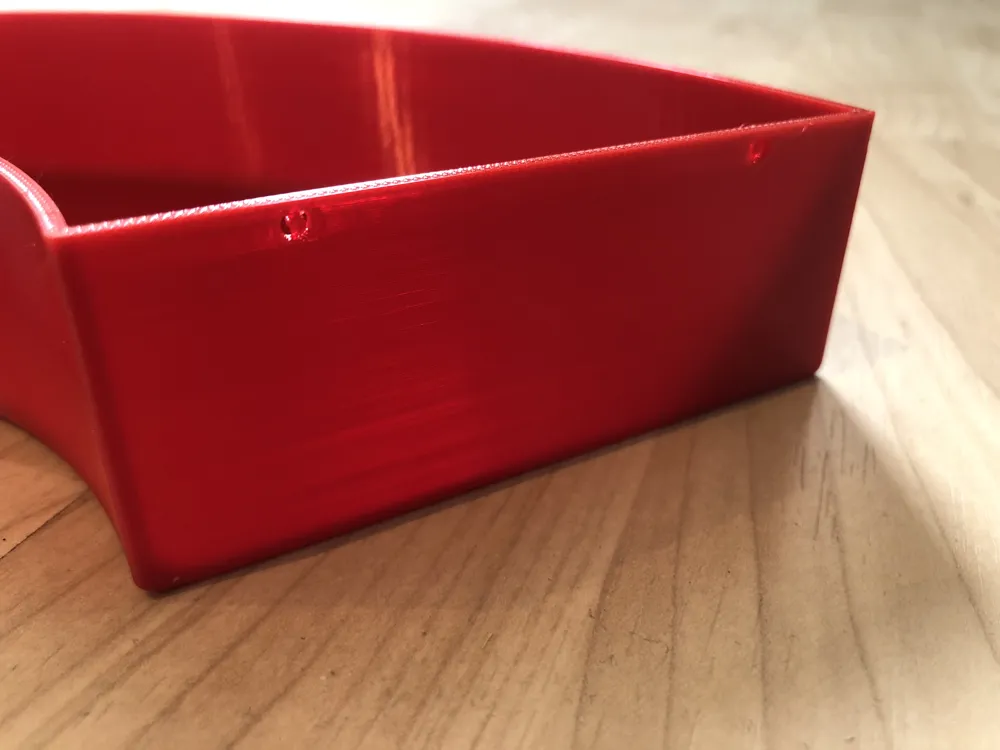

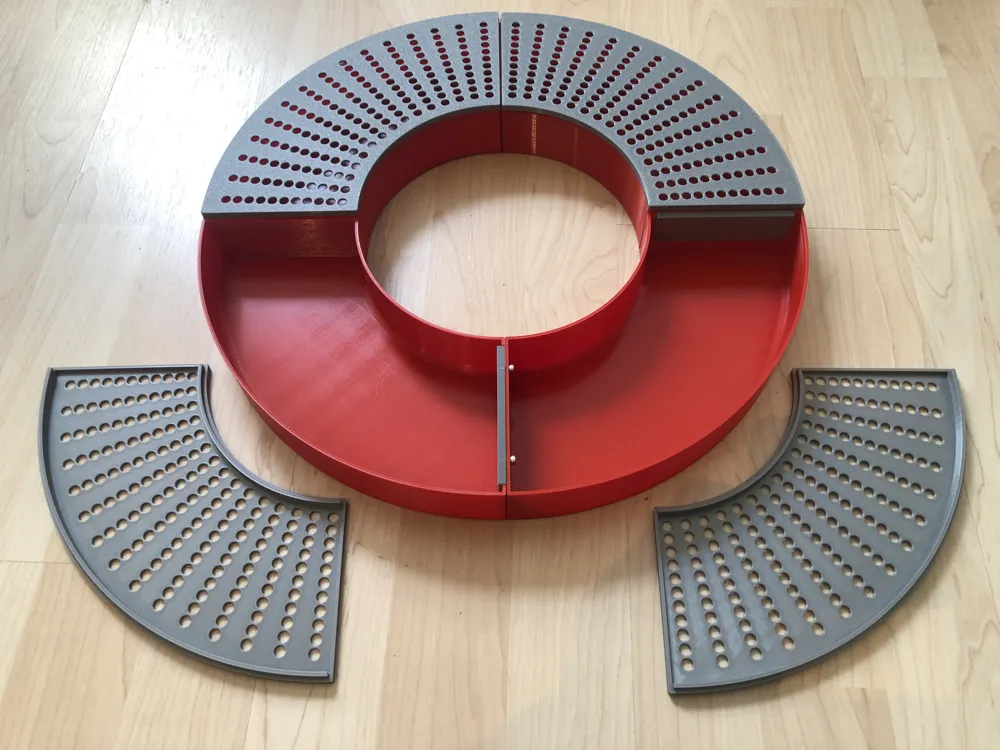

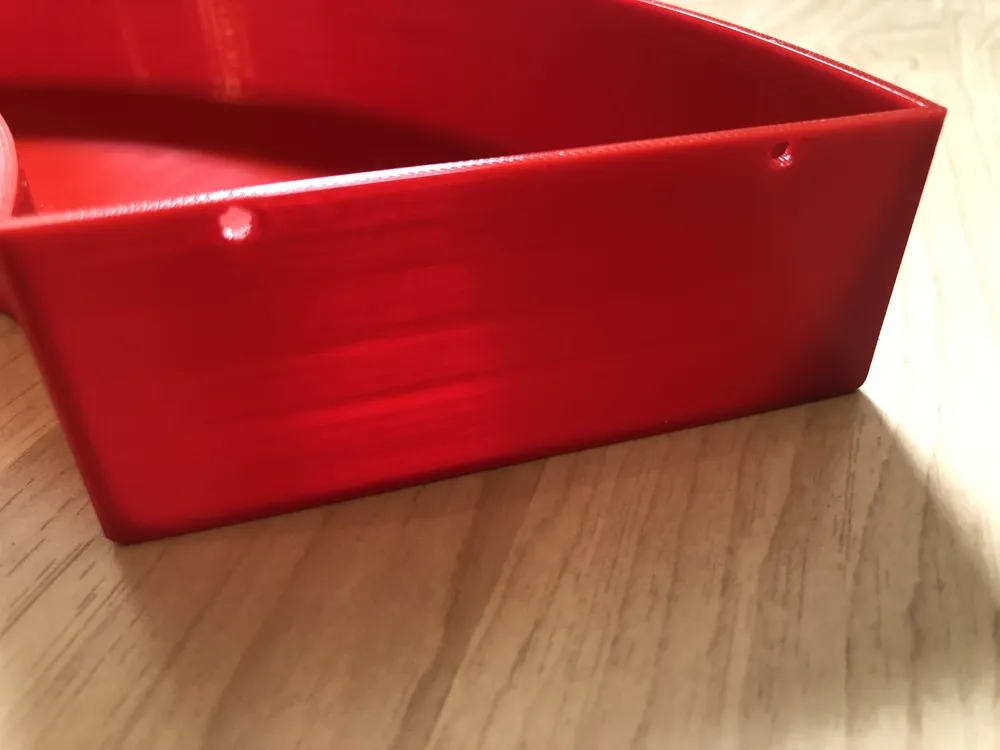

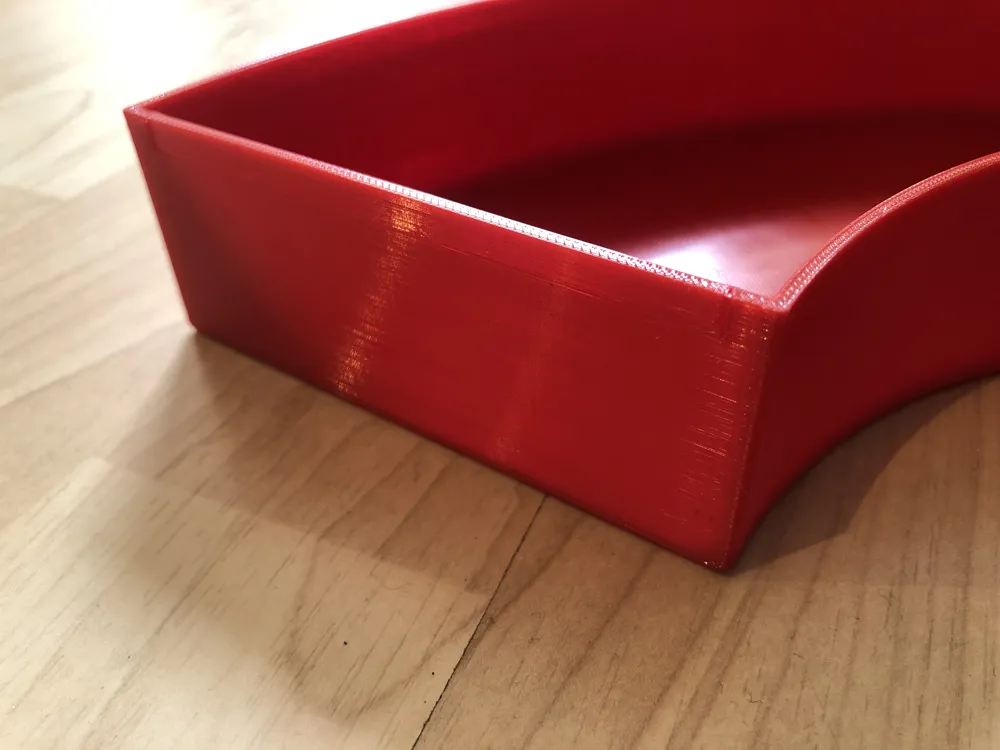

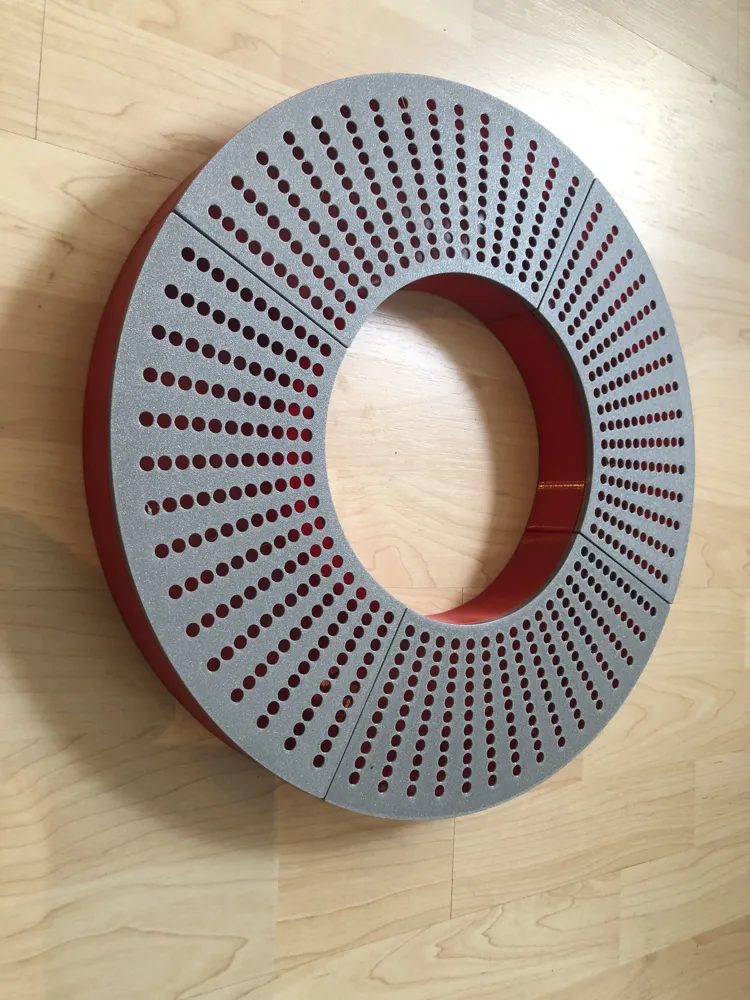

Originally, the tray is ONE piece, requiring a large print area. I modified it so that you either use only a “quarter” or connect four parts using connectors. M3x6 screws are needed for this.

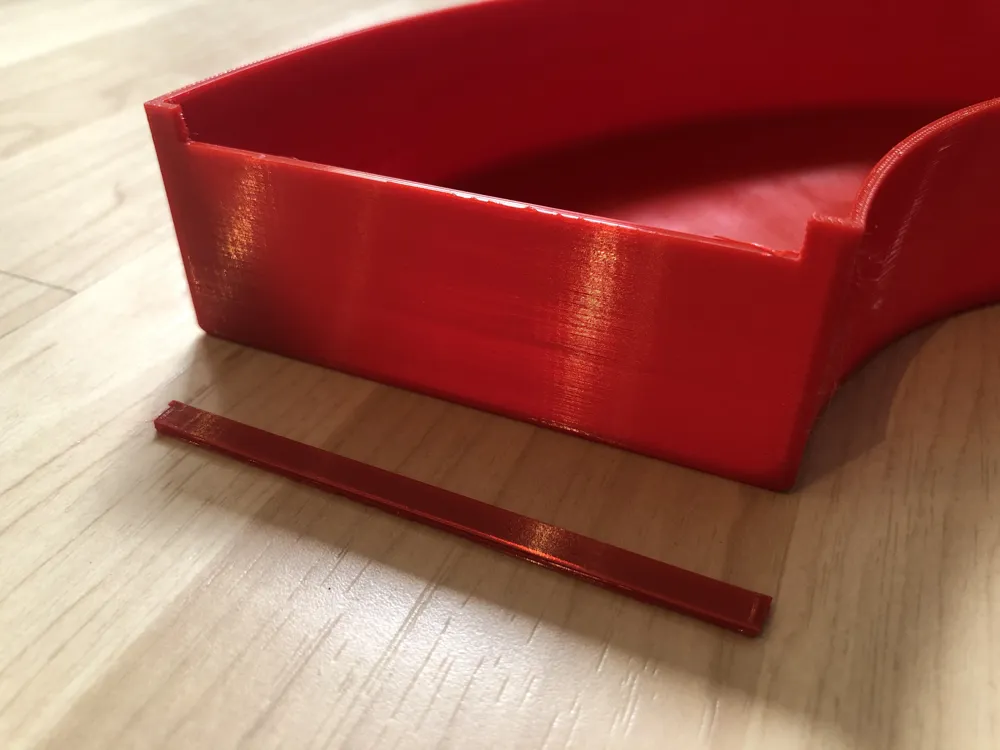

The tabs for connecting must be carefully removed!

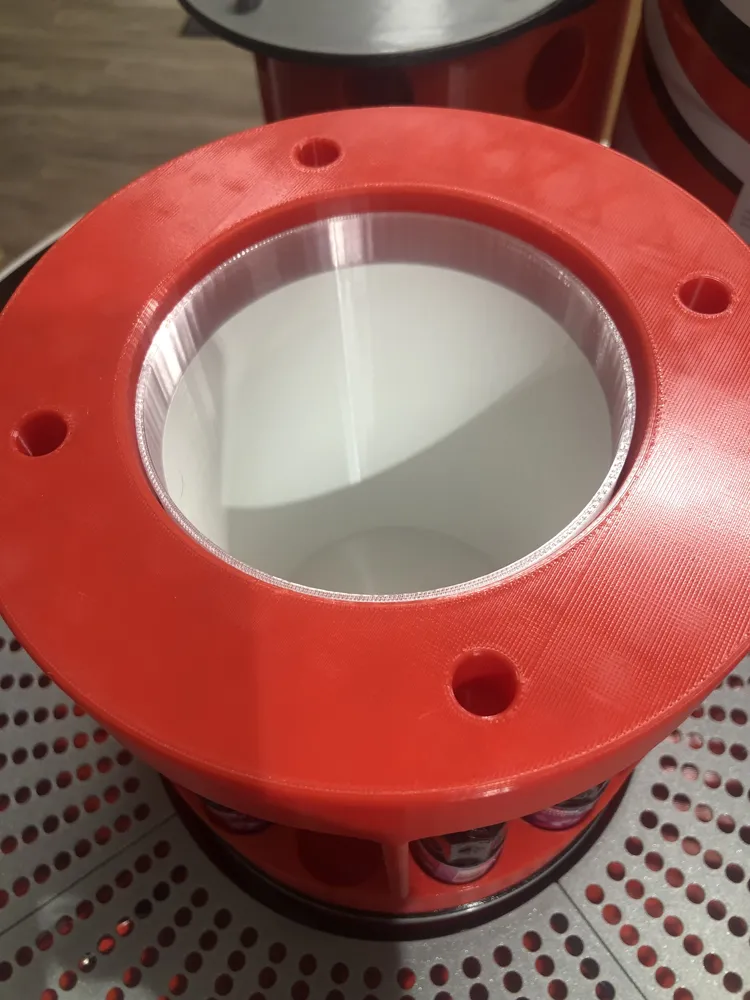

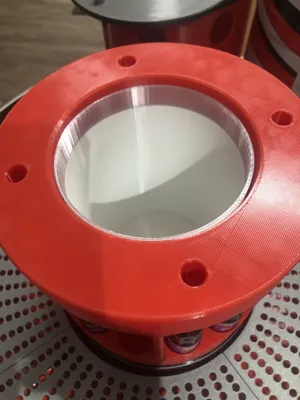

For the rotating function, 8mm ball bearings are needed, just like in the original.

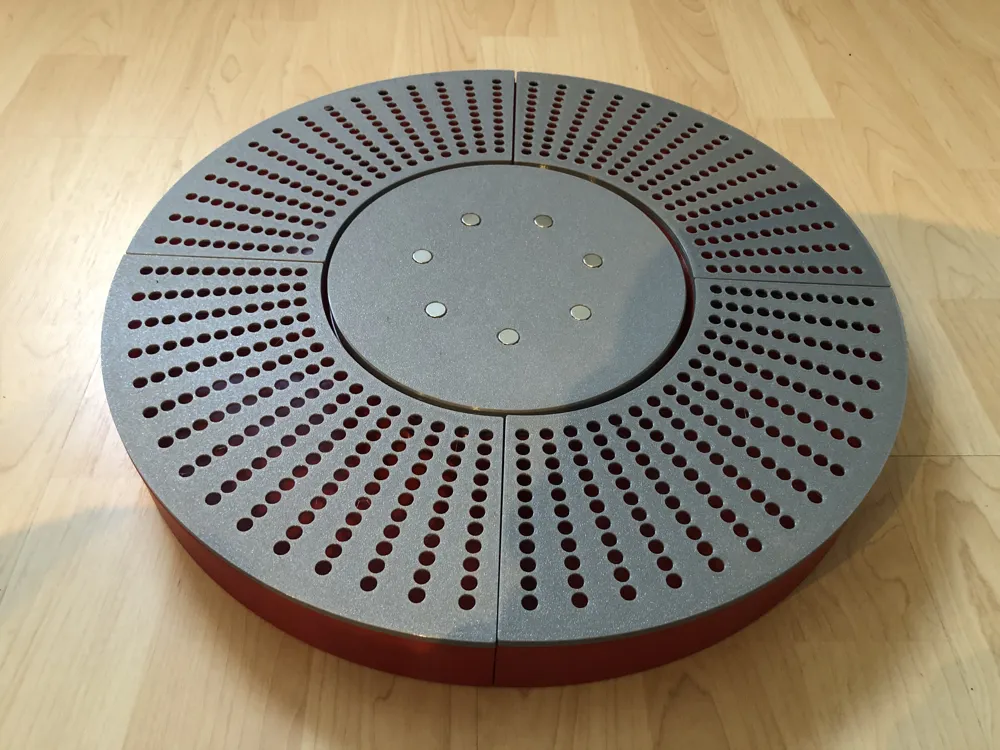

To prevent the parts (turntable and attachment) from slipping, 10x3mm magnets have been inserted.

(Caution: The holes are very tight, possibly widen them slightly)

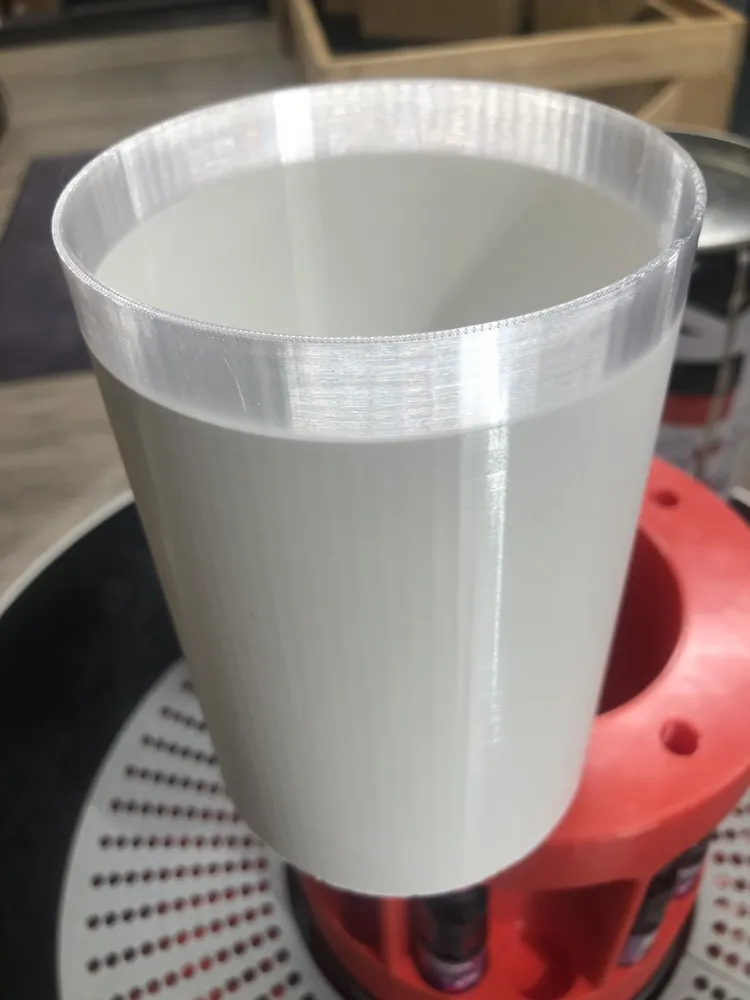

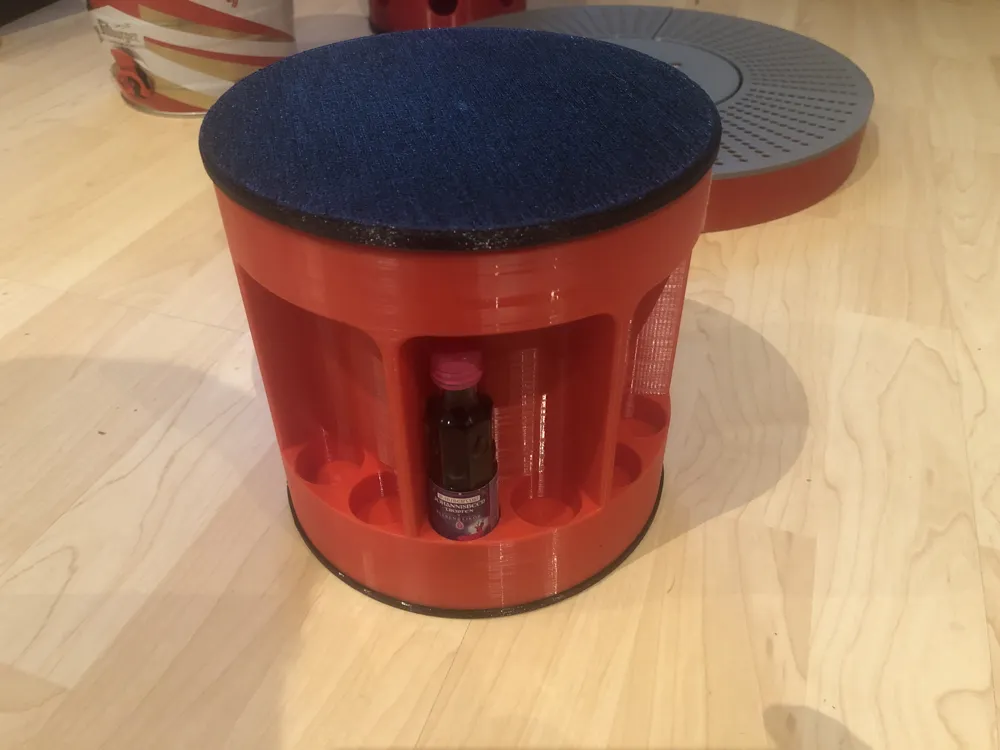

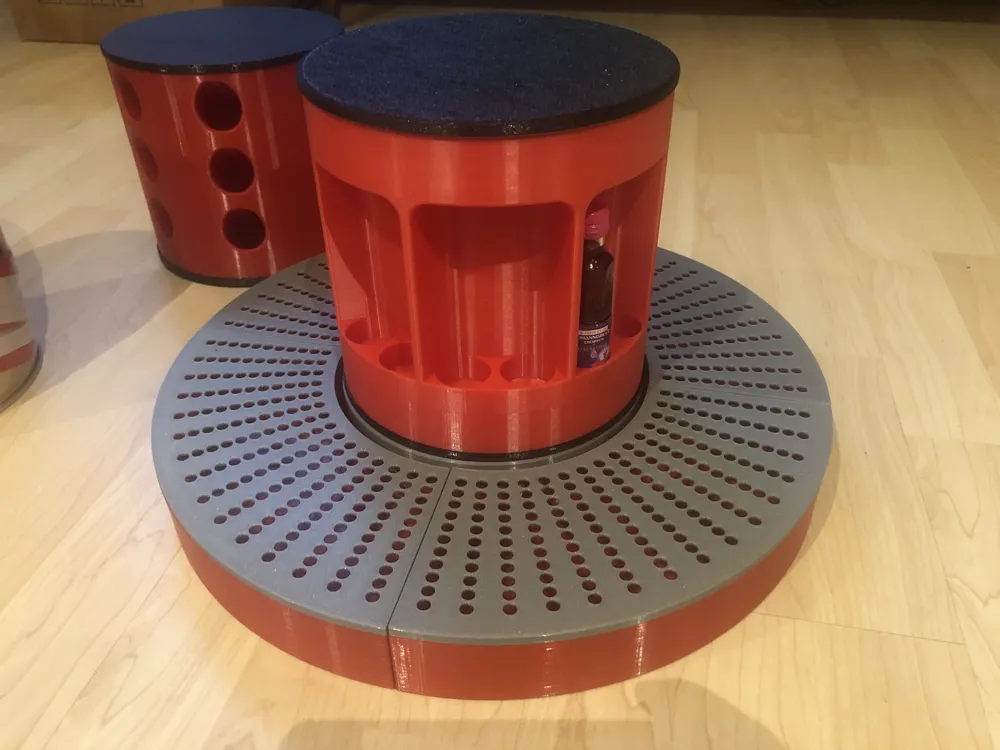

For the two attachments, a cover made of TPU has been created as an anti-slip measure.

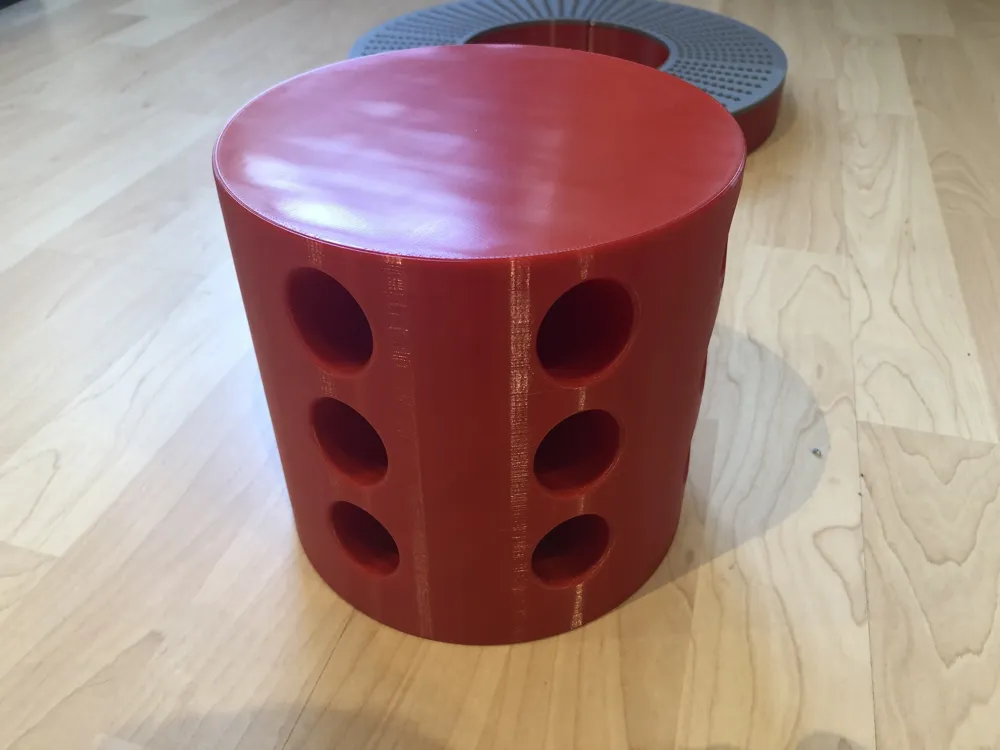

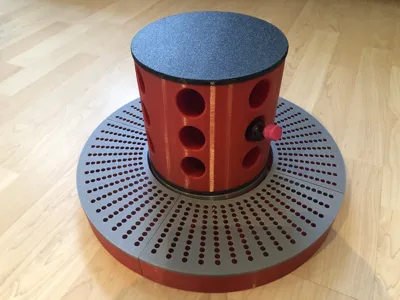

The “Hubi standing” attachment also includes an inlet for dice.

Optimally print in PETG to ensure stability.
