Rugged Toolkit for Icon Flex Ratchet + Sockets

Rugged Compact Toolkit Organizer for ICON Flex Head Ratchet

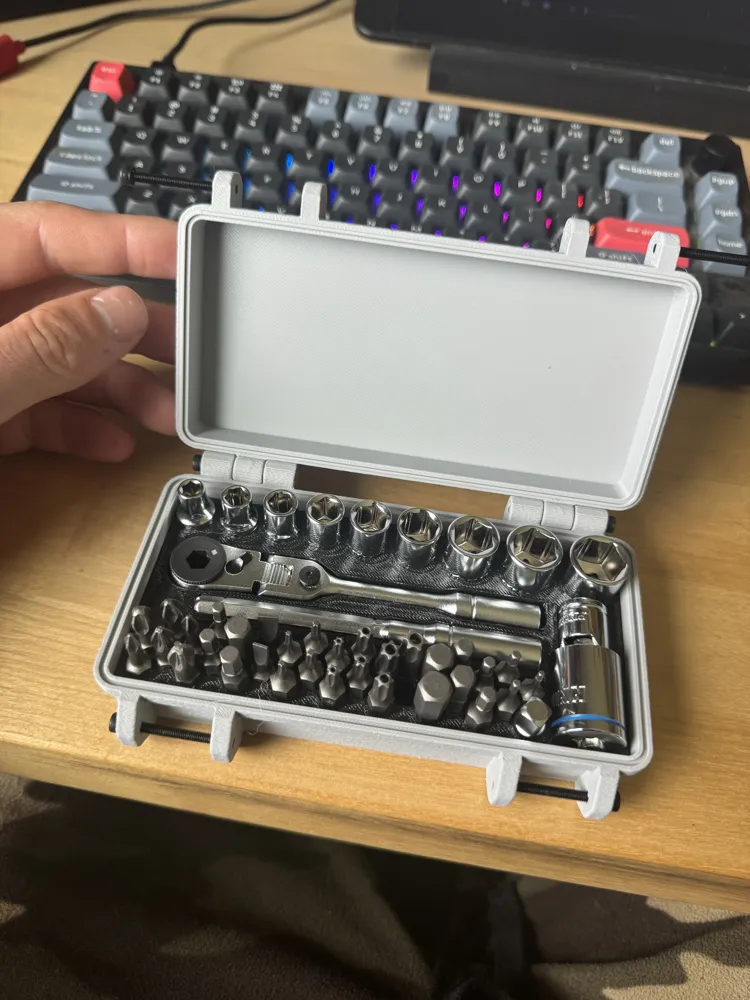

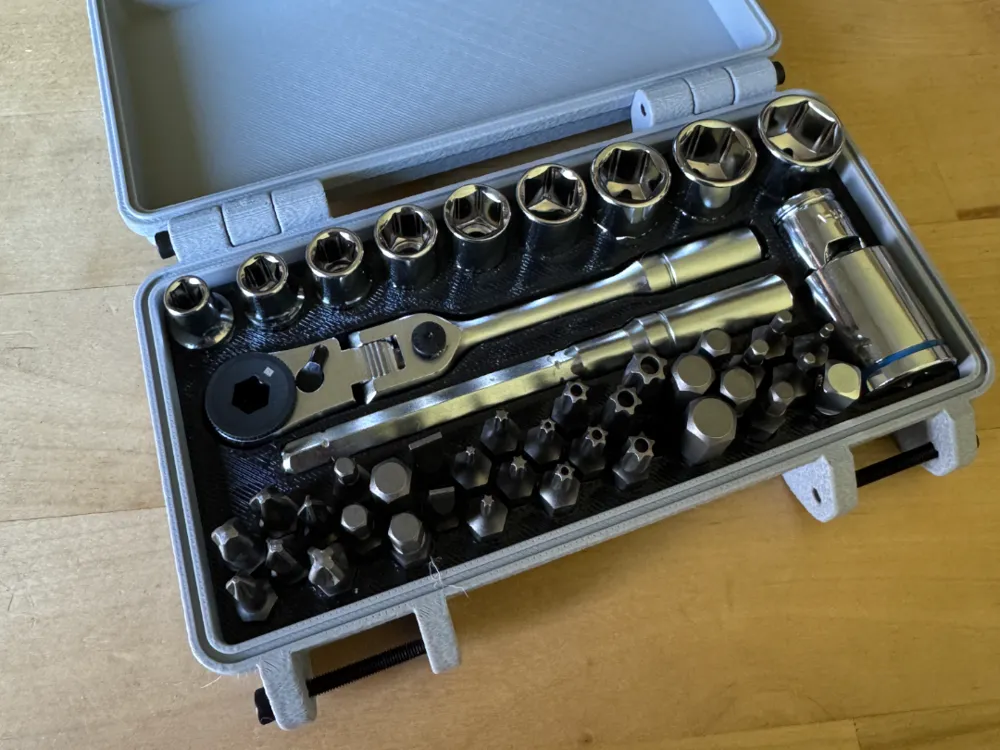

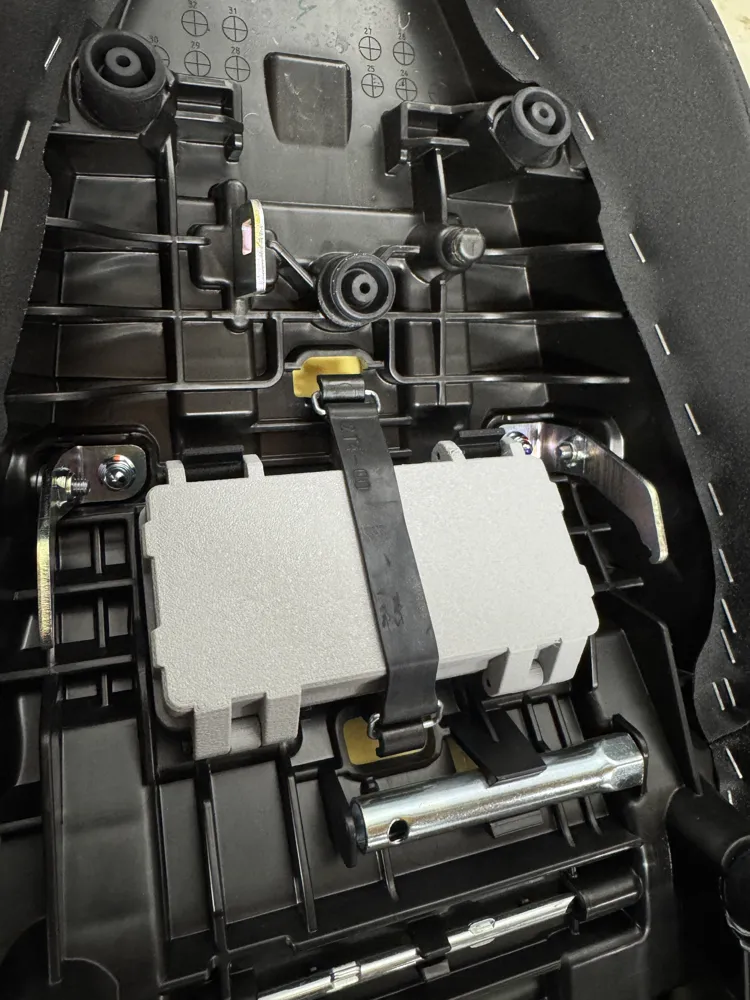

Keep your essential tools organized, protected, and ready for any job with this rugged compact toolkit organizer. Designed around the Harbor Freight Icon Flex Head Ratchet and Bit Set (aka Meme Tool), this case securely stores your ratchet, sockets, bits, and accessories in a compact package that's perfect for vehicles, tool bags, travel kits, workshops, and more. The custom TPU insert provides an extremely snug fit to keep every tool securely in place. The last thing you want is to open your toolkit and find tools scattered everywhere, so retention was a top priority during the design process. I originally designed this case to fit under the seat of my 2025 Yamaha XSR900, but it works equally well anywhere a durable, space-efficient toolkit is needed.

Tip: The sockets and bits are intentionally retained tightly by the TPU insert. To remove them, insert the bit extension into the desired bit or socket and gently wiggle it side-to-side while pulling upward until it releases.

📏 Features:

• Compact, rugged toolkit organizer
• Designed around the ICON Flex Head Ratchet and Bit Set
• Custom TPU insert securely retains all tools
• Dedicated storage for ratchet, sockets, bits, and universal joint
• Includes space for one additional bit
• Helps prevent rattling and lost tools during transport

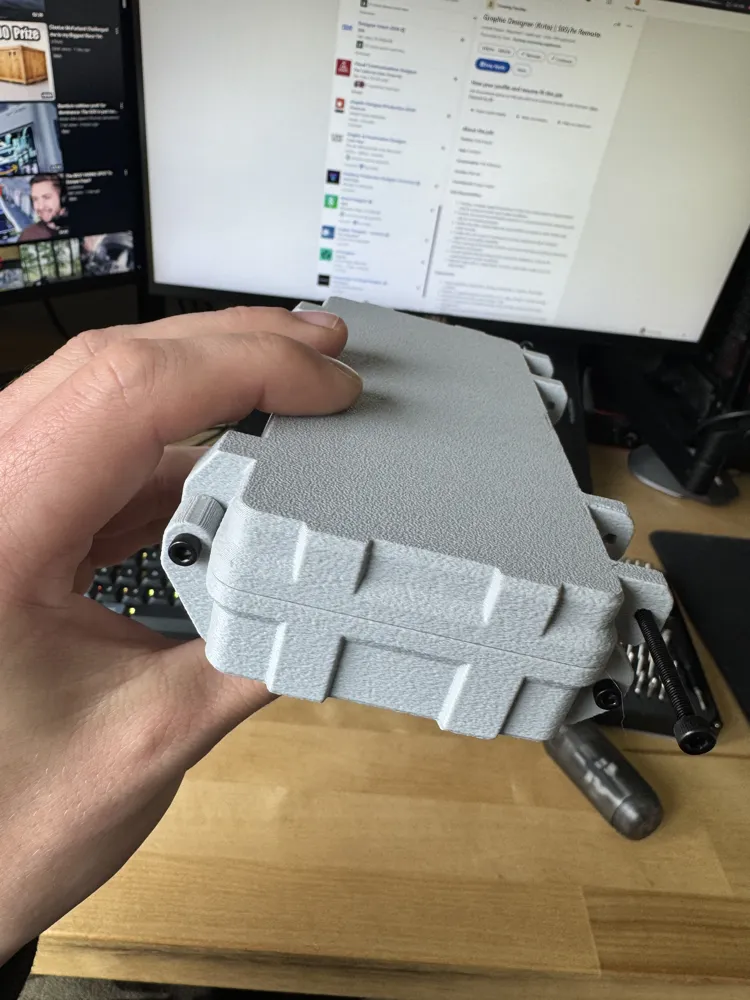

• Hinged case with secure latches
• Great for vehicles, tool bags, travel kits, workshops, and everyday carry

🔧 Tools that fit:

• ICON Flex Head Ratchet & Bit Set (58074)
• Quinn 1/4" Drive Metric Sockets (64205, 64206)
  • SAE sockets not tested
• Pittsburgh 1/4" Drive Universal Joint Socket Adapter (63141, 67869, 61955, 63142)

🔧 Hardware Required:

• 6x M3 × 30mm screws
• Used for both the hinges and latches

🖨️ Print Settings:

Case

• Material: PETG, ASA, or ABS recommended
• Layer Height: 0.2mm
• Infill: 15–25%, Crosshatch
• Walls: 3
• Supports: Not required
• Fuzzy skin enabled for a nice finish but not required!

Insert

• Material: TPU
• Layer Height: 0.2mm
• Infill: 10–20%
  • Changing the walls and infill could change how much retention the insert has.
• Supports: Not required
