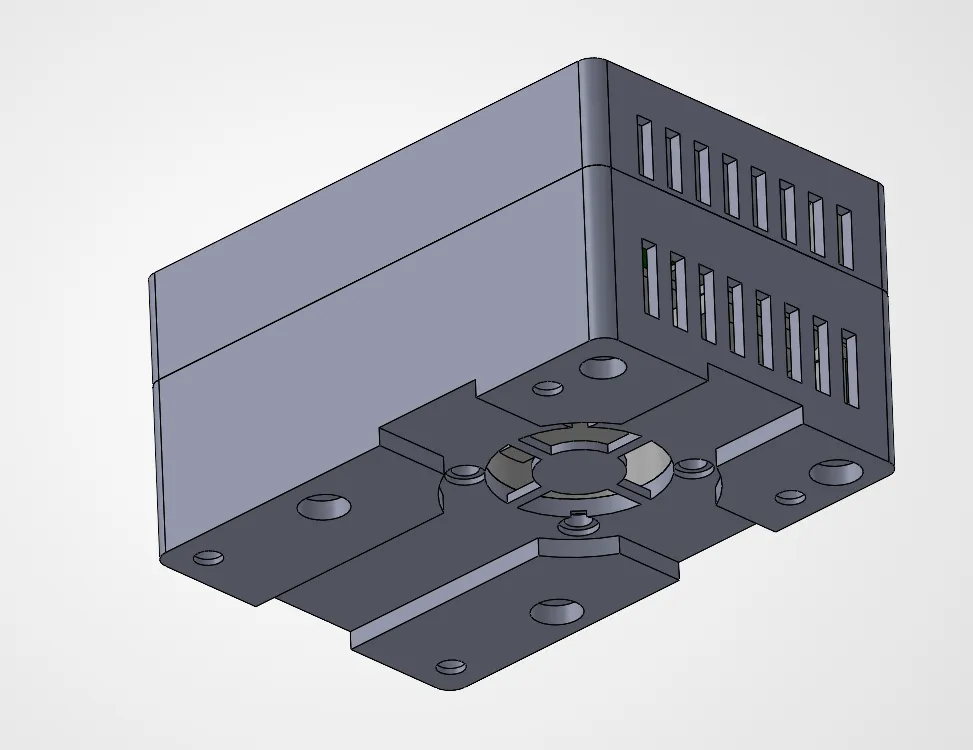

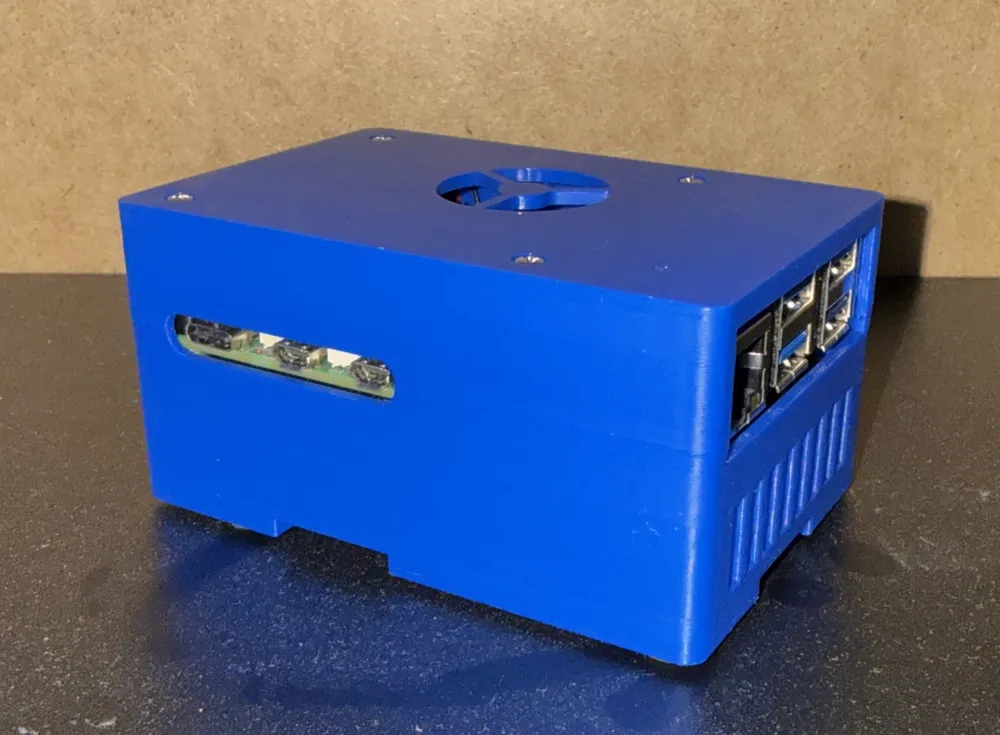

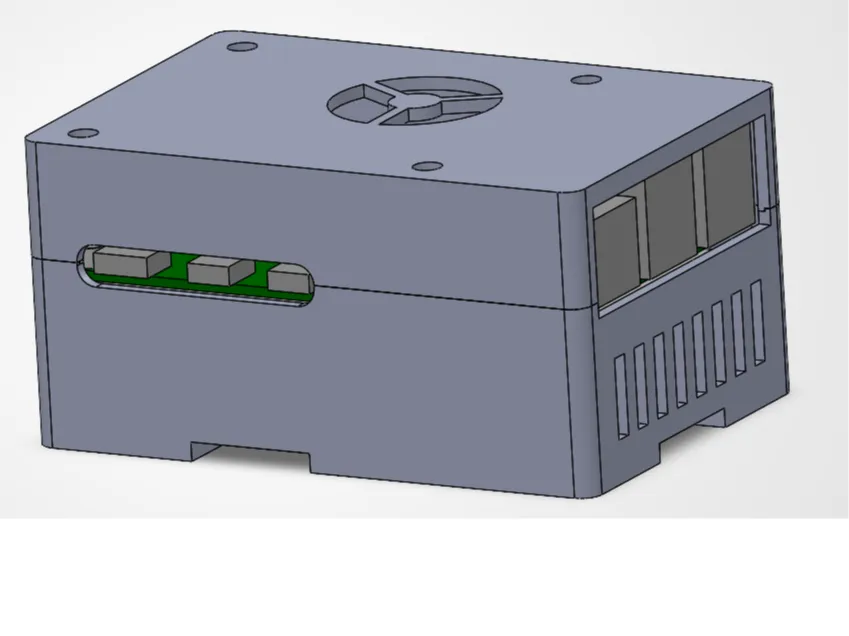

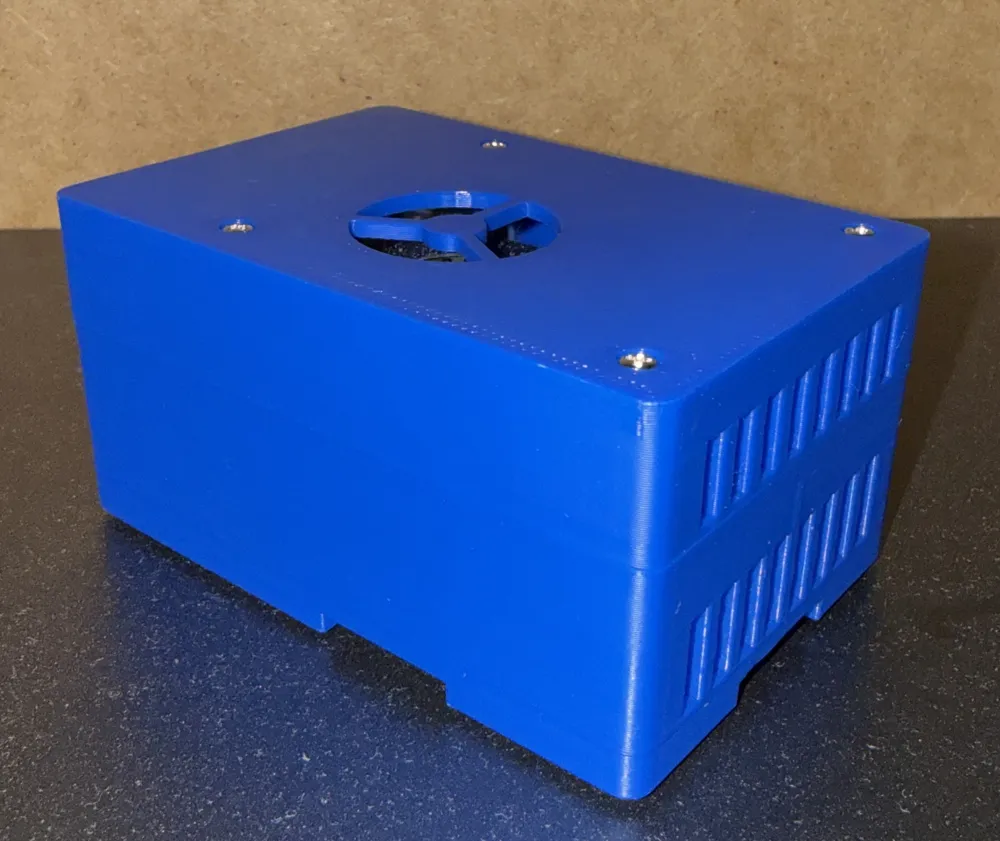

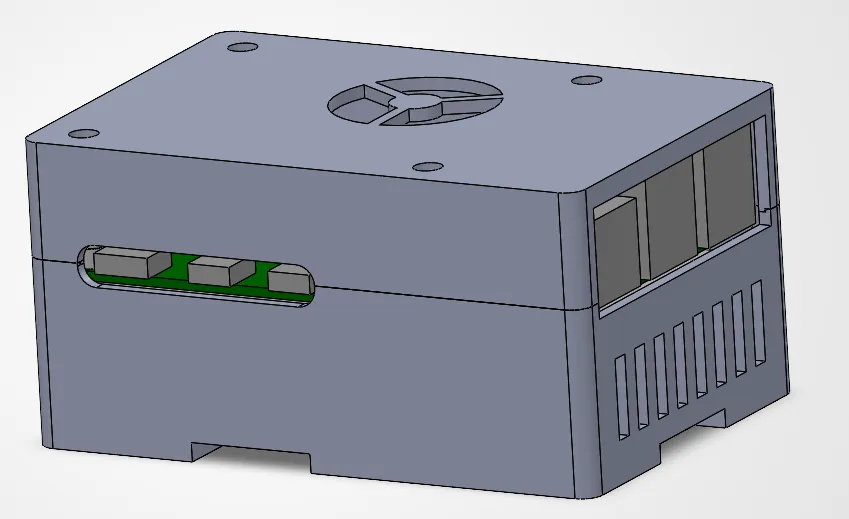

Compact Pi 5 case with Geekworm X1002 NVME Shield
Print Profile(1)
Description
This Raspberry Pi case is made for the Geekworm X1002 PCIe to M.2 NVMe SSD Shield (bottom version) for the Raspberry Pi 5.
Real-life photos are coming later… If I don't forget.
There’s a photo of the X1001 below this description so you can clearly see which board this case is designed for.
BOM

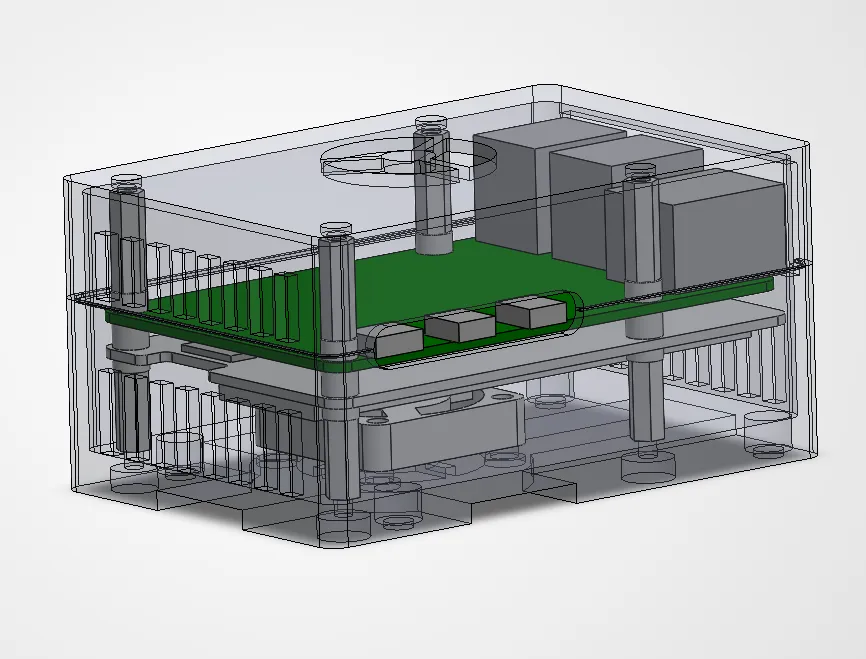

Case parts:
- 4× M2.5 × 12 mm male–female standoffs
- 4× M2.5 × 15 mm male–female standoffs
- 4x 2mm spacer (placed between standoff and x1002)
- 4x 3mm spacer (placed on top of pi pcb)
- 1× 30 × 30 × 7 mm fan
- 4× M2.5 × 5+ mm screws

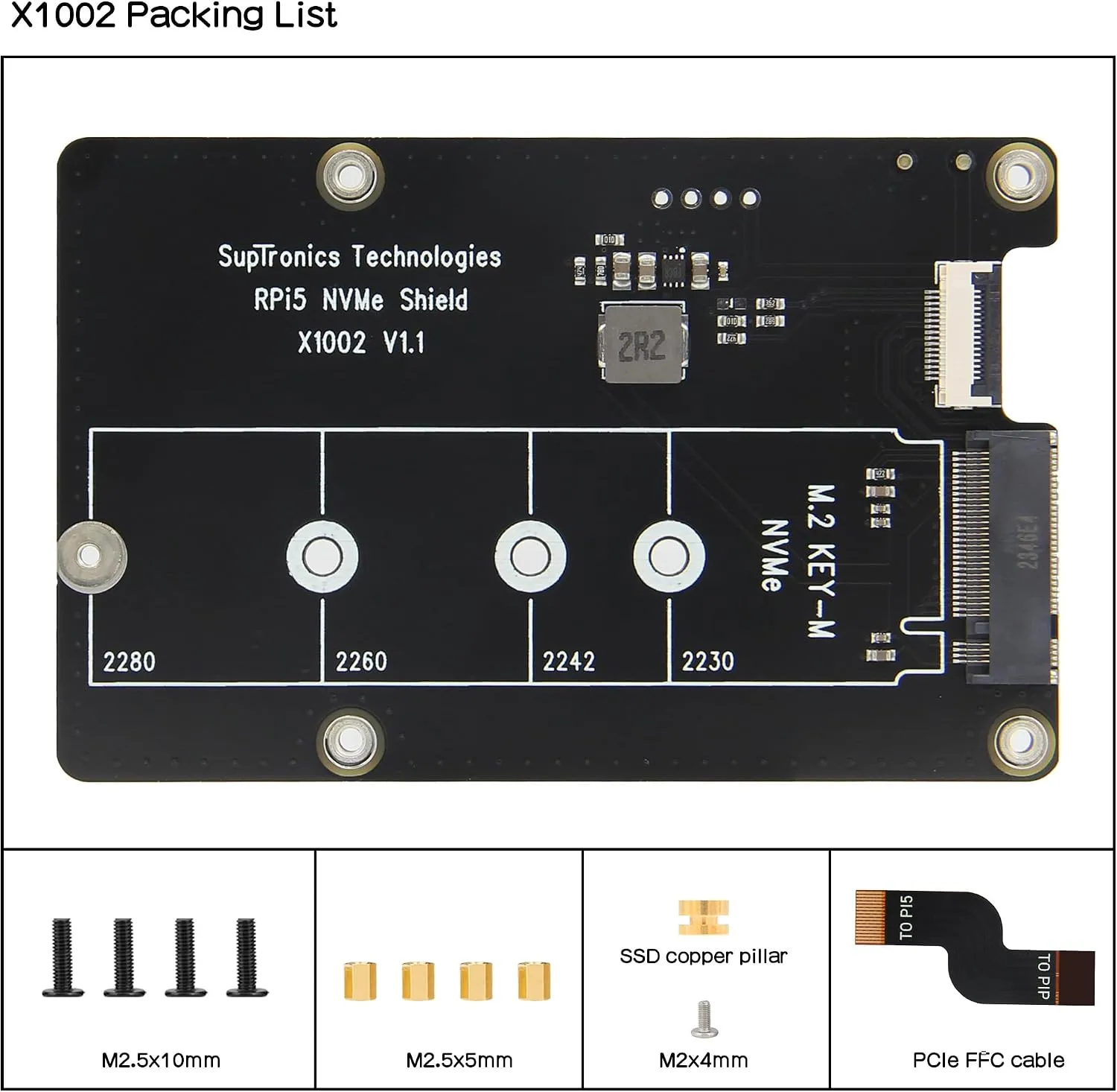

Included with the X1002:
- 4× M2.5 × 10 mm screws
- 4× M2.5 × 5 mm female–female standoffs
- 4x M2.5 directly soldered to PCB
I originally designed this as a compact travel case. And this is the Geekworm X1002 version of it
