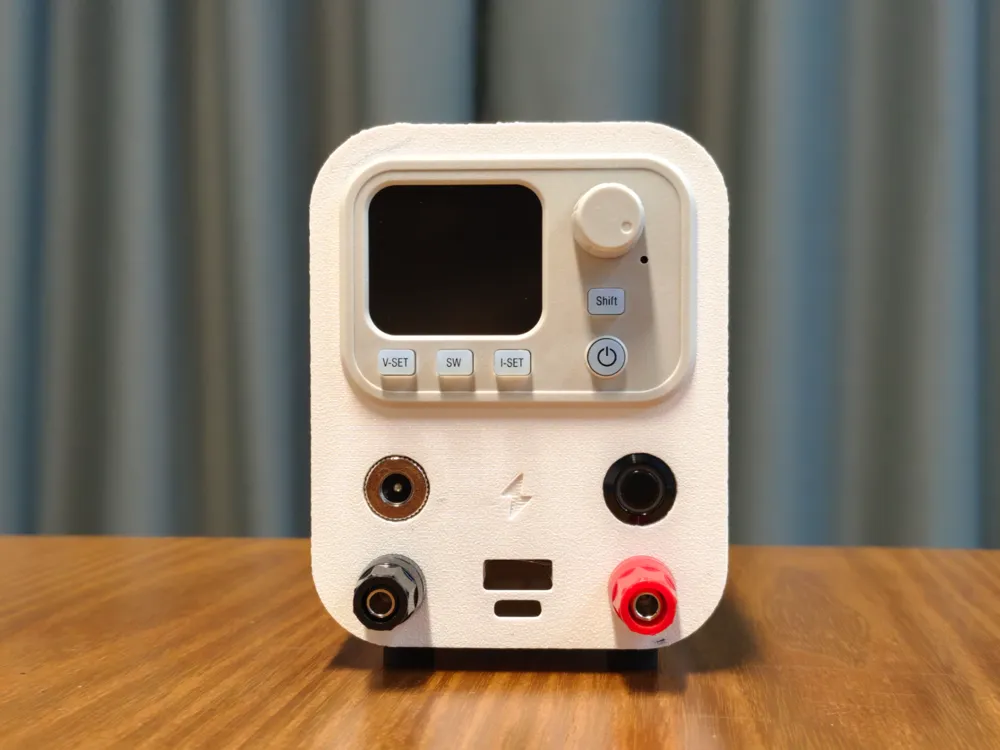

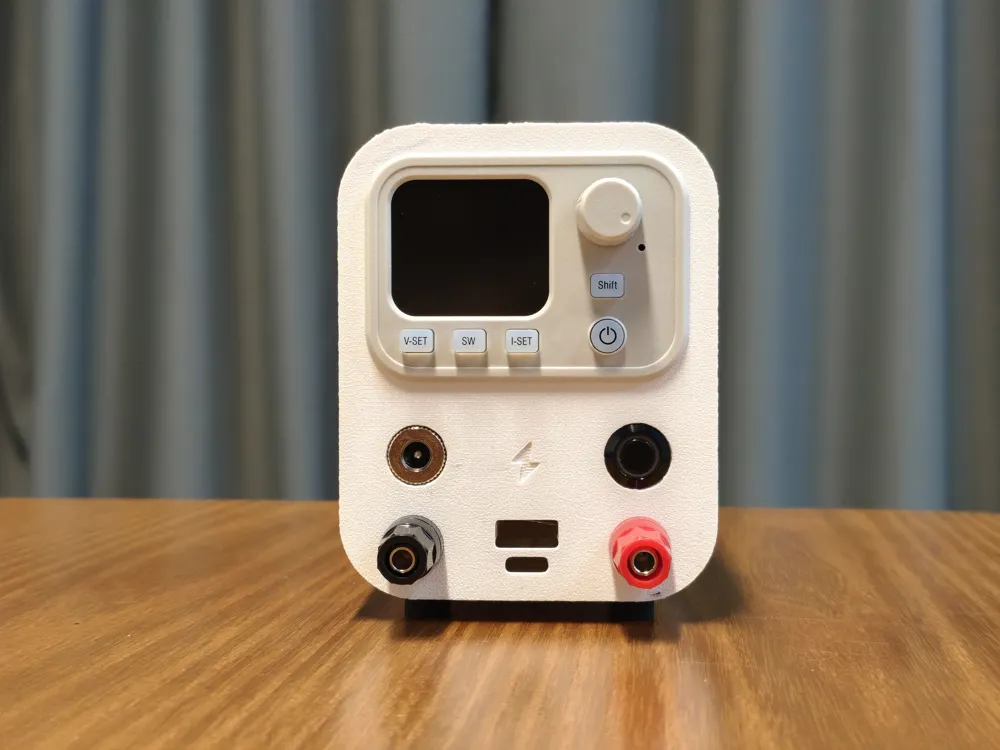

Yixin Adjustable Power Supply Case xy6509w Working Power Supply 3518 Fast Charging Module Desk Ornament
Print Profile(1)
Description
Applicable meter head: Yixin xy6509w Desk ornament. Input and output ports feature a countersunk design
Note: Not for commercial use without permission
BOM list:
Meter head xy6509w = 1 piece
M3*8 self-tapping countersunk screws = 4 pieces
M3*15 countersunk screws with nuts = 4 pieces (for rear exhaust fan)
XH2.54 one-to-two wire = 1 piece (for exhaust fan)
4010 fan = 1 piece
Front output terminal
All-copper DC5525 socket = 2 pieces (1 for input, 1 for output)
3518 fast charging module = 1 piece (wire-welded type)
12MM hole switch = 1 piece (for 3518 module power supply switch)
Rocker switch = 1 piece KCD1-104
M4 banana sockets = 1 pair
TYPEC to DC5525 = 1 piece (decoys 19.5V, can be used for fast charger power supply)
