🚀 Portable Shower / Water Pump Holder – Perfect for Campers & Caravans!

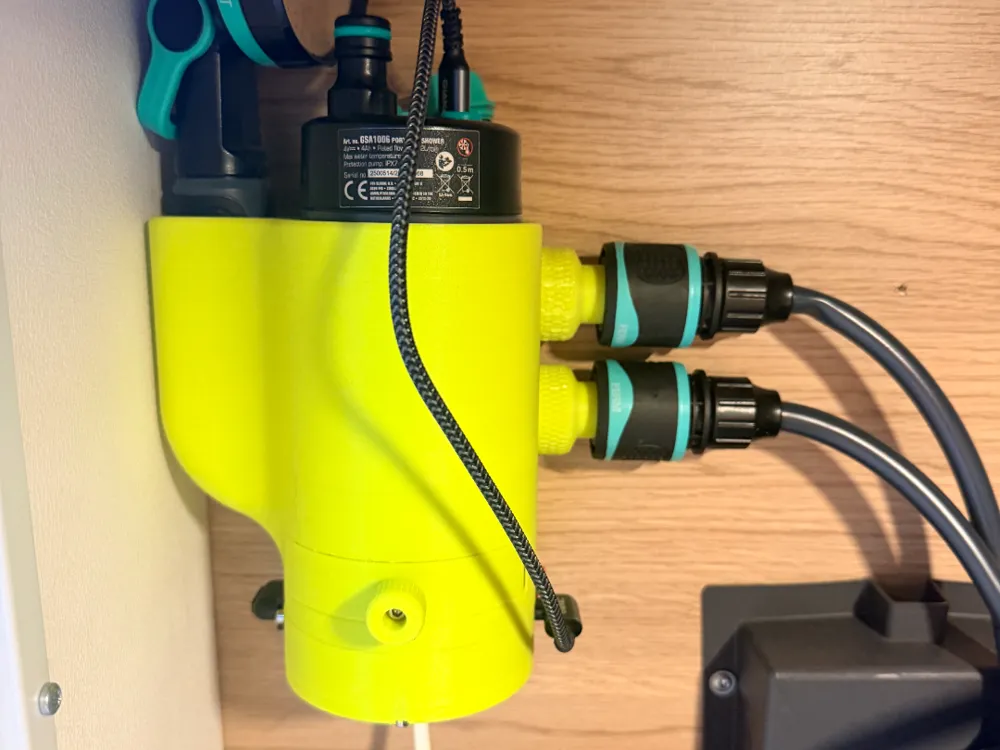

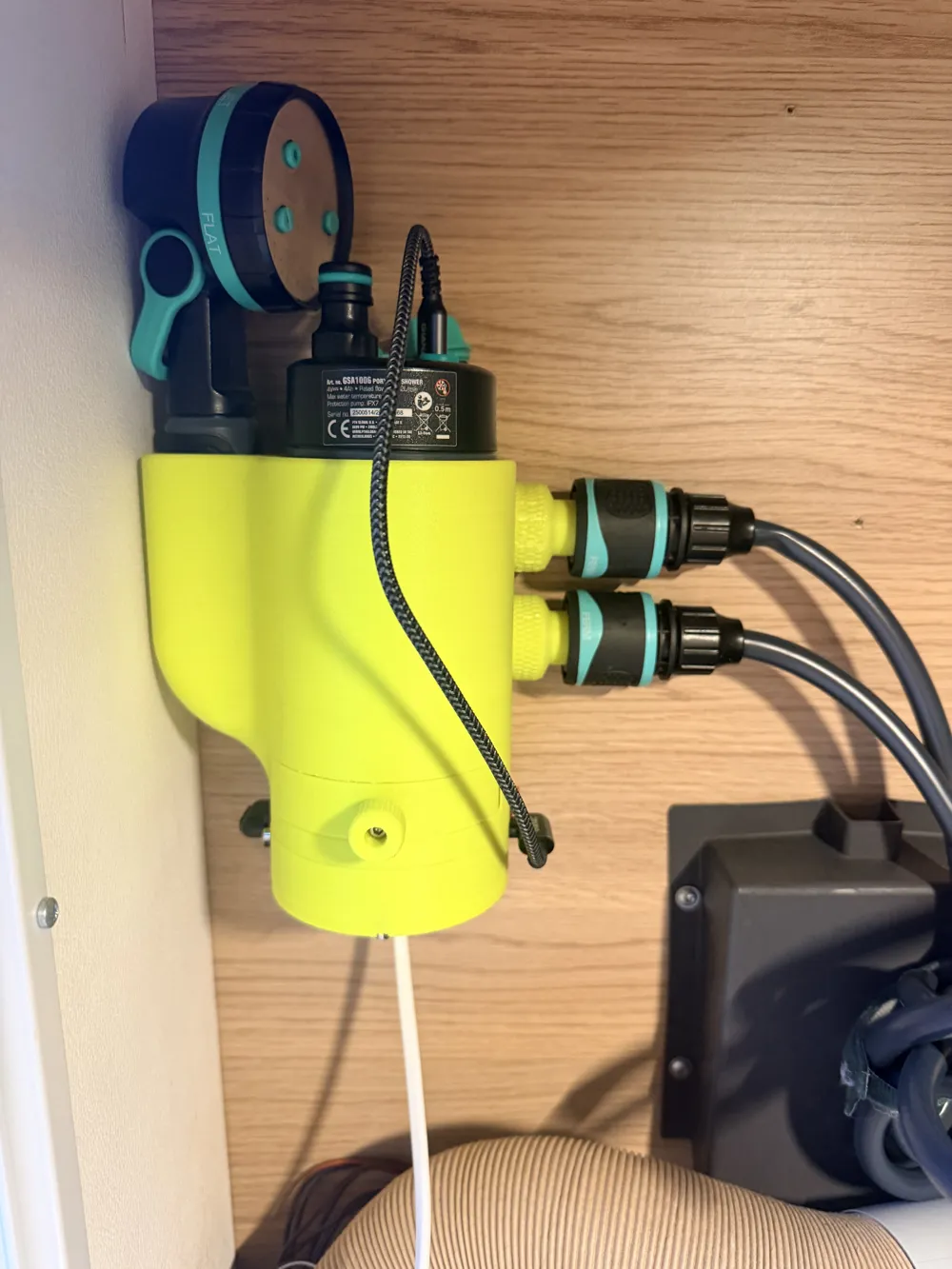

Upgrade your camping setup with this smart, robust, and completely removable water pump holder! Designed specifically for campers, campervans, and caravans, this holder ensures your portable shower or water pump stays securely in place while remaining incredibly easy to detach when needed.

Key Features:
✅ Slide-on Backplate: Mount the backplate to the wall once, and easily slide the pump holder off for winter storage or maintenance.

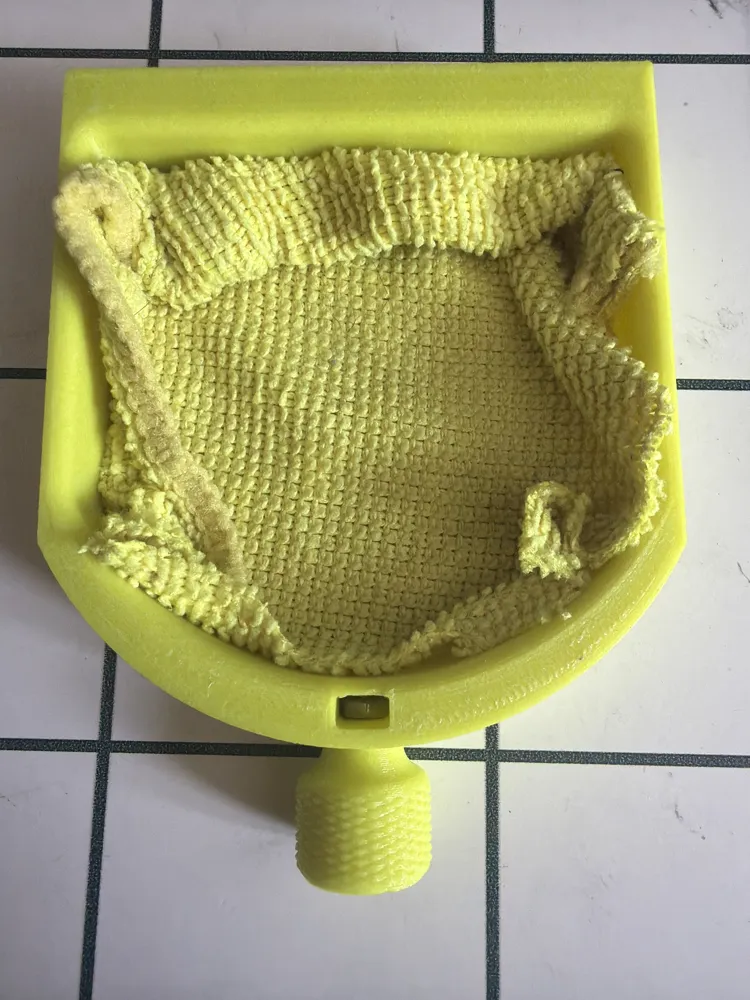

✅ Integrated Drip Tray: Features a magnetic slide-in drip tray to catch any water residue and keep your vehicle dry.

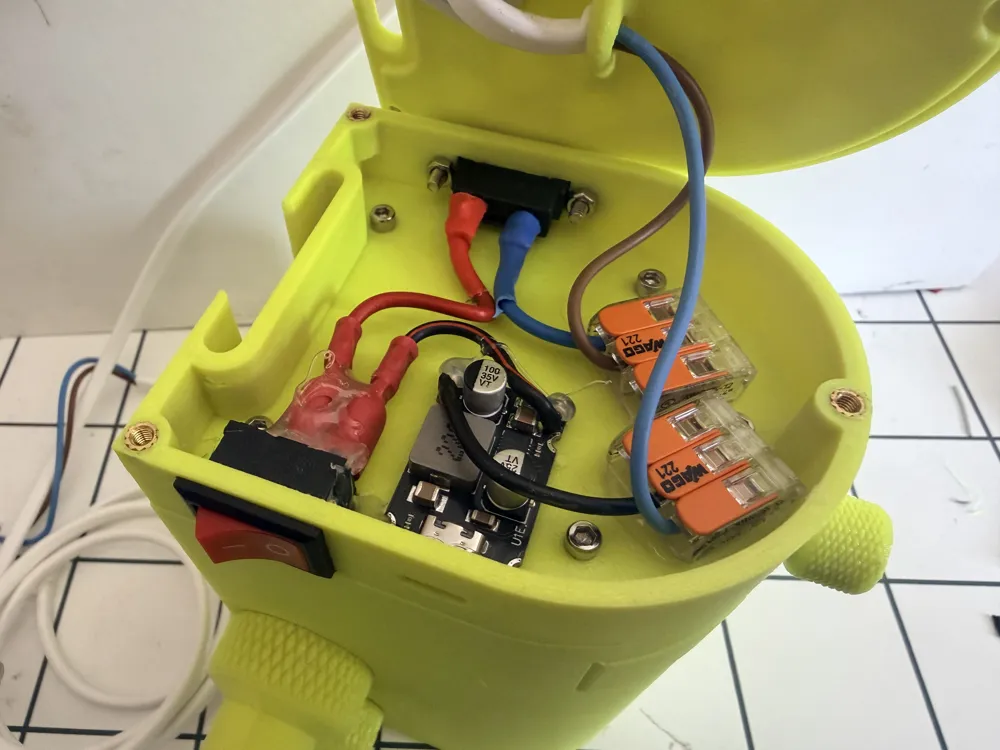

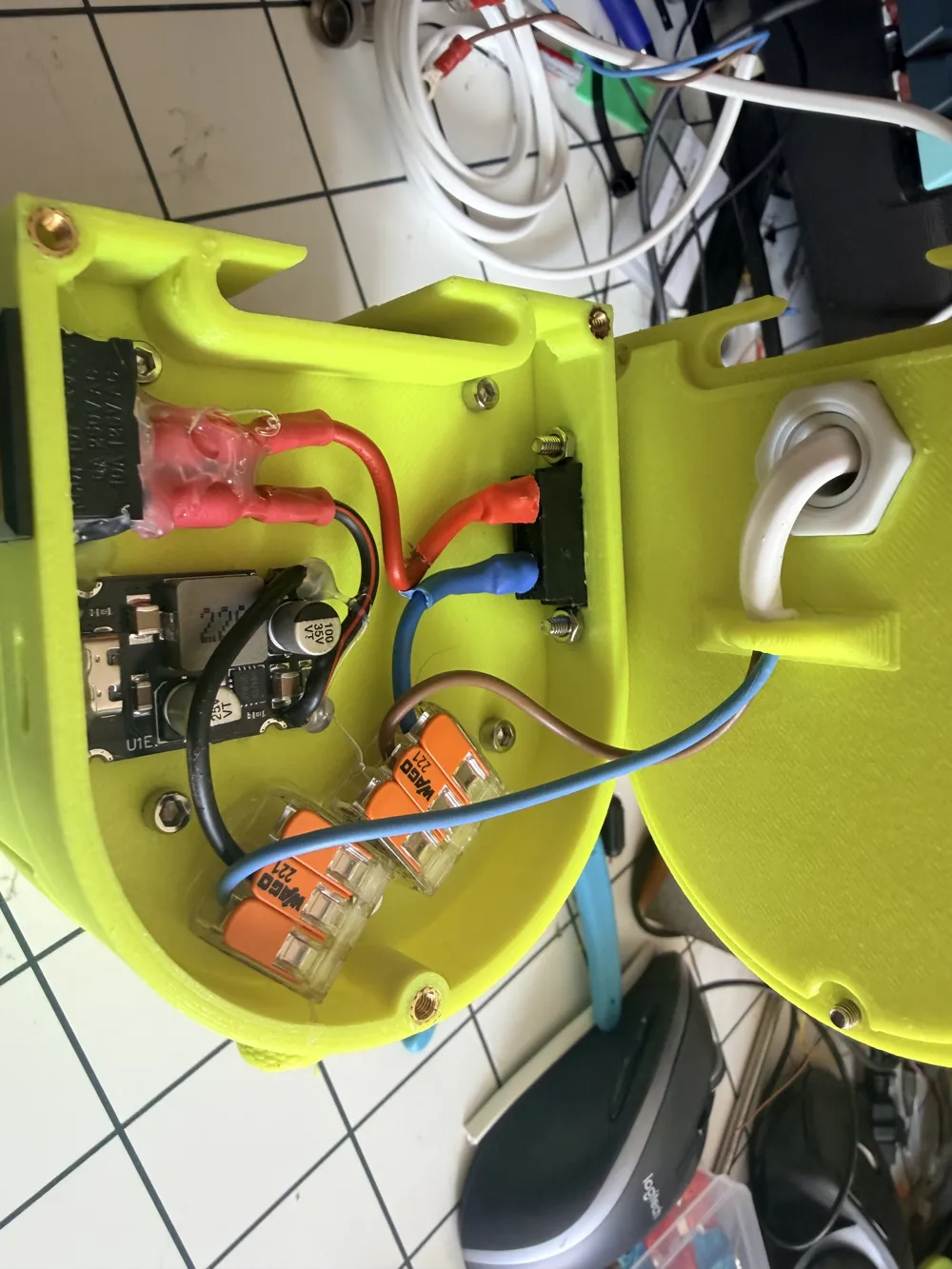

✅ Built-in Electronics Box: Safely houses a PD 65W USB-C fast-charging module, KCD1 switch, and an ATC fuse holder for maximum safety.
✅ Heavy-Duty Design: Uses counter-threaded garden hose adapters and heat inserts for commercial-grade durability.

⚡ ENJOYING THIS DESIGN? PLEASE CONSIDER A BOOST! ⚡
We spent countless hours designing this pump holder and writing a clean, step-by-step PDF manual to give you the best making experience possible. As an independent creator, your support means everything! If this model upgrades your caravan setup, throwing a MakerWorld BOOST our way would mean the world to us! ⭐⭐⭐⭐⭐

⚙️ PRINT SETTINGS & MATERIAL RECOMMENDATIONS

⚠️ IMPORTANT TEMPERATURE WARNING:
Do NOT use standard PLA! Campers and caravans can reach internal temperatures well over 50°C/60°C in the summer. Standard PLA will warp and deform under these conditions.

Recommended Materials:
• PETG (Highly Recommended): Excellent temperature resistance (up to 75°C-80°C), highly water-resistant, durable, and easy to print.
• ASA / ABS: Perfect alternatives if you require even higher heat deflection and full UV protection.

Slicer Settings:
• Supports: ENABLED. Several parts feature internal cavities, overhangs, and counter-threads.
• Support Type: Tree (Organic) supports are highly recommended for the main housing and electrical tray to ensure easy removal.
• Infill: 20% to 30% (Gyroid or Grid) for optimal structural strength.
• Wall Loops / Perimeters: 3 to 4 walls for maximum durability and water tightness.

🛠️ ASSEMBLY & HARDWARE REQUIRED

For a complete step-by-step guide, please download the official "Assembly Manual PDF" attached to this model.

Hardware Checklist:

• 1x USB-C PD 65W Step-Down Module

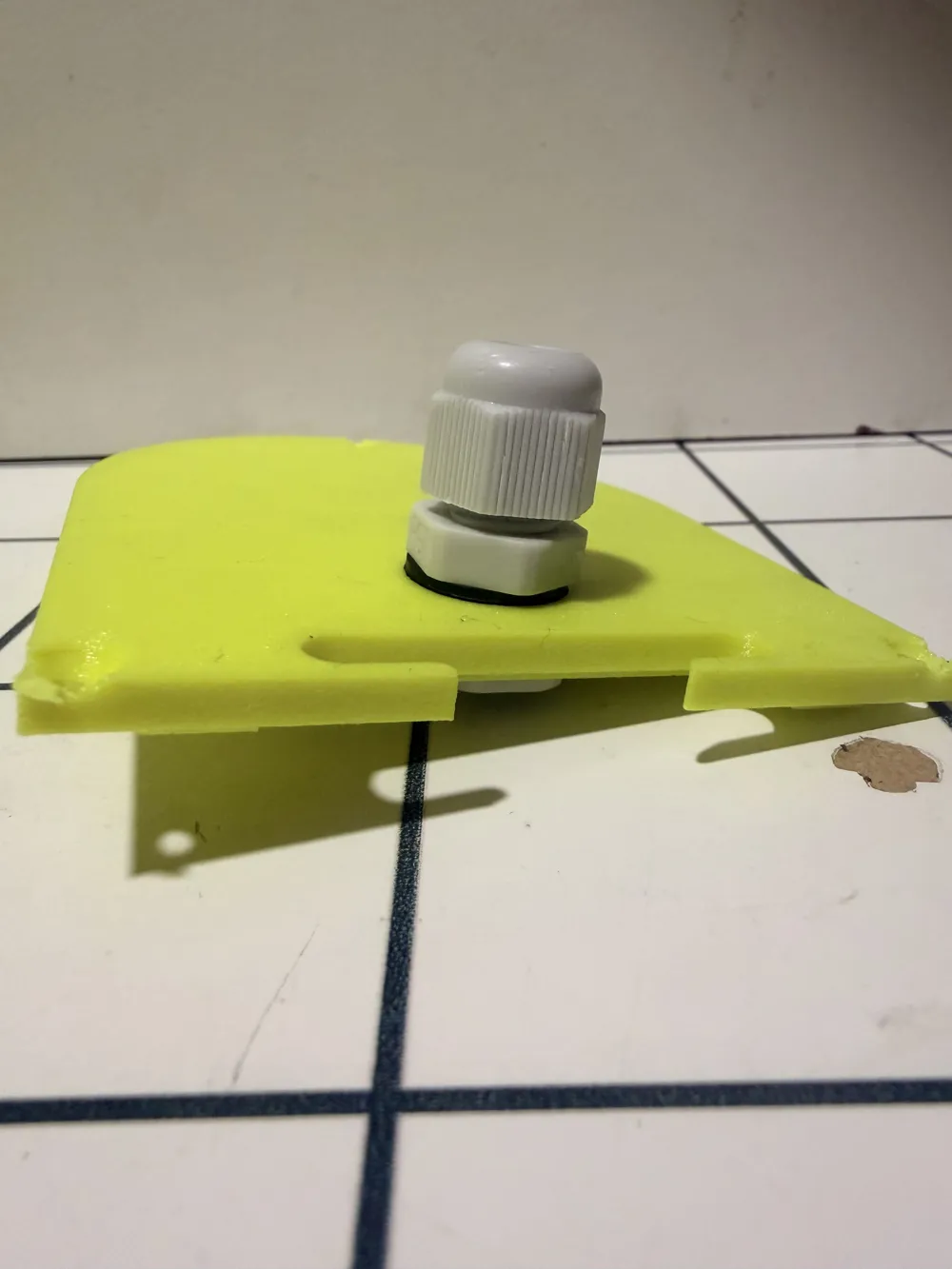

• 1x KCD1 Rocker Switch & 1x PG7 Cable Gland
• 1x ATC Blade Fuse Holder & Fuse
• 2x Wago 221 Connectors
• 10x Neodymium Magnets (6x3mm)
• 8X M3 Heat Inserts,
• 2X m3 8mm bolt
• 10X m3 5 or 6 mm flathead bolt

• 1X m3 12mm flathead bolt
• 3X m3 nut
