Innioasis G1 & G3 Music Player Protective Case

Print Profile(1)

All
H2D
P1S
X1E
X1
A2L
A1
H2S
P2S
H2C
X2D
X1 Carbon
P1P
H2D Pro

0.16mm layer, 4 walls, 20% infill - TPU & PVA
0.16mm layer, 4 walls, 20% infill - TPU & PVA
Designer
35.1 h
4 plates

Open in Bambu Studio
Boost
1
2
0
0
1
1
Released

Bill of Materials

Bambu Filaments
Select all
Clear (66400) / Filament with spool / 0.5 kg
PVA
x1
White (53100) / Filament with spool / 1 kg
Blue (51600) / Filament with spool / 1 kg

Description

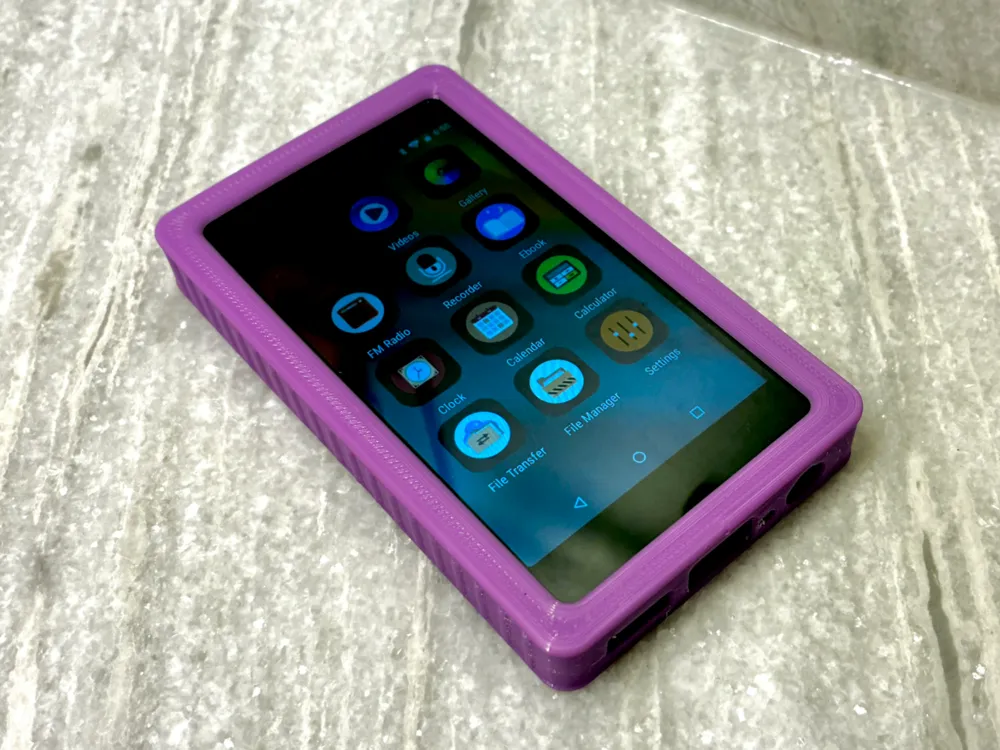

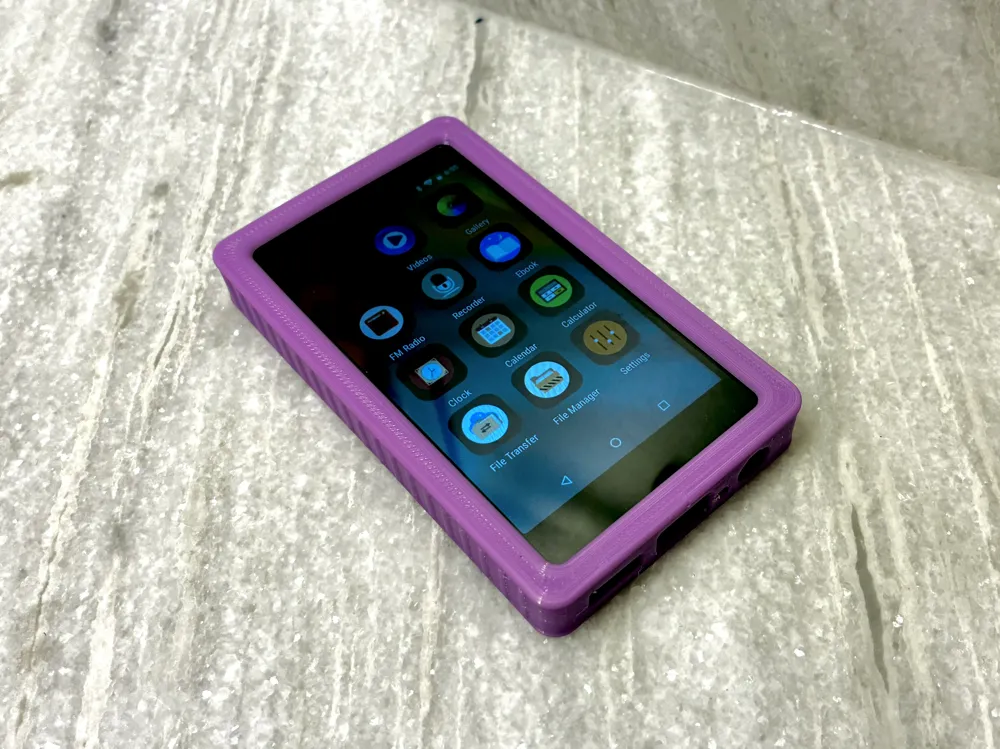

Protect your G1 or G3 music player and add some style!  I found a few other cases out there but none offered the level of protection I wanted for my 7 year old haha.  These Innioasis music players are great for kids because they can be locked down and function purely as a music player with access to Tidal, Apple Music, or Spotify.

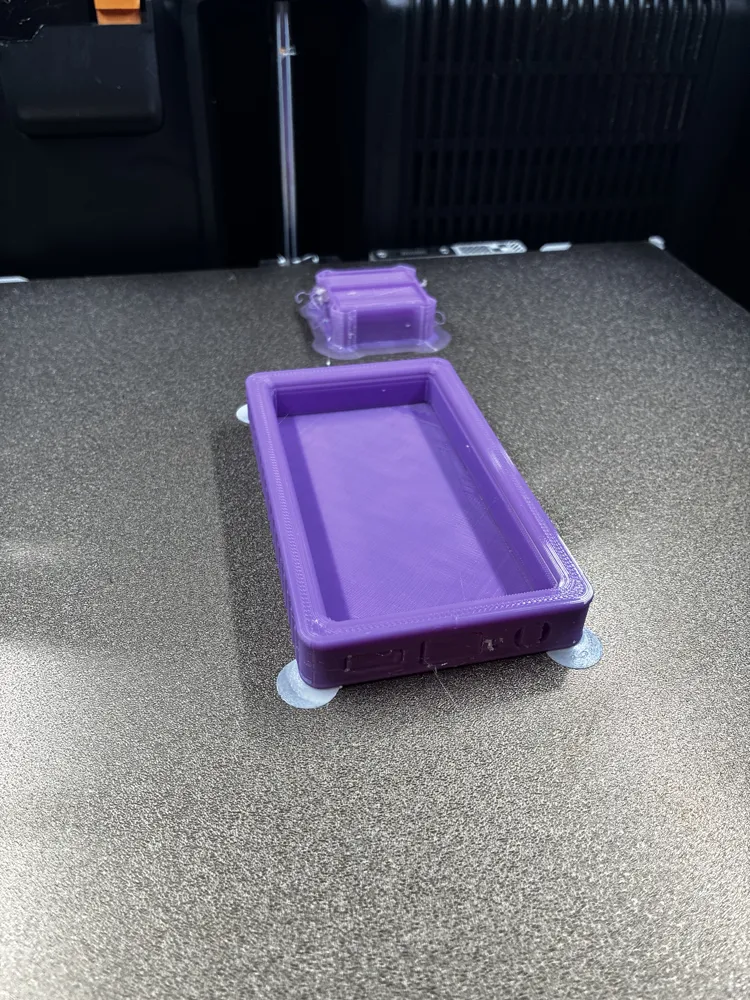

This model is designed to be printed with 95A TPU and PVA interface layer, a dual-nozzle printer (H2D, H2C, X2D) is highly reccomended but not 100% required if you're using TPU for AMS and can have the printer swap within a single nozzle, you'll just have a lot of purge waste.  If you don't have PVA you'll probably have to play with the support settings a bit to make sure they release.  The button cutouts actually print fairly well without supports but I haven't tried printing without supports since making the front lip bigger.

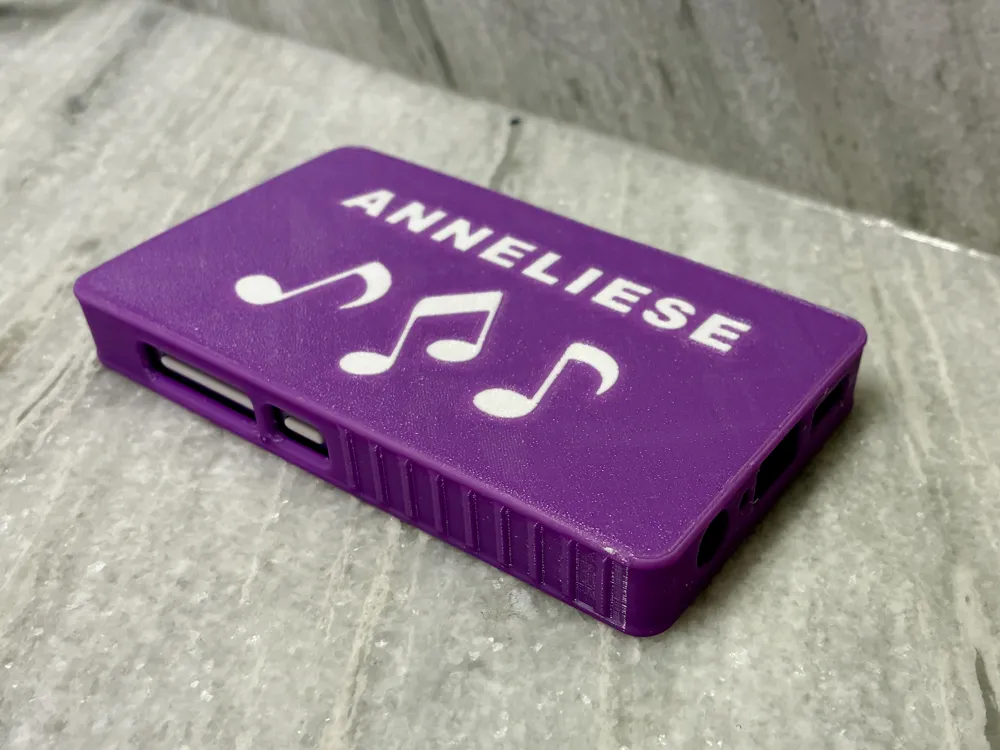

If printing one of the versions with the name and/or music notes, you'll need to have at least one color of TPU as the TPU for AMS (68D).  My setup was 95A fed driectly into to the right nozzle, and then I let the AMS swap between White TPU for AMS and the PVA on the left nozzle.  Use studio to update the “YOUR NAME" text to whatever you want it to say.

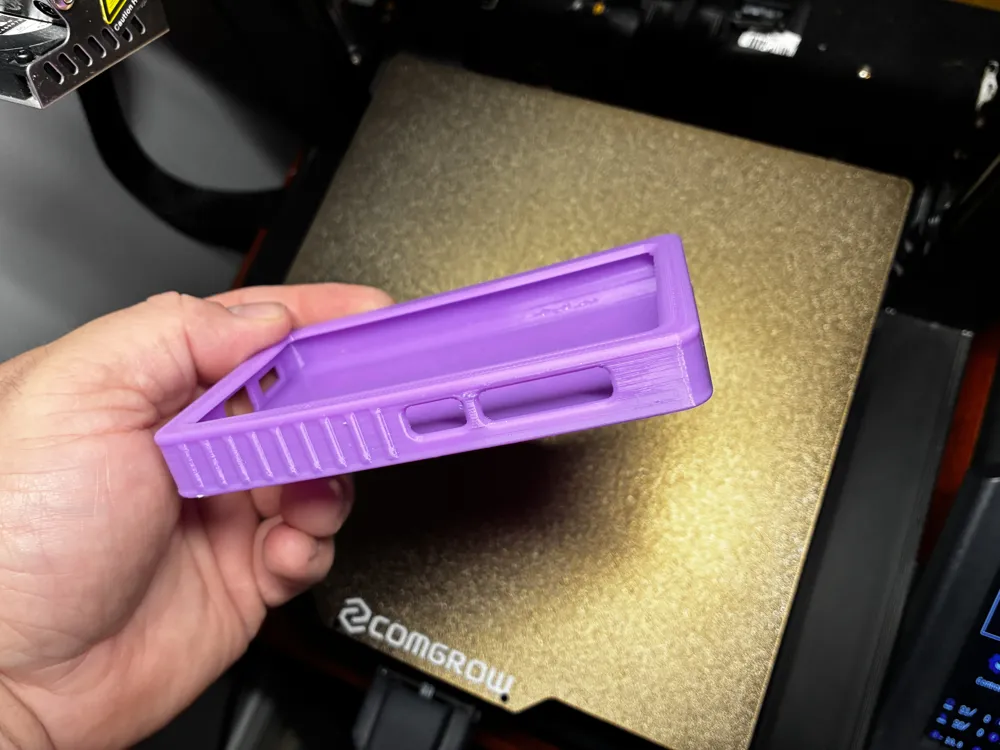

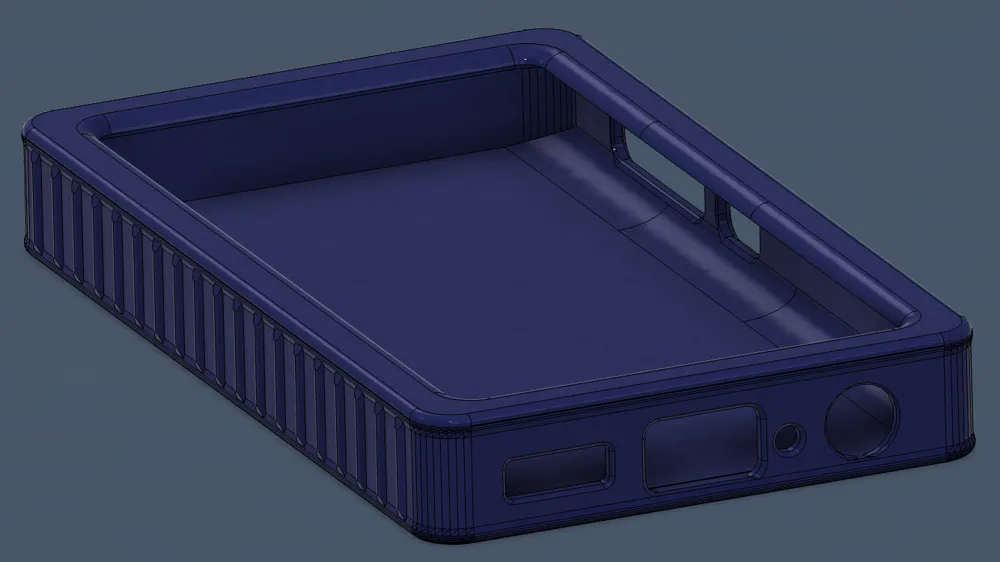

There's a few versions in the file - Plain, With Grips, Name no grips, Name with grips.  The grips are subtle ribs just on the sides that help with grip, I really like them but included an option without in case you prefer the smooth edges.
