BcS Umbra SBCAR
Print Profile(1)
Bill of Materials
Description

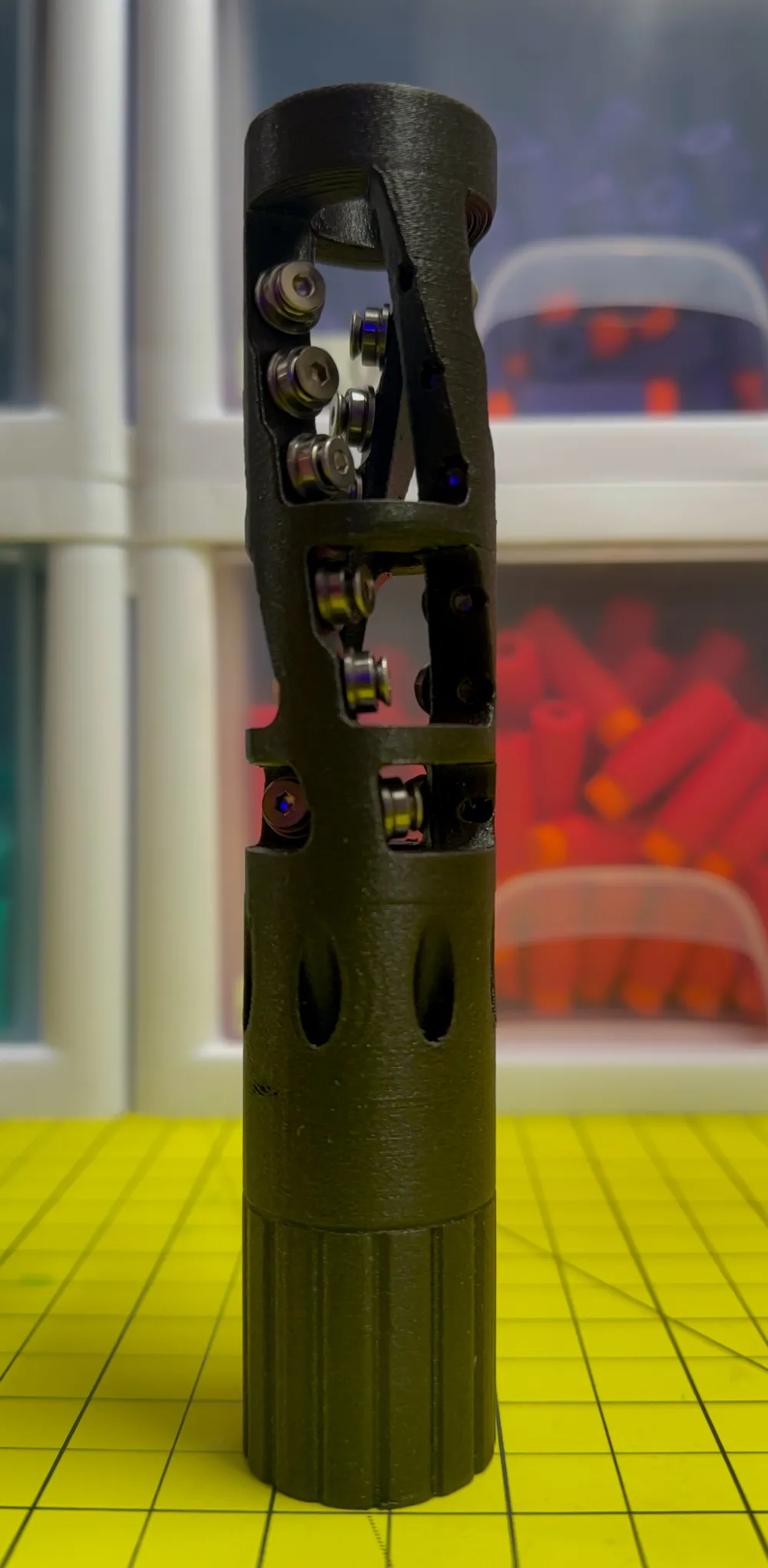

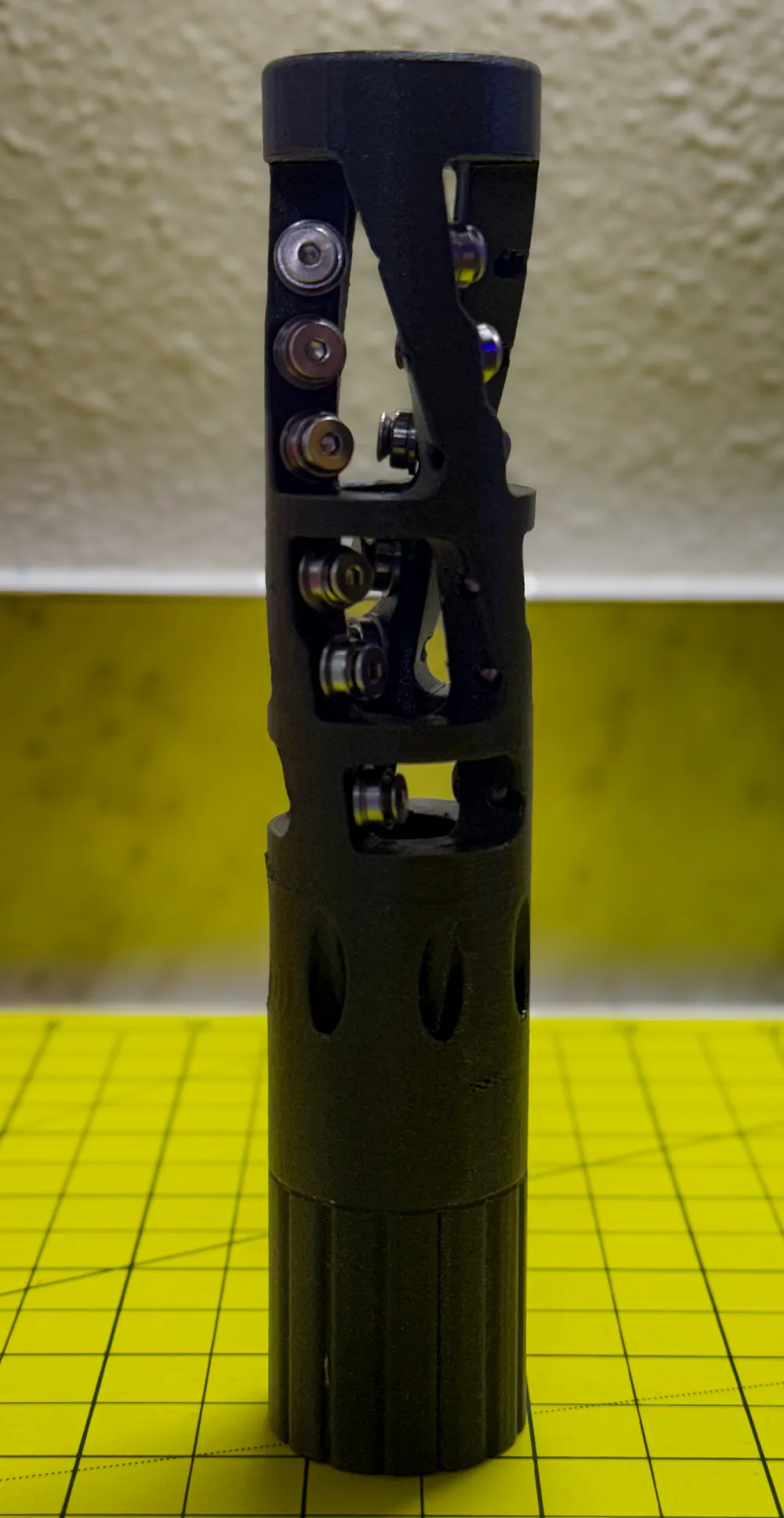

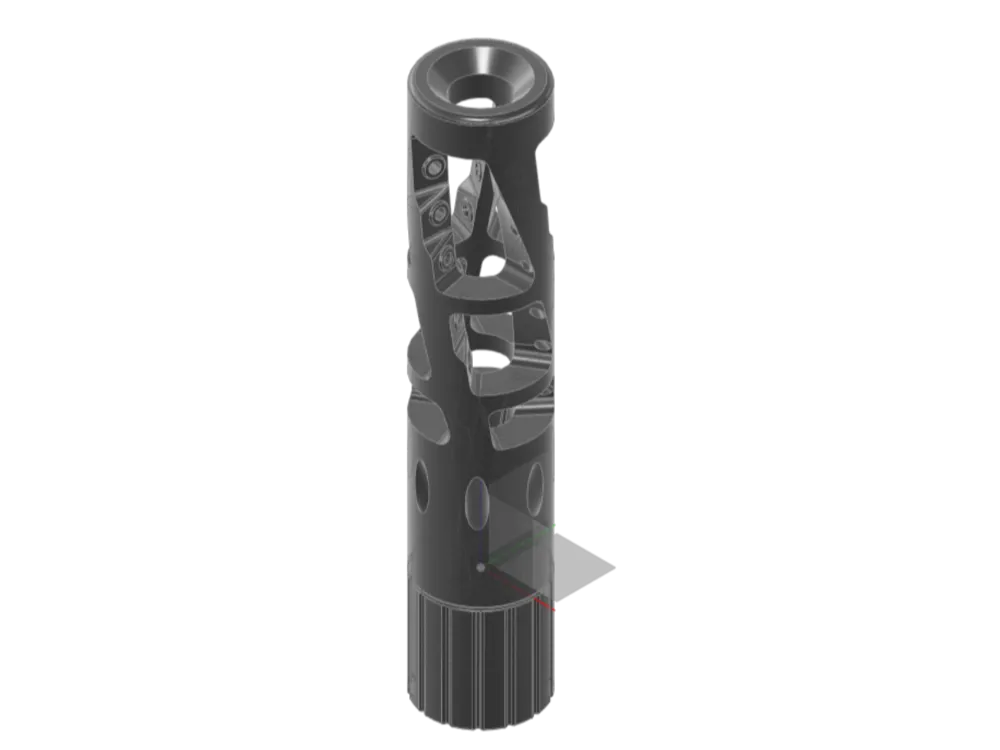

Collet free modified version of Umoya SuperBCAR from WaFfLe and ZaC
I tried my hand at polishing up a few corners here and there, and tried to match the aesthetics of Rexfires Axiom.
This is strictly only friction mounted, so you will need:
Note this is a tight fit with a 16mm Barrel, but it is supposed to be :)
- 18 x F683ZZ Bearings
- 2x - 016 O-Rings
- 18 x M3-8mm or M3-10mm Flat Socket Cap Screws (Ultra Thin Super Flat Screws work great as well)
- (Alt standard socket cap screws with M3x8 or M3x10 will work if you don't have flat heads.)
I recommend printing with a brim, and tree/organic supports, with top or bottom orientation, base on the bottom seems to work the best from my test prints.
This remix is based on
