X2D Lower Z-Axis Bearing Cover

🧩 Z-Axis Covers for the Bambu Lab X2D

IMPORTANT NOTE:

As thread diameters can vary between batches, there are 3 print plates with scaling factors of 100%, 102%, and 105%. Please measure your diameter beforehand and match it with the print plates to select the optimal one for your printer.

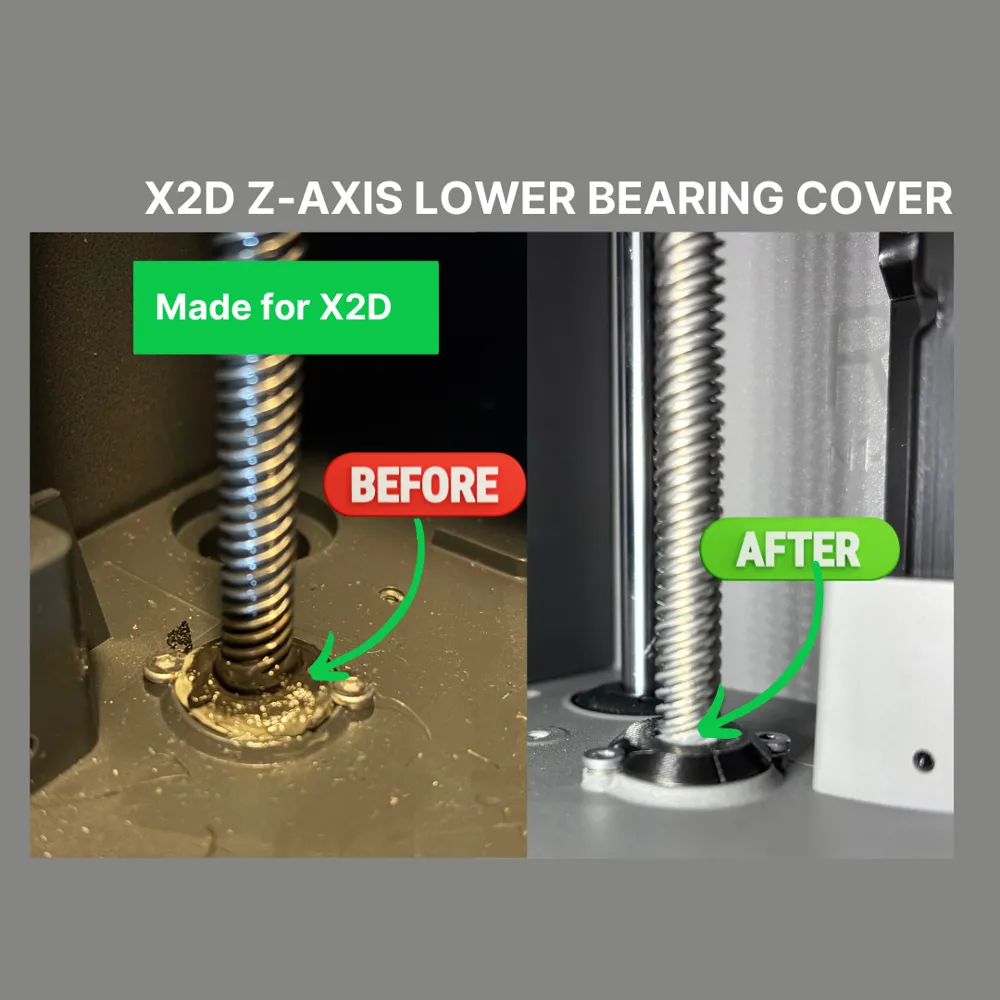

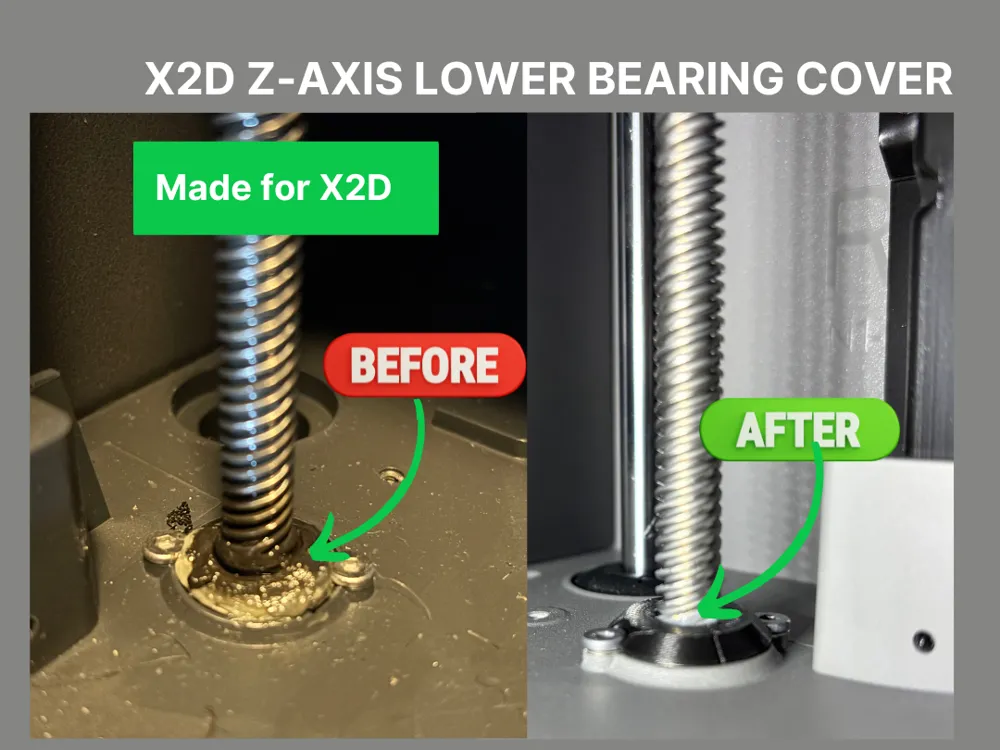

These covers were specifically designed for the Bambu Lab X2D to keep the delicate lower Z-axis bearings permanently clean.
Dust, filament residue, and other particles quickly accumulate there – this simple but effective solution reliably protects the mechanics.

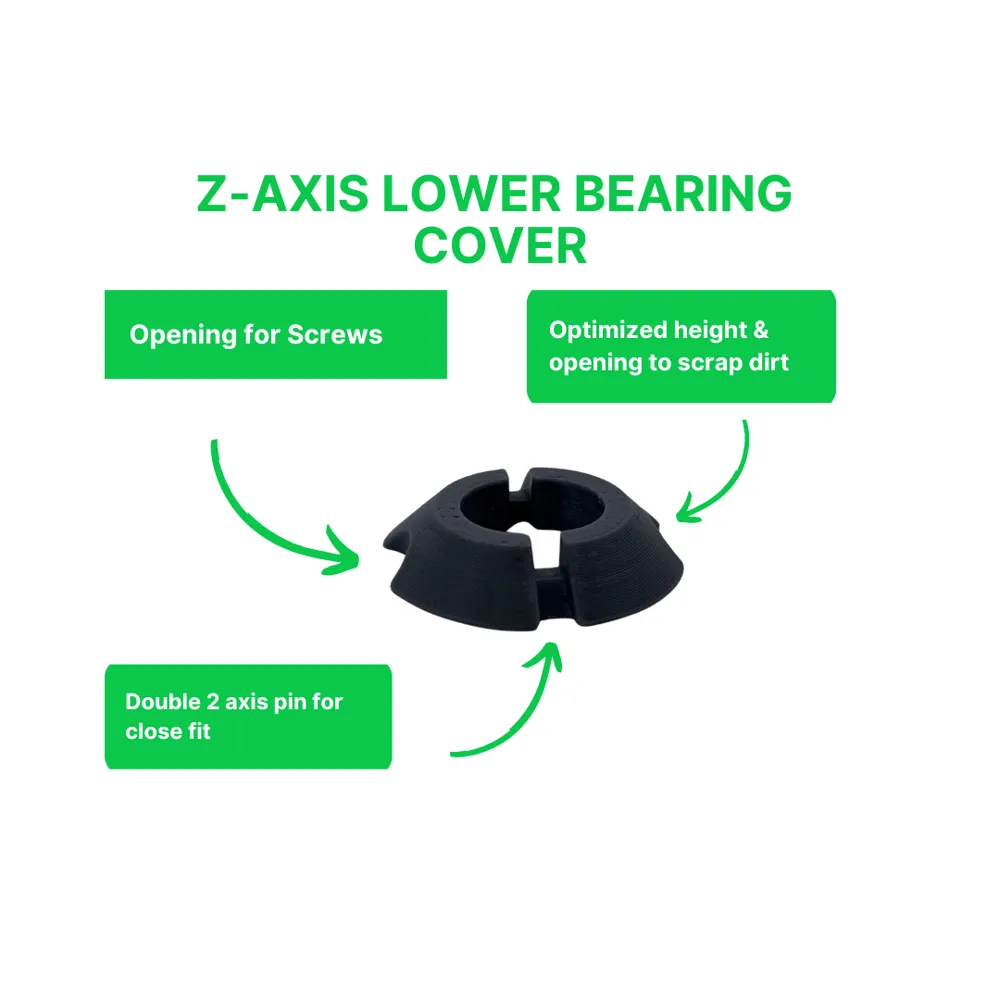

🔧 Advantages & Design Features:

• Effective Protection: Prevents dirt or filament residue from sticking to the lower bearings.
• Easy Maintenance: The covers can be easily lifted or removed to lubricate the Z-spindles.
• Practical Details: Fine notches on the underside facilitate gripping and lifting.
• 100% Compatible: Installation does not affect the operation of the P2S in any way – no loss of freedom of movement, no contact with moving parts.
• This version was precisely designed for the X2D, but also fits the P1 and X1 Series

💡 Note:
If you print with PLA or PETG, occasionally check whether the part deforms due to the higher temperature inside the printer – this will help you avoid later problems.

Installation:

STEP 1:

Place the first part in its designated position

STEP 2:

Slide the second part from above along the Z-axis spindle onto the first

No force is required!

The screw at the back presents a small challenge due to limited finger space, but with a little patience, it can be attached

Also check out my other P2S models:

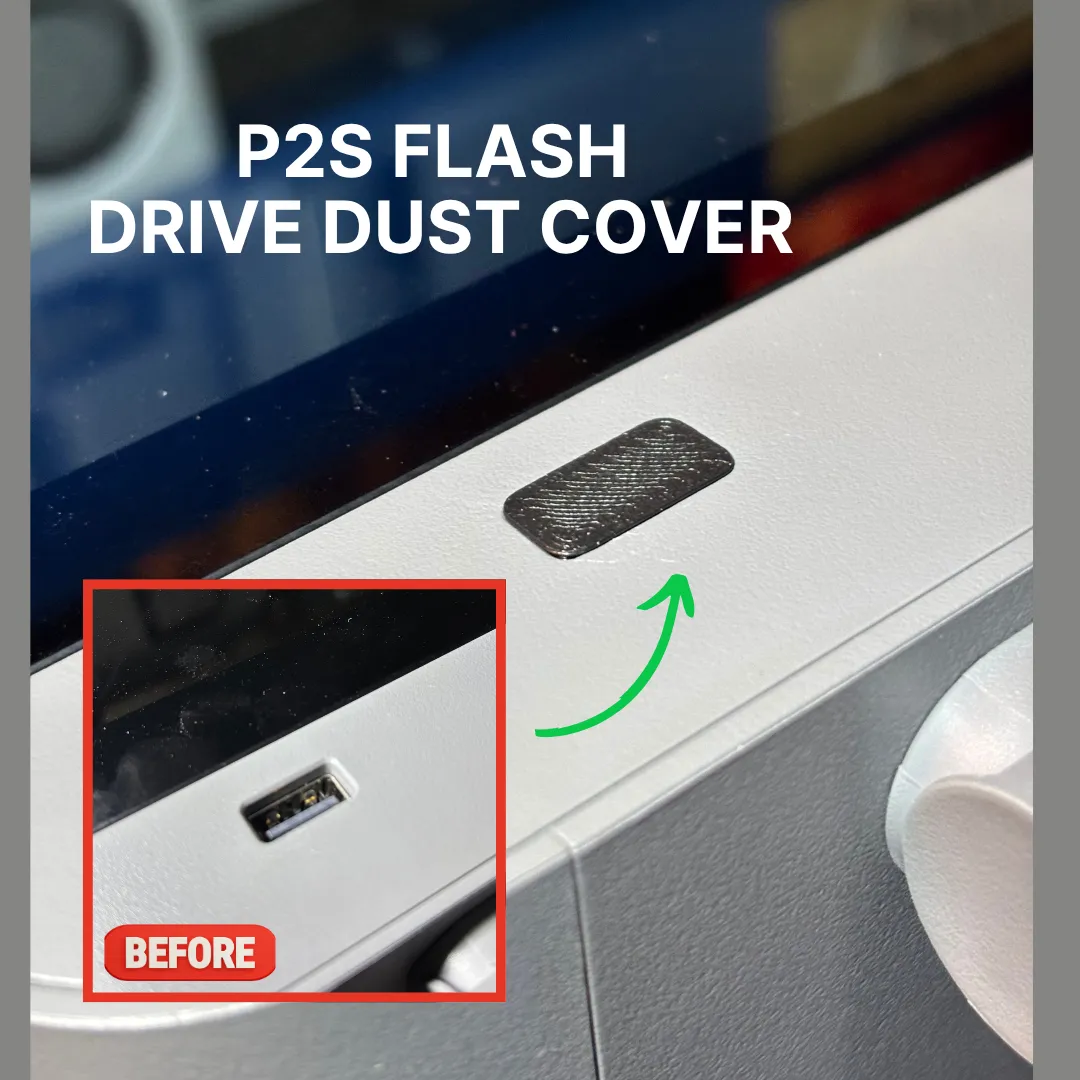

P2S Flash Drive Dust Cover
