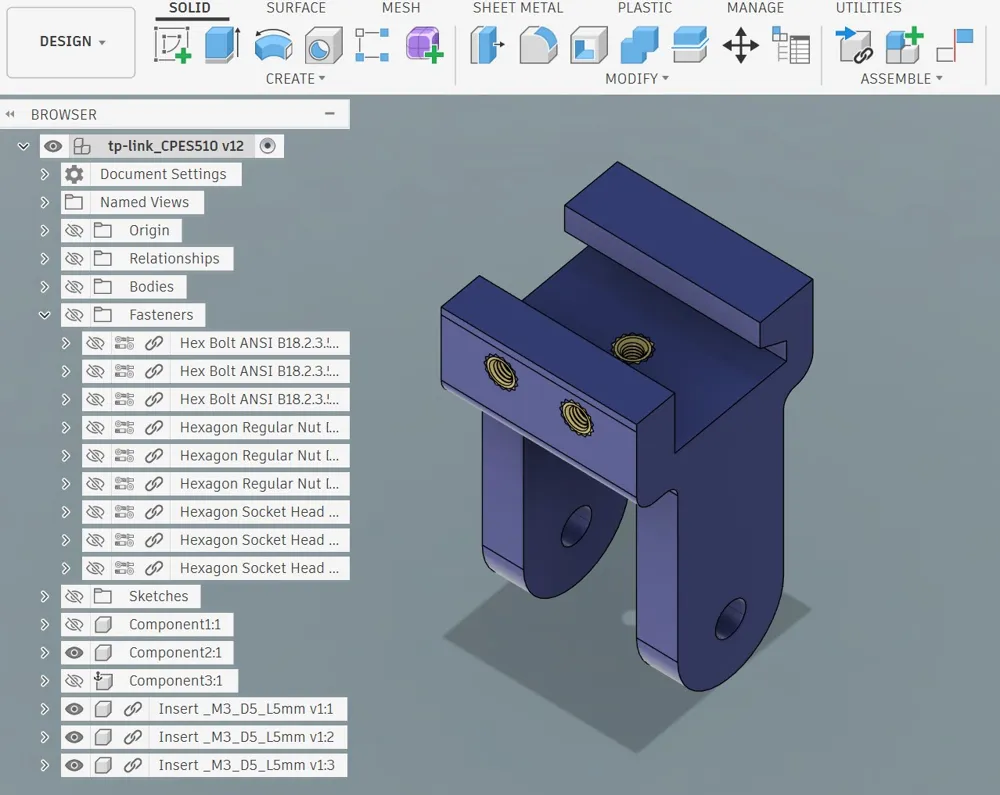

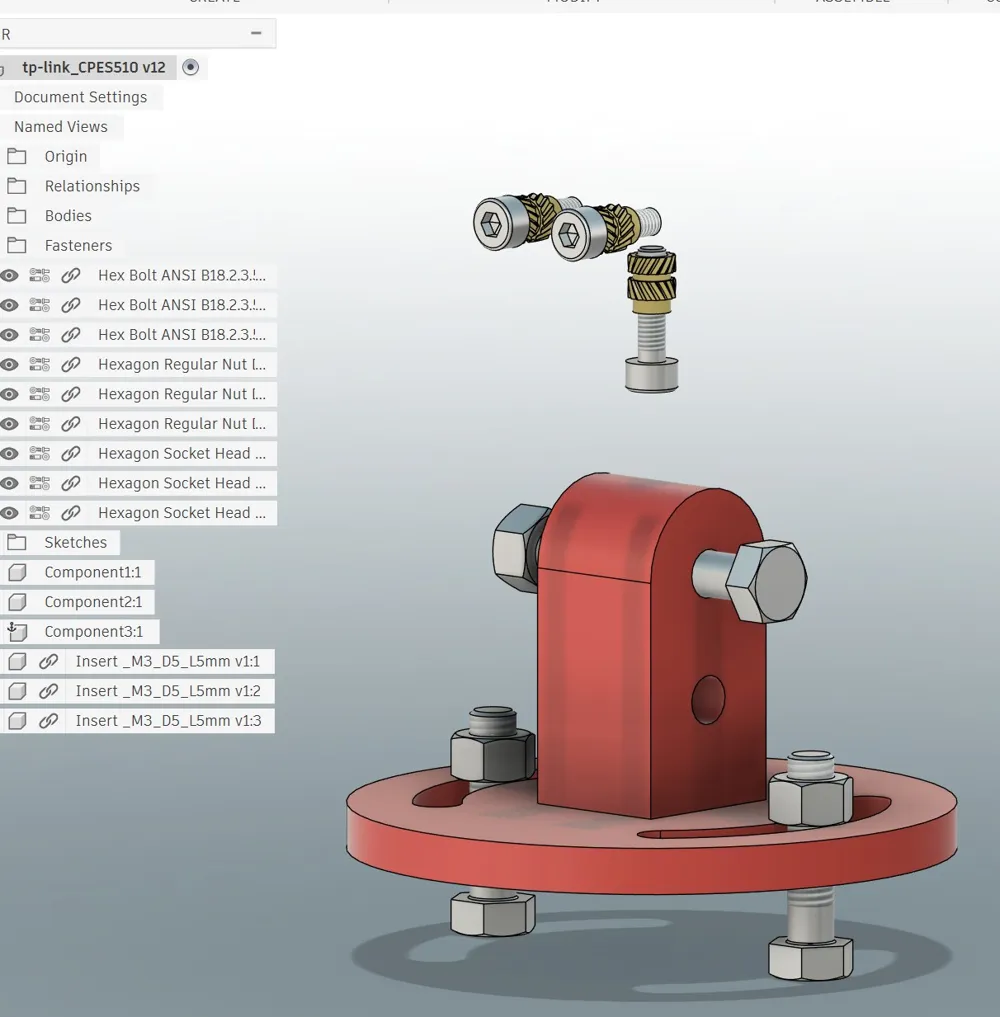

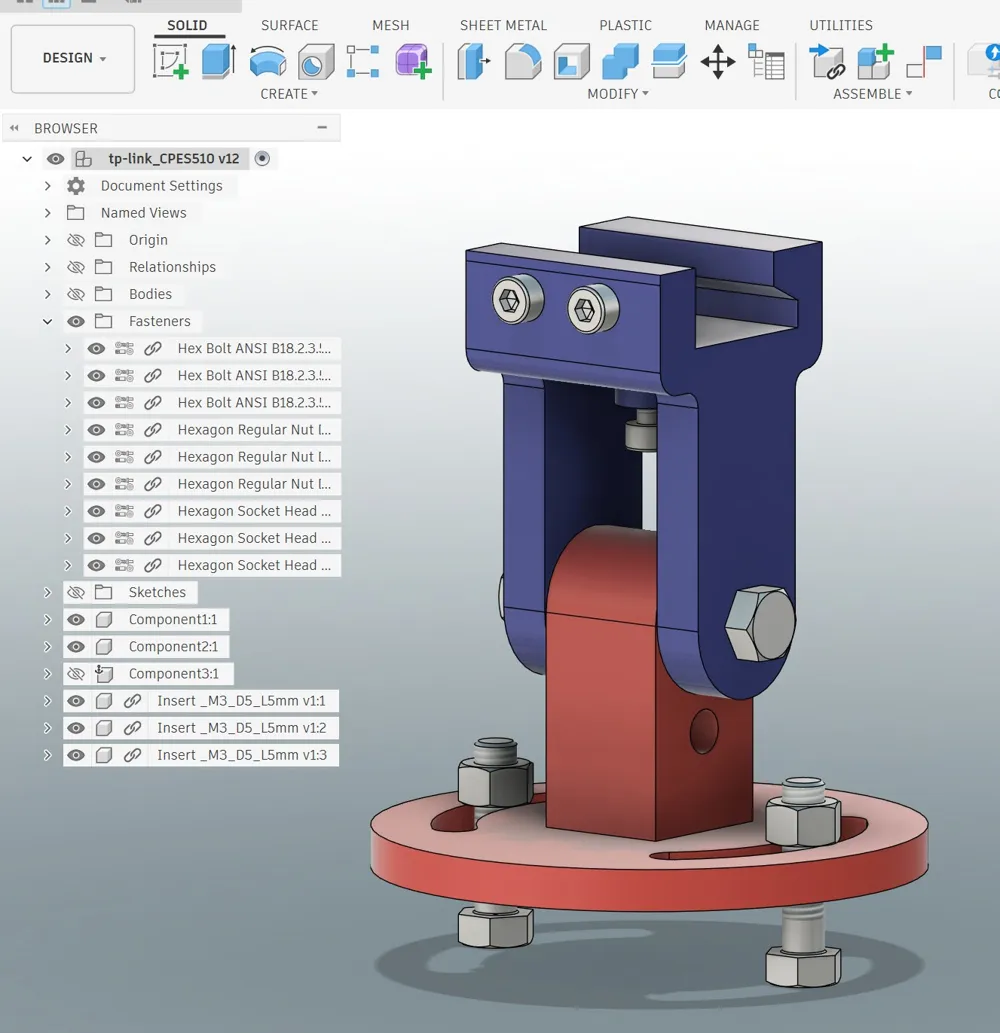

Adjustable Dual-Axis Mounting Bracket for TP-Link CPE510 and CPE210

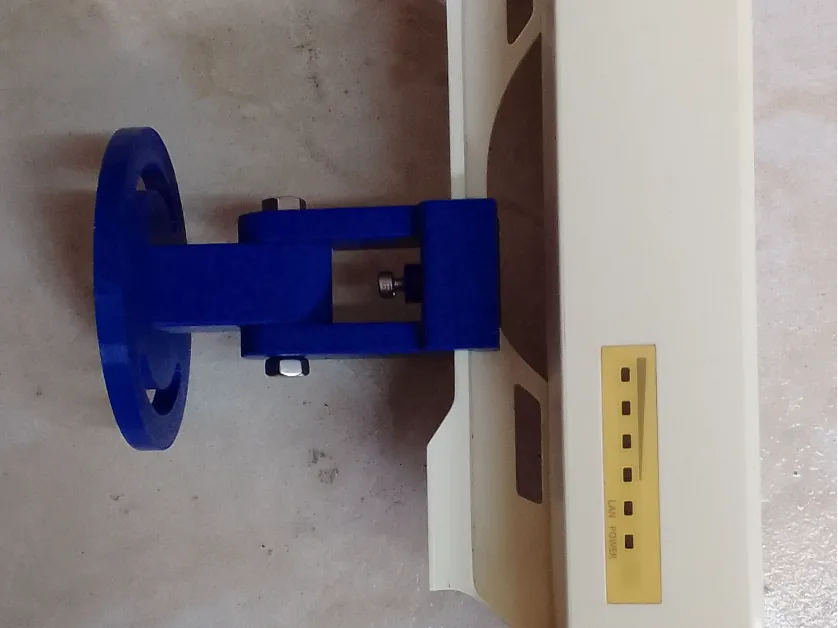

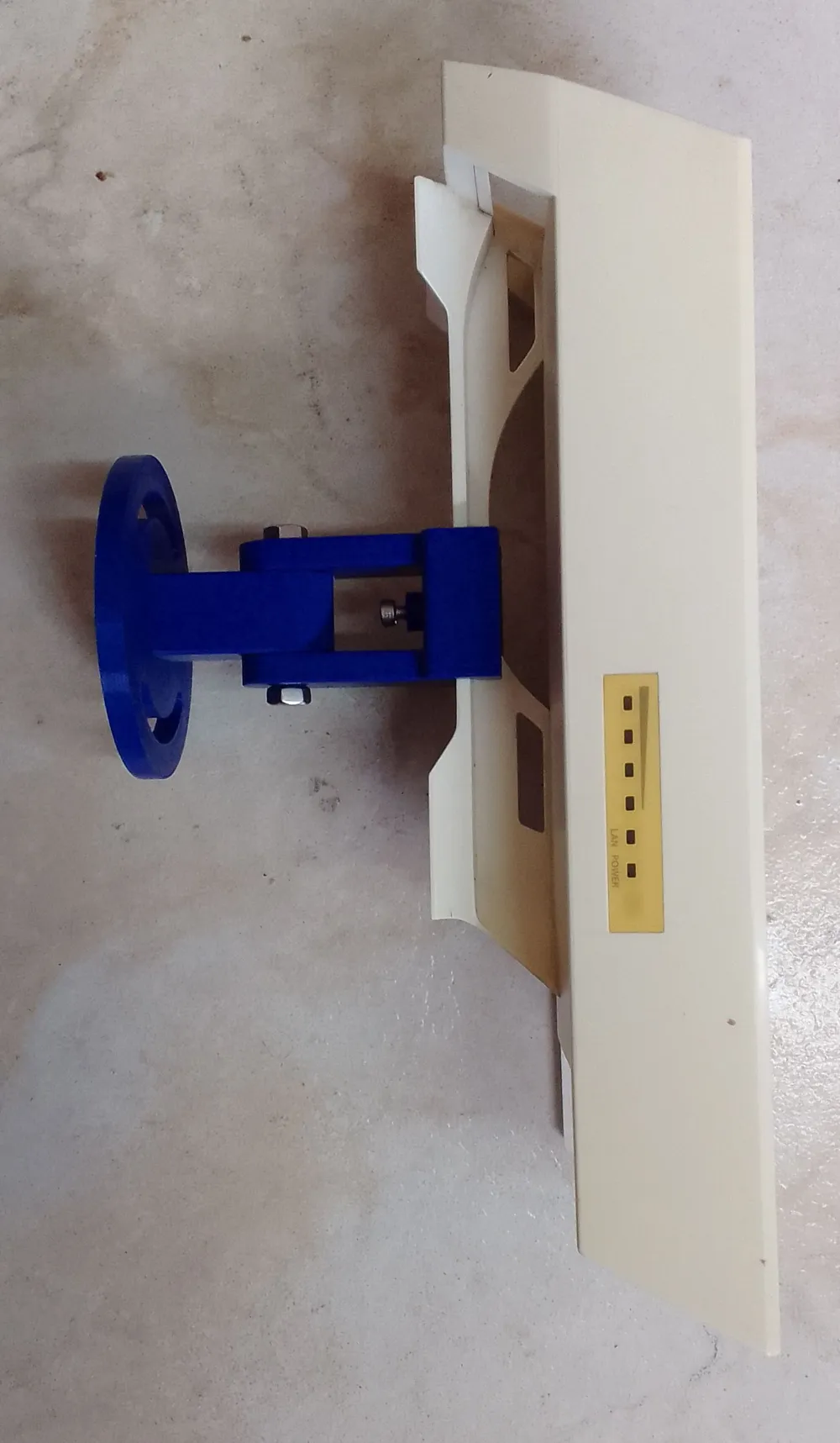

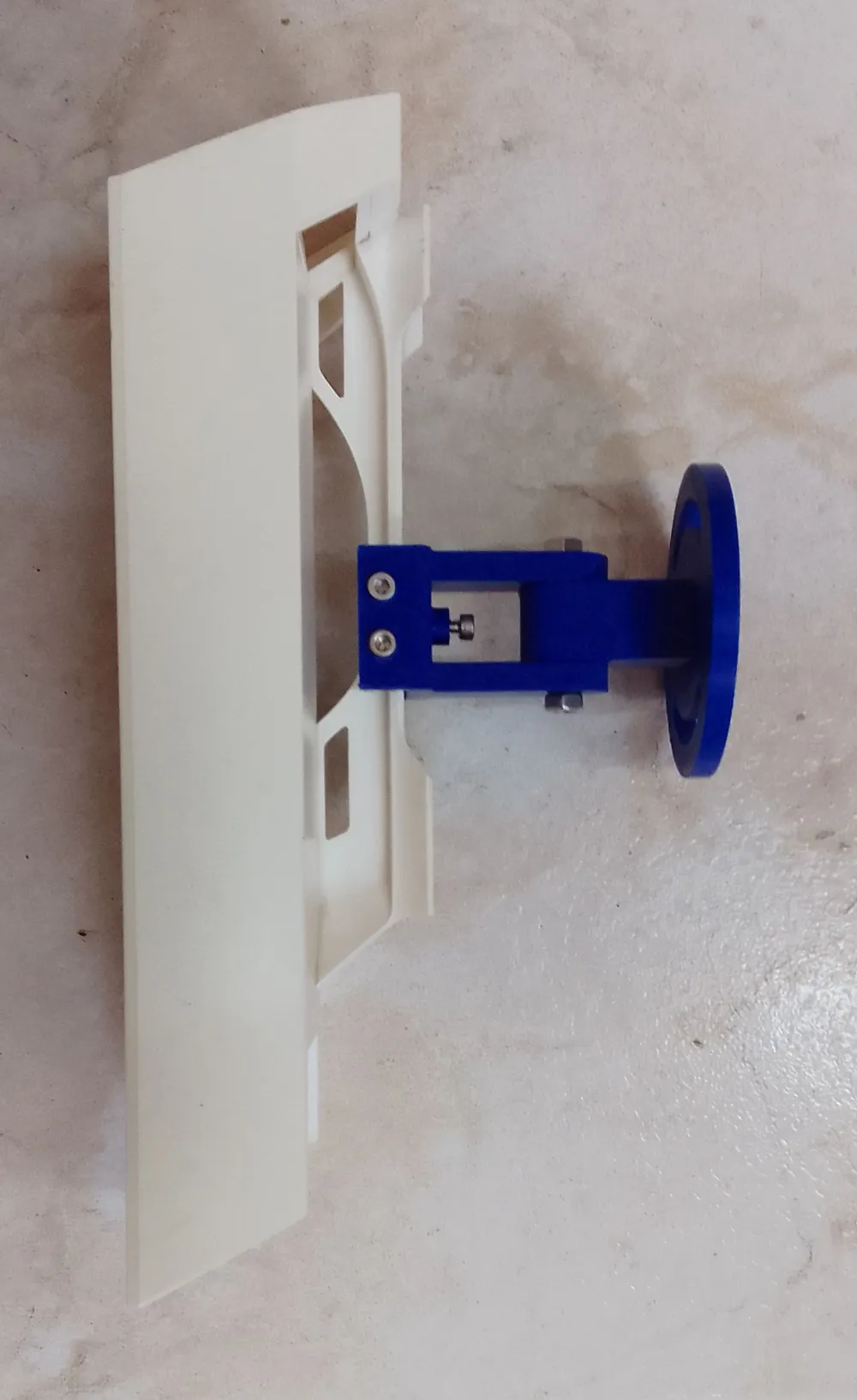

A custom-designed bracket for mounting the TP-Link CPE510 at adjustable angles in two directions.

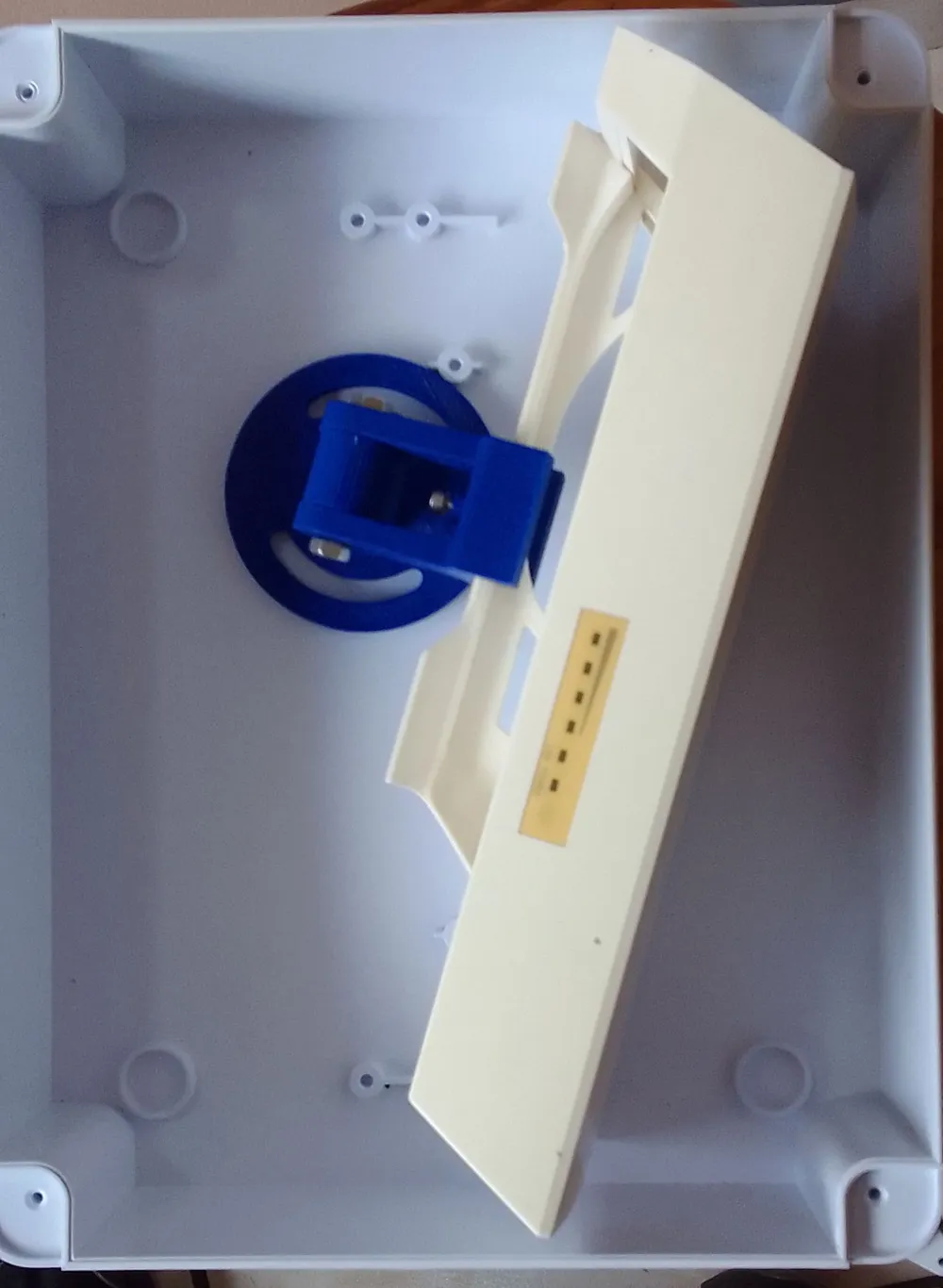

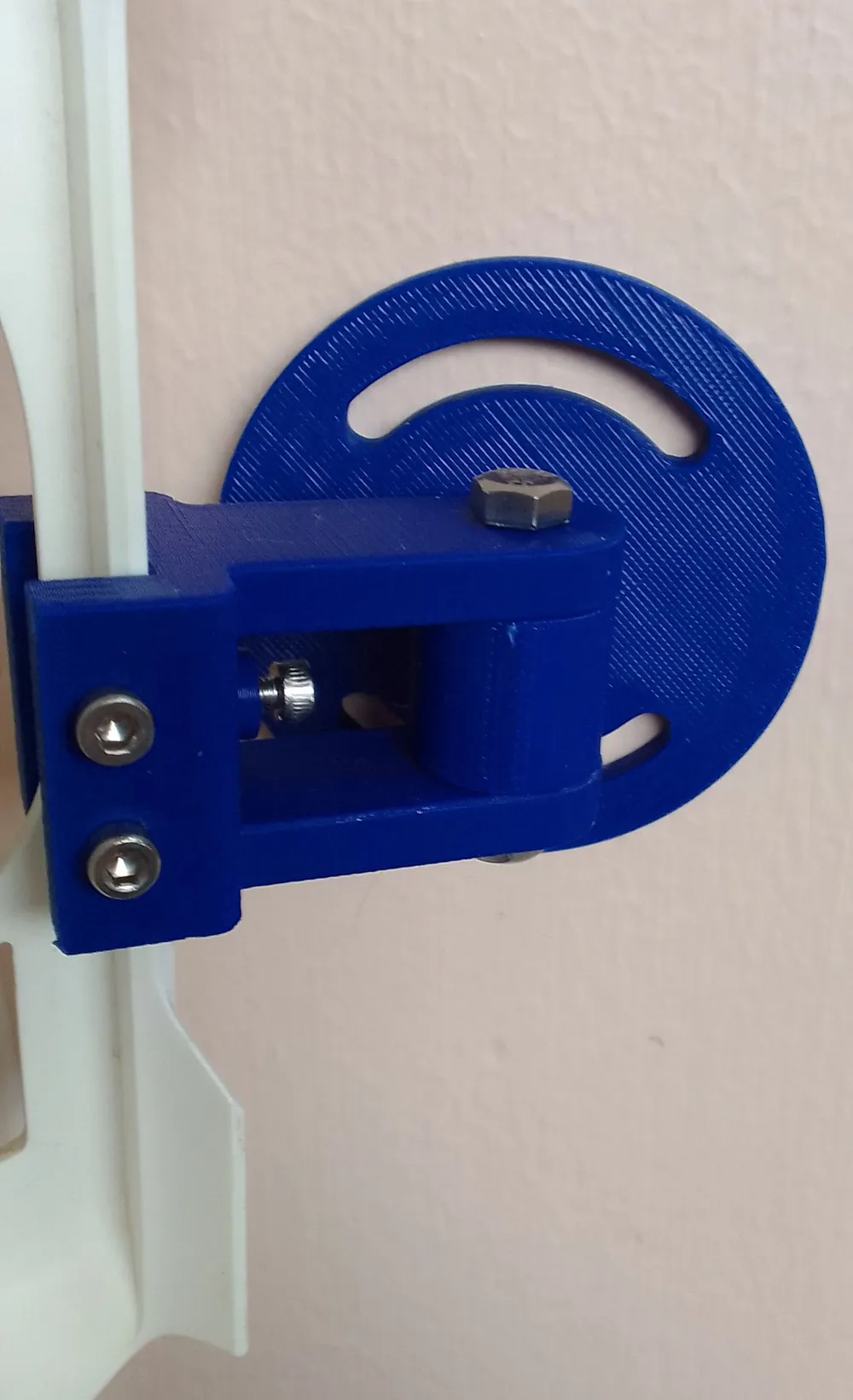

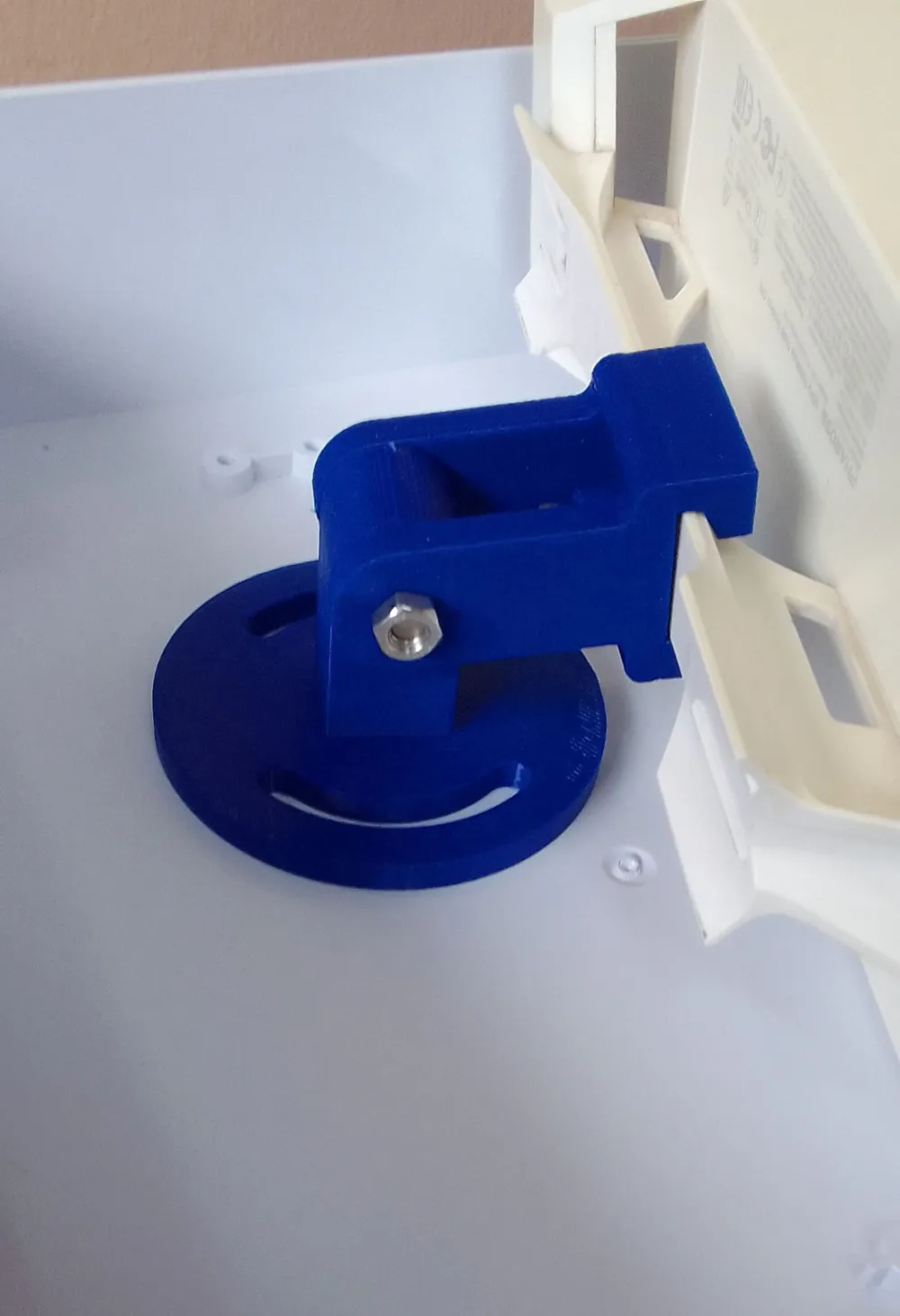

Ideal for fine-tuning antenna alignment to achieve optimal signal strength and coverage. Suitable for wall or custom installations where precise positioning is required.

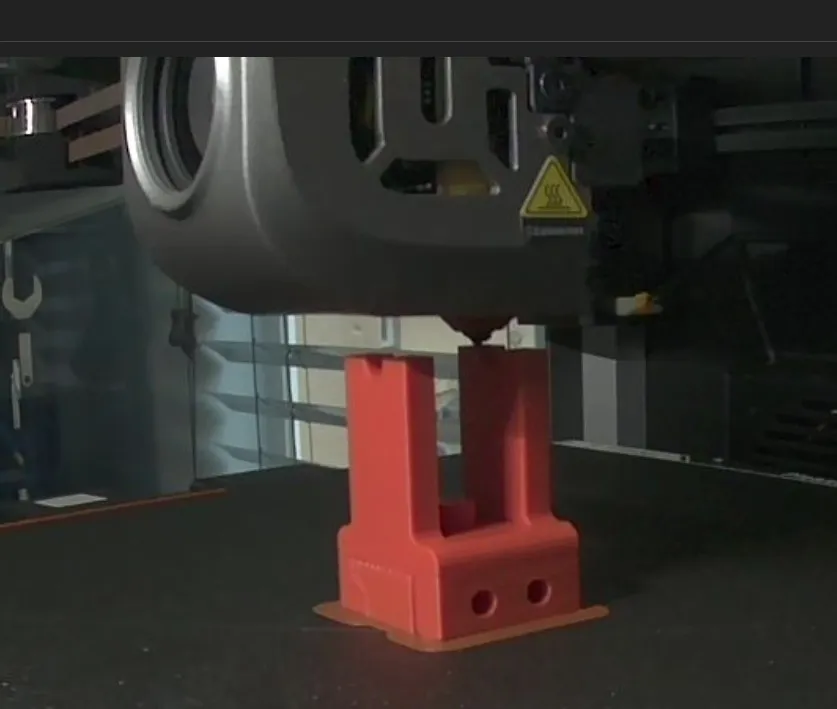

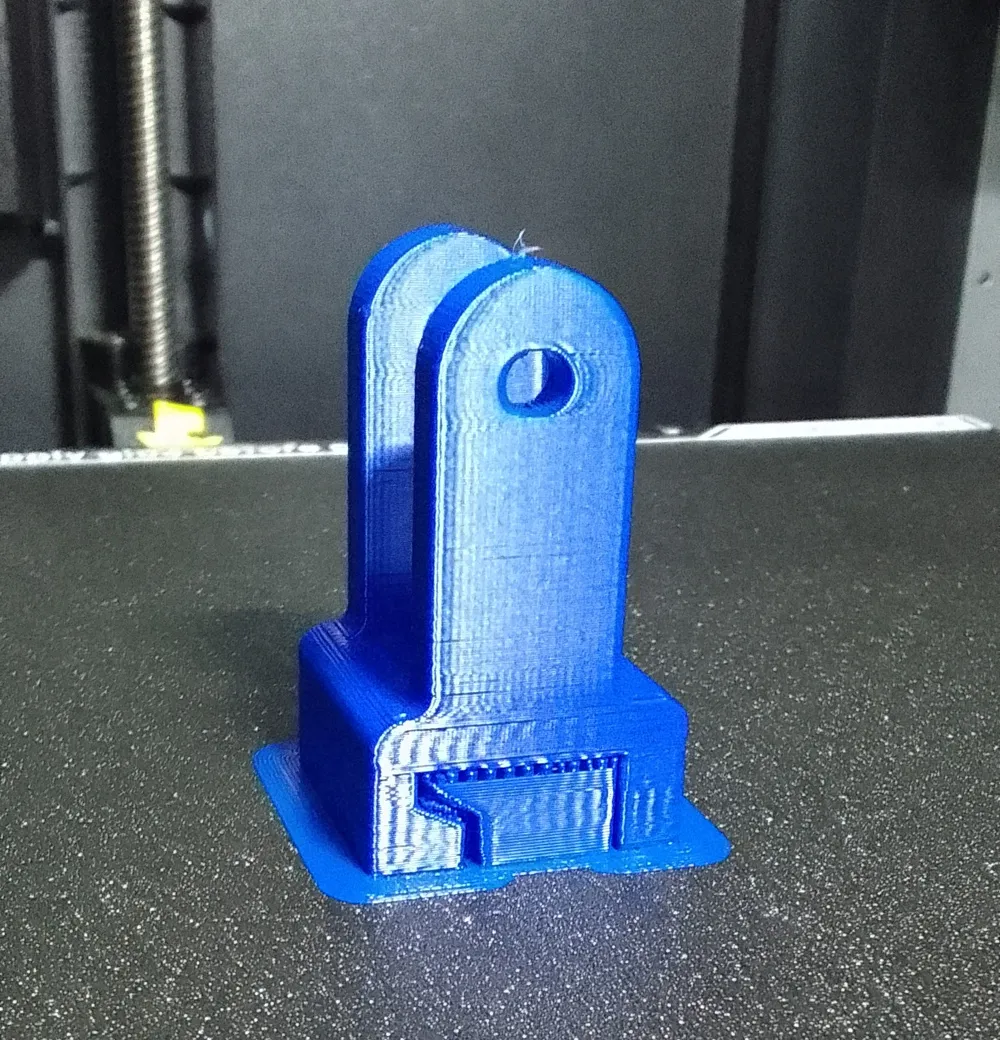

I printed in ABS with support only for the Top_mount part, check the 3mf files.
BOM
Hex Bolt M5 x 0.8 x 20 x 2
Hex Bolt M5 x 0.8 x 35 x 1
Copper Heat Insert M3 D5_L5mm x 3
Hexagon Regular Nut M5 x 3
Hexagon Socket Head Cap Screw M3 x 10 x 2
Hexagon Socket Head Cap Screw M3 x 12 x 1
