UR5e to JBC TRA470 Adapter COBOT Soldering Mount

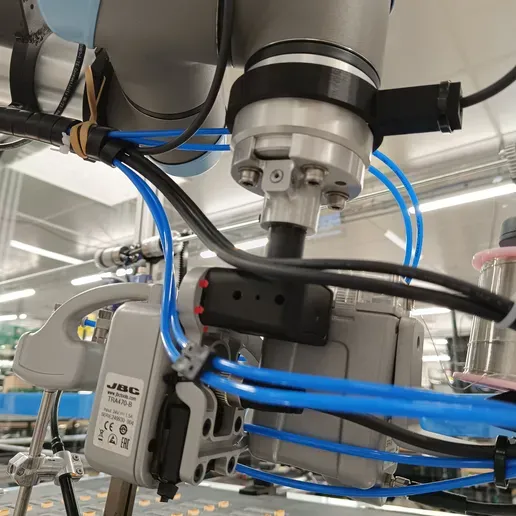

This adapter allows the secure mounting of a JBC Tools TRA470 soldering iron onto a Universal Robots UR5e collaborative robot, creating a reliable interface for automated soldering applications.

Designed for industrial environments, this adapter provides a simple and robust solution for integrating JBC soldering equipment into robotic workstations, prototype lines, and automated production cells.

Features

✅ Compatible with Universal Robots UR5e (e-Series)
✅ Designed for JBC TRA470 soldering iron integration
✅ Secure and precise mounting interface
✅ Ideal for automated soldering applications
✅ Compact and lightweight design
✅ Easy installation on the robot tool flange
✅ Suitable for industrial and laboratory environments

Applications

🔧 Automated soldering processes
🔧 Electronics manufacturing
🔧 PCB assembly and rework
🔧 Robotic prototyping projects
🔧 Research and development laboratories
🔧 Collaborative robot integration

Recommended Manufacturing

Material: Aluminum (recommended)

Aluminum provides:

• High rigidity
• Excellent dimensional stability
• Low weight
• Better heat resistance than most printed plastics
• Increased durability in industrial environments

For testing or prototype validation, the adapter can also be 3D printed in PETG, ASA, Nylon, or Carbon Fiber reinforced materials.

Installation

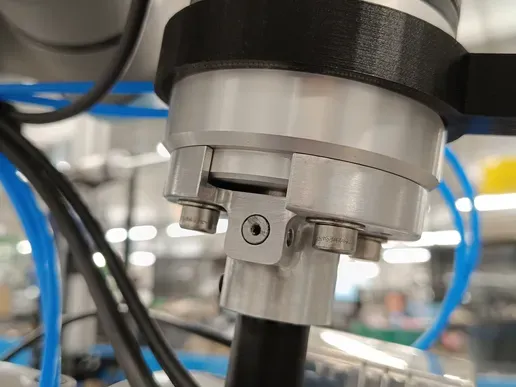

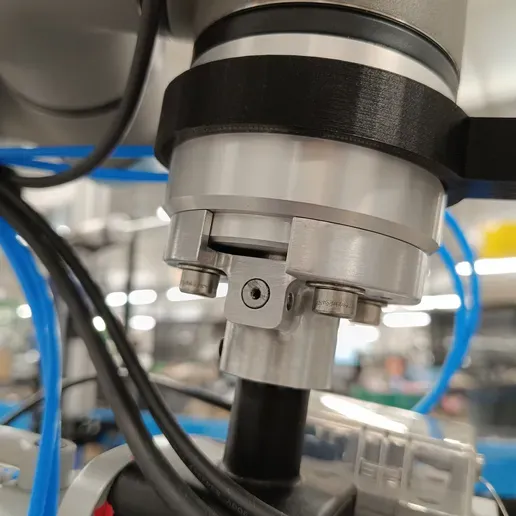

1. Mount the adapter onto the UR5e tool flange.
2. Install the JBC TRA470 soldering iron into the adapter.
3. Secure all fastening hardware.
4. Verify alignment and tool center point (TCP) calibration.
5. Configure the robot program and soldering parameters.

Benefits

• Enables robotic soldering automation
• Improves process repeatability
• Reduces operator fatigue
• Facilitates small and medium production runs
• Provides a cost-effective integration solution

Compatibility

• Universal Robots UR5e (e-Series)
• JBC Tools TRA470 soldering iron

Compatibility with other Universal Robots e-Series models may be possible depending on the flange configuration and available workspace.

Notes

• This is an aftermarket adapter and is not affiliated with Universal Robots or JBC Tools.
• Aluminum machining is recommended for production use.
• Always verify mechanical strength and safety before operating in an industrial environment.

Industrial Automation Accessory

A practical solution for integrating high-quality JBC soldering tools with collaborative robots, enabling repeatable and precise soldering operations for electronics manufacturing and automation projects.
