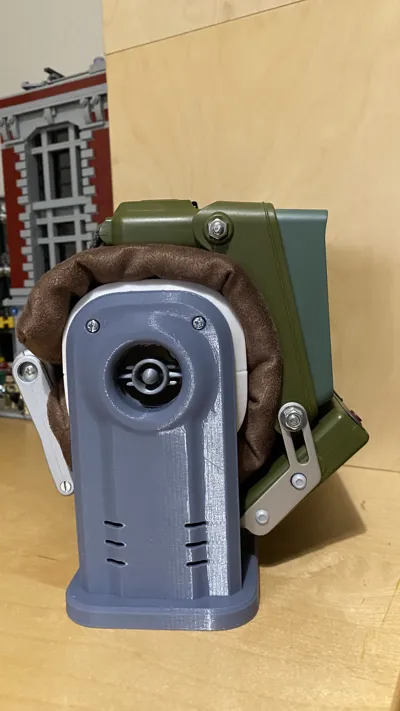

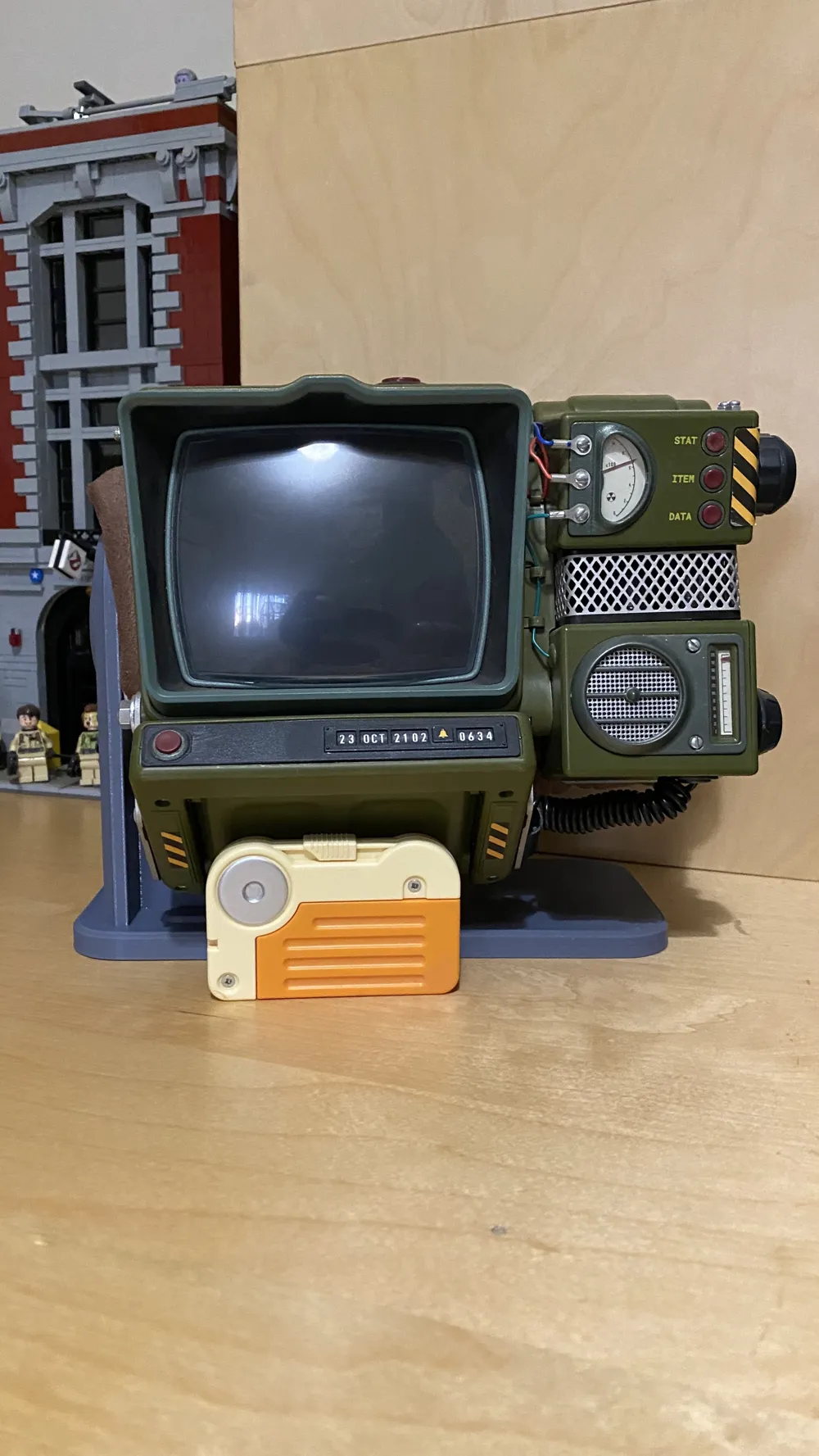

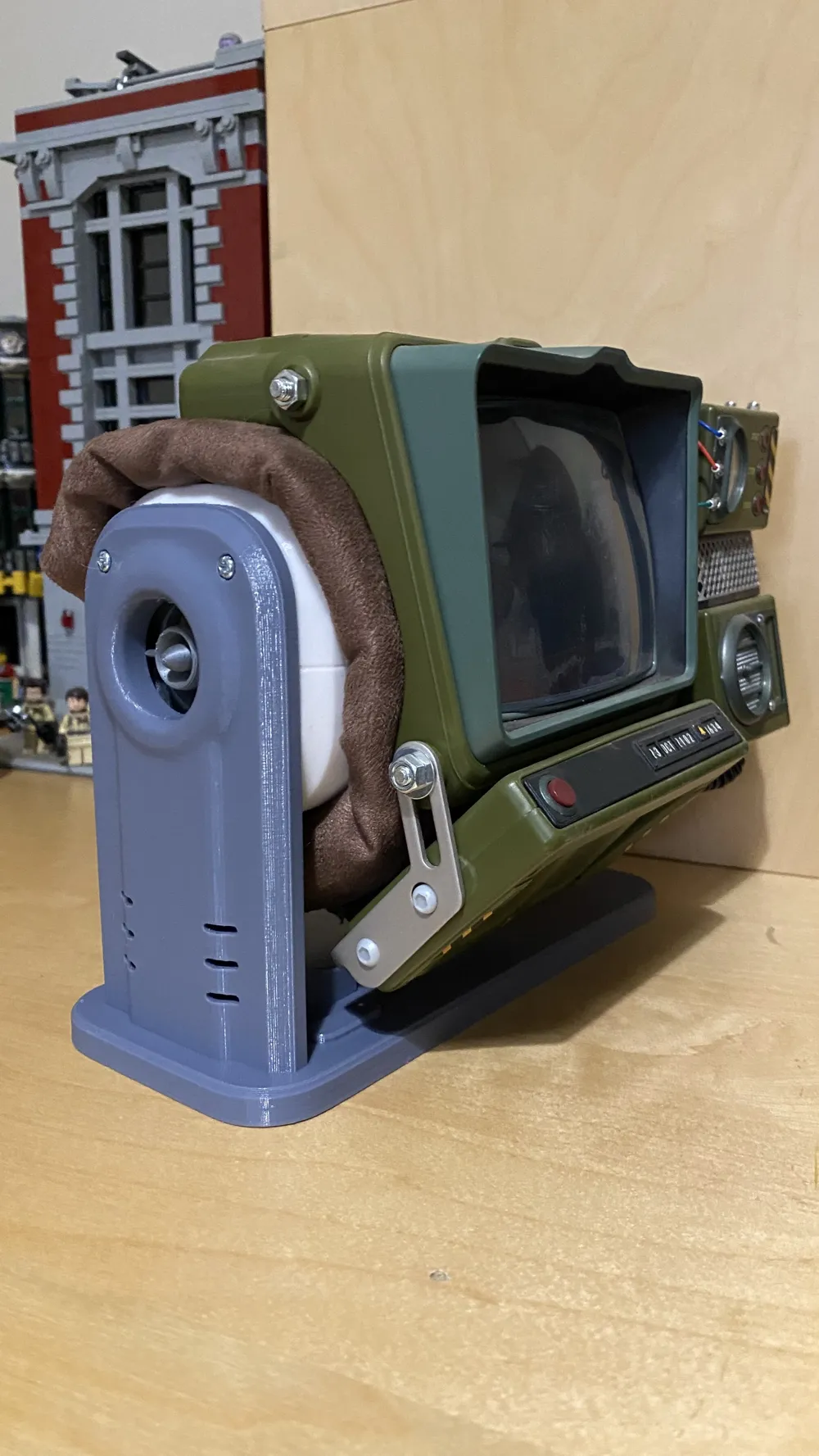

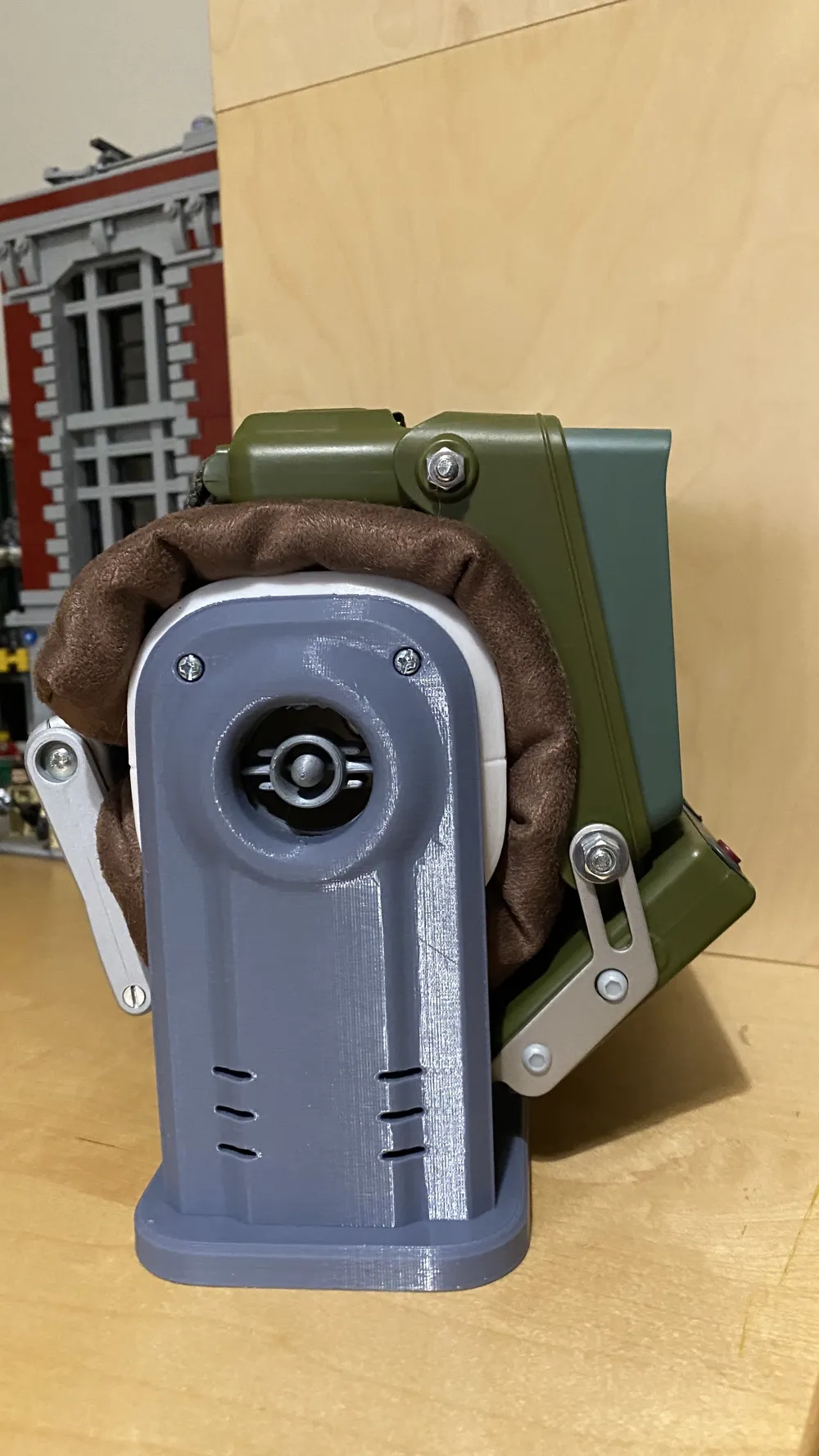

Pip-boy 2000 MK IV Stand

Store you Pip-boy in style with this stand inspired by the offical stand by The Wand Company and Cbrockett (the original model can be found here: https://www.thingiverse.com/thing:3847471)

I have decreased the number of parts to print, made them easier to print (less nasty bridging) and decreased the number of screws that need to be used (I used bolts).

Printing:

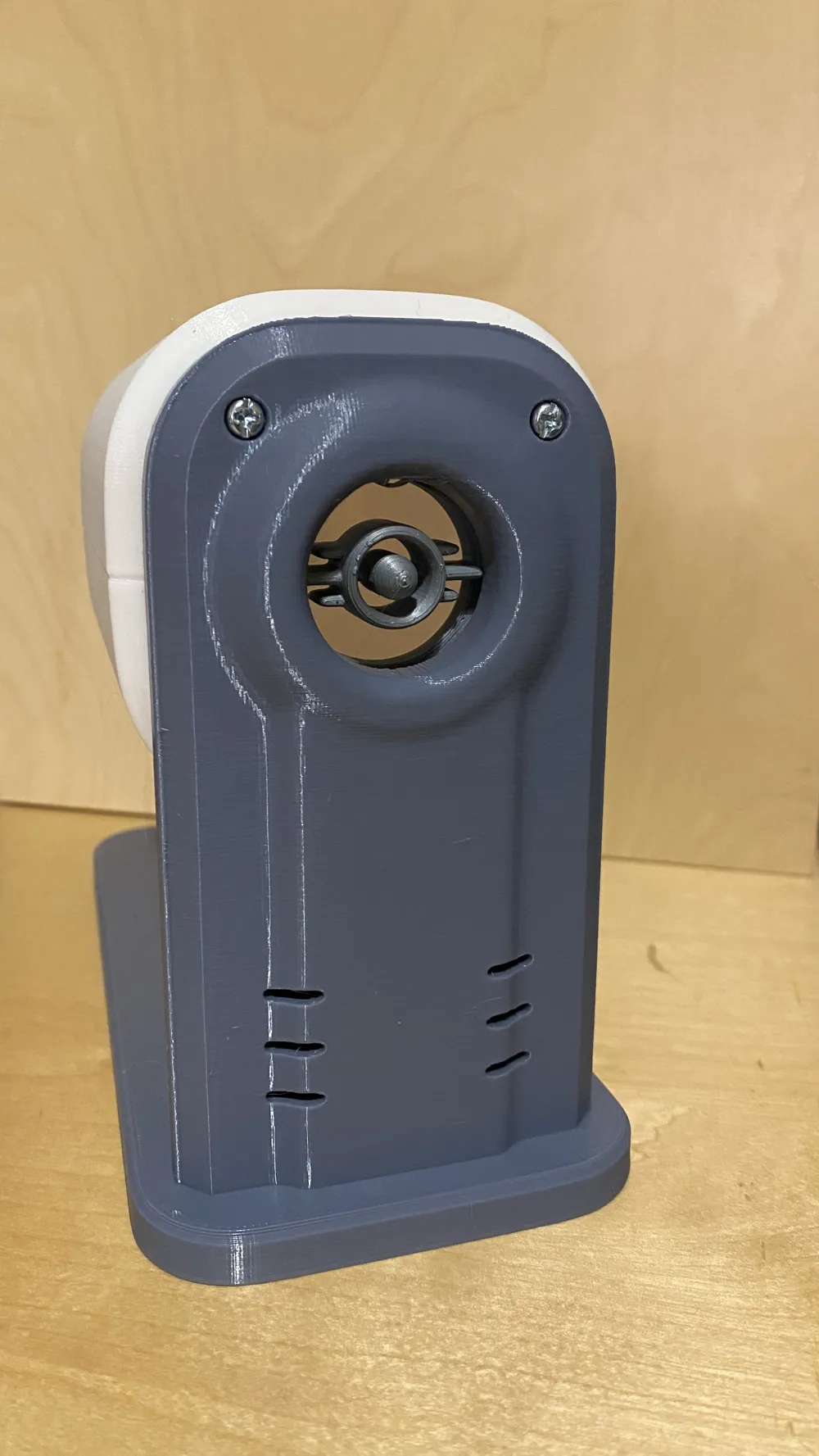

Print the lower stand in grey with supports (I have pre-supported these in the G-code).

Print the vent and logo in silver. (Depending on your tolerances you may need to reprint the vent slightly smaller or larger).

Print the arm in white.

Assembly:

Slide the logo into the square hole in the lower stand. I used some glue to hold this in place.

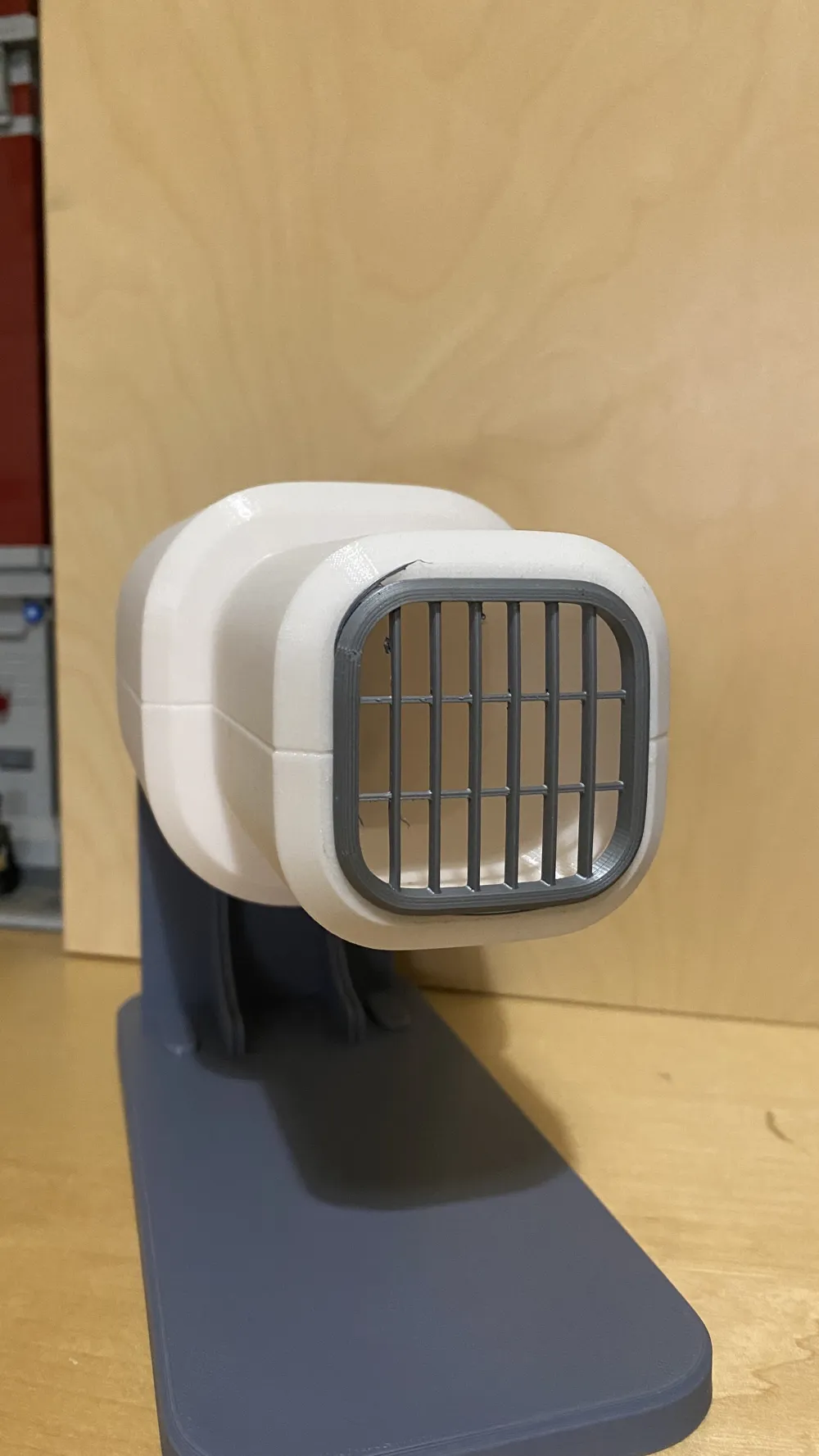

Push the vent into the small end of the arm, this might require some force (I used a mallet).

Place the other end of the arm on to the logo/square hole. Use a 3mm screw/bolt to attach the arm.

Happy Printing.
