12" Trek Precaliber Bicycle Handlebar Light Mount
Print Profile(1)
Description

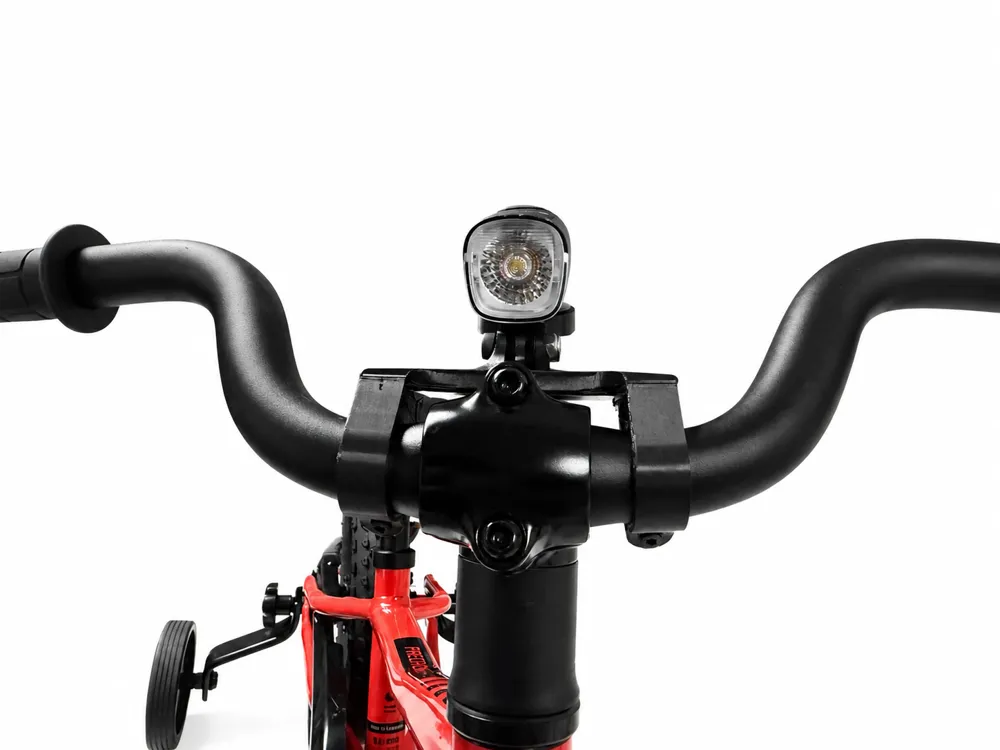

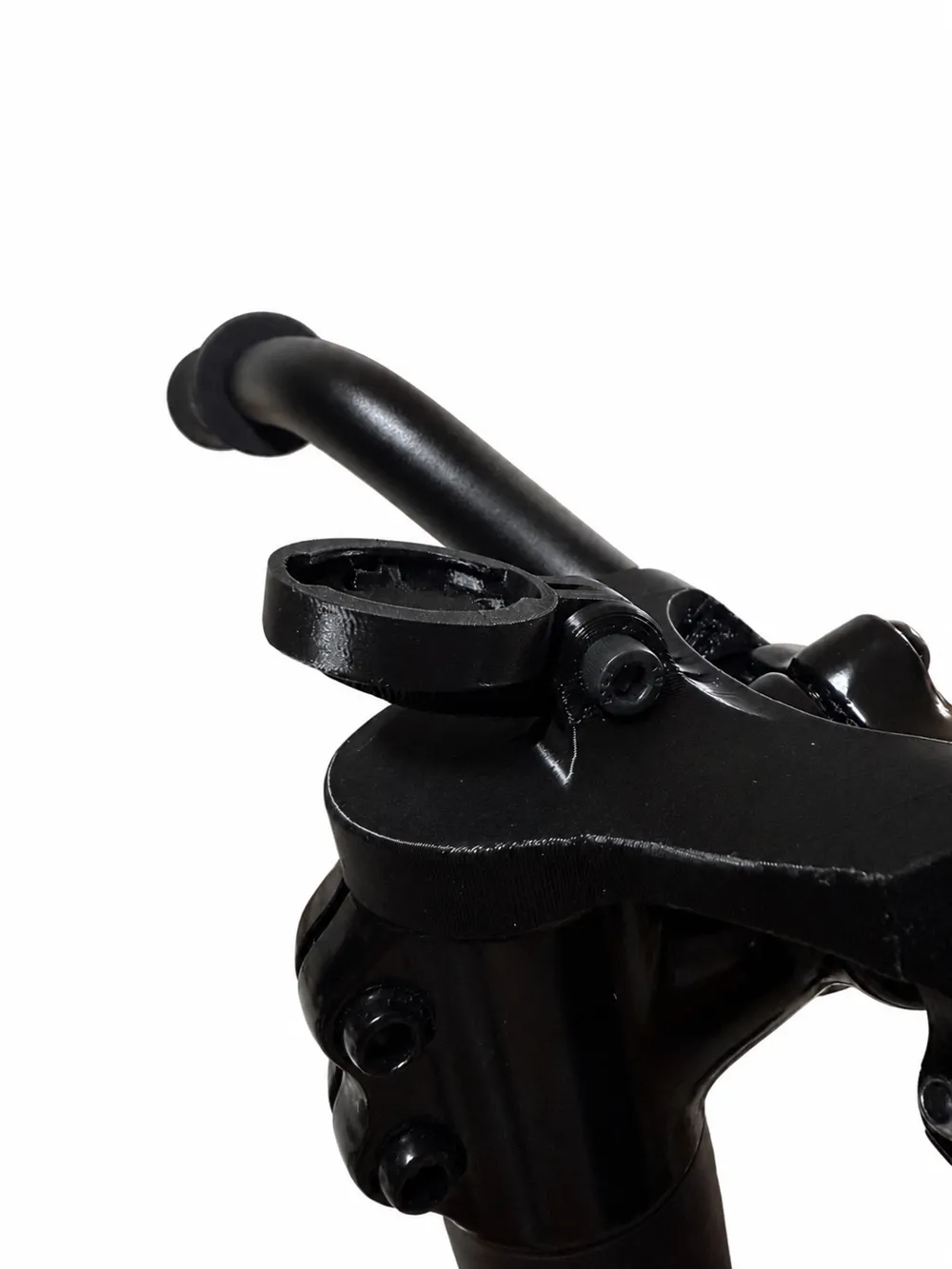

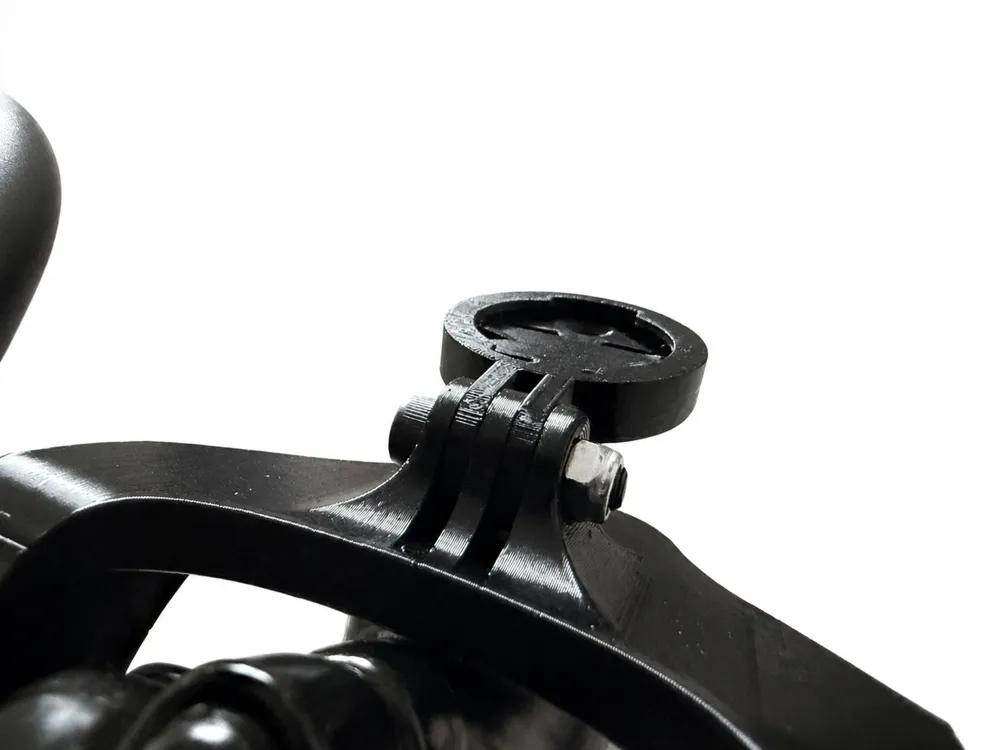

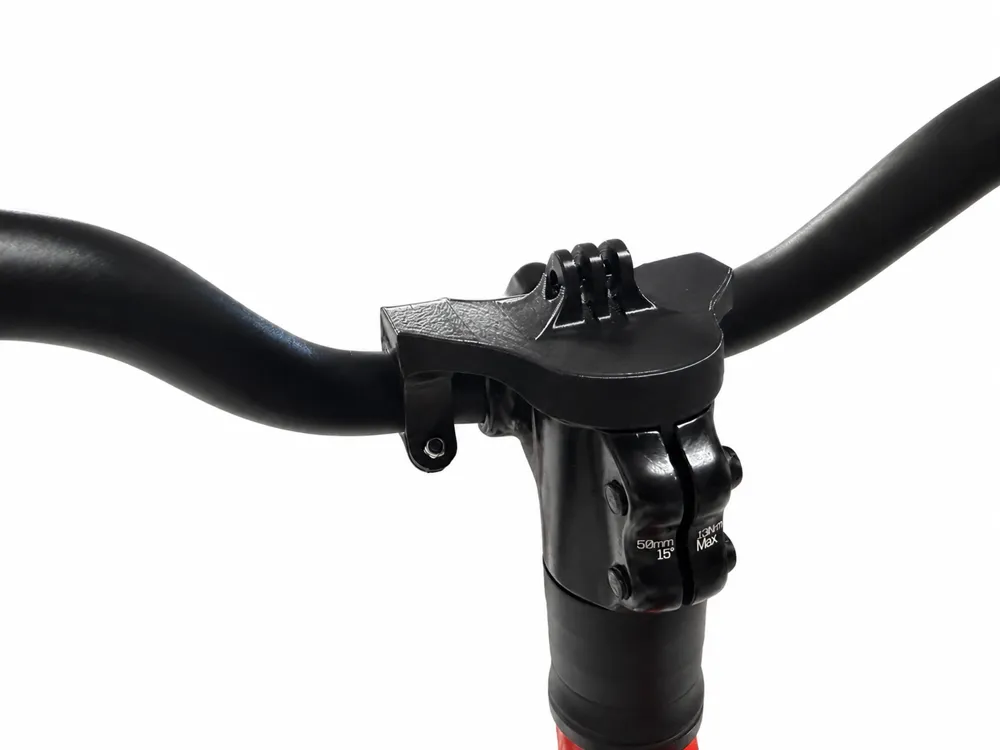

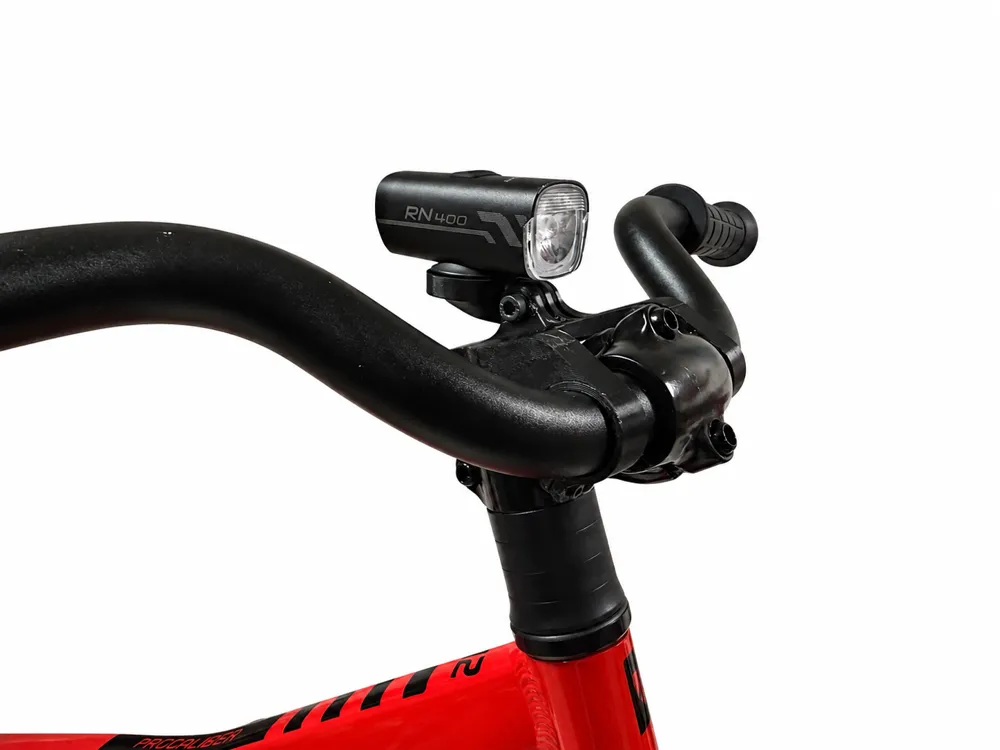

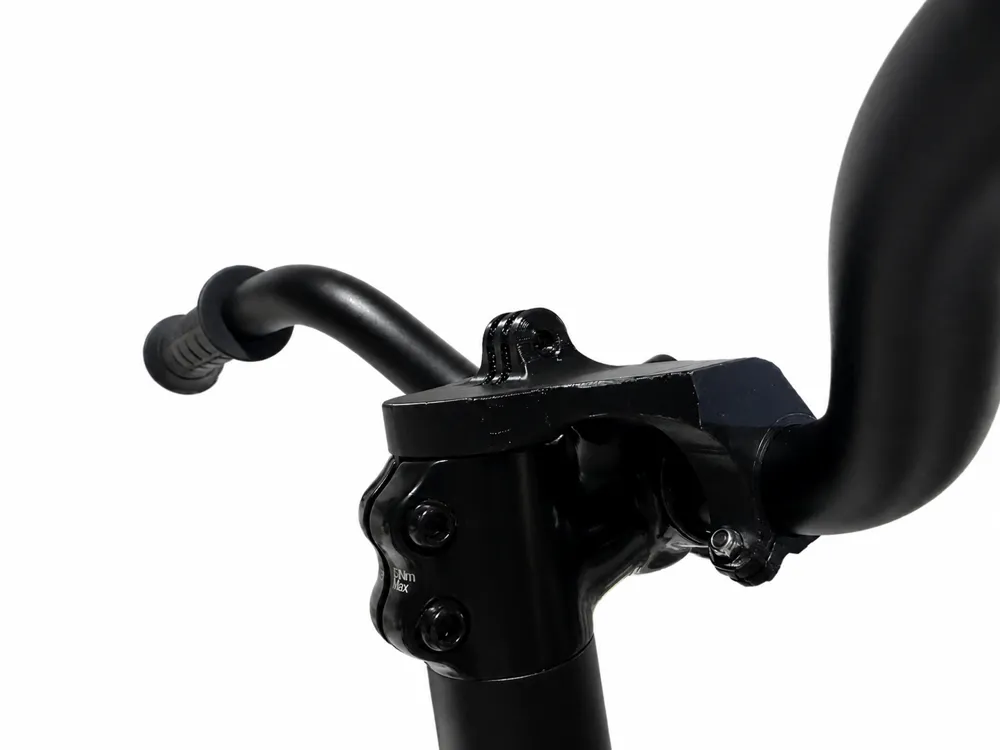

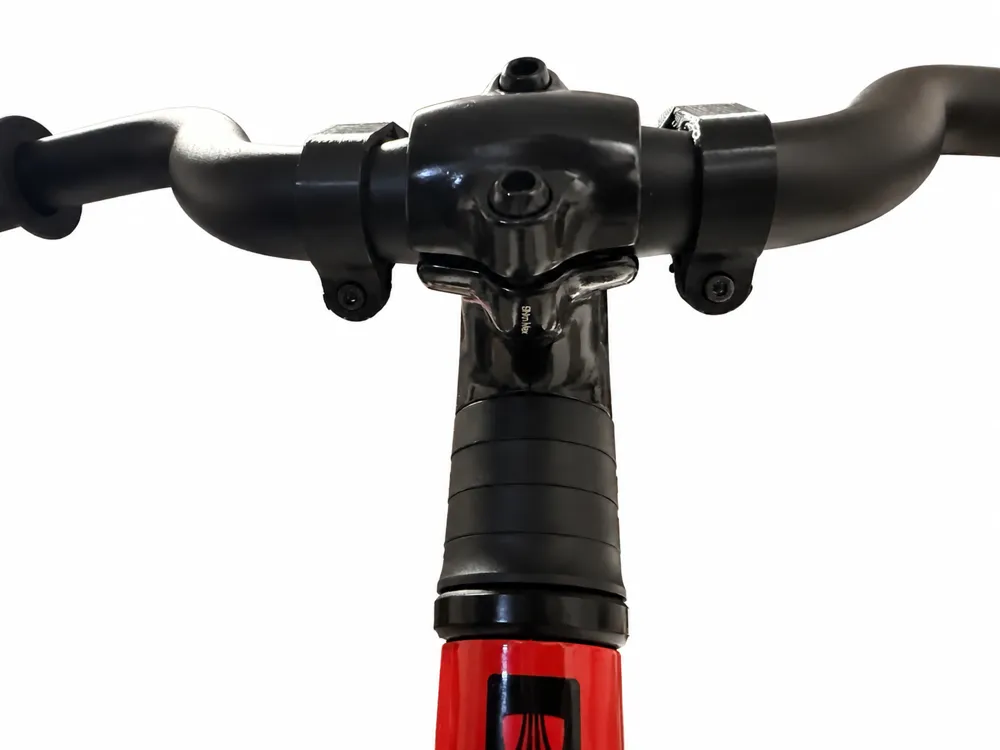

Front handlebar mounting bracket i designed for my sons 12" Trek Precaliber Bike. I put this together to mount a front light on the bicycle for him. Can be used to attached other items as well. Uses a fork mounting style. I also have put together a fork to Quarter turn adapter as well. I would think that it make fit bigger wheel sizes in the Trek Precaliber line up assuming the handle bars are the same.
The orientation in the 3mf file is how i found it best to print the model. I printed in PETG with PLA as the support interface.
The mount utilizes 2 - M3 x 10mm with nuts and 1 - M5 x 20mm with nut.

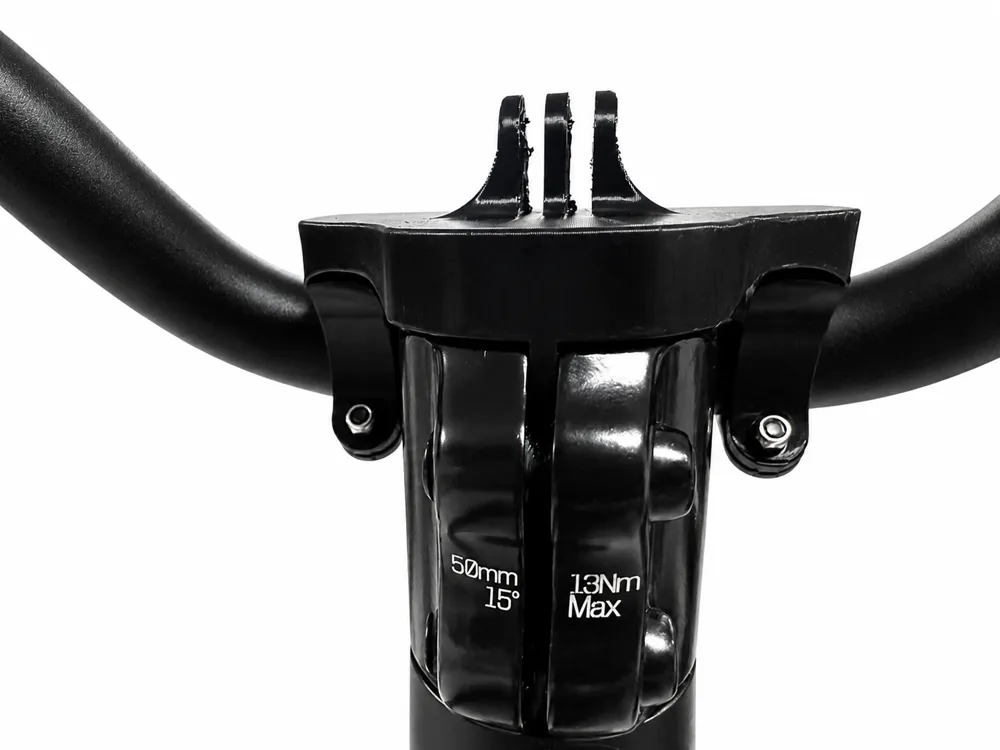

Be sure not to over tighten the handle bars mounts. There should be a 1mm to 2mm gap before they touch.

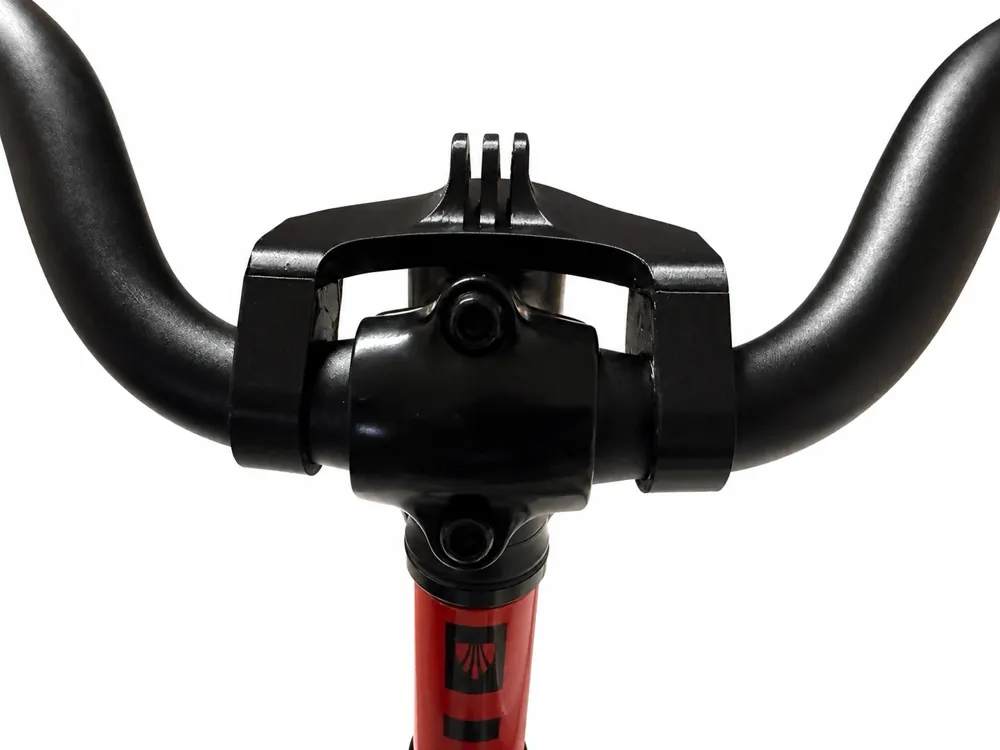

The model was designed to snap in place over the center of the forks so it overall locks in pretty well.
