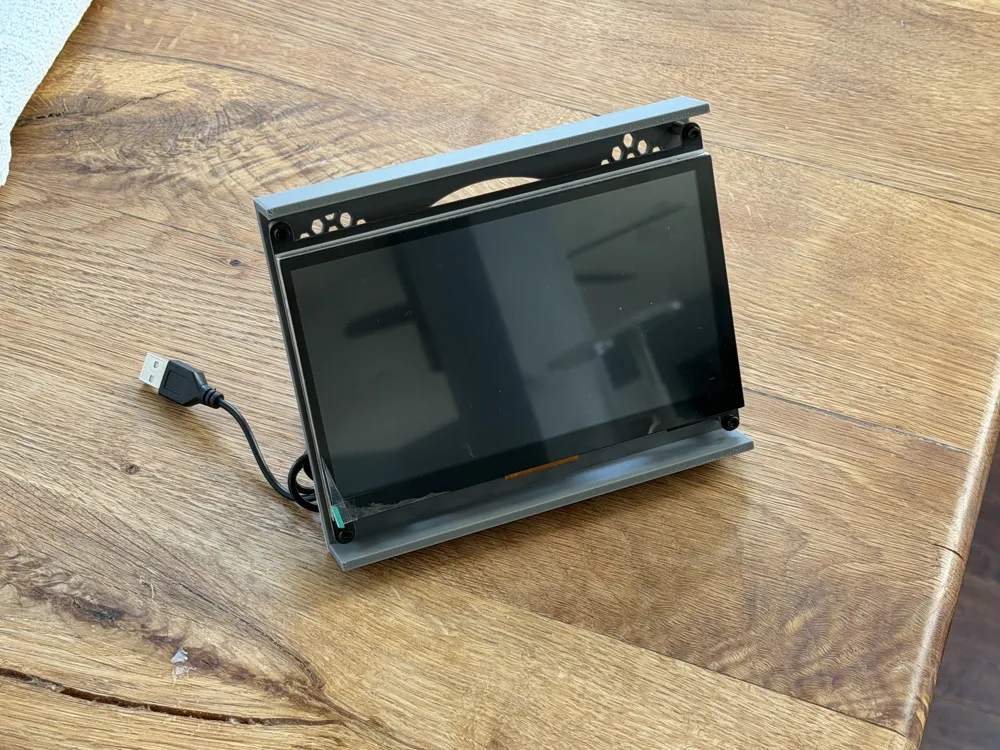

7" Touch Screen 1024x600 IPS LCD - Frame & Stand
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.4 h
2 plates
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description
Removed carrying handle and legs to make printing the frame easier; legs provided as separate object and can be adhered with CA glue (or left off entirely).
Scaled model to accommodate 7-inch screen with the mounting holes on the tabs (since that's what my screen has, for some reason).
Also included printable standoffs and a modified mounting plate for the Raspberry Pi mounting holes on the back, and cut a large portion of the back plate off to save material and enable RPi mounting.
Screen mounted via 20mm M3 bolts.
Example screen that the case was remixed to fit: HERE
Original model: HERE
Raspberry Pi mount plate (original model): HERE
Printed 0.2 layer height; 2/5/3 walls/top/bottom; 15% grid infill
