Handlebar Quadlock mount for Tenere 700 V2
Print Profile(1)
Description

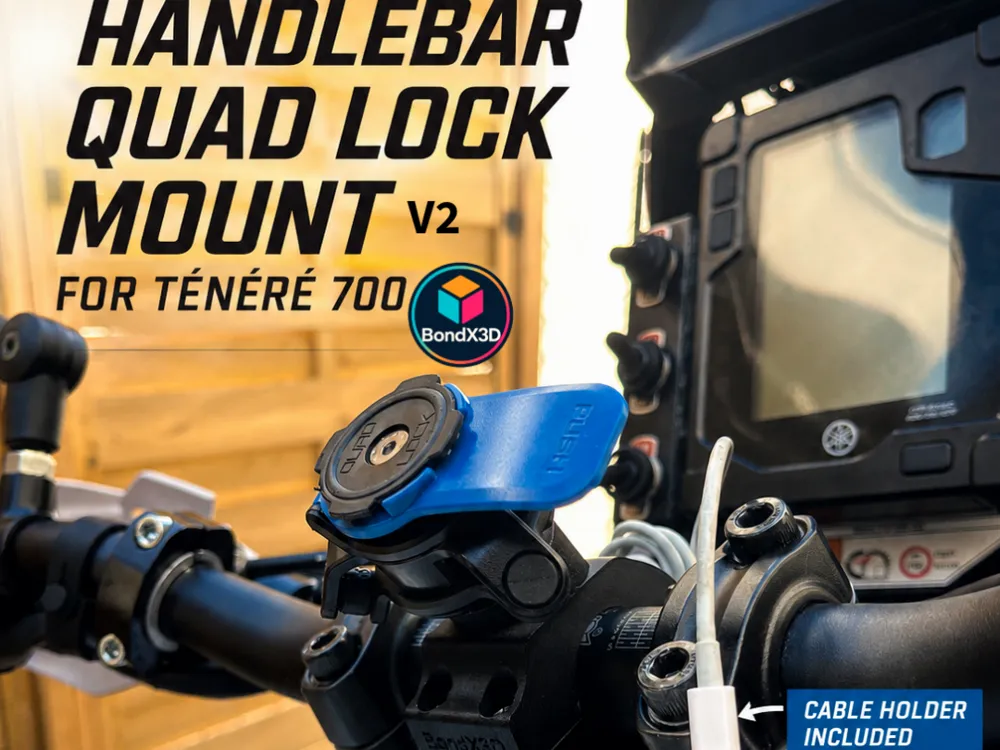

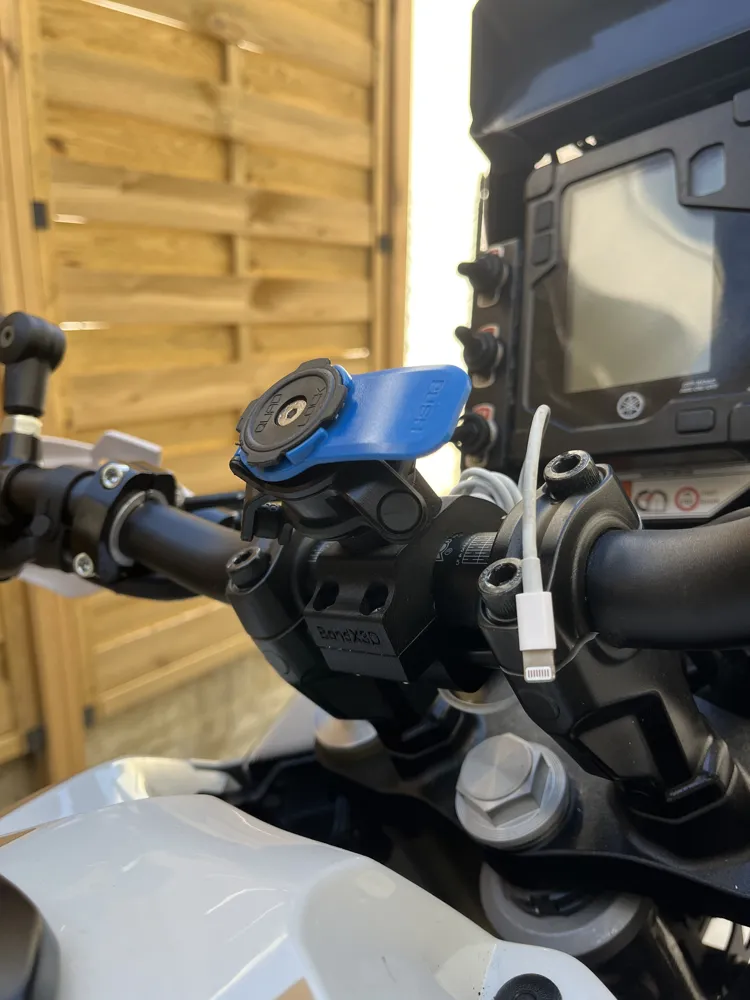

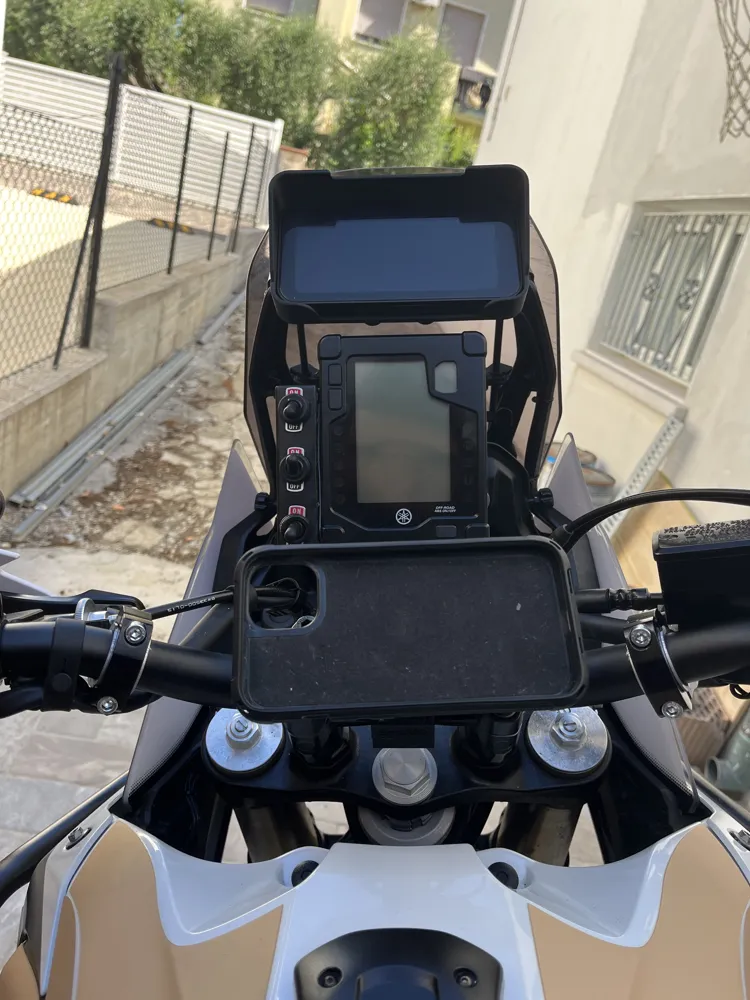

Handlebar mount for Quadlock phone holder for Yamaha Tenere 700

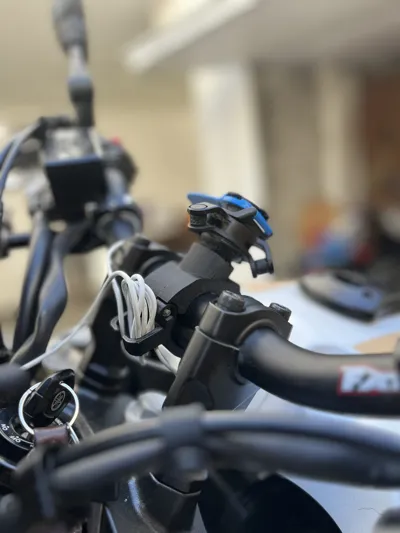

New improved version compared to the previous one published by me, with a thickened rear joint part, added fixing for the charging cable, and significantly improved overall strength. Also available on the second plate is the version of the underside without the organizer; I find it very convenient, but if you don't like it, you can choose which one to print
Boost Me (for free)
Do you like it? Leave a boost, it's FREE for you, and it makes a difference for me!
The following should be added to the print:
- 2 M4x20 screws (front fastening)
- 1 M4x25 screw (rear joint fastening)
- 3 M4 nuts
- 1 M5 nut to secure the Quadlock (position in the internal hole and push hard all the way with a screwdriver)
- Quadlock system purchasable for a few euros on Aliexpress
Print with heat-resistant material like PETG-CF or even better ASA-CF
This model is released for personal use; printing for sale is absolutely prohibited, and violations in this regard will be reported to the competent authorities.
Do you want to use my model for commercial purposes? Write to me at emanuele.bondi2@gmail.com to make arrangements
