Flashforge C5 Pro External Exhaust System (fixed using original filament holder)

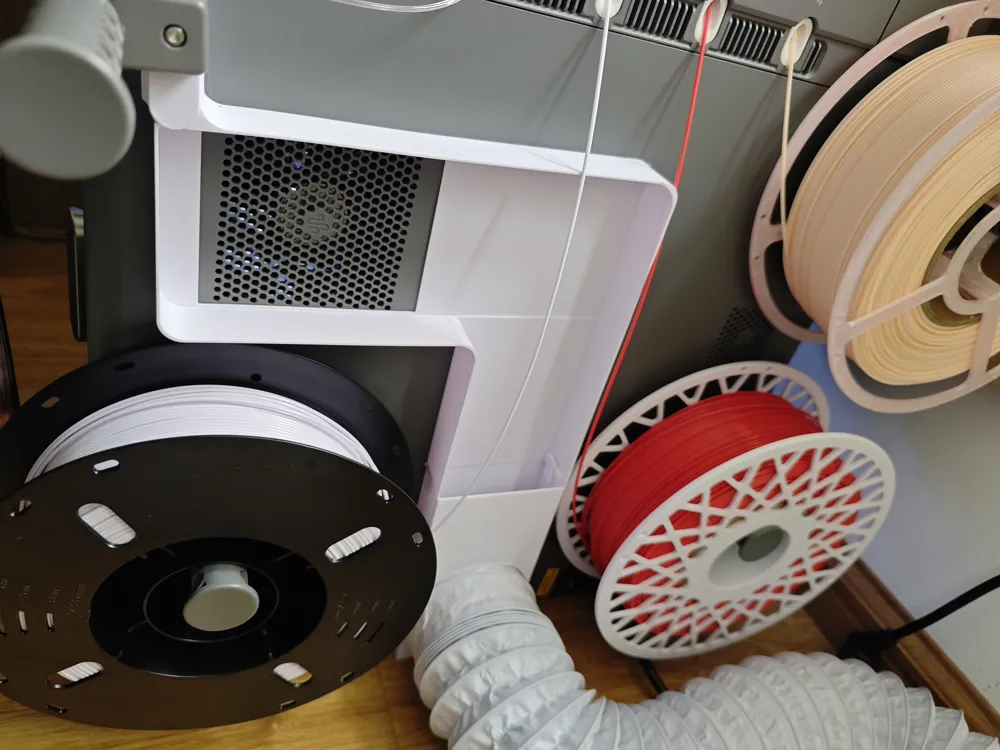

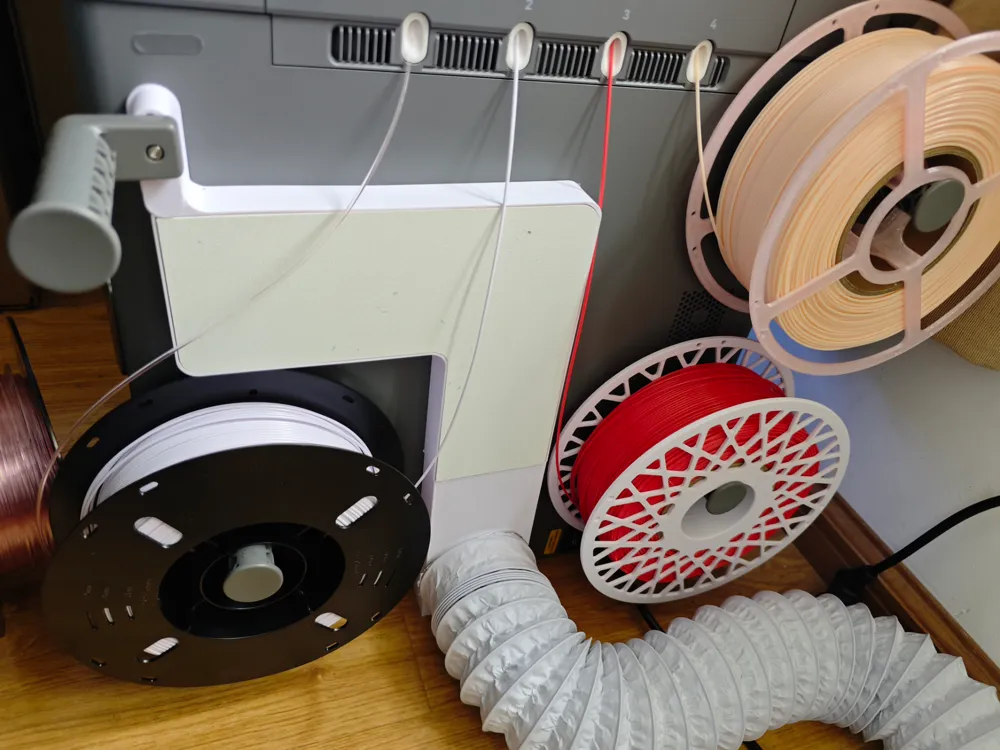

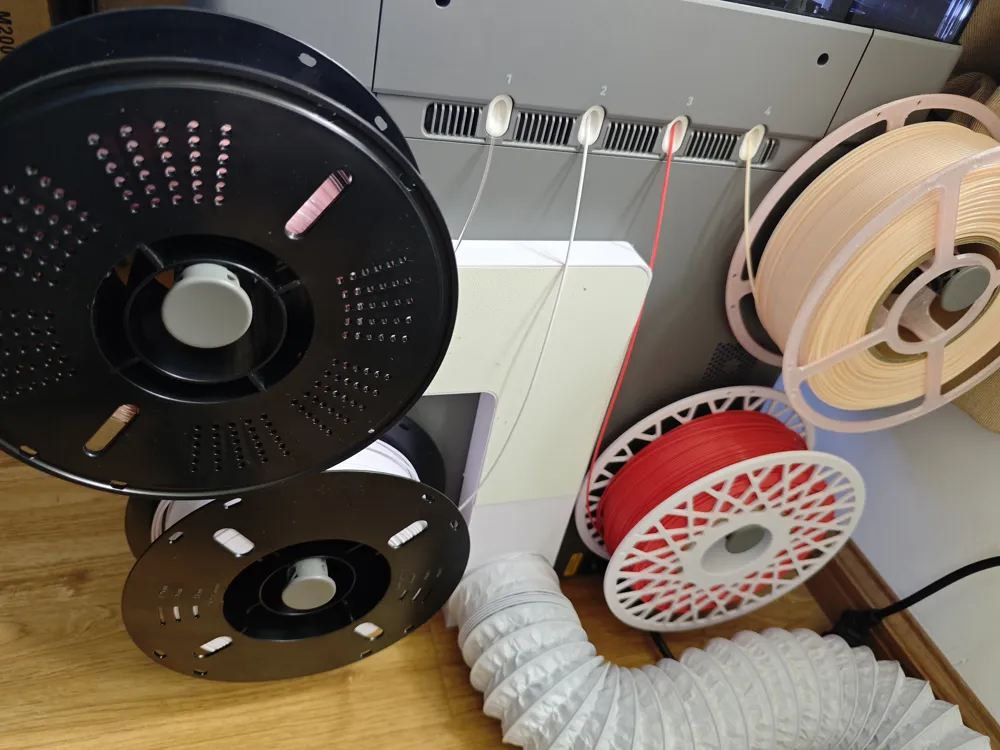

External exhaust system for the Flashforge Creator 5 Pro 3D printer, using an 80mm duct, fixed to the printer's exhaust port with the original filament holder, to discharge hot and harmful gases outdoors.

venting system used for flash forge Creator5 pro, using 80mm tube.

Does not interfere with the use of the original filament holder, lightweight, easy to print and install, requiring less than 200g of filament. Since the exhaust temperature is below 50 degrees Celsius, external exhaust is not enabled during chamber heating. It can be printed with PLA, but PETG is recommended.

To fix it with the original filament holder, you need an extended screw to secure both the filament holder and the exhaust system. Pins are used to prevent rotation. Screw specification: M3*40.

you need a M3*40 screw for mounting, the pins in first plate plug into the metal frame like the original rack.
