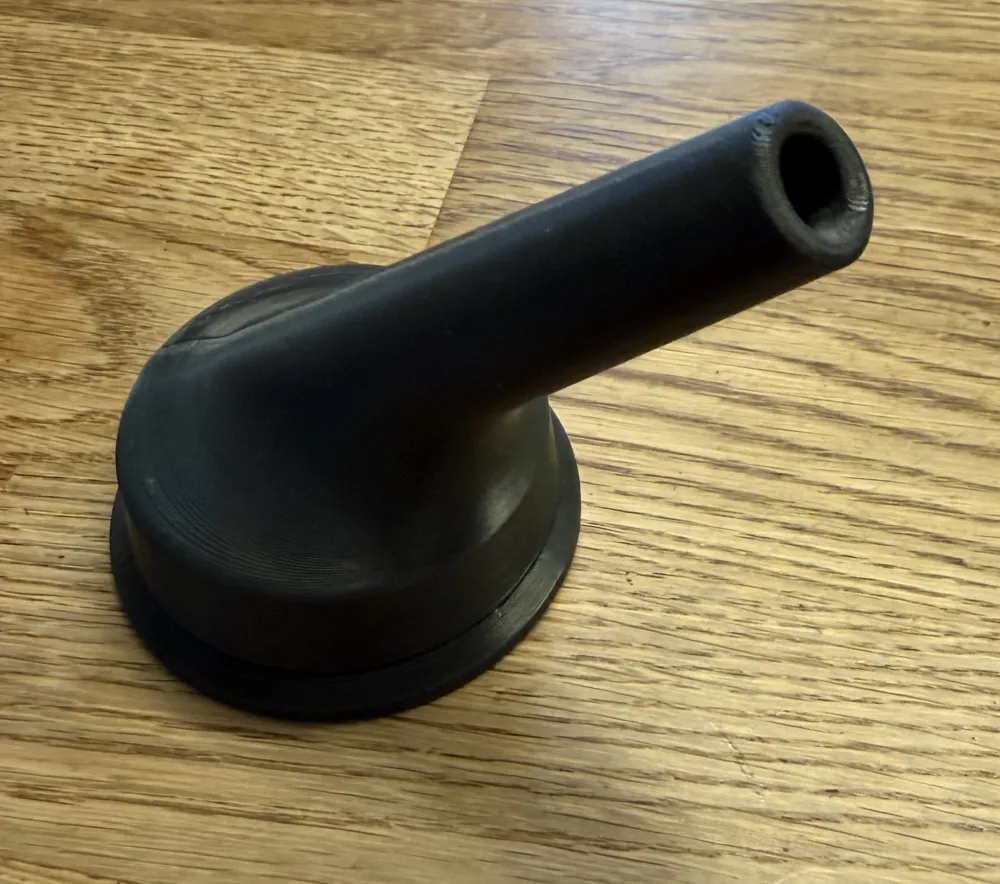

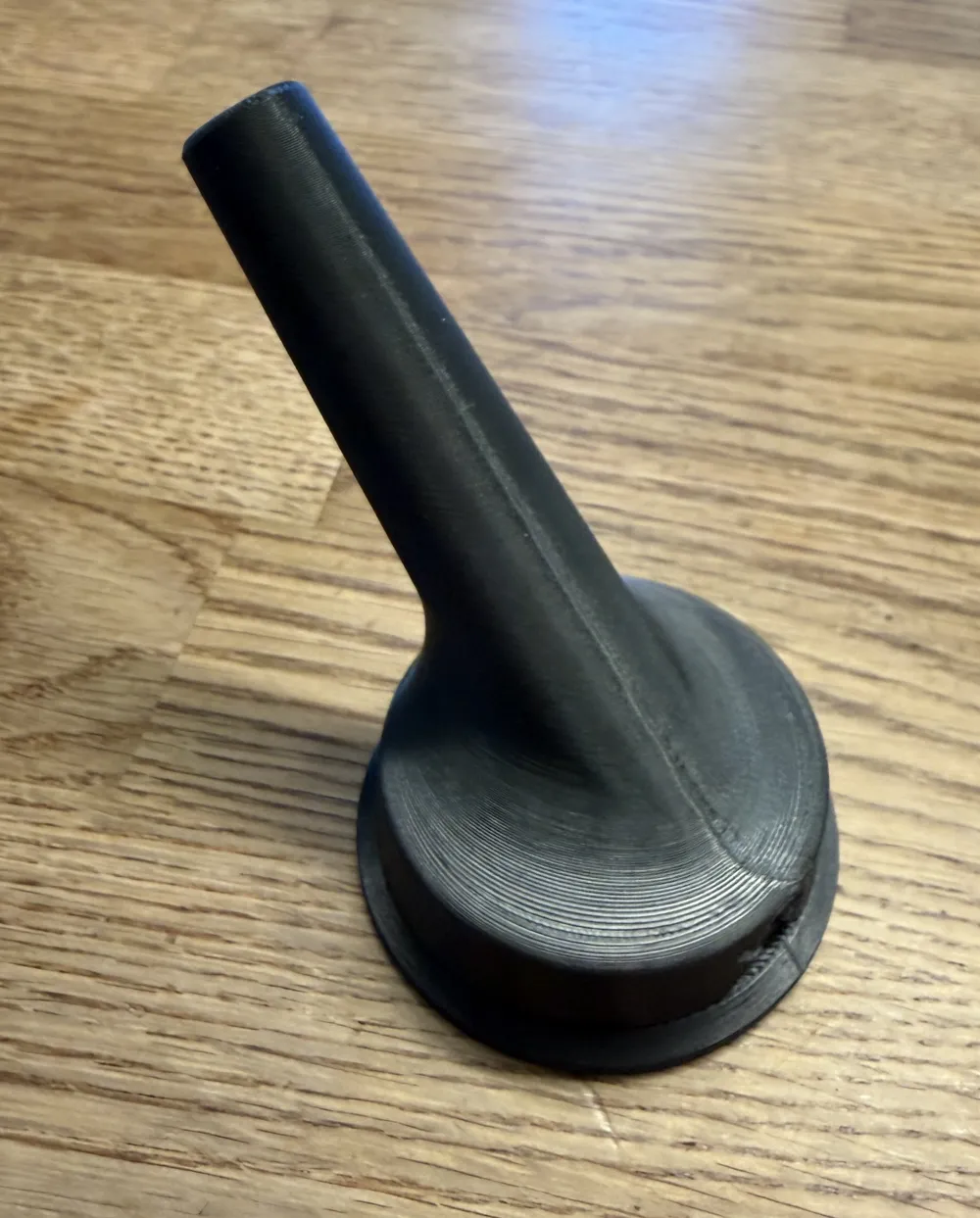

Flag holder for flags with a pole of D=8mm

Flag holder D=8mm with wall bracket

• This is a holder for flags with a pole - diameter of 8 mm to be attached to the wall at a 45° angle.

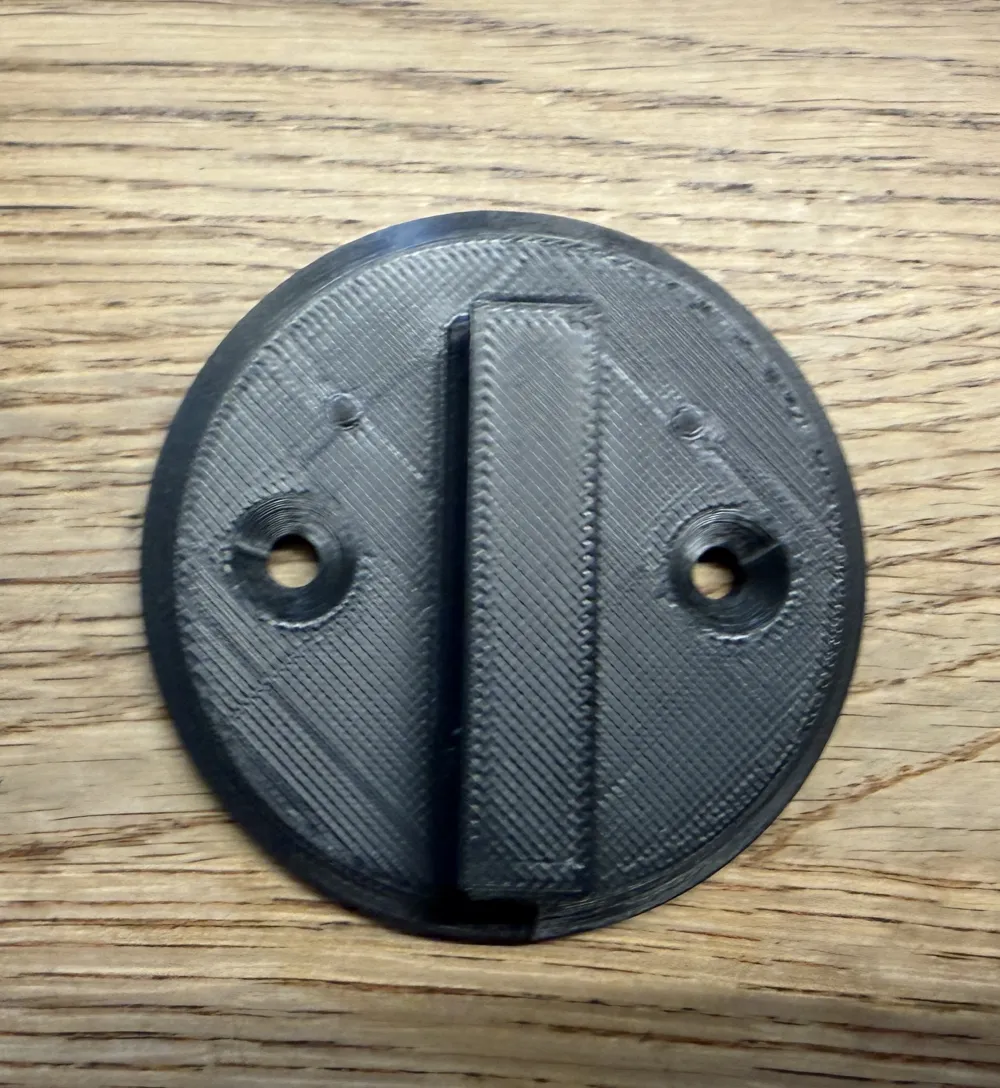

• The dimensions of the wall bracket: 85 mm x 54 mm x 90 mm



• For screwing, two elongated holes with a diameter of 4.5 mm are provided on the back wall. The drilling distance is 35 mm.



• The model requires no support structures!

With this design, the screws remain hidden!

Assembly instructions:

• Attach wall bracket to the wall with suitable screws

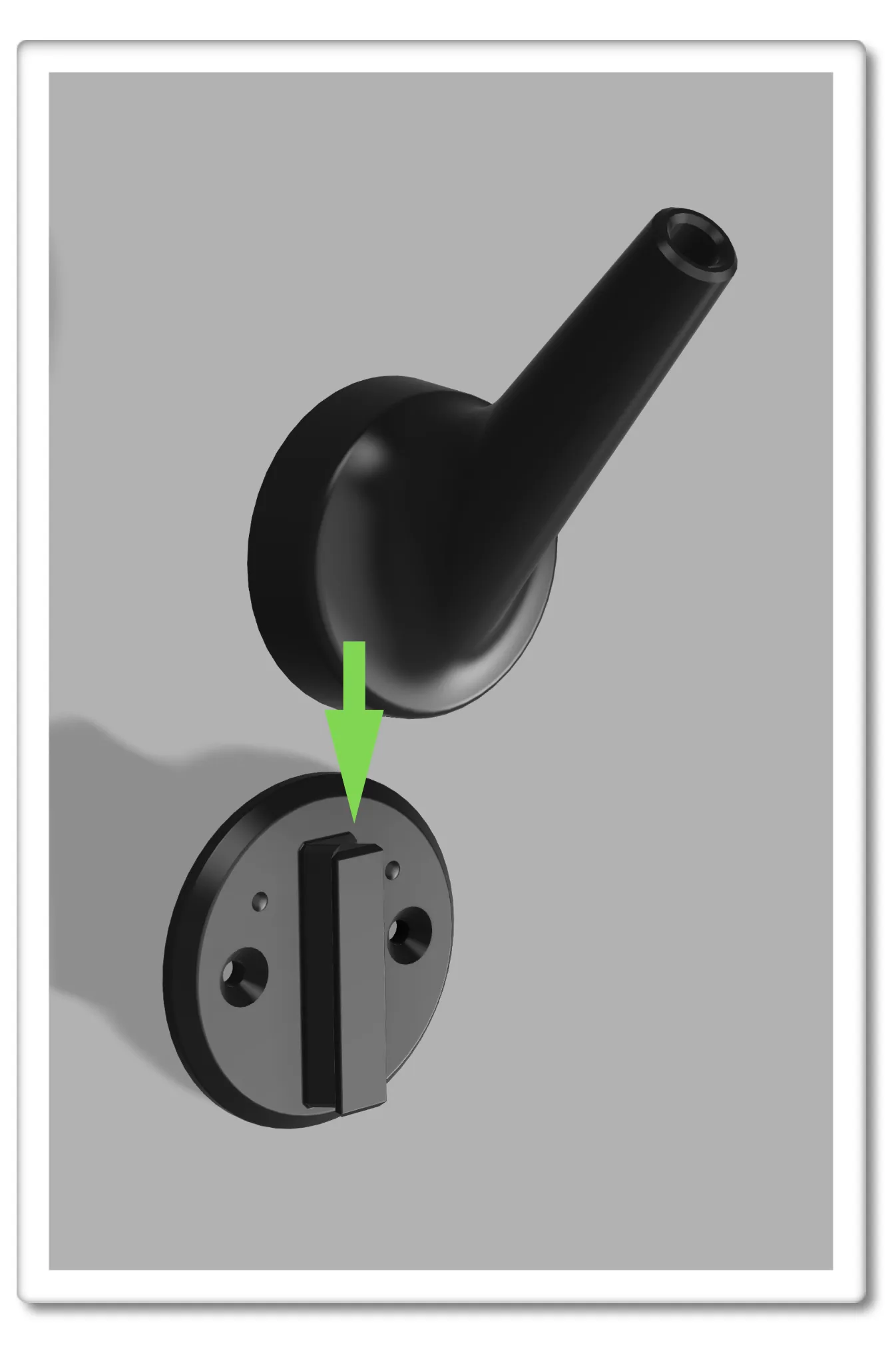

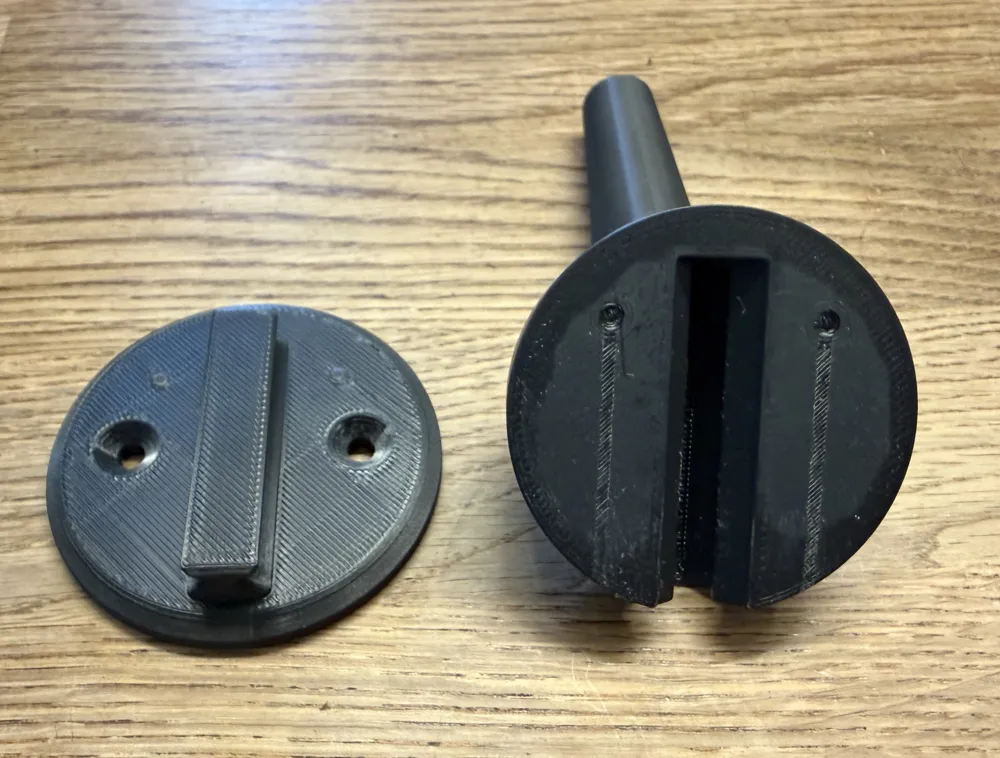

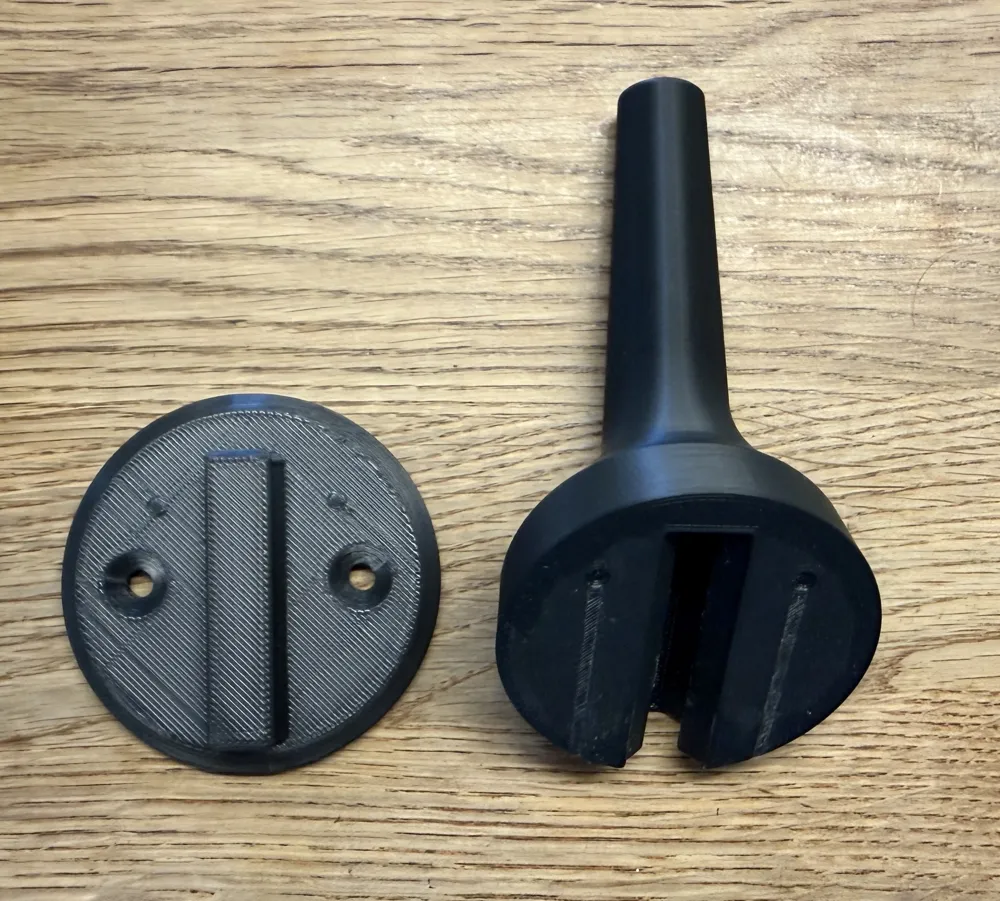

• Insert the holder vertically from top to bottom into the guide until the two parts click into place
• Now the flag can be inserted

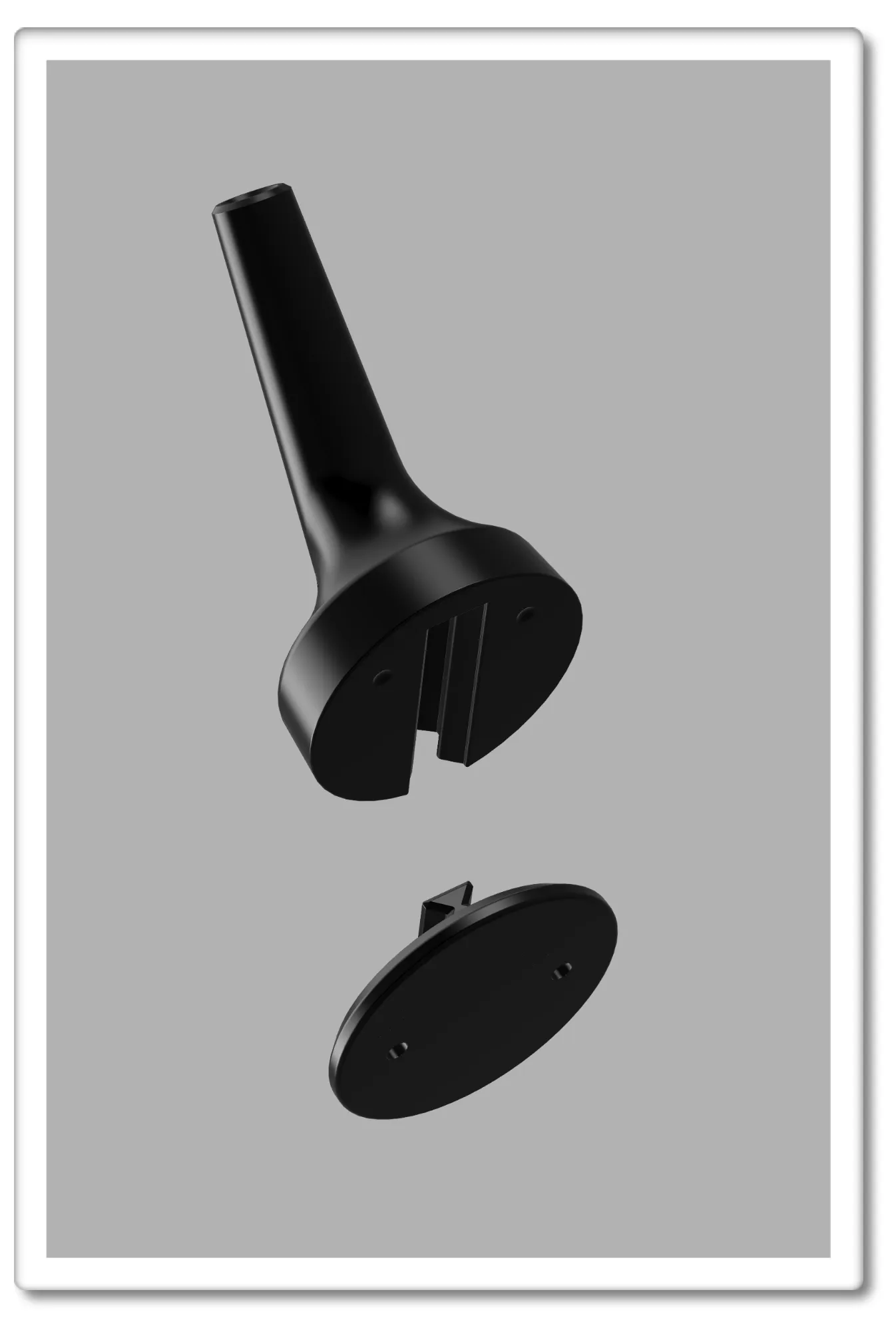

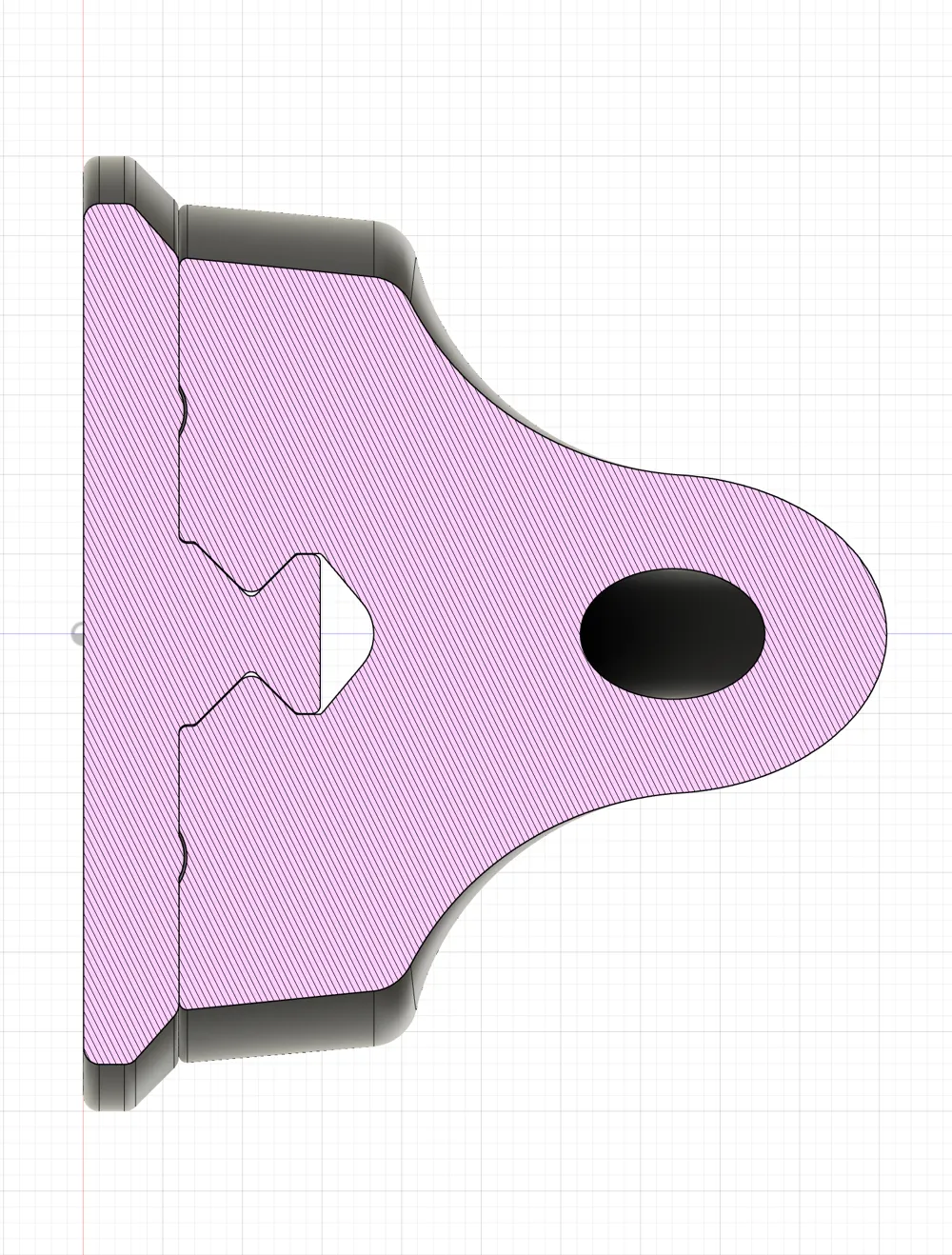

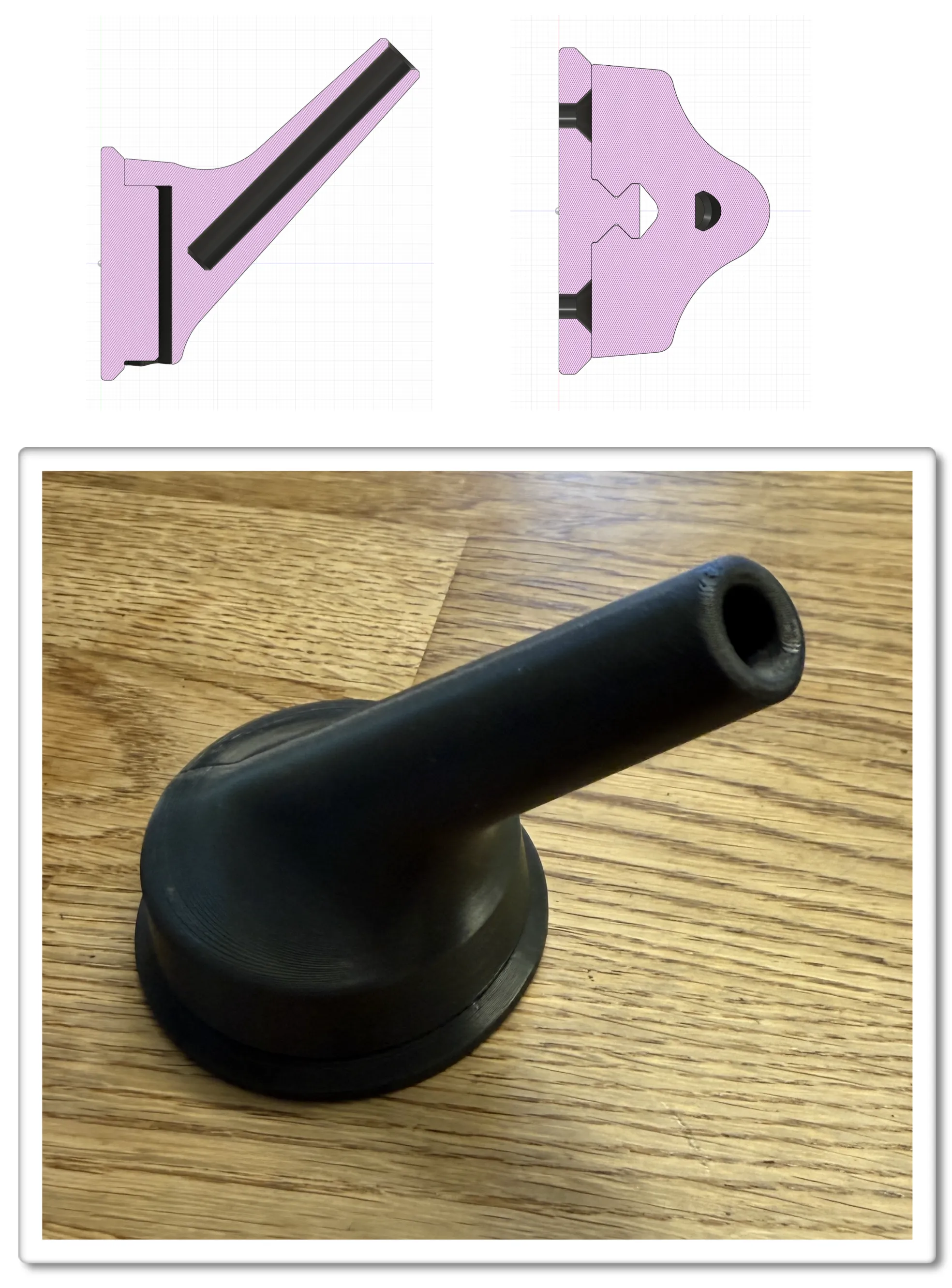

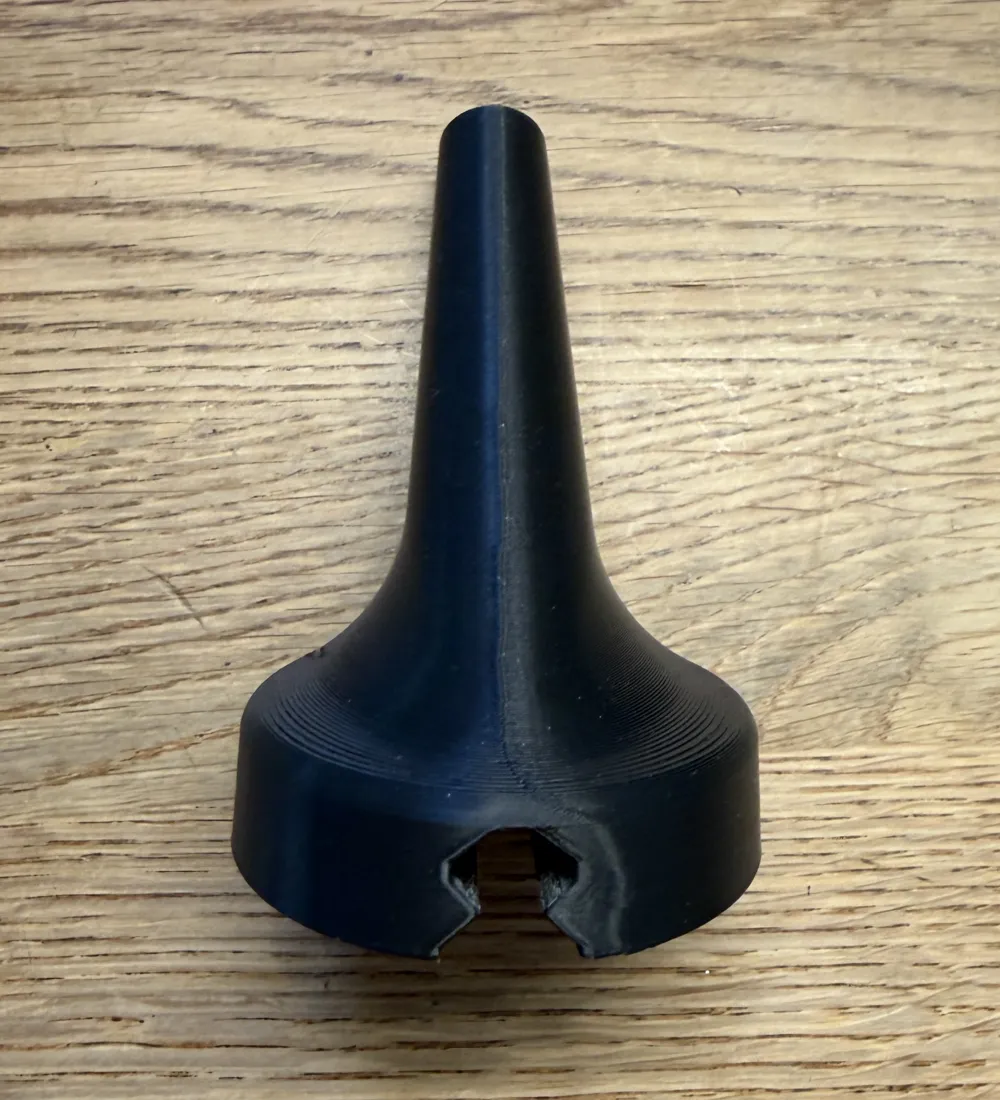

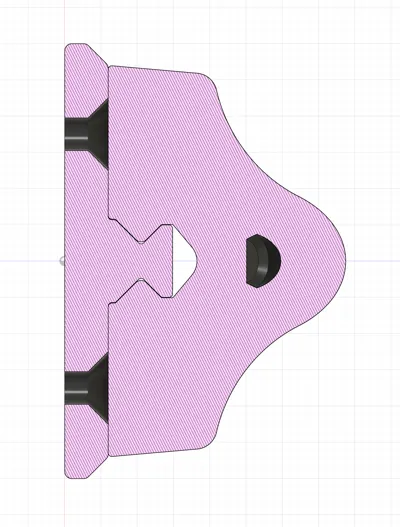

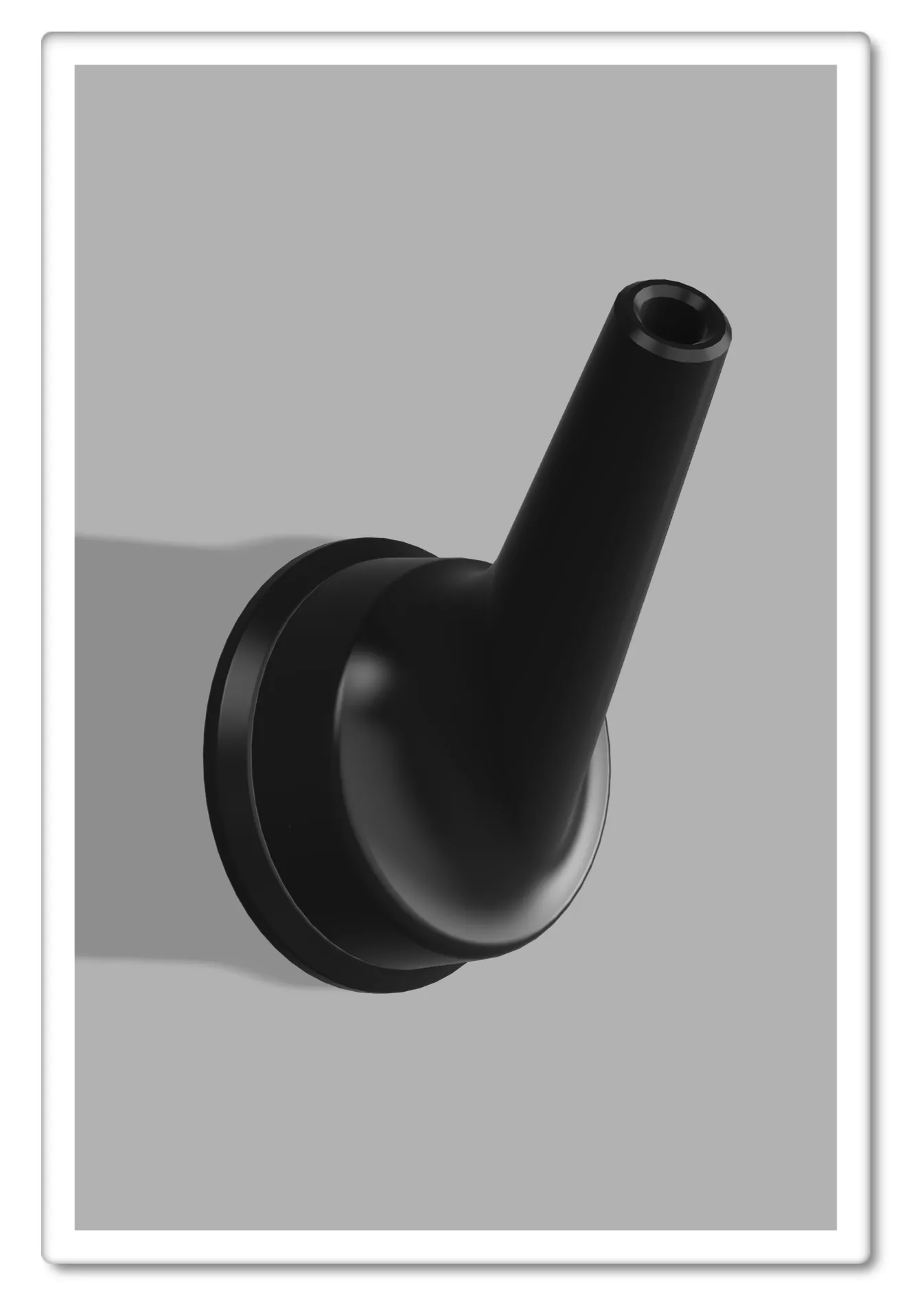

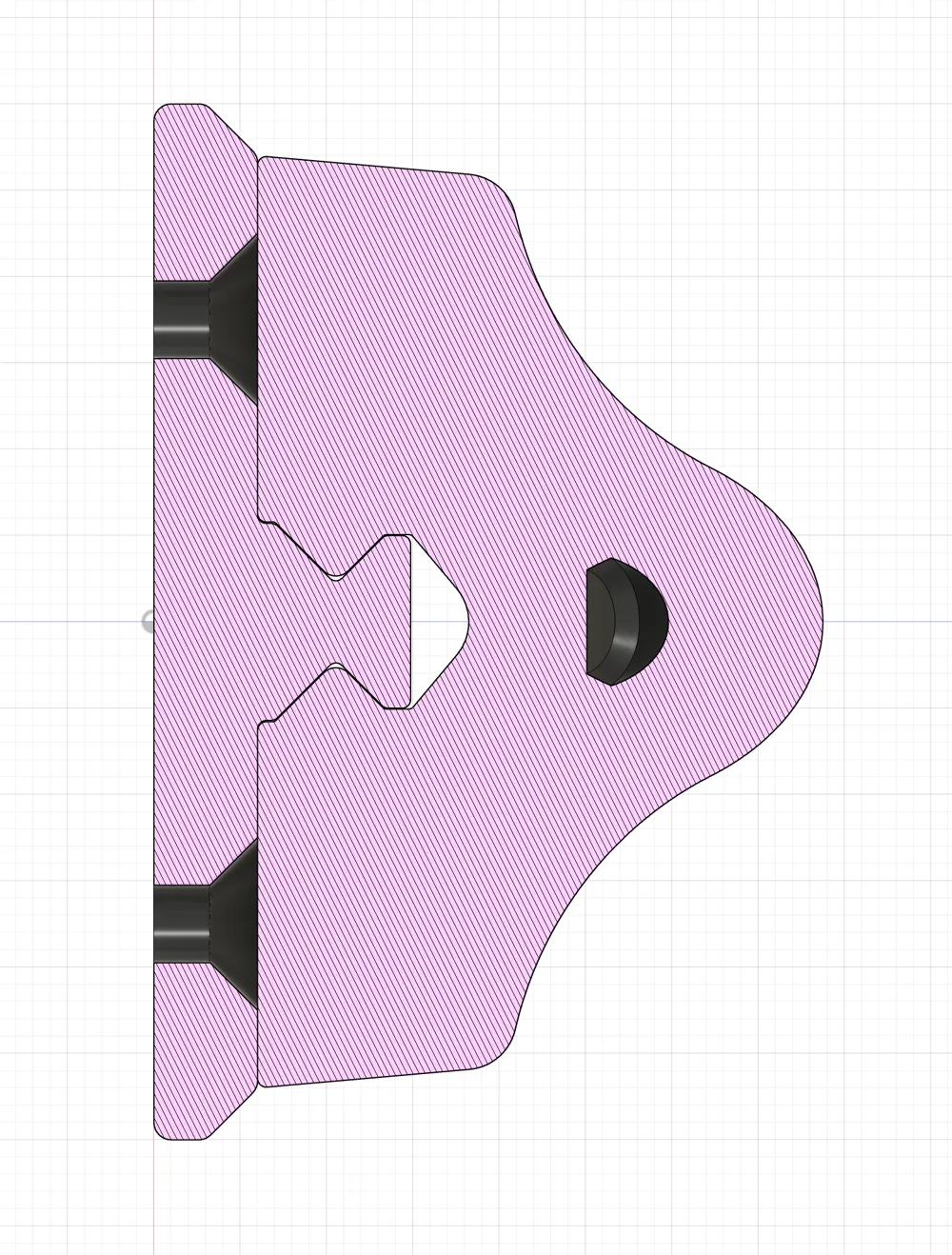

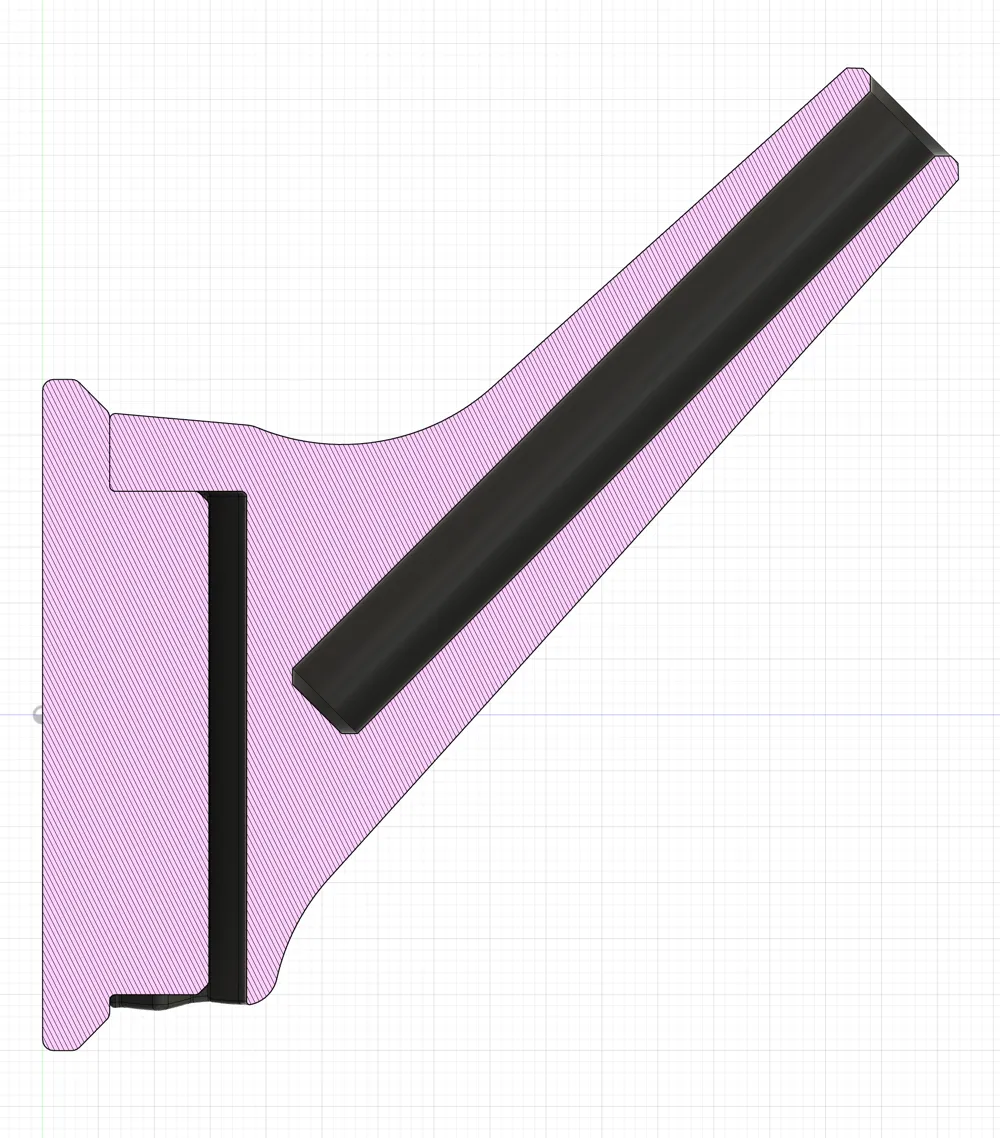

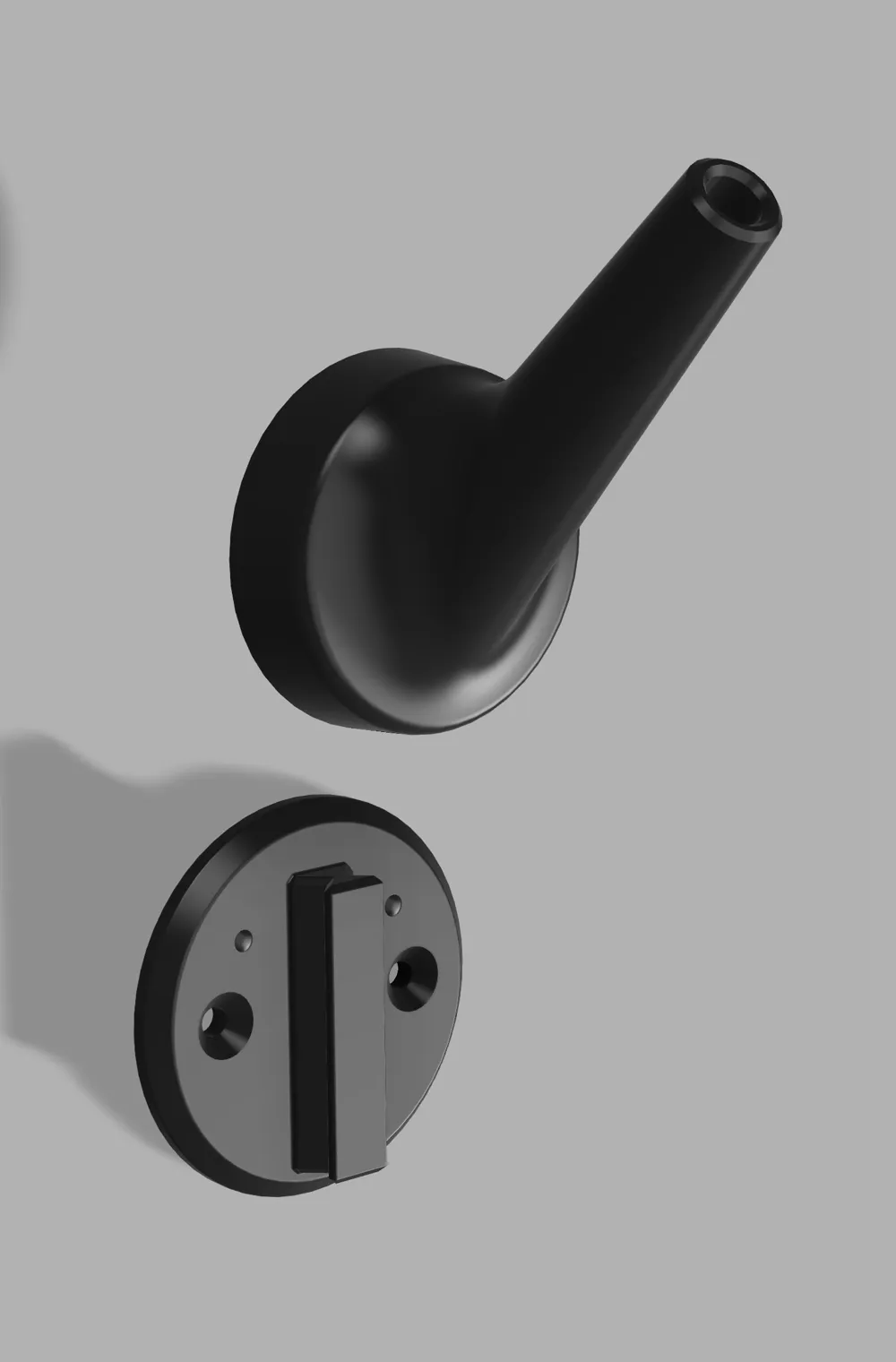

Views of the model from different perspectives

Print Information - Print Settings with ASA:

- The filament I used is ASA from Bambu Lab, but the object also serves its purpose when used outdoors with PETG.

- For the build plates, I used the Smooth - PEI Plate / High Temp Plate, with adhesive.

Wall bracket

Layer height

Layer height: 0.16 mm

First layer height: 0.2 mm

Walls

Wall loops: 2

Detect thin walls: Yes

Wall generator

Wall generator: Arachne

Threshold angle for wall transition: 10°

Filter for wall transition size: 25%

Wall transition length: 100%

Number of wall distributions: 1

Minimum wall width: 85%

Minimum feature size: 25%

Infill

Infill: 10%

Multi-line infill: 1

Infill pattern: GYROID

Infill anchor length: 400%

Maximum infill anchor length: 20

Filter out small gaps: 0 mm

Page 6 of 715. June 2026

Mount

Layer height

Layer height: 0.16 mm

First layer height: 0.2 mm

Walls

Wall loops: 2

Detect thin walls: Yes

Wall generator

Wall generator: Arachne

Threshold angle for wall transition: 10°

Filter for wall transition size: 25%

Wall transition length: 100%

Number of wall distributions: 1

Minimum wall width: 85%

Minimum feature size: 25%

Infill

Infill: 10%

Multi-line infill: 1

Infill pattern: GYROID

Infill anchor length: 400%

Maximum infill anchor length: 20

Filter out small gaps: 0 mm

These parameters have been adjusted for this/these part(s) in the print profile.

All other values remain Standard!

Have fun printing!
