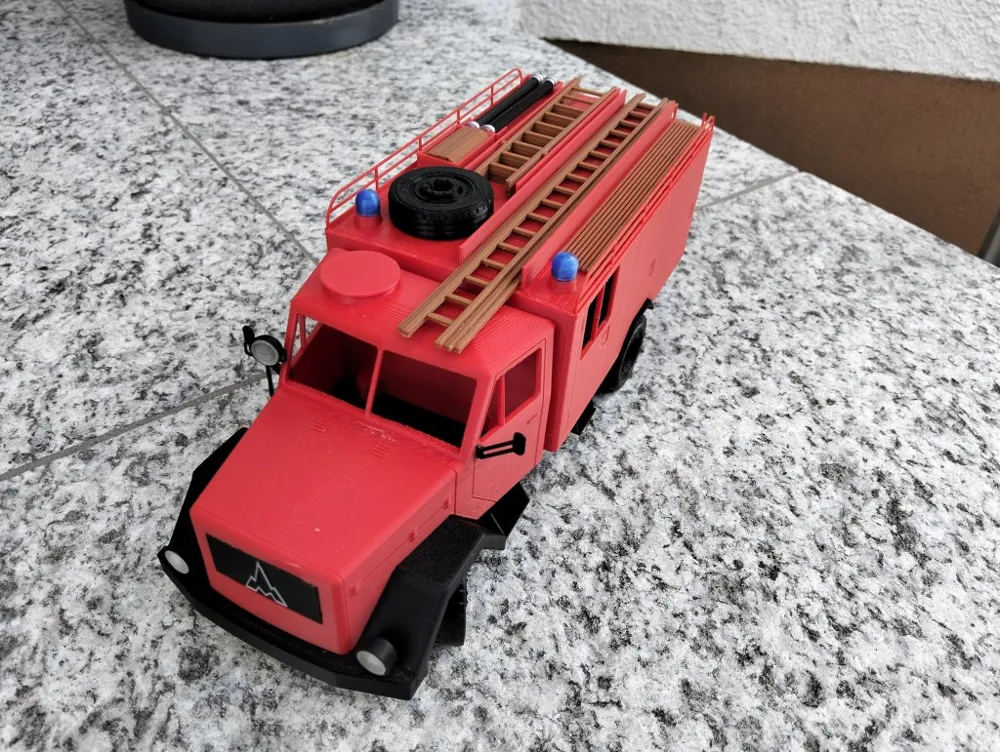

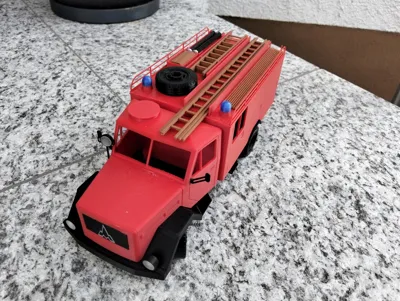

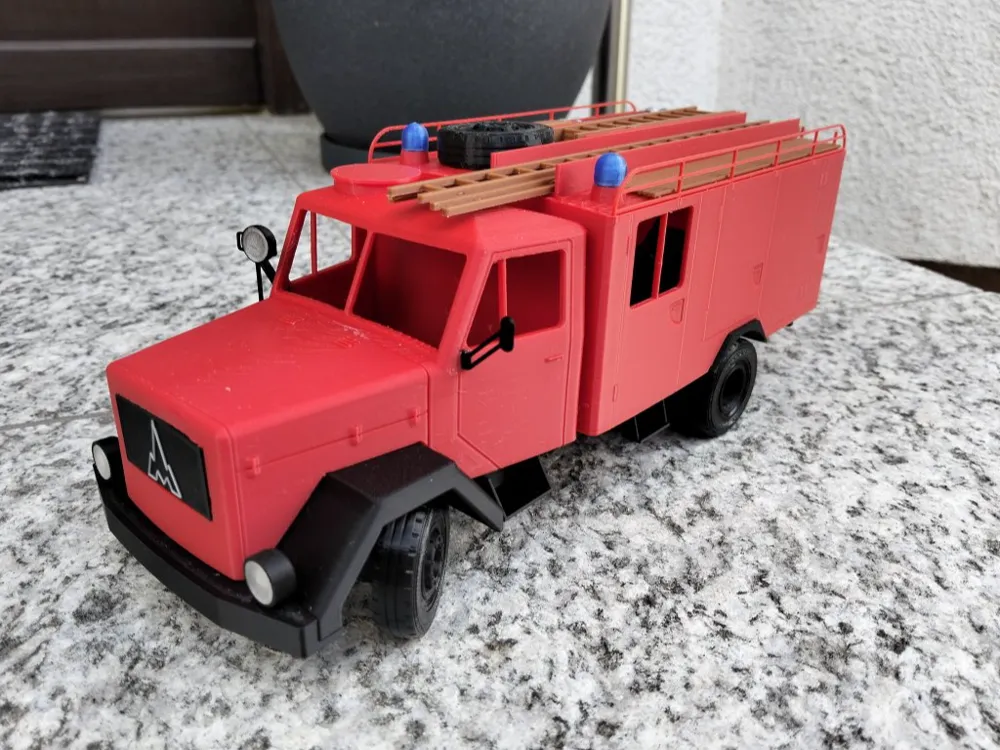

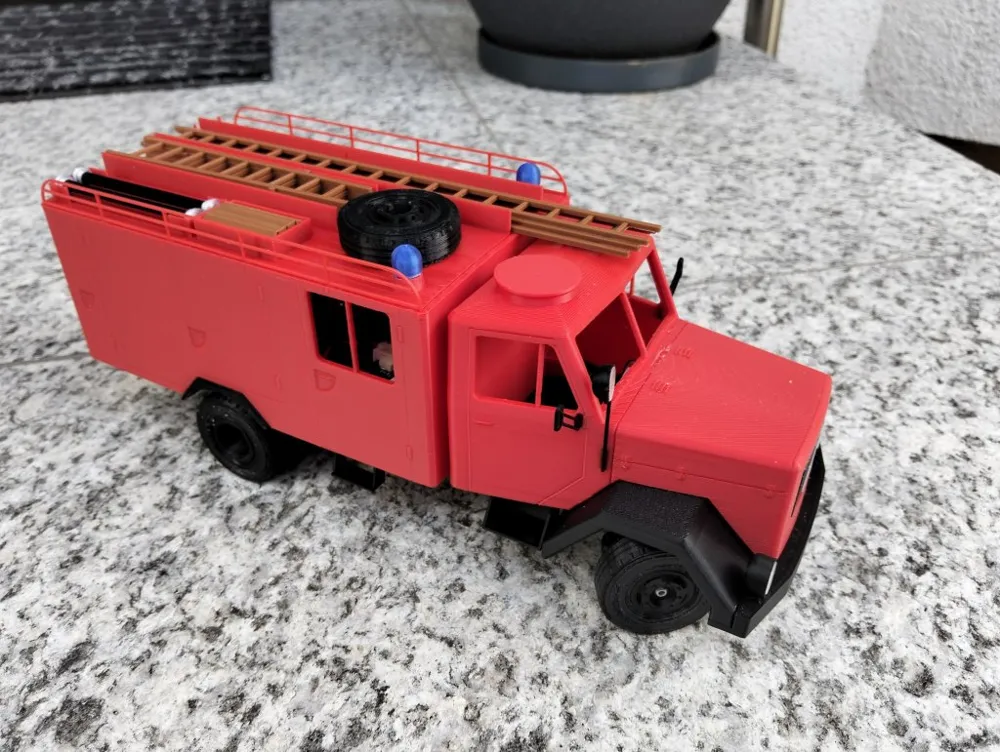

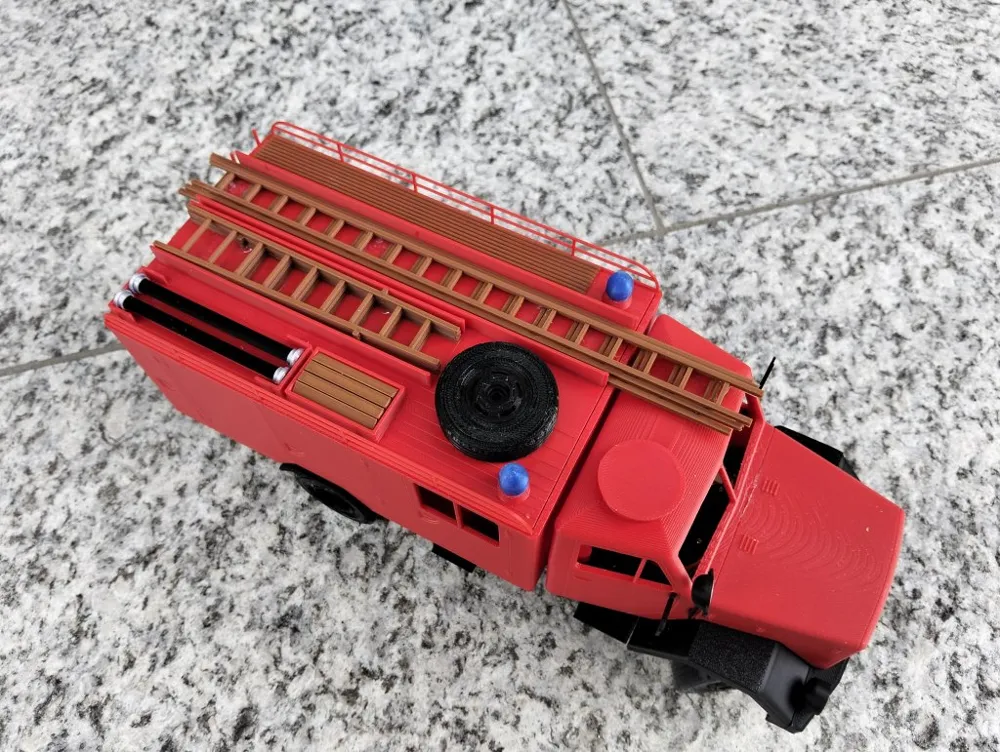

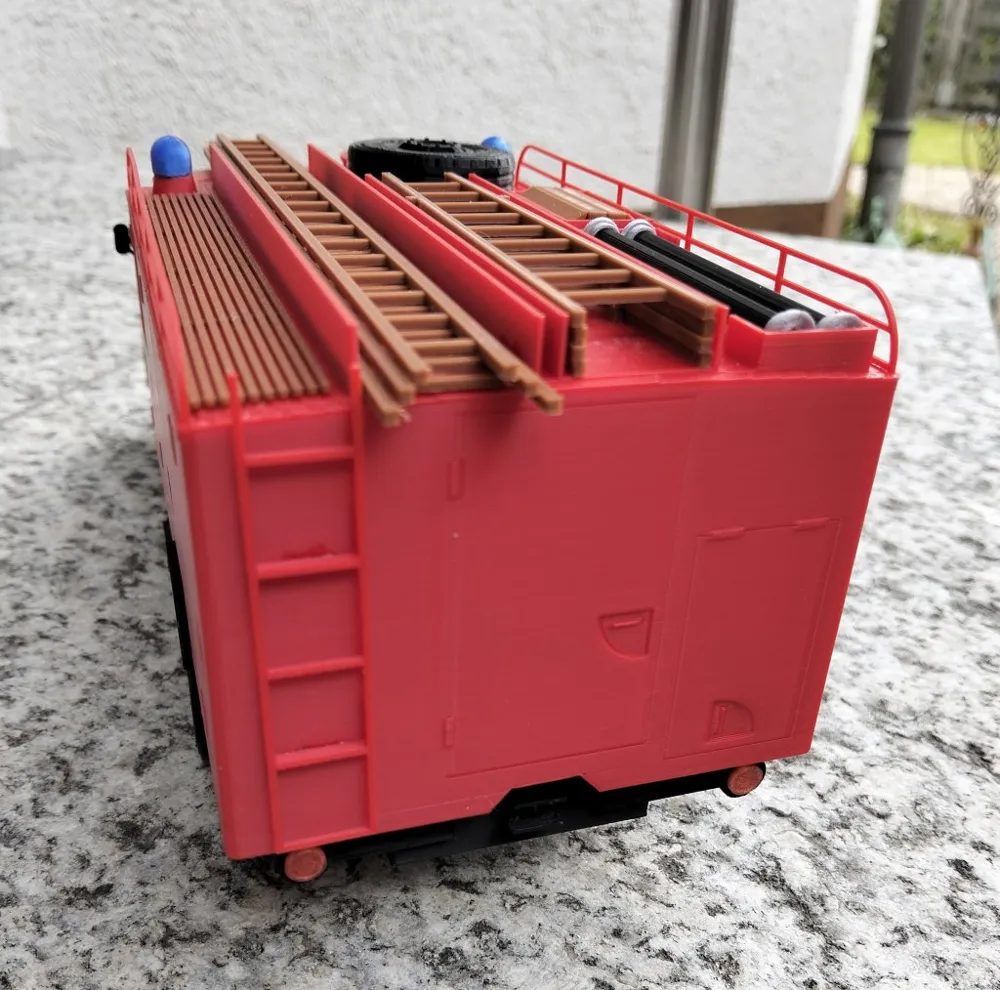

Here is my attempt to create a Magirus LF 16-TS fire engine in approximately 1:24 scale
The model is designed for remote control with CyberBrick components Controllable functions include movement (forward/backward), steering, headlights, taillights (optional), and flashing lights (optional)

I completely designed the model myself in FreeCAD I based the design on (not entirely consistent) basic dimensions from a 1950s Magirus brochure, an existing H0 scale model, and many reference photos

All parts, assembly, and configuration steps are described in the attached documents “Assembly.pdf”, “CyberBrickConfiguration.pdf”, and “PartsList.pdf” The documents are bilingual (German/English)

I have attached two print profiles: one (0.4 nozzle, 0.2 layer) for larger parts, and one (0.2 nozzle, 0.12 layer) for fine small parts
The profiles are designed for the “larger” Bambu printers, but all parts, with the exception of the base frame, can also be printed on the A1Mini

More 1:24 scale models by me can be found here: https://makerworld.com/en/collections/5684378-1-24-modellbau-scalemodeling

Documentation (3)

Assembly Guide (3)

Assembly.pdf

CyberBrickConfiguration.pdf

PartsList.pdf
