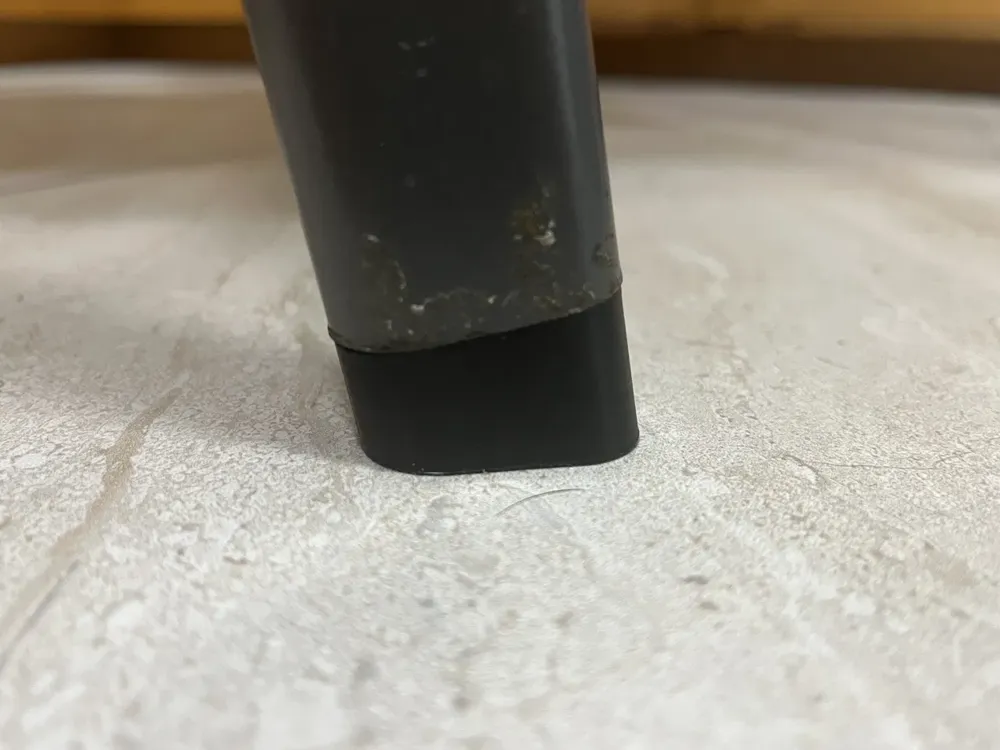

Tired of missing or worn out leg caps on your ladder, chair, or furniture?

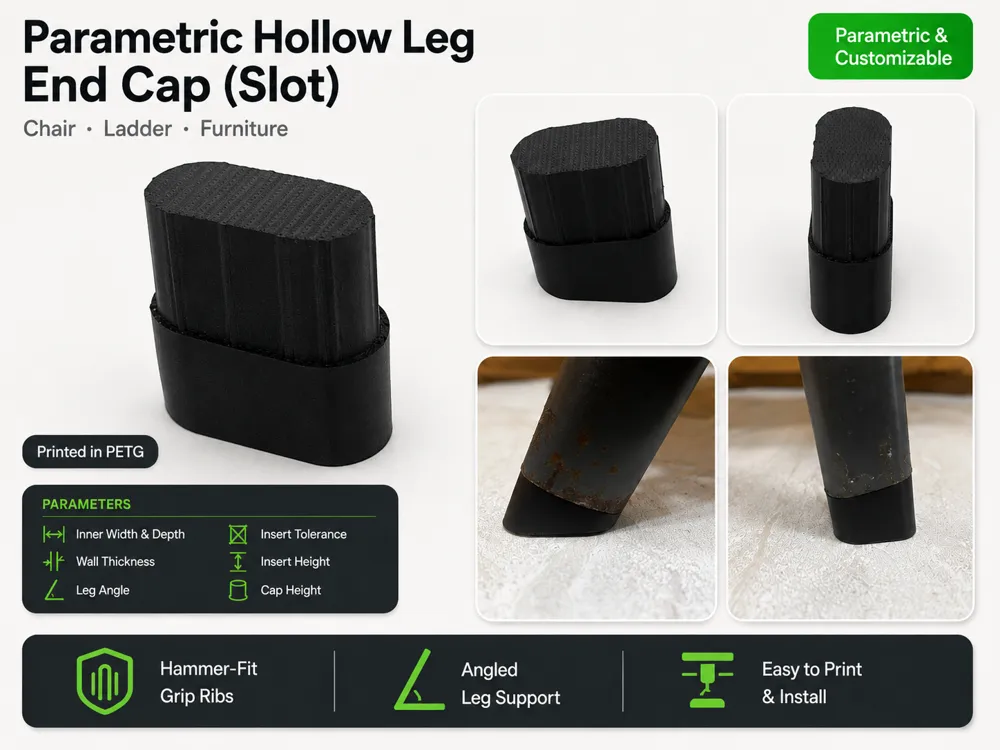

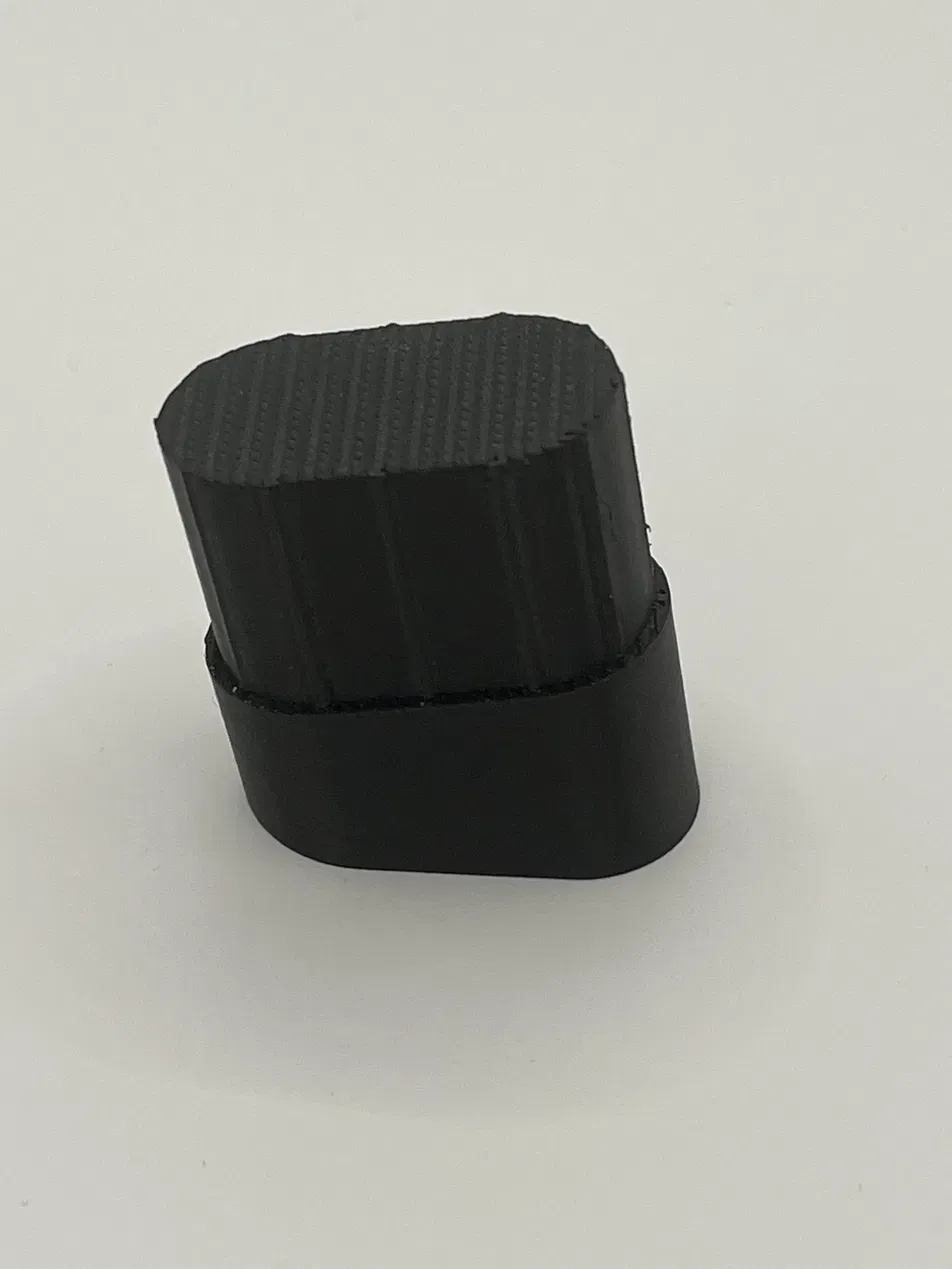

This fully parametric end cap is designed to fit any hollow slot-shaped leg. Just measure your leg, enter your parameters, and print a perfect fit every time. Printed in PETG for durability, floor protection, and impact resistance. Features built-in hammer-fit grip ribs so it stays locked in place without glue

Boost Me (for free)

If this saved you from buying new furniture or a ladder, give it a boost! 🙌 It helps the model reach more people who need it.

PARAMETERS

InnerWidth

The short side of the hollow leg opening in mm. Measure the inside of the leg channel.

InnerLength

The long side of the hollow leg opening in mm. Measure the inside of the leg channel.

WallThickness

The thickness of the metal or material the leg is made of in mm. Helps the cap sit flush against the leg end.

FootAngle

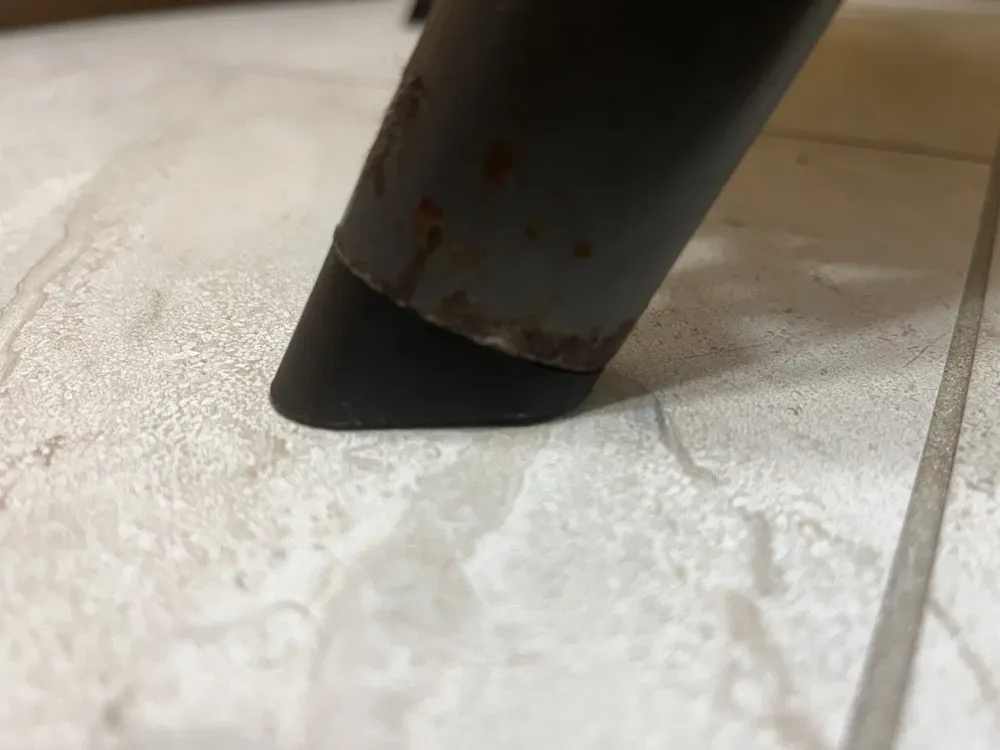

The angle of the leg in degrees. 0 = vertical leg (chair, table). Increase for angled legs like ladders. Max recommended: 45°.

InsertDepth

How far the cap insert slides up into the leg in mm. Longer = more grip. 20-30mm recommended.

FootLengthMax

The total height of the cap on the tallest side in mm, measured from the bottom of the leg channel down to the floor. This is your main height control.

InnerTolerance

Fine tune the fit. Start at 0.2mm. Increase if too loose, Decrease if too tight. Typical range 0.1-0.3mm..

PRINT SETTINGS

Material: PETG recommended

Walls: 4-6

Bottom layers: 6

Infill: 25% Gyroid

Supports: None required
