5 LED diode soldering jig
Print Profile(1)
Description

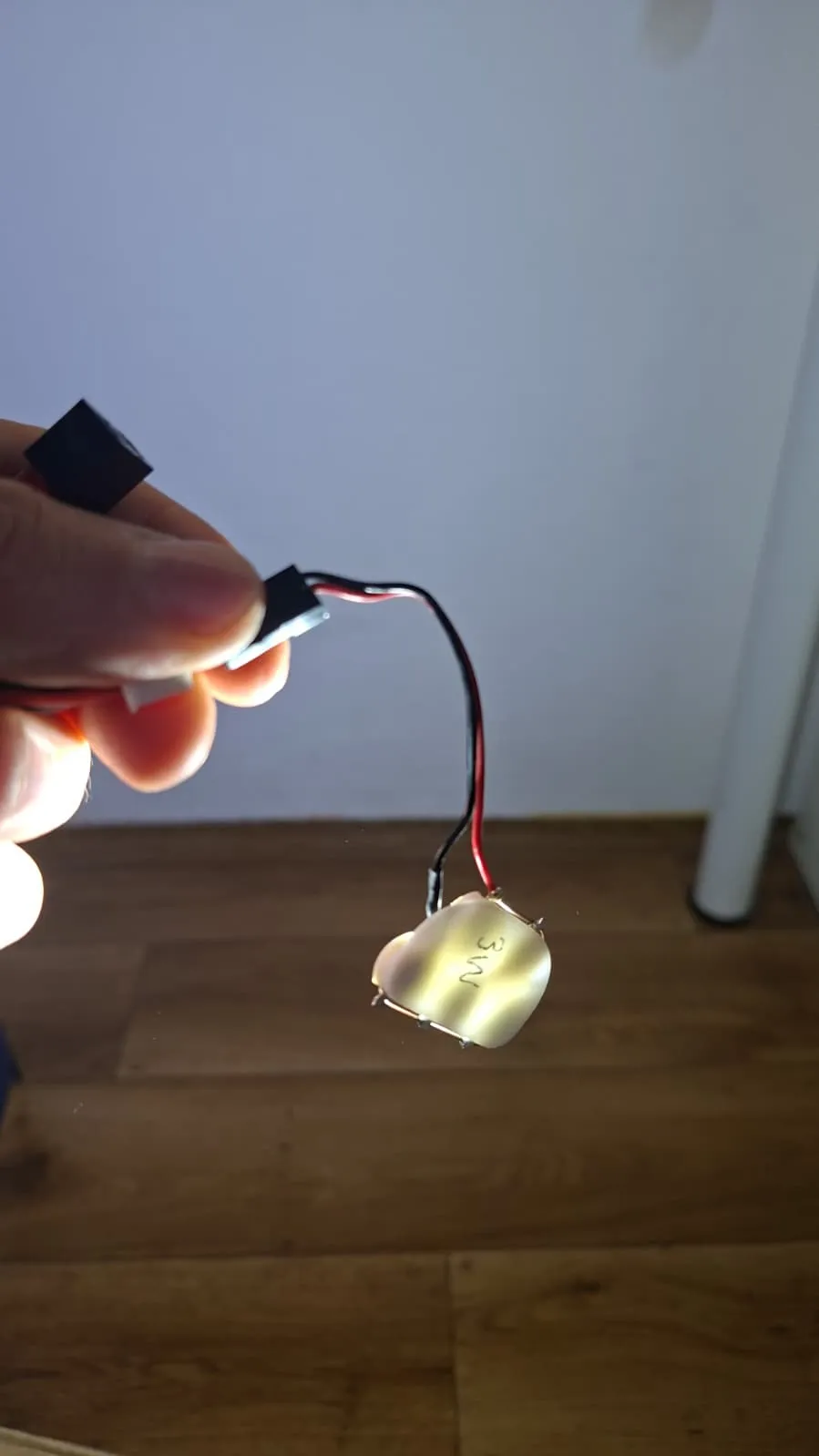

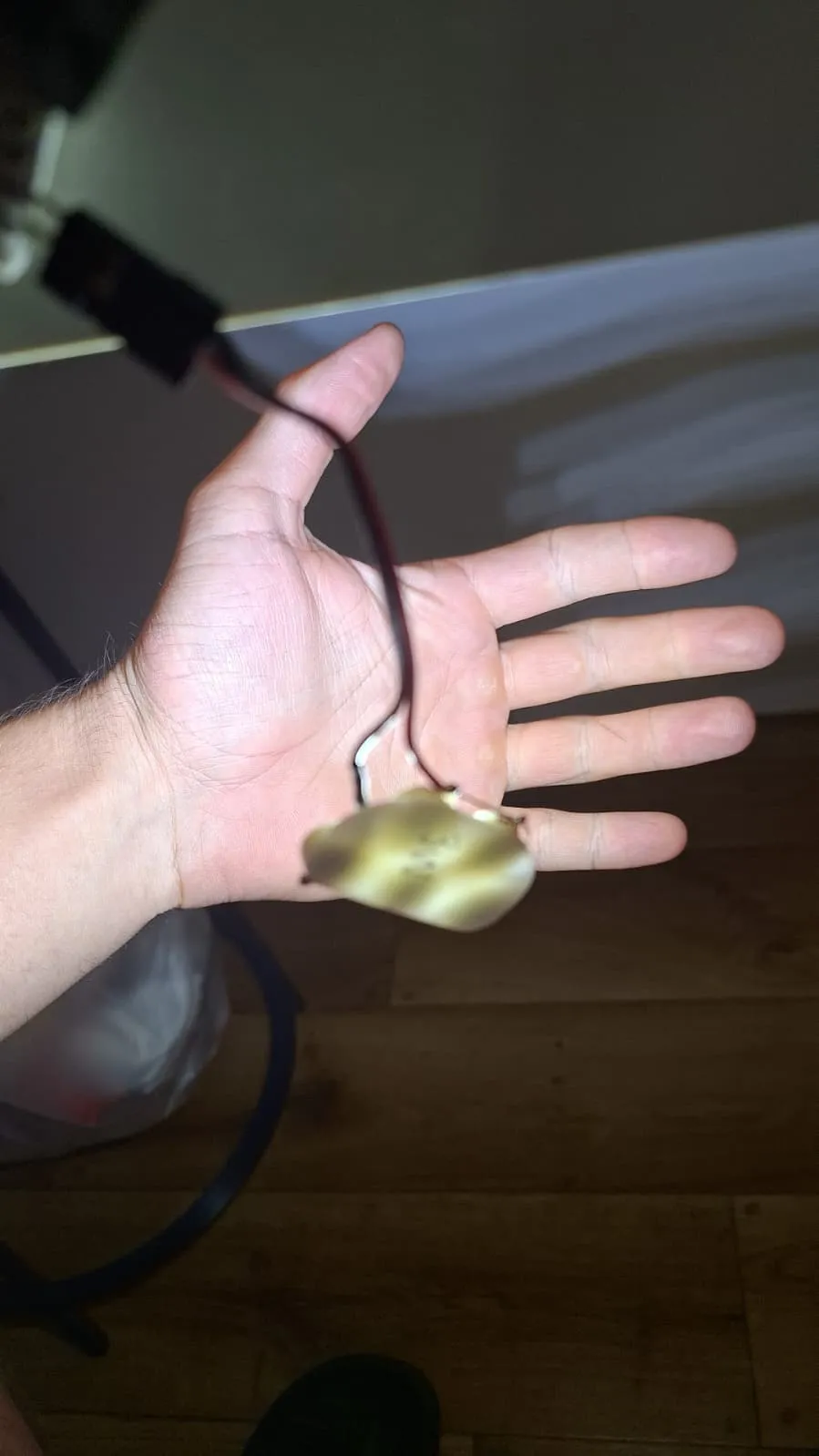

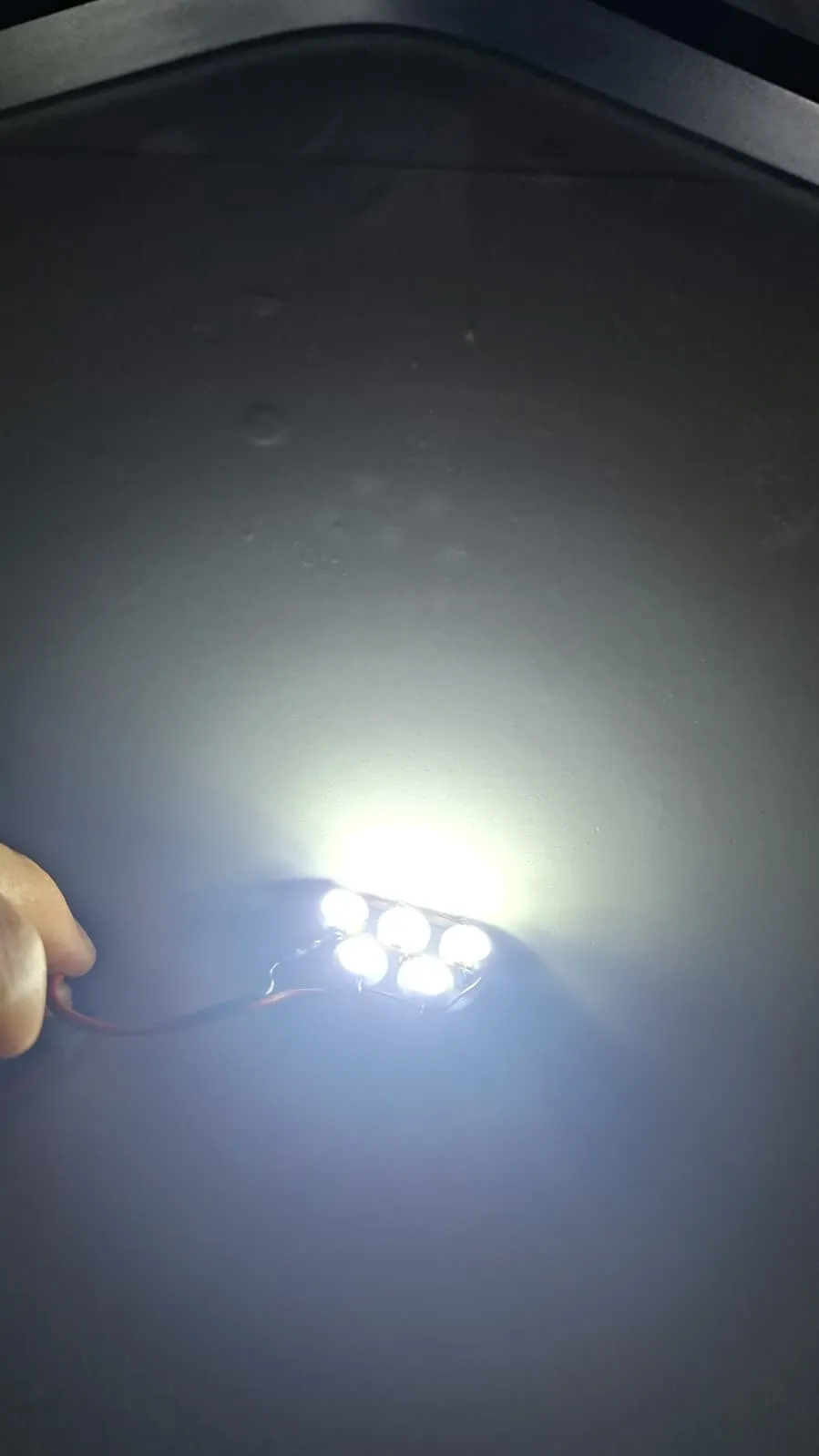

https://www.aliexpress.com/item/1005005779100202.html?_randl_currency=USD&_randl_shipto=CZ&src=google&src=google&albch=shopping&acnt=615-992-9880&isdl=y&slnk=&plac=&mtctp=&albbt=Google_7_shopping&aff_platform=google&aff_short_key=_oFgTQeV&gclsrc=aw.ds&&albagn=888888&&ds_e_adid=&ds_e_matchtype=&ds_e_device=c&ds_e_network=x&ds_e_product_group_id=&ds_e_product_id=en1005005779100202&ds_e_product_merchant_id=106406471&ds_e_product_country=CZ&ds_e_product_language=en&ds_e_product_channel=online&ds_e_product_store_id=&ds_url_v=2&albcp=22479481823&albag=&isSmbAutoCall=false&needSmbHouyi=false&gad_source=1&gad_campaignid=22482954463&gclid=Cj0KCQjwornRBhCrARIsAON5exFtUm8zYwWly5D7w0JLtjwkYA30GM0s7Mwe_TrPhIYhFradiWxGm_AaAsQkEALw_wcB you need this type of LED diodes, copper wire without enamel, soldering iron and some insulated wires. I use 3,7V Li-pol for powering it. I recommend using some kind of recommended resistor. These 3W LEDs are pretty strong and if you put 5 in parallel, you get 15W LED light which is really strong and it will heat up a lot. Thats why I recommend putting the 3d printed soldering jig away once you get them all soldered so the diodes have chance to cool down. I am not responsible for any fire hazard connected with this 3D model.
