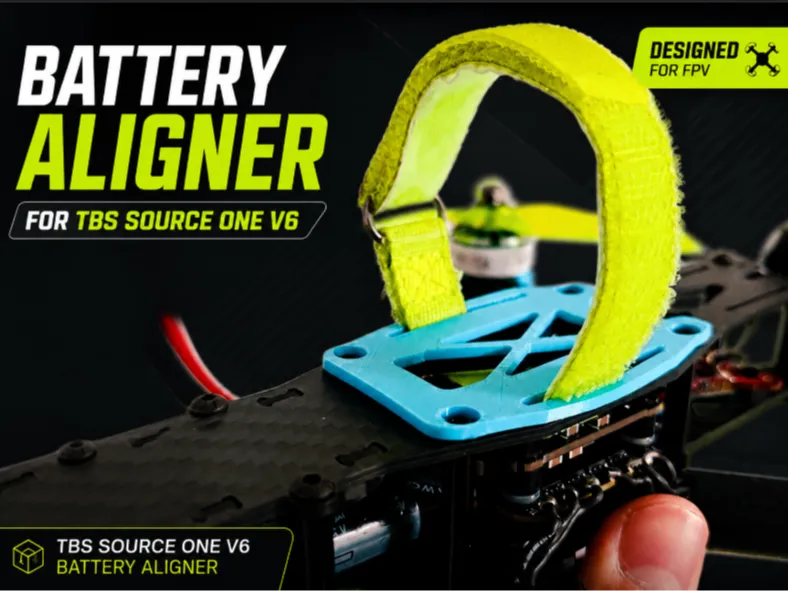

Battery Aligner for TBS Source One V6

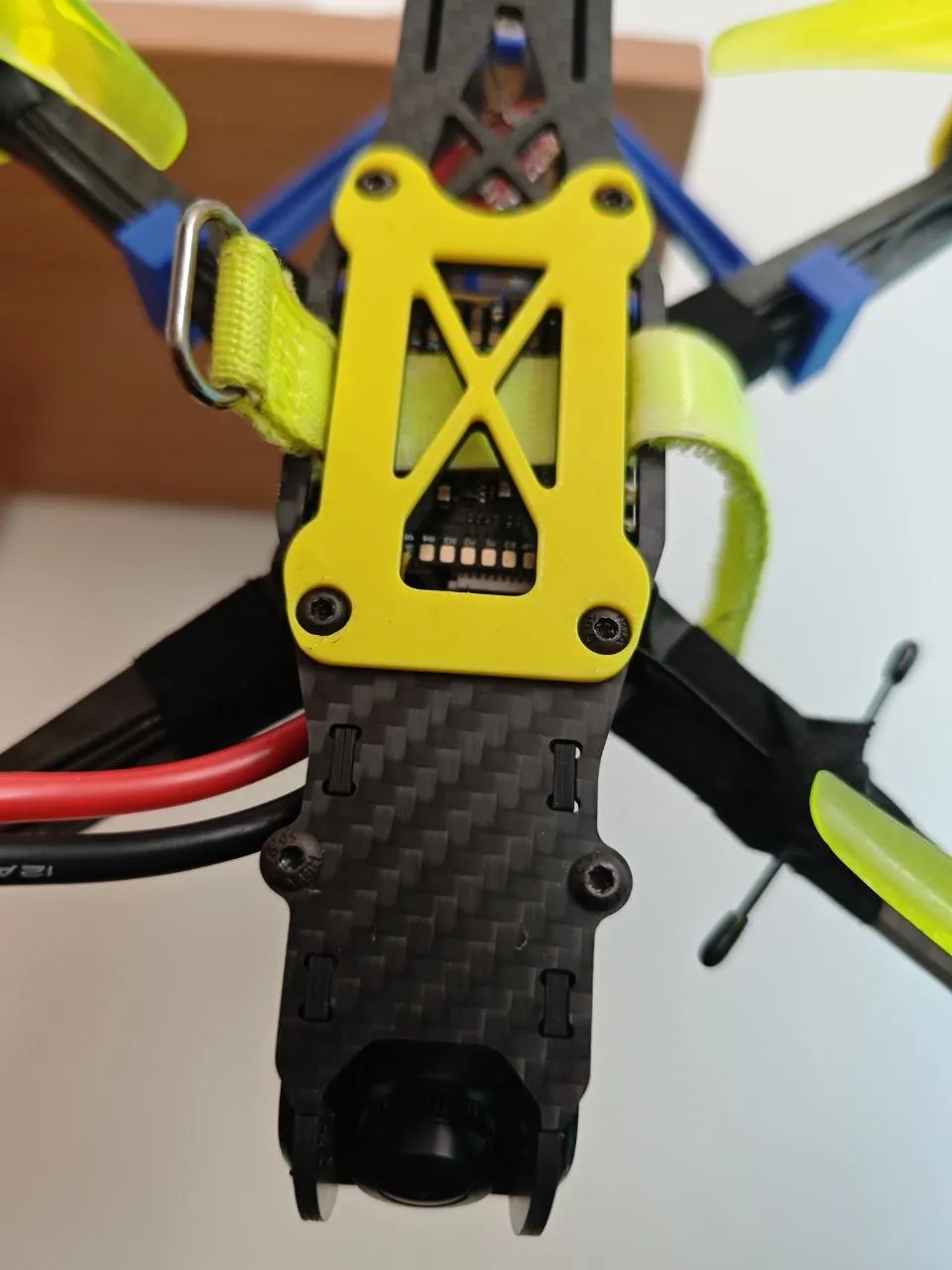

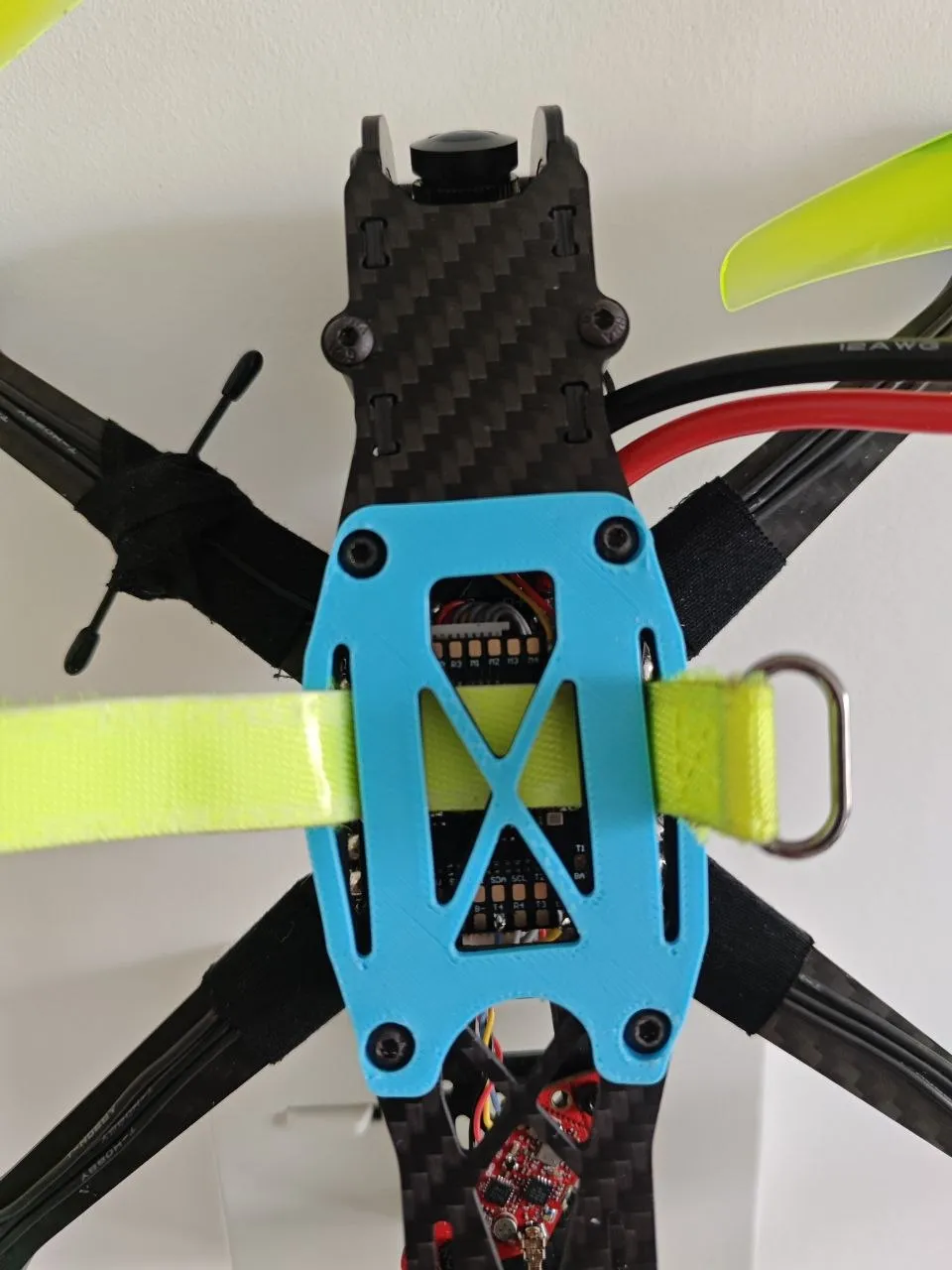

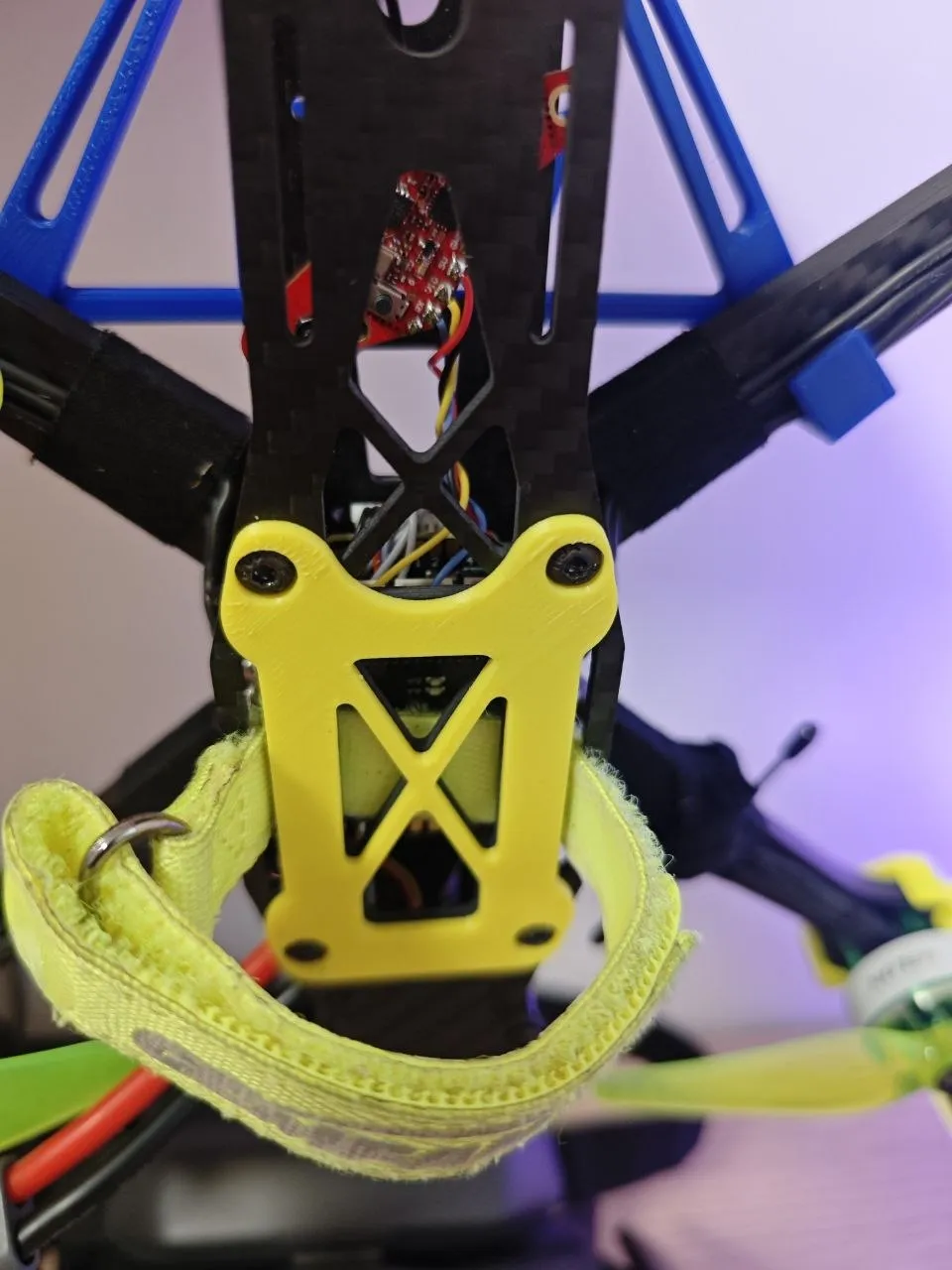

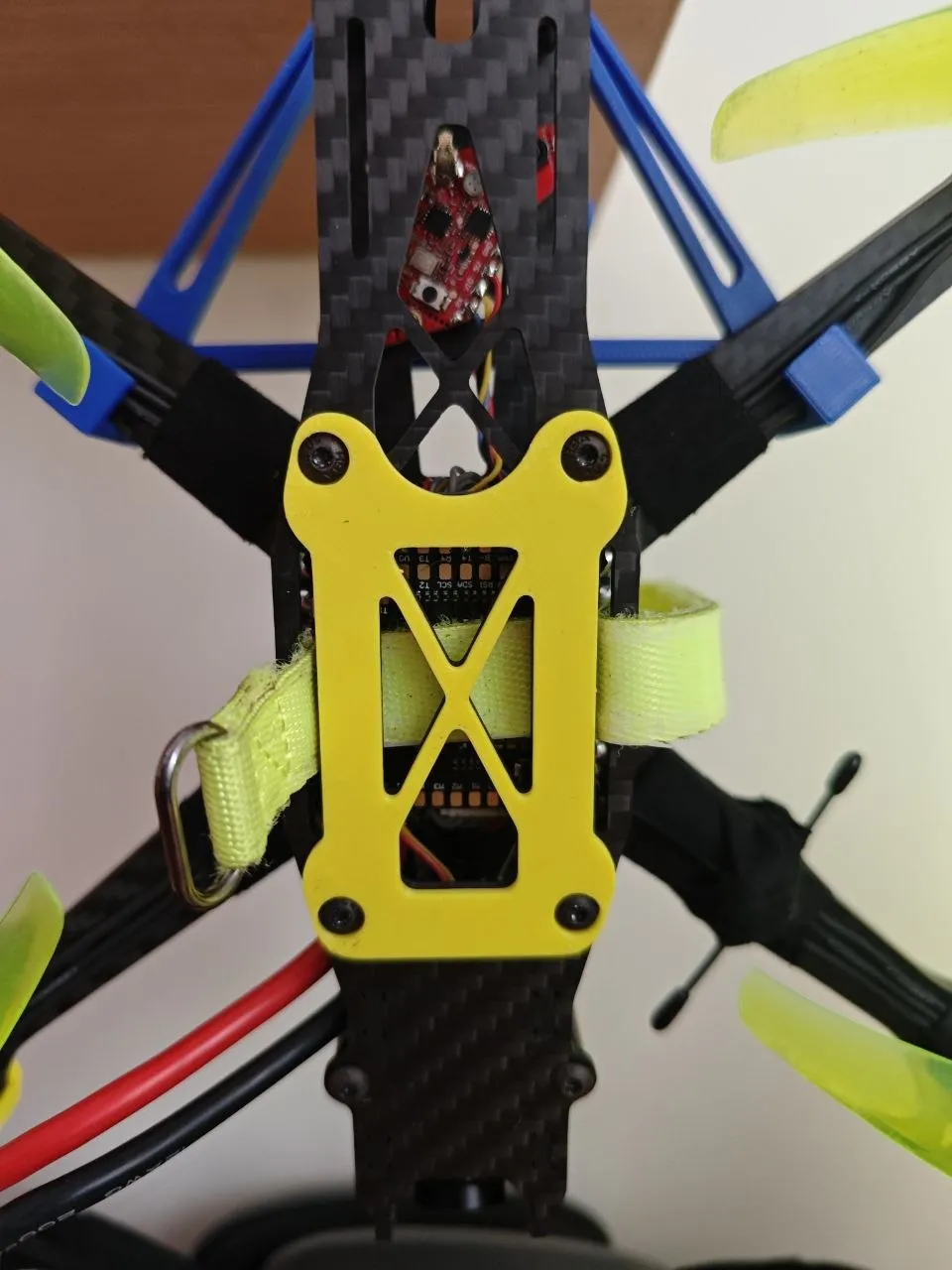

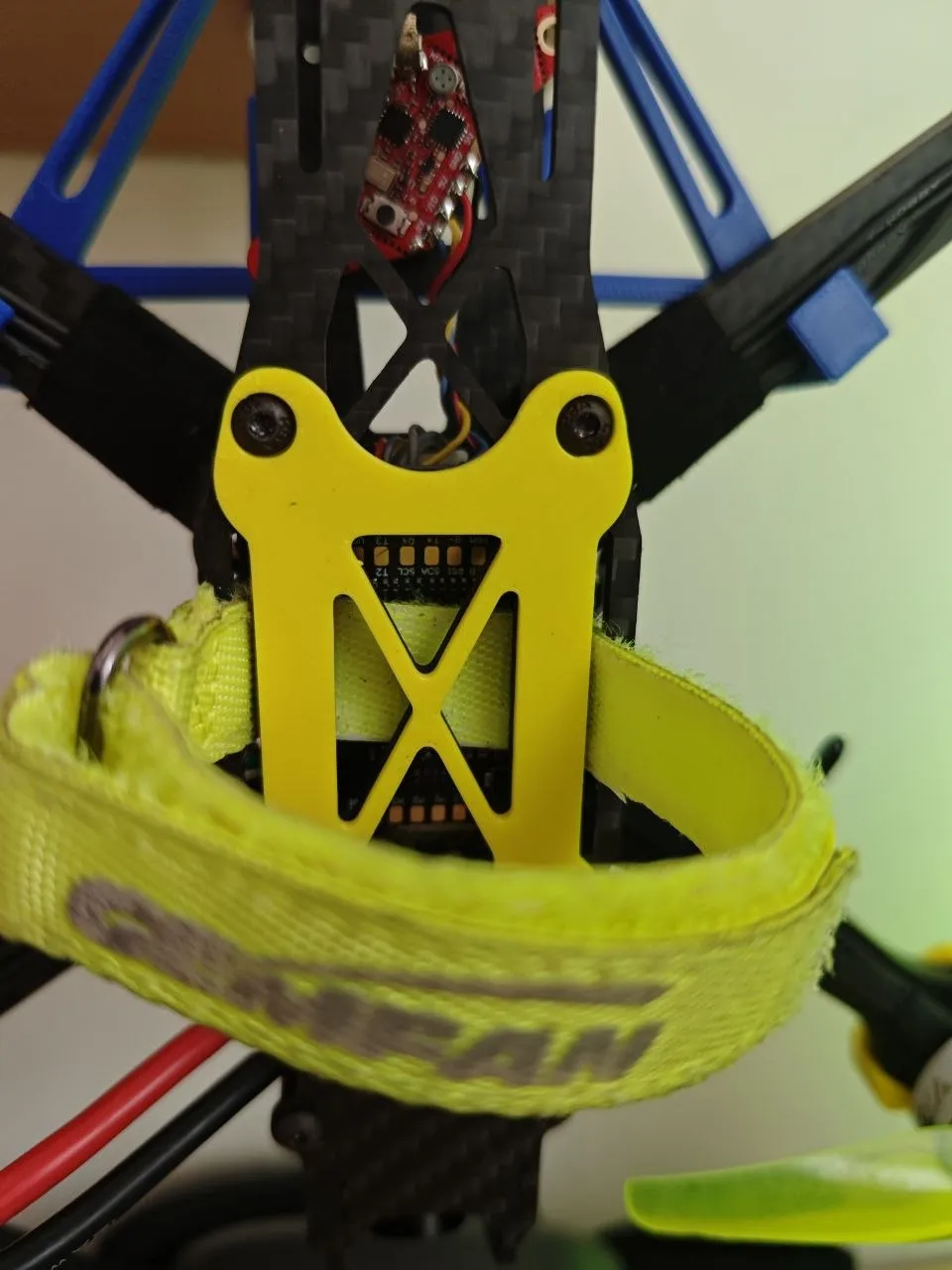

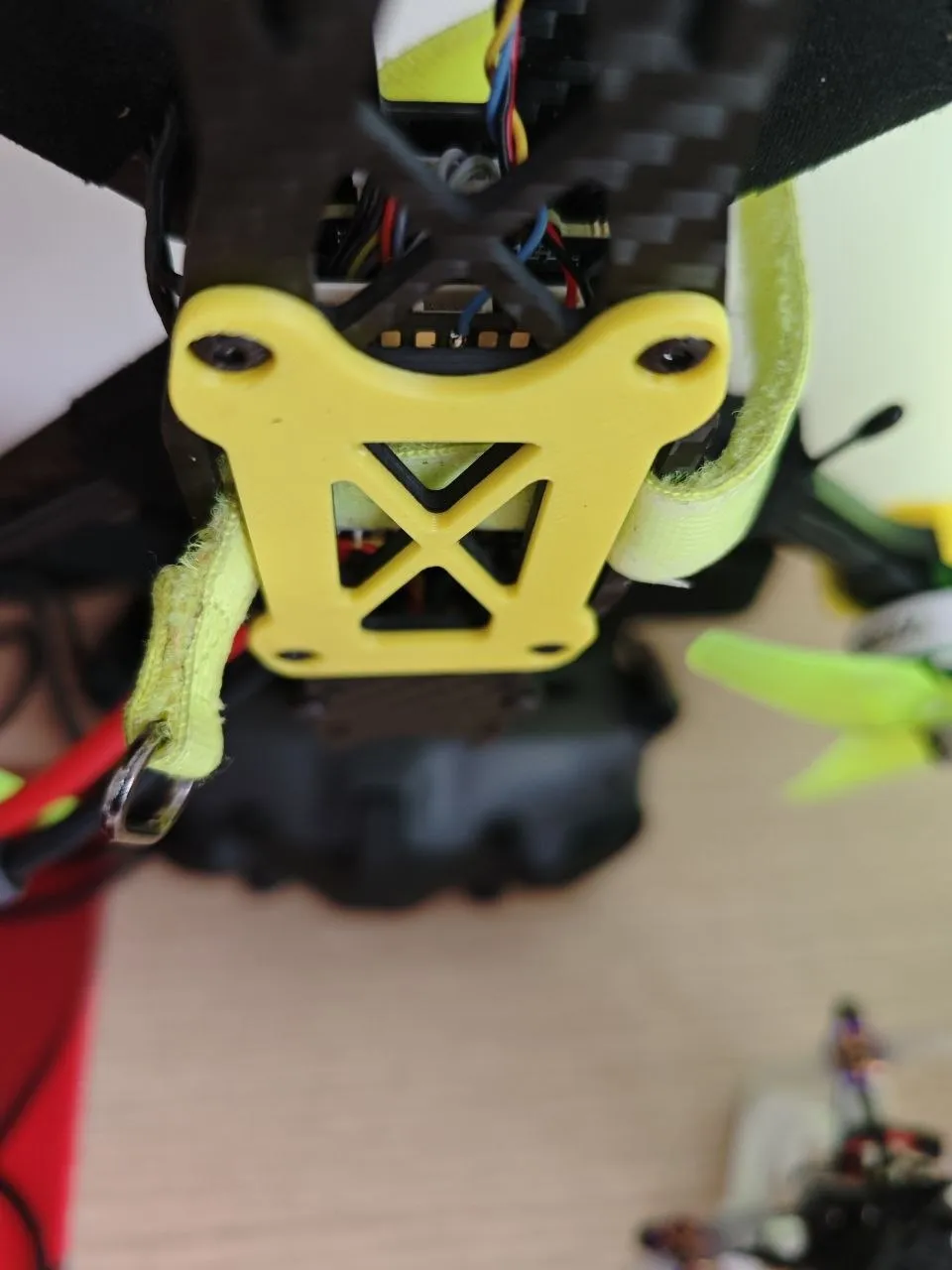

This battery aligner was designed for the TBS Source One V6 frame.

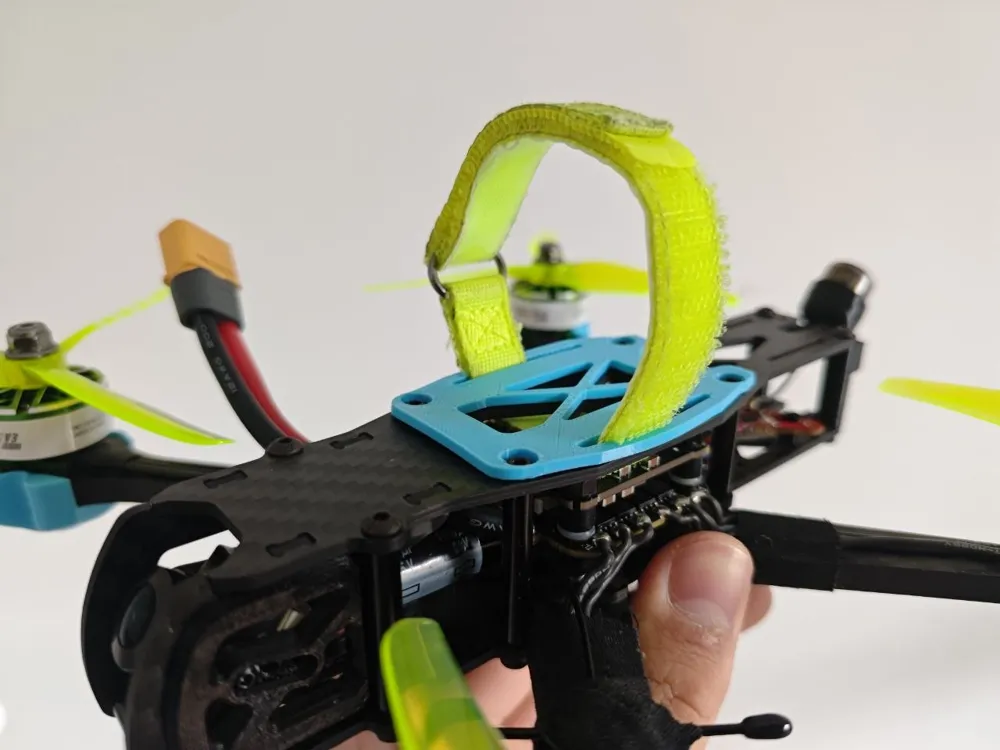

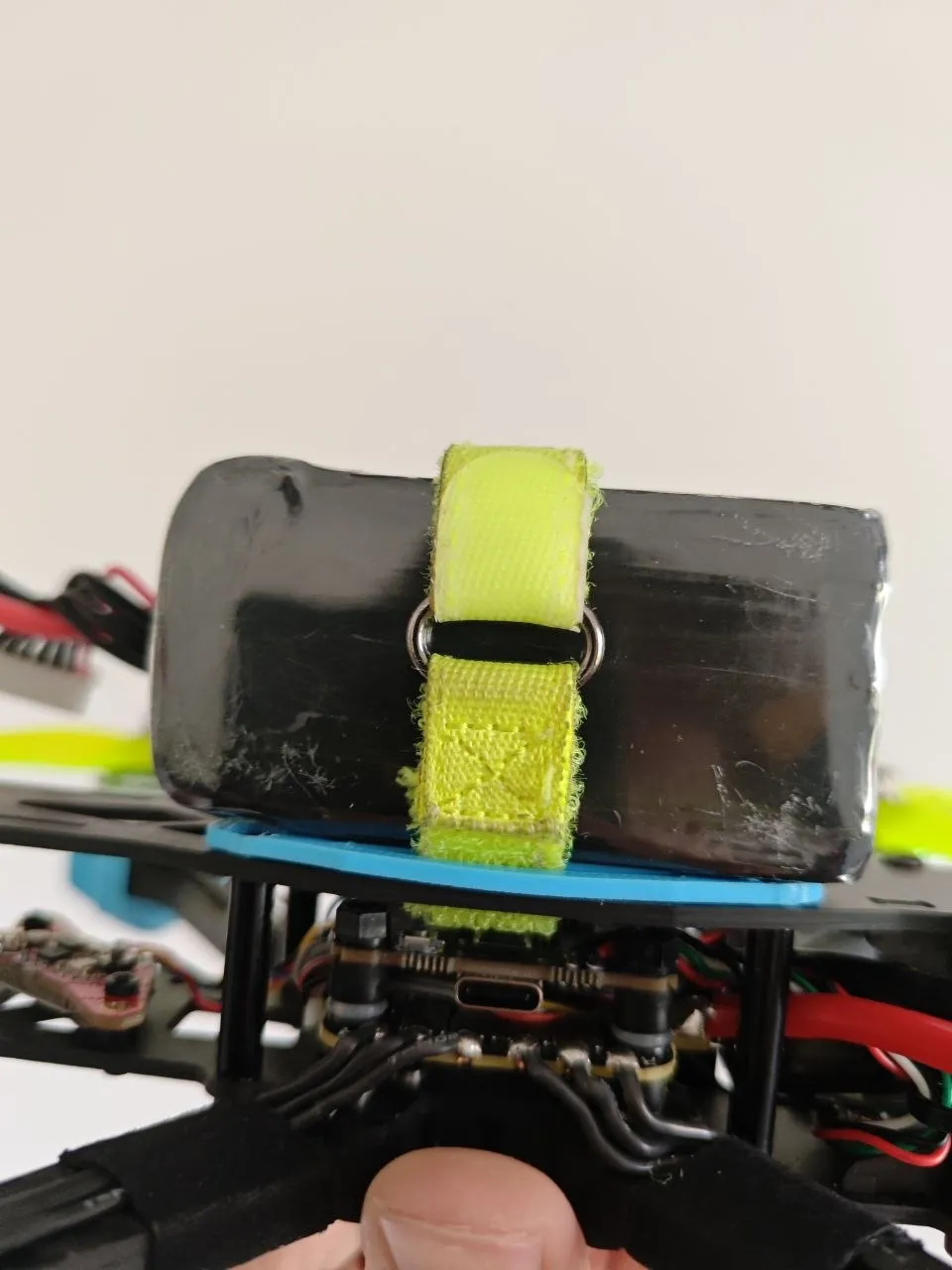

The main purpose of this part is to create clearance between the battery and the top plate mounting screws. The aligner raises the battery slightly above the frame, allowing the screw heads to sit inside the recessed areas of the model instead of pressing directly against the LiPo.

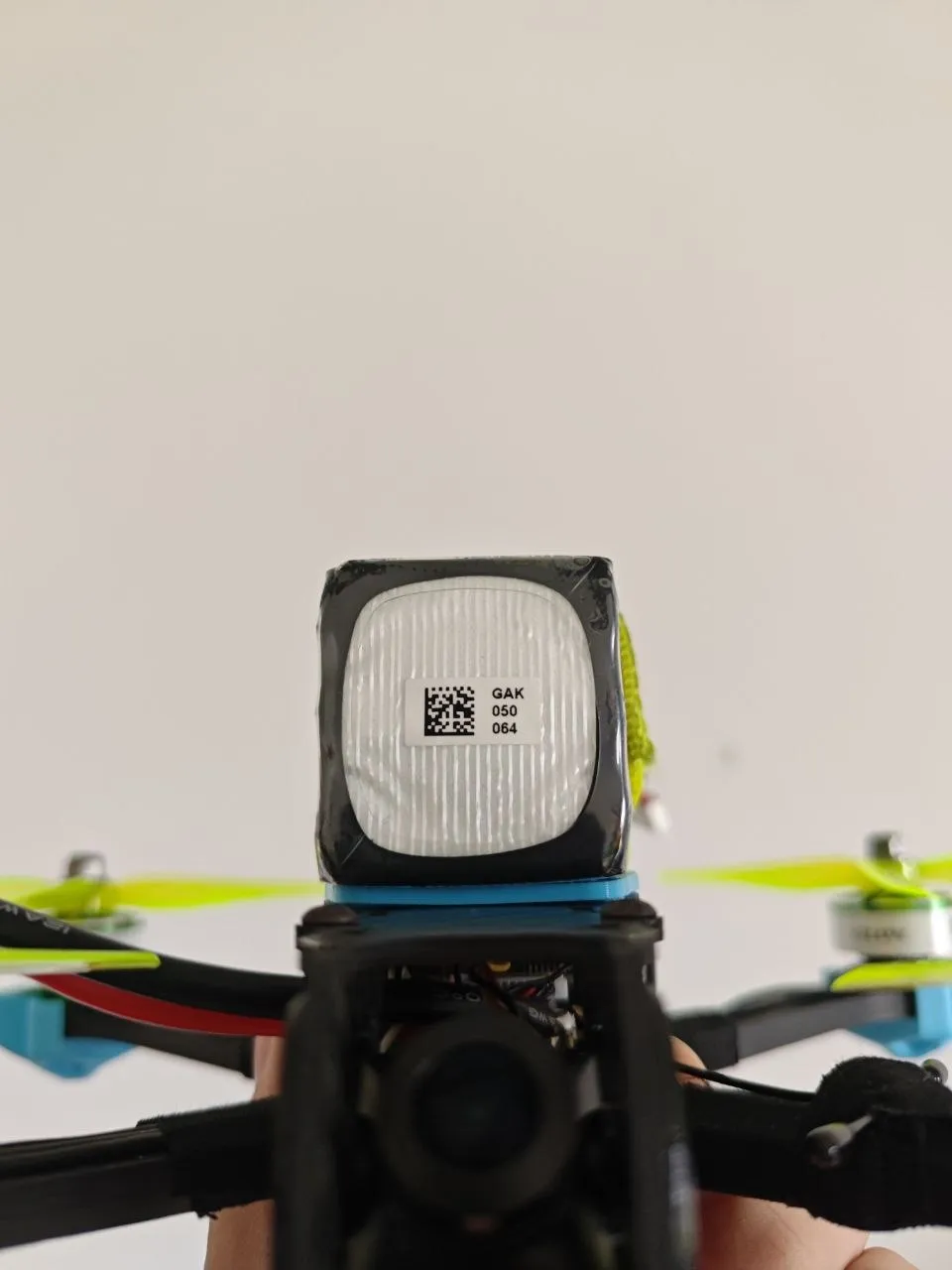

As a bonus, the battery is automatically centered every time it is installed, making battery placement quicker and more consistent.
Features
- Designed specifically for TBS Source One V6
- Provides clearance for top plate screws
- Prevents pressure points on the LiPo battery
- Helps keep the battery centered
- Uses a standard battery strap
- Lightweight and easy to print
Printing
Recommended materials:
- PLA
- PETG
Supports are not required.

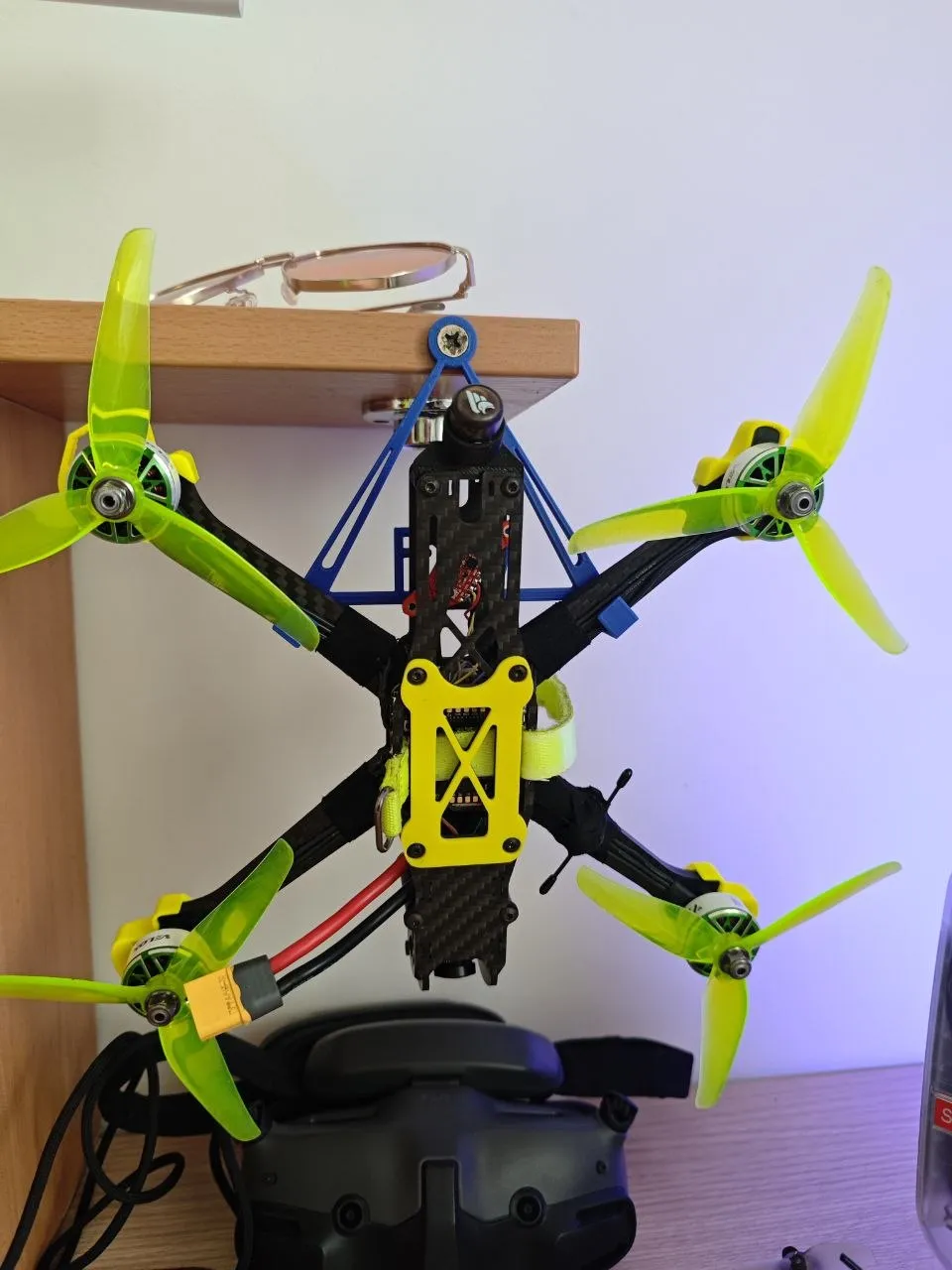

Designed and tested on a 5-inch FPV freestyle build.
