Ring Doorbell (Newest Model) Angled Base 20/30 Deg
Print Profile(1)
Bill of Materials
- 3.5mm diameter or less wood screws x 4: For mounting printed base to door frame
- 15mm length or less countersunk wood/drywall screws x 2: For mounting OEM bracket to printed base, holes are 3mm in diameter
Description
*Edit added 0 degree base as requested*

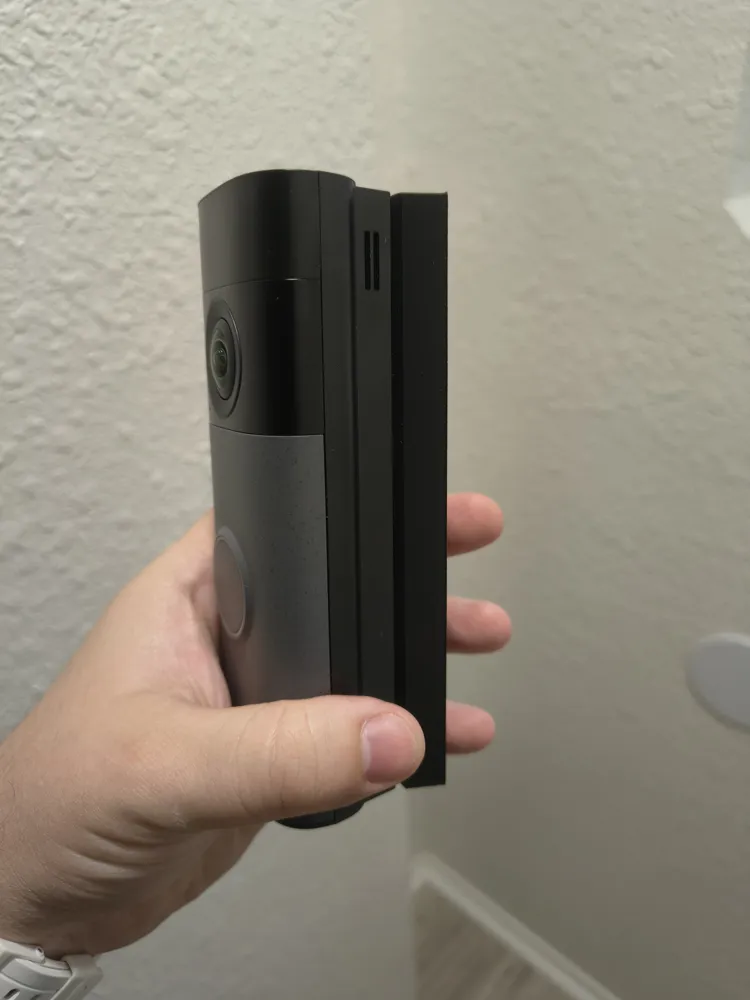

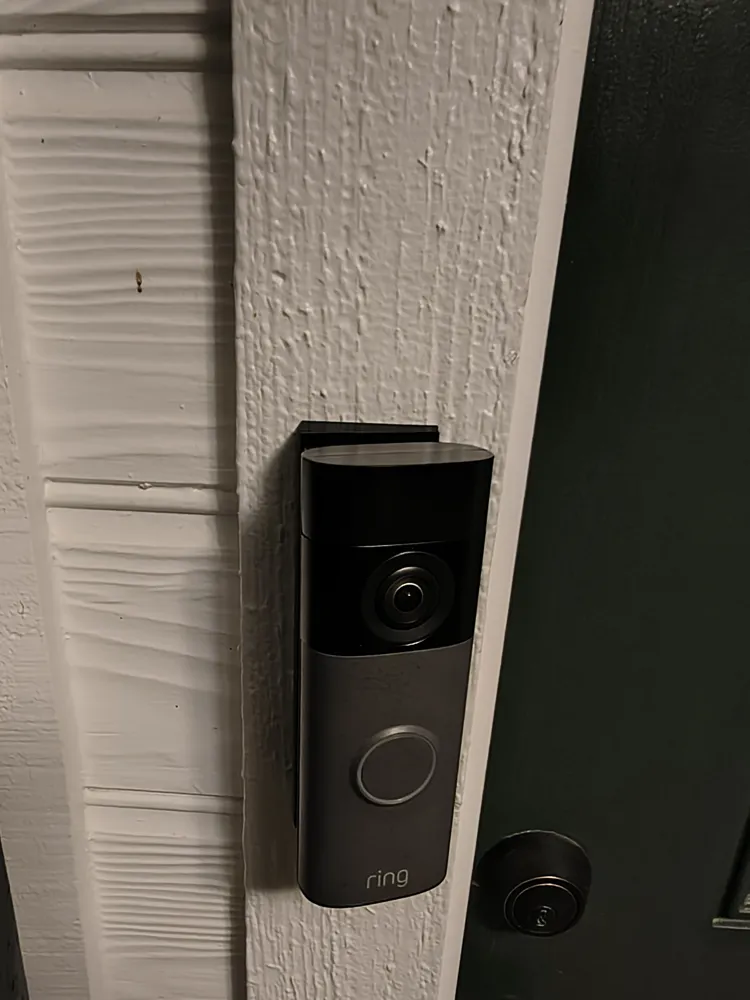

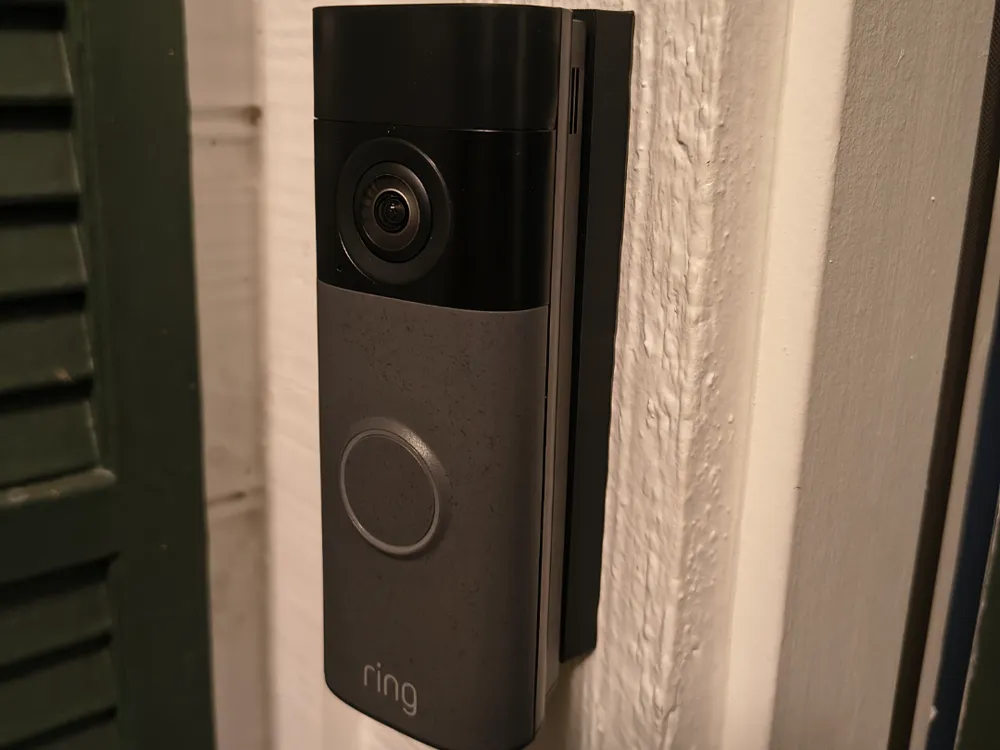

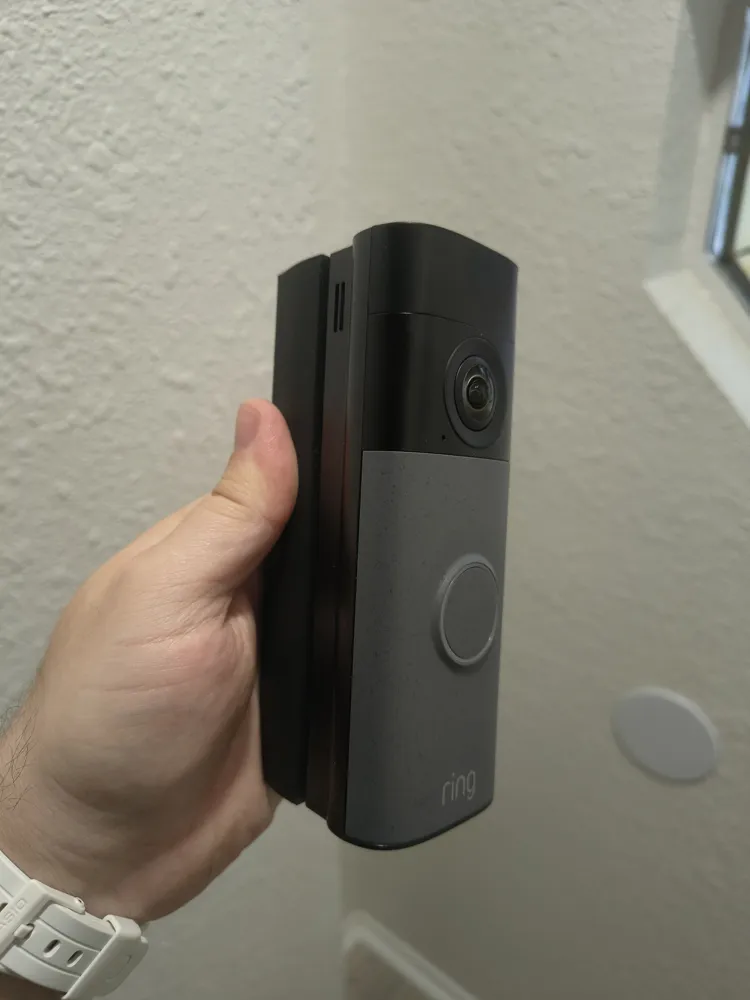

Mount your new Ring doorbell at an angle for better viewing with side entry front doors! Designed specifically for the newest slim 2k retinal models. *Should* work with both the wired and battery versions.

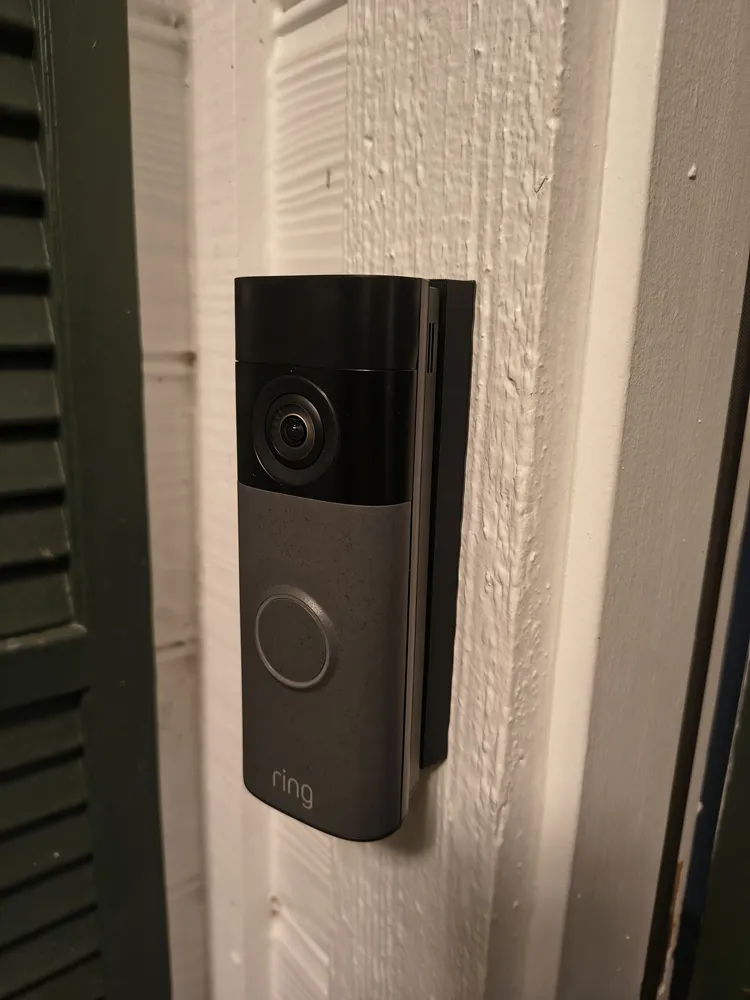

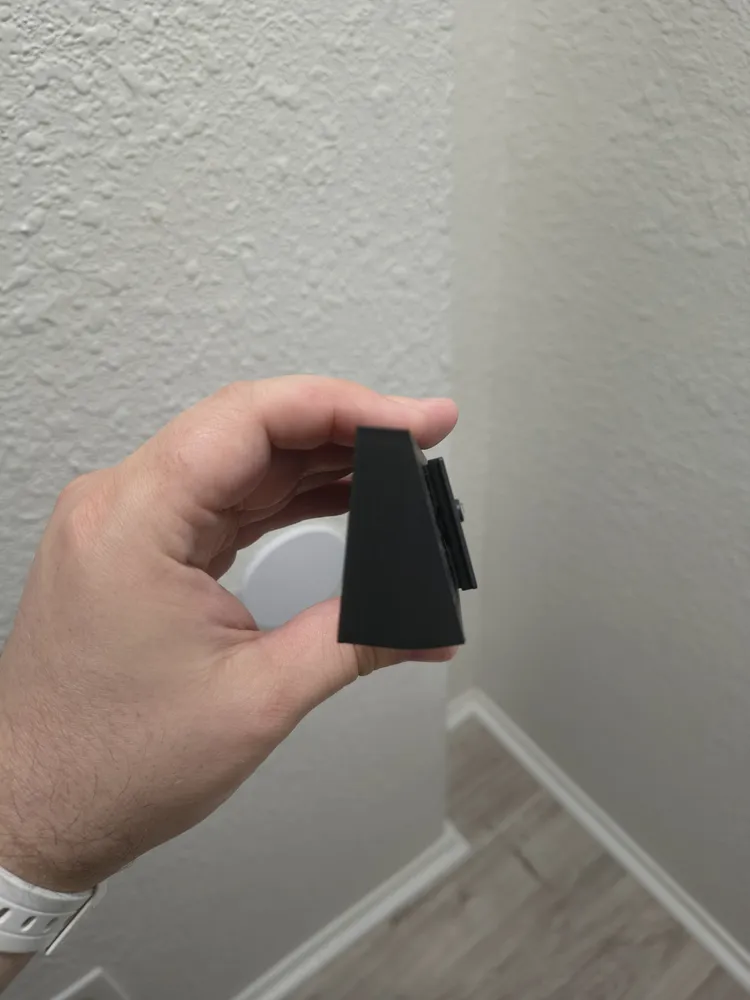

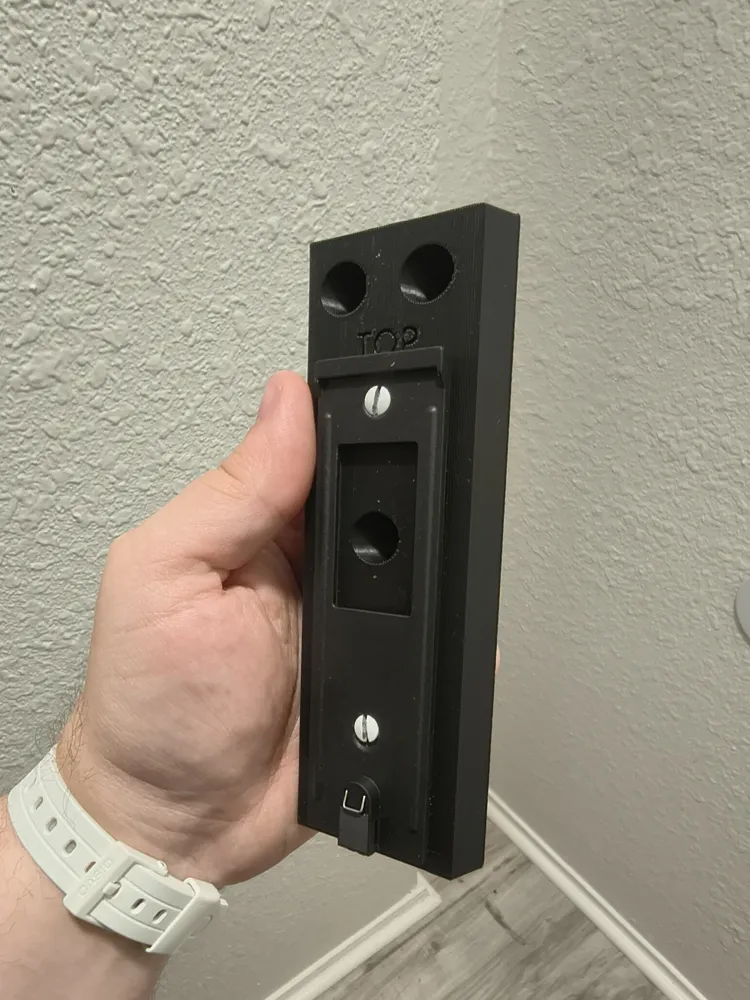

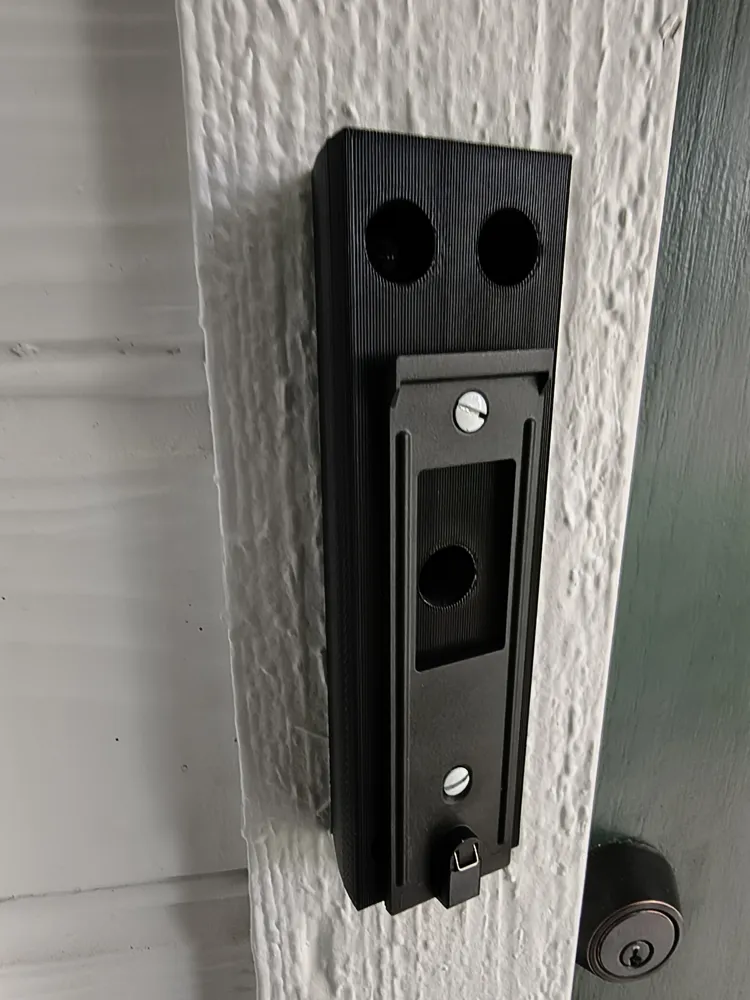

Choose from 20 or 30 degree angles Left or Right facing. Left or right orientation is taken as if viewed looking at the front of the door. (Photos show a 20 degree Right facing base)

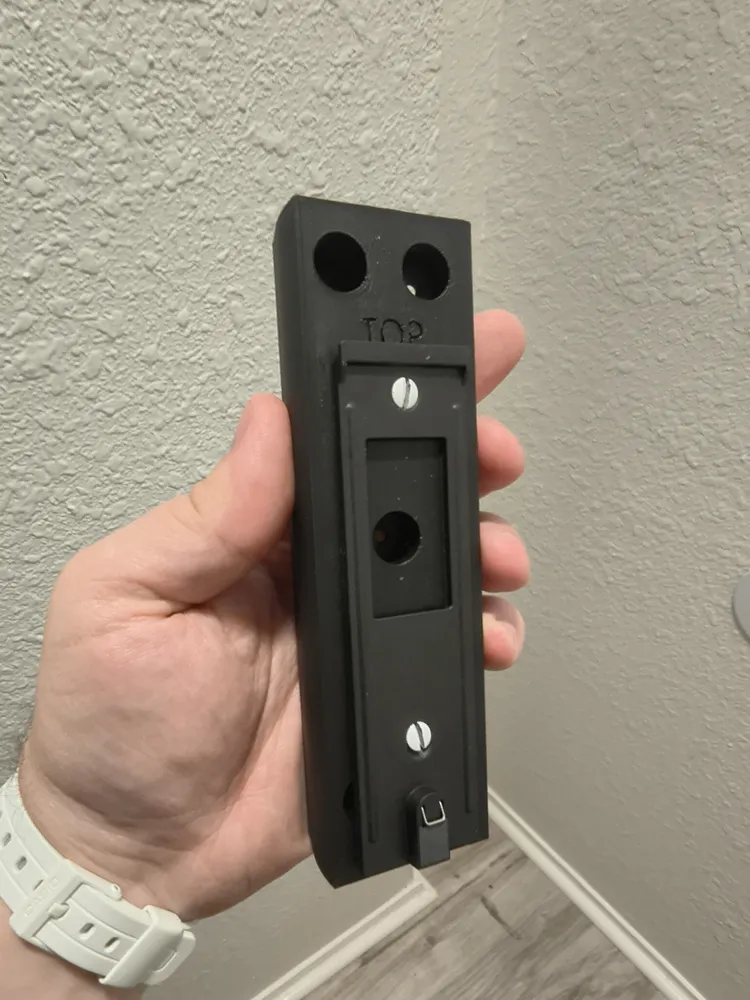

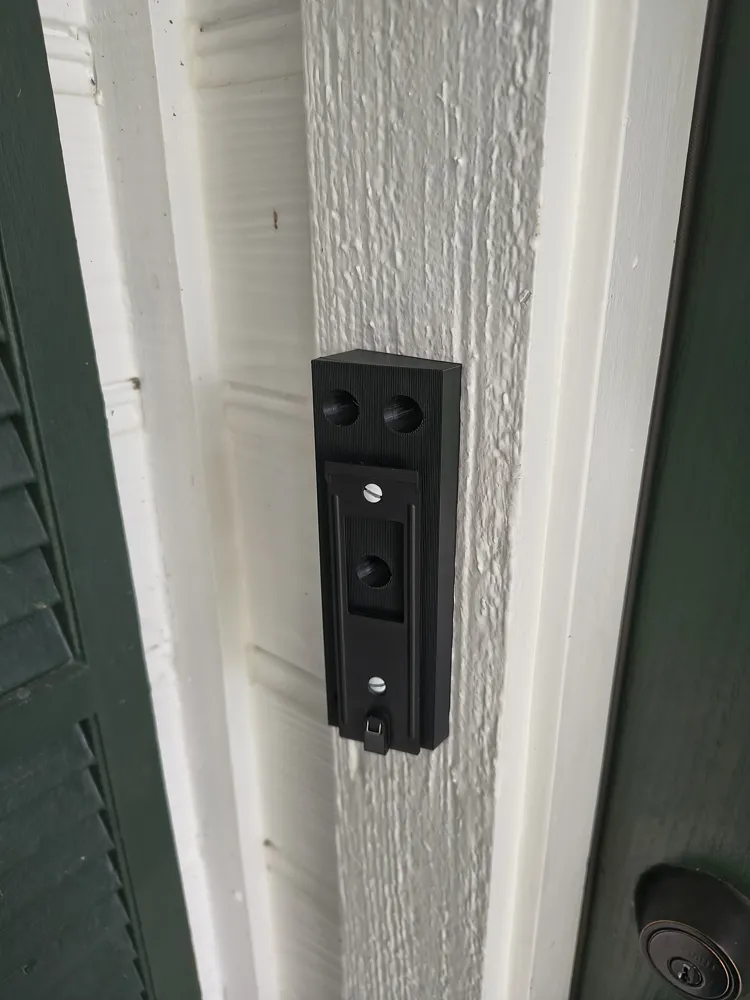

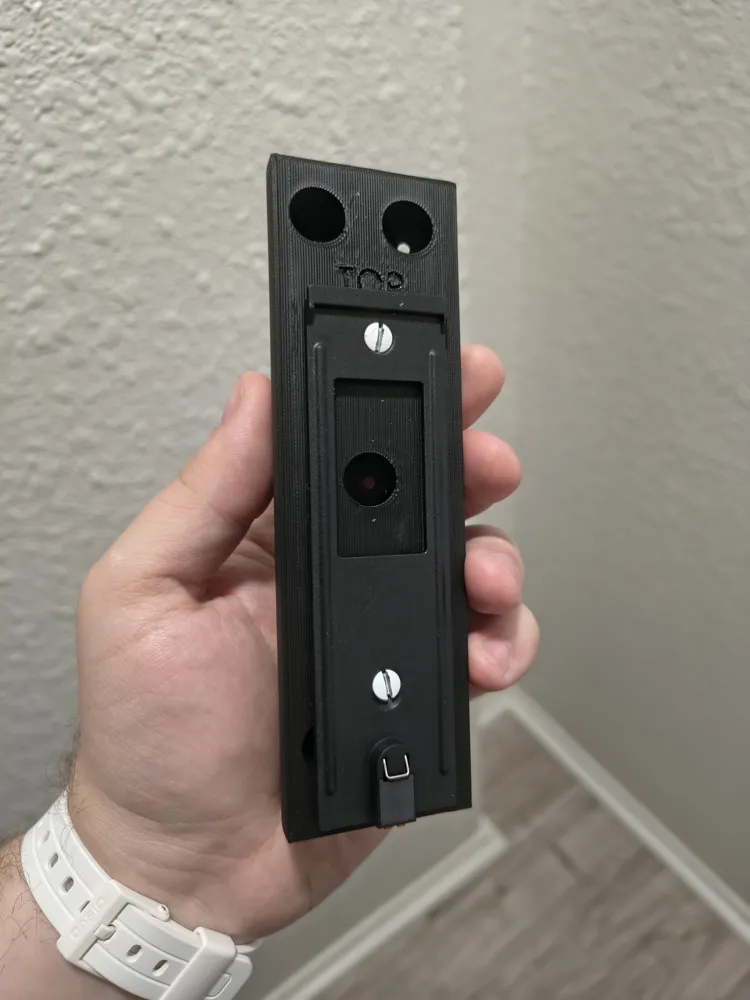

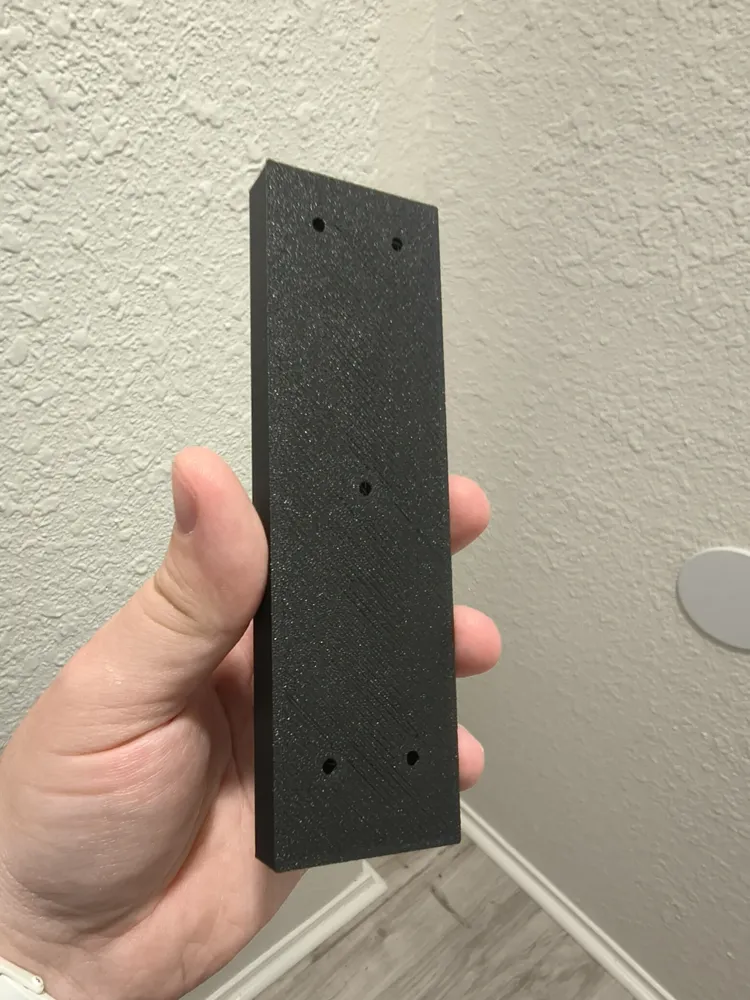

Each model includes a template for drilling the mounting holes. The OEM mount is meant to be screwed into this base with shorter 15mm or less length drywall or wood screws. *Caution* Using the screws provided in your Ring kit may protrude out the side of this base.
Recommend printing in ASA with at least 4-5 walls and 40% infill, so the screws have enough plastic to thread into.
P.S. Please take measurements of your doorbell and OEM mount before printing. I only had the battery version for reference. (The pictures show the first prototype with small center hole, I made the center hole much larger to accommodate the wired version). I hope these help and let me know how they work, or if improvements are needed. Happy printing!
