[Dummy] Trijicon AccuPoint 1-6x24 LPVO

This project is mostly for my enjoyment, any feedback is greatly appreciated, especially with the print configuration since I mostly created the model and commissioned someone else to print it, I have 0 other 3D printing knowledge.

-------------------------------------------------------------------------

This LPVO is most famous for being used on John Wick's TTI AR-15 - or at least a model of its family - and comes with a Trijicon AC22047 Cantilever Mount.

A dummy model meant for decoration on model guns. The adjustment/magnification turrets can be rotated if the tolerances are lose enough, but the large cap on top should certainly be adjustable to allow more or less light into the scope. The adjustment lever should definitely be rotatable. The cantilever mount can be used with any other 30mm scopes.

Hardware needed:

• 2 M4x35mm screws to attach the cantilever mount to a picatinny rail.
• 8 M3x8mm or M3x10mm screws to attach the upper half of the scope rings. If you're new to scope mounts then you can watch the assembly from 4:20s of this video https://www.youtube.com/watch?v=MfGZR_WHRPU
• You might need something to add friction to the mount (e.g. some tape) if the scope doesn't stay put.
• Some parts might have to be cut, sanded down or given superglue to properly fit, especially the adjustment lever.

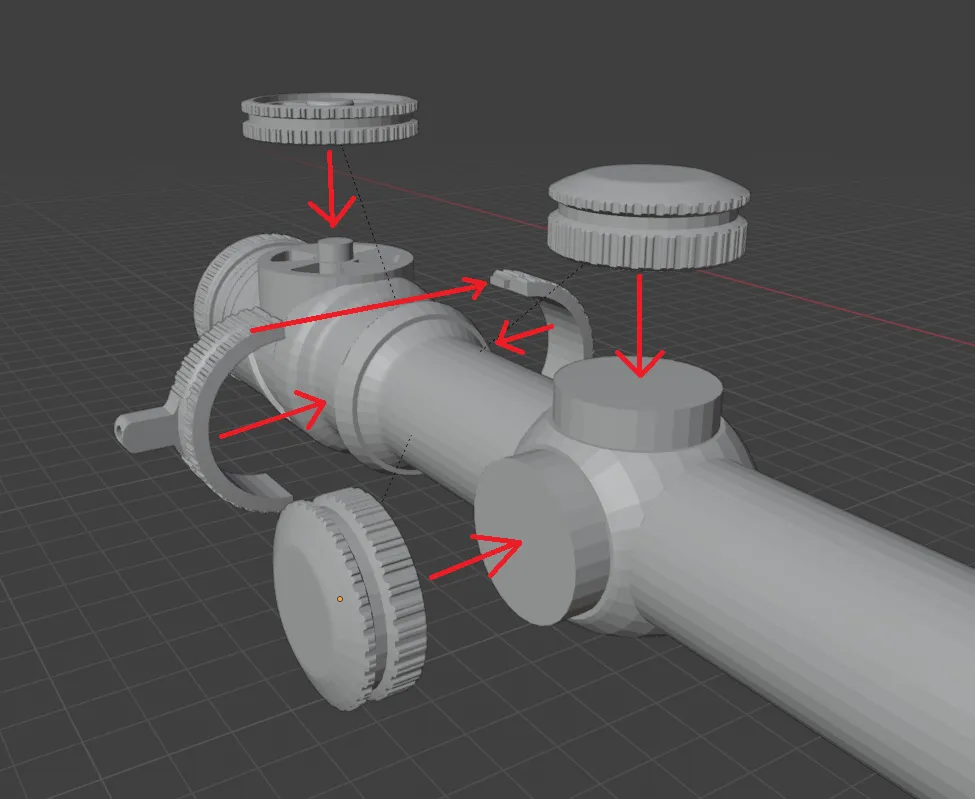

Scope assembly instructions:

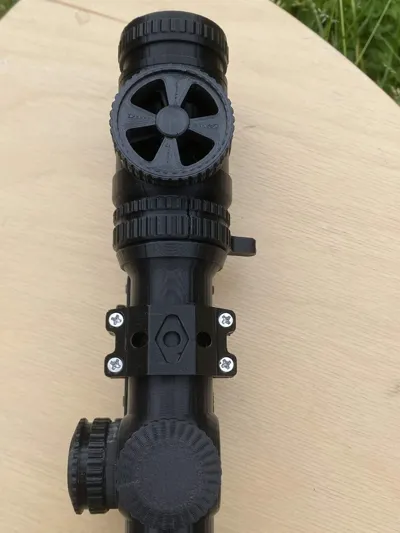

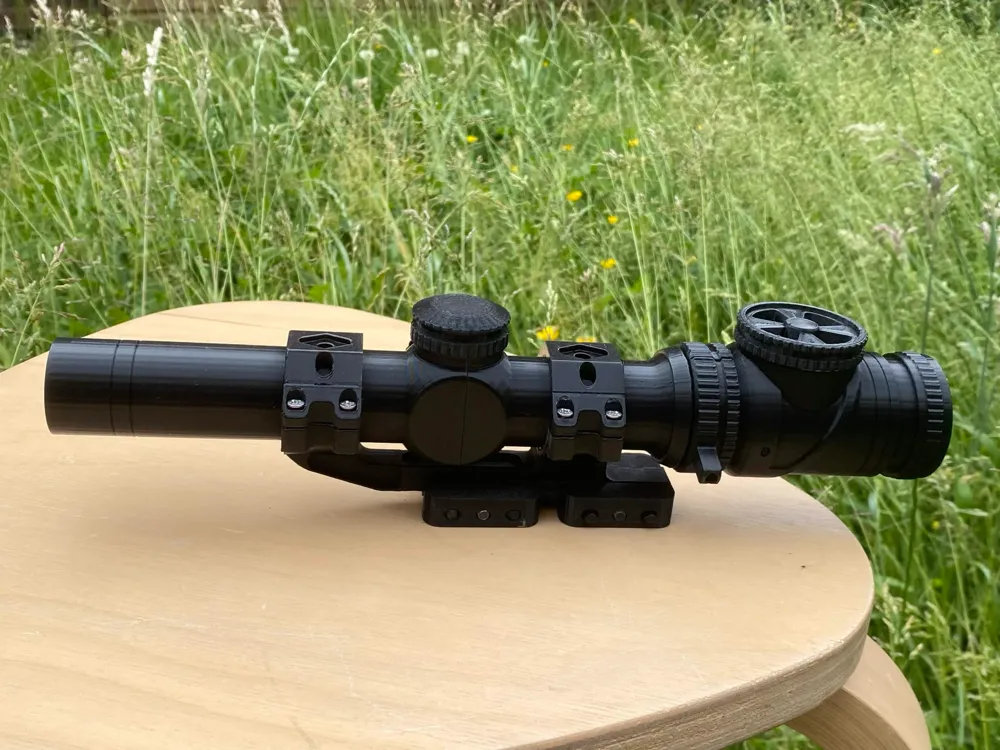

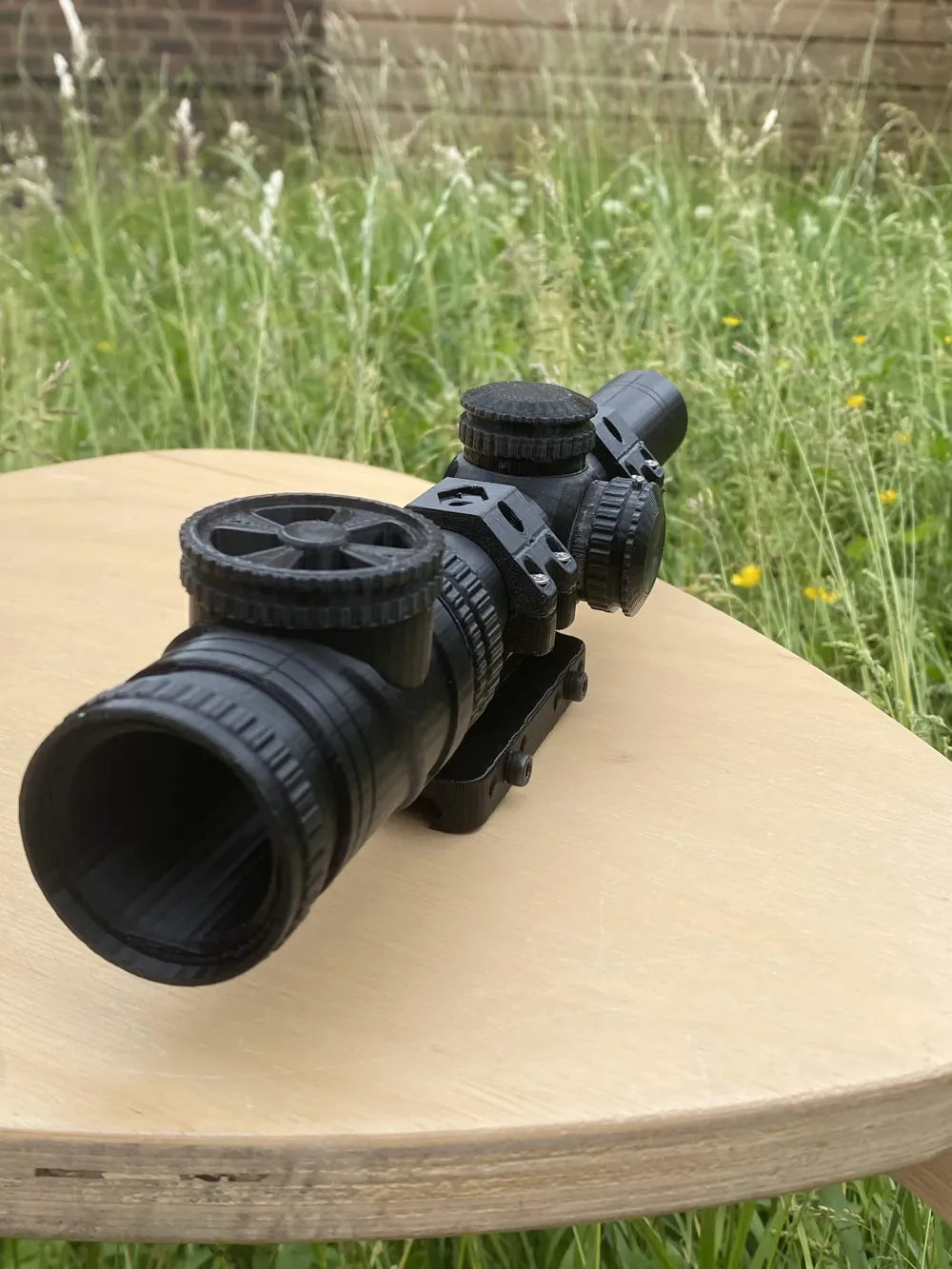

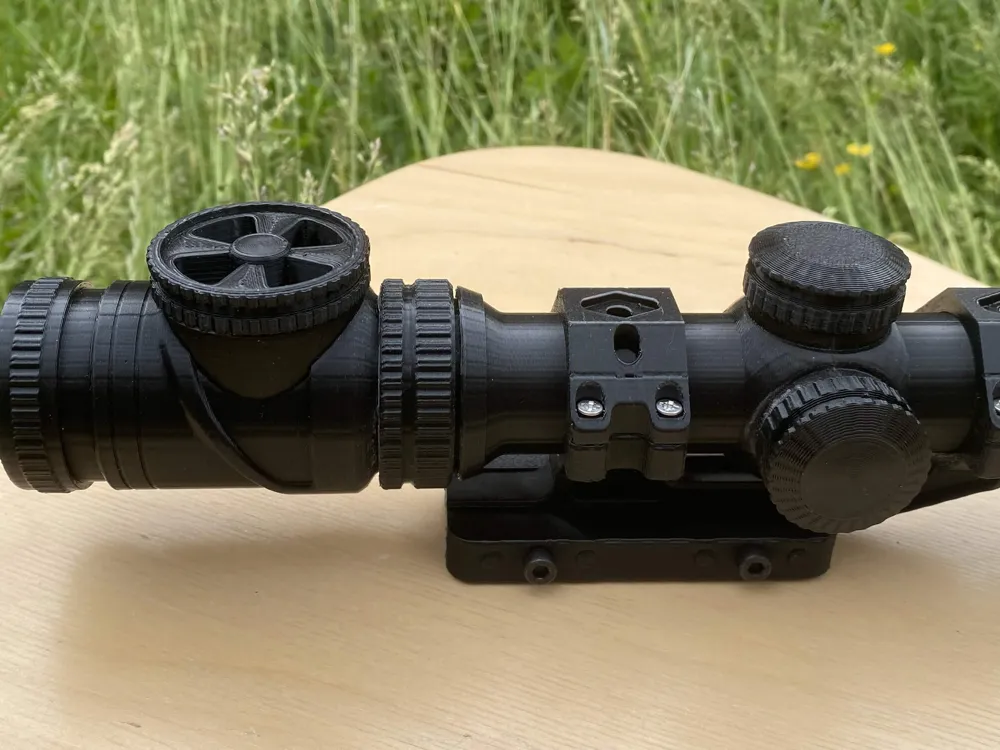

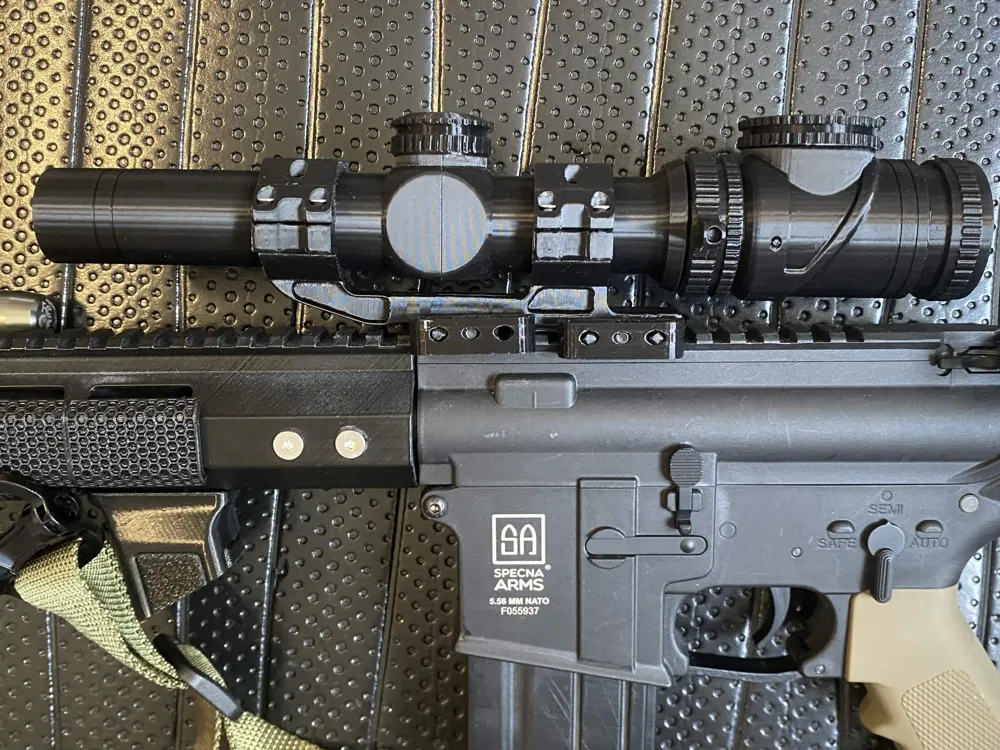

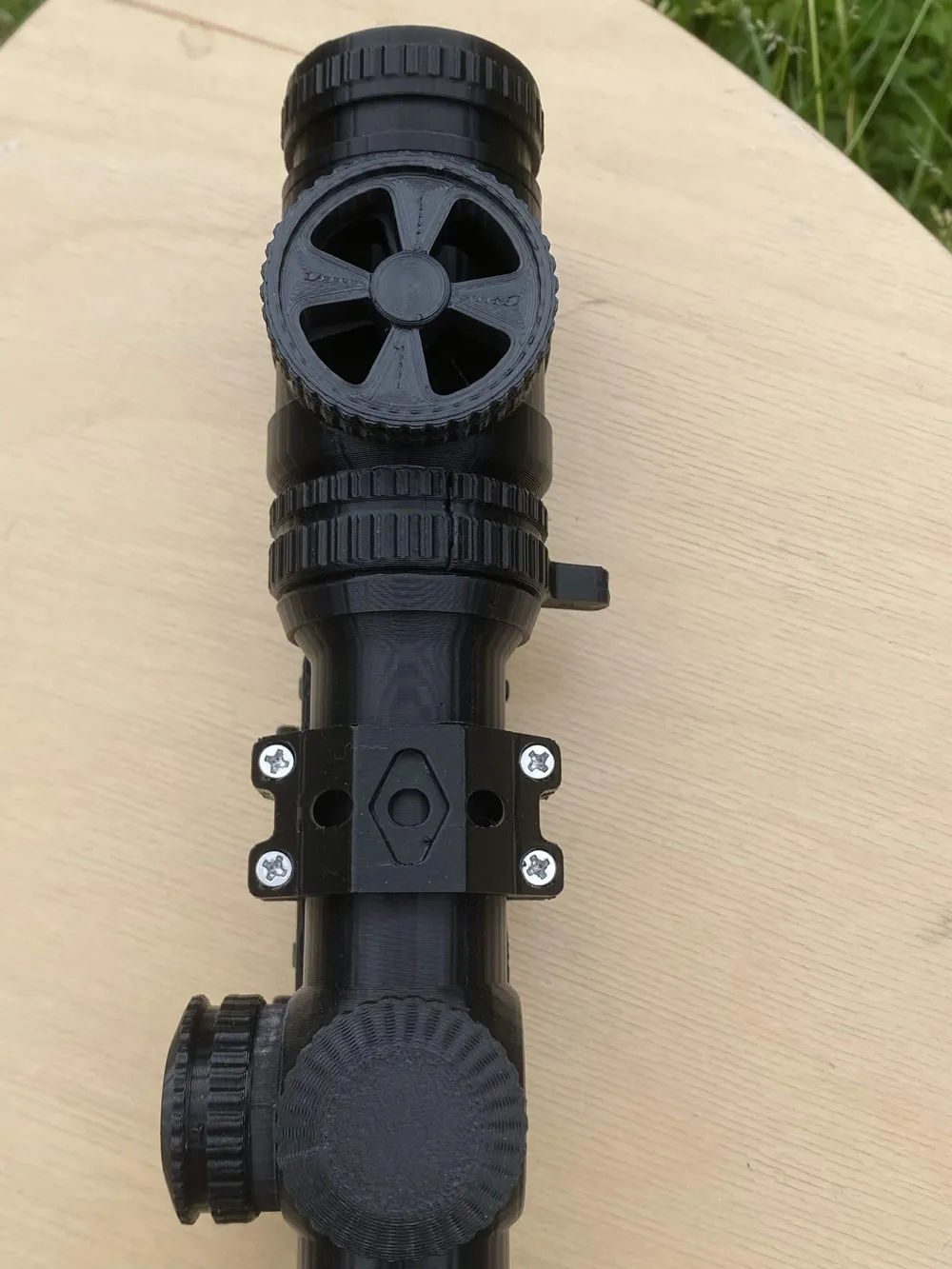

Big thanks to rookie benjamin (@user_3692738035) for testing the print and taking the photos

-------------------------------------------------------------------------

I have a list of prints, mostly dummy optics/optic risers/optic mounts, that I can't really afford to print. If you're interested in testing the prints and sending me showcase photos then feel free to contact me, all files will be free of charge:

• Trijicon MRO + Trijicon 3X Magnifier
• Aimpoint magnifiers with LaRue flip to side mount
• Aimpoint T2 red dot sight v2 (with lens caps that can be removed/rotated)
• ANVL UKON RMR mount for RMR pattern red dot sights
• Unity Tactical RAXIS for B.E Meyers MAWL laser
• Arisaka Low/2.26" Magnifier Mounts
• Geissele 30mm scope mount
• ACR stock for A&K/DS/STS/AKA/JM gel blasters
