Lucky Miner LV08 Riser Stand

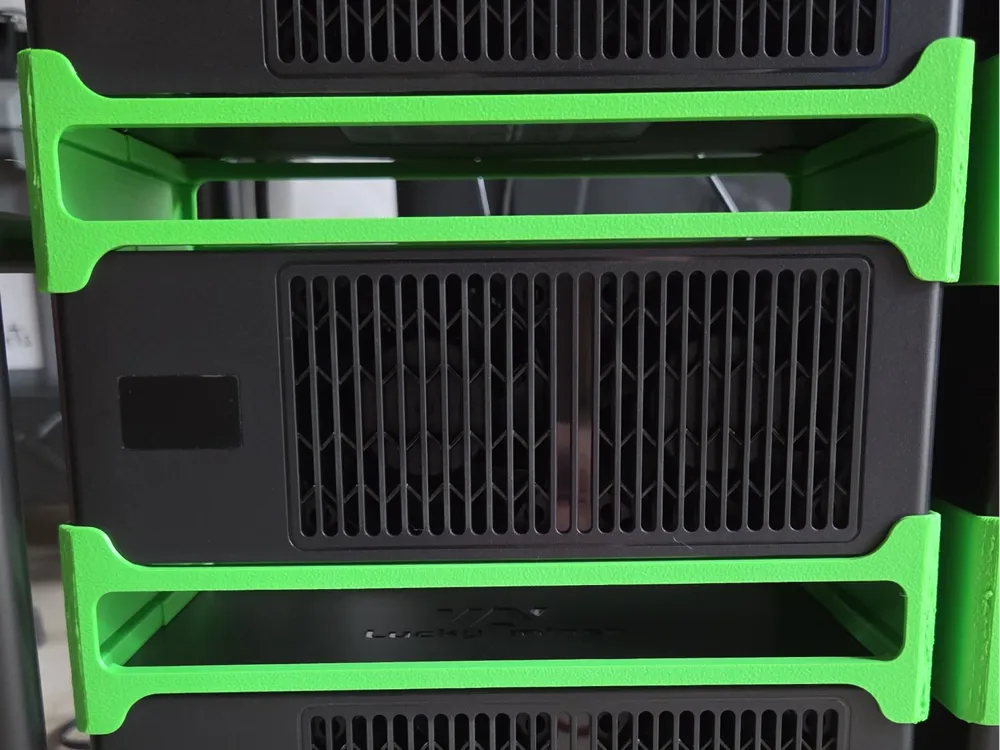

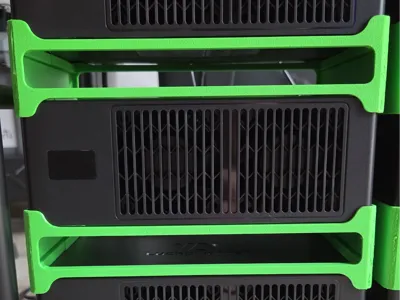

Just another simple riser stand for the Lucky Miner LV08 Bitcoin ASIC lottery miners. I really liked the form factor of the LV08 but I couldn't find anything that worked for me to organize these in a compact and space saving way. The few I did like didn't allow for any air flow between the units and the shells of these get warm enough that I didn't want them heat soaking each other while they were stacked. This riser wraps around the top and bottom of each unit completely for maximum stability. The open frame allows air to flow freely from front to back, just as the LV08 fans are configured.

It is a two-piece part, but it is the same piece twice. I designed it so that it was a mirrored part - no left, no right, just one piece that interlocks the same. If one has a print failure, you don't have to remember which was which, just print the same thing again. I left space in the pocket of the interlock in case you want to throw a few drops of CA / super glue down in there. I would strongly encourage doing so. Or, if you don't mind using supports, you could just fuse the two halves and print as one complete bracket. I didn't want to deal with support and post processing so this design was faster for me.

Tossing this up here for for whoever wants to use it, or feel free to remix it and make it yours.

I printed mine in ASA because I'm just obsessed with ASA right now. But any filament should be fine, just consider the heat depending on your environment.
